Warning:
This symbol indicates precau-
tions and measures which are
essential in protecting the rider
or other persons from severe or
fatal injury.
Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle. Dis-
regarding them may render the
warranty invalid.
Note:
Specific instructions on how to
operate, control, adjust or look
after items of equipment on the
motorcycle.
Important notes
10k41bkg3.book Seite 2 Mittwoch, 26. Mai 2004 9:08 21
Page 3 of 100
1
Introduction
i
Welcome to BMWWe congratulate you on your
choice of a motorcycle from
BMW and welcome you to the
community of BMW riders.
Familiarise yourself with your
new motorcycle, so that you
can ride it safely and confidently
in all traffic situations.
To make sure of this, please
read this Rider's Manual care-
fully before starting to use your
new motorcycle. It contains
important information on how to
operate the controls and how to
make the best possible use of
all the motorcycle's technical
features.In addition, it contains useful
hints and information on the
correct equipment for machine
and rider, to ensure maximum
reliability and safety, and advice
on how to maintain the value of
your motorcycle.
If you have any questions con-
cerning your motorcycle, your
authorised BMW motorcycle
dealer will gladly provide advice
and assistance.
We hope you enjoy reading this
Rider's Manual and wish you
many a pleasant, safe journey
on your BMW motorcycle.
Best wishes,
BMW Motorrad
Welcome to BMW
10k41bkg3.book Seite 1 Donnerstag, 27. Mai 2004 5:30 17
Page 4 of 100
2
Introduction
i

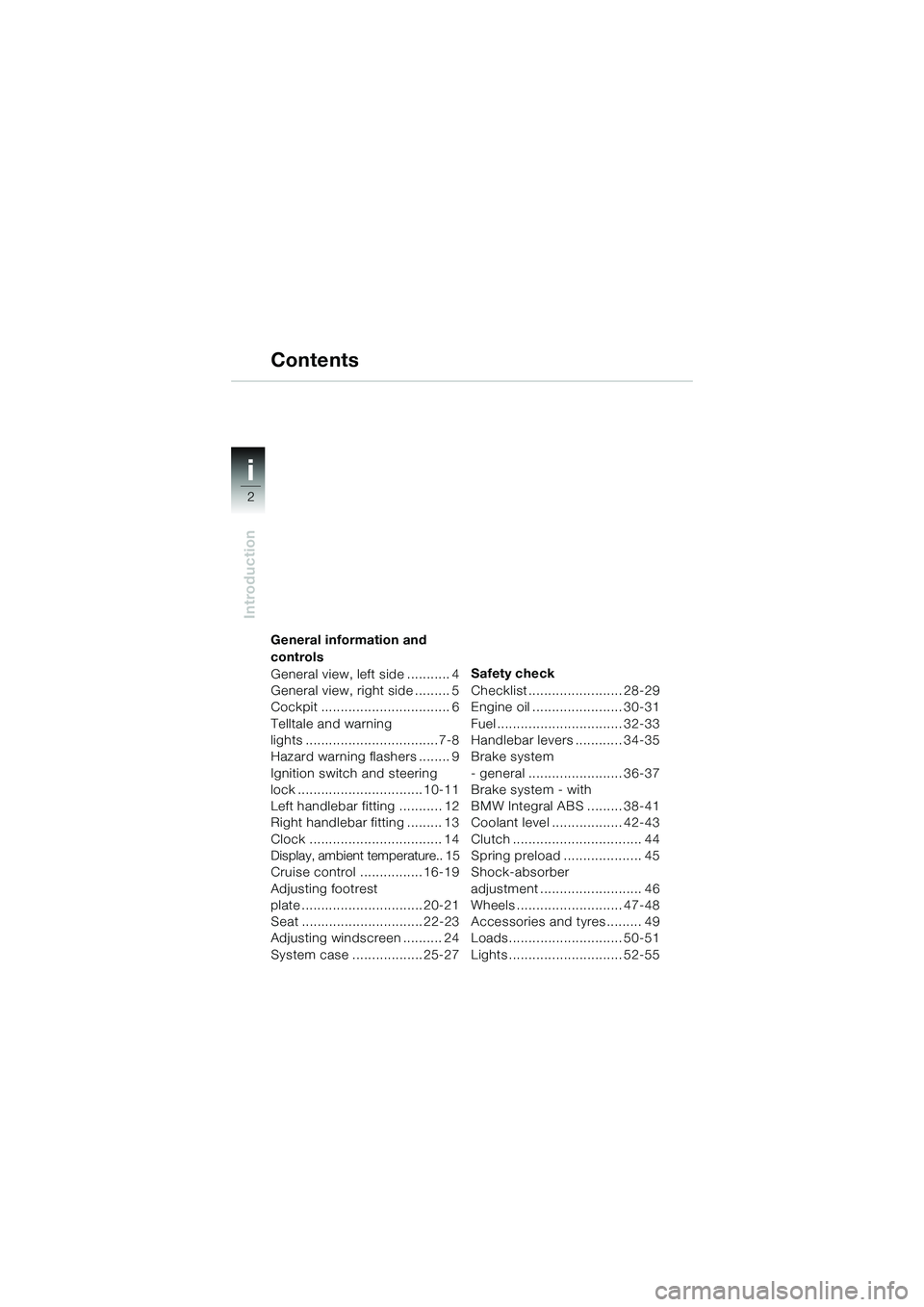

General information and
controls
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning
lights .................................. 7-8
Hazard warning flashers ........ 9
Ignition switch and steering
lock ................................ 10-11
Left handlebar fitting ........... 12
Right handlebar fitting ......... 13
Clock .................................. 14
Display, ambient temperature.. 15
Cruise control ................ 16-19
Adjusting footrest
plate ............................... 20-21
Seat ............................... 22-23
Adjusting windscreen .......... 24
System case .................. 25-27Safety check
Checklist ........................ 28-29
Engine oil ....................... 30-31
Fuel ................................ 32-33
Handlebar levers ............ 34-35
Brake system
- general ........................ 36-37
Brake system - with
BMW Integral ABS ......... 38-41
Coolant level .................. 42-43
Clutch ................................. 44
Spring preload .................... 45
Shock-absorber
adjustment .......................... 46
Wheels ........................... 47-48
Accessories and tyres......... 49
Loads............................. 50-51
Lights ............................. 52-55
Contents
10k41bkg3.book Seite 2 Donnerstag, 27. Mai 2004 5:30 17
Page 5 of 100
3
Introduction
i

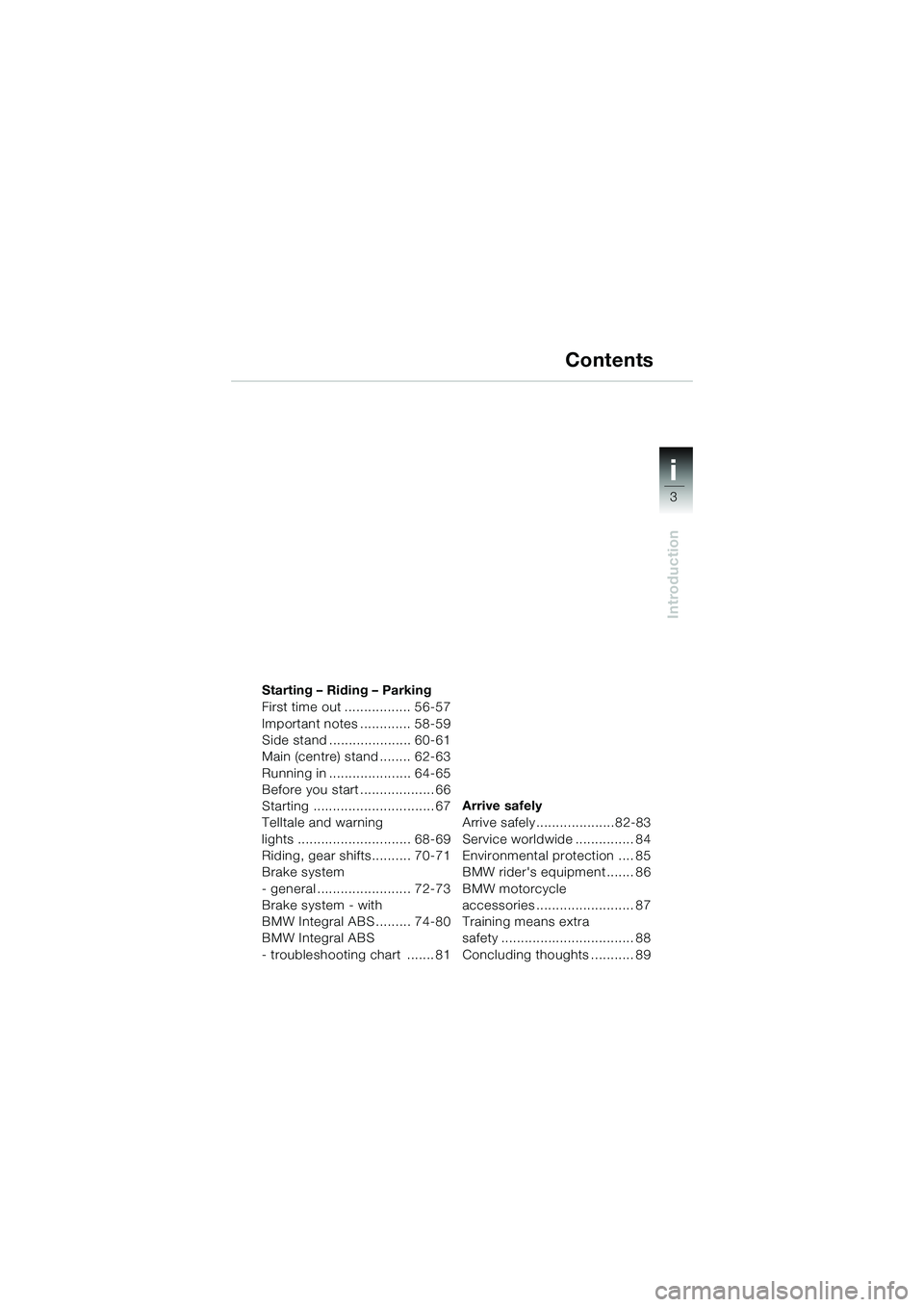

Starting – Riding – Parking
First time out ................. 56-57
Important notes ............. 58-59
Side stand ..................... 60-61
Main (centre) stand ........ 62-63
Running in ..................... 64-65
Before you start ................... 66
Starting ............................... 67
Telltale and warning
lights ............................. 68-69
Riding, gear shifts.......... 70-71
Brake system
- general ........................ 72-73
Brake system - with
BMW Integral ABS......... 74-80
BMW Integral ABS
- troubleshooting chart ....... 81Arrive safely
Arrive safely....................82-83
Service worldwide ............... 84
Environmental protection .... 85
BMW rider's equipment ....... 86
BMW motorcycle
accessories ......................... 87
Training means extra
safety .................................. 88
Concluding thoughts ........... 89
Contents
10k41bkg3.book Seite 3 Donnerstag, 27. Mai 2004 5:30 17
Page 6 of 100
4
General information and controls
1

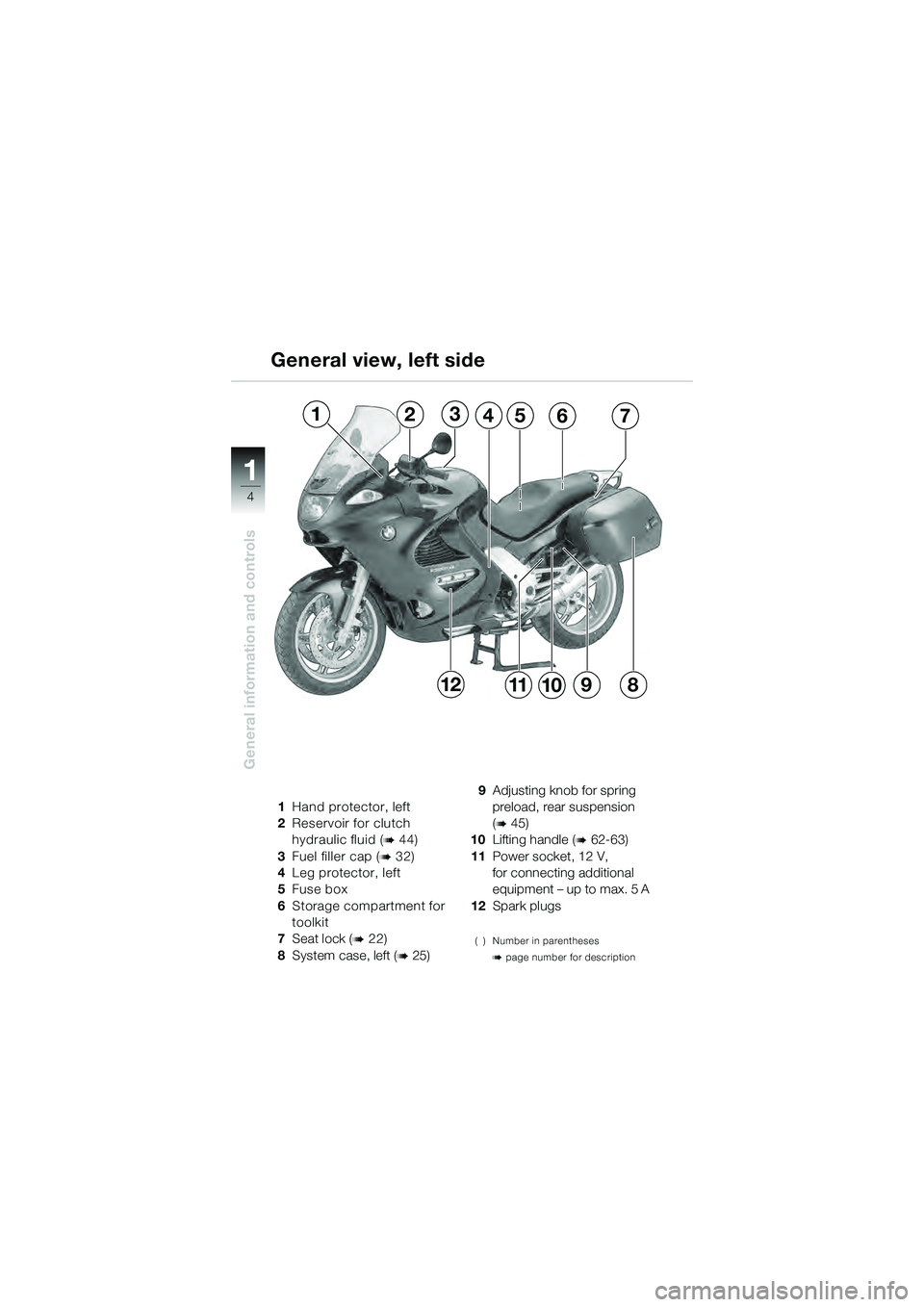

General view, left side
1Hand protector, left
2 Reservoir for clutch
hydraulic fluid (
44)
3 Fuel filler cap (
32)
4 Leg protector, left
5 Fuse box
6 Storage compartment for
toolkit
7 Seat lock (
22)
8 System case, left (
25) 9
Adjusting knob for spring
preload, rear suspension
(
45)
10 Lifting handle (
62-63)
11 Power socket, 12 V,
for connecting additional
equipment – up to max. 5 A
12 Spark plugs
( ) Number in parentheses
page number for description
1265437
12111098
10k4101g3.fm Seite 4 Mittwoch, 9. Juni 2004 3:23 15
Page 7 of 100
5
General information and controls
1
General view, right side
13Luggage rack
14 Brake-fluid reservoir for
front brake (
40)
15 Windscreen, electrically
adjustable (
24)
16 Hand protector, right
17 Engine oil filler neck
(
31)
18 Oil level sight glass, engine
(
31)
19 Leg protector, right
20 VIN 21
Rear suspension strut,
shock-absorber adjuster
(
46)
22 Brake-fluid reservoir for rear
brake (
41)
23 System case, right (
25)
24 Type plate
( ) Number in parentheses
page number for description
13141516
24
23212019181722
10k41bkg3.book Seite 5 Donnerstag, 27. Mai 2004 5:30 17
Page 8 of 100
6
General information and controls
1
1Fuel gauge ( 32)
2 Trip meter reset knob
3 Speedometer
4 Odometer
5 Trip meter
6 Revolution counter (
64) 7
Coolant temperature gauge
A Engine cold
B Engine at normal oper-
ating temperature
C Engine overheated
(
69)
8 Telltale and warning lights
(
7, 8)
9 Ignition switch and steering
lock (
10, 11)
( ) Number in parentheses
page number for description

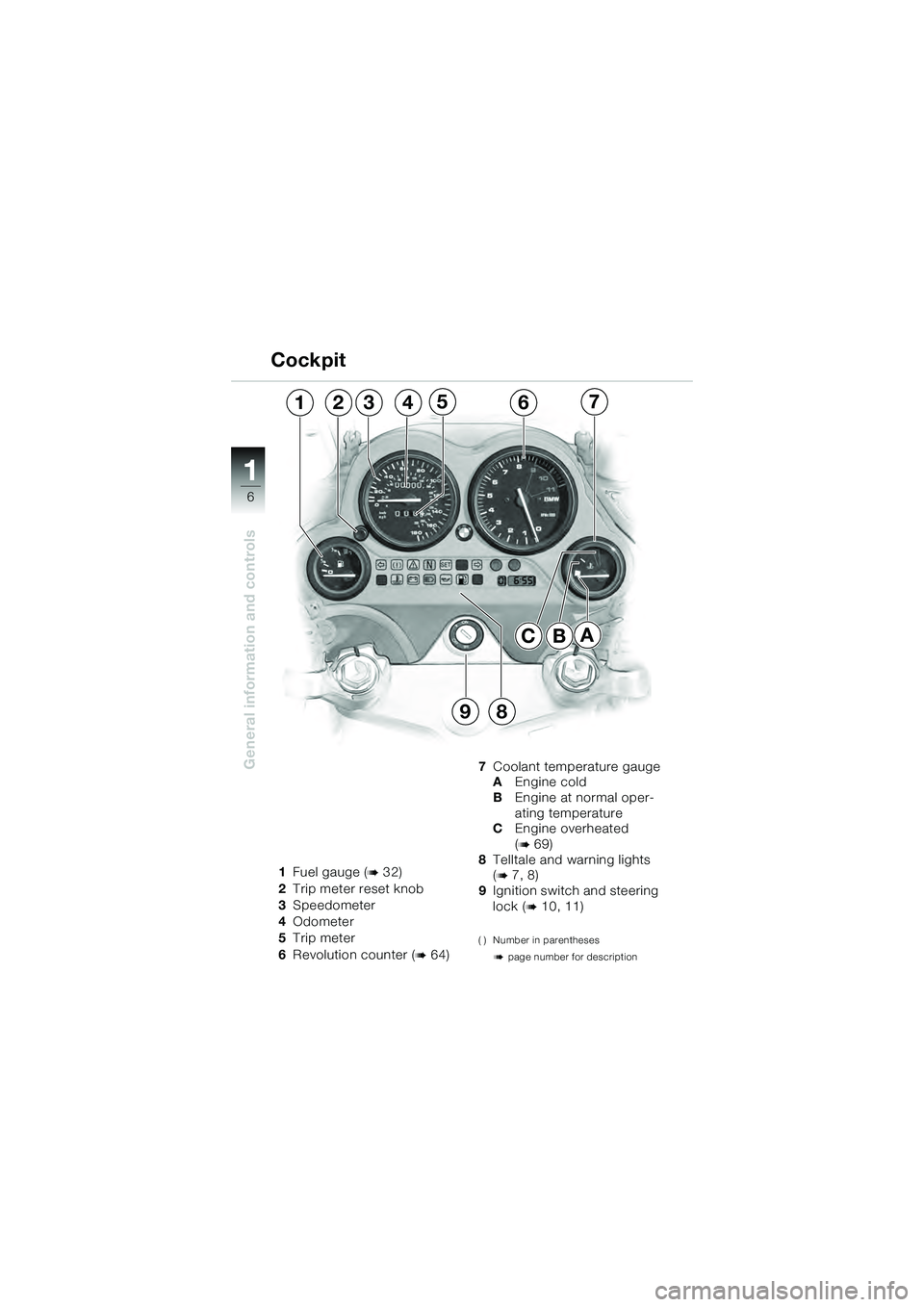

Cockpit
CA
1234567
98
B
10k41bkg3.book Seite 6 Donnerstag, 27. Mai 2004 5:30 17
Page 9 of 100
7
General information and controls
1
1Telltale light, left turn indica-
tor repeater green
2 Warning light ABS
red
( 68)
3 Warning light, general
red
( 68)
4 Telltale light, neutral telltale
light green
( 66)
5 Telltale light, cruise control
yellow
OE ( 16-19)
OEOptional extra
*
n depending on national-market
specification
6 Telltale light, right turn indi-
cator green
7 Display, time/ambient tem-
perature,
buttons A andB: set clock/
toggle °C - °F (
14-15)
8 Gear indicator
( ) Number in parentheses
page number for description

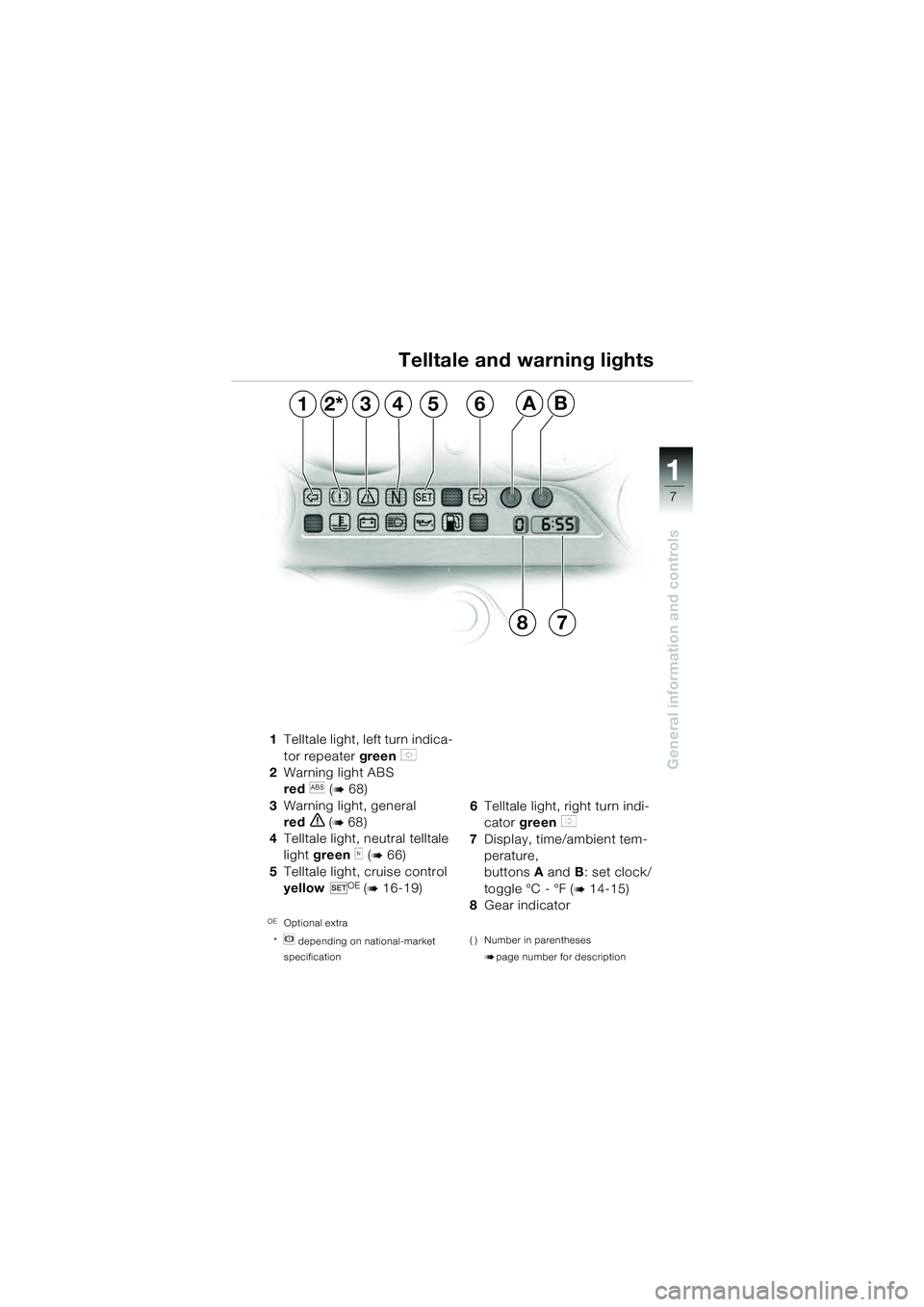

Telltale and warning lights
78
6A14B2*35
10k41bkg3.book Seite 7 Donnerstag, 27. Mai 2004 5:30 17
Page 10 of 100
8
General information and controls
1

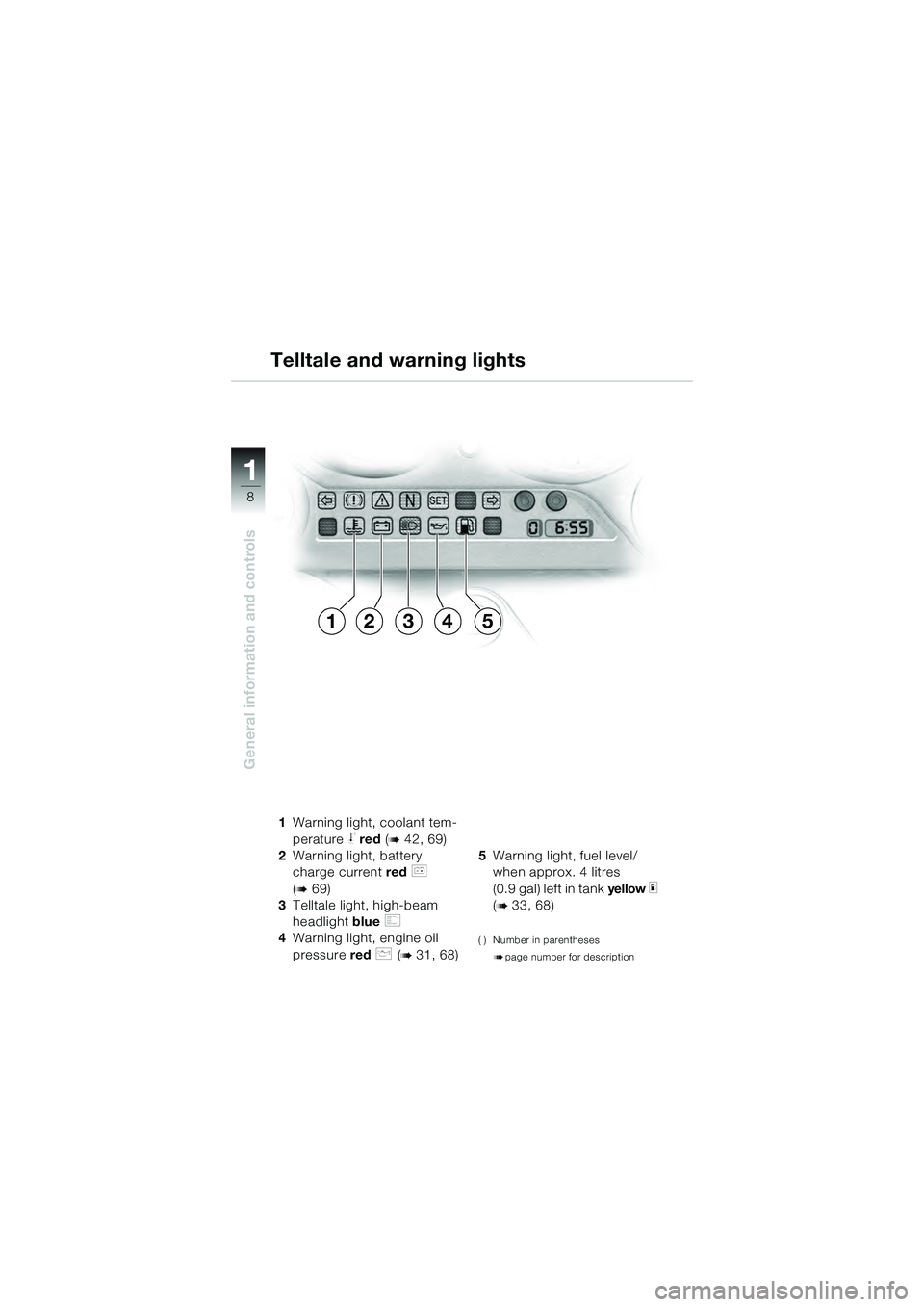

Telltale and warning lights
1Warning light, coolant tem-
perature
red ( 42, 69)
2 Warning light, battery
charge current red
( 69)
3 Telltale light, high-beam
headlight blue
4 Warning light, engine oil
pressure red
\b ( 31, 68) 5
Warning light, fuel level/
when approx. 4 litres
(0.9 gal) left in tank yellow
( 33, 68)
( ) Number in parentheses
page number for description
34512
10k41bkg3.book Seite 8 Donnerstag, 27. Mai 2004 5:30 17
