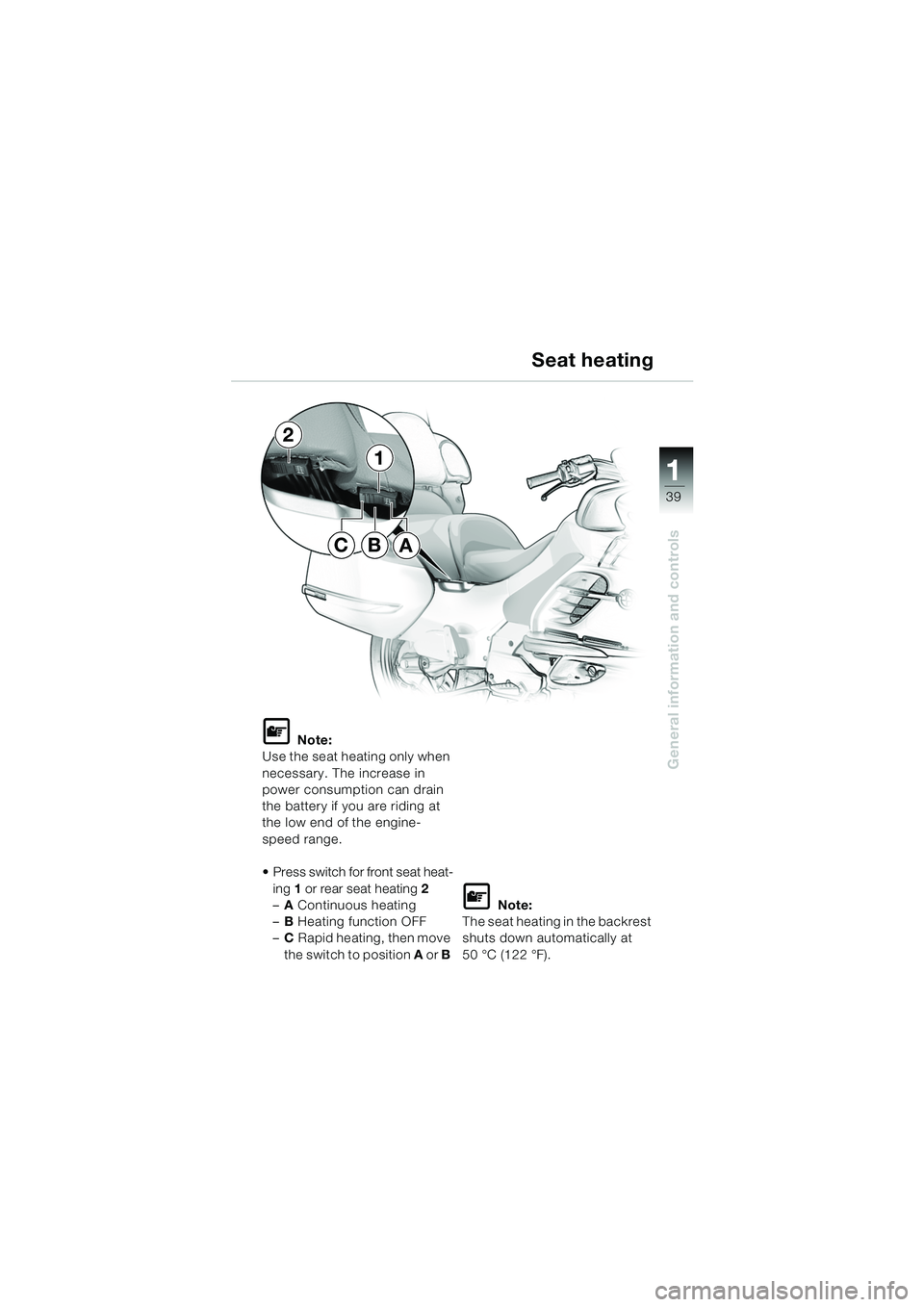

Seat heating
L Note:
Use the seat heating only when
necessary. The increase in
power consumption can drain
the battery if you are riding at
the low end of the engine-
speed range.
Press switch for front seat heat- ing 1 or rear seat heating 2
– A Continuous heating
– B Heating function OFF
– C Rapid heating, then move
the switch to position A or B
L Note:
The seat heating in the backrest
shuts down automatically at
50 °C (122 °F).
2
1
ABC
10LTbkg6.book Seite 39 Freitag, 1. Juli 2005 8:53 08
Page 42 of 108
40
General information and controls
1

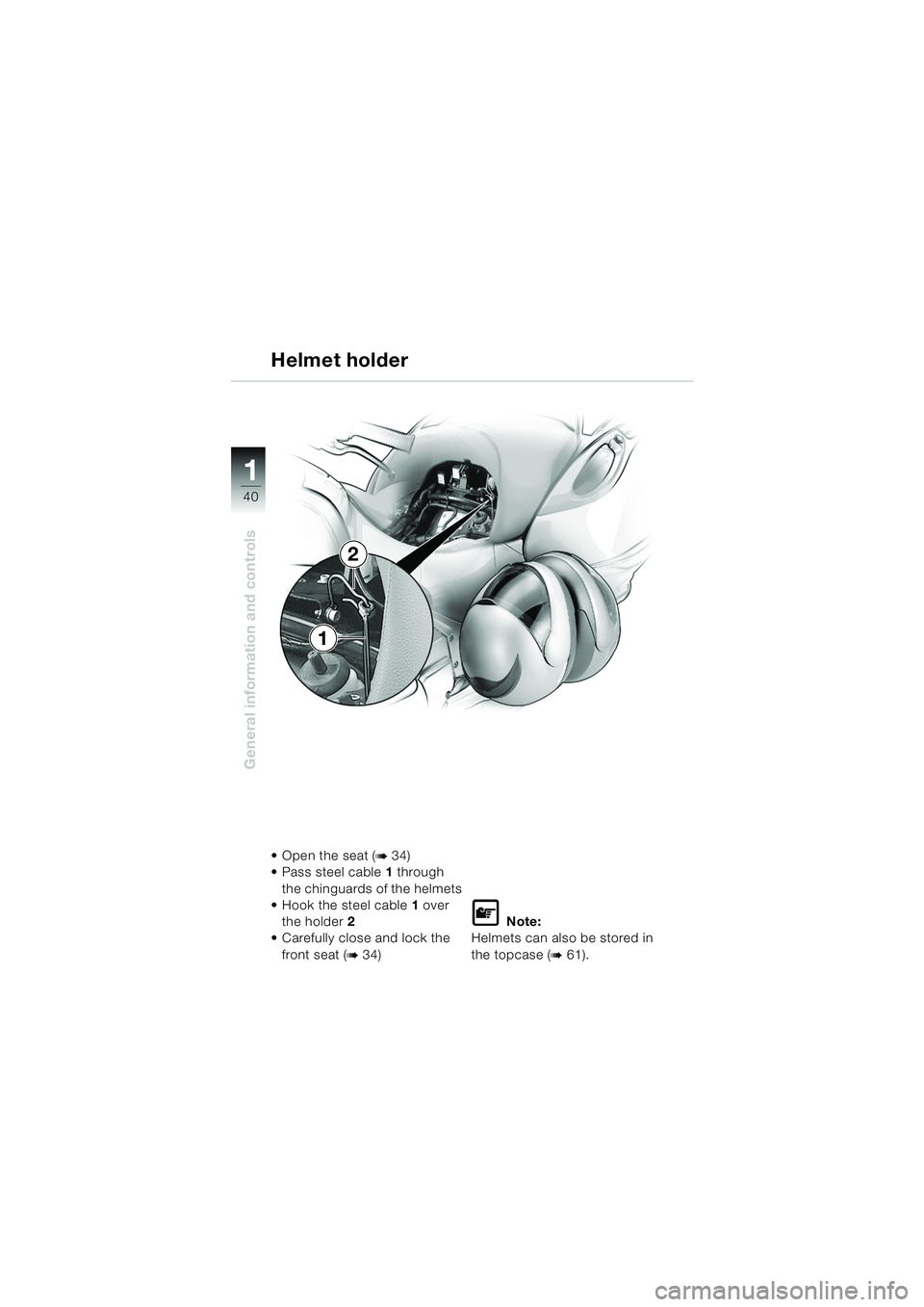

Helmet holder
Open the seat (b34)
Pass steel cable 1 through
the chinguards of the helmets
Hook the steel cable 1 over
the holder 2
Carefully close and lock the
front seat (
b34)
L Note:
Helmets can also be stored in
the topcase (
b61).
1
2
10LTbkg6.book Seite 40 Freitag, 1. Juli 2005 8:53 08
Page 43 of 108
22
41
Safety check
Checklist
Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can then attend to it
before the journey starts
(
bMaintenance Instructions),
or have it carried out by a spe-
cialist workshop, preferably an
authorised BMW motorcycle
dealer. This is to ensure that
your motorcycle complies with
road-vehicle use and safety
laws.
Your vehicle must be in perfect
technical order: this is a basic
prerequisite for your safety and
the safety of other road users. For this reason, check the
details in the following sections
before you start the journey:
– Fuel level
– Positions of the handlebar
levers
–Brake fluid level
– Clutch fluid level
–Brakes
– Warning lights and telltale lights
– Spring preload
– Wheel rim and tyre condition, tread depth and tyre pres-
sures
– Load, gross weight
–Lights
– Coolant level
– Check regularly (every time you stop for fuel), on the basis
of the following section:
– Engine oil level
(every second/third stop for
fuel)
– Brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
motorcycle dealer.
He will provide the necessary
advice and assistance.
10LTbkg6.book Seite 41 Freitag, 1. Juli 2005 8:53 08
Page 44 of 108
42
Safety check
2

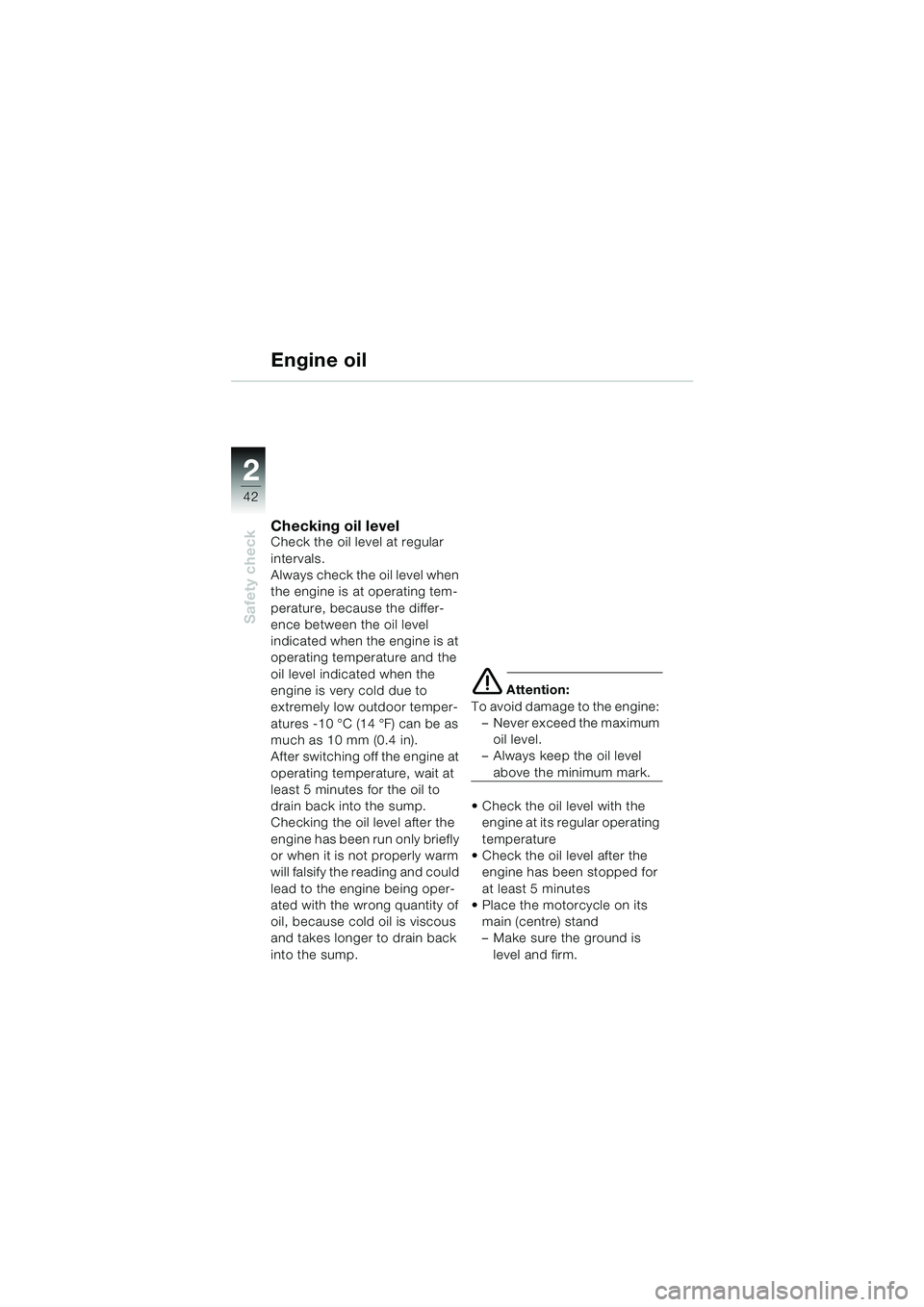

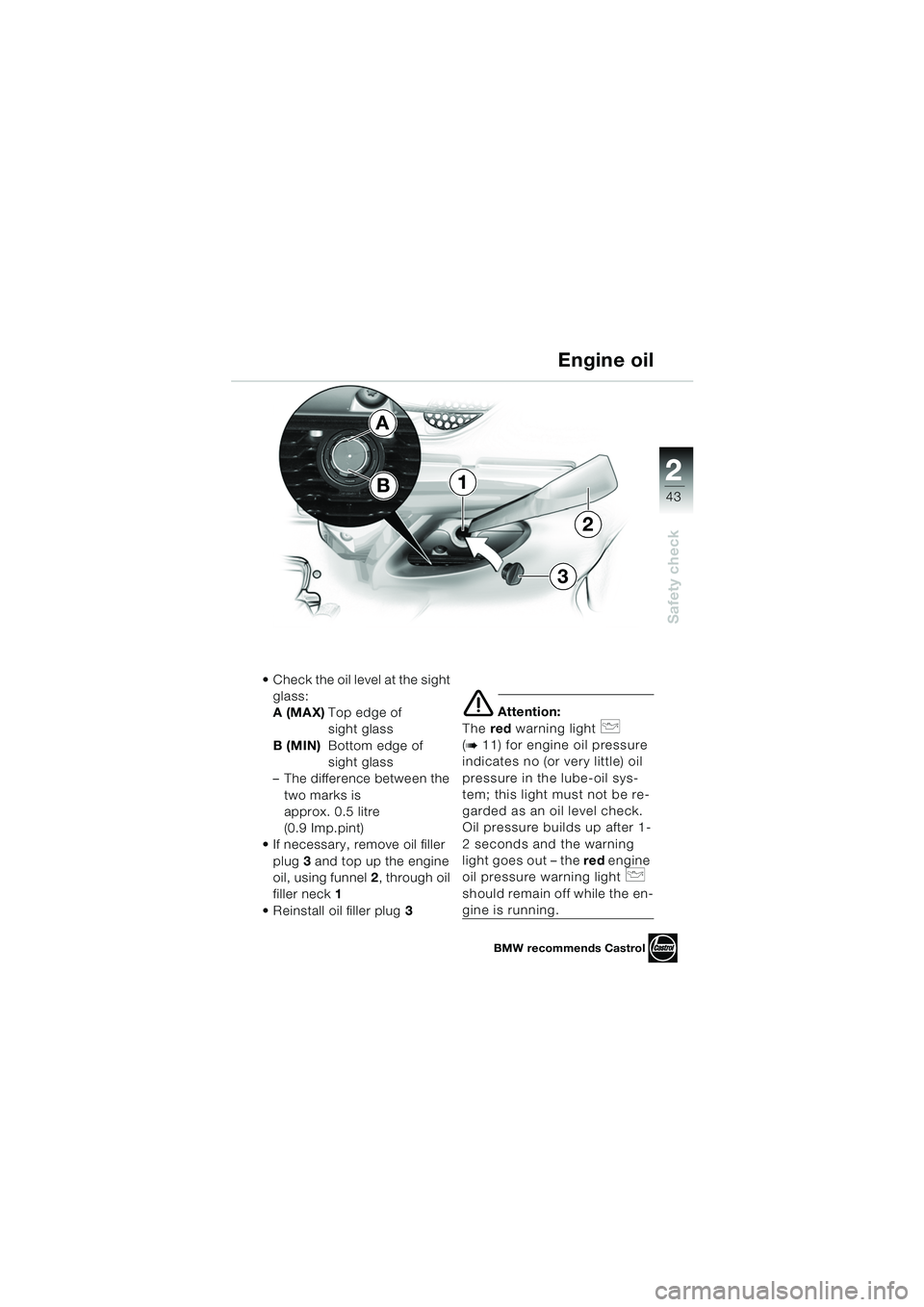

Engine oil
Checking oil levelCheck the oil level at regular
intervals.
Always check the oil level when
the engine is at operating tem-
perature, because the differ-
ence between the oil level
indicated when the engine is at
operating temperature and the
oil level indicated when the
engine is very cold due to
extremely low outdoor temper-
atures -10 °C (14 °F) can be as
much as 10 mm (0.4 in).
After switching off the engine at
operating temperature, wait at
least 5 minutes for the oil to
drain back into the sump.
Checking the oil level after the
engine has been run only briefly
or when it is not properly warm
will falsify the reading and could
lead to the engine being oper-
ated with the wrong quantity of
oil, because cold oil is viscous
and takes longer to drain back
into the sump.
e Attention:
To avoid damage to the engine: – Never exceed the maximum
oil level.
– Always keep the oil level
above the minimum mark.
Check the oil level with the engine at its regular operating
temperature
Check the oil level after the engine has been stopped for
at least 5 minutes
Place the motorcycle on its
main (centre) stand
– Make sure the ground is level and firm.
10LTbkg6.book Seite 42 Freitag, 1. Juli 2005 8:53 08
Page 45 of 108
22
43
Safety check
Engine oil
Check the oil level at the sight glass:
A (MAX) Top edge of
sight glass
B (MIN) Bottom edge of
sight glass
– The difference between the
two marks is
approx. 0.5 litre
(0.9 Imp.pint)
If necessary, remove oil filler
plug 3 and top up the engine
oil, using funnel 2, through oil
filler neck 1
Reinstall oil filler plug 3
e Attention:
The red warning light
p
(
b11) for engine oil pressure
indicates no (or very little) oil
pressure in the lube-oil sys-
tem; this light must not be re-
garded as an oil level check.
Oil pressure builds up after 1-
2 seconds and the warning
light goes out – the red engine
oil pressure warning light
p
should remain off while the en-
gine is running.
1
2
3
B
A
BMW recommends Castrol
10LTbkg6.book Seite 43 Freitag, 1. Juli 2005 8:53 08
Page 46 of 108
44
Safety check
2

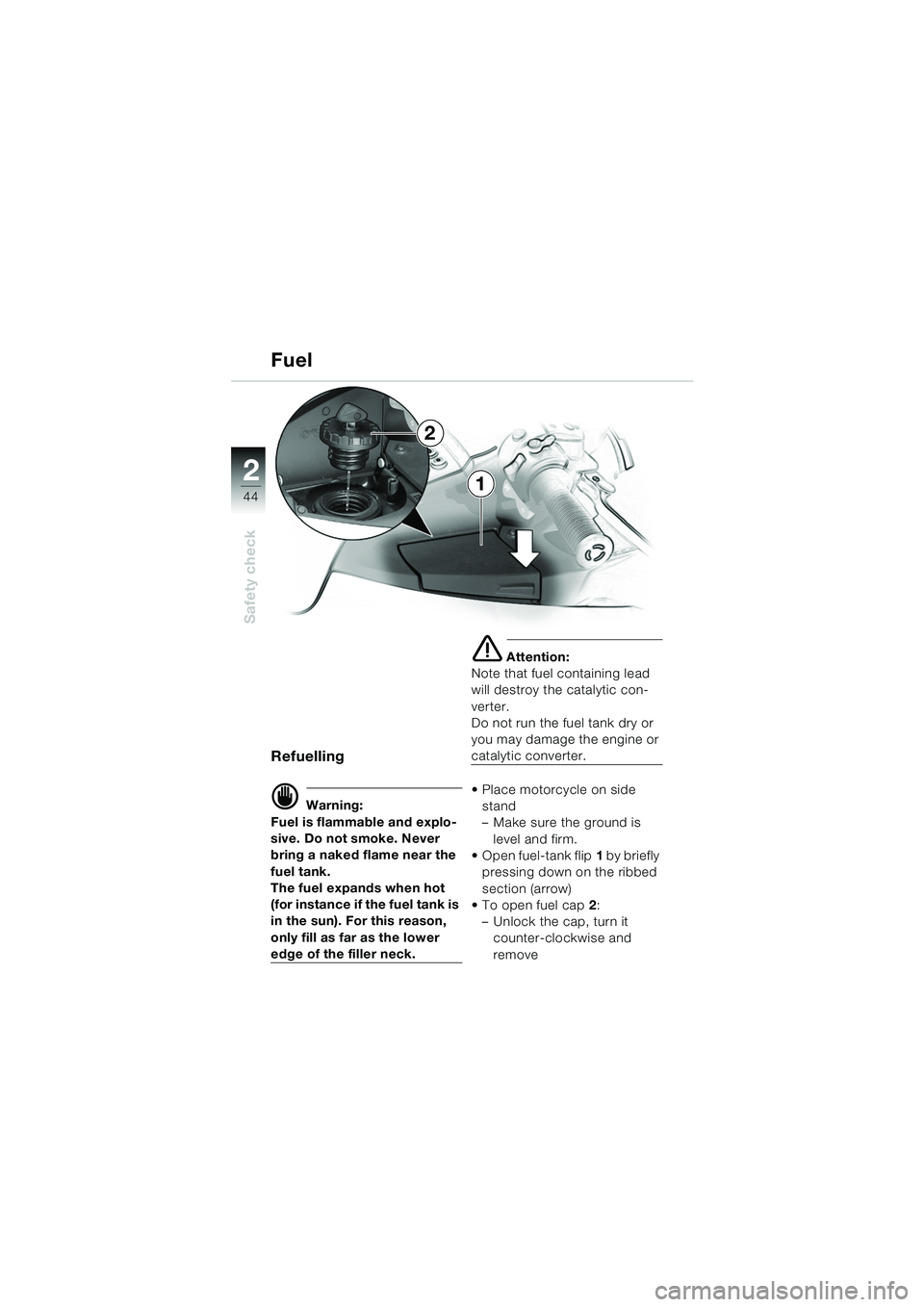

Refuelling
d Warning:
Fuel is flammable and explo-
sive. Do not smoke. Never
bring a naked flame near the
fuel tank.
The fuel expands when hot
(for instance if the fuel tank is
in the sun). For this reason,
only fill as far as the lower
edge of the filler neck.
e Attention:
Note that fuel containing lead
will destroy the catalytic con-
verter.
Do not run the fuel tank dry or
you may damage the engine or
catalytic converter.
Place motorcycle on side stand
– Make sure the ground is level and firm.
Open fuel-tank flip 1 by briefly
pressing down on the ribbed
section (arrow)
To open fuel cap 2:
–Unlock the cap, turn it counter-clockwise and
remove
Fuel
1
2
10LTbkg6.book Seite 44 Freitag, 1. Juli 2005 8:53 08
Page 47 of 108
22
45
Safety check
Fuel

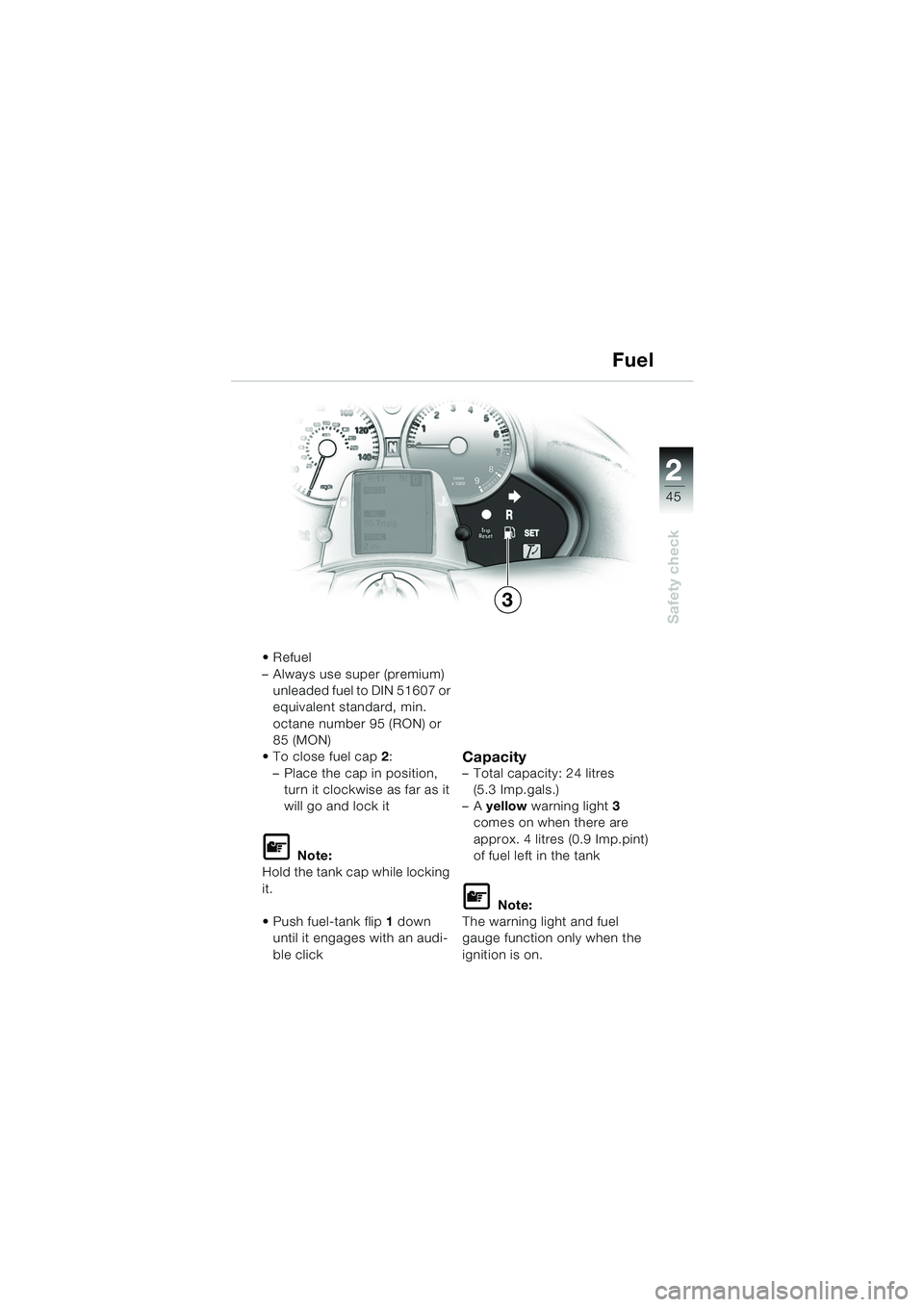

Refuel
– Always use super (premium) unleaded fuel to DIN 51607 or
equivalent standard, min.
octane number 95 (RON) or
85 (MON)
To close fuel cap 2:
– Place the cap in position, turn it clockwise as far as it
will go and lock it
L Note:
Hold the tank cap while locking
it.
Push fuel-tank flip 1 down
until it engages with an audi-
ble click
Capacity– Total capacity: 24 litres (5.3 Imp.gals.)
–A yellow warning light 3
comes on when there are
approx. 4 litres (0.9 Imp.pint)
of fuel left in the tank
L Note:
The warning light and fuel
gauge function only when the
ignition is on.
3
10LTbkg6.book Seite 45 Freitag, 1. Juli 2005 8:53 08
Page 48 of 108
46
Safety check
2

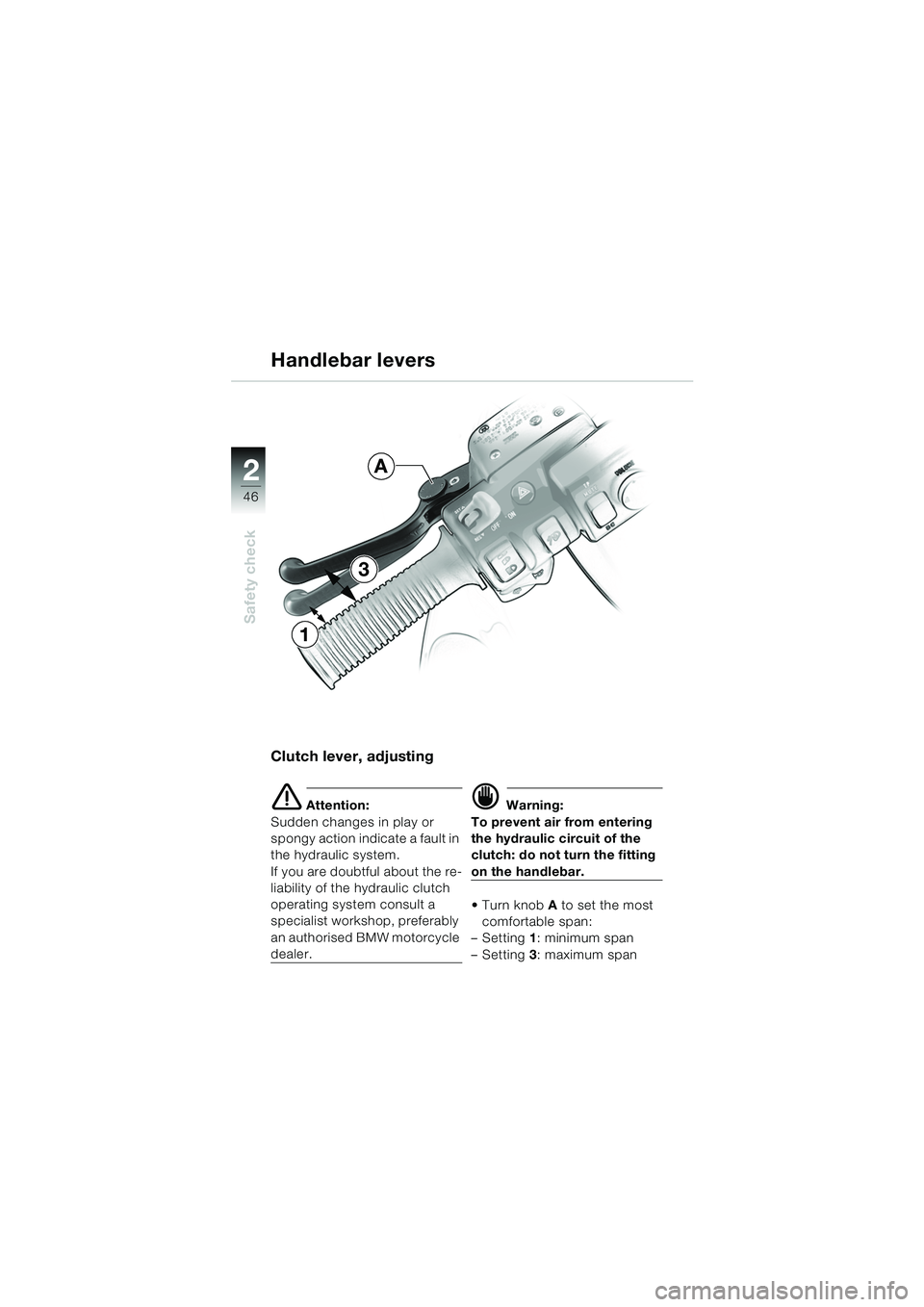

Clutch lever, adjusting
e Attention:
Sudden changes in play or
spongy action indicate a fault in
the hydraulic system.
If you are doubtful about the re-
liability of the hydraulic clutch
operating system consult a
specialist workshop, preferably
an authorised BMW motorcycle
dealer.
d Warning:
To prevent air from entering
the hydraulic circuit of the
clutch: do not turn the fitting
on the handlebar.
Turn knob A to set the most
comfortable span:
–Setting 1: minimum span
–Setting 3: maximum span
Handlebar levers
3
1
A
10LTbkg6.book Seite 46 Freitag, 1. Juli 2005 8:53 08
Page 49 of 108
22
47
Safety check
d Warning:
To prevent air from entering
the brake circuit: do not turn
the fitting on the handlebar.

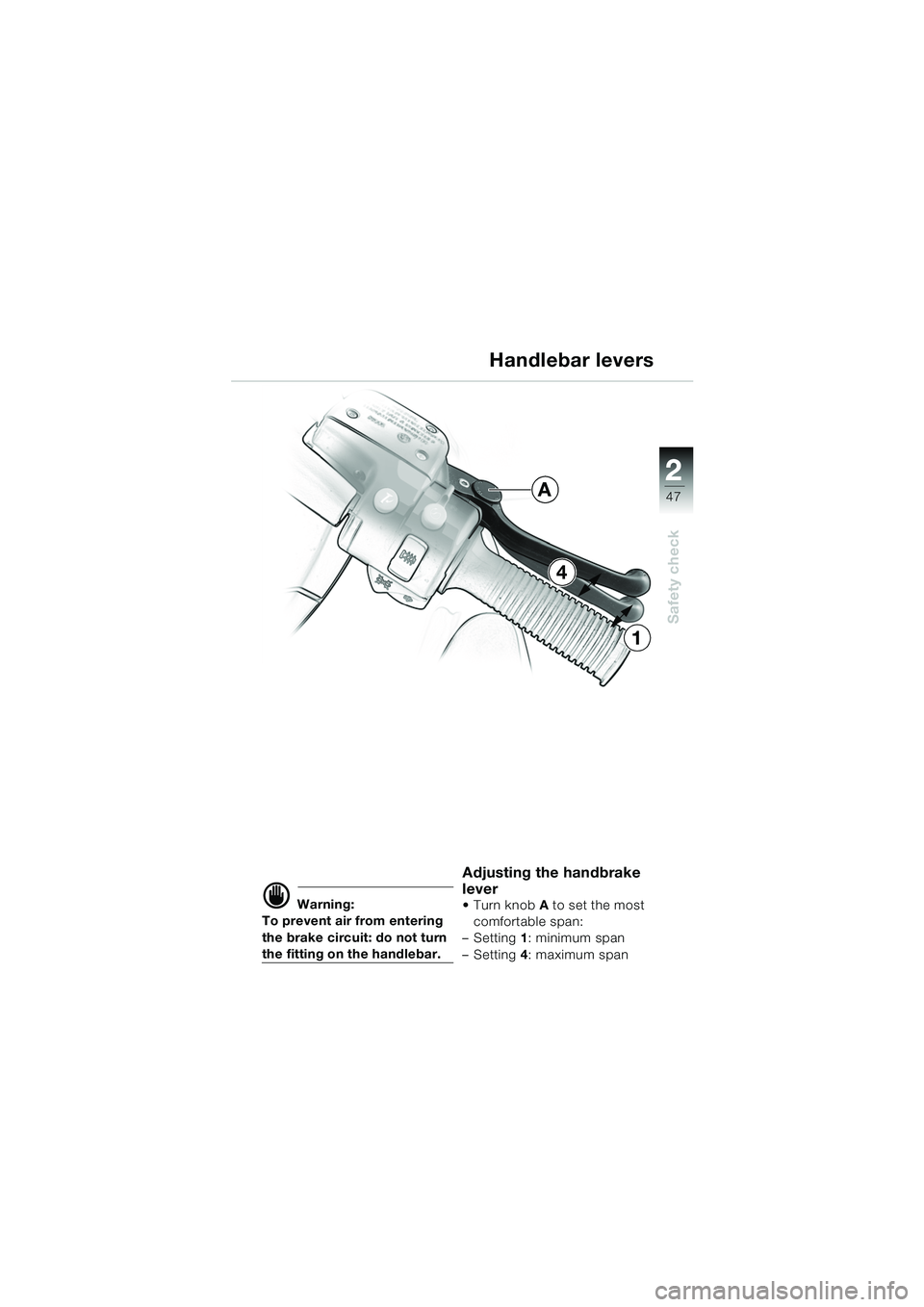

Adjusting the handbrake
lever
Turn knob A to set the most
comfortable span:
–Setting 1: minimum span
–Setting 4: maximum span
Handlebar levers
4
1
A
10LTbkg6.book Seite 47 Freitag, 1. Juli 2005 8:53 08
Page 50 of 108
48
Safety check
2

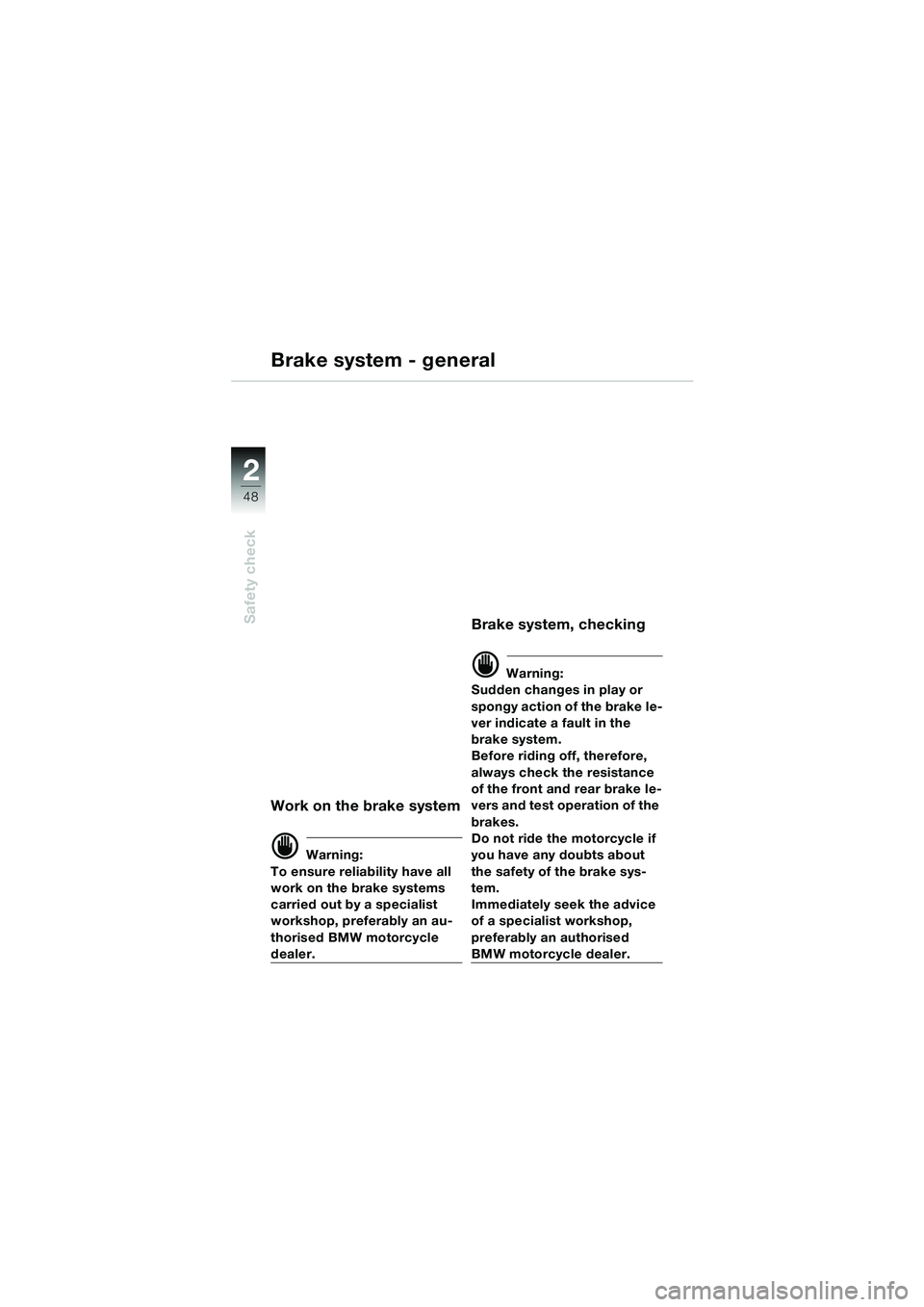

Brake system - general
Work on the brake system
d Warning:
To ensure reliability have all
work on the brake systems
carried out by a specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
Brake system, checking
d Warning:
Sudden changes in play or
spongy action of the brake le-
ver indicate a fault in the
brake system.
Before riding off, therefore,
always check the resistance
of the front and rear brake le-
vers and test operation of the
brakes.
Do not ride the motorcycle if
you have any doubts about
the safety of the brake sys-
tem.
Immediately seek the advice
of a specialist workshop,
