BMW MOTORRAD K 1200 LT 2005 Rider's Manual (in English)

9
General information and controls
1
8Telltale and warning lights
(
b10, 11)
9 Cockpit lighting
–A On
– B Off
– C Automatic
(
b Supplementary Rider's
Manual for the anti-theft
alarm DWA
OE)
10 Knob for headlight beam
throw adjustment (
b62) 11
Radio/CD player with
stowage compartment
12 Torch
OEOptional extra
( ) Number in parentheses
bpage number for description

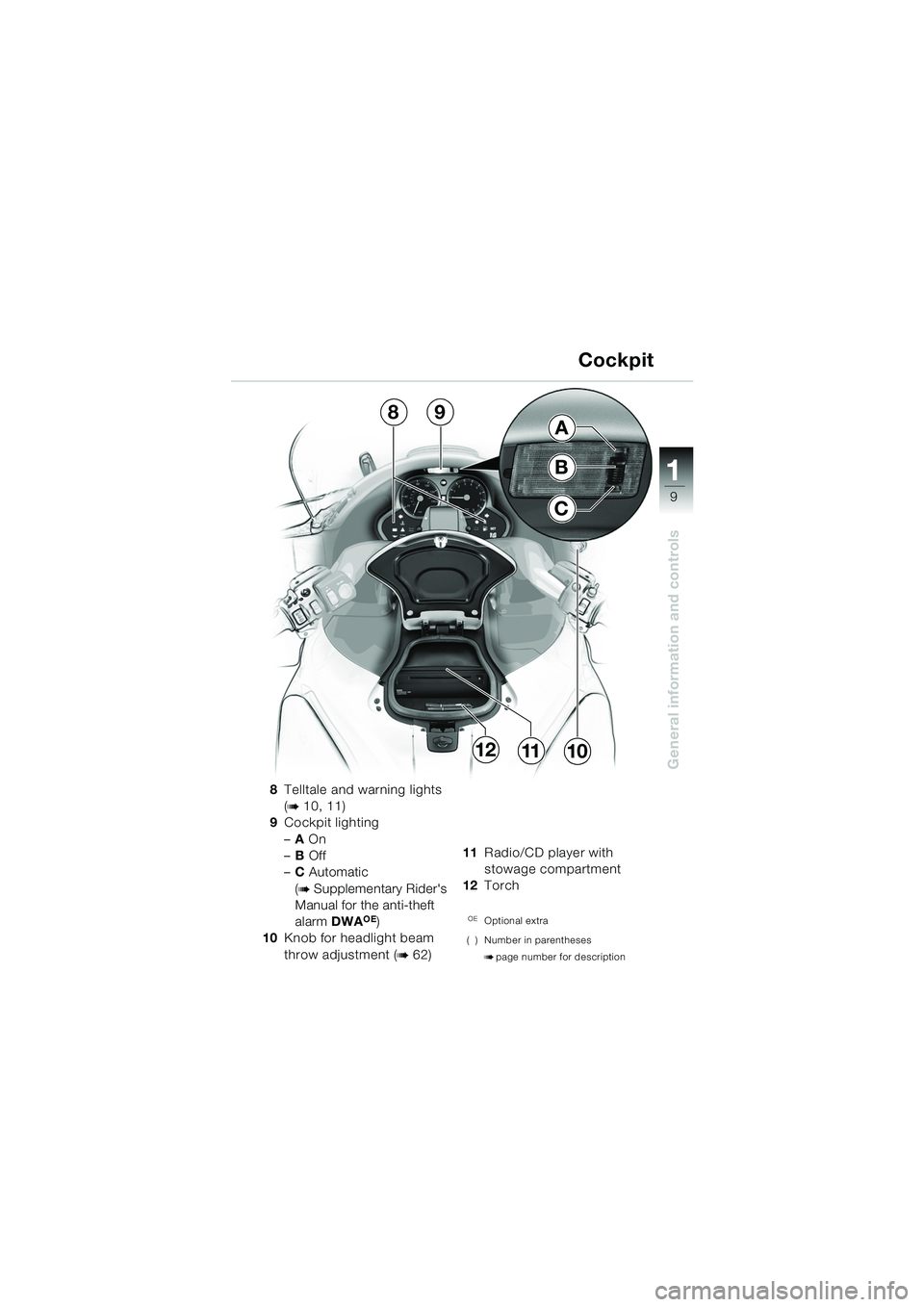

Cockpit
C
B
A89
111012
10LTbkg6.book Seite 9 Freitag, 1. Juli 2005 8:53 08

10
General information and controls
1
L Note:
A sensor controls automatic
daytime/night-time switchover.
The LCD is illuminated at night.
1 Warning light, engine oil
pressure, red
p
(
b42, 78)
2 Warning light, battery
charge current, red
r
(
b79)
*n depending on national-market
specification
3 Left turn indicator repeater
green
s
4 Warning light, coolant tem-
perature,
j red (b55, 79)
5 Warning light, general
red
e (b78)
6 Warning light, ABS red
l
(
b78)
7 Telltale light, neutral,
green
k (b76)
( ) Number in parentheses
bpage number for description
Telltale and warning lights
56*17324
10LTbkg6.book Seite 10 Freitag, 1. Juli 2005 8:53 08

11
General information and controls
1

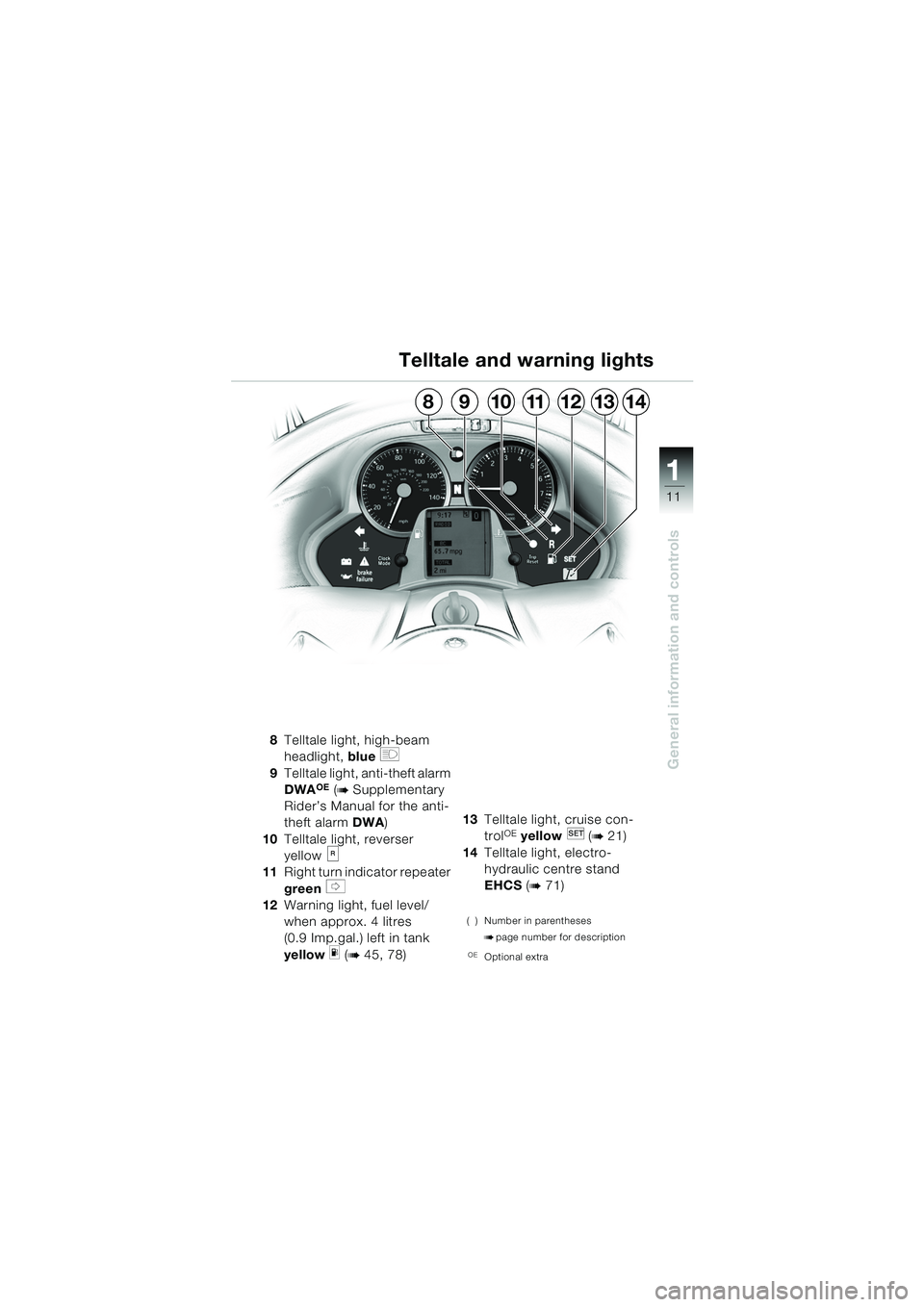

Telltale and warning lights
8Telltale light, high-beam
headlight, blue
q
9 Telltale light, anti-theft alarm
DWA
OE (b Supplementary
Rider’s Manual for the anti-
theft alarm DWA)
10 Telltale light, reverser
yellow
11 Right turn indicator repeater
green
t
12 Warning light, fuel level/
when approx. 4 litres
(0.9 Imp.gal.) left in tank
yellow
m (b45, 78) 13
Telltale light, cruise con-
trol
OE yellow (b21)
14 Telltale light, electro-
hydraulic centre stand
EHCS (
b71)
( ) Number in parentheses
bpage number for description
OEOptional extra
121114131098
10LTbkg6.book Seite 11 Freitag, 1. Juli 2005 8:53 08

12
General information and controls
1

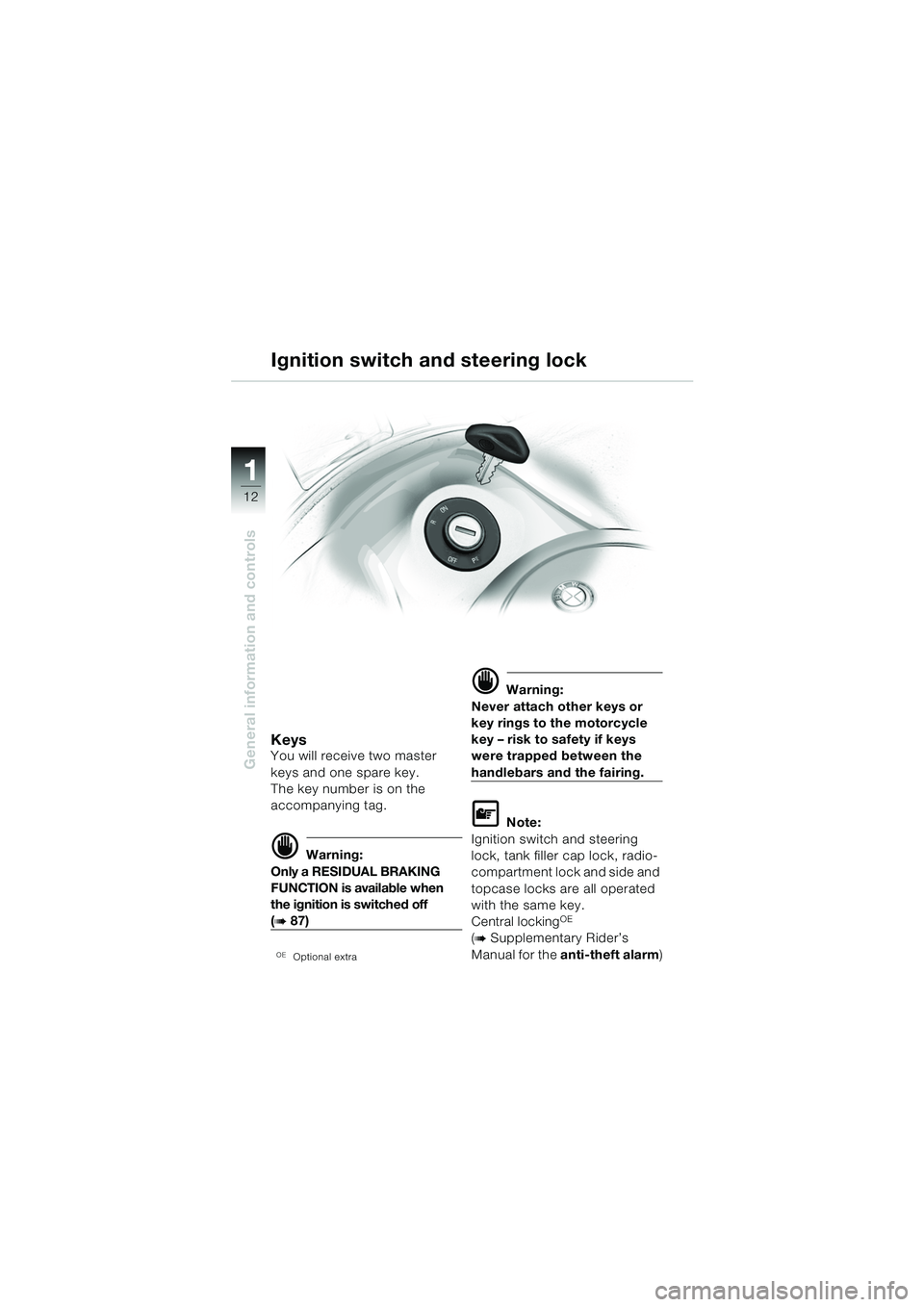

KeysYou will receive two master
keys and one spare key.
The key number is on the
accompanying tag.
d Warning:
Only a RESIDUAL BRAKING
FUNCTION is available when
the ignition is switched off
(b87)
OEOptional extra
d Warning:
Never attach other keys or
key rings to the motorcycle
key – risk to safety if keys
were trapped between the
handlebars and the fairing.
L Note:
Ignition switch and steering
lock, tank filler cap lock, radio-
compartment lock and side and
topcase locks are all operated
with the same key.
Central locking
OE
(
b Supplementary Rider’s
Manual for the anti-theft alarm )
Ignition switch and steering lock
10LTbkg6.book Seite 12 Freitag, 1. Juli 2005 8:53 08

13
General information and controls
1

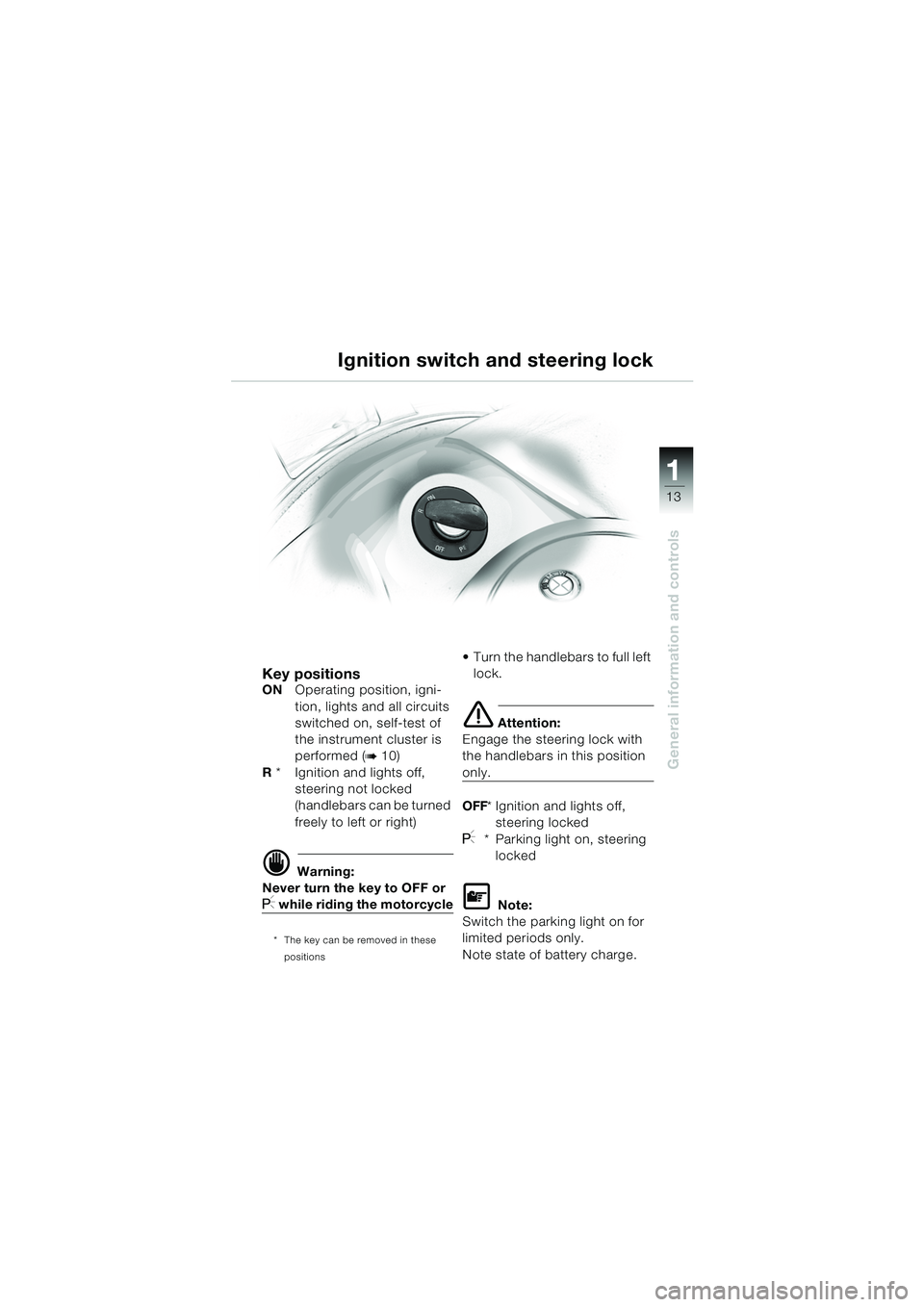

Key positionsONOperating position, igni-
tion, lights and all circuits
switched on, self-test of
the instrument cluster is
performed (
b10)
R * Ignition and lights off,
steering not locked
(handlebars can be turned
freely to left or right)
d Warning:
Never turn the key to OFF or
I while riding the motorcycle
* The key can be removed in these
positions
 Turn the handlebars to full left lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF * Ignition and lights off,
steering locked
I* Parking light on, steering
locked
L Note:
Switch the parking light on for
limited periods only.
Note state of battery charge.
Ignition switch and steering lock
10LTbkg6.book Seite 13 Freitag, 1. Juli 2005 8:53 08

14
General information and controls
1

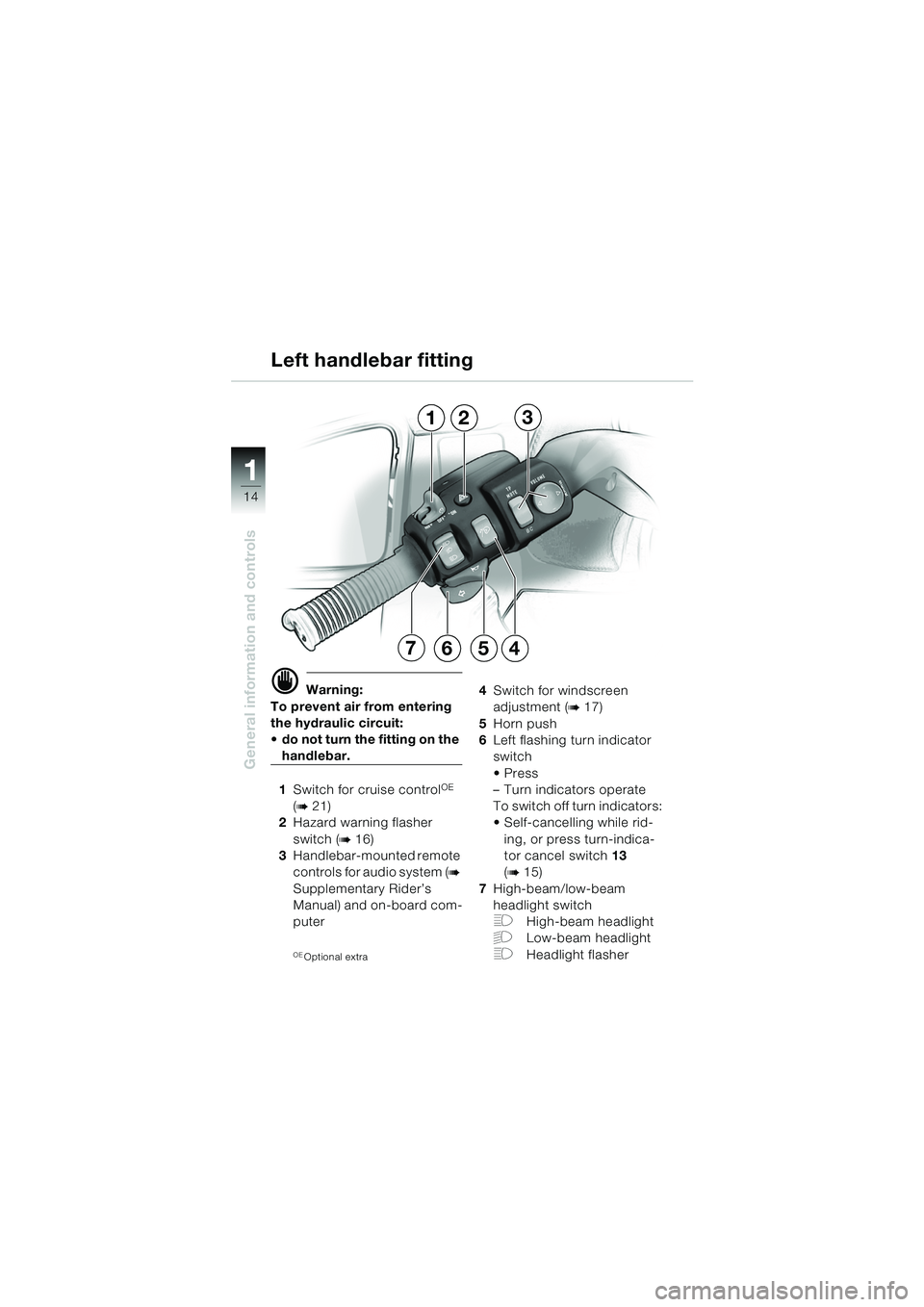

Left handlebar fitting
d Warning:
To prevent air from entering
the hydraulic circuit:
 do not turn the fitting on the
handlebar.
1 Switch for cruise control
OE
(b21)
2 Hazard warning flasher
switch (
b16)
3 Handlebar-mounted remote
controls for audio system (
b
Supplementary Rider’s
Manual) and on-board com-
puter
OEOptional extra
4 Switch for windscreen
adjustment (
b17)
5 Horn push
6 Left flashing turn indicator
switch
Press
– Turn indicators operate
To switch off turn indicators:
 Self-cancelling while rid-
ing, or press turn-indica-
tor cancel switch 13
(
b15)
7 High-beam/low-beam
headlight switch
FHigh-beam headlight
GLow-beam headlight
FHeadlight flasher
123
5467
10LTbkg6.book Seite 14 Freitag, 1. Juli 2005 8:53 08

15
General information and controls
1
d Warning:
To prevent air from entering
the brake system:
 do not turn the fitting on the
handlebar.
8 Pushbutton for electro-
hydraulic centre stand
EHCS (
b70)
9 Starter button (
b18, 77)
10 Emergency off (kill) switch
for ignition (
b75)
11 Switch for heated handlebar
grips
OE
A Heating function off
B 50% (centre position)
C 100% 12
Right flashing turn indicator
switch
Press
– Turn indicators operate
To switch off turn indicators:
 Self-cancelling while rid-
ing, or press turn-indica-
tor cancel switch 13
13 Turn indicator cancel switch
Press
– Left/right turn indicators
off
OEOptional extra

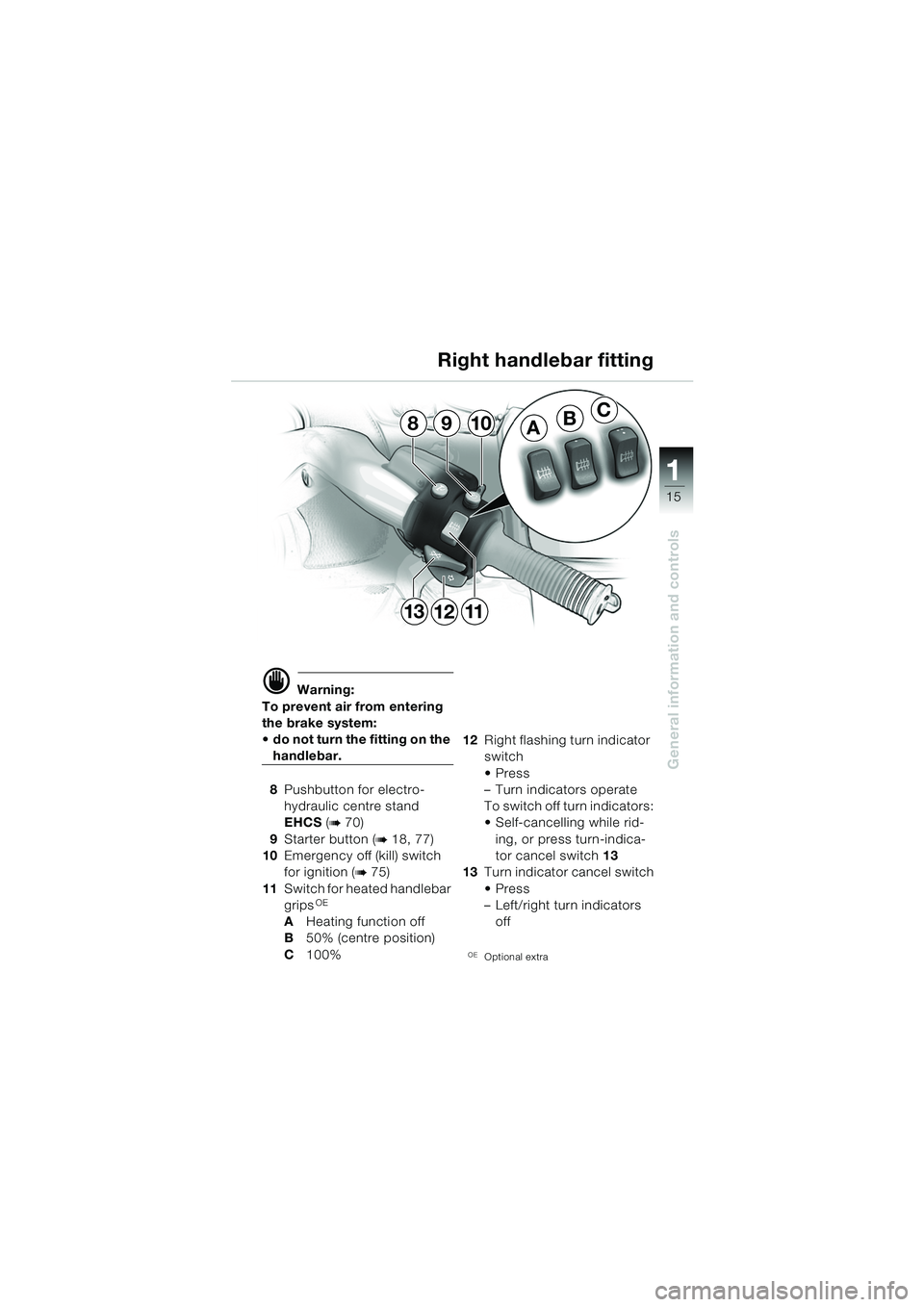

Right handlebar fitting
ABC9810
121113
10LTbkg6.book Seite 15 Freitag, 1. Juli 2005 8:53 08

16
General information and controls
1

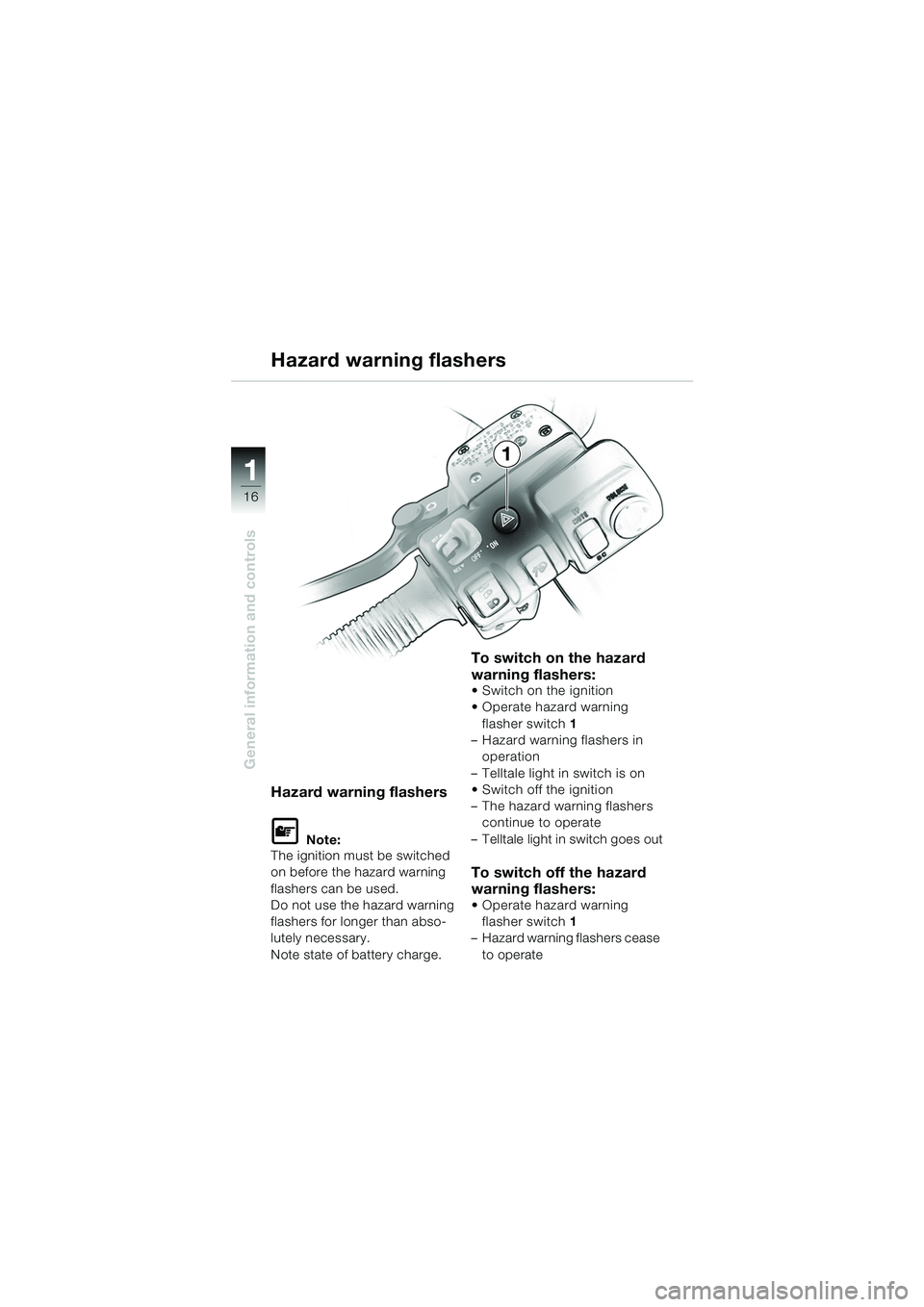

Hazard warning flashers
Hazard warning flashers
L Note:
The ignition must be switched
on before the hazard warning
flashers can be used.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
To switch on the hazard
warning flashers:
 Switch on the ignition
 Operate hazard warning
flasher switch 1
– Hazard warning flashers in
operation
– Telltale light in switch is on
 Switch off the ignition
– The hazard warning flashers continue to operate
– Telltale light in switch goes out
To switch off the hazard
warning flashers:
 Operate hazard warning flasher switch 1
– Hazard warning flashers cease
to operate
1
10LTbkg6.book Seite 16 Freitag, 1. Juli 2005 8:53 08

17
General information and controls
1
A
B
1

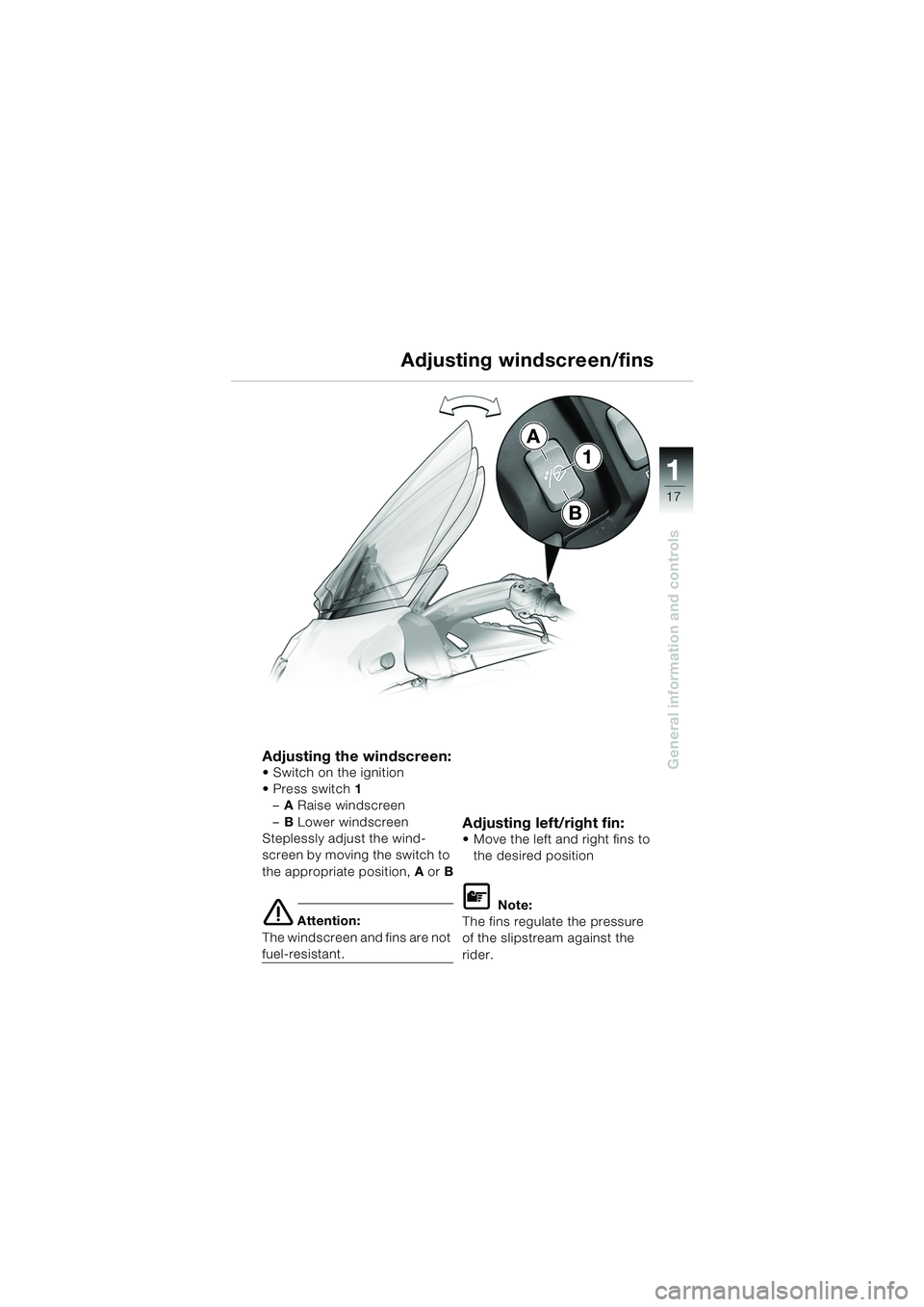

Adjusting windscreen/fins
Adjusting the windscreen: Switch on the ignition
 Press switch
1
– A Raise windscreen
– B Lower windscreen
Steplessly adjust the wind-
screen by moving the switch to
the appropriate position, A orB
e Attention:
The windscreen and fins are not
fuel-resistant.
Adjusting left/right fin: Move the left and right fins to the desired position
L Note:
The fins regulate the pressure
of the slipstream against the
rider.
10LTbkg6.book Seite 17 Freitag, 1. Juli 2005 8:53 08

18
General information and controls
1
Reverser
d Warning:
Avoid steep and uneven road
surfaces when reversing.
Take great care to maintain
your balance when reversing
on wet, slippery, uneven,
unpaved or muddy surfaces.
Engage the reverser only
when the motorcycle is at a
standstill and do not press the
starter pushbutton while en-
gaging the reverser.
Do not simultaneously press
the pushbutton for the elec-
tro-hydraulic centre stand.
d Warning:
Rules for reversing:
– No passenger
– You must be seated on the motorcycle
– Keep both feet on the ground
– Keep your feet well clear of the footrests on both sides
– Keep both hands on the
handlebar grips
– Make sure side stand and
main stand are both fully
retracted (
b69, 72)
– Check that the area behind
the motorcycle is free of
obstructions
e Attention:
Do not operate the reverser for
more than 1 minute – bear the
state of battery charge in mind.
The reverser switches off if it is
overloaded.
