BMW MOTORRAD K 1200 R 2008 Rider's Manual (in English)

General views
General view, left side......... 11
General view, right side ........ 13
Underneath the seat . . ......... 15
Handlebar fitting, left . ......... 16
Handlebar fitting, right ......... 17
Instrument cluster ............. 18
Headlight . .................... 19
29zGeneral views

210zGeneral views

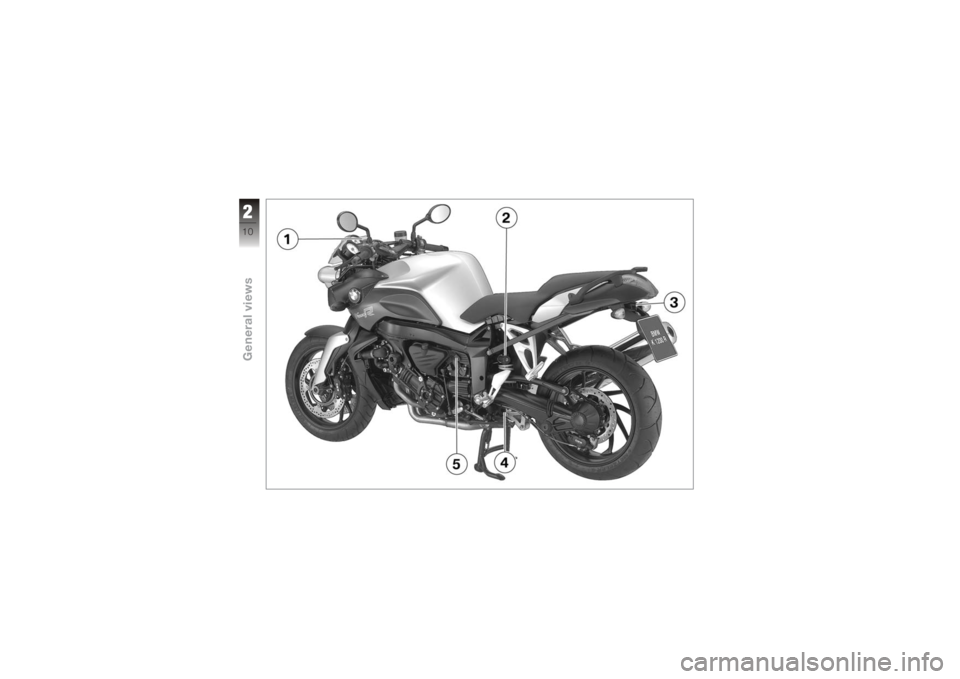

General view, left side1Clutch-fluid reservoir
( 100)
2 Adjuster, spring preload,
rear ( 55)
3 Seat lock, beneath rear
light ( 51)
4 Rear shock absorber ad-
juster ( 56)
5 Power socket ( 84)
211zGeneral views

212zGeneral views

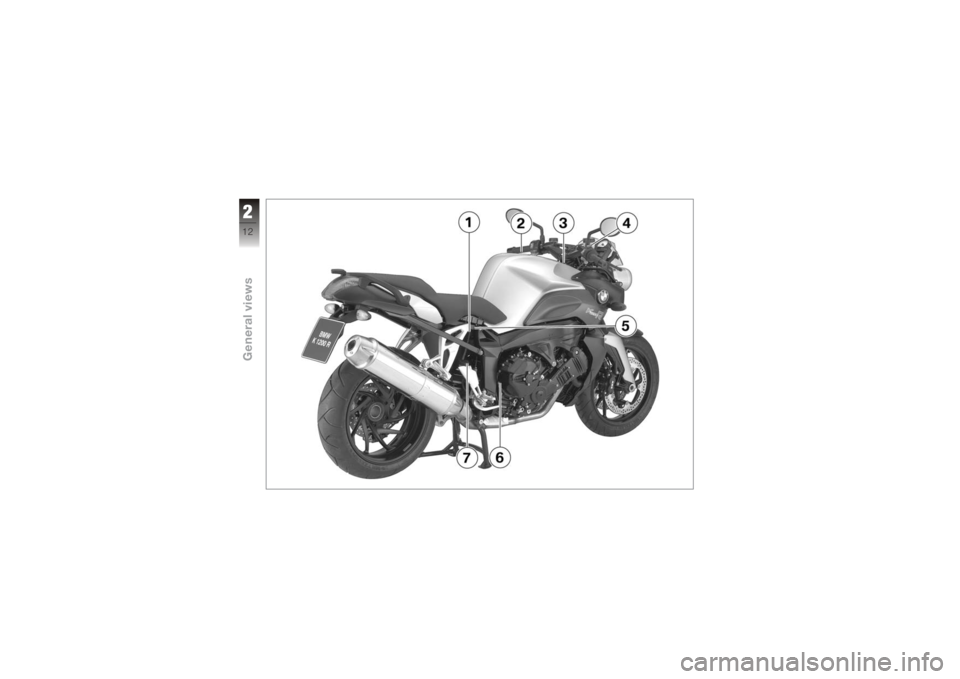

General view, right
side1Indicator for engine oil
level ( 93)
2 Filler neck, fuel ( 78)
3 Battery compartment
( 121)
4 Brake-fluid reservoir,
front ( 97)
5 Type plate
6 Vehicle identification
number
7 Brake-fluid reservoir, rear
( 99)
213zGeneral views

214zGeneral views

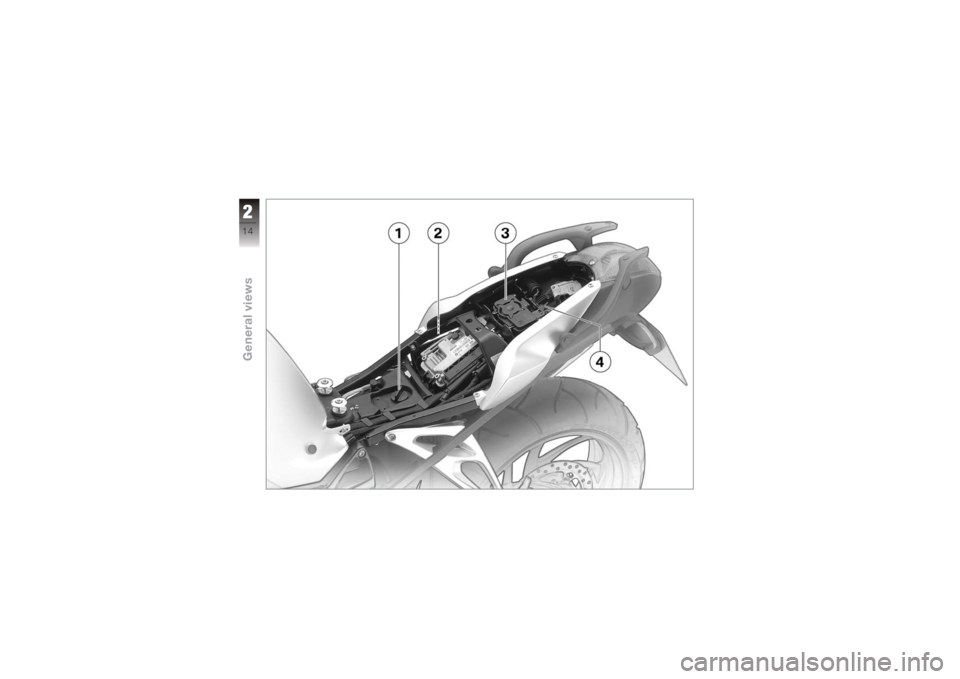

Underneath the seat1Filler neck, engine oil
( 94)
2 Overview, toolkit ( 92)
3 Anti-theft alarm (OE)
4 Helmet holder under-
neath seat ( 53)
215zGeneral views

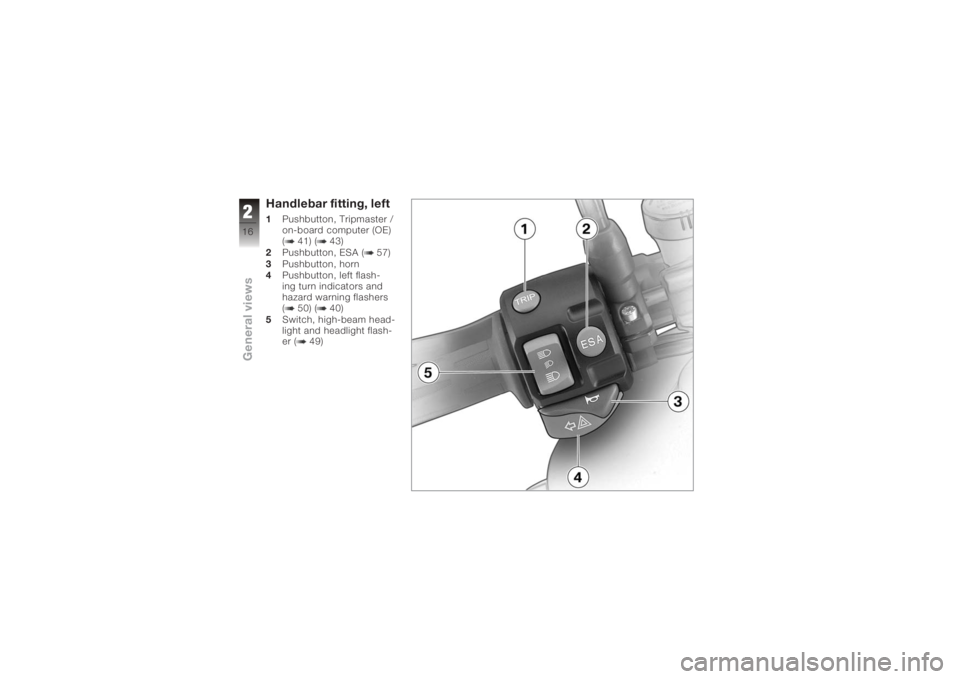

Handlebar fitting, left1Pushbutton, Tripmaster /
on-board computer (OE)
( 41) ( 43)
2 Pushbutton, ESA ( 57)
3 Pushbutton, horn
4 Pushbutton, left flash-
ing turn indicators and
hazard warning flashers
( 50) ( 40)
5 Switch, high-beam head-
light and headlight flash-
er ( 49)
216zGeneral views

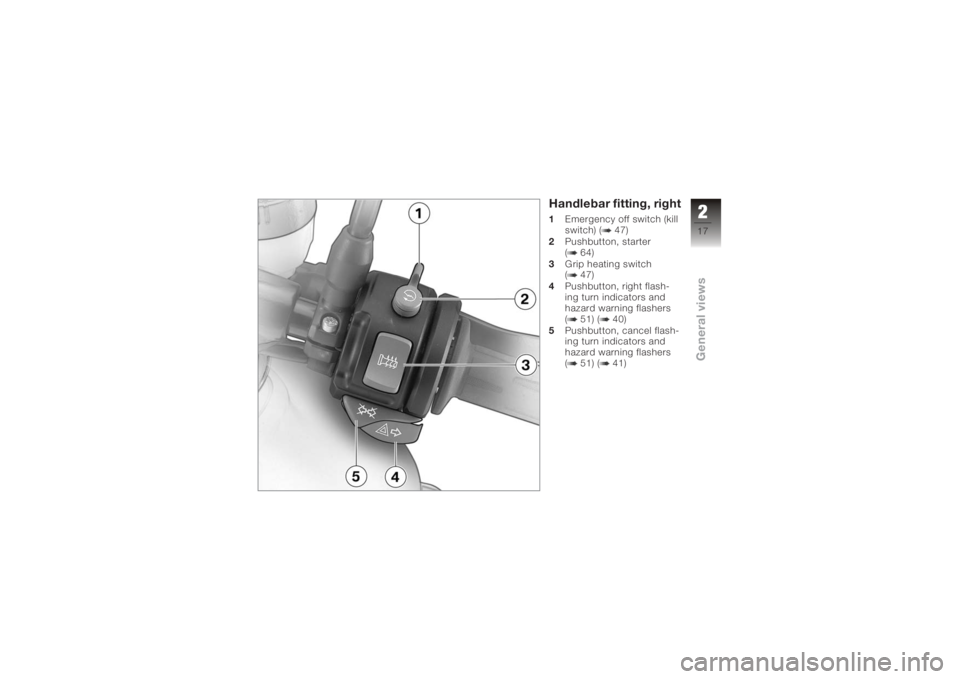

Handlebar fitting, right1Emergency off switch (kill
switch) ( 47)
2 Pushbutton, starter
( 64)
3 Grip heating switch
( 47)
4 Pushbutton, right flash-
ing turn indicators and
hazard warning flashers
( 51) ( 40)
5 Pushbutton, cancel flash-
ing turn indicators and
hazard warning flashers
( 51) ( 41)
217zGeneral views

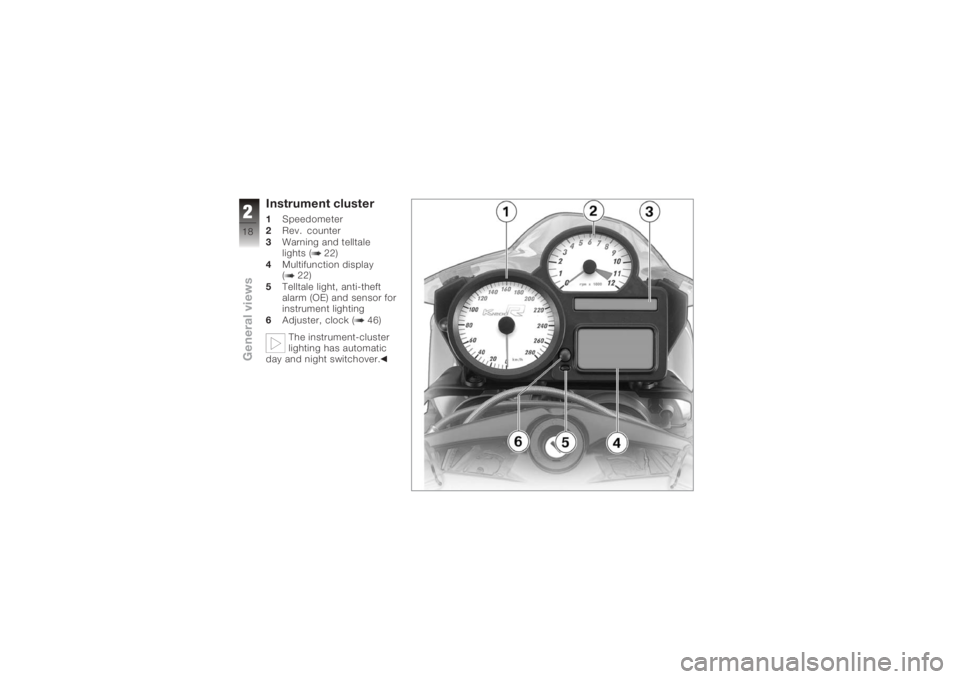

Instrument cluster1Speedometer
2 Rev. counter
3 Warning and telltale
lights ( 22)
4 Multifunction display
( 22)
5 Telltale light, anti-theft
alarm (OE) and sensor for
instrument lighting
6 Adjuster, clock ( 46)
The instrument-cluster
lighting has automatic
day and night switchover.
218zGeneral views
