tional for a limited period
of time.
The battery can be
recharged via the on-board
socket.Locking the handlebars
If the motorcycle is on
the side stand, the sur-
face of the ground will de-
termine whether it is better to
turn the handlebars to the left
or right. However, the motor-
cycle is more stable on a level
surface with the handlebars
turned to the left than with the handlebars turned to the
right.
On level ground, always turn
the handlebars to the left to
set the steering lock.
Turn the handlebars to the
full left or right lock position.
Turn the key to position 3,
while moving the handle-
bars slightly.
Ignition, lights and all func-
tion circuits switched off.
Handlebars locked.
Key can be removed.
Electronic immobiliser
(EWS)Protection against theftThe electronic immobiliser
helps protect your BMW mo-
torcycle from theft, and this
enhanced security is at your
disposal without any need for
you to set parameters or ac-
tivate additional systems. The engine of a motorcycle fitted
with this electronic immobil-
iser can be started only with
the keys that belong to the
vehicle. You can also have
your authorised BMW Mo-
torrad dealer bar individual
keys, for example if a partic-
ular key goes missing. The
engine cannot be started with
a key that has been barred.
In-key electronicsAn electronic component is
integrated into each of your
keys. The motorcycle's elec-
tronics exchange certain con-
tinuously changing signals
with the electronics in the
key; these signals are spe-
cific to your motorcycle and
they are transmitted via the
ring aerial in the ignition lock.
The ignition is not enabled for
starting until the key has been
439zOperation

recognised as "authorised" for
your motorcycle.A spare key attached
to the same ring as the
ignition key used to start the
engine could "irritate" the
electronics, in which case the
enabling signal for starting is
not issued. The
EWS
warning
appears in the multifunction
display.
Always keep the spare key
separately from the ignition
key.
Replacement keys and
extra keysYou can obtain replace-
ment/extra keys only through
an authorised BMW Motorrad
dealer. The keys are part
of an integrated security
system, so the dealer is under
an obligation to check the
legitimacy of all applications
for replacement/extra keys. If you want to have a lost key
barred, you have to bring with
you all the other keys that
belong to the motorcycle. A
key that has been barred can
subsequently be cleared and
reactivated for use.
Hazard warning flash-
ersSwitching on the hazard
warning flashersSwitch on the ignition.
Simultaneously press but-
ton
1for left turn indicators and button
2for right turn
indicators.
The hazard warning
flashers place a strain
on the battery. Do not use
the hazard warning flashers
for longer than absolutely
necessary.
If you press a turn-
indicator button with
the ignition switched on,
the turn-indicator function
is activated instead of the
hazard warning flashers,
and remains active until
you release the button. The
hazard warning flashers
recommence flashing as soon
as the button is released.
Hazard warning flashers in
operation.
Left/right turn indicator tell-
tale lights flash.
Switch off the ignition.
440zOperation

The hazard warning flashers
continue to operate.
Left/right turn indicator tell-
tale lights off.Switching off the hazard
warning flashersPress cancel button3.
Hazard warning flashers
switched off.
Alternative: Simultaneously
press button 1for left turn
indicators and button 2for
right turn indicators.
Hazard warning flashers
switched off.
TripmasterOperating the TripmasterYou have the option of using
pushbutton 1in the instru-
ment cluster to operate the
Tripmaster as described be-
low.Selecting readingsSwitch on the ignition.
When you switch on the
ignition, the information
shown by the Tripmaster
when the ignition was
switched off always reappears
on the multifunction display. Briefly press the Tripmaster
button
1once to proceed
to each subsequent step in
the cycle.
The Tripmaster display field
cycles through the following
sequence:
441zOperation

Total distance covered
Tripmeter 1 (Trip I)
Tripmeter 2 (Trip II)
Residual rangeResetting the tripmeterSwitch on the ignition.
Select the desired tripmeter.
Press and hold down Trip-
master button1until the
reading changes.
The tripmeter is reset to
zero.
Residual rangeResidual range 1is displayed
with the word
RANGE
only
when the fuel level has
dropped to reserve. Residual
range is calculated on the
basis of your style of riding
and the amount of fuel left
in the tank; the reading
indicates the estimated
distance you can travel before
the fuel supply runs out.
If the motorcycle is resting
on its side stand, the level in
the tank cannot be measured
correctly, so this estimate of residual operating range will
be inaccurate.
When you refuel, the Trip-
master does not register the
increase in fuel level unless
several litres are added to the
fuel already in the tank.
The calculated range is
an approximate value.
Consequently, BMW Motorrad
recommends that you should
not try to use the full residual
range before refuelling.
442zOperation

On-board computer
OE
Pushbutton, on-board
computerIf the motorcycle is equipped
with an on-board computer,
the on-board computer
button takes the place of
the Tripmaster button on the
handlebar fitting.In this case, you have to use
button
1in the instrument
cluster to operate the Trip-
master. The on-board com-
puter incorporates the func-
tion for calculating and dis-
playing the residual range.
Selecting readingsSwitch on the ignition. Press BC button
1once.
The on-board computer's dis-
play field cycles through the
following sequence: Clock
Residual range
Average speed
443zOperation

Average consumption
Oil level

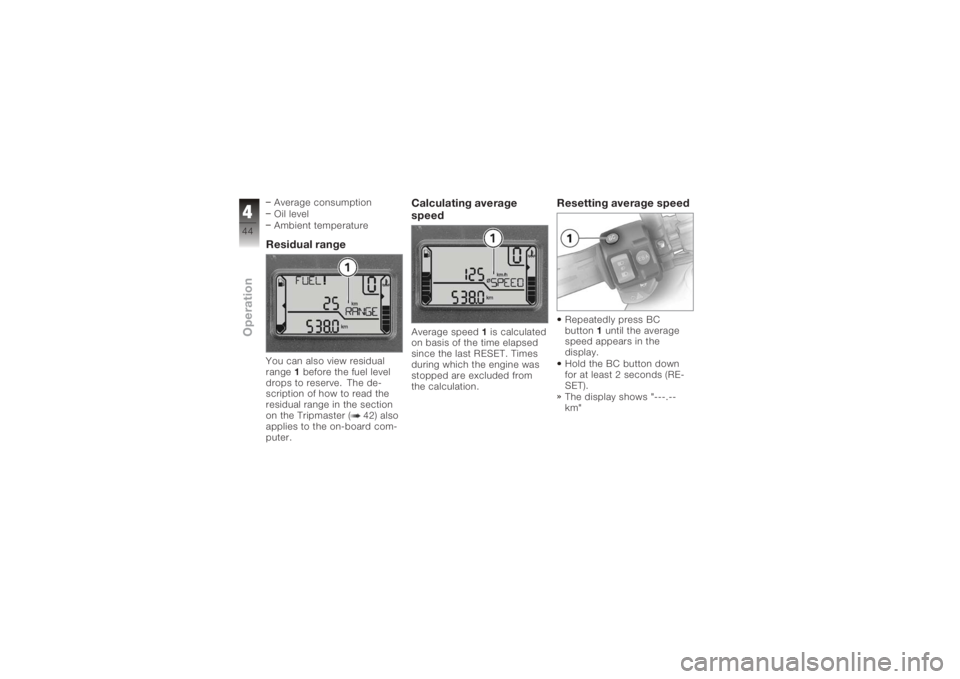

Ambient temperatureResidual rangeYou can also view residual
range1before the fuel level
drops to reserve. The de-
scription of how to read the
residual range in the section
on the Tripmaster ( 42) also
applies to the on-board com-
puter.
Calculating average
speedAverage speed 1is calculated
on basis of the time elapsed
since the last RESET. Times
during which the engine was
stopped are excluded from
the calculation.
Resetting average speedRepeatedly press BC
button 1until the average
speed appears in the
display.
Hold the BC button down
for at least 2 seconds (RE-
SET).
The display shows "---.--
km"
444zOperation

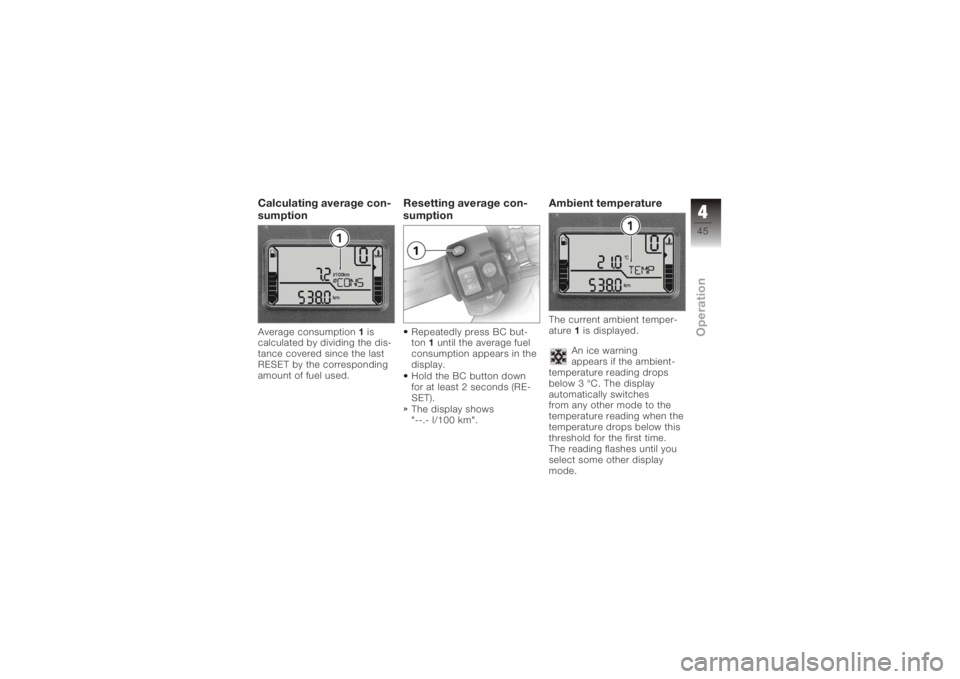

Calculating average con-
sumptionAverage consumption1is
calculated by dividing the dis-
tance covered since the last
RESET by the corresponding
amount of fuel used.
Resetting average con-
sumptionRepeatedly press BC but-
ton 1until the average fuel
consumption appears in the
display.
Hold the BC button down
for at least 2 seconds (RE-
SET).
The display shows
"--.- l/100 km".
Ambient temperatureThe current ambient temper-
ature 1is displayed.
An ice warning
appears if the ambient-
temperature reading drops
below 3 °C. The display
automatically switches
from any other mode to the
temperature reading when the
temperature drops below this
threshold for the first time.
The reading flashes until you
select some other display
mode.
445zOperation

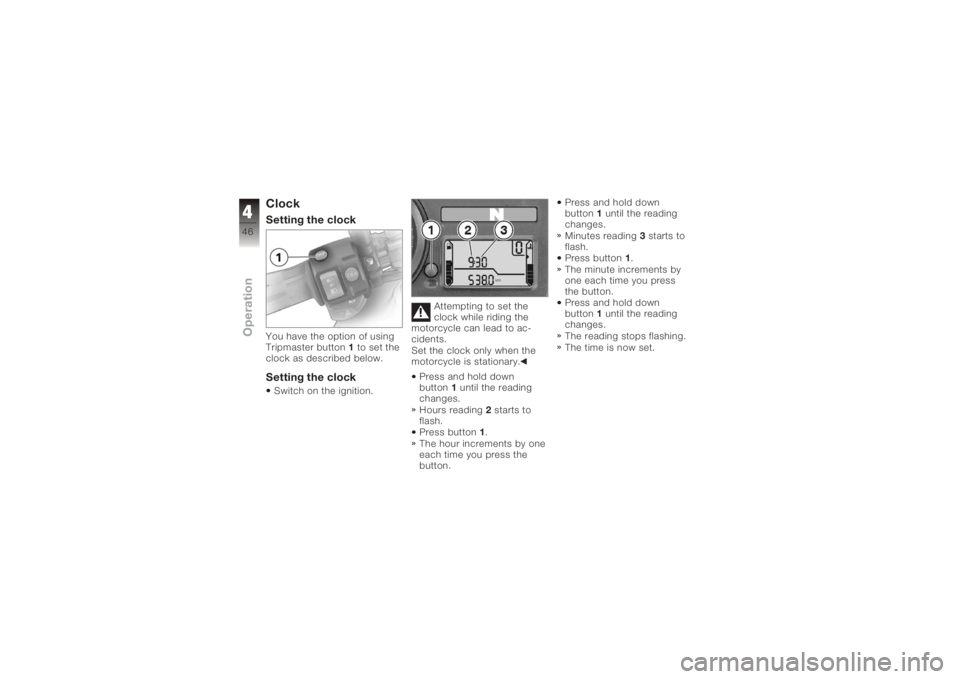

ClockSetting the clockYou have the option of using
Tripmaster button1to set the
clock as described below.Setting the clockSwitch on the ignition. Attempting to set the
clock while riding the
motorcycle can lead to ac-
cidents.
Set the clock only when the
motorcycle is stationary.
Press and hold down
button 1until the reading
changes.
Hours reading 2starts to
flash.
Press button 1.
The hour increments by one
each time you press the
button. Press and hold down
button
1until the reading
changes.
Minutes reading 3starts to
flash.
Press button 1.
The minute increments by
one each time you press
the button.
Press and hold down
button 1until the reading
changes.
The reading stops flashing.
The time is now set.
446zOperation

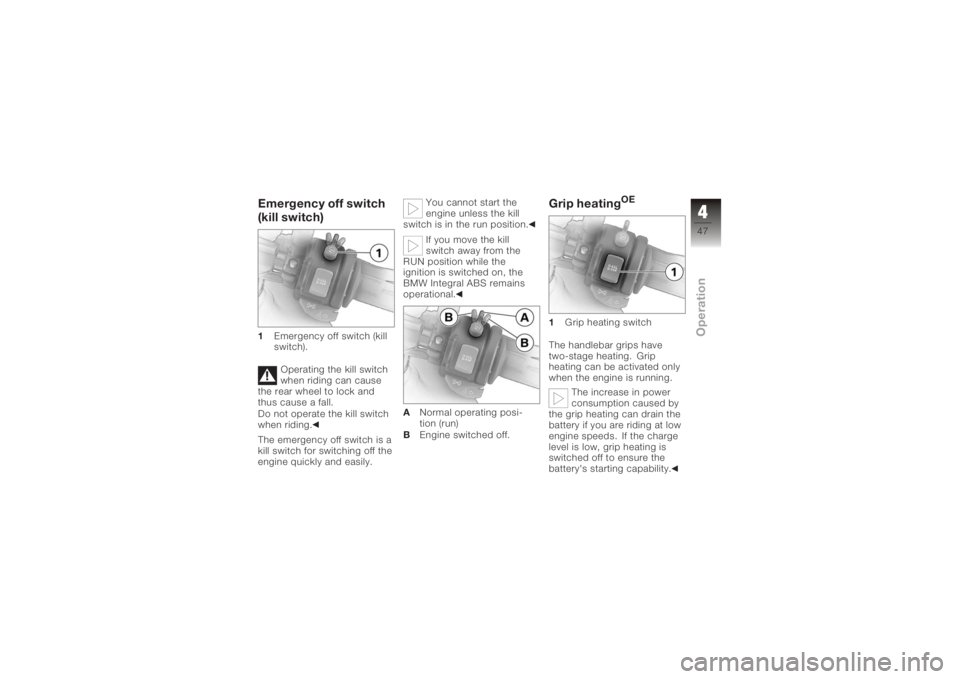

Emergency off switch
(kill switch)1Emergency off switch (kill
switch).
Operating the kill switch
when riding can cause
the rear wheel to lock and
thus cause a fall.
Do not operate the kill switch
when riding.
The emergency off switch is a
kill switch for switching off the
engine quickly and easily. You cannot start the
engine unless the kill
switch is in the run position.
If you move the kill
switch away from the
RUN position while the
ignition is switched on, the
BMW Integral ABS remains
operational.
A Normal operating posi-
tion (run)
B Engine switched off.
Grip heating
OE
1 Grip heating switch
The handlebar grips have
two-stage heating. Grip
heating can be activated only
when the engine is running. The increase in power
consumption caused by
the grip heating can drain the
battery if you are riding at low
engine speeds. If the charge
level is low, grip heating is
switched off to ensure the
battery's starting capability.
447zOperation

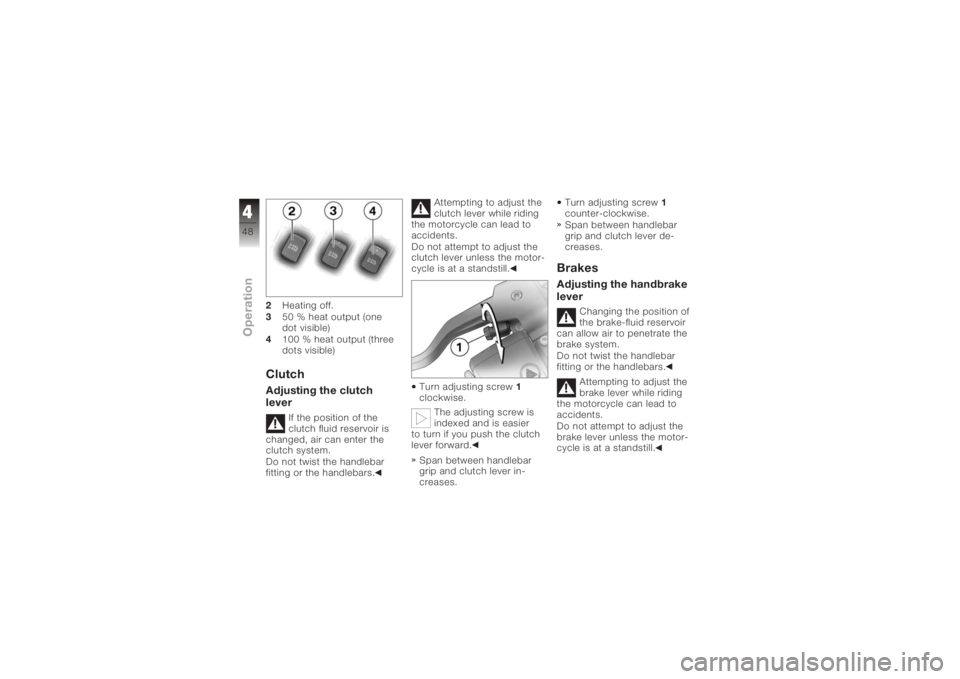

2Heating off.
3 50 % heat output (one
dot visible)
4 100 % heat output (three
dots visible)ClutchAdjusting the clutch
lever
If the position of the
clutch fluid reservoir is
changed, air can enter the
clutch system.
Do not twist the handlebar
fitting or the handlebars. Attempting to adjust the
clutch lever while riding
the motorcycle can lead to
accidents.
Do not attempt to adjust the
clutch lever unless the motor-
cycle is at a standstill.
Turn adjusting screw 1
clockwise.
The adjusting screw is
indexed and is easier
to turn if you push the clutch
lever forward.
Span between handlebar
grip and clutch lever in-
creases. Turn adjusting screw
1
counter-clockwise.
Span between handlebar
grip and clutch lever de-
creases.
BrakesAdjusting the handbrake
lever
Changing the position of
the brake-fluid reservoir
can allow air to penetrate the
brake system.
Do not twist the handlebar
fitting or the handlebars.
Attempting to adjust the
brake lever while riding
the motorcycle can lead to
accidents.
Do not attempt to adjust the
brake lever unless the motor-
cycle is at a standstill.
