BMW MOTORRAD R 1150 GS 2002 Rider's Manual (in English)

3
59
Starting – Riding – Parking

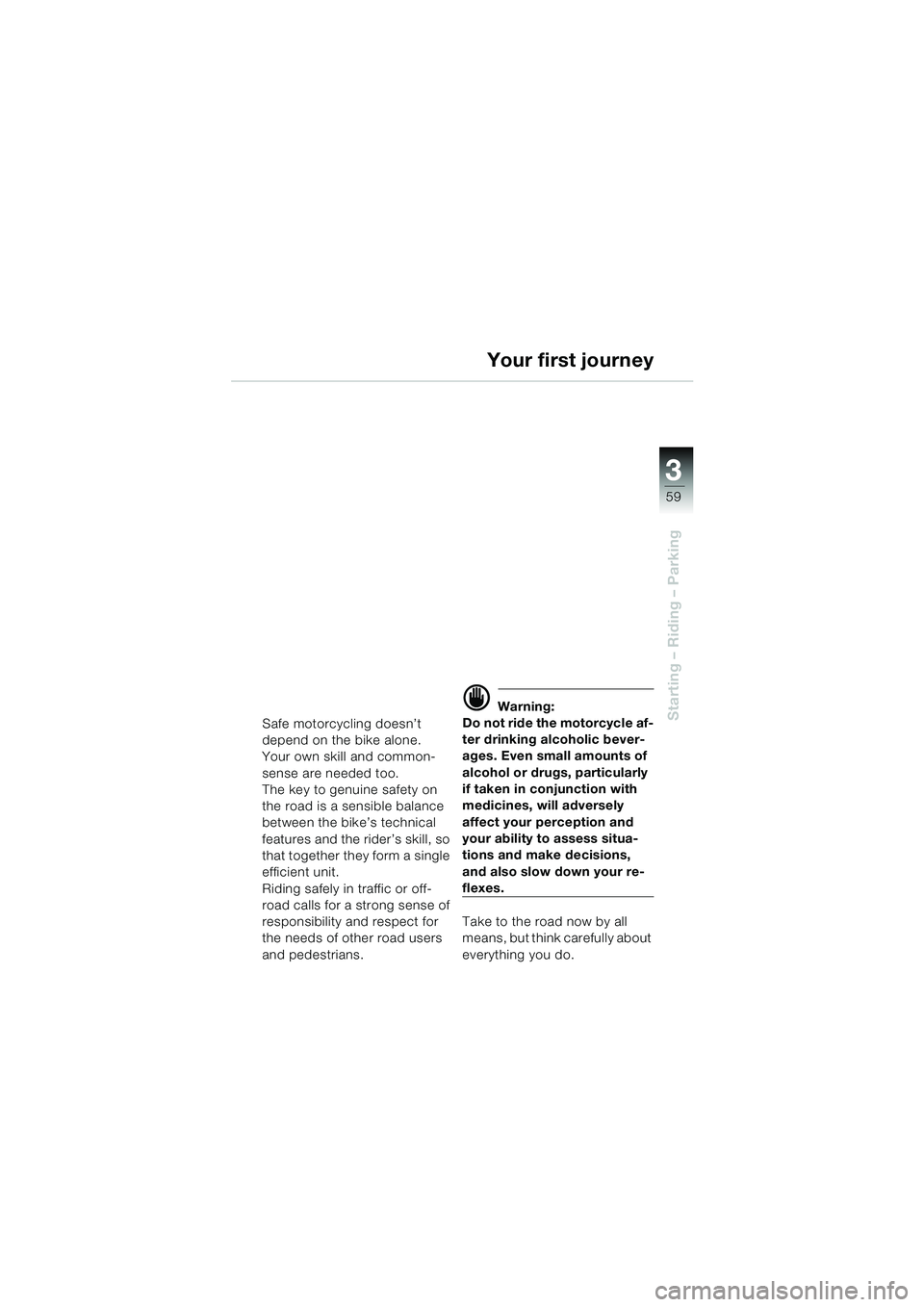

Your first journey
Safe motorcycling doesn’t
depend on the bike alone.
Your own skill and common-
sense are needed too.
The key to genuine safety on
the road is a sensible balance
between the bike’s technical
features and the rider’s skill, so
that together they form a single
efficient unit.
Riding safely in traffic or off-
road calls for a strong sense of
responsibility and respect for
the needs of other road users
and pedestrians.
d Warning:
Do not ride the motorcycle af-
ter drinking alcoholic bever-
ages. Even small amounts of
alcohol or drugs, particularly
if taken in conjunction with
medicines, will adversely
affect your perception and
your ability to assess situa-
tions and make decisions,
and also slow down your re-
flexes.
Take to the road now by all
means, but think carefully about
everything you do.
10geBKg6.book Seite 59 Dienstag, 19. November 2002 1:11 13

3

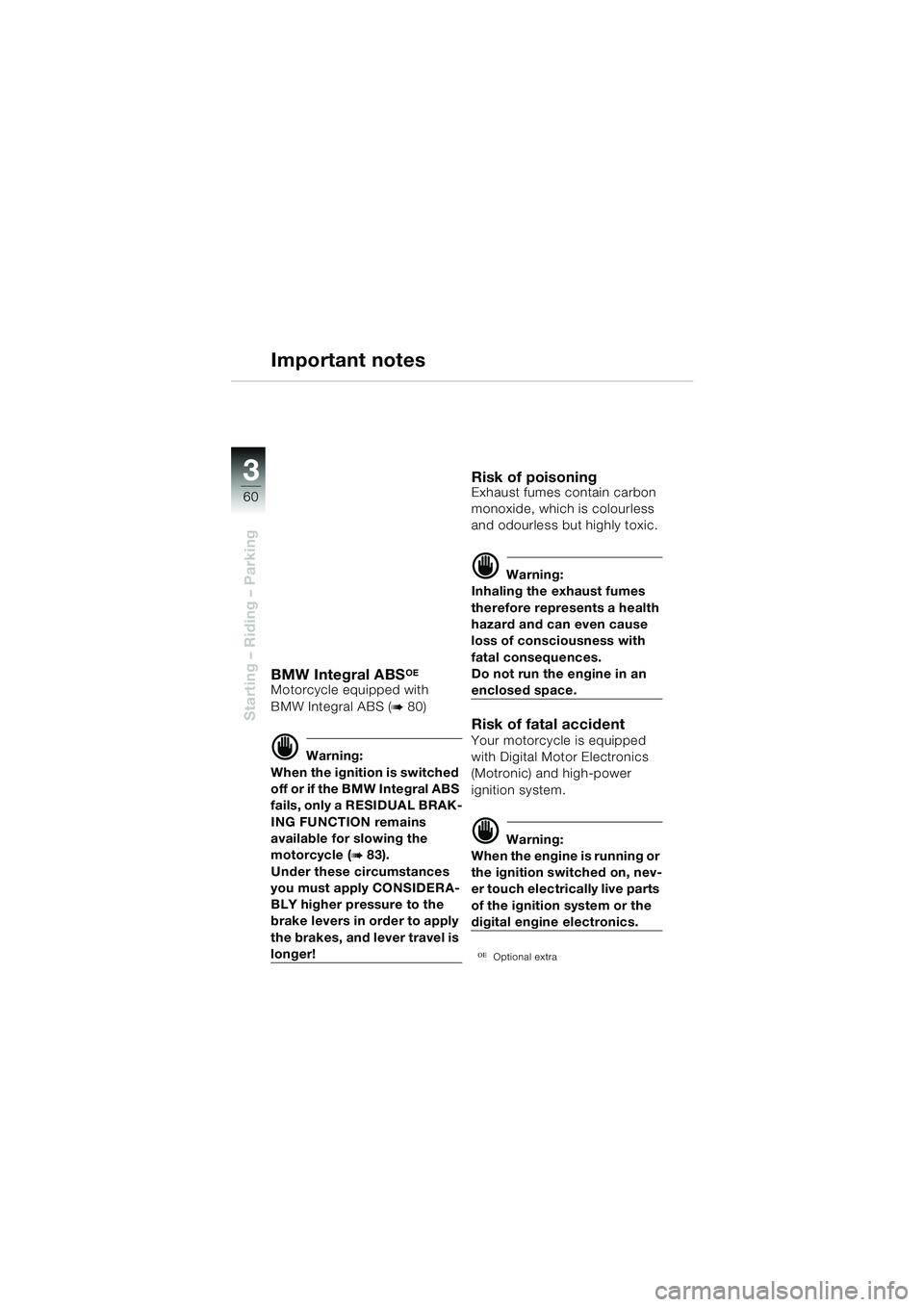

60
Starting – Riding – Parking
Important notes
BMW Integral ABSOE
Motorcycle equipped with
BMW Integral ABS (
b 80)
d Warning:
When the ignition is switched
off or if the BMW Integral ABS
fails, only a RESIDUAL BRAK-
ING FUNCTION remains
available for slowing the
motorcycle (
b 83).
Under these circumstances
you must apply CONSIDERA-
BLY higher pressure to the
brake levers in order to apply
the brakes, and lever travel is
longer!
Risk of poisoningExhaust fumes contain carbon
monoxide, which is colourless
and odourless but highly toxic.
d Warning:
Inhaling the exhaust fumes
therefore represents a health
hazard and can even cause
loss of consciousness with
fatal consequences.
Do not run the engine in an
enclosed space.
Risk of fatal accidentYour motorcycle is equipped
with Digital Motor Electronics
(Motronic) and high-power
ignition system.
d Warning:
When the engine is running or
the ignition switched on, nev-
er touch electrically live parts
of the ignition system or the
digital engine electronics.
OEOptional extra
10geBKg6.book Seite 60 Dienstag, 19. November 2002 1:11 13

3

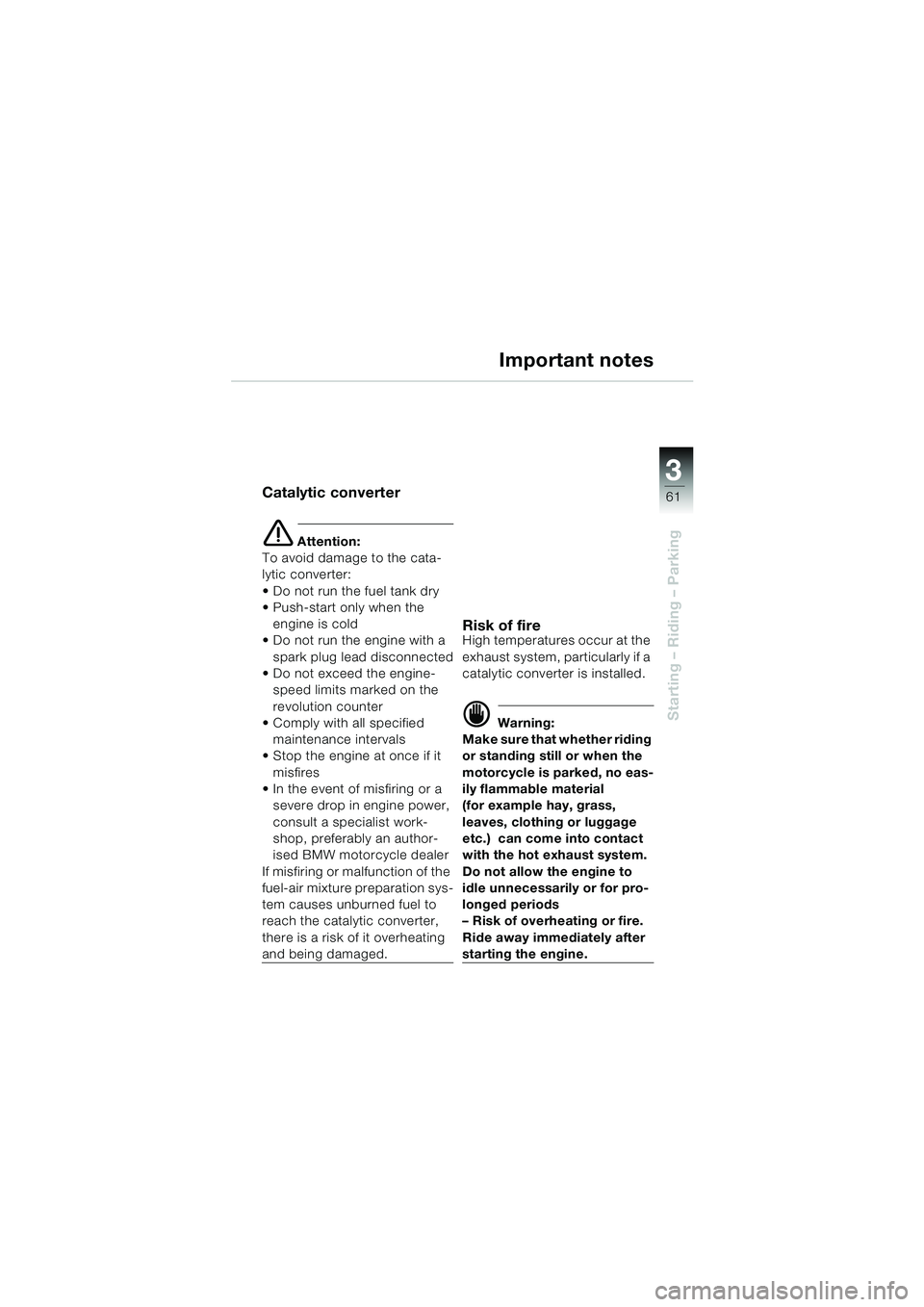

61
Starting – Riding – Parking
Important notes
Catalytic converter
e Attention:
To avoid damage to the cata-
lytic converter:
 Do not run the fuel tank dry
 Push-start only when the
engine is cold
 Do not run the engine with a
spark plug lead disconnected
 Do not exceed the engine- speed limits marked on the
revolution counter
 Comply with all specified
maintenance intervals
 Stop the engine at once if it
misfires
 In the event of misfiring or a severe drop in engine power,
consult a specialist work-
shop, preferably an author-
ised BMW motorcycle dealer
If misfiring or malfunction of the
fuel-air mixture preparation sys-
tem causes unburned fuel to
reach the catalytic converter,
there is a risk of it overheating
and being damaged.
Risk of fireHigh temperatures occur at the
exhaust system, particularly if a
catalytic converter is installed.
d Warning:
Make sure that whether riding
or standing still or when the
motorcycle is parked, no eas-
ily flammable material
(for example hay, grass,
leaves, clothing or luggage
etc.) can come into contact
with the hot exhaust system.
Do not allow the engine to
idle unnecessarily or for pro-
longed periods
– Risk of overheating or fire.
Ride away immediately after
starting the engine.
10geBKg6.book Seite 61 Dienstag, 19. November 2002 1:11 13

3

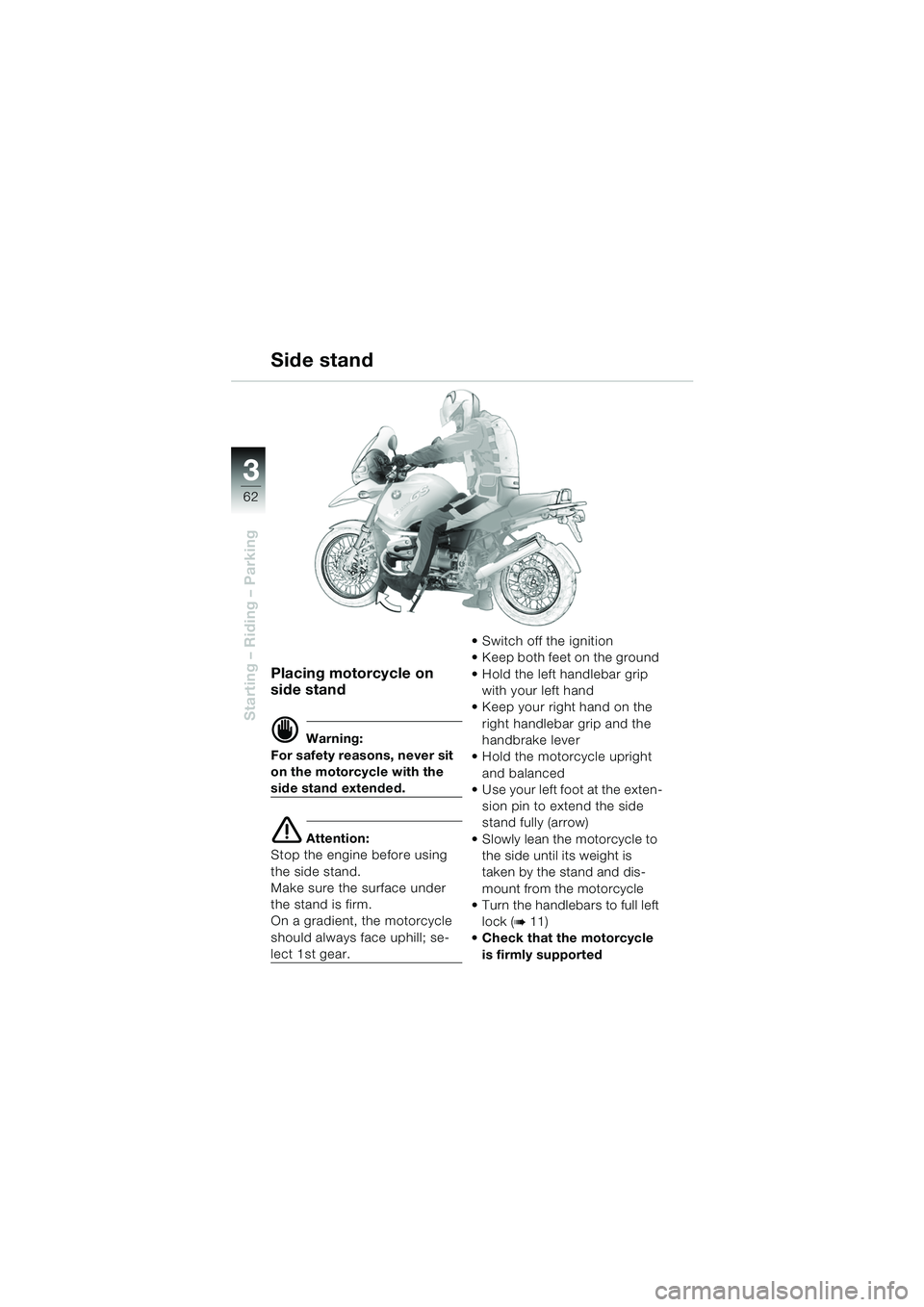

62
Starting – Riding – Parking
Placing motorcycle on
side stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
side stand extended.
e Attention:
Stop the engine before using
the side stand.
Make sure the surface under
the stand is firm.
On a gradient, the motorcycle
should always face uphill; se-
lect 1st gear.  Switch off the ignition
 Keep both feet on the ground
 Hold the left handlebar grip
with your left hand
 Keep your right hand on the
right handlebar grip and the
handbrake lever
 Hold the motorcycle upright and balanced
 U s e y o u r le f t f o o t a t t h e e x t e n -
sion pin to extend the side
stand fully (arrow)
 Slowly lean the motorcycle to the side until its weight is
taken by the stand and dis-
mount from the motorcycle
 Turn the handlebars to full left
lock (
b 11)
 Check that the motorcycle
is firmly supported
Side stand
10geBKg6.book Seite 62 Dienstag, 19. November 2002 1:11 13

3

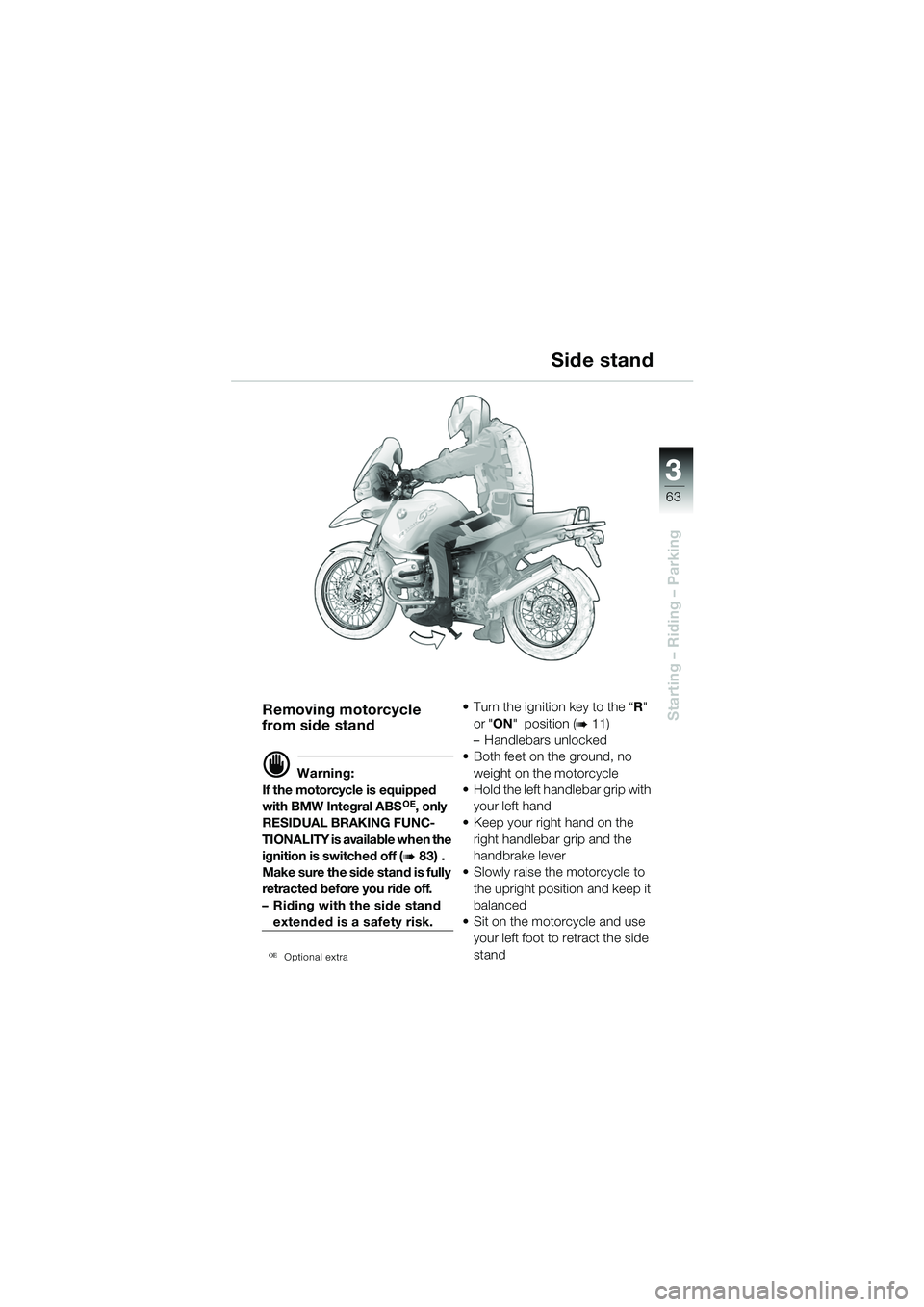

63
Starting – Riding – ParkingRemoving motorcycle
from side stand
d Warning:
If the motorcycle is equipped
with BMW Integral ABS
OE, only
RESIDUAL BRAKING FUNC-
TIONALITY is available when the
ignition is switched off (
b 83) .
Make sure the side stand is fully
retracted before you ride off.
– Riding with the side stand
extended is a safety risk.
OEOptional extra
 Turn the ignition key to the “ R"
or " ON " position (
b 11)
– Handlebars unlocked
 Both feet on the ground, no weight on the motorcycle
 Hold the left handlebar grip with
your left hand
 Keep your right hand on the
right handlebar grip and the
handbrake lever
 Slowly raise the motorcycle to
the upright position and keep it
balanced
 Sit on the motorcycle and use your left foot to retract the side
stand
Side stand
10geBKg6.book Seite 63 Dienstag, 19. November 2002 1:11 13

3

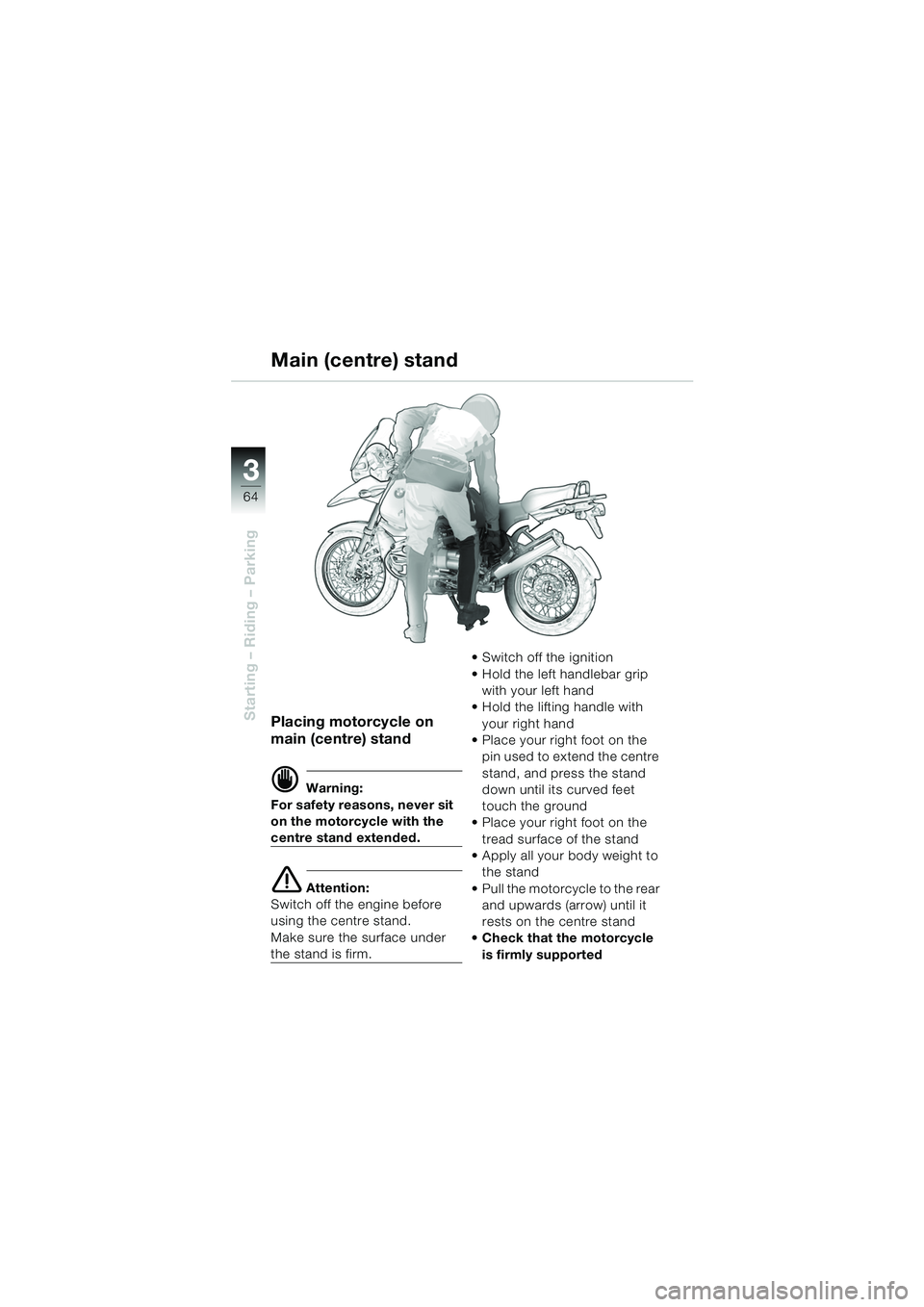

64
Starting – Riding – ParkingPlacing motorcycle on
main (centre) stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
centre stand extended.
e Attention:
Switch off the engine before
using the centre stand.
Make sure the surface under
the stand is firm.  Switch off the ignition
 Hold the left handlebar grip
with your left hand
 Hold the lifting handle with
your right hand
 Place your right foot on the
pin used to extend the centre
stand, and press the stand
down until its curved feet
touch the ground
 Place your right foot on the
tread surface of the stand
 Apply all your body weight to the stand
 Pull the motorcycle to the rear and upwards (arrow) until it
rests on the centre stand
 Check that the motorcycle
is firmly supported
Main (centre) stand
10geBKg6.book Seite 64 Dienstag, 19. November 2002 1:11 13

3

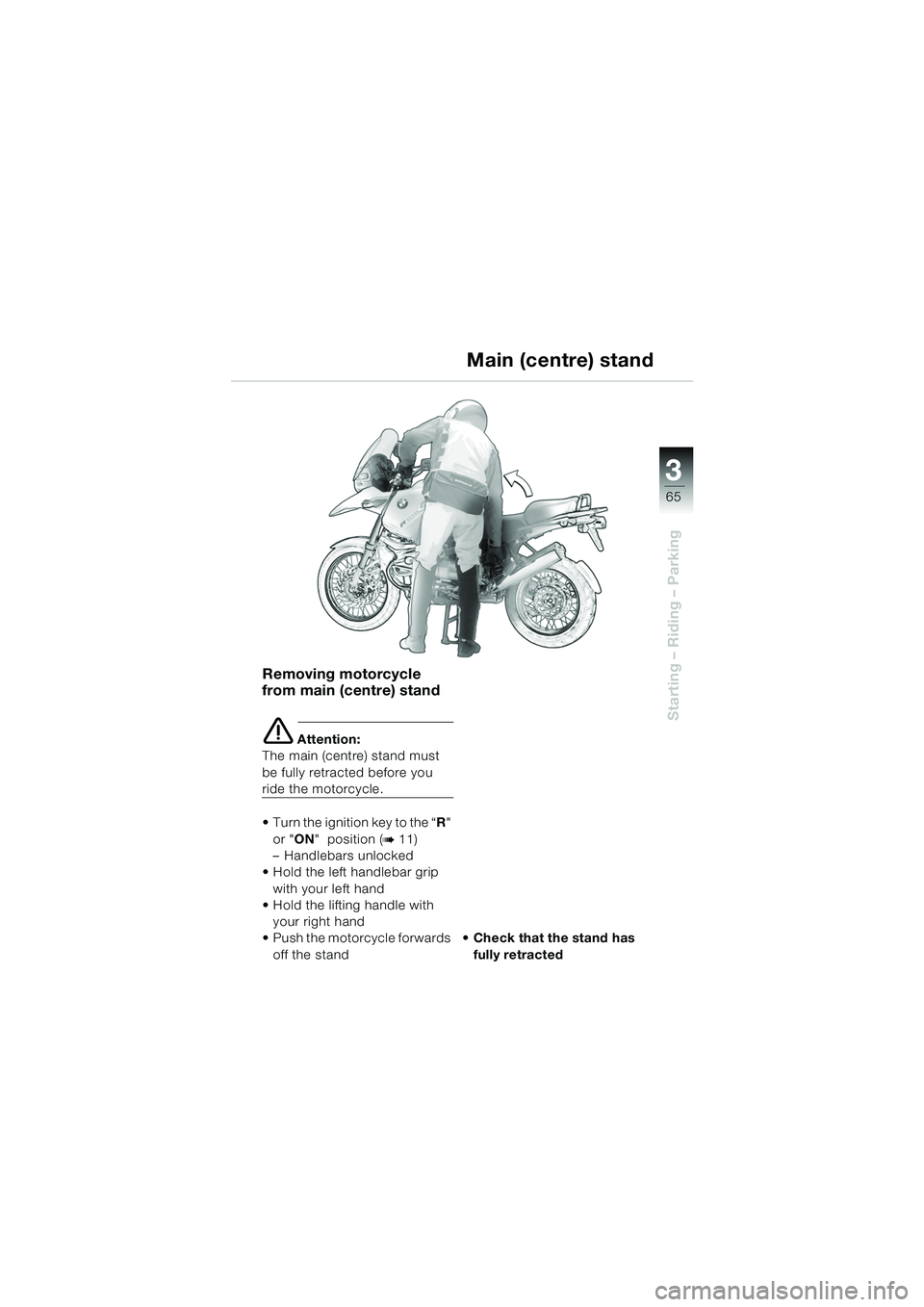

65
Starting – Riding – Parking
Removing motorcycle
from main (centre) stand
e Attention:
The main (centre) stand must
be fully retracted before you
ride the motorcycle.
 Turn the ignition key to the “ R"
or " ON" position (
b 11)
– Handlebars unlocked
 Hold the left handlebar grip
with your left hand
 Hold the lifting handle with
your right hand
 Push the motorcycle forwards
off the stand  Check that the stand has
fully retracted
Main (centre) stand
10geBKg6.book Seite 65 Dienstag, 19. November 2002 1:11 13

3

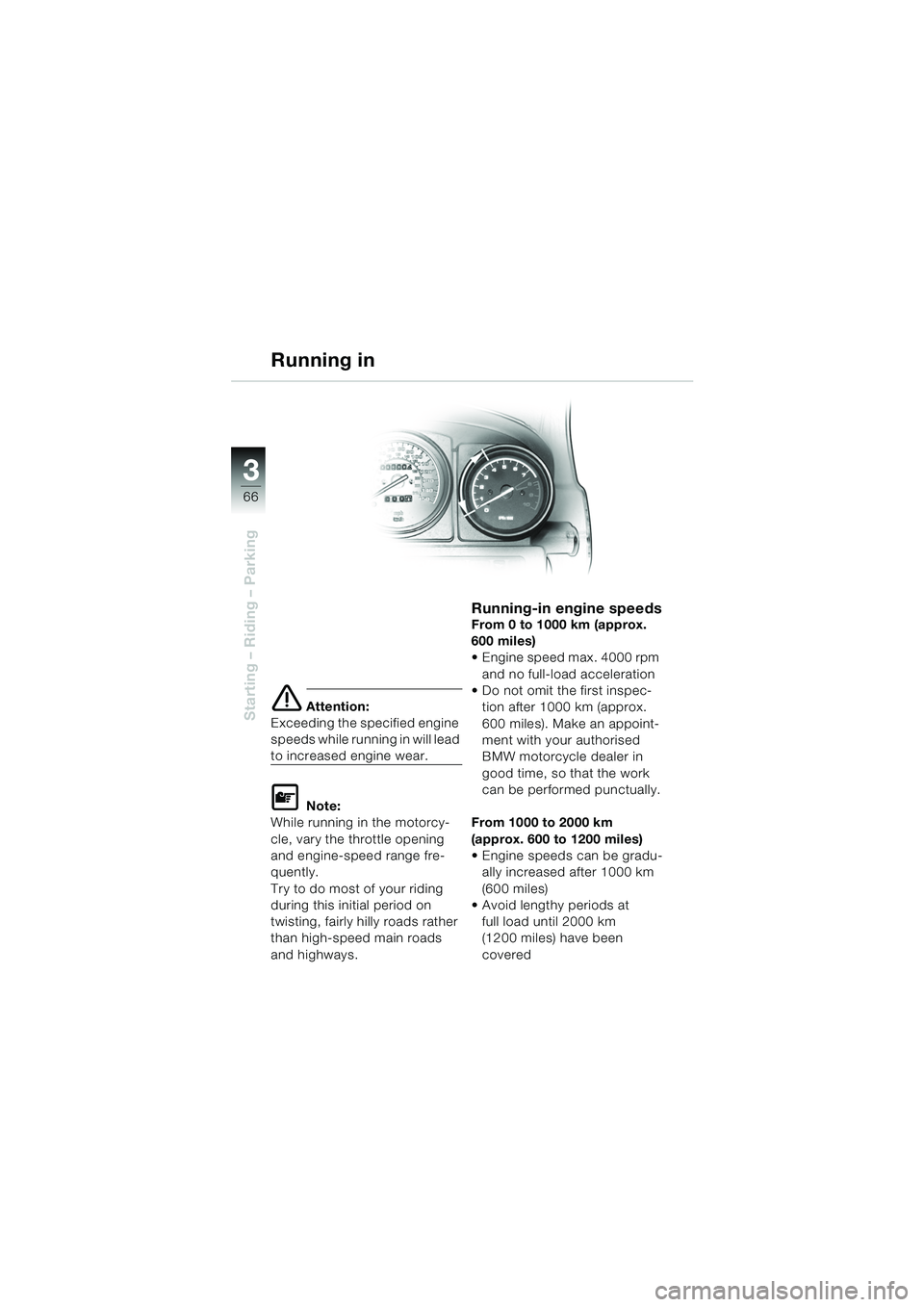

66
Starting – Riding – Parkinge Attention:
Exceeding the specified engine
speeds while running in will lead
to increased engine wear.
L Note:
While running in the motorcy-
cle, vary the throttle opening
and engine-speed range fre-
quently.
Try to do most of your riding
during this initial period on
twisting, fairly hilly roads rather
than high-speed main roads
and highways.
Running-in engine speedsFrom 0 to 1000 km (approx.
600 miles)
 Engine speed max. 4000 rpm
and no full-load acceleration
 Do not omit the first inspec- tion after 1000 km (approx.
600 miles). Make an appoint-
ment with your authorised
BMW motorcycle dealer in
good time, so that the work
can be performed punctually.
From 1000 to 2000 km
(approx. 600 to 1200 miles)
 Engine speeds can be gradu- ally increased after 1000 km
(600 miles)
 Avoid lengthy periods at
full load until 2000 km
(1200 miles) have been
covered
Running in
10geBKg6.book Seite 66 Dienstag, 19. November 2002 1:11 13

3

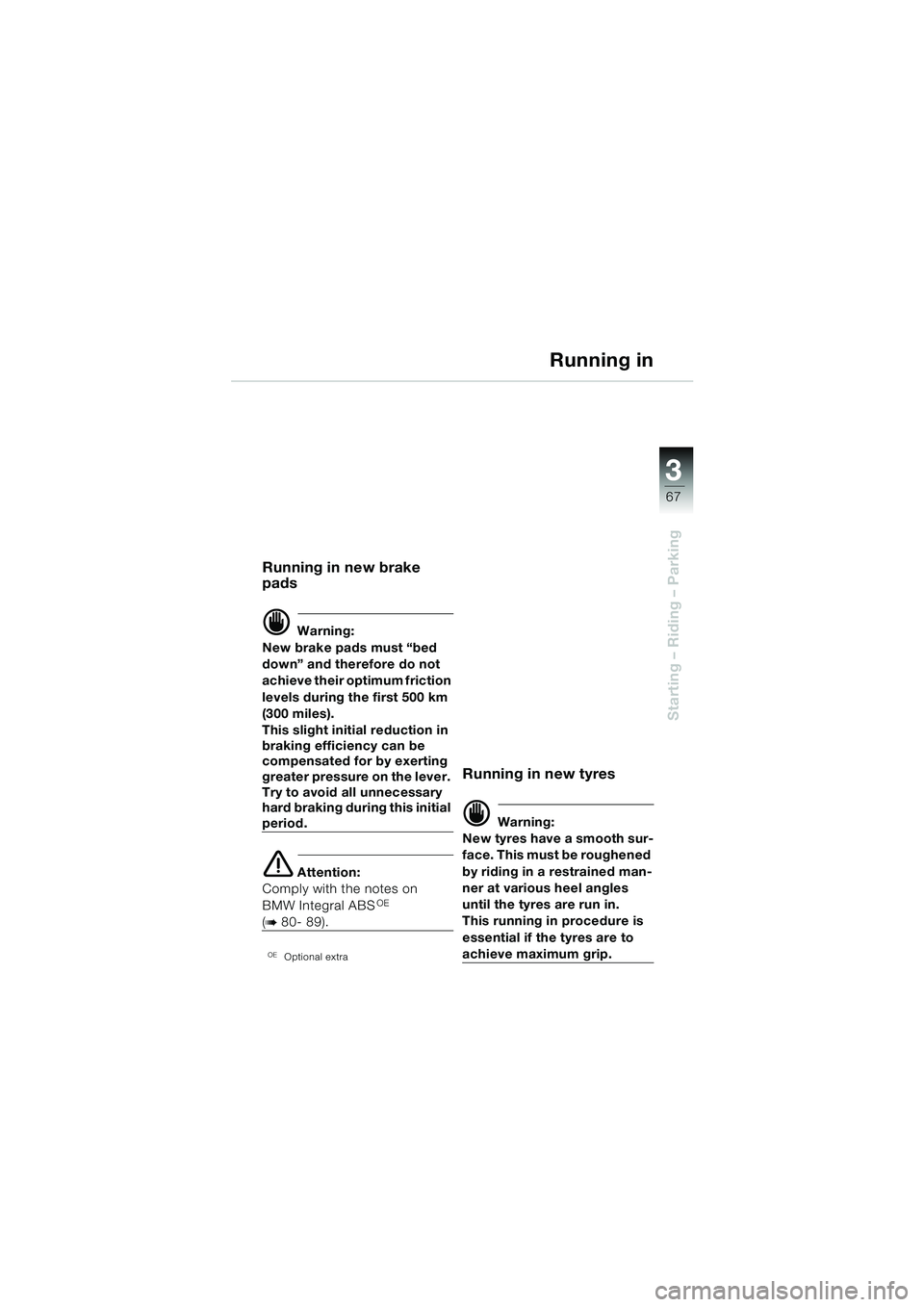

67
Starting – Riding – Parking
Running in
Running in new brake
pads
d Warning:
New brake pads must “bed
down” and therefore do not
achieve their optimum friction
levels during the first 500 km
(300 miles).
This slight initial reduction in
braking efficiency can be
compensated for by exerting
greater pressure on the lever.
Try to avoid all unnecessary
hard braking during this initial
period.
e Attention:
Comply with the notes on
BMW Integral ABS
OE
(b 80- 89).
OEOptional extra
Running in new tyres
d Warning:
New tyres have a smooth sur-
face. This must be roughened
by riding in a restrained man-
ner at various heel angles
until the tyres are run in.
This running in procedure is
essential if the tyres are to
achieve maximum grip.
10geBKg6.book Seite 67 Dienstag, 19. November 2002 1:11 13

3
68
Starting – Riding – Parking

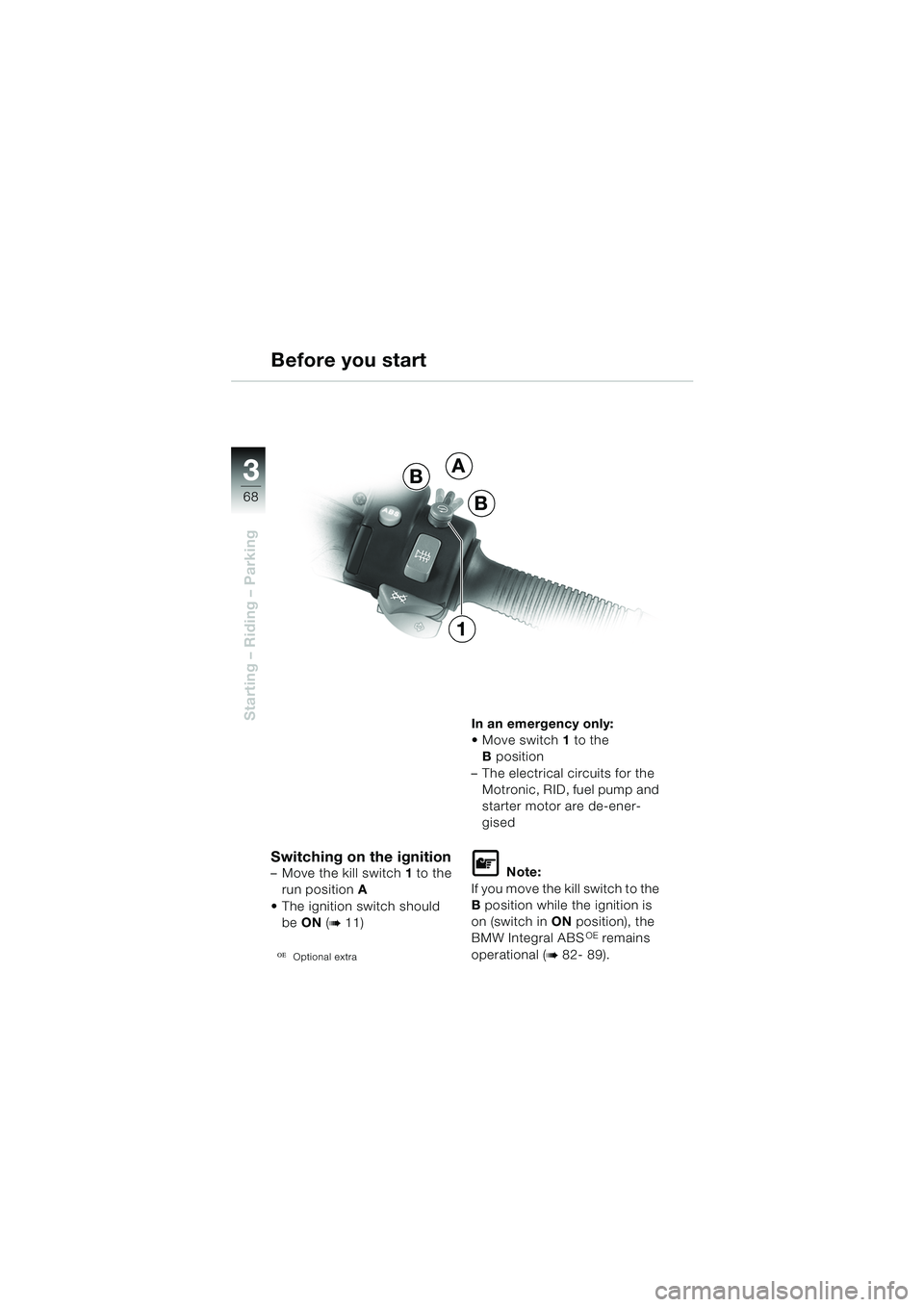

Switching on the ignition– Move the kill switch1 to the
run position A
 The ignition switch should be ON (
b 11)
OEOptional extra
In an emergency only:
 Move switch 1 to the
B position
– The electrical circuits for the Motronic, RID, fuel pump and
starter motor are de-ener-
gised
L Note:
If you move the kill switch to the
B position while the ignition is
on (switch in ON position), the
BMW Integral ABS
OE remains
operational (
b 82- 89).
Before you start
A
B
B
1
