BMW Z8 CONVERTIBLE 2002 User Guide

11n

Controls and features
Operation, care and maintenance

Lamps:

Parking lamps/Low beams69
Instrument lighting69
High beams/Standing lamps70
Rear fog lamp70
Interior lamps71
Reading lamps71

Controlling the climate for
pleasant driving:

Heating and ventilation/
Air conditioner72
Seat heating77

Interior conveniences:

Glove compartment78
Storage compartments78
Beverage holder80
Cellular phone81
Ashtray81
Cigarette lighter82

Loading and transporting:

Cargo loading83

Special operating instructions:

Break-in procedures86
Driving notes87
Catalytic converter87
Antilock Brake System (ABS)88
Dynamic Brake Control
(DBC)90
Disc brakes90
Brake system92
Winter operation92
Power steering94
Cellular phone94
Car radio reception95
Wind deflector95
Hardtop96

Wheels and tires:

Tire inflation pressure99
Tire condition99
Tire replacement100
Tire rotation101
Wheel and tire
combinations102
Special features of winter
tires103
Snow chains103
Approved wheel and tire
specifications104

Under the hood:

Hood105
Engine compartment108
Washer fluids110
Washer nozzles110
Engine oil111
Coolant113
Brake fluid114
Vehicle Identification
Number115

Maintenance and care:

The BMW Maintenance
System116
Caring for your vehicle117
Airbags123
Vehicle storage124

Laws and regulations:

Technical modifications125
California Proposition 65
Warning125
OBD interface socket126

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit130
Windshield wiper blades130
Lamps and bulbs131
Changing a wheel137
Battery138
Fuses140

In case of electrical
malfunction:

Fuel filler door142
Luggage compartment lid,
storage compartment142
Passenger door143
Closing the convertible top143

Giving and receiving
assistance:

Jump-starting145
Towing the vehicle146Airbags150
Car radio reception151
Dynamic Stability Control
(DSC)152
Safety belt tensioner153
Interior rearview mirror with
automatic dimmer154
Xenon lamps155Engine data158
Dimensions159
Weights160
Capacities161
Electrical system162
Drive belts162

13n

Index

Everything from A to Z166

14n

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

IndexDataTechnologyRepairsCar careControlsOverview
Cockpit16
Instrument cluster18
Indicator and warning lamps20
Hazard warning flashers24
Warning triangle24
First-aid kit24
Refueling25
Fuel quality26
Tire inflation pressure26
Overview

16n
520us001

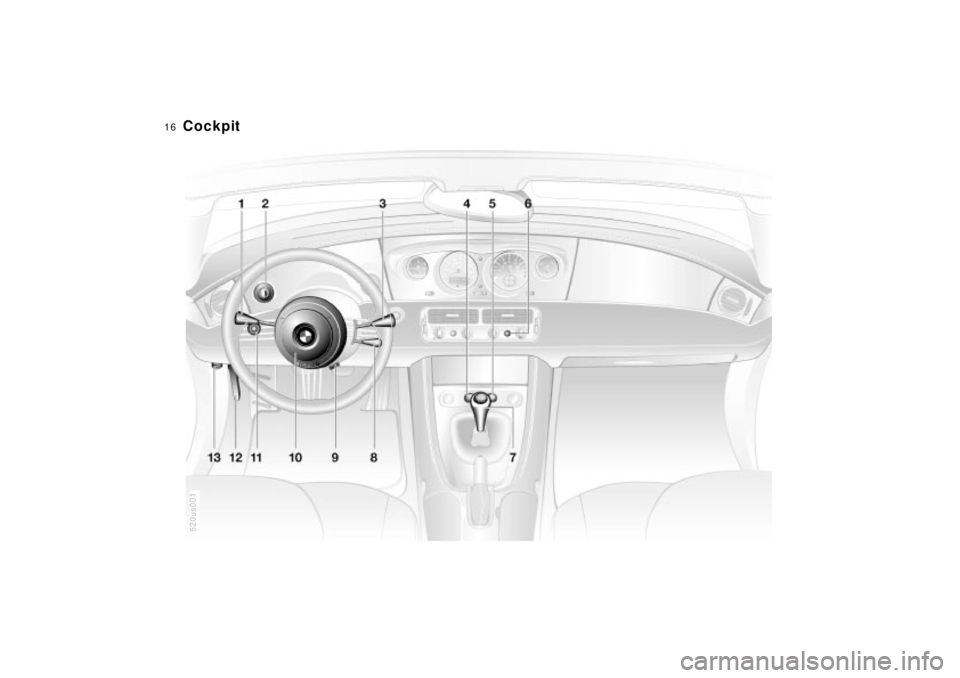

Cockpit

17n

IndexDataTechnologyRepairsCar careControlsOverview

Cockpit

1

>

Turn signal indicator58

>

Standing lamps70

>

High beams70

>

Headlamp flasher58
2 Parking lamps/Low beams69
3 Washer/Wiper system59
4 Hazard warning flashers24
5 Central locking system32
6 Rear window defroster for the
hardtop60
7 Shift lever58
To engage reverse gear, pull the
lever across the gate to the left to
overcome the detent
8 Cruise control61
9 Adjusting the steering wheel47
10 Horn: entire surface
11 Rear fog lamp70
12 Unlocking the hood
13

>

Unlocking the luggage
compartment lid37

>

Unlocking the fuel filler door25

18n

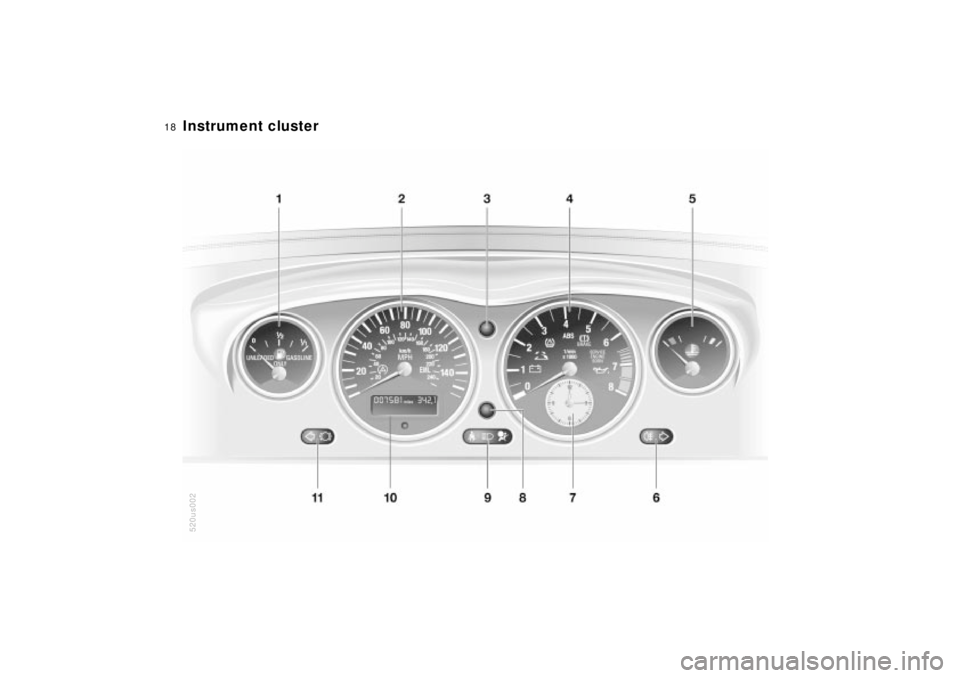

Instrument cluster
520us002

19n

IndexDataTechnologyRepairsCar careControlsOverview

Instrument cluster

1 Fuel gauge with indicator lamp for
fuel reserve62
2 Speedometer with indicator and
warning lamps for

>

Dynamic Stability Control
(DSC)22

>

Engine electronics22
3 Instrument panel lighting69
4 Tachometer62
with indicator and warning lamps
for:

>

Battery charge current20

>

Convertible top operation41

>

Flat Tire Monitor20

>

Antilock Brake System (ABS)21

>

Parking brake/Brake hydraulic
system/Cornering Brake Control
(CBC)20

>

Service Engine Soon22

>

Engine oil pressure/Engine oil
level20, 21
5 Coolant temperature gauge with
"Coolant temperature too high"
warning lamp63
6 Indicator and warning lamps for:

>

Rear fog lamp22

>

Turn signal, right23
7 Clock648 Control button for:

>

Clock64

>

Trip odometer, reset to zero62
9 Indicator and warning lamps for:

>

Please fasten safety belts21

>

High beams23

>

Airbags21
10 Indicator for:

>

Odometer62

>

Trip odometer62

>

Service Interval63
11 Indicator and warning lamps for:

>

Turn signal, left23

>

Brake pads22

20n

Indicator and warning lamps

Technology that monitors itself

Indicator and warning lamps identified
by "

l

" are tested for proper operation
whenever the ignition key is turned.
They each light up once for different
periods of time.
The indicator lamps signal defects in
monitored systems by either remaining
lit after the engine is started or by
coming on in the course of normal
vehicle operation. Refer to the following
section for detailed information on how
to respond to the various types of warn-
ings.

Red: stop immediately

Battery charge current
The battery is no longer being
charged. Indicates a defect in
the alternator drive belt or the charging
circuit. Please contact the nearest
BMW center.
Never attempt to continue driving
if the drive belt is defective: the
engine could overheat and sustain
serious damage. A broken or damaged
drive belt will also lead to a sudden
increase in steering effort.

<

Engine oil pressure

l

Stop vehicle immediately and
switch off engine. Check the
engine oil level and top up as required.
If the oil level is correct, please contact
the nearest BMW center.
Do not continue driving. The
engine could sustain damage
owing to inadequate lubrication.

<



Flat Tire Monitor

l
Flashing warning lamp in addi-
tion to an acoustic signal: a flat
tire has occurred. Carefully reduce
speed to less than 50 mph (80 km/h),
and avoid hard braking or steering
maneuvers.
For additional information, refer to
page 67.
Brake warning lamp

l

If the lamp comes on when the
parking brake is not engaged,
check the brake fluid level. Before
driving further, be sure to read the
notes on pages 92 and 114.
Brake warning lamp for Cana-
dian models.
