BUICK CENTURY 1994 Owners Manual
Manufacturer: BUICK, Model Year: 1994, Model line: CENTURY, Model: BUICK CENTURY 1994Pages: 308, PDF Size: 16.3 MB
Page 111 of 308

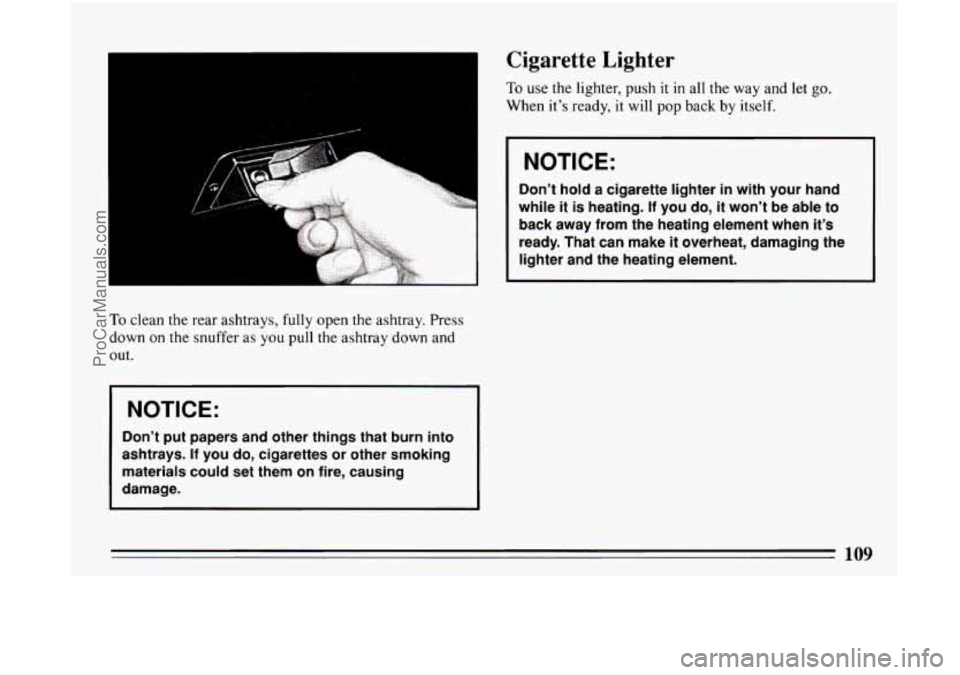

To clean the rear ashtrays, fully open the ashtray. Press
down on the snuffer as
you pull the ashtray down and
out.
I NOTICE:
Don’t put papers and other things that burn into
ashtrays.
If you do, cigarettes or other smoking
materials could set them on fire, causing
damage.
Cigarette Lighter
To use the lighter, push it in all the way and let go.
When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from
the heating element when it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
109
ProCarManuals.com

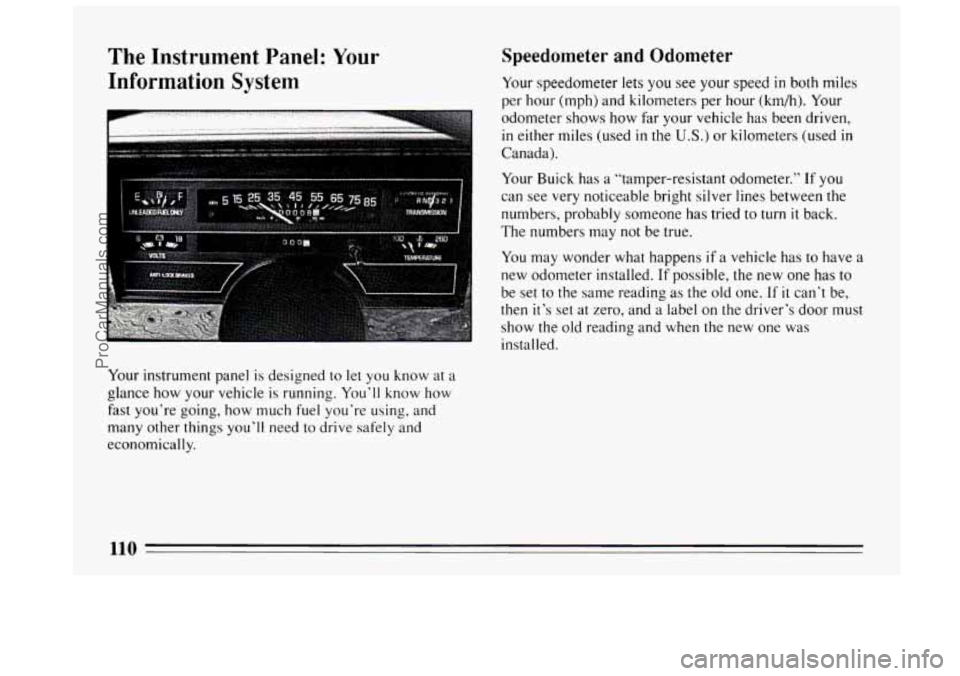

Page 112 of 308

The Instrument Panel: Your
Information System
Your instrument panel is designed to let you know at a
glance how your vehicle is running. You’ll know how
fast you’re going, how much
fuel you’re using, and
many other things you’ll need to drive safely and
economically.
Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven,
in either miles (used in the U.S.) or kilometers (used in
Canada).
Your Buick has a “tamper-resistant odometer.”
If you
can see very noticeable bright silver lines between the
numbers, probably someone has tried to turn
it back.
The numbers may not be true.
You may wonder what happens if a vehicle has
to have a
new odometer installed.
If possible, the new one has to
be set to the same reading as the old one.
If it can’t be,
then it’s set at zero, and a label on the driver’s door must
show the old reading and when the new one was
installed.
110
ProCarManuals.com

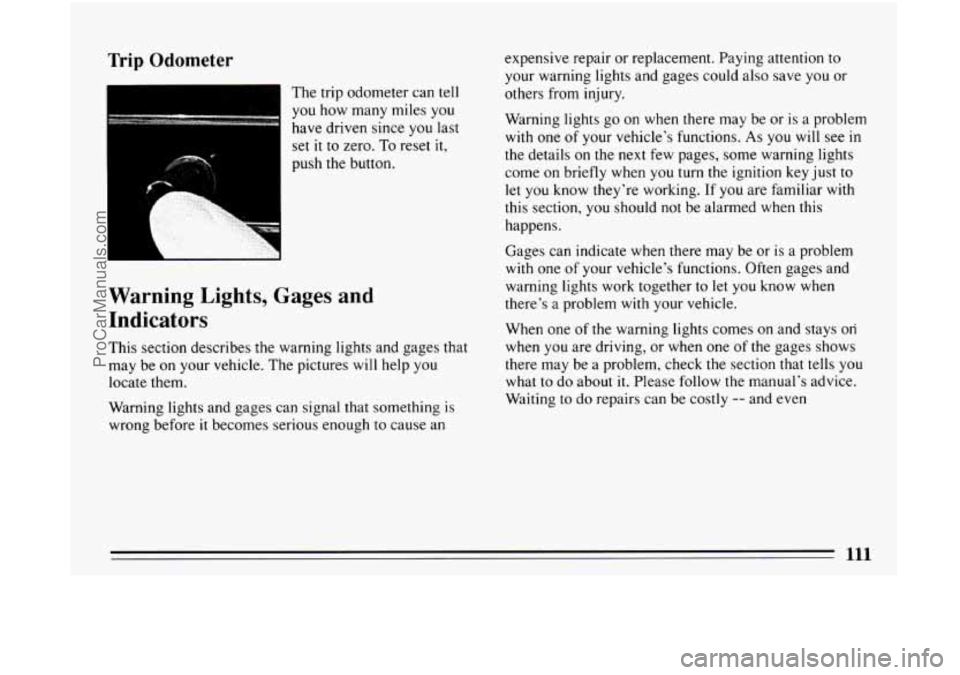

Page 113 of 308

Trip Odometer
The trip odometer can tell
you how many miles you
have driven since you last
set
it to zero. To reset it,
push the button.
L
Warning Lights, Gages and
Indicators
This section describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something
is
wrong before it becomes serious enough to cause an expensive
repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights go on when there may be or is a problem
with one of
your vehicle’s functions. As you will see in
the details on the next few pages, some warning lights
come
on briefly when you turn the ignition key just to
let you know they’re working. If you are familiar with
this section,
you should not be alarmed when this
happens.
Gages can indicate when there may be
or is a problem
with one
of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays
on
when you are driving, or when one of the gages shows
there may be a problem, check
the section that tells you
what to do about it. Please follow the manual’s advice.
Waiting to
do repairs can be costly -- and even
111
ProCarManuals.com

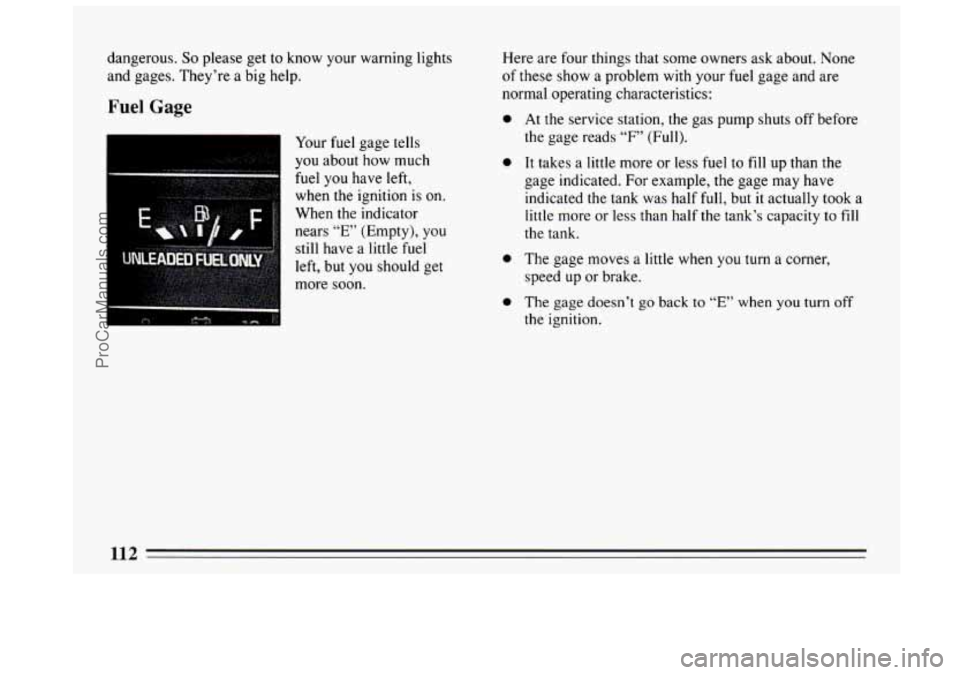

Page 114 of 308

dangerous. So please get to know your warning lights
and gages. They’re a big help.
Fuel Gage
I
Your fuel gage tells
you about how much
fuel you have left,
when
the ignition is on.
When the indicator
nears
“E” (Empty), you
still have a little fuel
left, but you should get
more soon. Here
are four things that some owners ask about. None
of these show a problem with your fuel gage and are
normal operating characteristics:
0
0
0
0
At the service station, the gas pump shuts off before
the gage reads
“F” (Full).
It takes a
little more or less fuel to fill up than the
gage indicated. For example,
the gage may have
indicated the tank was half
full, but it actually took a
little more or less than half the tank’s capacity to
fill
the tank.
The gage moves a little when you
turn a corner,
speed up or brake.
The gage doesn’t go back to
“E” when you turn off
the ignition.
112
ProCarManuals.com

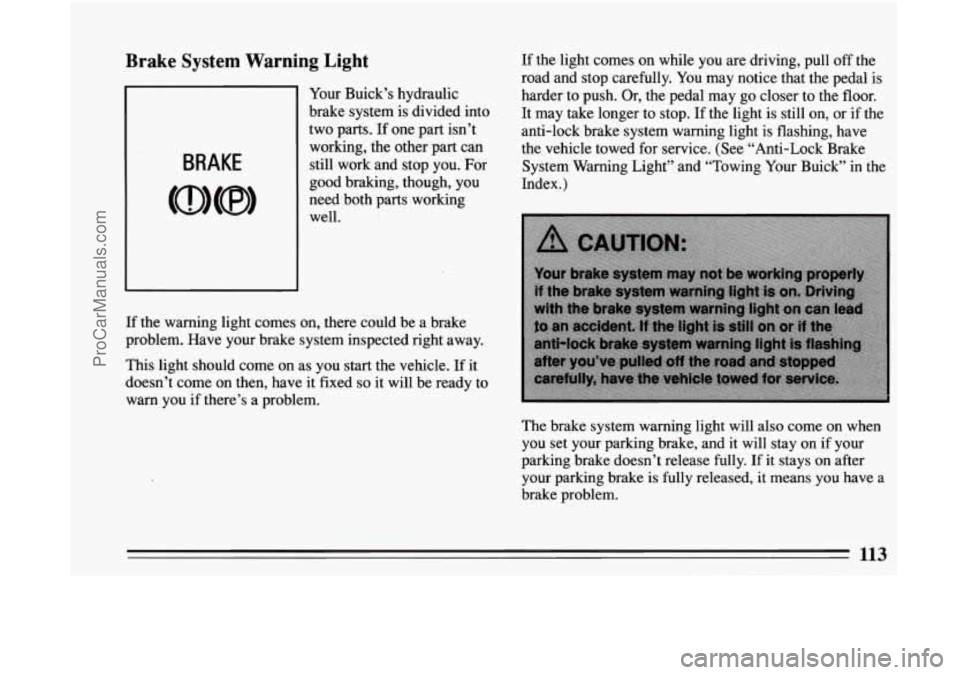

Page 115 of 308

Brake System Warning Light
BRAKE
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal
is
Your Buick’s hydraulic harder to push. Or, the pedal may go closer to the floor.
brake system is divided into It may take longer to stop. If the light is still on, or if the
two parts. If one part isn’t
anti-lock brake system warning light is flashing, have
working, the other part can the vehicle towed for service. (See “Anti-Lock Brake
still work and stop you. For
good braking, though, you
need both parts working
well.
If the warning light comes on, there cou Ild
be a brake
problem. Have your brake system inspected right away. System
Warning Light” and “Towing Your Buick” in the
Index.)
This light should come on as you start the vehicle. If it
doesn’t come on then, have it fixed
so it will be ready to
warn you if there’s a problem.
The brake system warning light will also come on when
you set your parking brake, and it will stay on if your
parking brake doesn’t release fully. If it stays on after
your parking brake is fully released,
it means you have a
brake problem.
113
ProCarManuals.com

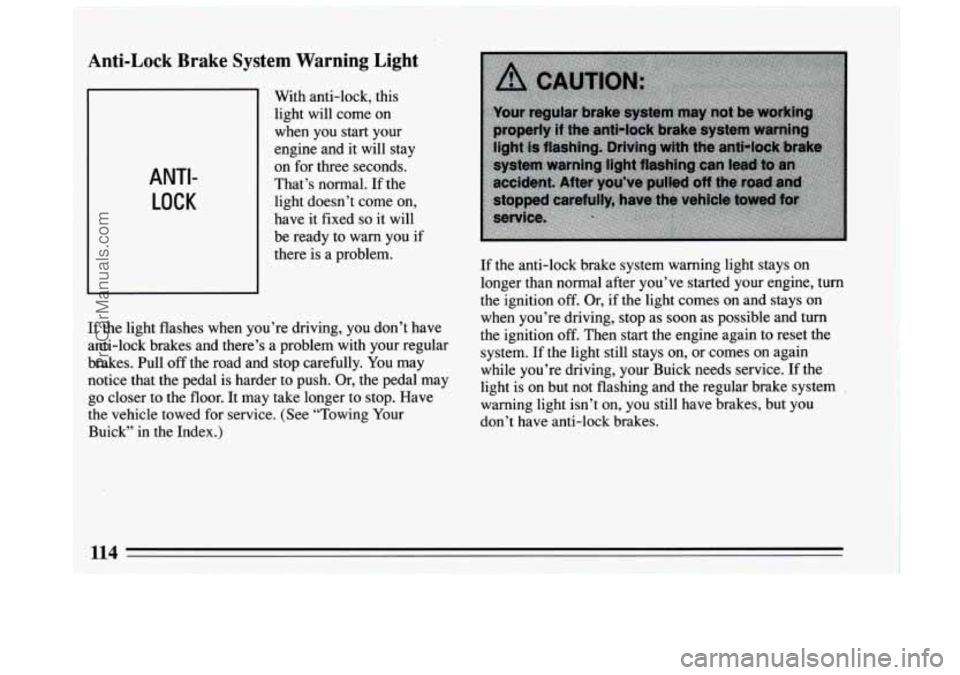

Page 116 of 308

I
Anti-Lock Brake SJ
ANTI-
LOCK
‘S tern Warning’Light
With anti-lock, this
light will come on
when you start your
engine and it will stay
on for three seconds.
That’s normal.
If the
light doesn’t come on,
have it fixed
so it will
be ready to warn you if
there is a problem.
If the anti-lock brake system warning light stays on
longer than normal after you’ve started your engine, turn
the ignition off. Or, if the light comes on and stays on
when you’re driving, stop as soon as possible and turn
the ignition
off. Then start the engine again to reset the
system. If the light still stays on, or comes on again
while you’re driving, your Buick needs service.
If the
light is on but not flashing and the regular brake system
warning light isn’t on, you still have brakes, but you
don’t have anti-lock brakes.
If
the light flashes when you’re driving, you don’t have
anti-lock brakes and there’s a problem with your regular
brakes. Pull off the road and stop carefully. You may
notice that the pedal is harder to push. Or, the pedal may
go closer to the floor. It may take longer to stop. Have
the vehicle towed
for service. (See “Towing Your
Buick” in the Index.)
114 1
I
ProCarManuals.com
Page 117 of 308

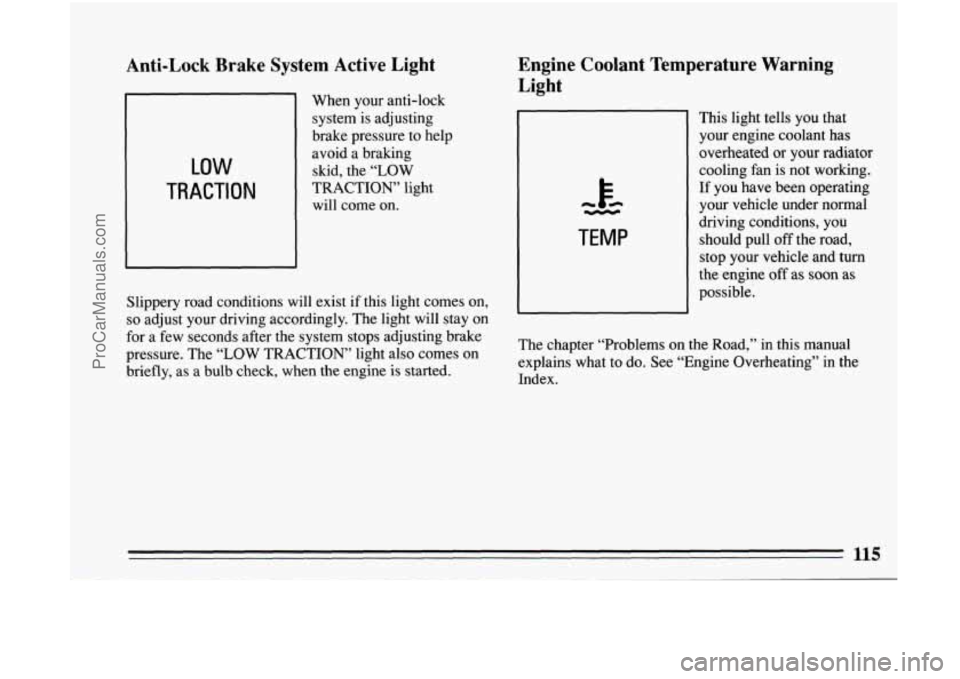

Anti-Lock Brake System Active Light
LOW
TRACTION
When your anti-lock
system is adjusting
brake pressure to help
avoid a braking
skid, the
“LOW
TRACTION’ light
will come on.
Slippery road conditions will exist if this light comes on,
so adjust your driving accordingly. The light will stay on
for
a few seconds after the system stops adjusting brake
pressure. The
“LOW TRACTION” light also comes on
briefly, as a
bulb check, when the engine is started.
Engine Coolant Temperature Warning
Light
k F- 4ccN
TEMP
This light tells you that
your engine coolant has
overheated or your radiator
cooling fan is not working.
If you have been operating
your vehicle under normal
driving conditions, you
should pull off the road,
stop your vehicle and turn
the engine
off as soon as
possible.
The chapter “Problems on the Road,” in this manual
explains what to do. See “Engine Overheating” in the
Index.
ProCarManuals.com

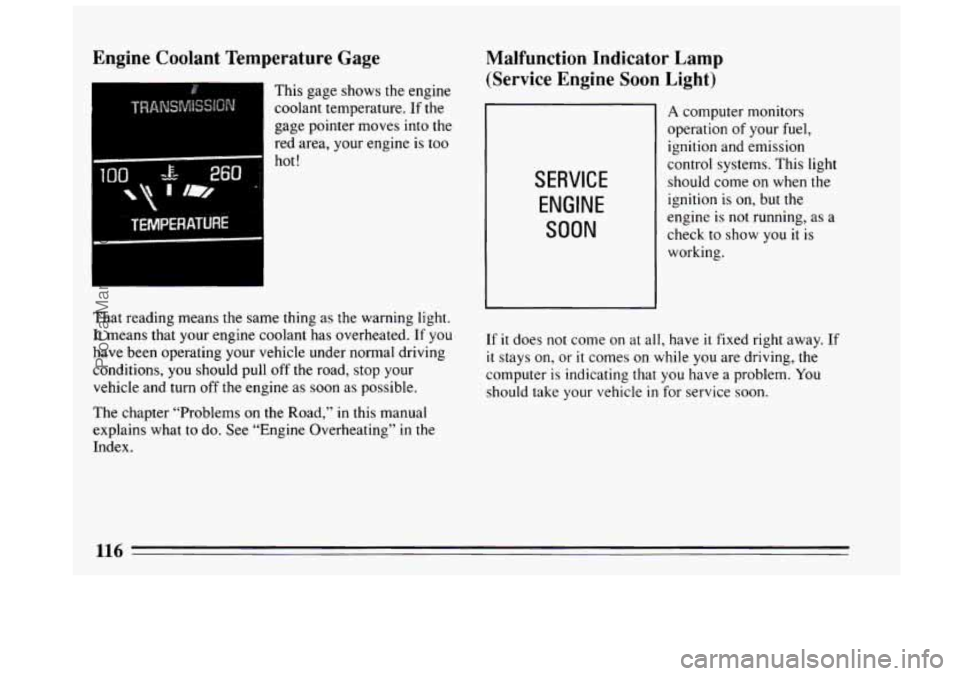

Page 118 of 308

Engine Coolant Temperature Gage
This gage shows the engine
coolant temperature. If the
gage pointer moves into the
red area, your engine is too
100 -E- 260 i
T lm,
hot!
TEMPERATURE
That reading means the same thing as the warning light.
It means that your engine coolant has overheated. If you
have been operating your vehicle under normal driving
conditions, you should pull off the road, stop your
vehicle and
turn off the engine as soon as possible.
The chapter “Problems on the Road,”
in this manual
explains what
to do. See “Engine Overheating” in the
Index.
Malfunction Indicator Lamp
(Service Engine Soon Light)
SERVICE
ENGINE
SOON
A computer monitors
operation of your fuel,
ignition and emission
control systems. This light
should come on when the
ignition is on, but the
engine is not running, as
a
check to show you it is
working.
If it does not come on at all, have it fixed right away. If
it stays on, or it comes on while you are driving, the
computer is indicating that
you have a problem. You
should take your vehicle
in for service soon.
116
ProCarManuals.com

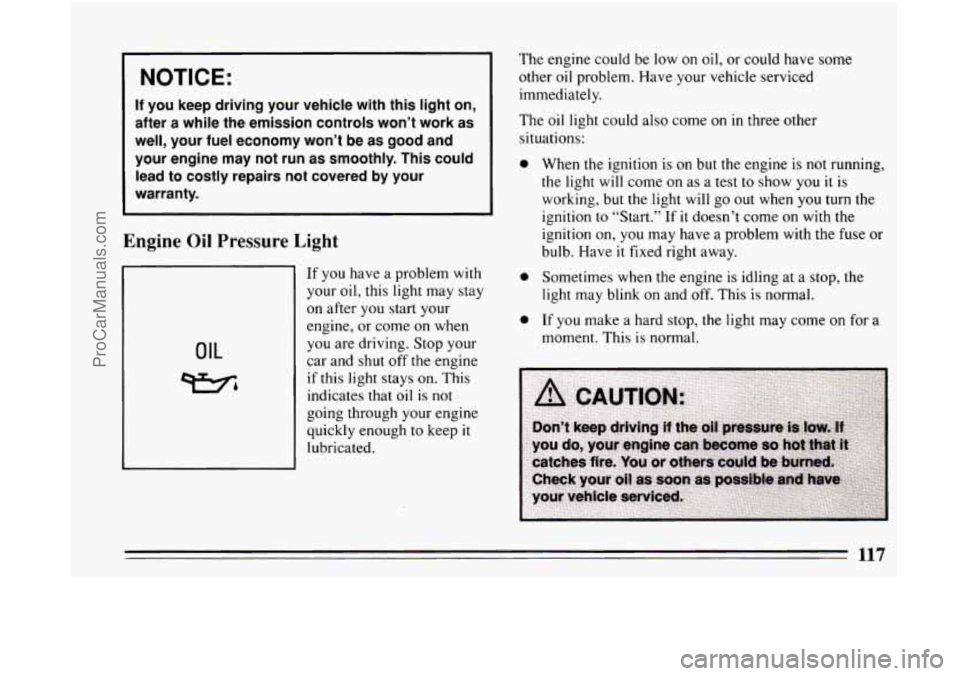

Page 119 of 308

I NOTICE:
If you keep driving your vehicle with this light on,
after a while the emission controls won’t work as
well, your fuel economy won’t be as good and your engine may not run as smoothly. This could
lead to costly repairs not covered by your
warranty.
Engine Oil Pressure Light
OIL
If you have a problem with
your oil, this light may stay
on after you start your
engine, or come
on when
you are driving. Stop your
car and shut off
the engine
if this light stays on. This
indicates that oil is not
going through your engine
quickly enough to keep
it
lubricated. The engine
could be low
on oil, or could have some
other oil problem. Have.your vehicle serviced
immediately.
The oil light could also come on in three other
situations:
0
0
0
When the ignition is on but the engine is not running,
the light will come on as a
test to show you it is
working, but
the light will go out when you turn the
ignition to “Start.” If
it doesn’t come on with the
ignition on,
you may have a problem with the fuse or
bulb. Have
it fixed right away.
Sometimes when the engine is idling at a stop, the
light may blink on and
off. This is normal.
If you make a hard stop, the light may come on for
a
moment. This is normal.
117
ProCarManuals.com

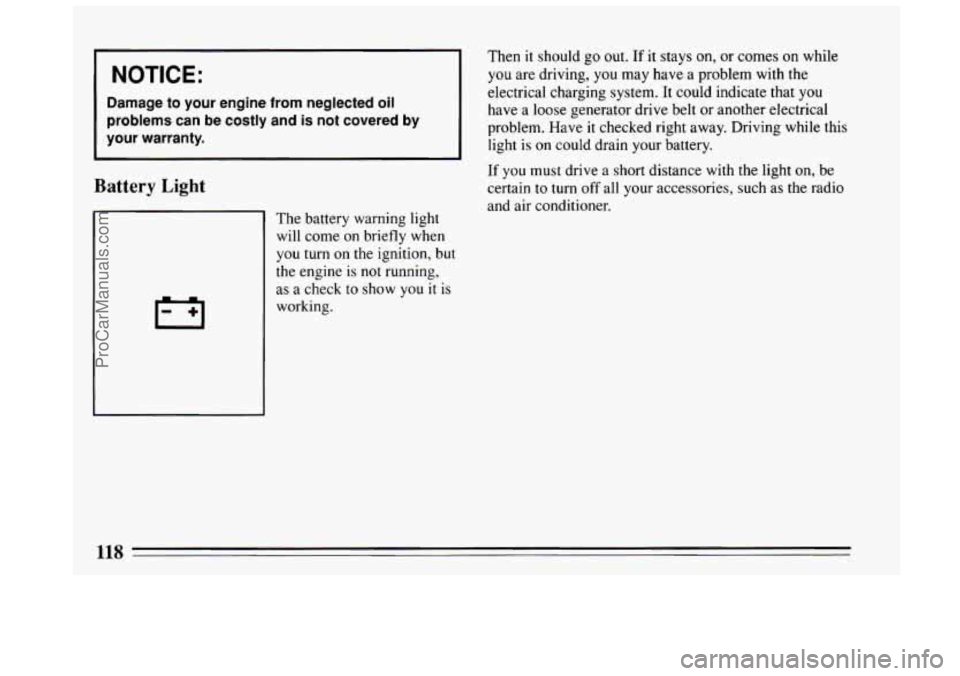

Page 120 of 308

NOTICE:
Damage to your engine from neglected oil
problems can be costly and is not covered by
your warranty.
Battery Light
Then it should go out. If it stays on, or corn-es 6n %bile
you are driving, you may have a problem with the
electrical charging system. It could indicate that
you
have a loose generator drive belt or another electrical
problem. Have
it checked right away. Driving while this
light is on could drain your battery.
If you must drive a short distance with the light on, be
certain
to turn off all your accessories, such as the radio
and air conditioner.
The battery warning light
will come on briefly when
you turn on the ignition, but
the engine
is not running,
as a check to
show you it is
working.
118
