glove box BUICK CENTURY 2004 Owner's Manual

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Programmable Automatic Door Locks..............2-11
Lockout Protection........................................2-12
Leaving Your Vehicle....................................2-12
Trunk..........................................................2-13
Windows........................................................2-15
Power Windows............................................2-16
Sun Visors...................................................2-17
Theft-Deterrent Systems..................................2-17
PASS-Key
®II ...............................................2-17
Starting and Operating Your Vehicle................2-18
New Vehicle Break-In....................................2-18
Ignition Positions..........................................2-19
Starting Your Engine.....................................2-20
Engine Coolant Heater..................................2-21Automatic Transaxle Operation.......................2-22
Parking Brake..............................................2-25
Shifting Into Park (P).....................................2-26
Shifting Out of Park (P).................................2-28
Parking Over Things That Burn.......................2-29
Engine Exhaust............................................2-29
Running Your Engine While You Are
Parked.....................................................2-30
Mirrors...........................................................2-31
Manual Rearview Mirror.................................2-31
Manual Rearview Mirror with OnStar
®..............2-31
Outside Power Mirrors...................................2-32
Outside Convex Mirror...................................2-32
OnStar
®System.............................................2-33
Storage Areas................................................2-34
Glove Box...................................................2-34
Front Storage Area.......................................2-34
Center Console Storage Area.........................2-35
Convenience Net..........................................2-35
Sunroof.........................................................2-36
Section 2 Features and Controls
2-1

Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can not see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-29.
Trunk Lock
To unlock the trunk lid from the outside, insert the door
key into the trunk lock and turn it counterclockwise.
Or, with the vehicle in PARK (P), press the open trunk
symbol on the remote keyless entry transmitter.
Remote Trunk Release
Press the remote trunk
release button located
behind the glove box door
to release the trunk lid
from inside the vehicle.
The shift lever must be in PARK (P), but the key does
not have to be in the ignition for the remote trunk
lid release button to work.
2-13

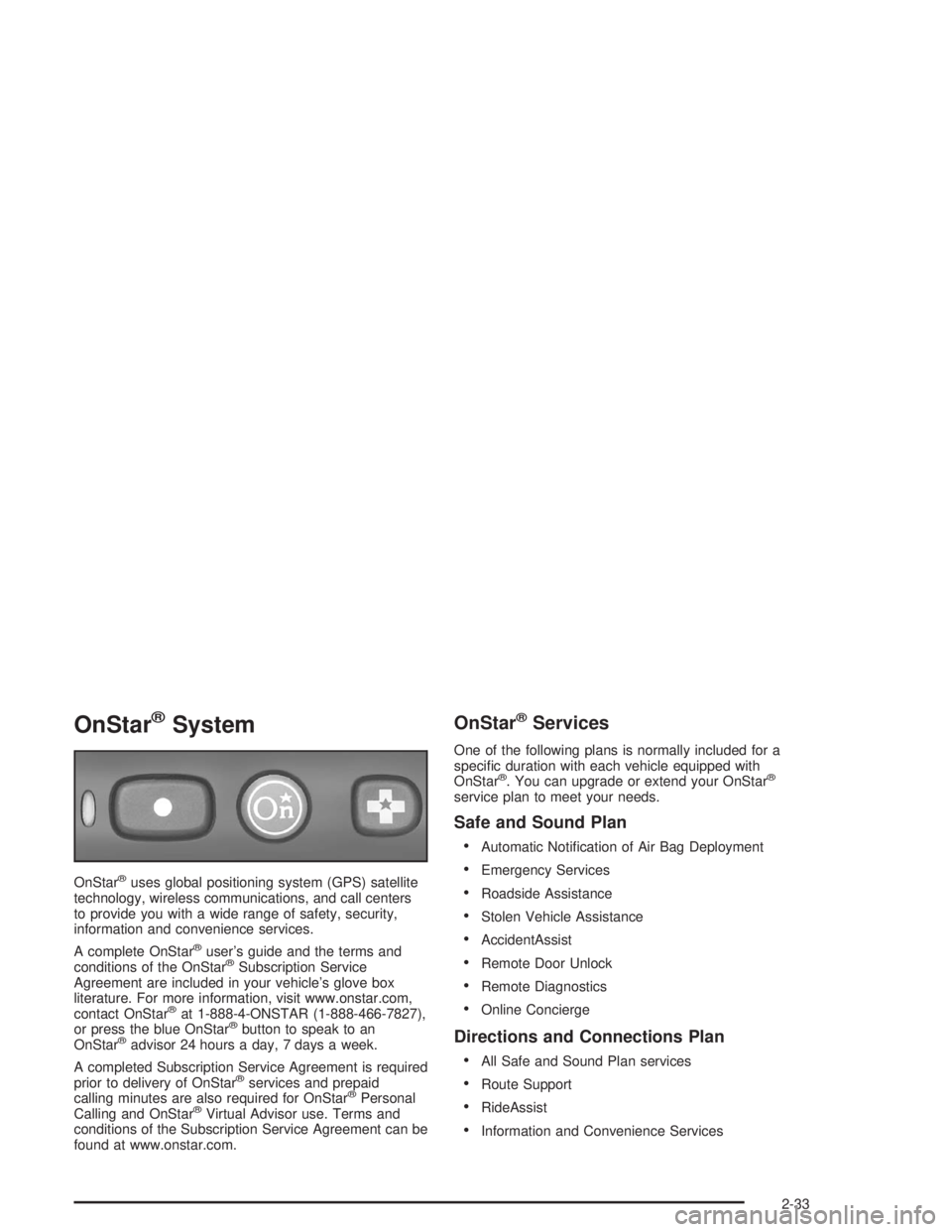

OnStar®System
OnStar®uses global positioning system (GPS) satellite
technology, wireless communications, and call centers
to provide you with a wide range of safety, security,
information and convenience services.
A complete OnStar
®user’s guide and the terms and
conditions of the OnStar®Subscription Service
Agreement are included in your vehicle’s glove box
literature. For more information, visit www.onstar.com,
contact OnStar
®at 1-888-4-ONSTAR (1-888-466-7827),
or press the blue OnStar®button to speak to an
OnStar®advisor 24 hours a day, 7 days a week.
A completed Subscription Service Agreement is required
prior to delivery of OnStar
®services and prepaid
calling minutes are also required for OnStar®Personal
Calling and OnStar®Virtual Advisor use. Terms and
conditions of the Subscription Service Agreement can be
found at www.onstar.com.
OnStar®Services
One of the following plans is normally included for a
specic duration with each vehicle equipped with
OnStar
®. You can upgrade or extend your OnStar®
service plan to meet your needs.
Safe and Sound Plan

Automatic Notication of Air Bag Deployment
Emergency Services
Roadside Assistance
Stolen Vehicle Assistance
AccidentAssist
Remote Door Unlock
Remote Diagnostics
Online Concierge
Directions and Connections Plan

All Safe and Sound Plan services
Route Support
RideAssist
Information and Convenience Services
2-33

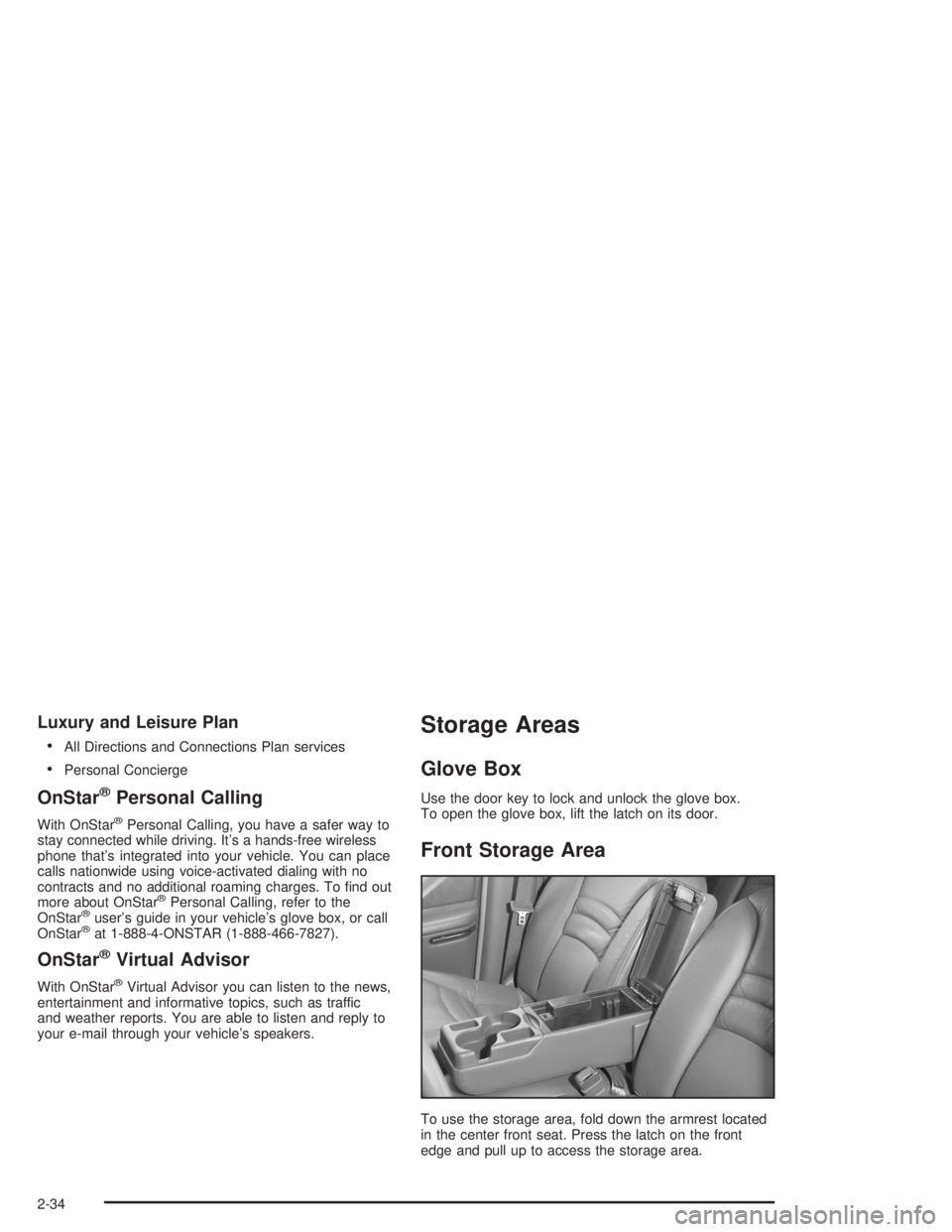

Luxury and Leisure Plan

All Directions and Connections Plan services
Personal Concierge
OnStar®Personal Calling
With OnStar®Personal Calling, you have a safer way to
stay connected while driving. It’s a hands-free wireless
phone that’s integrated into your vehicle. You can place
calls nationwide using voice-activated dialing with no
contracts and no additional roaming charges. To nd out
more about OnStar
®Personal Calling, refer to the
OnStar®user’s guide in your vehicle’s glove box, or call
OnStar®at 1-888-4-ONSTAR (1-888-466-7827).
OnStar®Virtual Advisor
With OnStar®Virtual Advisor you can listen to the news,
entertainment and informative topics, such as traffic
and weather reports. You are able to listen and reply to
your e-mail through your vehicle’s speakers.
Storage Areas
Glove Box
Use the door key to lock and unlock the glove box.
To open the glove box, lift the latch on its door.
Front Storage Area
To use the storage area, fold down the armrest located
in the center front seat. Press the latch on the front
edge and pull up to access the storage area.
2-34

The main components of the instrument panel are the following:
A. Exterior Lamps Control. SeeExterior Lamps on
page 3-12.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-5.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-28.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-4.
E. Audio Steering Wheel Controls. SeeAudio Steering
Wheel Controls on page 3-62.
F. Gear Shift Lever. SeeAutomatic Transaxle
Operation on page 2-22.
G. Air Outlets. SeeOutlet Adjustment on page 3-25.H. Side Window Defogger Outlet.
I. Hood Release. SeeHood Release on page 5-10.
J. Tilt Wheel Lever. SeeTilt Wheel on page 3-5.
K. Horn. SeeHorn on page 3-5.
L. Audio System. SeeAudio System(s) on page 3-44.
M. Ashtray. SeeAshtrays and Cigarette Lighter on
page 3-17.
N. Climate Control. SeeDual Climate Control System
on page 3-18.
O. Glove Box. SeeGlove Box on page 2-34.
P. Instrument Panel Fuse Block. SeeFuses and Circuit
Breakers on page 5-97.
3-3

Delayed Exit Lighting
This feature illuminates the interior for a period of time
after the ignition key is removed from the ignition.
The ignition must be off for delayed exit lighting to work.
When the ignition key is removed, interior illumination
will activate and remain on until one of the following
occurs:
The ignition is in RUN.
The power door locks are activated.
An illumination period of 25 seconds has elapsed.
If during the illumination period a door is opened,
the timed illumination period will be canceled and the
interior lamps will remain on.
Reading Lamps
The reading lamps are located on the underside of the
rearview mirror. Press the button next to each lamp
to turn it on and off.
Dome Lamp
The dome lamp will come on when you open a door.
Battery Rundown Protection
This helps the vehicle’s battery from draining the battery
in case the interior courtesy lamps, reading lamps,
visor vanity lamps, trunk lamp, underhood lamp or glove
box lamps are left on. If any of these lamps are left
on while the ignition is off, they will automatically turn off
after 20 minutes. The lamps will not come back on
again until you do one of the following:
Turn the ignition on.
Turn the exterior lamps control off, then on.
Open a door.
If the vehicle has less than 15 miles (25 km) on the
odometer, the battery saver will turn off the lamps after
only three minutes.
3-16

Maintenance Footnotes
†The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chang, etc. Inspect
disc brake pads for wear and rotors for surface
condition. Inspect other brake parts, including calipers,
parking brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose or missing parts or
signs of wear. Inspect power steering lines and
hoses for proper hook-up, binding, leaks, cracks,
chang, etc.
(c)Visually inspect hoses and have them replaced if
they are cracked, swollen or deteriorated. Inspect
all pipes, ttings and clamps; replace with genuine
GM parts as needed. To help ensure proper operation,
a pressure test of the cooling system and pressure
cap and cleaning the outside of the radiator and
air conditioning condenser is recommended at least
once a year.(d)Visually inspect wiper blades for wear or cracking.
Replace blade inserts that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken air bag
coverings, and have them repaired or replaced. (The air
bag system does not need regular maintenance.)
(f)Lubricate all key lock cylinders. Lubricate all hinges
and latches, including those for the body doors,
hood, secondary latch, pivots, spring anchor, release
pawl, rear compartment, glove box door and console
door. More frequent lubrication may be required
when exposed to a corrosive environment. Applying
silicone grease on weatherstrips with a clean cloth will
make them last longer, seal better and not stick or
squeak.
(g)If you drive regularly under dusty conditions, the
lter may require replacement more often.
6-7

Front Storage Area.........................................2-34
Fuel............................................................... 5-4
Additives...................................................... 5-6
California Fuel.............................................. 5-5
Filling a Portable Fuel Container..................... 5-9
Filling Your Tank........................................... 5-7
Fuels in Foreign Countries.............................. 5-6
Gage.........................................................3-43
Gasoline Octane........................................... 5-4
Gasoline Specications.................................. 5-5
Low Warning Light.......................................3-44
Fuses
Fuses and Circuit Breakers...........................5-97
Windshield Wiper.........................................5-97
G
Gage
Engine Coolant Temperature.........................3-35
Fuel..........................................................3-43
Speedometer..............................................3-29
Gasoline
Octane........................................................ 5-4
Specications............................................... 5-5
Glove Box.....................................................2-34
GM Mobility Program for Persons with
Disabilities.................................................... 7-5
H
Hazard Warning Flashers................................... 3-4
Head Restraints............................................... 1-5
Headlamp
Aiming.......................................................5-49
Headlamp High/Low-Beam Changer.................... 3-6
Headlamp Wiring............................................5-97
Headlamps....................................................5-51
Bulb Replacement.......................................5-51
Front Turn Signal and Parking Lamps.............5-52
Halogen Bulbs............................................5-51
Highway Hypnosis...........................................4-23
Hill and Mountain Roads..................................4-24
Hitches..........................................................4-42
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-5
How to Add Coolant to the Coolant
Recovery Tank............................................5-30
How to Add Coolant to the Radiator..................5-32
How to Add Fluid............................................5-21
How to Check........................................5-20, 5-65
How to Check Power Steering Fluid..................5-36
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-11
Hydroplaning..................................................4-19
6

Service Manuals.............................................7-11
Setting Preset Stations............................3-47, 3-54
Setting the Time.............................................3-45
Setting the Tone (Bass/Treble)..................3-47, 3-54
Sheet Metal Damage.......................................5-93
Shifting Into Park (P).......................................2-26
Shifting Out of Park (P)...................................2-28
Shoulder Belt Height Adjuster...........................1-14
Skidding........................................................4-15
Some Other Rainy Weather Tips.......................4-19
Special Fabric Cleaning Problems.....................5-89
Specications, Capacities...............................5-103
Speedometer..................................................3-29
Split Folding Rear Seat..................................... 1-5
Starting Your Engine.......................................2-20
Steering........................................................4-10
Steering in Emergencies..................................4-11
Steering Tips..................................................4-10
Steering Wheel Controls, Audio.........................3-62
Storage Areas
Center Console Storage Area........................2-35
Convenience Net.........................................2-35
Front Storage Area......................................2-34
Glove Box..................................................2-34
Storing the Flat Tire and Tools..........................5-85
Storing the Spare Tire and Tools.......................5-86
Stuck in Sand, Mud, Ice or Snow......................4-30
Sun Visors.....................................................2-17
Sunroof.........................................................2-36T
Taillamps
Turn Signal, and Stoplamps..........................5-54
Theft-Deterrent, Radio.....................................3-62
Theft-Deterrent Systems...................................2-17
PASS-Key
®II ..............................................2-17
Tilt Wheel........................................................ 3-5
Tire
Pressure Light.............................................3-36
Tire Ination Check........................................... 6-9
Tire Sidewall Labeling......................................5-58
Tire Size.......................................................5-61
Tire Terminology and Denitions........................5-62
Tires.............................................................5-57
Buying New Tires........................................5-69
Chains.......................................................5-73
Changing a Flat Tire....................................5-75
Compact Spare Tire.....................................5-87
If a Tire Goes Flat.......................................5-74
Ination - Tire Pressure................................5-64
Inspection and Rotation................................5-67
Pressure Monitor System..............................5-65
Uniform Tire Quality Grading.........................5-70
Wheel Alignment and Tire Balance.................5-71
Wheel Replacement.....................................5-72
When It Is Time for New Tires......................5-68
To Use the Engine Coolant Heater....................2-21
Top Strap......................................................1-38
12
