BUICK REGAL 1996 Owners Manual

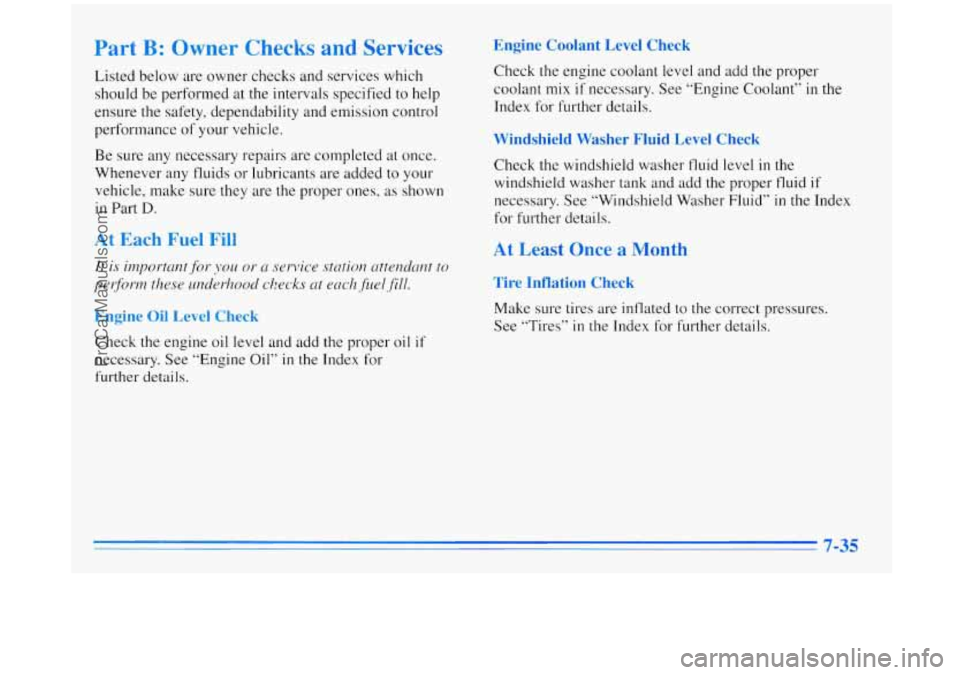

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones,
as shown
in Part D.
Engine Coolant Level Chec
Check the engine coolant level and add the proper
coolant mix
if necessary. See “Engine Coolant” in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper
fluid if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Each Fuel Fill
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for
further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures.
See “Tires” in the Index for further details.
7-35
ProCarManuals.com

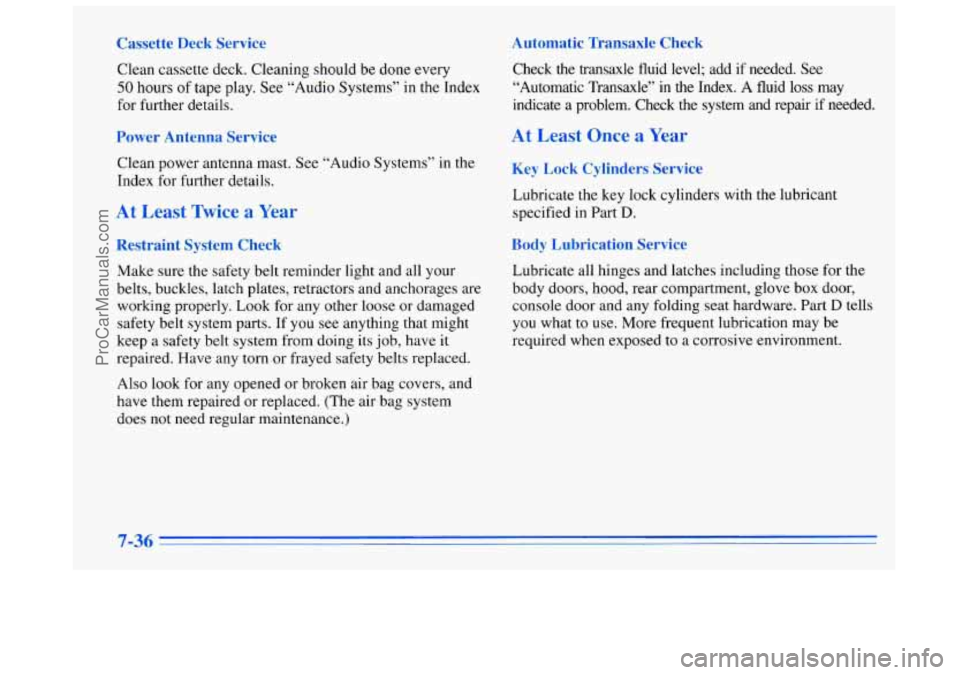

Cassette Deck Service Automatic Transaxle Check
Clean
cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems’’ in the Index
for further details.
Power Antenna Service
Clean power antenna mast. See “Audio Systems” in the
Index for further details.
At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does
not need regular maintenance.) Check the transaxle fluid level; add if needed.
See
“Automatic Transaxle”
in the Index. A fluid loss may
indicate a problem. Check the system and repair if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication Service
Lubricate all hinges and latches including those for the
body doors, hood, rear compartment, glove box door,
console door and any folding seat hardware. Part
D tells
you what to use. More frequent lubrication may be
required when exposed
to a corrosive environment.
7-36
ProCarManuals.com

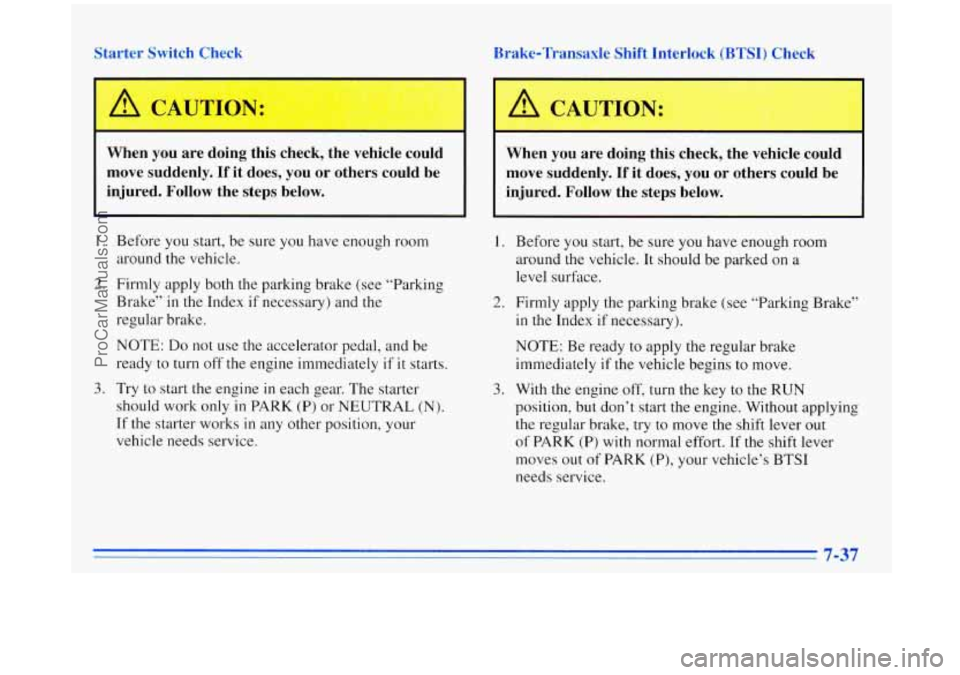

Starter Switch Check Brake-Transaxle Shift Interlock
(BTSI) Check
A CAUTION:
IF
When you are doing this check, the vehicle could
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
move suddenly. If it does, you or others could be
injured. Follow the steps below. injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake”
in the Index if necessary) and the
regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only
in PARK (P) or NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service.
1. Before you start, be sure you have enough room
around
the vehicle. It should be parked on a
level surface.
2. Firmly apply the parking brake (see “Parking Brake’’
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s. BTSI
needs service.
7-37
ProCarManuals.com

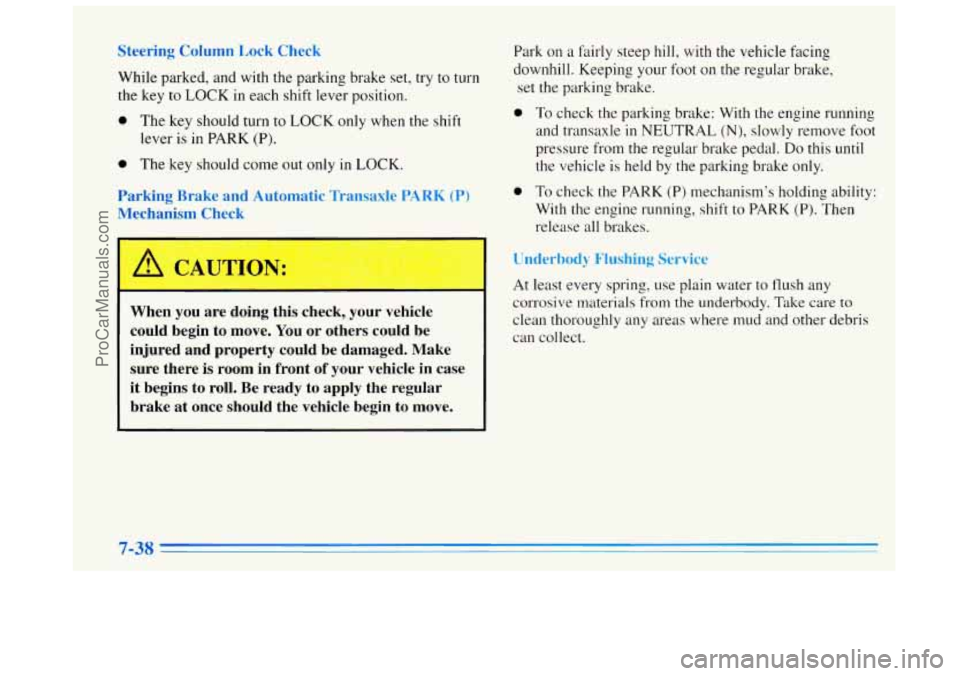

Steering Column Lock Check While parked, and with the parking brake set, try to turn
the key to
LOCK in each shift lever position.
0 The key should turn to LOCK only when the shift
lever is
in PARK (P).
0 The key should come out only in LOCK.
Parking Brake
and Automatic Transaxle PARK (P)
Mechanism Check
When you are doing this check, your vehicle
could begin to move.
You or others could be
injured and property could be damaged. Make
sure there is room in front
of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move. Park
on a
fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
0 To check the parking brake: With the engine running
and transaxle
in NEUTRAL (N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle
is held by the parking brake only.
0 To check the PARK (P) mechanism's holding ability:
With the engine running, shift to PARK (P). Then
release all brakes.
Underbody
Flushing Service
At least every spring, use plain water to flush any
corrosive materials from
the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
7-38
-~
ProCarManuals.com

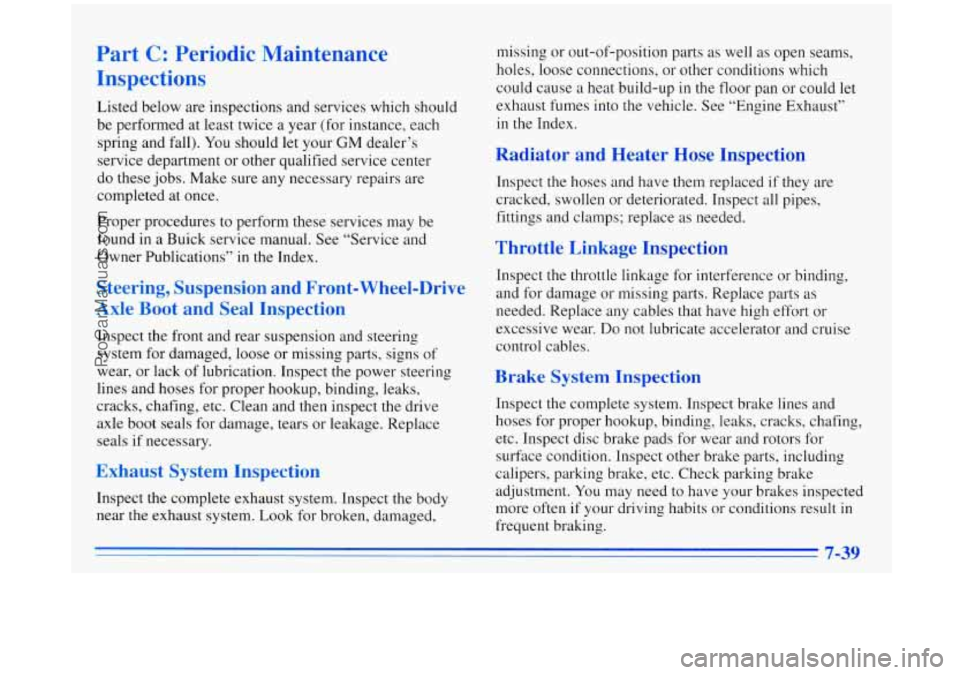

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice
a year (for instance, each
spring and fall). You should let your GM dealer’s
service department or other qualified service center
do these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found in a Buick service manual. See “Service and
Owner Publications’’ in the Index.
Steering, Suspension and Front- Wheel-Drive
Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear, or lack of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc. Clean and then inspect
the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
mspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged, missing
or out-of-position parts as well
as open seams,
holes,
loose connections, or other conditions which
could cause
a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust”
in the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked? swollen or deteriorated. Inspect
all pipes,
fittings and clamps; replace
as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage
or missing parts. Replace parts as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hookup, binding, leaks, cracks, chafing,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Inspect other brake parts, including
calipers, parking brake, etc. Check parking brake
adjustment. You may need to have your brakes inspected
more often if your driving habits or conditions result in
frequent braking.
7-39
ProCarManuals.com

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and
GM Goodwrench@
DEX-COOL
TM or Havoline@
DEX-COOL (orange-colored,
silicate-free) antifreeze
conforming
to GM Specification
6277M. See “Engine Coolant” in
the Index.
USAGE
Coolant
Supplement
Sealer
Hydraulic Brake
System
Power Steering
System
Automatic
Transaxle
Key Lock
Cylinders
FLUIDLUBRICANT
GM Part No. 3634621 or
equivalent with a complete flush
and refill.
Delco Supreme 11
@ Brake Fluid
(GM Part No. 1052535 or
equivalent
DOT-3 brake fluid).
GM Power Steering Fluid (GM Part
No. 1052884 - 1 pt.,
1050017 - 1 qt., or equivalent).
DEXRON@-111 Automatic
Transmission Fluid.
Multi-Pur ose Lubricant,
Superlube
b (GM Part
, No. 1234624 1 or equivalent).
ProCarManuals.com

USAGE
Chassis
Lubrication
Windshield
Washer Solvent
Hood Latch
Assembly,
Pivots, Spring Anchor and
Release Pawl
FLUIDLUBRICANT ~
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
GM OptiMeen@ Washer Solvent
(GM Part
No. 1051515) or
equivalent.
I
Lubriplate lubricant aerosol
(GM- Part No. 12346293 or
equivalent) or lubricant meeting
requirements of NLGI Grade 2,
Category
LB or GC-LB.
USAGE FLUIDLUBRICANT
Hood and Door
replacement filters and spark plugs.
See “Replacement
Parts” in
the Index for recommended
Part
No. 12345579 or equivalent).
Conditioning Dielectric Silicone Grease
(GM
Weatherstrip Superlube
% (GM
Part
Hinges Multi-pu ose lubricant,
No. 1234624
1 or equivalent).
7-41
ProCarManuals.com

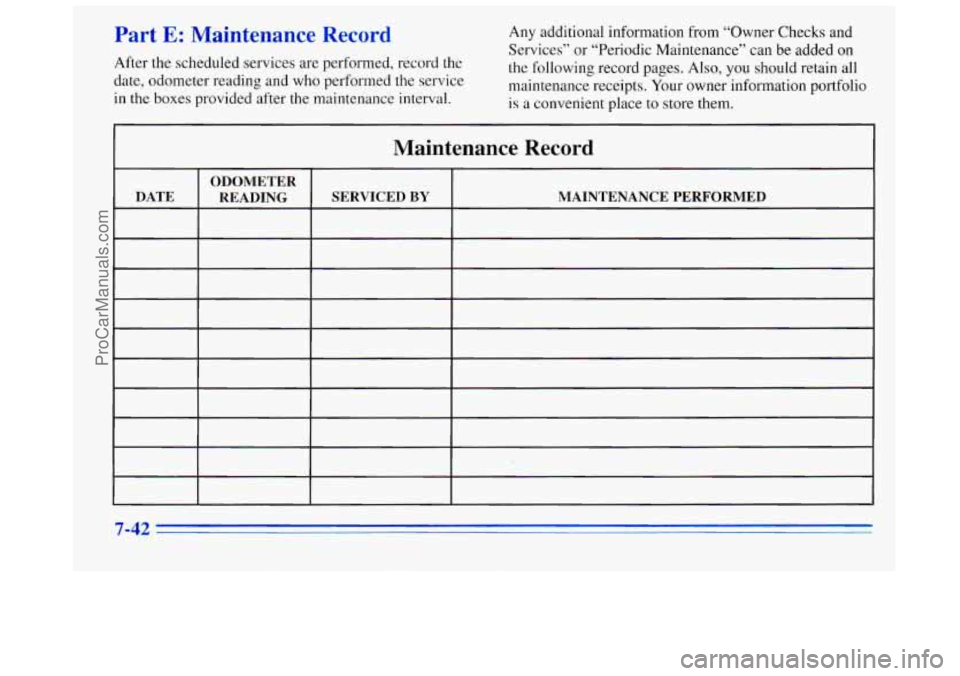

Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval.
Any additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added
on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place
to store them.
Maintenance Record
ODOMETER
SERVICED
BY MAINTENANCE PERFORMED
-_ ~~
7-42
ProCarManuals.com

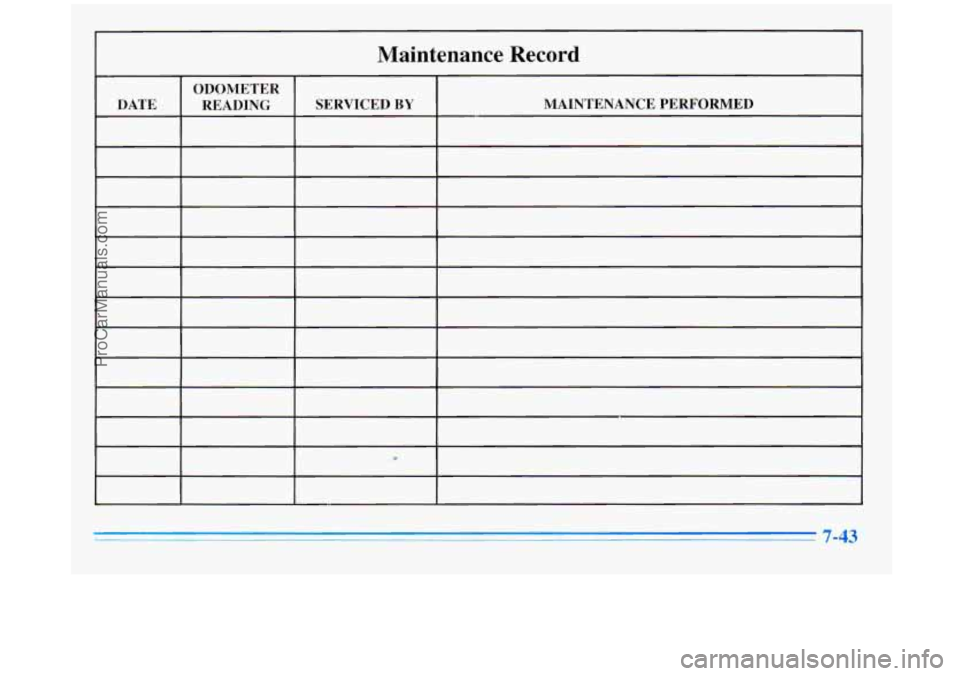

Maintenance Record
ODOMETER
I DATE 1 READING I SERVICED BY I MAINTENANCE PERFORMED
P
7-43
ProCarManuals.com

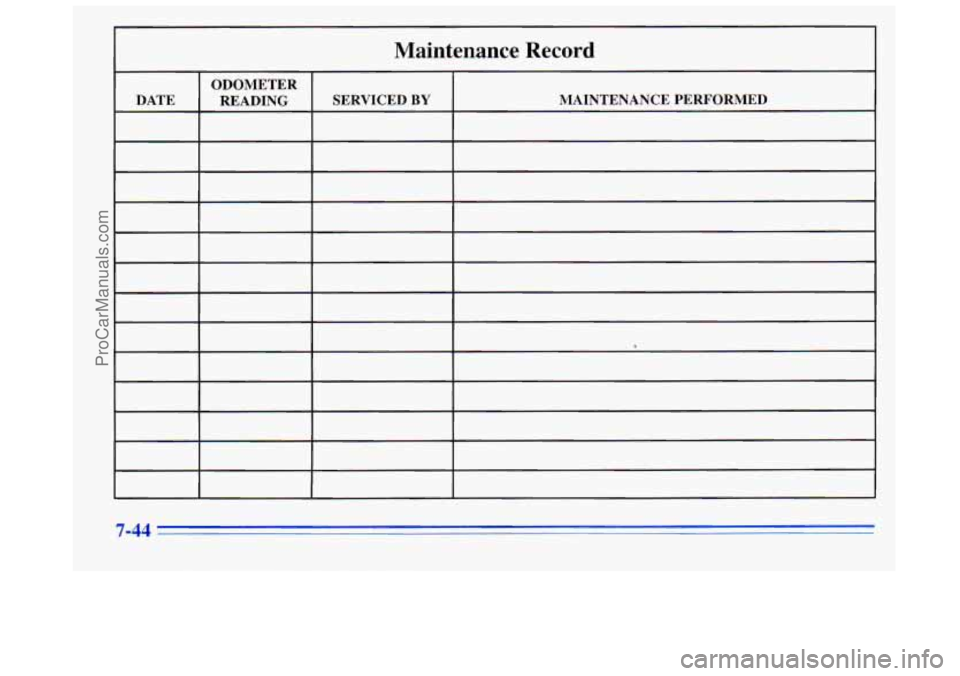

Maintenance Record
7-44
