CADILLAC CTS 2008 2.G Owners Manual

Flash-to-Pass
This feature allows you to use the high-beam headlamps
to signal the driver in front of you that you want to pass.
Pull and hold the turn signal/multifunction lever toward
you to use this feature. When this is done the following
will occur:
If the headlamps are off, in low-beam or in Daytime
Running Lamps (DRL) mode, the high-beam
headlamps will turn on. They will stay on as long as
the lever is held there. Release the lever to turn
them off.
For vehicles with High Intensity Discharge (HID)
headlamps, the low-beam headlamps must be
on to activate the high-beam headlamps. SeeHigh
Intensity Discharge (HID) Lighting on page 5-55.
If the headlamps are already in high-beam mode,
they will remain on high-beam.
Windshield Wipers
The lever on the right side of the steering column
operates the windshield wipers.
7(Mist):Pull the lever down and release it for a
single wiping cycle. The lever will return to its original
position. For more cycles, hold the lever down
before releasing it.
&(Delay):Move the lever to this position to set a
delay between wipes. Turn the delay adjustment band
to set the length of the delay.
6(Delay Adjustment):Use this band to set the length
of the delay between wipes when using the delay
feature. The closer the band is moved towards
7,
the longer the delay. The windshield wiper lever must be
in delay for this feature to work.
3-9

1 (Low Speed):Move the lever to this position for
slow, steady wiping cycles.
2 (High Speed):Move the lever to this position for
rapid wiping cycles.
If the windshield wipers are in use for about six seconds
while you are driving, the exterior lamps come on
automatically if the exterior lamp control is in AUTO.
SeeWiper Activated Headlamps on page 3-17for
more information.
Be sure to clear ice and snow from the wiper blades
before using them. If they are frozen to the windshield,
gently loosen or thaw them. If the blades do become
damaged, install new blades. For more information, see
Windshield Wiper Blade Replacement on page 5-57.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it cools down.
Clear away snow or ice to prevent an overload.Rainsense™ Wipers
Vehicles with Rainsense™ windshield wipers, have a
moisture sensor for this feature mounted on the interior
side of the windshield behind the rearview mirror.
This sensor automatically operates the wipers by
monitoring the amount of moisture build-up on the
windshield. Wipes occur as needed to clear the
windshield depending on driving conditions and the
sensitivity setting. In light rain or snow, fewer wipes
will occur. In heavy rain or snow, wipes occur more
frequently. If the system is left on for long periods of
time, occasional wipes may occur without any moisture
on the windshield. This is normal and indicates that
the Rainsense™ system is activated.
The wiper control should be left in the off position,
unless the wiper is needed.
The Rainsense™ system is sensitive to vibration and
can activate if something hits the windshield or if
the vehicle hits a bump.
3-10

Rainsense™ windshield wipers operate in a delay
mode, as well as a continuous low or high speed as
needed. Move the wiper lever up to the delay position
and turn the band to one of ve settings.
The level one or lowest setting is at the bottom of the
band. This setting lets more rain or snow collect on the
windshield between wipes. Turn the delay band forward
to a higher setting to let less rain or snow collect on
the windshield between wipes.
The top position is the highest setting. A single wipe
occurs each time the delay band is turned to a higher
setting to indicate that the Rainsense
®level has
been increased.
Notice:Going through an automatic car wash with
the wipers on can damage them. Turn the wipers
off when going through an automatic car wash.The mist and wash cycles operate as normal and
are not affected by the Rainsense™ function.
The Rainsense™ system can be overridden at any
time by manually changing the wiper control to low or
high speed. The system will default to normal time delay
operation if the Rainsensor detects something that
would affect Rainsense™ operation.
When Rainsense™ is active, the headlamps turn
on automatically. If it is dark, they remain on.
See “Wiper-Activated Headlamps” underWiper
Activated Headlamps on page 3-17for more
information.
Notice:Do not place stickers or other items on
the exterior glass surface directly in front of
the moisture sensor. Doing this could cause the
moisture sensor to malfunction.
3-11

Windshield Washer
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
K(Washer Fluid):Press the button with this symbol,
located at the end of the windshield washer lever,
to wash the windshield. The washer uid sprays onto
the windshield and the wipers run for a few cycles
to clear the windshield. Press and hold
Kfor more
wash cycles.
Washer Fluid Low Add Fluid displays on the Driver
Information Center (DIC) when the washer uid is low.
SeeDIC Warnings and Messages on page 3-56.
If the headlamps are on while the windshield is being
washed, the headlamp washers, if the vehicle has them,
will also turn on. See “Headlamp Washer” following
for more information.
Heated Windshield Washer
For vehicles with the heated windshield washer uid
system it can be used to help clear ice, snow, tree sap,
or bugs from the windshield.
The button is located on
the climate control system
panel.
Push
_to begin four heated wipe cycles. Heating
Washer Fluid Wash Wipes Pending displays on the DIC.
SeeDIC Warnings and Messages on page 3-56.
The rst heated wipe cycle can take up to 40 seconds
to occur, depending on the outside temperature.
3-12

After the rst wipe cycle, it can take up to 20 seconds
for each of the remaining cycles. The system will
automatically turn off after four wipe cycles have been
completed or press
_again to turn it off. Heated
Washer Fluid System Off displays on the DIC.
SeeDIC Warnings and Messages on page 3-56.
When the heated windshield washer uid system is
activated under certain outside temperature conditions,
steam might ow out of the washer nozzles for a
short period of time before washer uid is sprayed.
This is a normal condition.
Washer Fluid Low Add Fluid displays on the DIC when
the washer uid is low. SeeDIC Warnings and
Messages on page 3-56.
Headlamp Washer
Your vehicle may have headlamp washers.
The headlamp washers clear debris from the
headlamp lenses.
The headlamp washers
are located beneath the
headlamps.
Press the washer button located at the end of the
windshield wiper lever, to wash the headlamps. Both the
headlamps and the windshield will be washed. After
the rst wash, the headlamps will not be washed until
the fth press of the windshield washer button.
The headlamps must be on to be washed. If the
headlamps are off, only the windshield will be washed
when the washer button is pressed. If the washer uid is
low, the headlamp washers will not work.
SeeWindshield Washer on page 3-12for more
information.
3-13

Cruise Control
{CAUTION:
Cruise control can be dangerous where you
cannot drive safely at a steady speed. So, do
not use your cruise control on winding roads
or in heavy traffic.
Cruise control can be dangerous on slippery
roads. On such roads, fast changes in tire
traction can cause excessive wheel slip, and
you could lose control. Do not use cruise
control on slippery roads.
With cruise control, a speed of about 25 mph (40 km/h)
or more can be maintained without keeping your foot
on the accelerator. This can really help on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).
When the brakes are applied, the cruise control
turns off.
If your vehicle has the StabiliTrak
®system and begins
to limit wheel spin while you are using cruise control,
the cruise control will automatically disengage.SeeStabiliTrak
®System on page 4-8. When road
conditions allow you to safely use it again, the cruise
control can be turned back on.
The cruise control buttons
are located on the left side
of the steering wheel.
I(On/Off):Press button to activate and turn off the
system. The indicator light on the button turns on
when cruise control is on.
+ RES (Resume/Accelerate):Press this button to
make the vehicle accelerate or resume to a previously
set speed.
SET−(Set/Coast):Press this button to set the speed
or make the vehicle decelerate.
[(Cancel):Press this button to cancel cruise control
without erasing the set speed from memory.
3-14

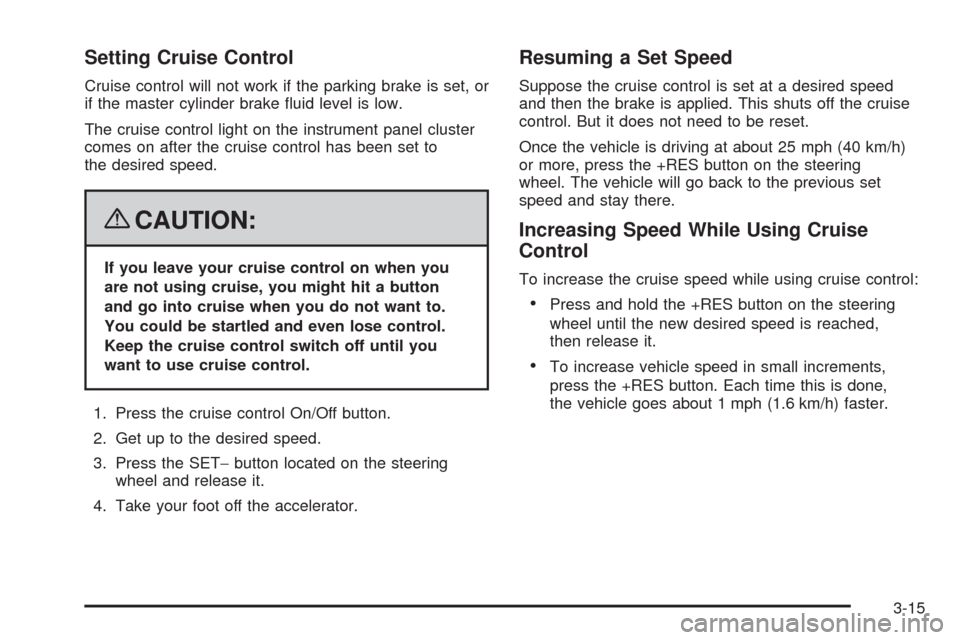

Setting Cruise Control
Cruise control will not work if the parking brake is set, or
if the master cylinder brake uid level is low.
The cruise control light on the instrument panel cluster
comes on after the cruise control has been set to
the desired speed.
{CAUTION:
If you leave your cruise control on when you
are not using cruise, you might hit a button
and go into cruise when you do not want to.
You could be startled and even lose control.
Keep the cruise control switch off until you
want to use cruise control.
1. Press the cruise control On/Off button.
2. Get up to the desired speed.
3. Press the SET−button located on the steering
wheel and release it.
4. Take your foot off the accelerator.
Resuming a Set Speed
Suppose the cruise control is set at a desired speed
and then the brake is applied. This shuts off the cruise
control. But it does not need to be reset.
Once the vehicle is driving at about 25 mph (40 km/h)
or more, press the +RES button on the steering
wheel. The vehicle will go back to the previous set
speed and stay there.
Increasing Speed While Using Cruise
Control
To increase the cruise speed while using cruise control:
Press and hold the +RES button on the steering
wheel until the new desired speed is reached,
then release it.
To increase vehicle speed in small increments,
press the +RES button. Each time this is done,
the vehicle goes about 1 mph (1.6 km/h) faster.
3-15

Reducing Speed While Using Cruise
Control
To reduce the vehicle’s speed while using cruise
control:
Press and hold the SET– button on the steering
wheel until the desired lower speed is reached,
then release it.
To slow down in very small amounts, press the
SET– button on the steering wheel briey.
Each time this is done, the vehicle goes about
1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase the vehicle’s
speed. When you take your foot off the pedal, the
vehicle will slow down to the previous set cruise speed.
Using Cruise Control on Hills
How well the cruise control works on hills depends upon
the vehicle’s speed, load, and the steepness of the
hills. When going up steep hills, you might have to
step on the accelerator pedal to maintain the vehicle’s
speed. When going downhill, you might have to brake
or shift to a lower gear to keep the vehicle’s speed
down. When the brakes are applied the cruise control
turns off. Many drivers nd this to be too much
trouble and do not use cruise control on steep hills.
Ending Cruise Control
There are three ways to end cruise control:
Step lightly on the brake pedal.
Press the clutch pedal to the oor (manual
transmissions).
Press the cancel button on the steering wheel.
Press the On/Off button on the steering wheel.
Erasing Speed Memory
The cruise control set speed memory is erased when
the cruise control or the ignition is turned off.
3-16

Headlamps
The exterior lamp control is located towards the end of
the turn signal/multifunction lever.
O(Exterior Lamp Control):Turn the band with this
symbol on it to operate the exterior lamps.
The exterior lamp control has four positions:
O(Off):This position turns off all lamps, except the
Daytime Running Lamps (DRL).
AUTO (Automatic):This position puts the headlamps
in automatic mode. AUTO mode turns the exterior
lamps on and off depending upon how much light is
available outside of the vehicle.
;(Parking Lamps):This position turns on the
parking lamps together with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
5(Headlamps):This position turns on the headlamps,
together with the previously listed lamps and lights.
Wiper Activated Headlamps
This feature activates the headlamps and parking lamps
after the windshield wipers have been in use for about
six seconds. For this feature to work, the exterior lamp
control must be in AUTO.
The wiper-activated headlamps immediately turn off,
when the ignition is turned to LOCK/OFF or the
windshield wiper control is turned off.
Headlamps on Reminder
A warning chime will sound if the exterior lamp control
is left on in either the headlamp or parking lamp position
and the driver’s door is opened with the ignition off.
SeeLights On Reminder on page 3-46for additional
information.
3-17

Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the short
periods after dawn and before sunset. Fully functional
daytime running lamps are required on all vehicles
rst sold in Canada.
The DRL system will make either the reduced intensity
low-beam headlamps or dedicated DRL’s come on
when the following conditions are met:
It is still daylight and the ignition is in ON/RUN or
START.
The exterior lamp control is in off or AUTO and the
headlamps are off.
The automatic transmission is not in PARK (P).
When DRL’s are on, only the reduced intensity
low-beam headlamps or dedicated DRL’s will be on.
No other exterior lamps will be on. The instrument panel
cluster will not be lit up either.When the exterior lamp control is in AUTO and it is dark
enough outside, the DRL turns off and the low-beam
headlamps will turn on. When it is bright enough outside,
the low-beam headlamps will go off, and the DRL will
turn back on. If the vehicle is started in a dark garage,
the automatic headlamp system comes on immediately.
Once the vehicle leaves the garage, it takes about
one minute for the automatic headlamp system
to change to DRL if it is light outside. During that delay,
the instrument panel cluster may not be as bright as
usual. Make sure the instrument panel brightness lever
is in the full bright position. SeeInstrument Panel
Brightness on page 3-20.
Turning the exterior lamp control to off or to the
low-beam headlamp position will turn off the DRL.
If the parking lamps or the fog lamps were turned on
instead, the DRL will still turn off.
This will work regardless of gear position and whether
or not the parking brake is set.
3-18
