CADILLAC CTS 2009 2.G Owners Manual

Feature Settings Menu Items
The following are customization features that allow you
to program settings to the vehicle:
Display In English
This feature will only display if a language other than
English has been set. This feature allows for changing
the language of the DIC messages back to English.
Press the customization button until the Press
VTo
Display In English screen appears on the DIC display.
Press the set/reset button once to select English as
the language in which all DIC messages will appear.
Display Language
This feature allows you to select the language in which
the DIC messages will appear.
Press the customization button until the Display
Language screen appears on the DIC display.
Press the set/reset button once to access the settings
for this feature. Then press the menu up/down button to
scroll through the following settings:
English (default):All messages will appear in English.
Deutsch:All messages will appear in German.Italiano:All messages will appear in Italian.
Francais:All messages will appear in French.
Espanol:All messages will appear in Spanish.
Portugese:All messages will appear in Portugese.
Arabic:All messages will appear in Arabic.
Chinese:All messages will appear in Chinese.
Japanese:All messages will appear in Japanese.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
3-73

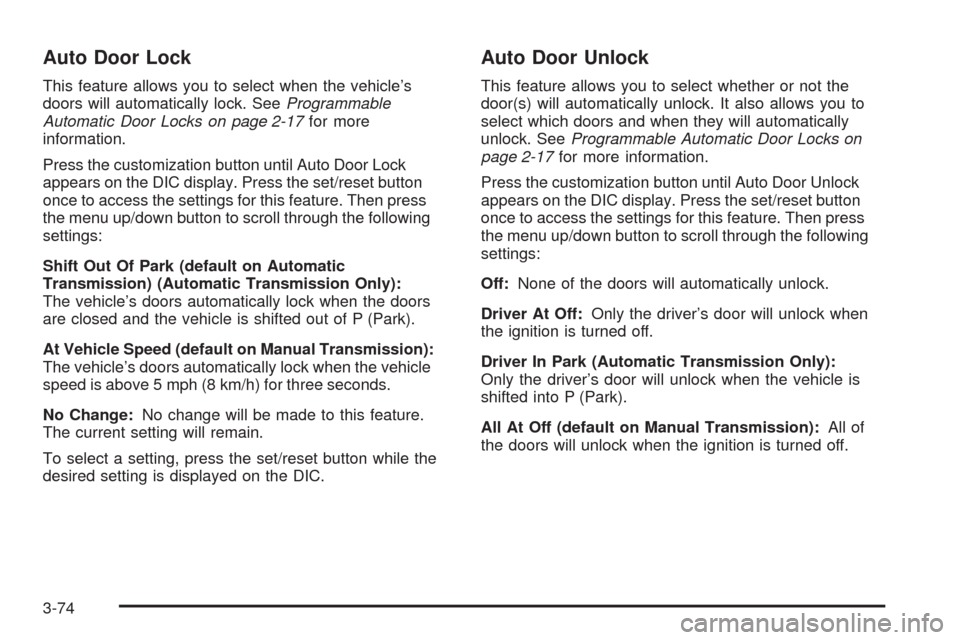

Auto Door Lock
This feature allows you to select when the vehicle’s
doors will automatically lock. SeeProgrammable
Automatic Door Locks on page 2-17for more
information.
Press the customization button until Auto Door Lock
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Shift Out Of Park (default on Automatic
Transmission) (Automatic Transmission Only):
The vehicle’s doors automatically lock when the doors
are closed and the vehicle is shifted out of P (Park).
At Vehicle Speed (default on Manual Transmission):
The vehicle’s doors automatically lock when the vehicle
speed is above 5 mph (8 km/h) for three seconds.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Auto Door Unlock
This feature allows you to select whether or not the
door(s) will automatically unlock. It also allows you to
select which doors and when they will automatically
unlock. SeeProgrammable Automatic Door Locks on
page 2-17for more information.
Press the customization button until Auto Door Unlock
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off:None of the doors will automatically unlock.
Driver At Off:Only the driver’s door will unlock when
the ignition is turned off.
Driver In Park (Automatic Transmission Only):
Only the driver’s door will unlock when the vehicle is
shifted into P (Park).
All At Off (default on Manual Transmission):All of
the doors will unlock when the ignition is turned off.
3-74

All In Park (default on Automatic Transmission)
(Automatic Transmission Only):All of the doors will
unlock when the vehicle is shifted into P (Park).
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Remote Door Lock
This feature allows you to select the type of feedback
you will receive when locking the vehicle with the
Remote Keyless Entry (RKE) or keyless access
transmitter, or when the vehicle is automatically locked
using the Keyless Locking feature. You will not
receive feedback when locking the vehicle with the
transmitter if the doors are open. SeeRemote Keyless
Entry (RKE) System Operation on page 2-6,Keyless
Access System Operation on page 2-8, or “Keyless
Locking” later in this section for more information.Press the customization button until Remote Door Lock
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then
press the menu up/down button to scroll through the
following settings:
Off:There will be no feedback when you press the lock
button on the transmitter.
Lights Only:The exterior lamps will ash when you
press the lock button on the transmitter.
Horn Only:The horn will sound on the second press of
the lock button on the transmitter.
Horn & Lights (default):The exterior lamps will ash
when you press the lock button on the transmitter,
and the horn will sound when the lock button is pressed
again within ve seconds of the previous command.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
3-75

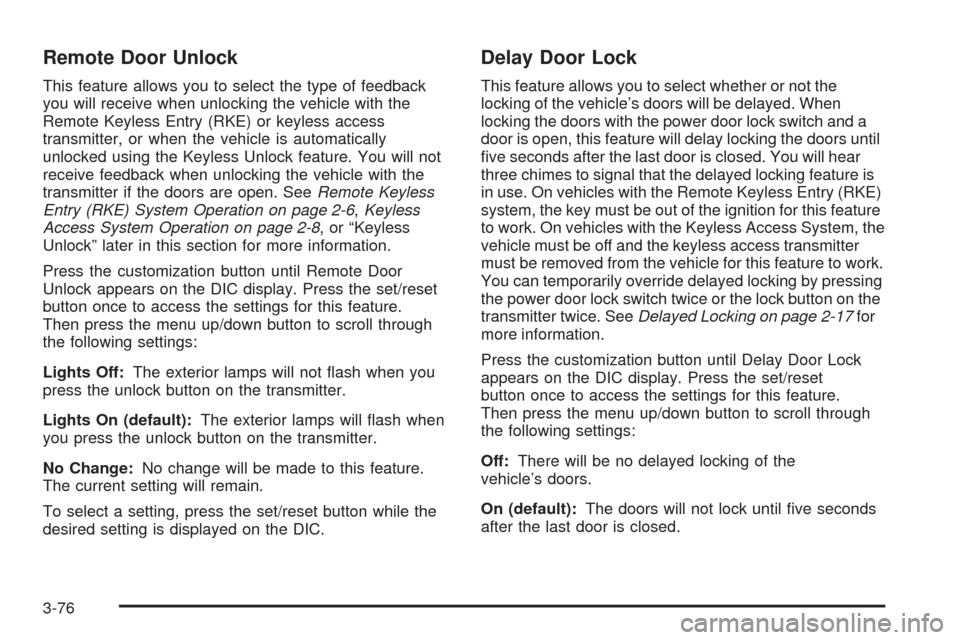

Remote Door Unlock
This feature allows you to select the type of feedback
you will receive when unlocking the vehicle with the
Remote Keyless Entry (RKE) or keyless access
transmitter, or when the vehicle is automatically
unlocked using the Keyless Unlock feature. You will not
receive feedback when unlocking the vehicle with the
transmitter if the doors are open. SeeRemote Keyless
Entry (RKE) System Operation on page 2-6,Keyless
Access System Operation on page 2-8, or “Keyless
Unlock” later in this section for more information.
Press the customization button until Remote Door
Unlock appears on the DIC display. Press the set/reset
button once to access the settings for this feature.
Then press the menu up/down button to scroll through
the following settings:
Lights Off:The exterior lamps will not ash when you
press the unlock button on the transmitter.
Lights On (default):The exterior lamps will ash when
you press the unlock button on the transmitter.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Delay Door Lock
This feature allows you to select whether or not the
locking of the vehicle’s doors will be delayed. When
locking the doors with the power door lock switch and a
door is open, this feature will delay locking the doors until
ve seconds after the last door is closed. You will hear
three chimes to signal that the delayed locking feature is
in use. On vehicles with the Remote Keyless Entry (RKE)
system, the key must be out of the ignition for this feature
to work. On vehicles with the Keyless Access System, the
vehicle must be off and the keyless access transmitter
must be removed from the vehicle for this feature to work.
You can temporarily override delayed locking by pressing
the power door lock switch twice or the lock button on the
transmitter twice. SeeDelayed Locking on page 2-17for
more information.
Press the customization button until Delay Door Lock
appears on the DIC display. Press the set/reset
button once to access the settings for this feature.
Then press the menu up/down button to scroll through
the following settings:
Off:There will be no delayed locking of the
vehicle’s doors.
On (default):The doors will not lock until ve seconds
after the last door is closed.
3-76

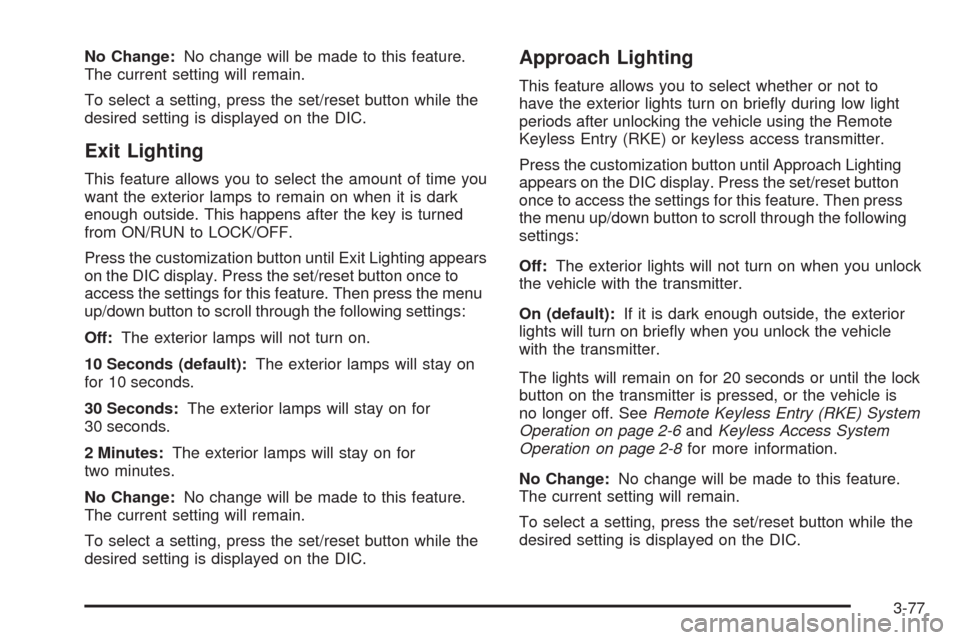

No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Exit Lighting
This feature allows you to select the amount of time you
want the exterior lamps to remain on when it is dark
enough outside. This happens after the key is turned
from ON/RUN to LOCK/OFF.
Press the customization button until Exit Lighting appears
on the DIC display. Press the set/reset button once to
access the settings for this feature. Then press the menu
up/down button to scroll through the following settings:
Off:The exterior lamps will not turn on.
10 Seconds (default):The exterior lamps will stay on
for 10 seconds.
30 Seconds:The exterior lamps will stay on for
30 seconds.
2 Minutes:The exterior lamps will stay on for
two minutes.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Approach Lighting
This feature allows you to select whether or not to
have the exterior lights turn on briey during low light
periods after unlocking the vehicle using the Remote
Keyless Entry (RKE) or keyless access transmitter.
Press the customization button until Approach Lighting
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off:The exterior lights will not turn on when you unlock
the vehicle with the transmitter.
On (default):If it is dark enough outside, the exterior
lights will turn on briey when you unlock the vehicle
with the transmitter.
The lights will remain on for 20 seconds or until the lock
button on the transmitter is pressed, or the vehicle is
no longer off. SeeRemote Keyless Entry (RKE) System
Operation on page 2-6andKeyless Access System
Operation on page 2-8for more information.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
3-77

Factory Settings
This feature allows you to set all of the customization
features back to their factory default settings.
Press the customization button until Factory Settings
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Restore All (default):The customization features will
be set to their factory default settings.
Do Not Restore:The customization features will not be
set to their factory default settings.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Advanced Features
If the vehicle has this feature, it allows you to enter the
advanced features menu.
Press the customization button until Advanced Features
Press
VTo Enter appears on the DIC display. Press
the set/reset button once to access the advanced
feature menu. See “Advanced Features Menu Items”
later in this section for more information.
If you do not press the set/reset button, Feature
Settings Press
VTo Exit appears on the DIC display.
See “Feature Settings Exit” below for more information.
Feature Settings Exit
This feature allows you to exit the feature settings menu.
Press the customization button until Feature Settings
Press
VTo Exit appears in the DIC display. Press the
set/reset button once to exit the menu.
If you do not exit, pressing the customization button
again will return you to the beginning of the feature
settings menu.
Advanced Features Menu Items
Keyless Locking
If the vehicle has the keyless access system, this
feature allows you to select whether the doors
automatically lock during normal vehicle exit. When the
ignition is turned off and all doors become closed,
the vehicle will determine how many keyless access
transmitters remain in the vehicle interior. If at least
one keyless access transmitter has been removed from
the interior of the vehicle, the doors will lock after
several seconds.
For example, if there are two keyless access
transmitters in the vehicle and one is removed,
the other will be locked in. The keyless access
transmitter locked in the vehicle can still be used
to start the vehicle or unlock the doors, if needed.
3-78

A person approaching the outside of the locked vehicle
without an authorized keyless access transmitter,
however, will not be able to open the door, even
with a transmitter in the vehicle. SeeKeyless Access
System Operation on page 2-8for more information.
You may temporarily disable the keyless locking feature
by pressing the door unlock switch for three seconds
on an open door. Keyless locking will then remain
disabled until a door lock switch is pressed or until the
power mode transitions from the off power mode.
To select whether the horn sounds or the lights ash
when the vehicle is locked, see “Remote Door Lock”
earlier in this section.
Press the customization button until Keyless Locking
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off (default):The keyless locking feature will be
disabled.
On:The keyless locking feature will be enabled.
The doors will automatically lock several seconds after
you turn the ignition off, remove a keyless access
transmitter from the interior of the vehicle, and close all
of the doors.No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Keyless Unlock
If the vehicle has the keyless access system, this feature
allows you to select which doors will automatically unlock
when you approach the vehicle with the keyless access
transmitter and open the driver’s door. SeeKeyless
Access System Operation on page 2-8for more
information.
To select whether the lights ash when the vehicle is
unlocked, see “Remote Door Unlock” earlier in this
section.
Press the customization button until Keyless Unlock
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off:None of the doors will automatically unlock.
Entry Door Only (default):Only the driver’s door will
automatically unlock when you approach the vehicle with
the keyless access transmitter and open the driver’s
door. The rest of the doors will unlock if the driver’s door
handle is pulled a second time.
3-79

All Doors:All doors will automatically unlock when
you approach the vehicle with the keyless access
transmitter and open the driver’s door.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Electronic Key Reminder
If the vehicle has the keyless access system, this
feature allows you to select whether or not the horn
chirps when the driver’s door is closed and there is a
keyless access transmitter inside the interior of the
vehicle. This will only occur when the vehicle is off.
Press the customization button until Electronic
Key Reminder appears on the DIC display. Press the
set/reset button once to access the settings for this
feature. Then press the menu up/down button to scroll
through the following settings:
Electronic Key Reminder Off:The horn will not chirp
when a keyless access transmitter is inside of the
vehicle while the ignition is turned off and the driver’s
door is closed.
Electronic Key Reminder On (default):The horn will
chirp three times when a keyless access transmitter
is inside of the vehicle while the ignition is turned off and
the driver’s door is closed.No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Chime Volume
This feature allows you to select the volume level of
the chime.
Press the customization button until Chime Volume
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Normal:The chime volume will be set to a normal
level.
Loud:The chime volume will be set to a loud level.
No Change:No change will be made to this feature.
The current setting will remain.
There is no default for chime volume. The volume will
stay at the last known setting.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
3-80

Park Tilt Mirrors
If the vehicle has this feature, it allows you to select
whether or not the outside mirror(s) will automatically tilt
down when the vehicle is shifted into R (Reverse).
SeePark Tilt Mirrors on page 2-53for more information.
Press the customization button until Park Tilt Mirrors
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off (default):Neither outside mirror will be tilted down
when the vehicle is shifted into R (Reverse).
Driver Mirror:The driver’s outside mirror will be tilted
down when the vehicle is shifted into R (Reverse).
Passenger Mirror:The passenger’s outside mirror
will be tilted down when the vehicle is shifted into
R (Reverse).
Both Mirrors:The driver’s and passenger’s outside
mirrors will be tilted down when the vehicle is shifted
into R (Reverse).
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Easy Exit Recall
If the vehicle has this feature, it allows you to select
your preference for the automatic easy exit seat feature.
SeeMemory Seat, Mirrors and Steering Wheel on
page 1-8for more information.
Press the customization button until Easy Exit Recall
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Door Button Only:No automatic seat exit recall will
occur. The recall will only occur after pressing the easy
exit seat button.
Button And Automatic (Keyless Access default):
If the features are enabled though the Easy Exit Setup
menu, the driver’s seat will move back, and if the vehicle
has the power tilt wheel and telescopic steering feature,
the power steering column will move up and forward
when the vehicle is parked and the driver door is opened,
or after pressing the easy exit seat button.
The automatic easy exit seat movement will only occur
one time after the driver door is opened. If the automatic
movement has already occurred, and you close and then
open the driver door, the seat and steering column will
stay in the original exit position, unless a memory recall
took place prior to opening the driver door again.
3-81

Button And Automatic (Key Access default):If the
features are enabled though the Easy Exit Setup menu,
the driver’s seat will move back, and if the vehicle
has the power tilt wheel and telescopic steering feature,
the power steering column will move up and forward
when the key is removed from the ignition or after
pressing the easy exit seat button. The automatic easy
exit seat movement will only occur one time after
the key is removed from the ignition. If the automatic
movement has already occurred, and you put the
key back in the ignition and remove it again, the seat
and steering column will stay in the original exit position,
unless a memory recall took place prior to removing
the key again.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Easy Exit Setup
If the vehicle has this feature, it allows you to select
which areas will recall with the automatic easy exit seat
feature. It also allows you to turn off the automatic
easy exit feature. SeeMemory Seat, Mirrors and
Steering Wheel on page 1-8and “Easy Exit Recall”
earlier for more information.Press the customization button until Easy Exit Setup
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off:No automatic seat exit will recall.
Seat Only:The driver’s seat will recall.
Tilt Only:The steering wheel tilt feature will recall.
Telescope Only:The steering column telescope
feature will recall.
Seat/Tilt:The driver’s seat and the steering wheel tilt
feature will recall.
Seat/Telescope:The driver’s seat and the steering
column telescope feature will recall.
Tilt/Telescope:The steering wheel tilt and steering
column telescope features will recall.
All (default):The driver’s seat and the steering wheel
tilt and steering column telescope features will recall,
if the vehicle has this option.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
3-82
