CADILLAC ELDORADO 1995 10.G Owners Manual

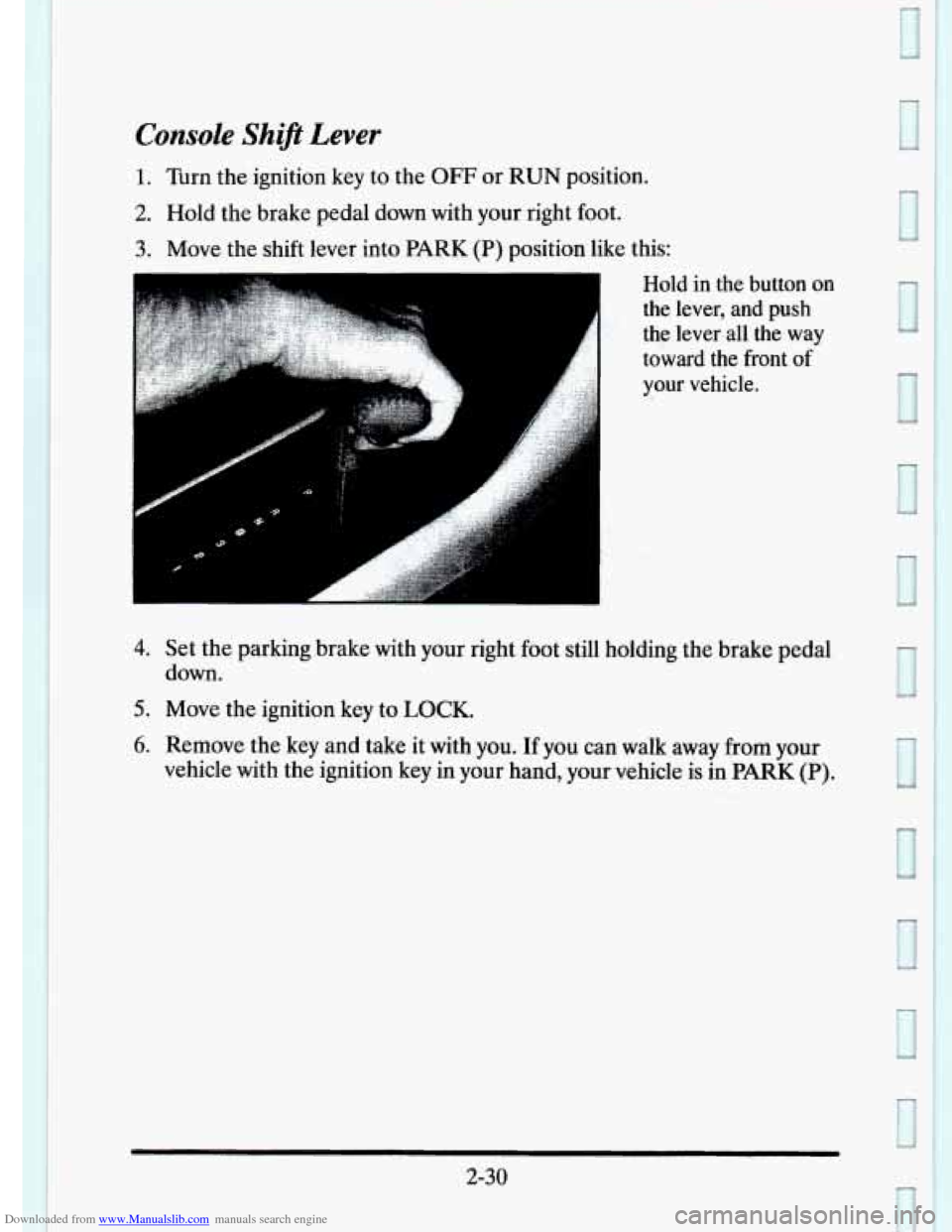

Downloaded from www.Manualslib.com manuals search engine Console Shift Lever
1. Turn the ignition key to the OFF or RUN position.
2. Hold the brake pedal down with your right foot.
3. Move the shift lever into PARK (P) position like this:
Hold in the button on
the lever, and push
the lever all the way
toward the front
of
your vehicle.
A
4. Set the parking brake with your right foot still holding the brake pedal
5. Move the ignition key to LOCK.
6. Remove the key and take it with you. If you can walk away from your
down.
vehicle with the ignition key in your hand, your vehicle is
in PARK (P).
2-30

Downloaded from www.Manualslib.com manuals search engine Leaving Your khicle With the Engine Running
If you have to leave your vehicle with the engine running, be sure your
vehicle is in
PARK (P) and your parking brake is firmly set before you
leave it. After you’ve moved the shift lever into the PARK (P) position,
hold the regular brake pedal down. Then, see
if you can move the shift
lever away from
PARK (P) without first pulling it toward you (or, if you
have the console shift lever, without first pressing the button). If you can,
it means that the shift lever wasn’t fully locked into
PARK (P).
Torque Lock
If you are parking on a hill and you don’t shift your transaxle into
PARK (P) properly, the weight of the vehicle may put too much force on
the parking pawl in the transaxle. You may find it difficult to pull the shift
lever out
of PARK (P). This is called “torque lock.” To prevent torque
lock, set the parking brake and then shift into
PARK (P) properly before
you leave the driver’s seat.
To find out how, see “Shifting Into PARK (P)”
in the Index.
If “torque lock” does occur, you may need to have another vehicle push
yours a little uphill
to take some of the pressure from the transaxle, so you
can pull the shift lever out
of PARK (P).
2-3 1

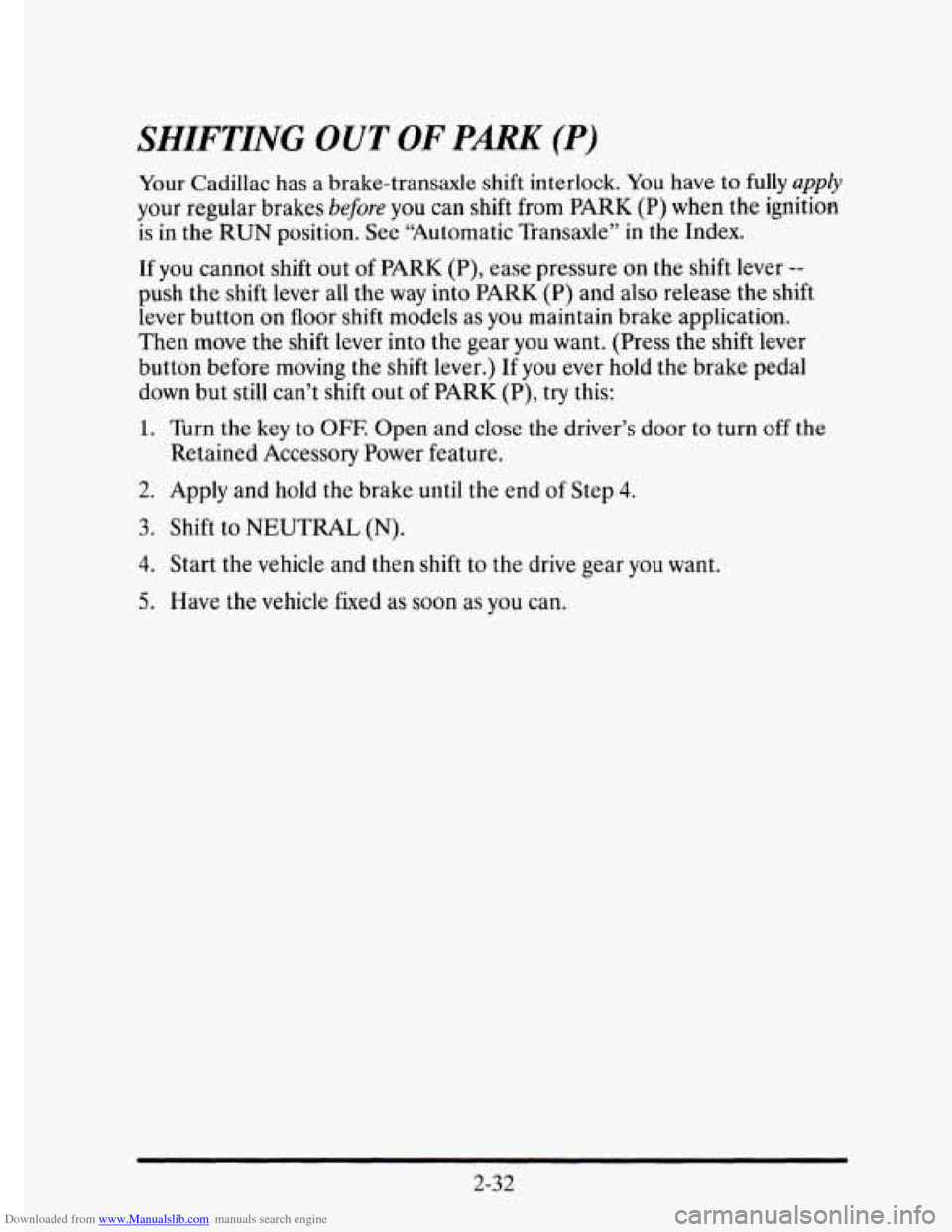

Downloaded from www.Manualslib.com manuals search engine SHIFTING OUT OF PRRK (P)
Your Cadillac has a brake-transaxle shift interlock. You have to fully apply
your regular brakes before you can shift from PARK (P) when the ignitioa
is
in the RUN position. See “Automatic Transaxle” in the Index.
If you cannot shift out of PARK (P), ease pressure on the shift lever --
push the shift lever all the way into PARK (P) and also release the shift
lever button on
floor shift models as you maintain brake application.
Then move the shift lever into the gear you want. (Press the shift lever
button before moving the shift lever.) If you ever hold the brake pedal
down but still can’t
shift out of PARK (P), try this:
1. Turn the key to OFE Open and close the driver’s door to turn off the
2. Apply and hold the brake until the end of Step 4.
3. Shift to NEUTRAL (N).
4. Start the vehicle and then shift to the drive gear you want.
5. Have the vehicle fixed as soon as you can.
Retained
Accessory Power feature.
2-32

Downloaded from www.Manualslib.com manuals search engine c

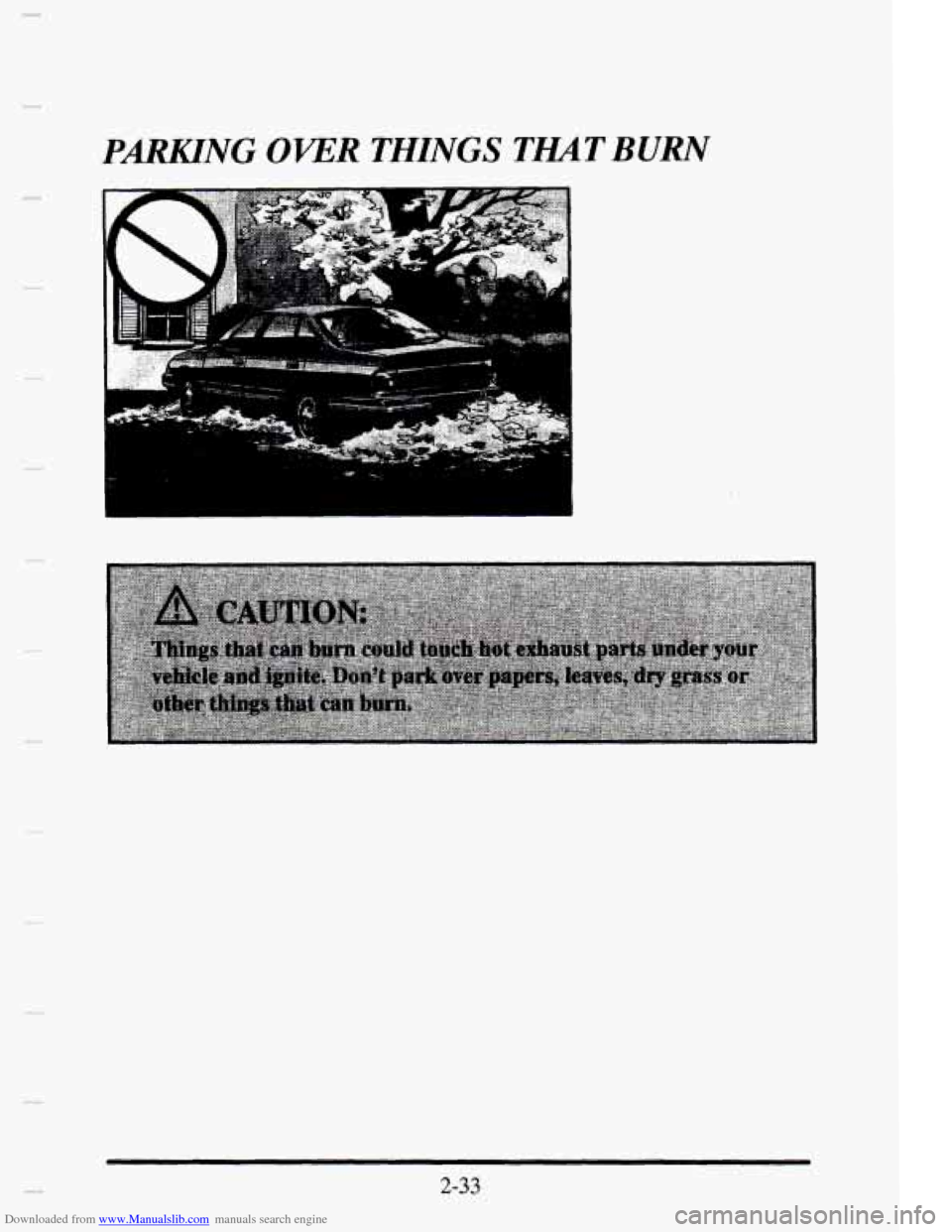

PARKlING OVER THINGS THriTBURN
2-33

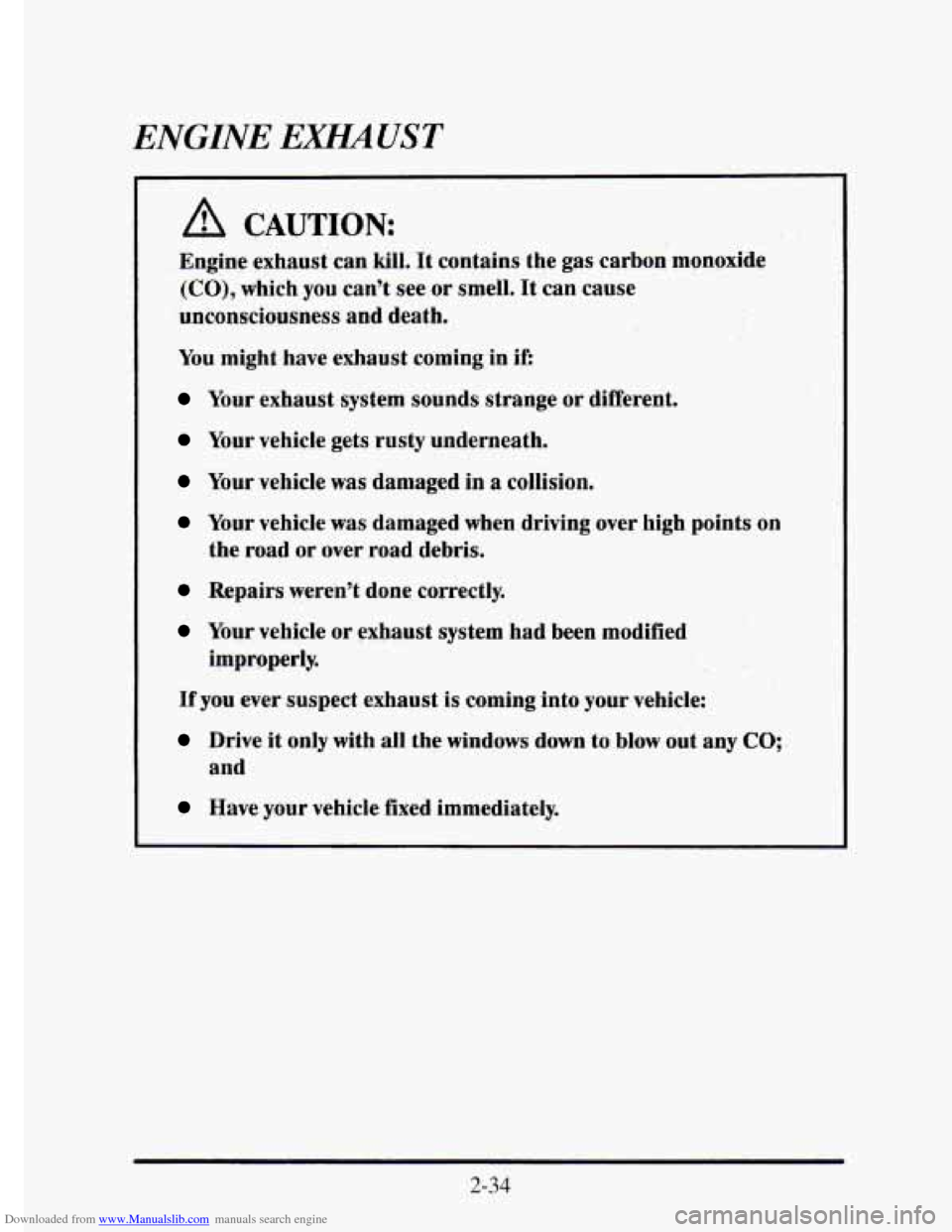

Downloaded from www.Manualslib.com manuals search engine ENGINE EmUST
A CAUTION:
Engine exhaust can kill. it contains the gas carbon monoxide
(CO), which you can’t see or smell. It can cause
unconsciousness and death.
You might have exhaust coming in if:
Your exhaust system sounds strange or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a collision.
Your vehicle was damaged when driving over high points on
the road or over road debris.
Repairs weren’t done correctly.
Your vehicle or exhaust system had been modified
improperly.
If you ever suspect exhaust is corning into your vehicle:
Drive it only with all the windows down to blow out any CO;
and
Have your vehicle fixed immediately.
2-34

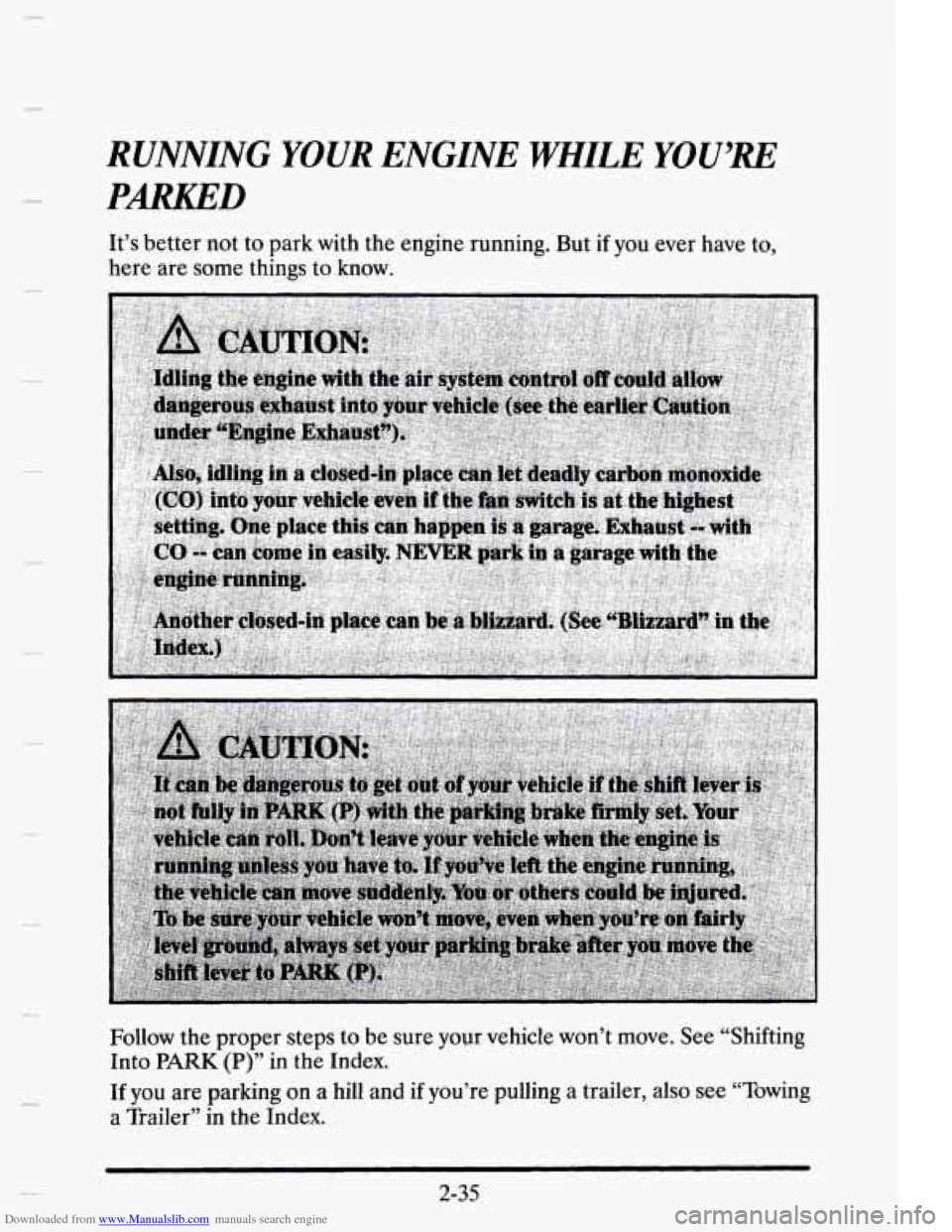

Downloaded from www.Manualslib.com manuals search engine RUNNING YOUR ENGINE WHILE YOU’RE
PARKED
It’s better not to park with the engine running. But if you ever have to,
here are some things to know.
c.
Follow the proper steps to be sure your vehicle won’t move. See “Shifting
Into
PARK (P)” in the Index.
If you are parking on a hill and if you’re pulling a trailer, also see “Towing
a Trailer” in the Index.
2-35

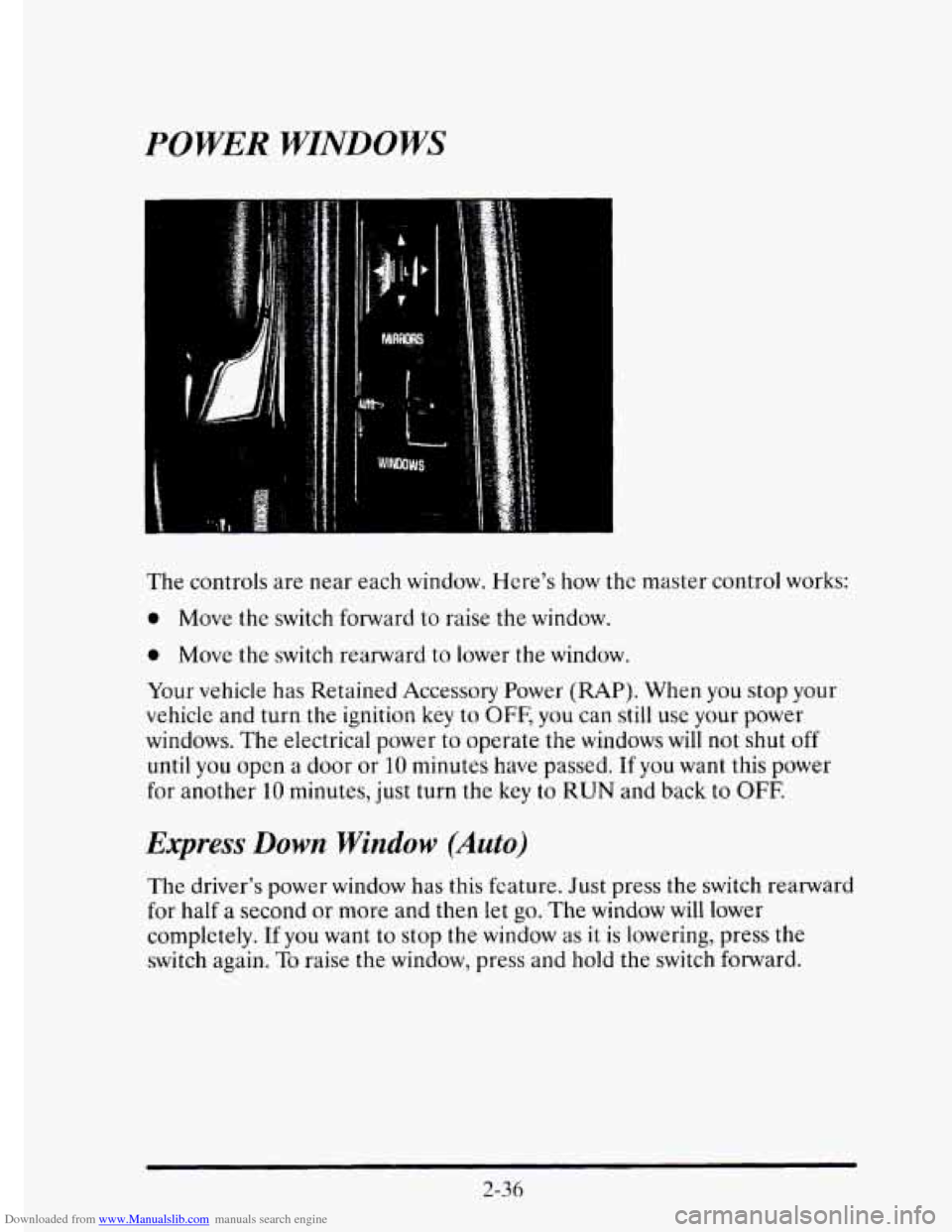

Downloaded from www.Manualslib.com manuals search engine POWER WINDOWS
t
6
The controls are near each window. Here's how the master control works:
0 Move the switch forward to raise the window.
0 Move the switch rearward to lower the window.
Your vehicle has Retained Accessory Power (RAP). When
you stop your
vehicle and turn the ignition key
to OFF, you can still use your power
windows.
The electrical power to operate the windows will not shut off
until you open a door or 10 minutes have passed. If you want this power
for another
10 minutes, just turn the key to RUN and back to OFF.
Express Down Window (Auto)
The driver's power window has this fcature. Just press the switch rearward
for half
a second or more and then let go. The window will lower
completely.
If you want to stop the window as it is lowering, press the
switch again.
To raise the window, press and hold the switch forward.
2-36

Downloaded from www.Manualslib.com manuals search engine HORN
To sound the horn just press the center of the steering wheel.
TILT WHEEL
A tilt steering wheel allows you to adjust the steering wheel before you
drive.
You can also raise
it to the highest level to give your legs more room when
you exit and enter the vehicle.
c
, :.
To tilt the wheel hold
the steering wheel
and
pull the lever. Move
the steering wheel to
a
comfortable level, then
release the lever to
lock the wheel
in place.
2-37

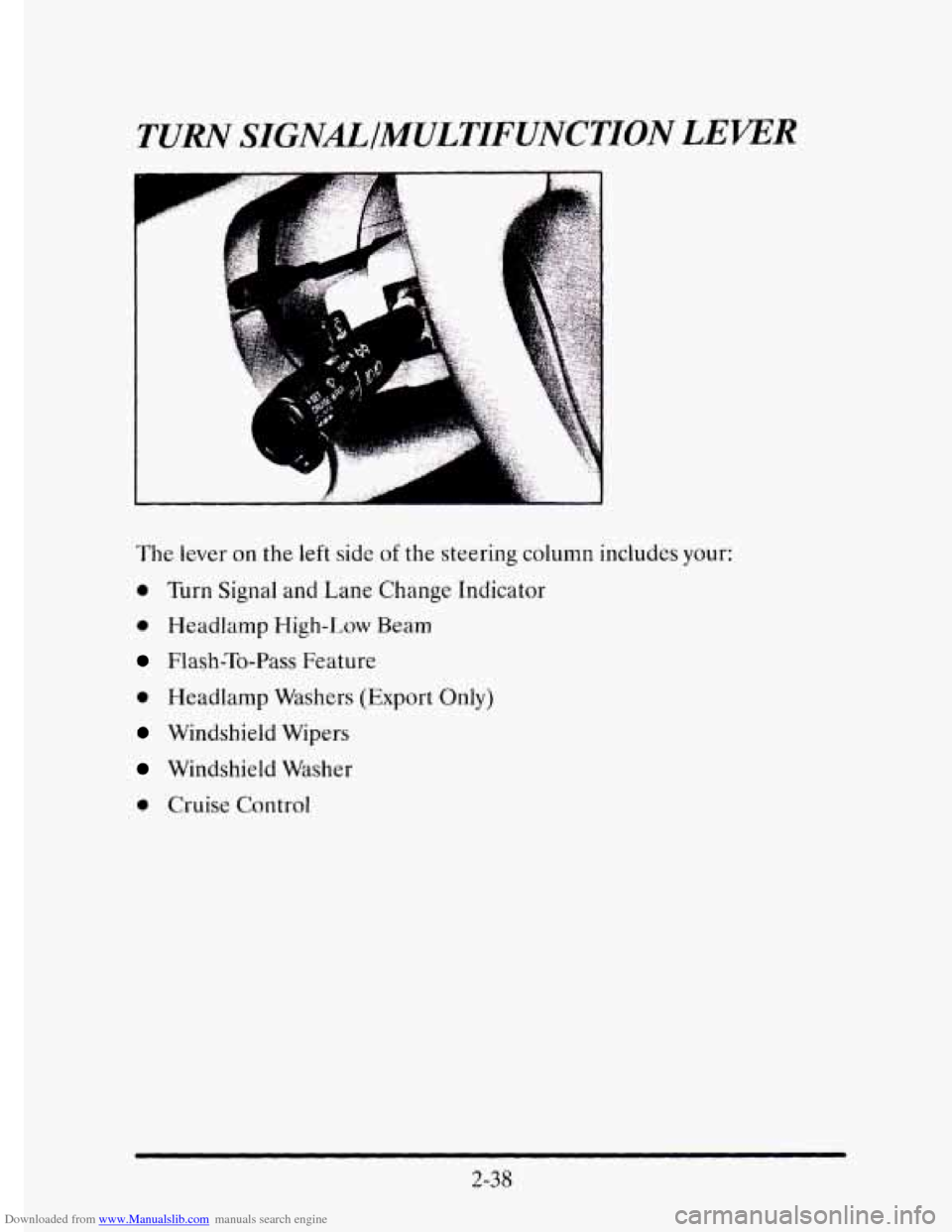

Downloaded from www.Manualslib.com manuals search engine TURN SIGNLIMULTIFUNCTION LEVER
The lever on the left side of the steering column includes your:
0 Turn Signal and Lane Change Indicator
0 Headlamp High-Low Beam
Flash-To-Pass Feature
0 Headlamp Washers (Export Only)
Windshield Wipers
Windshield Washer
0 Cruise Control
2-38

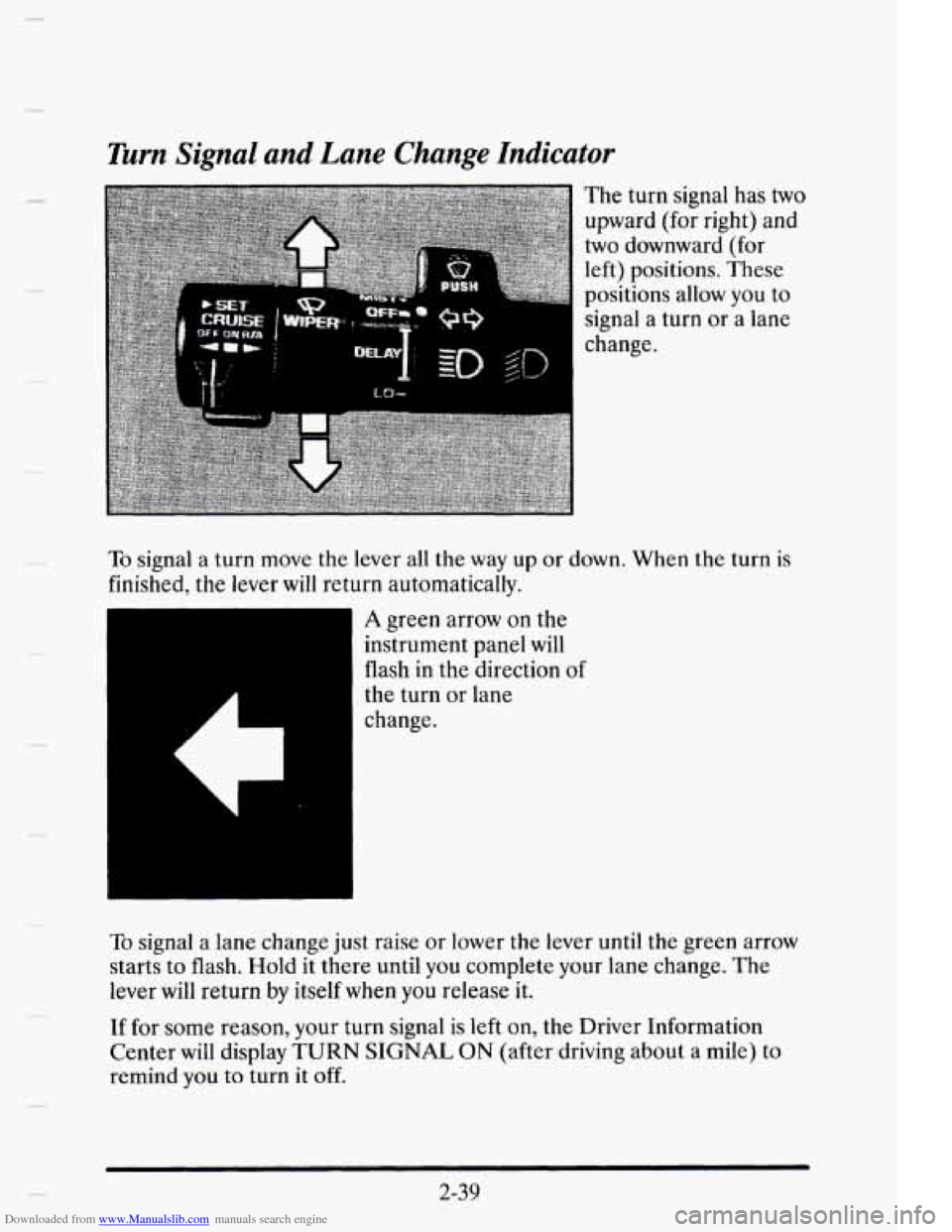

Downloaded from www.Manualslib.com manuals search engine Turn Signal and Lane Change Indicator
The turn signal has two
upward (for right) and
two downward (for
left) positions. These
positions
allow you to
signal a turn or a lane
change.
To signal a turn move the lever all the way up or down. When the turn is
finished, the lever will return automatically.
CI.
A green arrow on the
instrument panel will
flash in the direction
of
the turn or lane
change.
To signal a lane change just raise or lower the lever until the green arrow
starts to flash. Hold it there until
you complete your lane change. The
lever
will return by itself when you release it.
If for some reason, your turn signal is left on, the Driver Information
Center will display
TURN SIGNAL ON (after driving about a mile) to
remind you
to turn it off.
2-39
