ECO mode CADILLAC ESCALADE ESV 2008 Owner's Guide

TPMS Sensor Matching Process Each TPMS sensor has a unique identication code.
Any time you rotate your vehicle’s tires or replace one or
more of the TPMS sensors, the identication codes
will need to be matched to the new tire/wheel position.
The sensors are matched to the tire/wheel positions
in the following order: driver side front tire, passenger
side front tire, passenger side rear tire, and driver
side rear tire using a TPMS diagnostic tool. See your
dealer/retailer for service.
The TPMS sensors can also be matched to each
tire/wheel position by increasing or decreasing the tire’s
air pressure. If increasing the tire’s air pressure, do
not exceed the maximum ination pressure indicated on
the tire’s sidewall.
To decrease air-pressure out of a tire you can use the
pointed end of the valve cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match the rst tire/wheel
position, and ve minutes overall to match all four
tire/wheel positions. If it takes longer than two minutes,
to match the rst tire and wheel, or more than
ve minutes to match all four tire and wheel positions
the matching process stops and you need to start over. The TPMS sensor matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the
engine off.
3. Press the Remote Keyless Entry (RKE) transmitter’s
LOCK and UNLOCK buttons at the same time for
approximately ve seconds. The horn sounds twice
to signal the receiver is in relearn mode and TIRE
LEARNING ACTIVE message displays on the
DIC screen.
4. Start with the driver side front tire.
5. Remove the valve cap from the valve cap stem.
Activate the TPMS sensor by increasing or
decreasing the tire’s air pressure for ve seconds,
or until a horn chirp sounds. The horn chirp,
which may take up to 30 seconds to sound,
conrms that the sensor identication code has
been matched to this tire and wheel position.
5-68

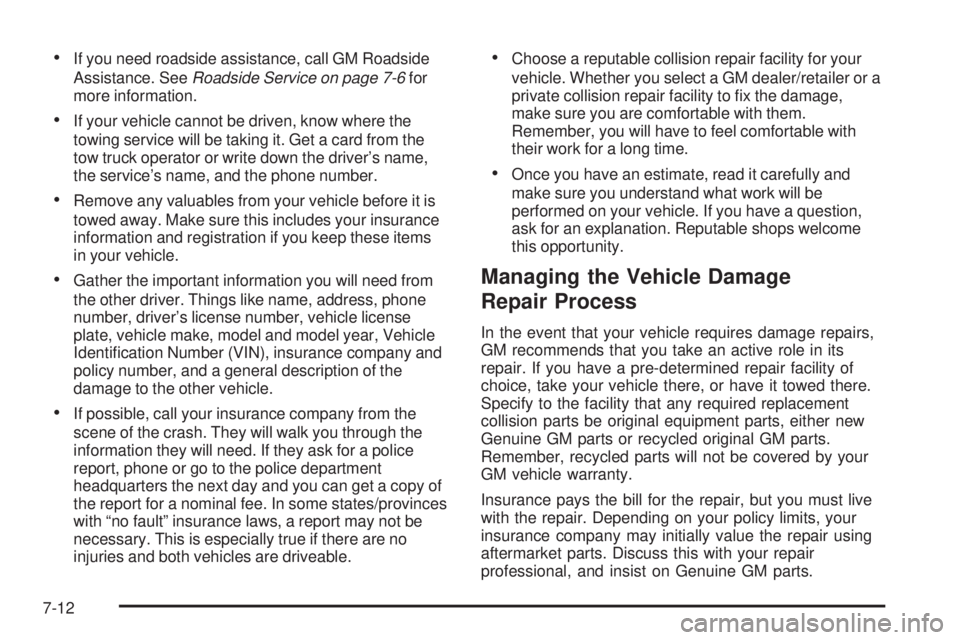

If you need roadside assistance, call GM Roadside
Assistance. See Roadside Service on page 7-6 for
more information.
If your vehicle cannot be driven, know where the
towing service will be taking it. Get a card from the
tow truck operator or write down the driver’s name,
the service’s name, and the phone number.
Remove any valuables from your vehicle before it is
towed away. Make sure this includes your insurance
information and registration if you keep these items
in your vehicle.
Gather the important information you will need from
the other driver. Things like name, address, phone
number, driver’s license number, vehicle license
plate, vehicle make, model and model year, Vehicle
Identication Number (VIN), insurance company and
policy number, and a general description of the
damage to the other vehicle.
If possible, call your insurance company from the
scene of the crash. They will walk you through the
information they will need. If they ask for a police
report, phone or go to the police department
headquarters the next day and you can get a copy of
the report for a nominal fee. In some states/provinces
with “no fault” insurance laws, a report may not be
necessary. This is especially true if there are no
injuries and both vehicles are driveable. Choose a reputable collision repair facility for your
vehicle. Whether you select a GM dealer/retailer or a
private collision repair facility to x the damage,
make sure you are comfortable with them.
Remember, you will have to feel comfortable with
their work for a long time.
Once you have an estimate, read it carefully and
make sure you understand what work will be
performed on your vehicle. If you have a question,
ask for an explanation. Reputable shops welcome
this opportunity.
Managing the Vehicle Damage
Repair Process In the event that your vehicle requires damage repairs,
GM recommends that you take an active role in its
repair. If you have a pre-determined repair facility of
choice, take your vehicle there, or have it towed there.
Specify to the facility that any required replacement
collision parts be original equipment parts, either new
Genuine GM parts or recycled original GM parts.
Remember, recycled parts will not be covered by your
GM vehicle warranty.
Insurance pays the bill for the repair, but you must live
with the repair. Depending on your policy limits, your
insurance company may initially value the repair using
aftermarket parts. Discuss this with your repair
professional, and insist on Genuine GM parts.
7-12

Current and Past Model Order Forms Technical Service Bulletins and Manuals are available
for current and past model GM vehicles. To request
an order form, specify year and model name of
the vehicle.
ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are to make
checks payable in U.S. funds. Vehicle Data Recording and
Privacy Your GM vehicle has a number of sophisticated
computers that record information about the vehicle’s
performance and how it is driven. For example,
your vehicle uses computer modules to monitor and
control engine and transmission performance, to monitor
the conditions for airbag deployment and deploy
airbags in a crash and, if so equipped, to provide
antilock braking to help the driver control the vehicle.
These modules may store data to help your
dealer/retailer technician service your vehicle. Some
modules may also store data about how you operate the
vehicle, such as rate of fuel consumption or average
speed. These modules may also retain the owner’s
personal preferences, such as radio pre-sets, seat
positions, and temperature settings.
7-15

Engine
Air Cleaner/Filter ......................................... 5-17
Check and Service Engine Soon Light ............ 3-43
Coolant ...................................................... 5-24
Coolant Heater ............................................ 2-28
Coolant Temperature Gage ........................... 3-42
Drive Belt Routing ....................................... 6-16
Engine Compartment Overview ...................... 5-12
Exhaust ..................................................... 2-39
Fan Noise .................................................. 5-33
Oil ............................................................. 5-14
Oil Life System ........................................... 5-16
Overheated Protection Operating Mode ........... 5-28
Overheating ................................................ 5-26
Running While Parked .................................. 2-40
Starting ...................................................... 2-26
Entry Lighting ................................................. 3-22
Event Data Recorders ..................................... 7-16
Exit Lighting ................................................... 3-22
Extender, Safety Belt ....................................... 1-49
Exterior Lamps ............................................... 3-16
FFilter
Engine Air Cleaner ...................................... 5-17
Finish Damage ............................................. 5-105
Flashers, Hazard Warning .................................. 3-6
Flat Tire ........................................................ 5-78 Flat Tire, Changing ......................................... 5-79
Flat Tire, Storing ............................................. 5-94
Fluid ............................................................. 5-20
Power Steering ........................................... 5-34
Windshield Washer ...................................... 5-35
Fog Lamp
Fog ........................................................... 3-21
Fog Lamp Light .............................................. 3-46
Front Axle ...................................................... 5-47
Fuel ............................................................... 5-5
Additives ...................................................... 5-6
California Fuel .............................................. 5-5
Filling a Portable Fuel Container .................... 5-10
Filling the Tank ............................................. 5-7
Fuels in Foreign Countries .............................. 5-6
Gage ......................................................... 3-48
Gasoline Octane ........................................... 5-5
Gasoline Specications .................................. 5-5
Fuses
Center Instrument Panel Fuse Block ............. 5-110
Fuses and Circuit Breakers ......................... 5-108
Instrument Panel Fuse Block ....................... 5-109
Underhood Fuse Block ............................... 5-111
Windshield Wiper ....................................... 5-108
5

OnStar, Privacy .............................................. 7-17
OnStar ®
System, see OnStar ®
Manual ............... 2-50
Operation, Universal Home Remote System ........ 2-54
Other Warning Devices ...................................... 3-6
Outlet Adjustment ............................................ 3-31
Outlets
Accessory Power ......................................... 3-24
Outside
Power Foldaway Mirrors ............................... 2-45
Overheated Engine Protection
Operating Mode .......................................... 5-28
Owner Checks and Services .............................. 6-9
Owners, Canadian ............................................... ii
PPaint, Damage .............................................. 5-105
Park Aid ........................................................ 2-48
Park Brake .................................................... 2-35
Park (P)
Shifting Into ................................................ 2-36
Shifting Out of ............................................ 2-37
Parking
Assist ........................................................ 2-48
Over Things That Burn ................................. 2-38
Passenger Airbag Status Indicator ..................... 3-37 Passenger Sensing System .............................. 1-85
Passing ......................................................... 4-11
PASS-Key ®
III+ .............................................. 2-22
PASS-Key ®
III+ Operation ................................ 2-23
Perchlorate Materials Requirements, California ...... 5-4
Power
Door Locks ................................................. 2-10
Electrical System ....................................... 5-108
Liftgate ...................................................... 2-14
Lumbar Controls ........................................... 1-3
Reclining Seatbacks ...................................... 1-7
Retained Accessory (RAP) ............................ 2-26
Running Boards .......................................... 2-17
Seat ............................................................ 1-2
Steering Fluid ............................................. 5-34
Windows .................................................... 2-19
Privacy .......................................................... 7-15
Event Data Recorders .................................. 7-16
Navigation System ....................................... 7-17
OnStar ....................................................... 7-17
Radio Frequency Identication ....................... 7-17
Programmable Automatic Door Locks ................. 2-11
9

Tires (cont.)
Inspection and Rotation ................................ 5-69
Installing the Spare Tire ................................ 5-85
Pressure Monitor Operation ........................... 5-65
Pressure Monitor System .............................. 5-64
Removing the Flat Tire ................................. 5-85
Removing the Spare Tire and Tools ............... 5-80
Secondary Latch System .............................. 5-90
Spare Tire .................................................. 5-98
Storing a Flat or Spare Tire and Tools ............ 5-94
Tire Sidewall Labeling .................................. 5-57
Tire Terminology and Denitions .................... 5-59
Uniform Tire Quality Grading ......................... 5-74
Wheel Alignment and Tire Balance ................. 5-75
Wheel Replacement ..................................... 5-76
When It Is Time for New Tires ...................... 5-71
Tow/Haul Mode ............................................... 2-34
Tow/Haul Mode Light ....................................... 3-47
Towing
Recreational Vehicle ..................................... 4-42
Towing a Trailer .......................................... 4-44
Your Vehicle ............................................... 4-41 Traction
Locking Differential ........................................ 4-5
Road Sensing Suspension .............................. 4-6
StabiliTrak ®
System ....................................... 4-6
Trailer
Recommendations ....................................... 4-57
Transmission
Fluid, Automatic ........................................... 5-20
Transmission Operation, Automatic .................... 2-30
Trip Odometer ................................................ 3-35
Turn and Lane-Change Signals .......................... 3-8
Turn Signal/Multifunction Lever ........................... 3-7
U Ultrasonic Rear Parking Assist (URPA) ............... 2-48
Uniform Tire Quality Grading ............................ 5-74
Universal Home Remote System ....................... 2-53
Operation ................................................... 2-54
Using this Manual ............................................... iii
13
