CADILLAC ESCALADE ESV 2010 Owners Manual

Black plate (83,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
To access the spare tire:
A. Hoist Assembly
B. Hoist Shaft
C. Hoist Shaft Access
Cover/Hole
D. Jack Handle
Extensions
E. Wheel Wrench
F. Hoist Cable G. Tire/Wheel Retainer
H. Spare Tire (Valve Stem
Pointed Down)
I. Hoist Shaft Access Hole
J. Hoist End of
Extension Tool
K. Spare Tire Lock 1. To reach the hoist shaft access cover (C), you will
first need to remove the hitch cover. Remove it by
turning the two fasteners located at the bottom of
the cover counterclockwise and then pull the cover
down and rotate towards you.
2. Open the hoist shaft access cover (C) on the
bumper to access the spare tire lock (K).
3. To remove the spare tire lock insert the ignition
key, turn it clockwise and then pull the lock out.
7-83

Black plate (84,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
4. Assemble the two jack handle extensions (D) and
wheel wrench (E) as shown.
5. Insert the open end of
the extension (J)
through the hole in the
rear bumper (I) (hoist
shaft access hole). Be sure the hoist end (J) of the extension (D)
connects to the hoist shaft (B). The ribbed square
end of the extension is used to lower the spare tire.
6. Turn the wheel wrench (E) counterclockwise to
lower the spare tire (H) to the ground. Continue to
turn the wheel wrench until the spare tire can be
pulled out from under the vehicle.
If the spare tire does not lower to the ground, the
secondary latch is engaged causing the tire not to
lower. See Secondary Latch System on page 7 ‑ 91
for more information.
7. Use the wheel wrench
hook that allows you to
pull the hoist cable
towards you, to assist
in reaching the
spare tire.
7-84

Black plate (85,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

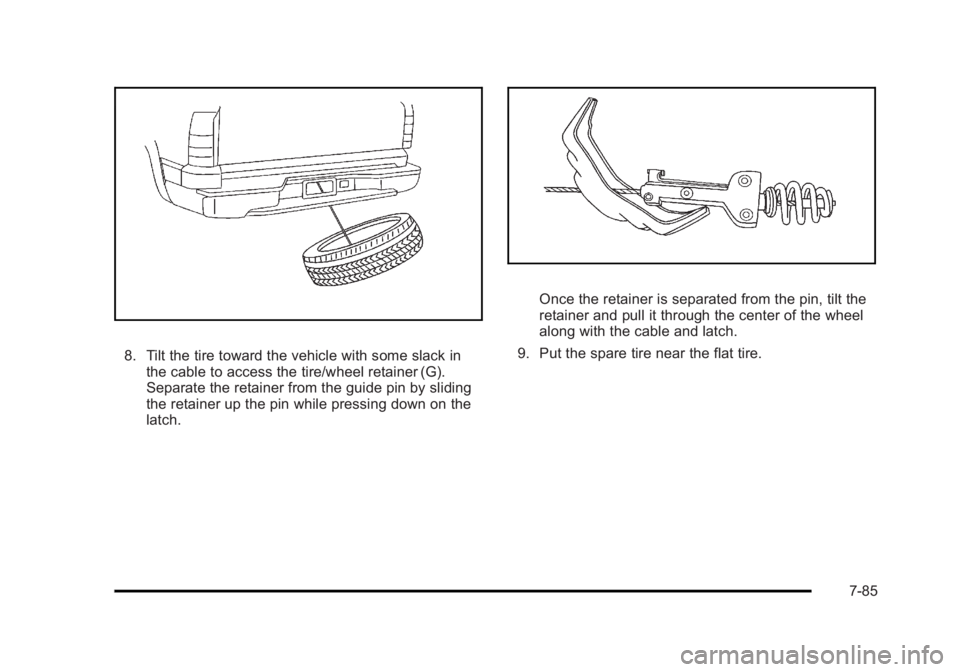

8. Tilt the tire toward the vehicle with some slack in
the cable to access the tire/wheel retainer (G).
Separate the retainer from the guide pin by sliding
the retainer up the pin while pressing down on the
latch. Once the retainer is separated from the pin, tilt the
retainer and pull it through the center of the wheel
along with the cable and latch.
9. Put the spare tire near the flat tire.
7-85

Black plate (86,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Removing the Flat Tire and Installing
the Spare Tire 1. Do a safety check before proceeding. See
Changing a Flat Tire on page 7 ‑ 80 for more
information.
2. To remove the center cap, place the chiseled end
of the wheel wrench in the slot on the wheel and
gently pry the cap out.
3. Use the wheel wrench to loosen all the wheel nuts.
Turn the wheel wrench counterclockwise to loosen
the wheel nuts. Do not remove the wheel nuts yet. Jacking Locations (Overall View)
A. Front Position
B. Rear Position
7-86

Black plate (87,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
{ WARNING: Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
{ WARNING: Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to fit the jack
lift head into the proper location before raising the
vehicle.
4. Position the jack under the vehicle as shown. Front Position
Front Tire Flat: If the flat tire is on a front tire of
the vehicle, you will need to use the jack handle
and only one jack handle extension. Attach the
wheel wrench to the jack handle extension. Attach
the jack handle to the jack (A). Position the jack on
the frame behind the flat tire where the frame
sections overlap. Turn the wheel wrench clockwise
to raise the vehicle. Raise the vehicle far enough
off the ground so there is enough room for the
spare tire to clear the ground.
7-87

Black plate (88,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Rear Position
Rear Tire Flat: If the flat tire is on a rear tire of the
vehicle, you will need to use the jack handle (B)
and both jack handle extensions (C). Attach
the wheel wrench (D) to the jack handle
extensions (C). Attach the jack handle (B) to the
jack (A). Use the jacking pad (E) provided on the
rear axle. Turn the wheel wrench (D) clockwise to
raise the vehicle. Raise the vehicle far enough off
the ground so there is enough room for the spare
tire to clear the ground. 5. Remove all of the
wheel nuts.
6. Take off the flat tire.
7-88

Black plate (89,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
{ WARNING: Rust or dirt on a wheel, or on the parts to which it
is fastened, can make wheel nuts become loose
after time. The wheel could come off and cause
an accident. When changing a wheel, remove any
rust or dirt from places where the wheel attaches
to the vehicle. In an emergency, use a cloth or
a paper towel to do this; but be sure to use a
scraper or wire brush later, if needed, to get all
the rust or dirt off. See Changing a Flat Tire
on
page 7 ‑ 80 .
7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces, and
spare wheel.{ WARNING: Never use oil or grease on bolts or nuts because
the nuts might come loose. The vehicle's wheel
could fall off, causing a crash.
8. Put the wheel nuts back on with the rounded end
of the nuts toward the wheel after mounting the
spare tire.
9. Tighten each wheel nut by hand. Then use the
wheel wrench to tighten the nuts until the wheel is
held against the hub.
7-89

Black plate (90,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
10. Turn the wheel wrench counterclockwise to lower
the vehicle. Lower the jack completely.
{ WARNING: Wheel nuts that are improperly or incorrectly
tightened can cause the wheels to become loose
or come off. The wheel nuts should be tightened
with a torque wrench to the proper torque
specification after replacing. Follow the torque
specification supplied by the aftermarket
manufacturer when using accessory locking wheel
nuts. See Capacities and Specifications
on
page 7 ‑ 117 for original equipment wheel nut
torque specifications.
Notice: Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification. See Capacities and
Specifications on page 7 ‑ 117 for the wheel nut
torque specification. 11. Tighten the nuts
firmly in a crisscross
sequence as shown by
turning the wheel
wrench clockwise.
When you reinstall the regular wheel and tire, you must
also reinstall the center cap. Line the tab on the back of
the cap with the slot in the wheel. Place the cap on the
wheel and press until it snaps into place.
7-90

Black plate (91,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

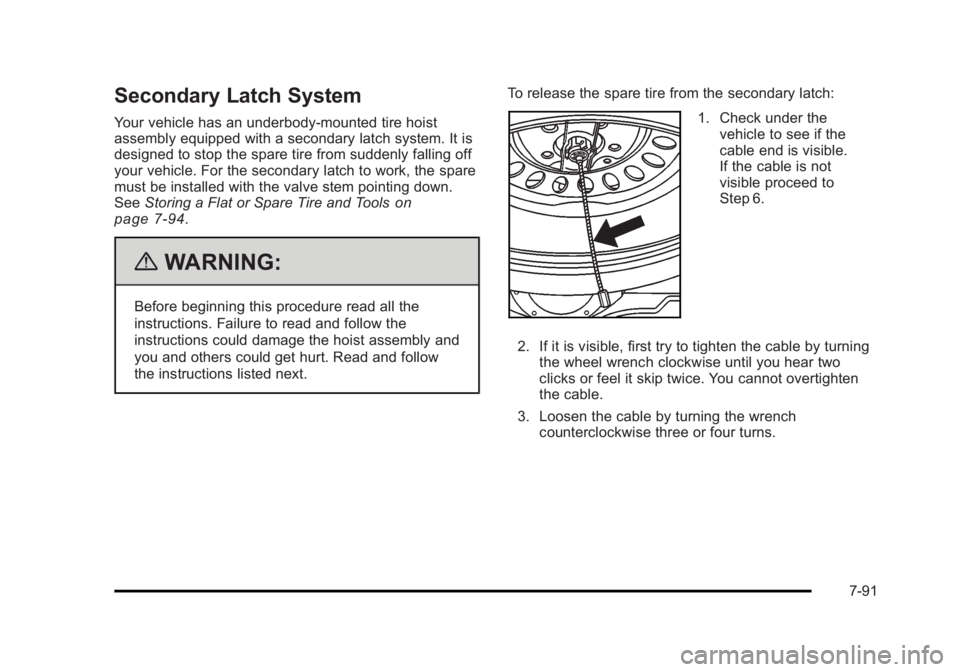

Secondary Latch System Your vehicle has an underbody-mounted tire hoist
assembly equipped with a secondary latch system. It is
designed to stop the spare tire from suddenly falling off
your vehicle. For the secondary latch to work, the spare
must be installed with the valve stem pointing down.
See Storing a Flat or Spare Tire and Tools on
page 7 ‑ 94
.
{ WARNING: Before beginning this procedure read all the
instructions. Failure to read and follow the
instructions could damage the hoist assembly and
you and others could get hurt. Read and follow
the instructions listed next. To release the spare tire from the secondary latch:
1. Check under the
vehicle to see if the
cable end is visible.
If the cable is not
visible proceed to
Step 6.
2. If it is visible, first try to tighten the cable by turning
the wheel wrench clockwise until you hear two
clicks or feel it skip twice. You cannot overtighten
the cable.
3. Loosen the cable by turning the wrench
counterclockwise three or four turns.
7-91

Black plate (92,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

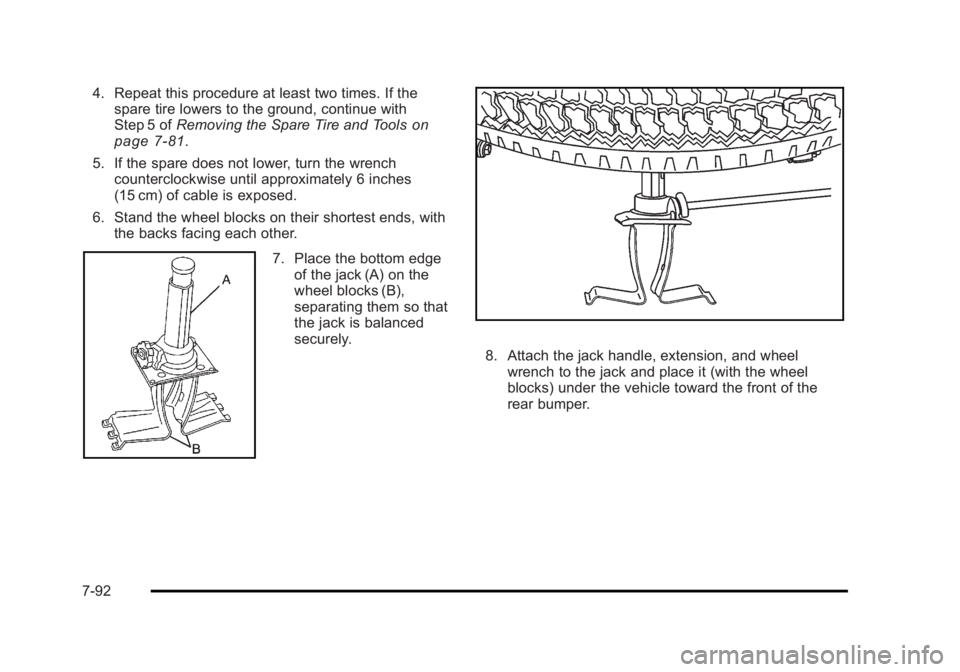

4. Repeat this procedure at least two times. If the
spare tire lowers to the ground, continue with
Step 5 of Removing the Spare Tire and Tools
on
page 7 ‑ 81 .
5. If the spare does not lower, turn the wrench
counterclockwise until approximately 6 inches
(15 cm) of cable is exposed.
6. Stand the wheel blocks on their shortest ends, with
the backs facing each other.
7. Place the bottom edge
of the jack (A) on the
wheel blocks (B),
separating them so that
the jack is balanced
securely.
8. Attach the jack handle, extension, and wheel
wrench to the jack and place it (with the wheel
blocks) under the vehicle toward the front of the
rear bumper.
7-92
