CADILLAC LYRIC 2023 Owners Manual

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
250 Driving and Operating
Disengaging Super Cruise
There are two ways to
disengage Super Cruise:
.Press]while your hands
are on the steering wheel.
The Super Cruise steering
will disengage.
.Press the brake pedal or the
regen on demand paddle
while your hands are on the
steering wheel. Both Super
Cruise steering and Adaptive
Cruise Control will
disengage. Super Cruise Messages
If
Zdoes not appear,]can
be pressed to display a DIC
message as to why the system
is unavailable.
Immediately after a
disengagement, pressing the
]within 10 seconds will
display a DIC message with
the reason for Super Cruise
disengagement.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 251

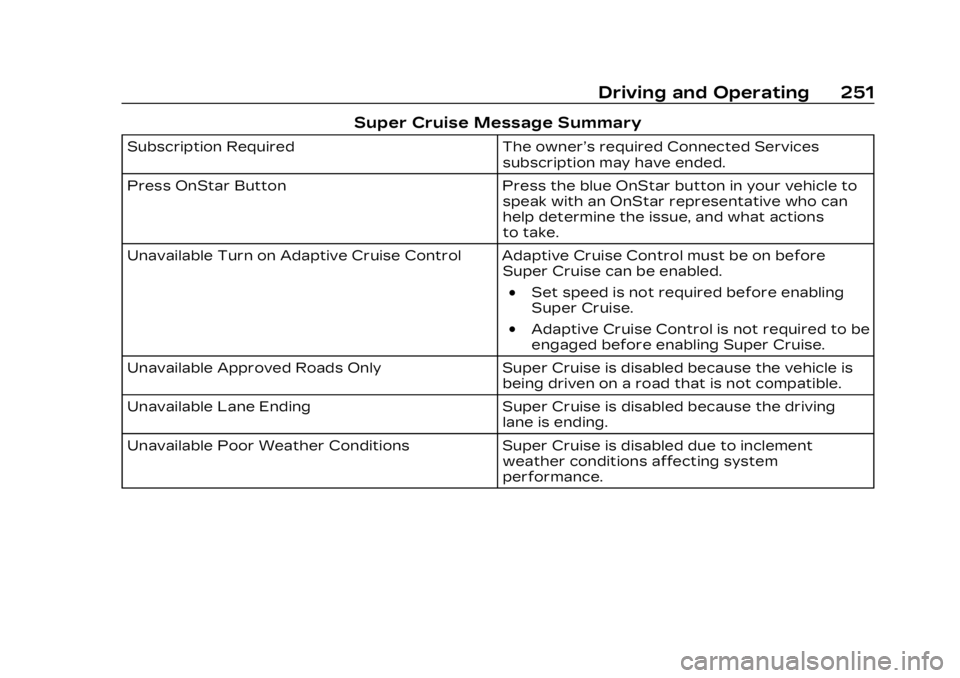

Super Cruise Message Summary
Subscription RequiredThe owner’s required Connected Services
subscription may have ended.
Press OnStar Button Press the blue OnStar button in your vehicle to
speak with an OnStar representative who can
help determine the issue, and what actions
to take.
Unavailable Turn on Adaptive Cruise Control Adaptive Cruise Control must be on before Super Cruise can be enabled.
.Set speed is not required before enabling
Super Cruise.
.Adaptive Cruise Control is not required to be
engaged before enabling Super Cruise.
Unavailable Approved Roads Only Super Cruise is disabled because the vehicle is
being driven on a road that is not compatible.
Unavailable Lane Ending Super Cruise is disabled because the driving
lane is ending.
Unavailable Poor Weather Conditions Super Cruise is disabled due to inclement
weather conditions affecting system
performance.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
252 Driving and Operating

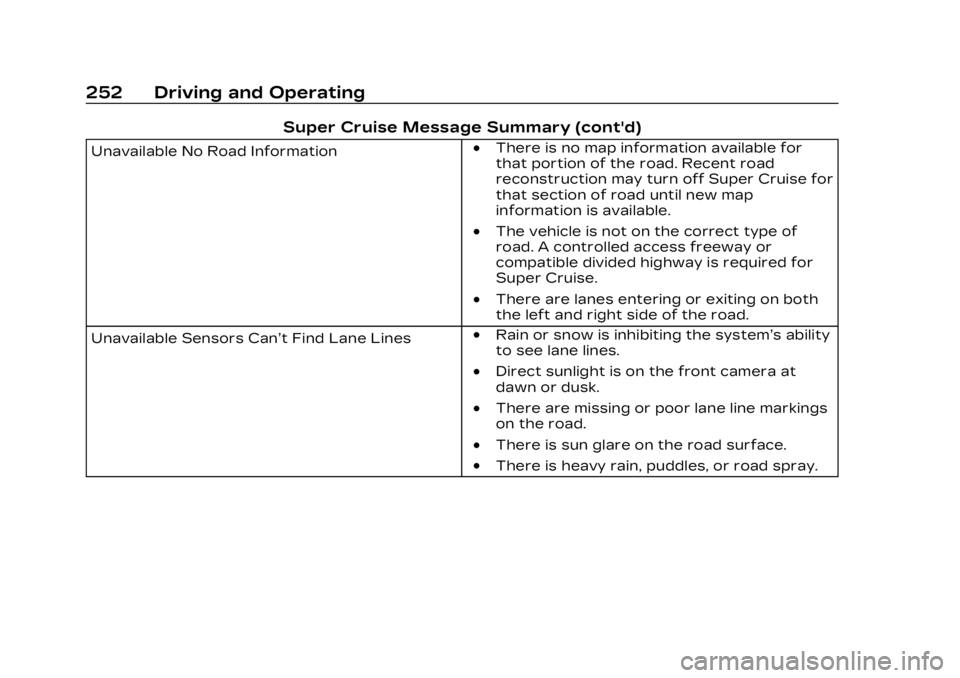

Super Cruise Message Summary (cont'd)
Unavailable No Road Information.There is no map information available for
that portion of the road. Recent road
reconstruction may turn off Super Cruise for
that section of road until new map
information is available.
.The vehicle is not on the correct type of
road. A controlled access freeway or
compatible divided highway is required for
Super Cruise.
.There are lanes entering or exiting on both
the left and right side of the road.
Unavailable Sensors Can’t Find Lane Lines
.Rain or snow is inhibiting the system’s ability
to see lane lines.
.Direct sunlight is on the front camera at
dawn or dusk.
.There are missing or poor lane line markings
on the road.
.There is sun glare on the road surface.
.There is heavy rain, puddles, or road spray.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 253

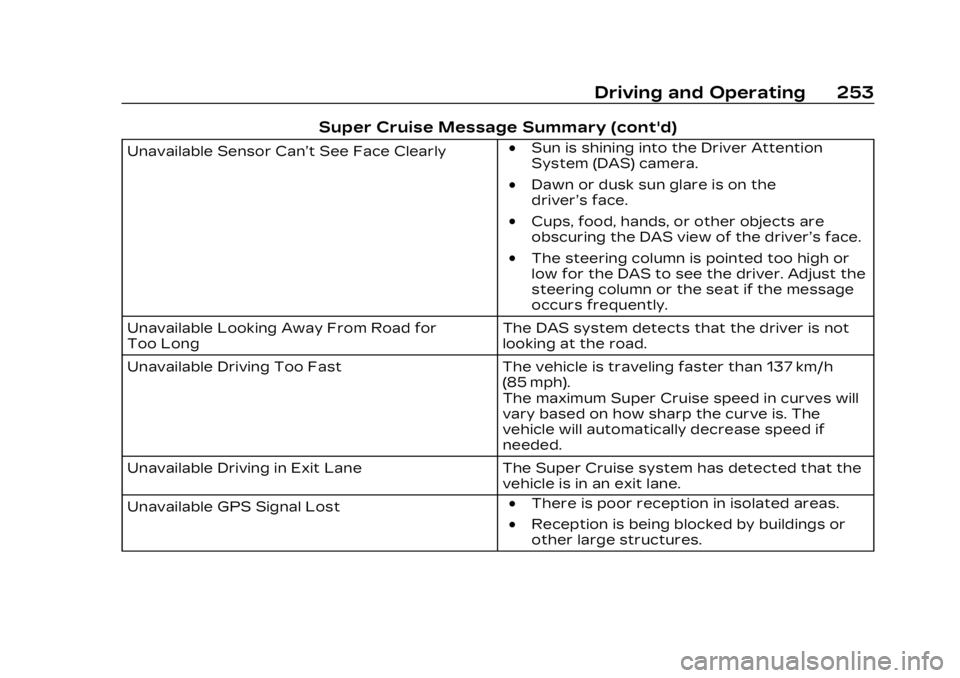

Super Cruise Message Summary (cont'd)
Unavailable Sensor Can’t See Face Clearly.Sun is shining into the Driver Attention
System (DAS) camera.
.Dawn or dusk sun glare is on the
driver’s face.
.Cups, food, hands, or other objects are
obscuring the DAS view of the driver’s face.
.The steering column is pointed too high or
low for the DAS to see the driver. Adjust the
steering column or the seat if the message
occurs frequently.
Unavailable Looking Away From Road for
Too Long The DAS system detects that the driver is not
looking at the road.
Unavailable Driving Too Fast The vehicle is traveling faster than 137 km/h
(85 mph).
The maximum Super Cruise speed in curves will
vary based on how sharp the curve is. The
vehicle will automatically decrease speed if
needed.
Unavailable Driving in Exit Lane The Super Cruise system has detected that the
vehicle is in an exit lane.
Unavailable GPS Signal Lost
.There is poor reception in isolated areas.
.Reception is being blocked by buildings or
other large structures.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
254 Driving and Operating
Super Cruise Message Summary (cont'd)
Unavailable You Have Taken Vehicle Control.The brake pedal is being pressed.
.The Adaptive Cruise Control has been
canceled or turned off.
Unavailable Sensor Blocked Clear snow, ice, dirt, or other contaminants from the front and rear areas of the vehicle.
Unavailable Sharp Curve Some curves are too sharp to be navigated by the Super Cruise system. Super Cruise will be
available after the curve is traveled.
Super Cruise Unavailable Super Cruise is unavailable for reasons not described in other messages.
Super Cruise Locked Out See Owner’s Manual The driver did not take control of the vehicle when prompted by the Super Cruise system.
The Super Cruise system will be disabled until
the vehicle is turned off and back on.
Map Updates
Super Cruise map information
must be periodically updated
at least once every seven
months to determine whether
Super Cruise is available on
certain roads. See the
following website for Super
Cruise map open source compliance documentation,
including the license
information:
https://oss.veoneer.com/
Data Download
If the vehicle is equipped with
OnStar and has an active
service plan, additional data
may be collected through theOnStar system. This includes
information about: the
vehicle’s operation; a crash
involving the vehicle; the use
of the vehicle and its features;
and, in certain situations, the
location and approximate GPS
speed of the vehicle. Refer to
the OnStar Terms and

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 255
Conditions and Privacy
Statement on the OnStar
website.
Location Services
This setting enables or
disables sharing of vehicle
location outside the vehicle for
certain purposes. Even if the
Location Services setting is
disabled, vehicle location
information will continue to be
shared for emergency
services and Super Cruise,
if equipped.
System Care
The camera on the steering
column has a lens cover that
may become dirty over time
and affect camera
performance. Clean the lens
cover with a soft cloth
sprayed with glass cleaner.
Wipe the lens gently, then dry
it. Never use abrasive cloths/
cleaners or corrosive
chemicals of any kind on the
lens cover.Super Cruise uses the front
radar, front camera, and
360 degree cameras for its
operation. Clean surfaces are
required for Super Cruise
operation. See Adaptive
Cruise Control (Advanced)
0
225, “Surround Vision
Camera” under Assistance
Systems for Parking or
Backing 0257, and Lane Keep
Assist (LKA) 0280 for care
information.
Caution
The Super Cruise system is
a highly sophisticated
system and should only be
serviced by technicians with
the proper training, tools,
and safety instructions,
which your dealer has.
Without proper training and
tools the vehicle may
become damaged.
Driver Assistance
Systems
This vehicle may have features
that work together to help
avoid crashes or reduce crash
damage while driving, backing,
and parking. Read this entire
section before using these
systems.
{Warning
Do not rely on the Driver
Assistance Systems. These
systems do not replace the
need for paying attention
and driving safely. You may
not hear or see alerts or
warnings provided by these
systems. Failure to use
proper care when driving
may result in injury, death,
or vehicle damage. See
Defensive Driving 0196.
(Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
256 Driving and Operating
Warning (Continued)
Under many conditions,
these systems will not:
.Detect children,
pedestrians, bicyclists,
or animals.
.Detect vehicles or objects
outside the area
monitored by the system.
.Work at all driving speeds.
.Warn you or provide you
with enough time to avoid
a crash.
.Work under poor visibility
or bad weather conditions.
.Work if the detection
sensor is not cleaned or is
covered by ice, snow, mud,
or dirt.
.Work if the detection
sensor is covered up, such
as with a sticker, magnet,
or metal plate.(Continued)
Warning (Continued)
.Work if the area
surrounding the detection
sensor is damaged or not
properly repaired.
Complete attention is
always required while
driving, and you should be
ready to take action and
apply the brakes and/or
steer the vehicle to avoid
crashes.
{Warning
Stickers or accessories
attached on or around the
front or rear fascia of your
vehicle can impair the radar
sensors resulting in vehicle
damage or personal injury.
Your vehicle could brake
suddenly. Do not attach
anything on or around the
front or rear fascia, including (Continued)
Warning (Continued)
the license plate, the
bumper, or the grille. Use
only GM genuine
accessories.
Audible Alert
Some driver assistance
features alert the driver of
obstacles by beeping. To view
available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select “Vehicle”to
display the list of available
options and select “Comfort
and Convenience”.
Cleaning
Depending on vehicle options,
keep these areas of the
vehicle clean to ensure the
best driver assistance feature
performance. Driver
Information Center (DIC)
messages may display when
the systems are unavailable or
blocked.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 257
.Front and rear bumpers and
the area below the bumpers
.Front grille and headlamps
.Front camera lens in the
front grille or near the front
emblem
.Front side and rear side
panels
.Outside of the windshield in
front of the rearview mirror
.Side camera lens on the
bottom of the outside
mirrors
.Rear side corner bumpers
.Rear Vision Camera above
the license plate
Radio Frequency
This vehicle may be equipped
with driver assistance systems
that operate using radio
frequency. See Radio
Frequency Statement 0395.
Assistance Systems
for Parking or
Backing
If equipped, the Rear Vision
Camera (RVC), Rear Park
Assist (RPA), Surround Vision,
and Rear Cross Traffic Alert (RCTA) may help the driver
park or avoid objects. Always
check around the vehicle when
parking or backing.
Rear Vision
Camera (RVC)
When the vehicle is shifted
into R (Reverse), the RVC
displays an image of the area
behind the vehicle in the
infotainment display. The
previous screen displays when
the vehicle is shifted out of
R (Reverse) after a short
delay. To return to the
previous screen sooner, press
{on the center stack, shift
into P (Park), or reach a
vehicle speed of
approximately 12 km/h (8 mph).

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
258 Driving and Operating
1. View Displayed by theCamera
1. View Displayed by theCamera
2. Corners of the Rear Bumper
Displayed images may be
farther or closer than they
appear. The area displayed is
limited and objects that are
close to either corner of the
bumper or under the bumper
do not display.
A warning triangle may display
to show that RPA has
detected an object. This
triangle changes from amber
to red and increases in size
the closer the object.
If
dor a service message
appears on the infotainment
display, there may be a camera
malfunction. See your dealer.
{Warning
The camera(s) do not display
children, pedestrians,
bicyclists, crossing traffic,
animals, or any other object
outside of the cameras’ field
of view, below the bumper,
or under the vehicle. Shown
distances may be different
(Continued)
Warning (Continued)
from actual distances. Do
not drive or park the vehicle
using only these camera(s).
Always check behind and
around the vehicle before
driving. Failure to use proper
care may result in injury,
death, or vehicle damage.
Surround Vision
System
If equipped, Surround Vision
displays an image of the area
surrounding the vehicle, along
with the front or rear camera
views on the infotainment
display. The front camera is in
the grille or near the front
emblem, the side cameras are
on the bottom of the outside
mirrors, and the rear camera is
above the license plate.
The Surround Vision system
can be accessed by selecting
CAMERA in the infotainment
display or when the vehicle is

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 259
shifted into R (Reverse). To
return to the previous screen
sooner, when not in
R (Reverse) press Home or
Back on the infotainment
system, shift into P (Park),
or reach a vehicle speed of
approximately 12 km/h (8 mph)
while in D (Drive).
{Warning
The Surround Vision
Cameras have blind spots
and will not display all
objects near the corners of
the vehicle. Folding side
mirrors that are out of
position will not display
surround view correctly.
Always check around the
vehicle when parking or
backing.
1. Views Displayed by theSurround Vision Cameras
2. Area Not Shown
1. Views Displayed by the Surround Vision Cameras
2. Area Not Shown
{Warning
The camera(s) do not display
children, pedestrians,
bicyclists, crossing traffic,
animals, or any other object
outside of the cameras’ field
of view, below the bumper,
or under the vehicle. Shown
distances may be different
from actual distances. Do
not drive or park the vehicle
using only these camera(s).
Always check behind and
around the vehicle before
driving. Failure to use proper
care may result in injury,
death, or vehicle damage.
