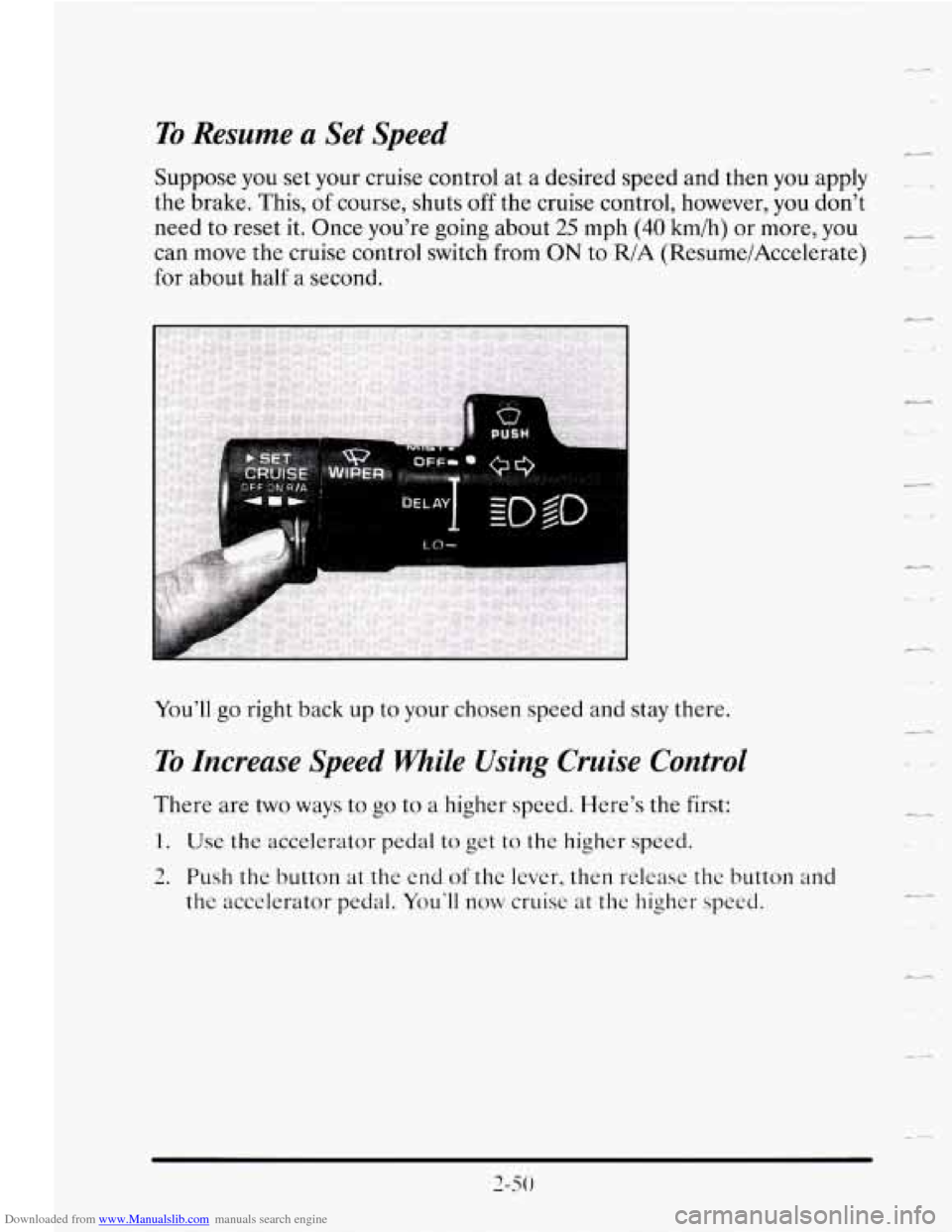

Downloaded from www.Manualslib.com manuals search engine To Resume a Set Speed
Suppose you set your cruise control at a desired speed and then you apply . .
the brake. This, of course, shuts off the cruise control, however, you don’t
need to reset it. Once you’re going about
25 mph (40 km/h) or more, you __
can move the cruise control switch from ON to R/A (Resume/Accelerate)
for about half a second.
You’ll go right back up to your chosen speed and stay there.
To Increase Speed While Using Cruise Control
There are two ways to go to a higher speed. Here’s the first:
1. Use the accelerator pedal to get to the higher speed.
2. Push the button at the end of the lever, then release the button and
the accelerator pedal. You‘ll
now cruise at the higher speed.
--.
-<
Page 122 of 410

Downloaded from www.Manualslib.com manuals search engine c*

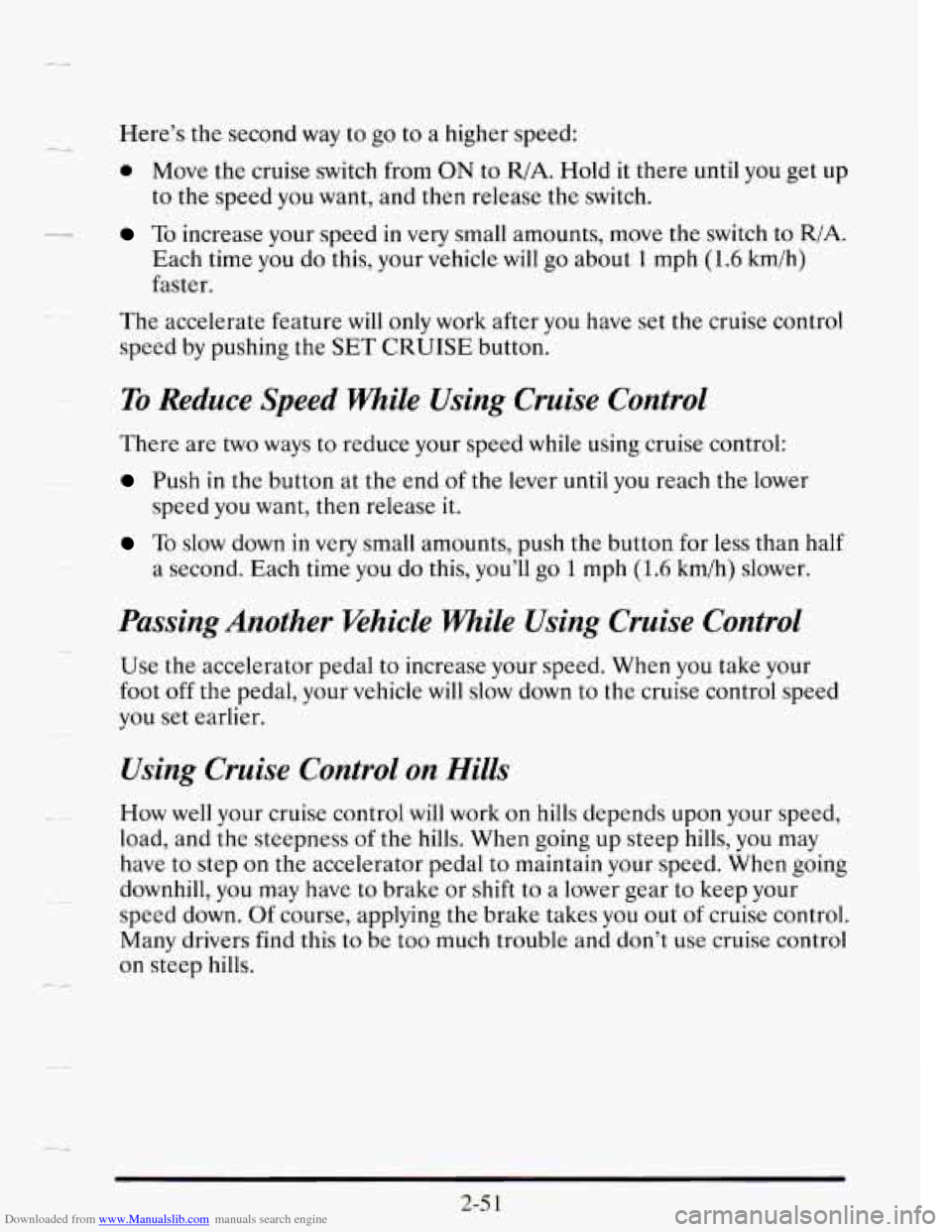

Here’s the second way to go to a higher speed:
0 Move the cruise switch from ON to R/A. Hold it there until you get up
to the speed you want, and then release the switch.
To increase your speed in very small amounts, move the switch to R/A.
Each time you do this, your vehicle will go about 1 mph (1.6 km/h)
faster.
The accelerate feature
will only work after you have set the cruise control
speed by pushing the SET
CRUISE button.
To Reduce Speed while Using Cruise Control
There are two ways to reduce your speed while using cruise control:
Push in the button at the end of the lever until you reach the lower
speed you want, then release it.
To slow down in very small amounts, push the button for less than half
a second. Each time you do this, you’ll
go 1 mph (1.6 km/h) slower.
Passing Another khicle mile Using Cruise Control
Use the accelerator pedal to increase your speed. When you take your
foot
off the pedal, your vehicle will slow down to the cruise control speed
you set earlier.
Using Cruise Control on Hills
c-
How well your cruise control will work on hills depends upon your speed,
load, and the steepness
of the hills. When going up steep hills, you may
have to step
on the accelerator pedal to maintain your speed. When going
downhill,
you may have to brake or shift to a lower gear to keep your
speed down.
Of course, applying the brake takes you out of cruise control.
Many drivers find this
to be too much trouble and don’t use cruise control
on steep hills.
Page 123 of 410

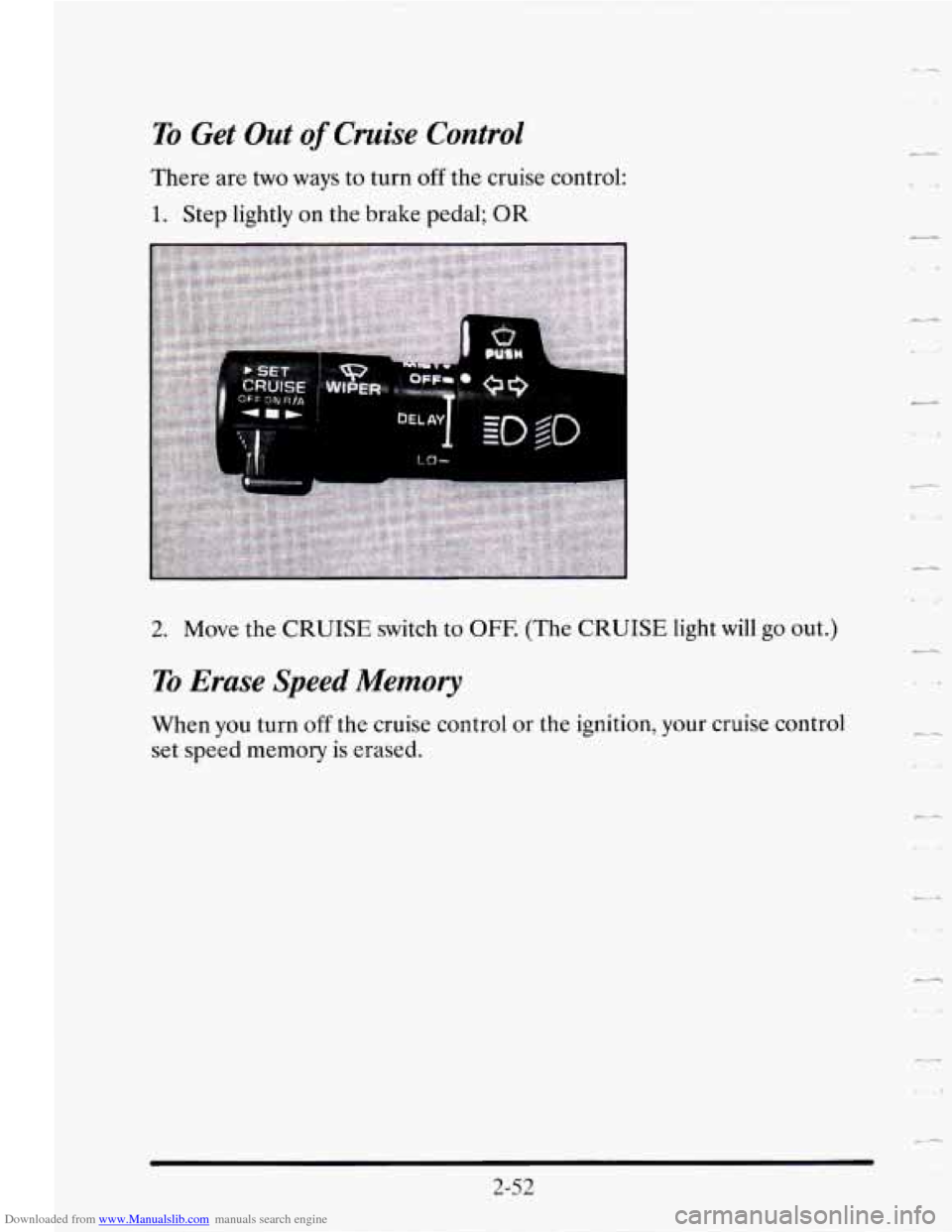

Downloaded from www.Manualslib.com manuals search engine To Get Out of Cruise Control
There are two ways to turn off the cruise control:
1. Step lightly on the brake pedal; OR
2. Move the CRUISE switch to OFF. (The CRUISE light will go out.)
To Erase Speed Memory
When you turn off the cruise control or the ignition, your cruise control
set speed memory is erased.
2-52
c-
LL
Page 124 of 410

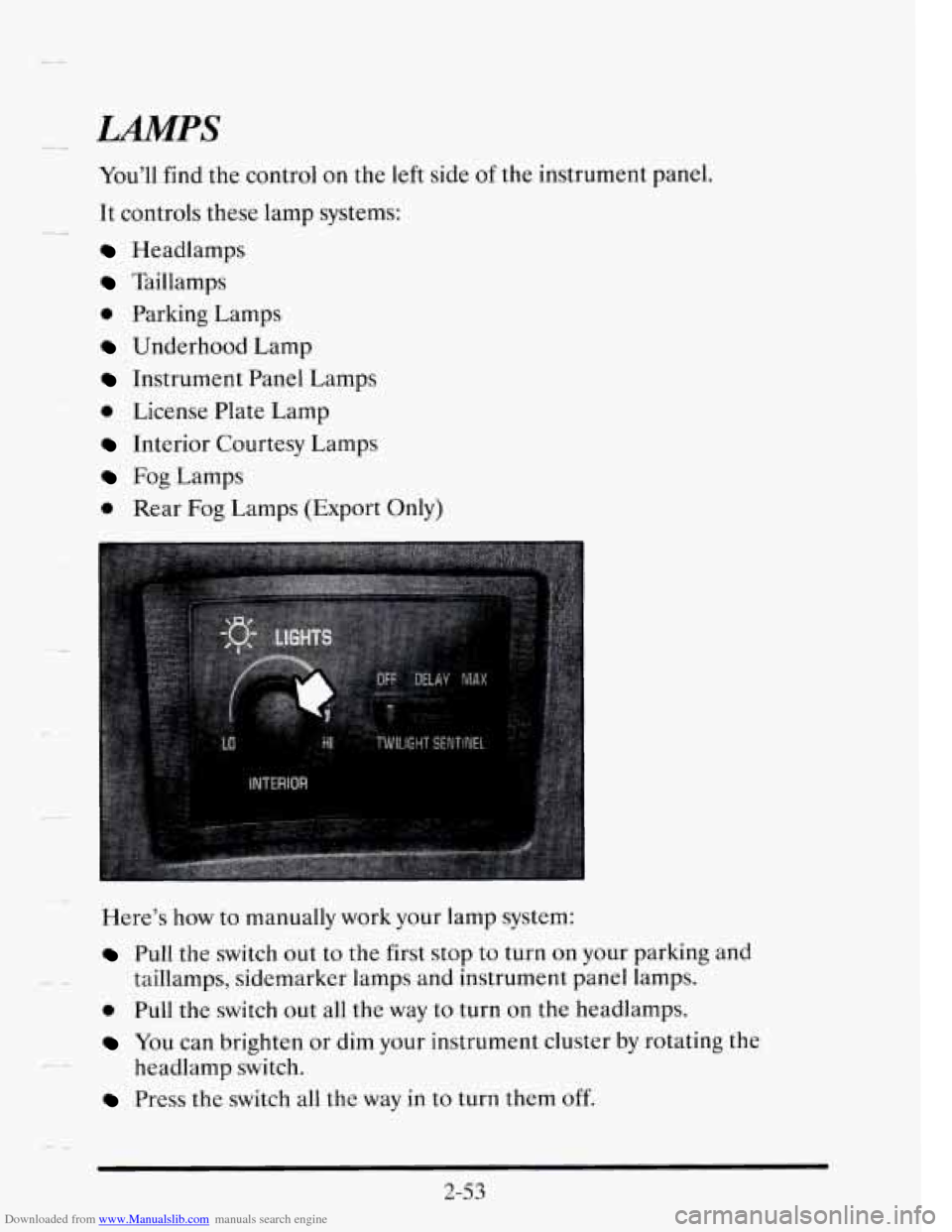

Downloaded from www.Manualslib.com manuals search engine You’ll find the control on the left side of the instrument panel.
It controls these lamp systems:
Headlamps
Taillamps
0 Parking Lamps
Underhood Lamp
Instrument Panel Lamps
0 License Plate Lamp
Interior Courtesy Lamps
Fog Lamps
0 Rear Fog Lamps (Export Only)
_-. I
+-
Here’s how to manually work your lamp system:
Pull the switch out to the first stop to turn on your parking and
0 Pull the switch out all the way to turn on the headlamps.
You can brighten or dim your instrument cluster by rotating the
Press the switch all the way in to turn them off.
taillamps, sidemarker lamps and instrument panel lamps.
headlamp switch.
2-53
Page 125 of 410

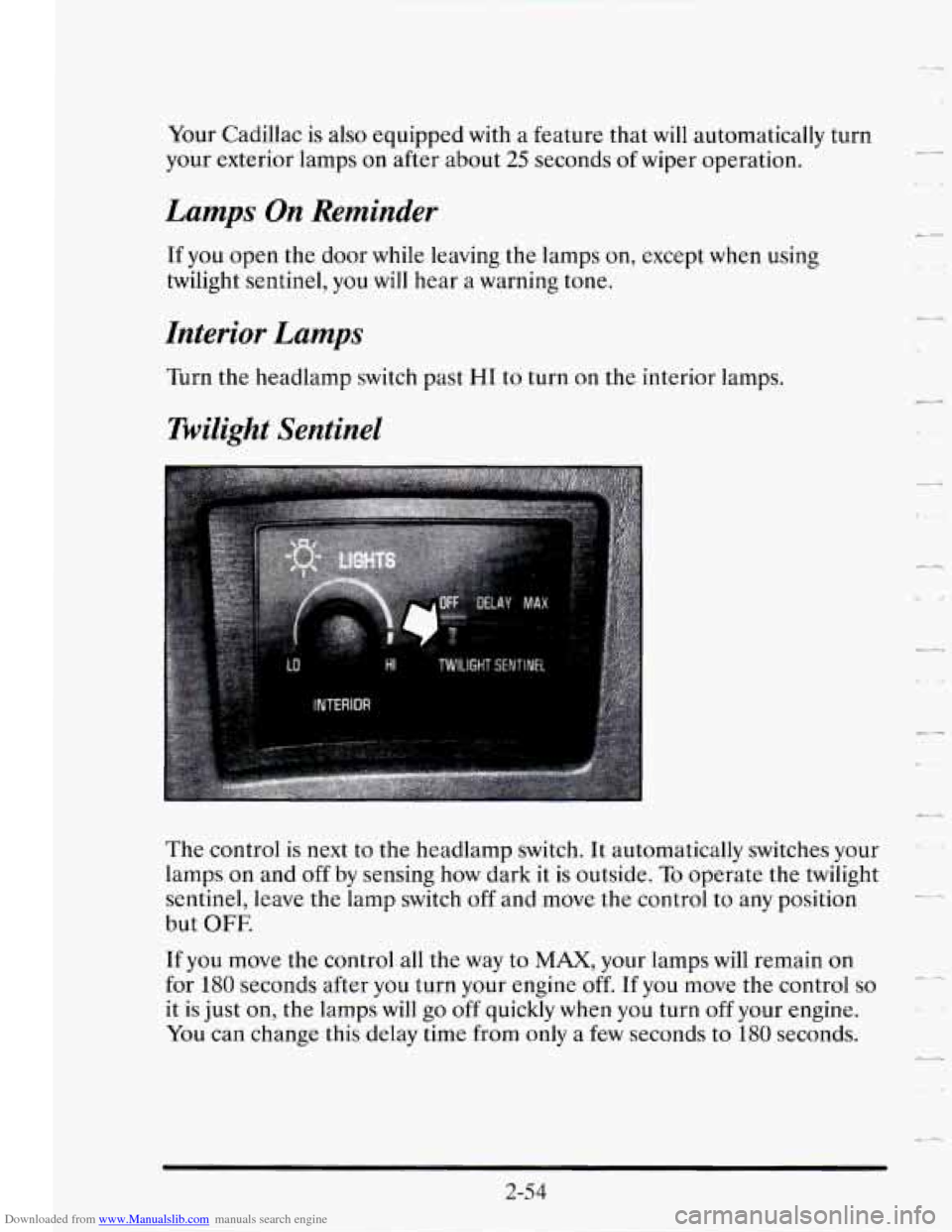

Downloaded from www.Manualslib.com manuals search engine Your Cadillac is also equipped with a feature that will automatically turn
your exterior lamps on after about 25 seconds of wiper operation.
Lamps On Reminder
If you open the door while leaving the lamps on, except when using
twilight sentinel, you will hear
a warning tone.
Interior Lamps
Turn the headlamp switch past HI to turn on the interior lamps.
Twilight Sentinel
The control is next to the headlamp switch. It automatically switches your
lamps
on and off by sensing how dark it is outside. To operate the twilight
sentinel, leave the lamp switch
off and move the control to any position
but
OFF.
If you move the control all the way to MAX, your lamps will remain on
for 180 seconds after you turn your engine off. If you move the control so
it is just on, the lamps will go off quickly when you turn off your engine.
You can change this delay time from only a few seconds to 180 seconds.
--
2-54
Page 126 of 410

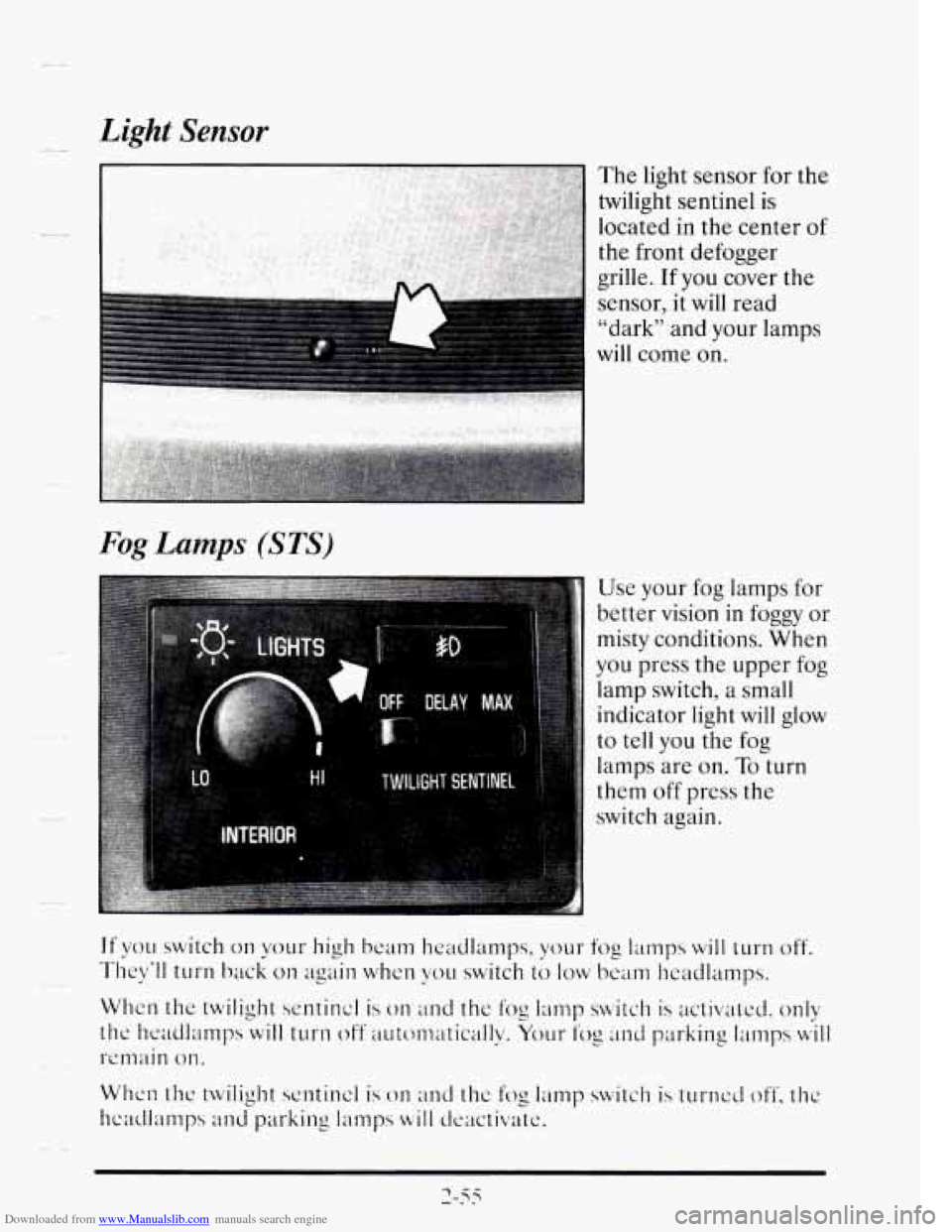

Downloaded from www.Manualslib.com manuals search engine II Light Sensor
Fog Lamps (STS)
The light sensor for the
twilight sentinel is
located
in the center of
the front defogger
grille.
If you cover the
sensor,
it will read
"dark" and your lamps
will come on.
Use your fog lamps for
better vision in foggy
or
misty conditions. When
you press the upper fog
lamp switch,
a small
indicator light will glow
to tell you the fog
lamps
are on. To turn
them
off press the
switch again.
If you switch on your high beam headlamps, your fog lamps will turn off.
They'll turn back on again when you switch to low bcam hcadlamps.
When
the twilight sentincl is on and the fog lamp witch is activrtted, only
thc htxdlamps will turn off automatically. Your fog mci parking l:tmps will
remain on.
Page 127 of 410

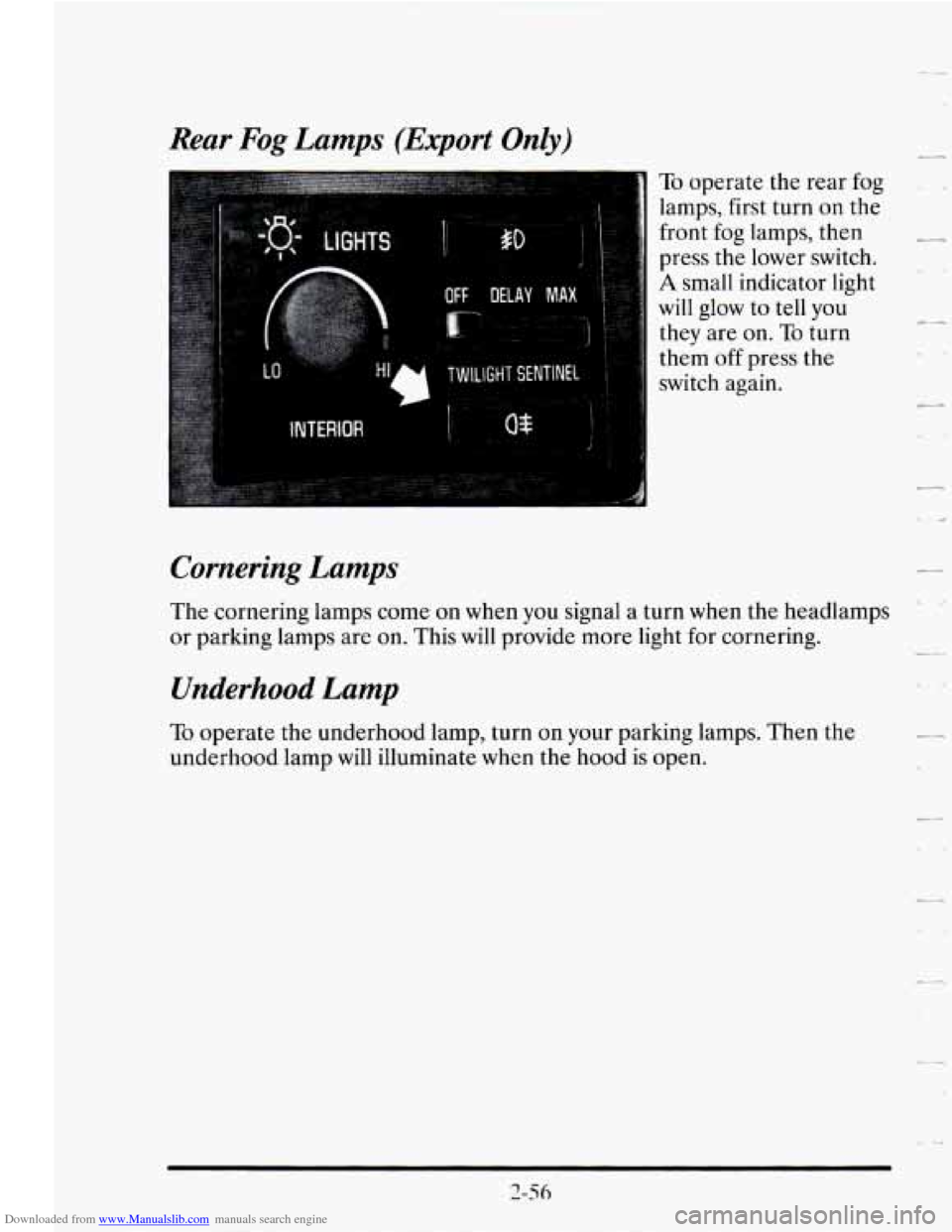

Downloaded from www.Manualslib.com manuals search engine Rear Fog Lamps (Export Only)
To operate the rear fog
lamps, first turn on the
front fog lamps, then
press
the lower switch.
A small indicator light
will glow to tell you
they are on. To turn
them off press the
switch again.
Cornering Lamps
The cornering lamps come on when you signal a turn when the headlamps
or parking lamps are on. This will provide more light for cornering. L
F_
Underhood Lamp
To operate the underhood lamp, turn on your parking lamps. Then the
underhood lamp will illuminate when the hood
is open.
Page 128 of 410

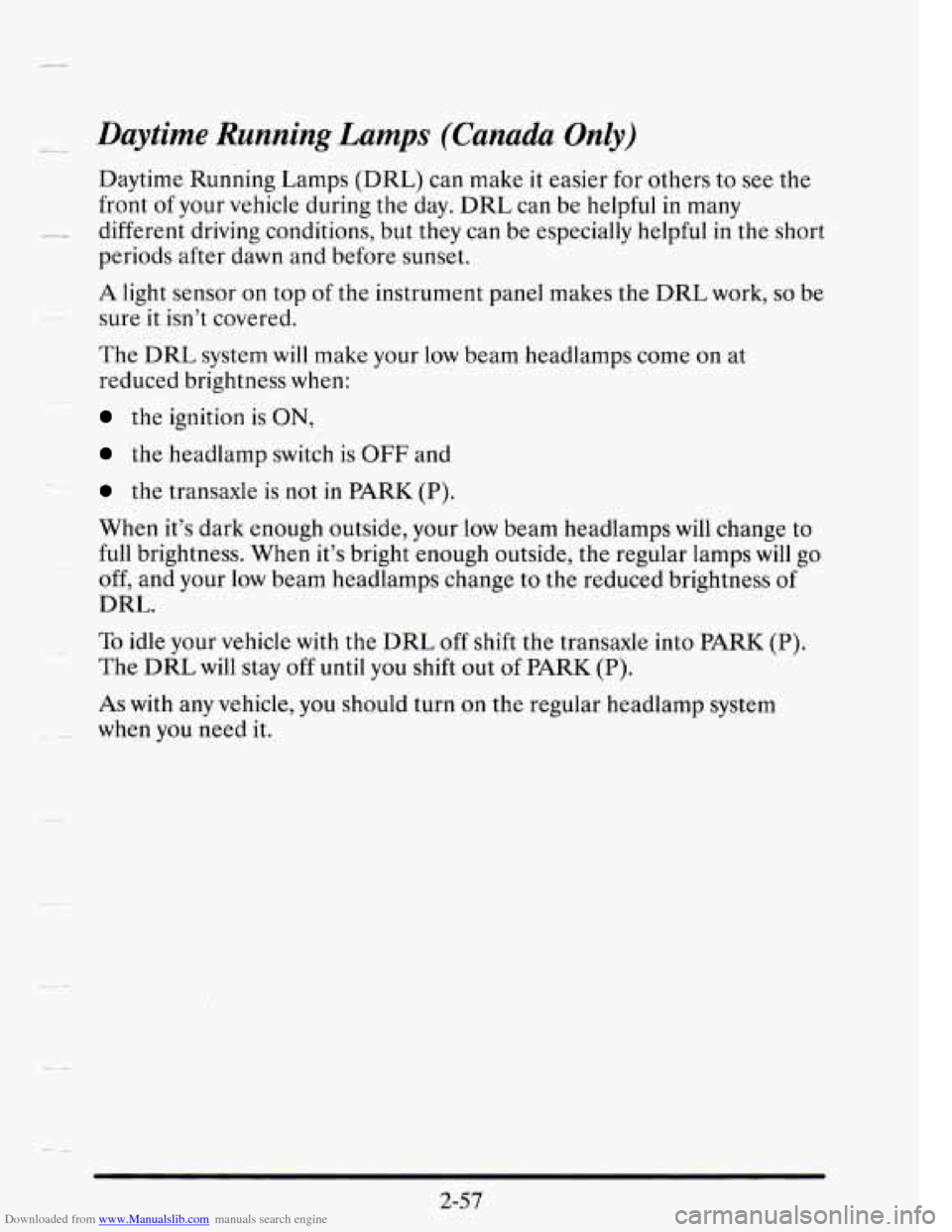

Downloaded from www.Manualslib.com manuals search engine -- . Daytime Running Lamps (Canada Only)
Daytime Running Lamps (DRL) can make it easier for others to see the
front
of your vehicle during the day. DRL can be helpful in many
periods after dawn and before sunset.
-_ different driving conditions, but they can be especially helpful in the short
A light sensor
on top of the instrument panel makes the DRL work, so be
sure
it isn’t covered.
The
DRL system will make your low beam headlamps come on at
reduced brightness when:
the ignition is ON,
the headlamp switch is OFF and
the transaxle is not in PARK (P).
When it’s dark enough outside, your low beam headlamps
will change to
full brightness. When it’s bright enough outside, the regular lamps will go
off, and your low beam headlamps change
to the reduced brightness of
DRL.
To idle your vehicle with the DRL off shift the transaxle into PARK (P).
The DRL will stay off until you shift out of PARK (P).
As with any vehicle, you should turn
on the regular headlamp system
~~ when you need it.
2-57
Page 129 of 410

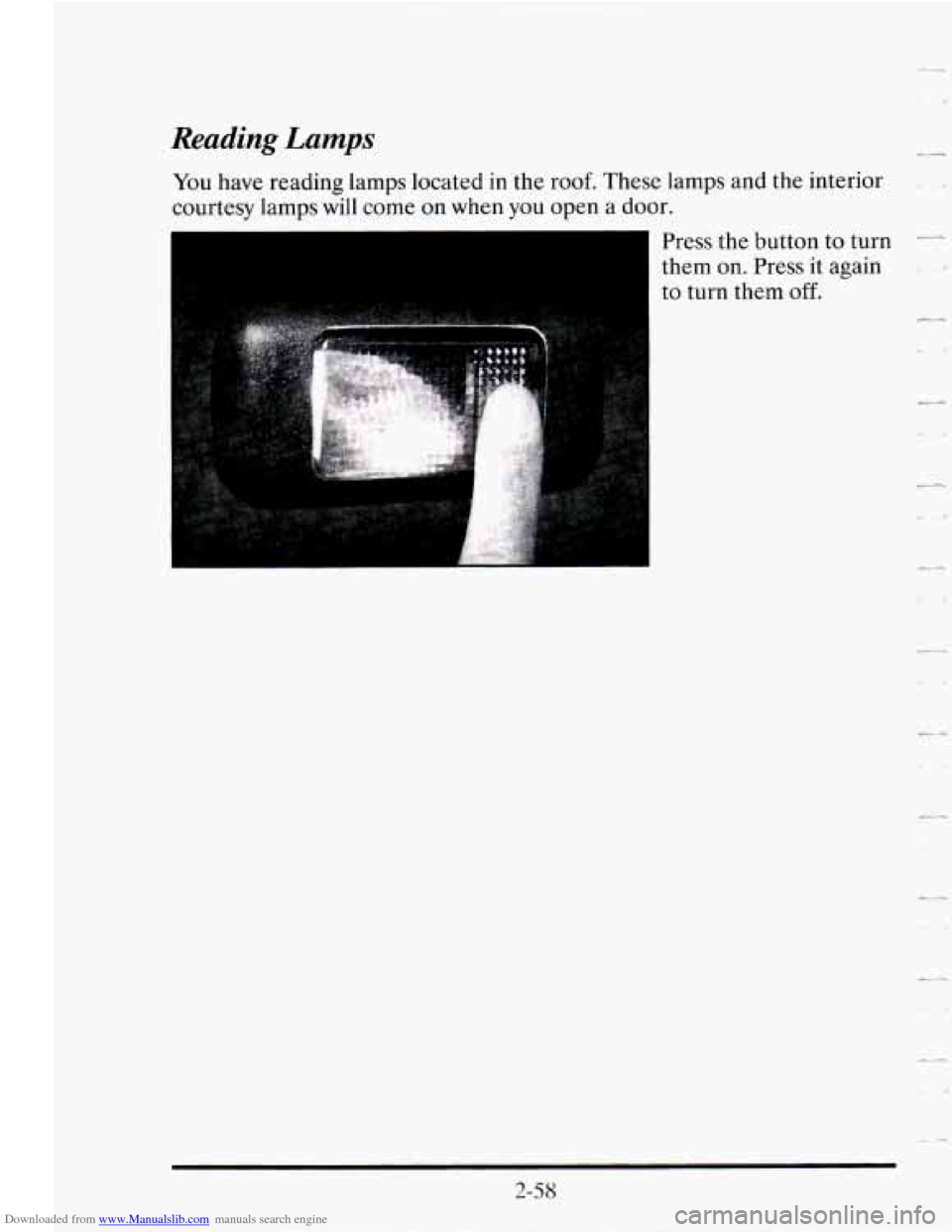

Downloaded from www.Manualslib.com manuals search engine Reading Lamps
You have reading lamps located in the roof. These lamps and the interior
courtesy
lamps will come on when you open a door.
Press the button to turn
-
them on. Press it again
to turn them off.
t-
2-58
Page 130 of 410

Downloaded from www.Manualslib.com manuals search engine F--
".
i-
--
-

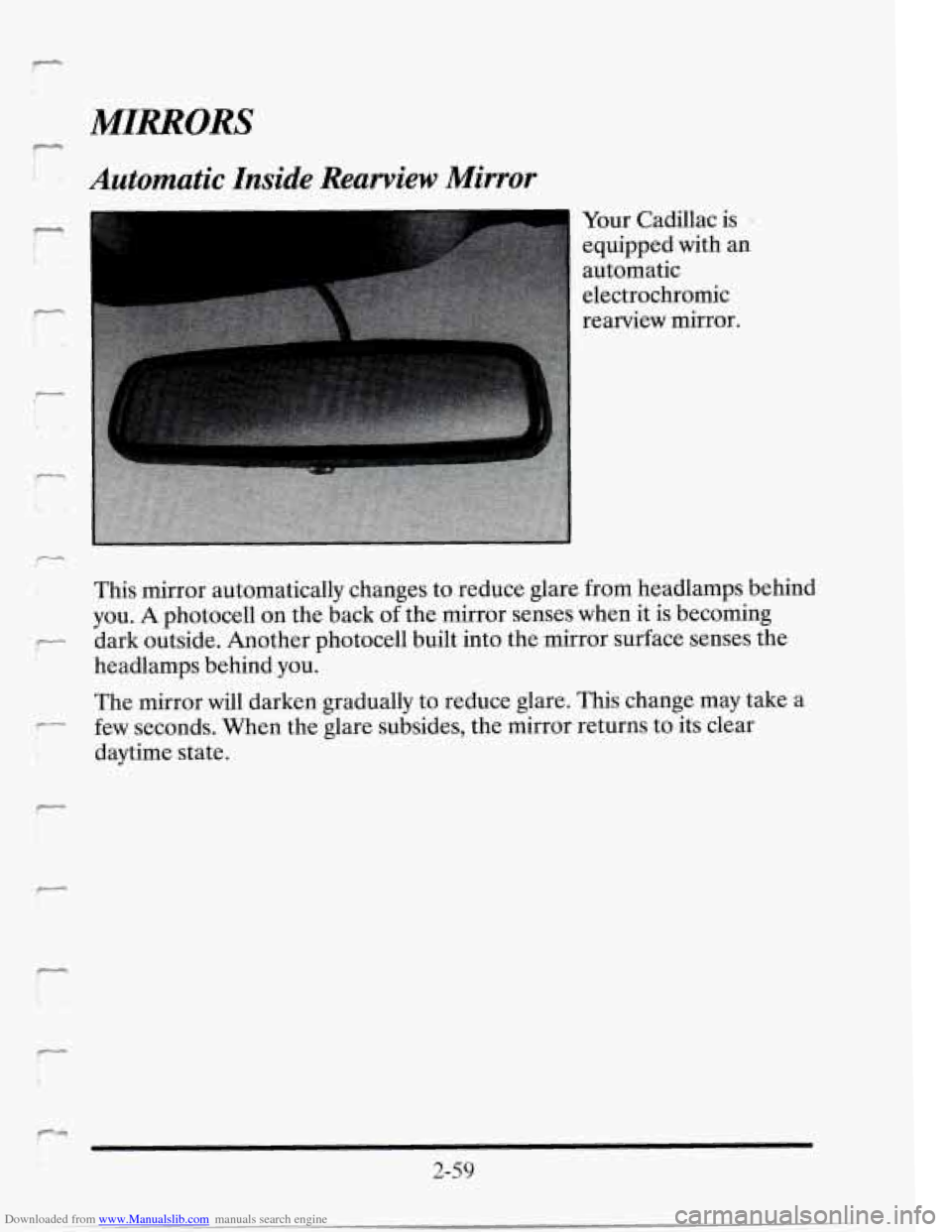

MIRRORS
Automatic Inside Rearview Mirror
Your Cadillac is .
equipped with an
automatic
electrochromic
rearview mirror.
This mirror automatically changes to reduce glare
from headlamps behind
you.
A photocell on the back of the mirror senses when it is becoming
dark outside. Another photocell built into the mirror surface senses the
headlamps behind you.
The mirror
will darken gradually to reduce glare. This change may take a
few seconds. When the glare subsides, the mirror returns to its clear
daytime state.
**
2-59
