Page 141 of 410

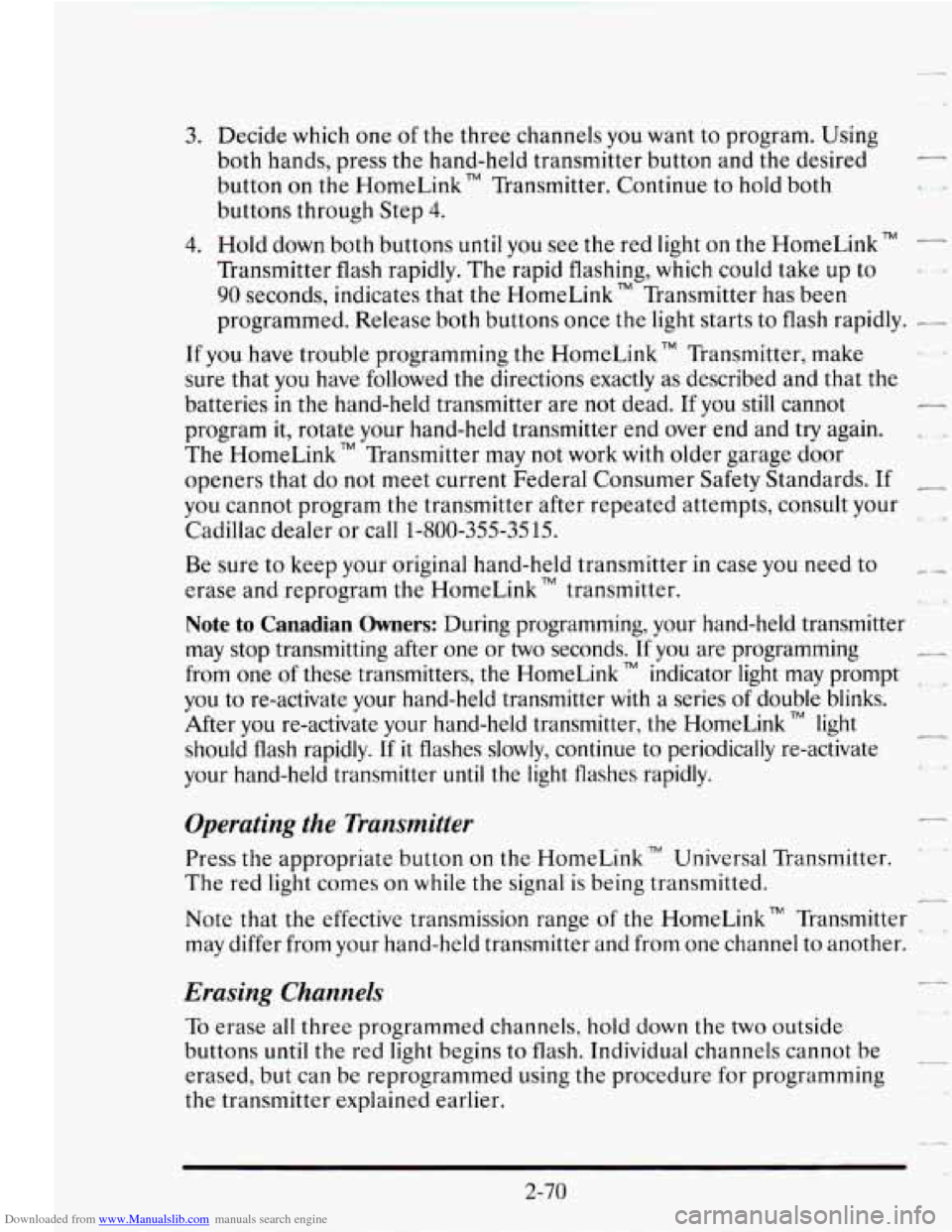

Downloaded from www.Manualslib.com manuals search engine 3. Decide which one of the three channels you want to program. Using
both hands, press the hand-held transmitter button and the desired
button on the HomeLink
TM Transmitter. Continue to hold both
buttons through Step
4.
4. Hold down both buttons until you see the red light on the HomeLink“ -
Transmitter flash rapidly. The rapid flashing, which could take up to
90 seconds, indicates that the HomeLink” Transmitter has been
programmed. Release both buttons once
the light starts to flash rapidly. -
If you have trouble programming the HomeLink TM Transmitter, make
sure that you have followed the directions exactly as described and that the
batteries in the hand-held transmitter are not dead. If you still cannot
program it, rotate your hand-held transmitter end over end and try again.
The HomeLink TM Transmitter may not work with older garage door
openers that do not meet current Federal Consumer Safety Standards. If
you cannot program the transmitter after repeated attempts, consult your
Cadillac dealer or call
1-800-355-35 15.
Be sure to keep your original hand-held transmitter in case you need to -
erase and reprogram the HomeLink TM transmitter. -1
Note to Canadian Owners: During programming, your hand-held transmitter
may stop transmitting after one or
two seconds. If you are programming -
from one of these transmitters, the HomeLink indicator light may prompt
you to re-activate your hand-held transmitter
with a series of double blinks.
After you re-activate your hand-held transmitter,
the HomeLink TM light
should flash rapidly.
If it flashes slowly, continue to periodically re-activate
your hand-held transmitter
until the light flashes rapidly.
Operating the Transmitter
Press the appropriate button on the HomeLink TM Universal Transmitter.
The red light comes
on while the signal is being transmitted.
Note that the effective transmission range
of the HomeLink” Transmitter
may differ from your hand-held transmitter and from one channel to another.
-
Emsing Channels
To erase all three programmed channels, hold down the two outside
buttons until the red light begins to flash. Individual channels cannot be
erased,
but can be reprogrammed using the procedure for programming
the transmitter explained earlier.
-
2-70
Page 142 of 410

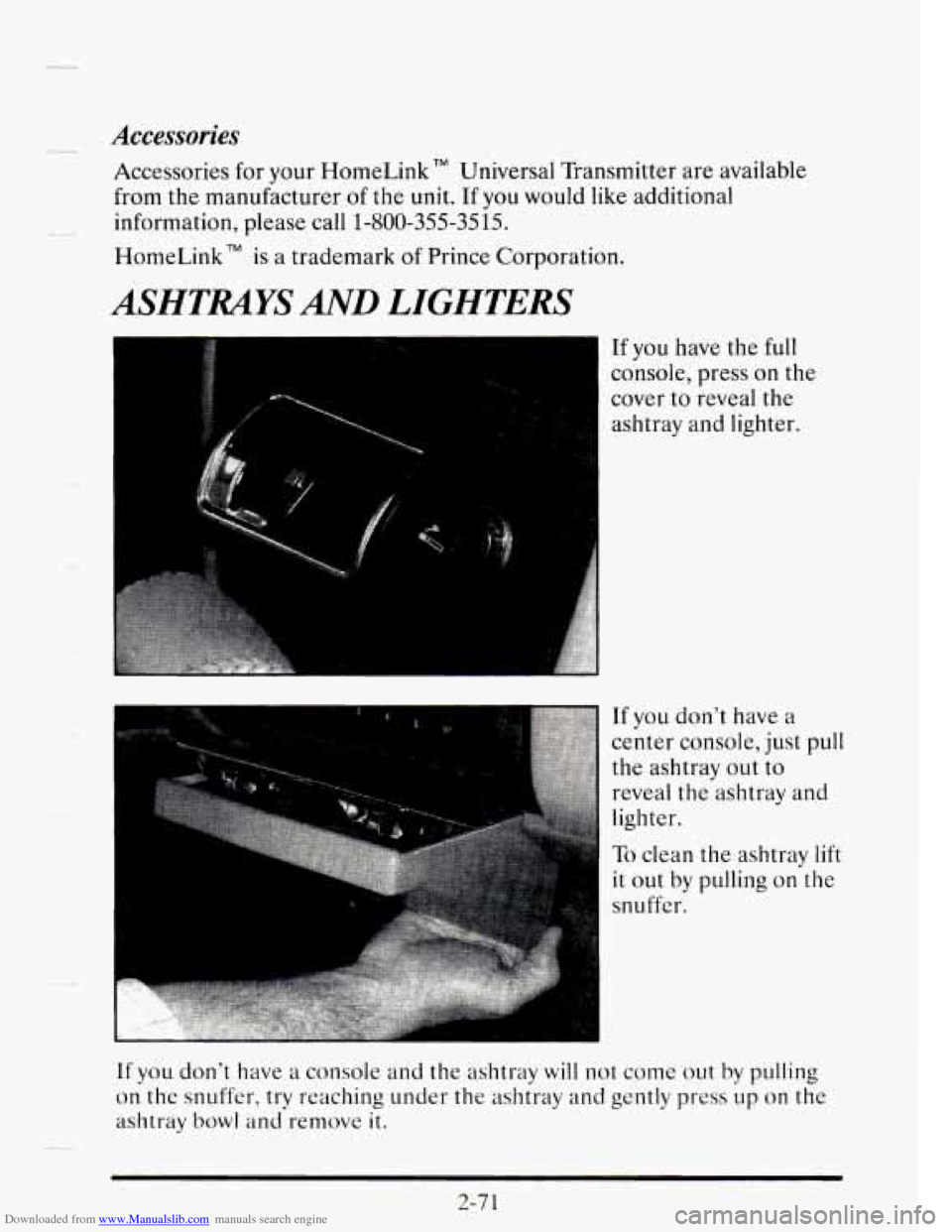

Downloaded from www.Manualslib.com manuals search engine Accessories
Accessories for your HomeLink Universal Transmitter are available
from the manufacturer of the unit. If you would
like additional
information, please call
1-800-355-3515.
HomeLink" is a trademark of Prince Corporation.
ASHTRAYS AND LIGHTERS
If you have the full
console, press on
the
cover to reveal the
ashtray and lighter.
If you don't have a
center console, just pull
the ashtray out to
reveal
the ashtray and
lighter.
To clean the ashtray lift
it out by pulling on the
snuffer.
If you don't have a console and the ashtray will not come out by pulling
on the snuffer, try reaching under the ashtray and gently press up on the
ashtray
bowl and remove it.
Page 143 of 410

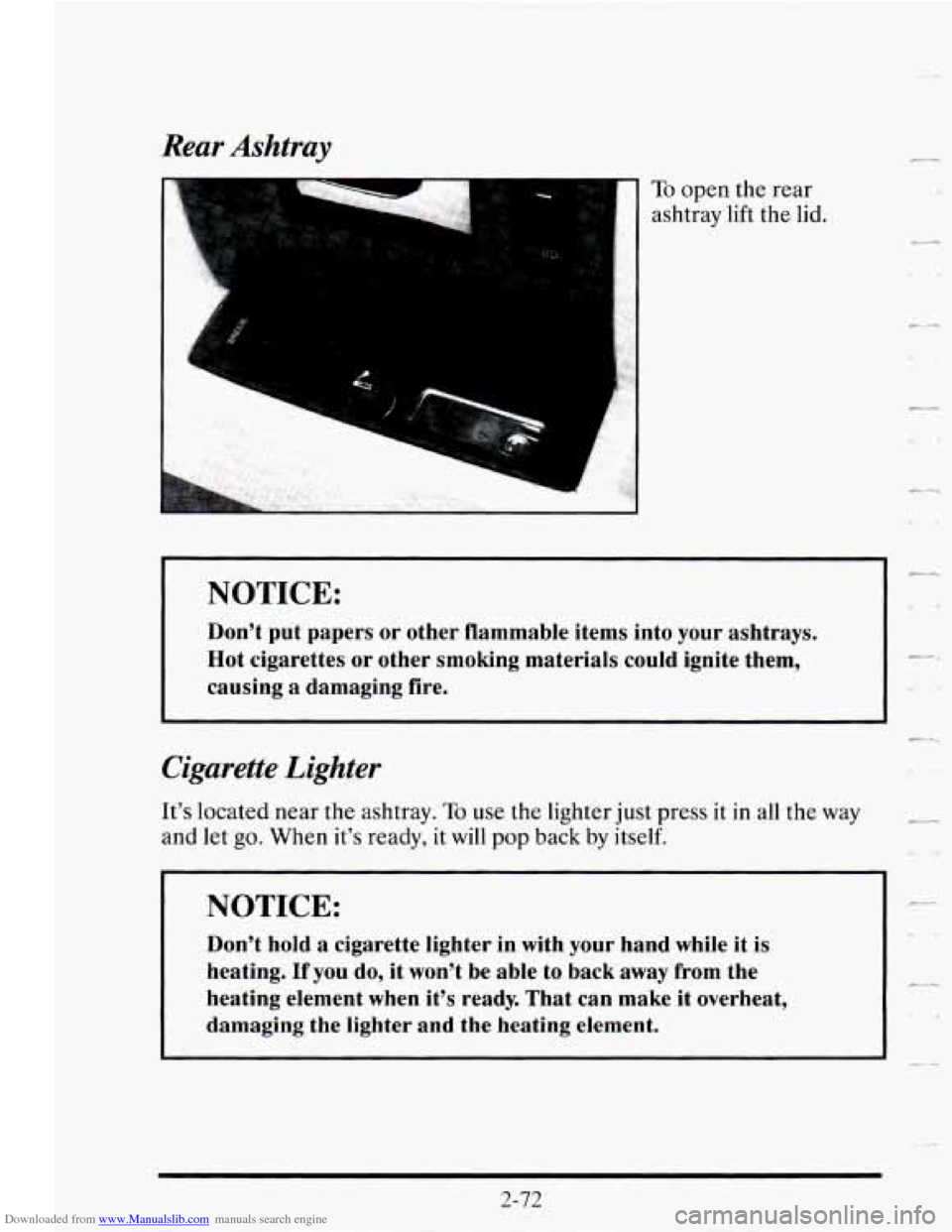

Downloaded from www.Manualslib.com manuals search engine Rear Ashtray
NOTICE:
Don't put papers or other flammable items into your ashtrays.
Hot cigarettes or other smoking materials could ignite them,
causing
a damaging fire.
Cigarette Lighter
It's located near the ashtray. To use the lighter just press it in all the way -
and let go. When it's ready, it will pop back by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand while it is
heating.
If you do, it won't be able to back away from the
heating element when it's ready. That can make it overheat,
damaging the lighter and the heating element.
2-72
Page 144 of 410

Downloaded from www.Manualslib.com manuals search engine Lu

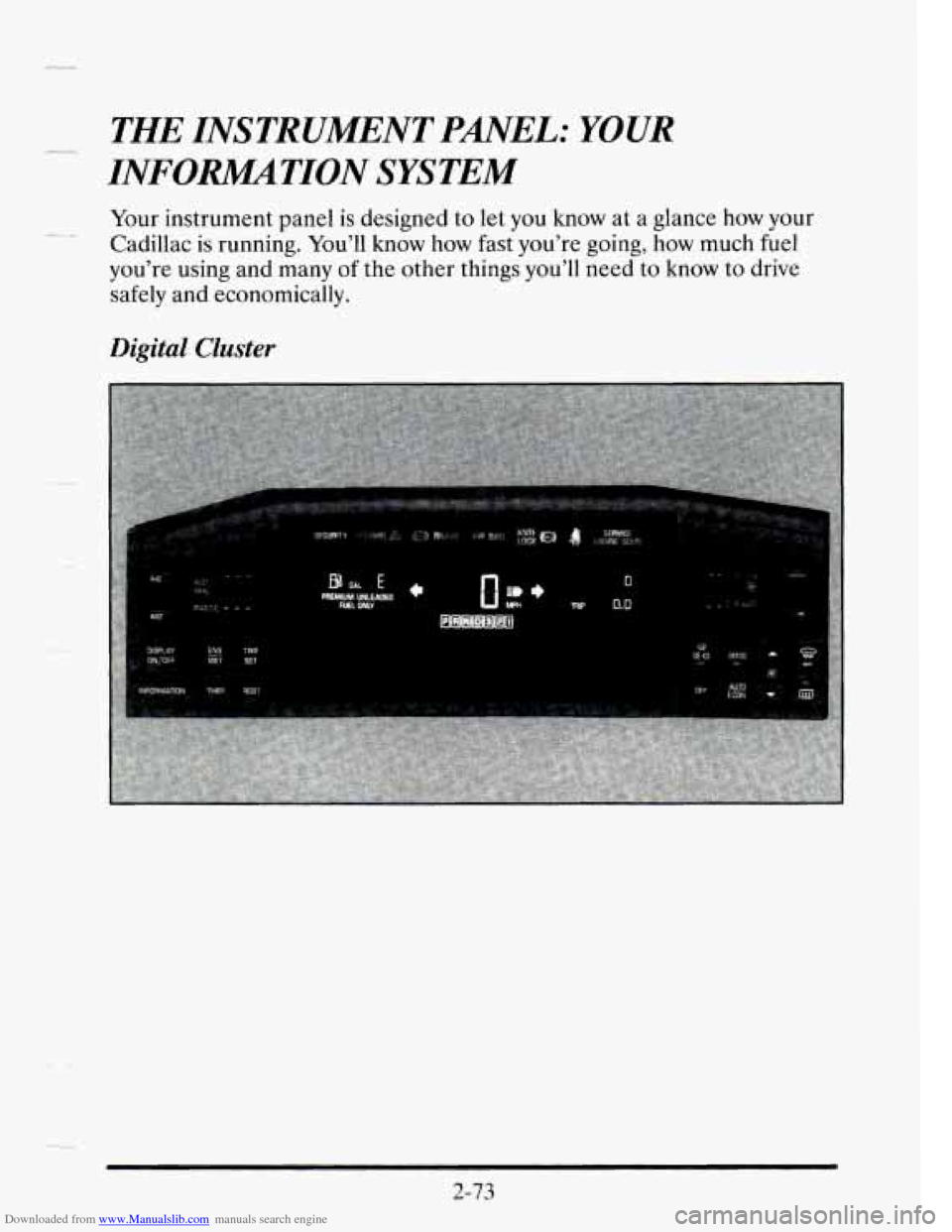

THE INSTRUMENT PANEL: YOUR
INFORMATION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac is running.
You’ll know how fast you’re going, how much fuel
you’re using and many
of the other things you’ll need to know to drive
safely and economically.
Digital Cluster
2-73
Page 145 of 410

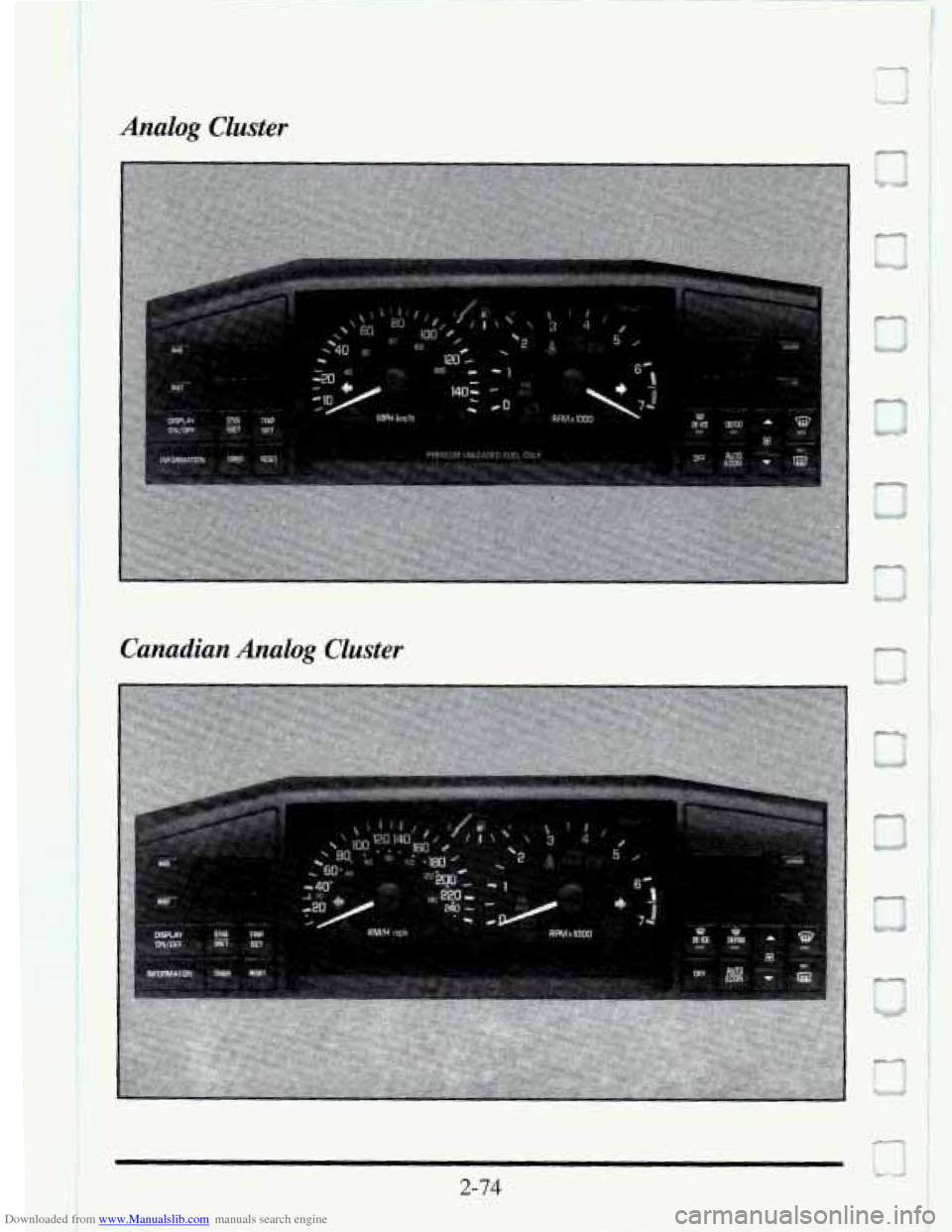

Downloaded from www.Manualslib.com manuals search engine Analog Cluster
0
Canadian Analog Cluster
Q
Page 146 of 410

Downloaded from www.Manualslib.com manuals search engine _-

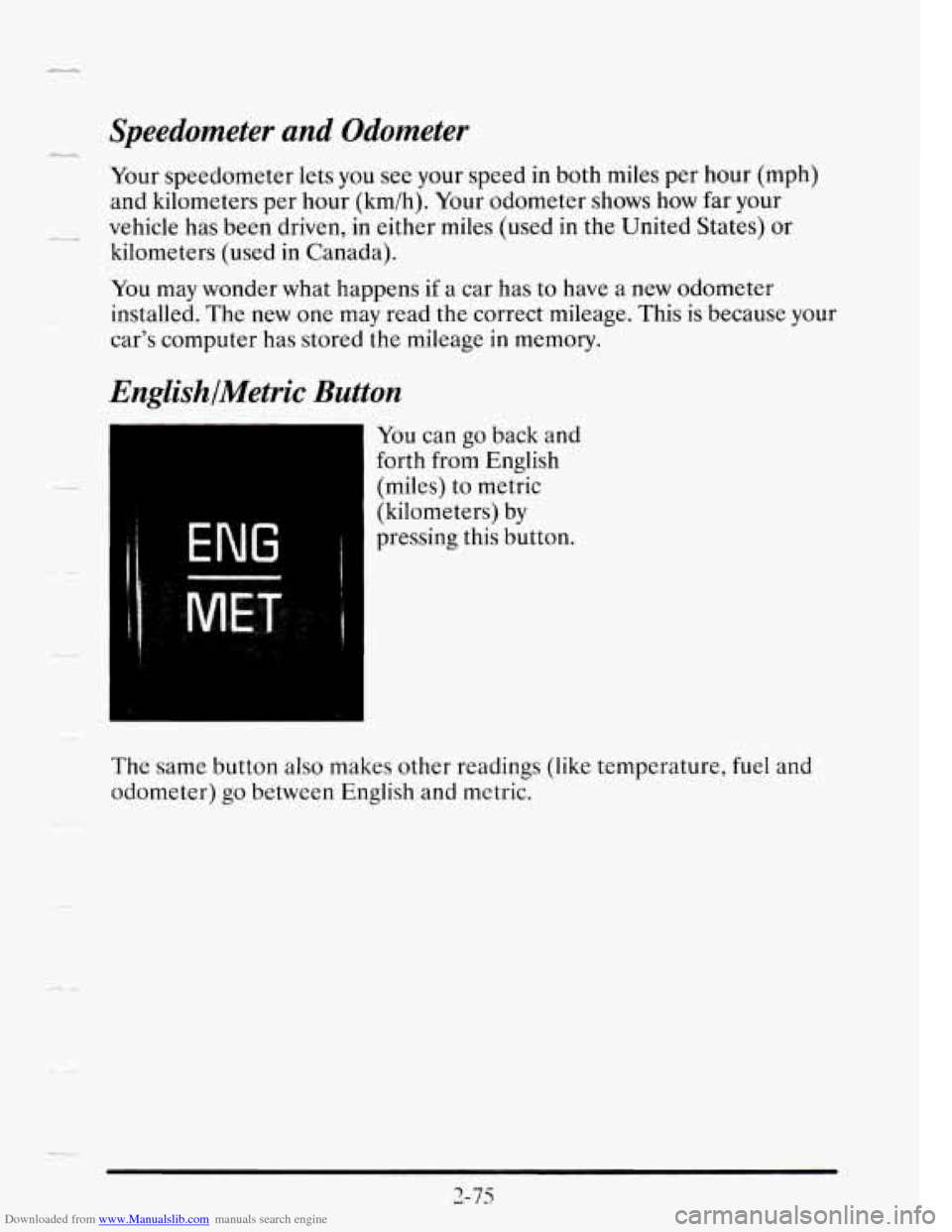

Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (kmih). Your odometer shows how far your
vehicle has been driven, in either miles (used in the United States) or
kilometers (used in Canada).
You may wonder what happens
if a car has to have a new odometer
installed. The new one may read the correct mileage. This
is because your
car’s computer has stored the mileage in memory.
EnglishlMetric Button
ENG
You can go back and
forth from English
(miles) to metric
(kilometers) by
pressing this button.
.- -
The same button also makes other readings (like temperature, fuel and
odometer) go between English and metric.
2-75
Page 147 of 410

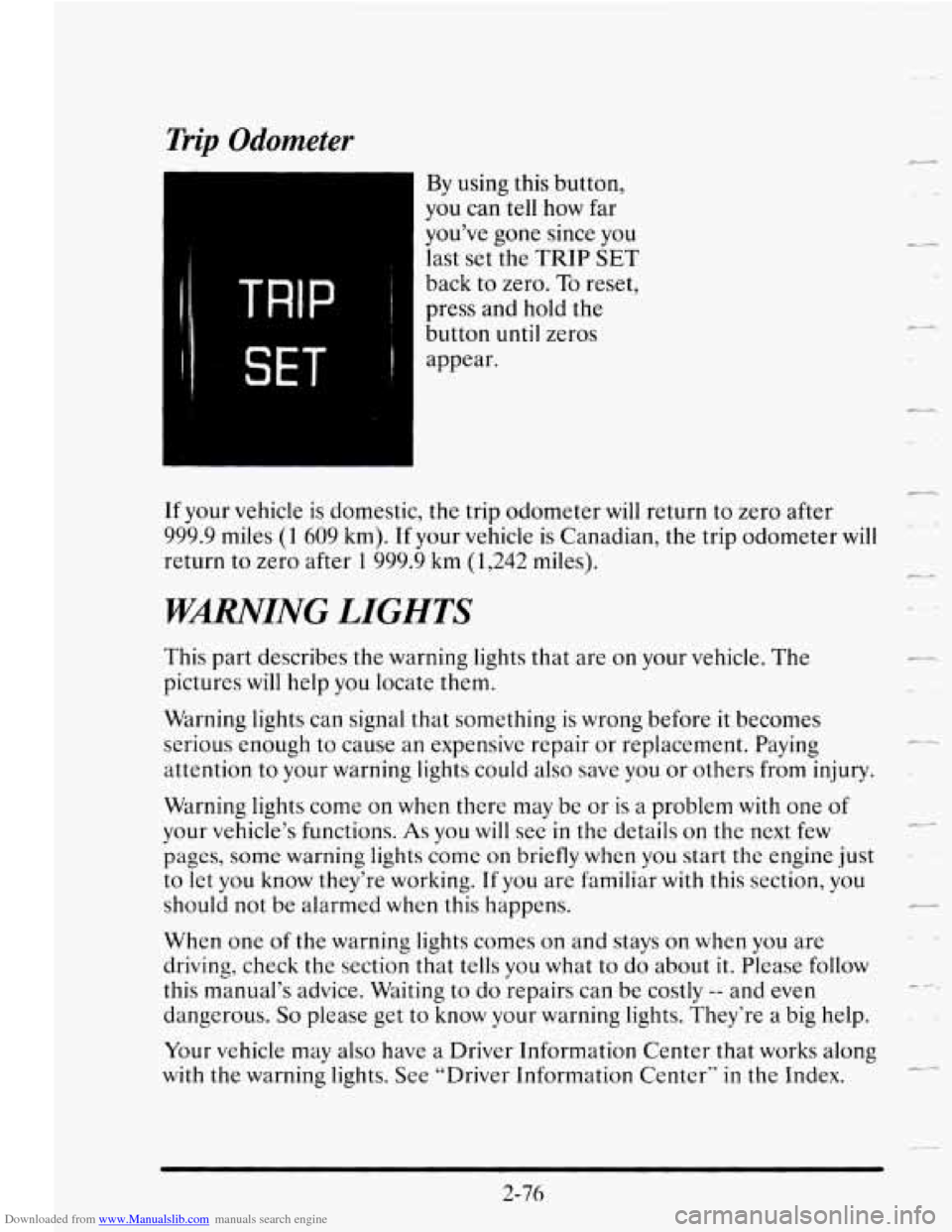

Downloaded from www.Manualslib.com manuals search engine Trip Odometer
TRIP ~
SET I
By using this button,
you can tell how far
you’ve gone since you
last
set the TRIP SET
back to zero. To reset,
press and hold the
button until zeros
appear.
If your vehicle is domestic, the trip odometer will return to zero after
999.9 miles
(1 609 km). If your vehicle is Canadian, the trip odometer will
return to zero after 1 999.9 km (1,242 miles).
WMING LIGHTS
This part describes the warning lights that are on your vehicle. The
pictures will help
you locate them.
Warning lights can signal that something is wrong before it becomes
serious enough
to cause an expensive repair or replacement. Paying
attention to your warning lights could also save you or others from injury.
Warning lights come
on when there may be or is a problem with one of
your vehicle’s functions. As you will see in the details on the next few
pages, some warning lights come
on briefly when you start the engine just
to let you know they’re working.
If you are familiar with this section, you
should not be alarmed
when this happens.
When one of the warning lights comes on and stays on when you are
driving, check the section that tells you
what to do about it. Please follow
this manual’s advice. Waiting to do repairs can
be costly -- and even
dangerous.
So please get to know your warning lights. They‘re a big help.
Your vehicle may also have a Driver Information Center that works along
with the warning lights. See “Driver Information Center‘‘ in the Index.
r
L
c.-d
c +..
2-76
Page 148 of 410

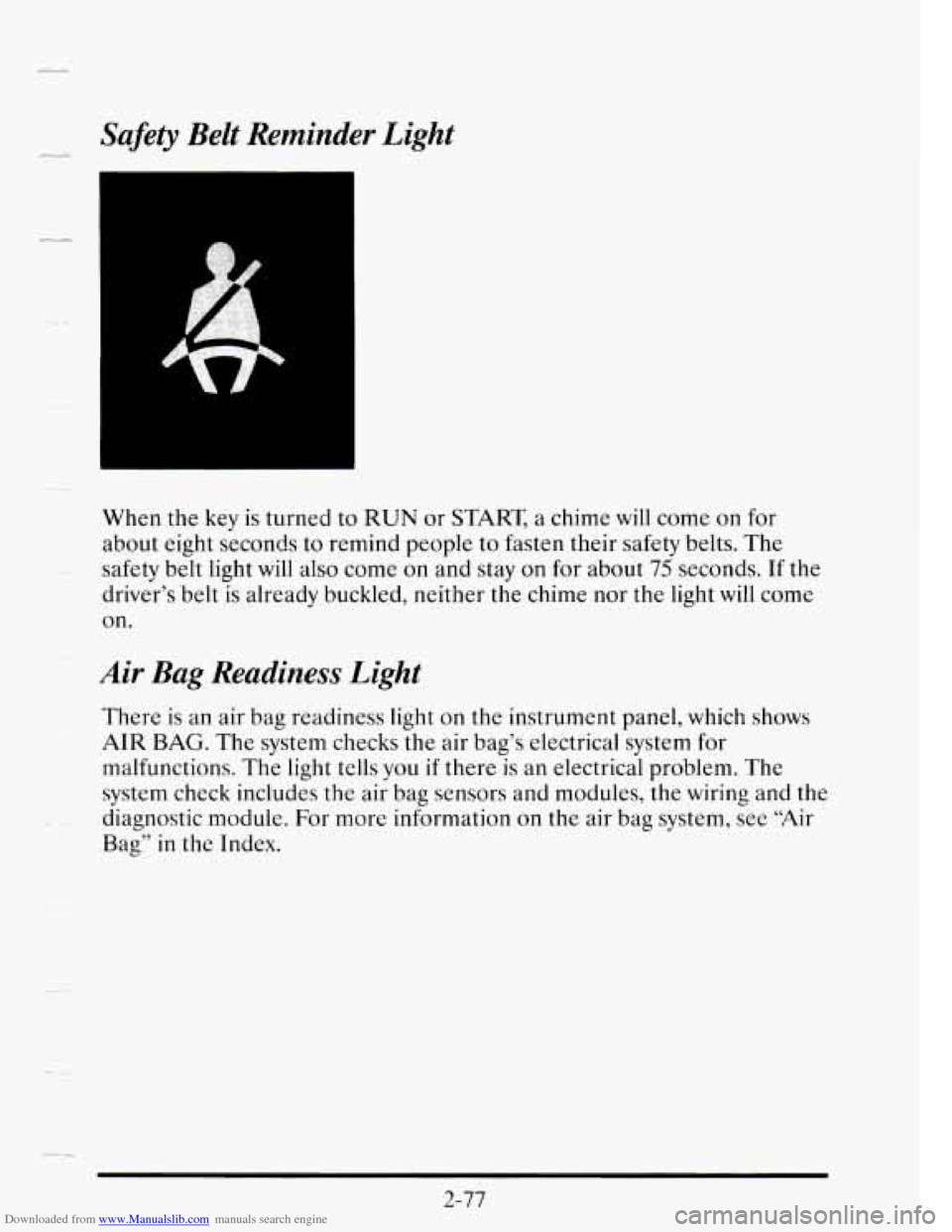

Downloaded from www.Manualslib.com manuals search engine .F* Safety Belt Reminder Light
When the key is turned to RUN or START a chime will come on for
about eight seconds to remind people to fasten their safety belts. The
safety belt light will also come on and stay on
for about 75 seconds. If the
driver’s belt
is already buckled, neither the chime nor the light will come
on.
Air Bag Readiness Light
There is an air bag readiness light on the instrument panel, which shows
AIR BAG.
The system checks the air bag’s electrical system for
malfunctions. The light tells you
if there is an electrical problem. The
system check includes the air bag sensors and modules, the wiring and the
.~ diagnostic module. For more information on the air bag system, see “Air
Bag” in the Index.
2-77
Page 149 of 410

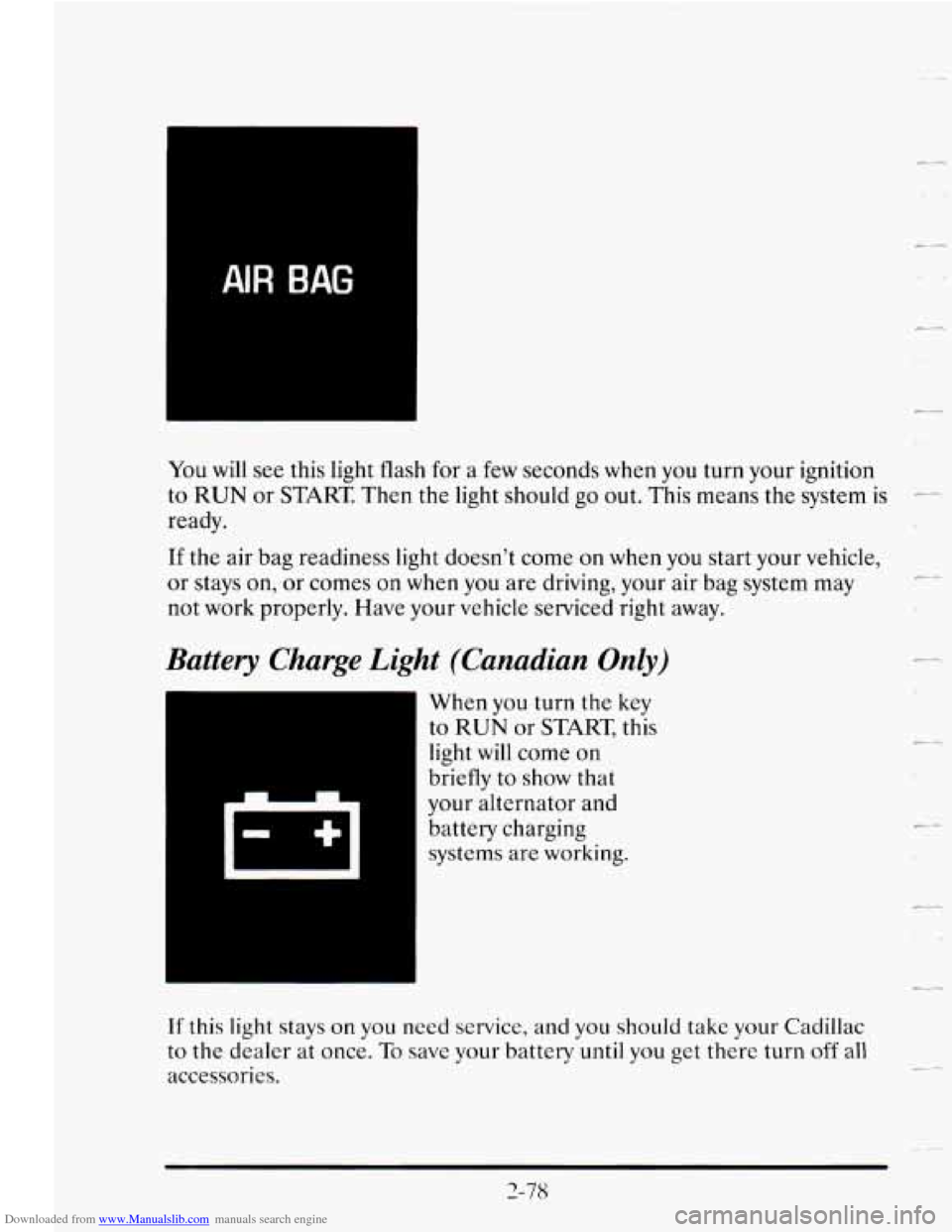

Downloaded from www.Manualslib.com manuals search engine You will see this light flash for a few seconds when you turn your ignition
to RUN or START Then the light should
go out. This means the system is --
ready.
If the air bag readiness light doesn't come on when you start your vehicle,
or stays on, or comes
on when you are driving, your air bag system may
not work properly. Have your vehicle serviced right away.
Battery Charge Light (Canadian Only)
When you turn the key
to
RUN or START, this
light
will come on
briefly to show that
your alternator and
battery charging
systems are working.
If this light stays on you need service, and you should take your Cadillac
to the dealer at once. To save your battery until you get there turn off all
accessories.
2-78
7
c c
cc
Page 150 of 410

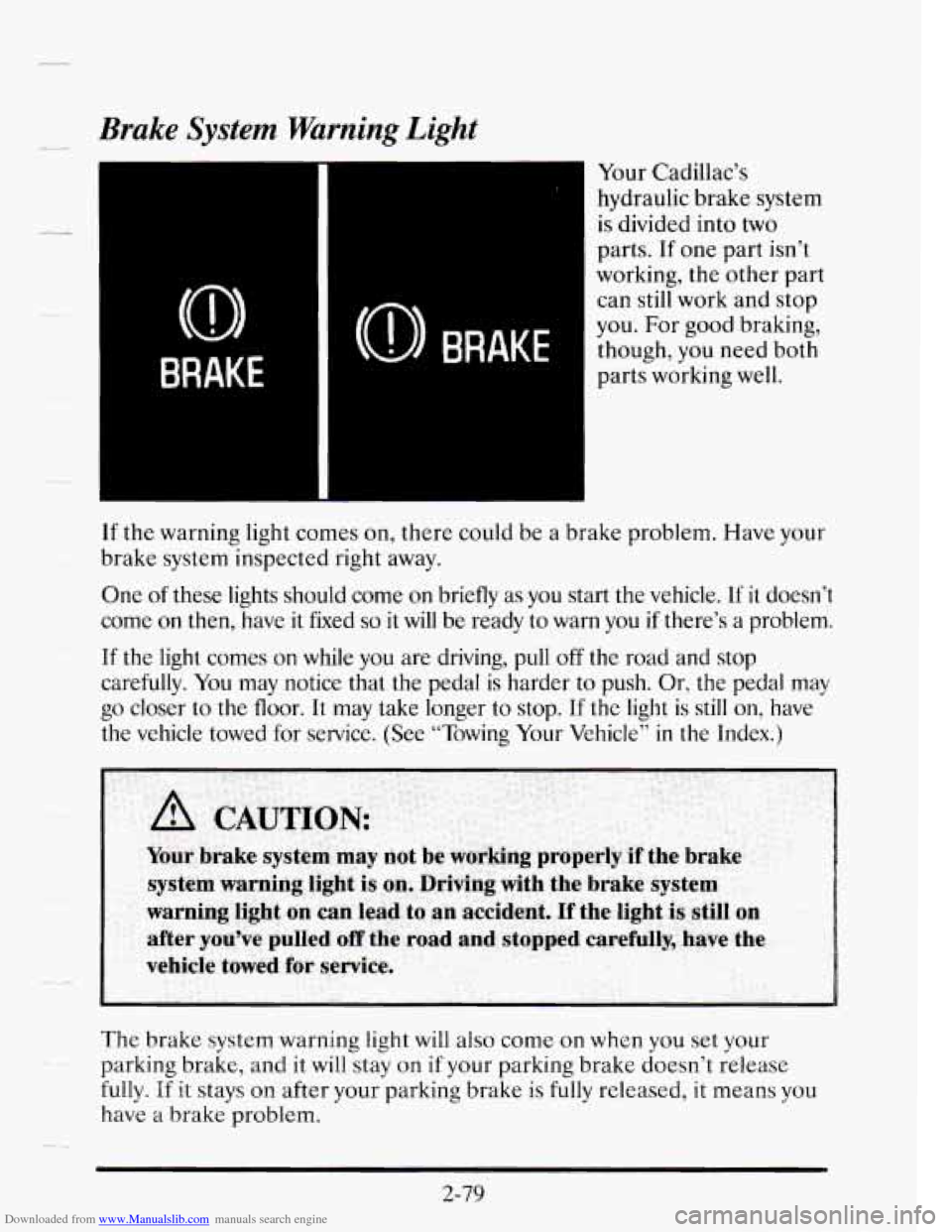

Downloaded from www.Manualslib.com manuals search engine Brake System Warning Light
Your Cadillac’s hydraulic brake system
is divided into two
parts. If one part isn’t
working, the other part
can still work and stop
you.
For good braking,
though,
you need both
parts working well.
If the warning light comes on, there could be a brake problem. Have your
brake system inspected right away.
One of these lights should come on briefly as you start the vehicle. If it doesn’t
come on then, have it fixed
so it will be ready to warn you if there’s a problem.
If the light comes on while you are driving, pull off the road and stop
carefully. You may notice that
the pedal is harder to push. Or, the pedal may
go closer to the floor. It may take longer to stop. If the light is still on, have
the vehicle towed for service. (See “Towing Your Vehicle” in the Index.)
The brake system warning light will also come
on when you set your
parking brake, and it will stay
on if your parking brake doesn’t release
fully.
If it stays on after your parking brake is fully released, it means you
have
a brake problem.
-4
2-79
