CADILLAC SEVILLE 1995 4.G Owners Manual
Manufacturer: CADILLAC, Model Year: 1995, Model line: SEVILLE, Model: CADILLAC SEVILLE 1995 4.GPages: 410, PDF Size: 19.98 MB
Page 151 of 410

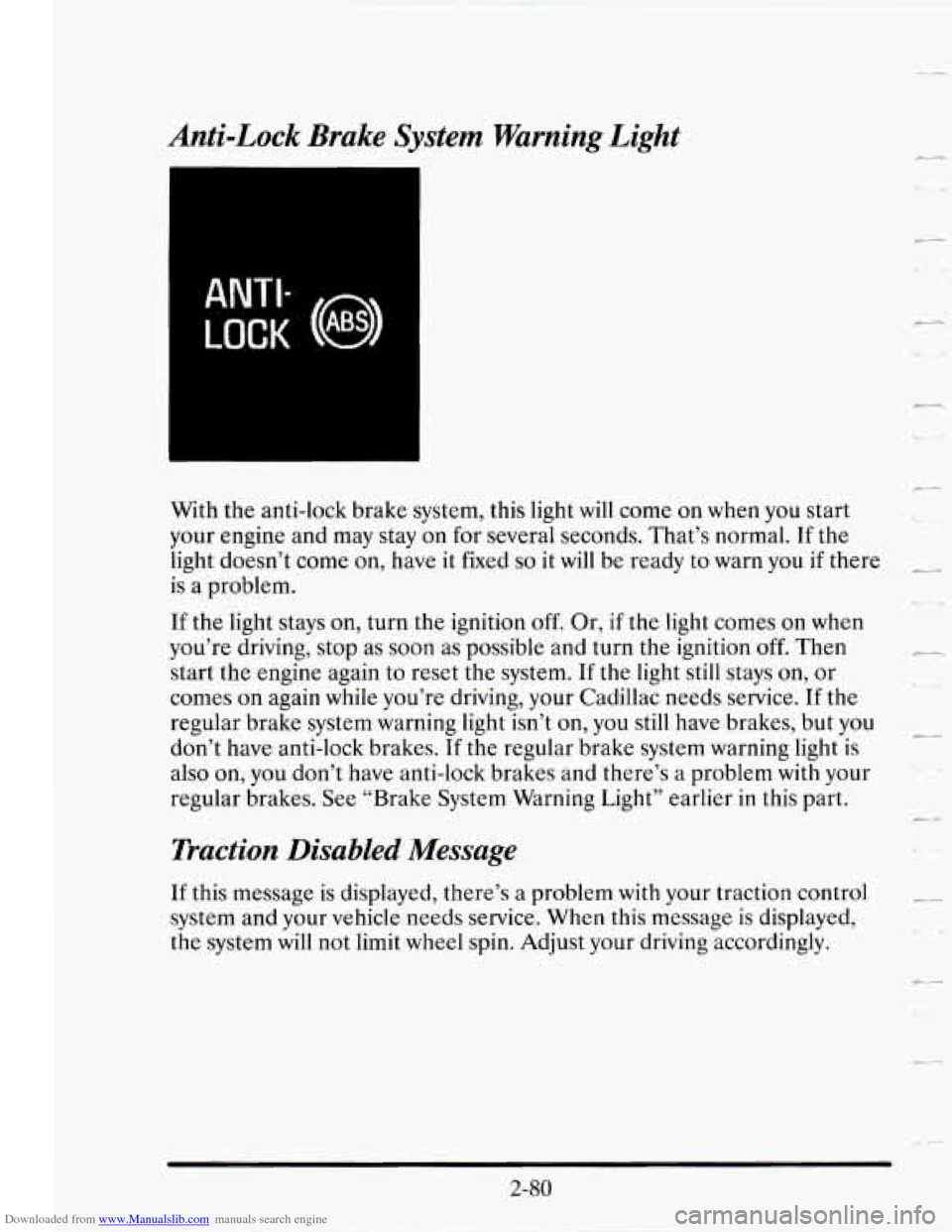

Downloaded from www.Manualslib.com manuals search engine Anti-Lock Brake System Warning Light
ANTI-
LOCK (0 ABS)
With the anti-lock brake system, this light will come on when you start
your engine and may stay on
for several seconds. That’s normal. If the
light doesn’t come on, have it fixed
so it will be ready to warn you if there
is a problem.
If the light stays on, turn the ignition off. Or, if the light comes on when
you’re driving, stop as soon as possible and turn the ignition
off. Then
start the engine again to reset the system. If the light still stays
on, or
comes on again while you’re driving, your Cadillac needs service.
If the
regular brake system warning light isn’t on, you still have brakes, but you
don’t have anti-lock brakes.
If the regular brake system warning light is
also on, you don’t have anti-lock brakes and there’s
a problem with your
regular brakes.
See “Brake System Warning Light” earlier in this part.
Traction Disabled Message
If this message is displayed, there’s a problem with your traction control
system and your vehicle needs service. When this message is displayed,
the system will not limit wheel spin. Adjust your driving accordingly.
-,.
c-
2-80
Page 152 of 410

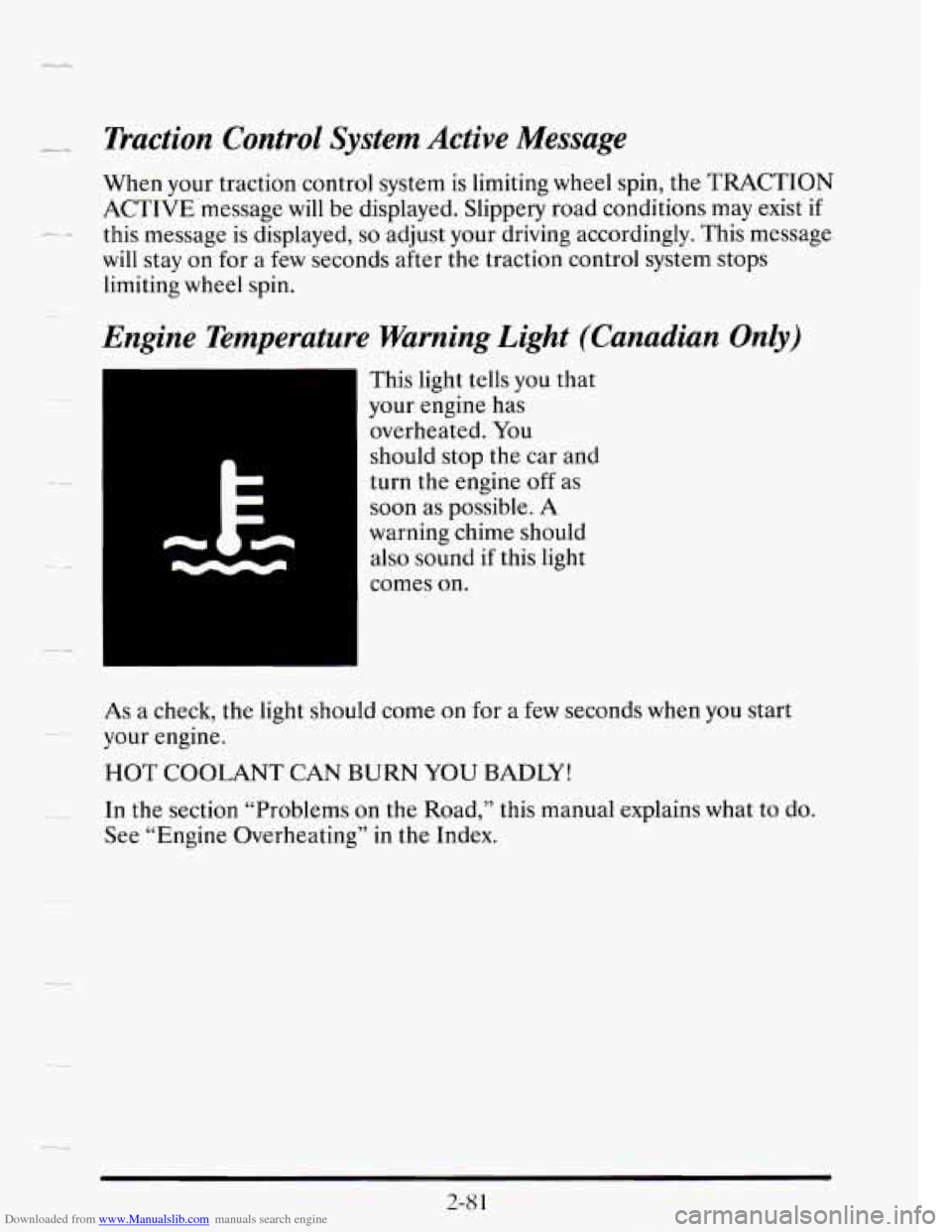

Downloaded from www.Manualslib.com manuals search engine - Traction Control System Active Message
When your traction control system is limiting wheel spin, the TRACTION
ACTIVE message will be displayed. Slippery road conditions may exist
if
will stay on for a few seconds after the traction control system stops
limiting wheel spin.
/-. .- this message is displayed, so adjust your driving accordingly. This message
Engine Temperature Warning Light (Canadian Only)
This light tells you that
your engine has
overheated. You
should stop the car and
turn the engine
off as
soon as possible.
A
warning chime should
also sound if this light
comes
on.
As a check, the light should come on for a few seconds when you start
your engine.
HOT COOLANT CAN BURN YOU BADLY!
In the section “Problems on the Road,” this manual explains what to do.
See “Engine Overheating” in the Index.
..
2-8 1
Page 153 of 410

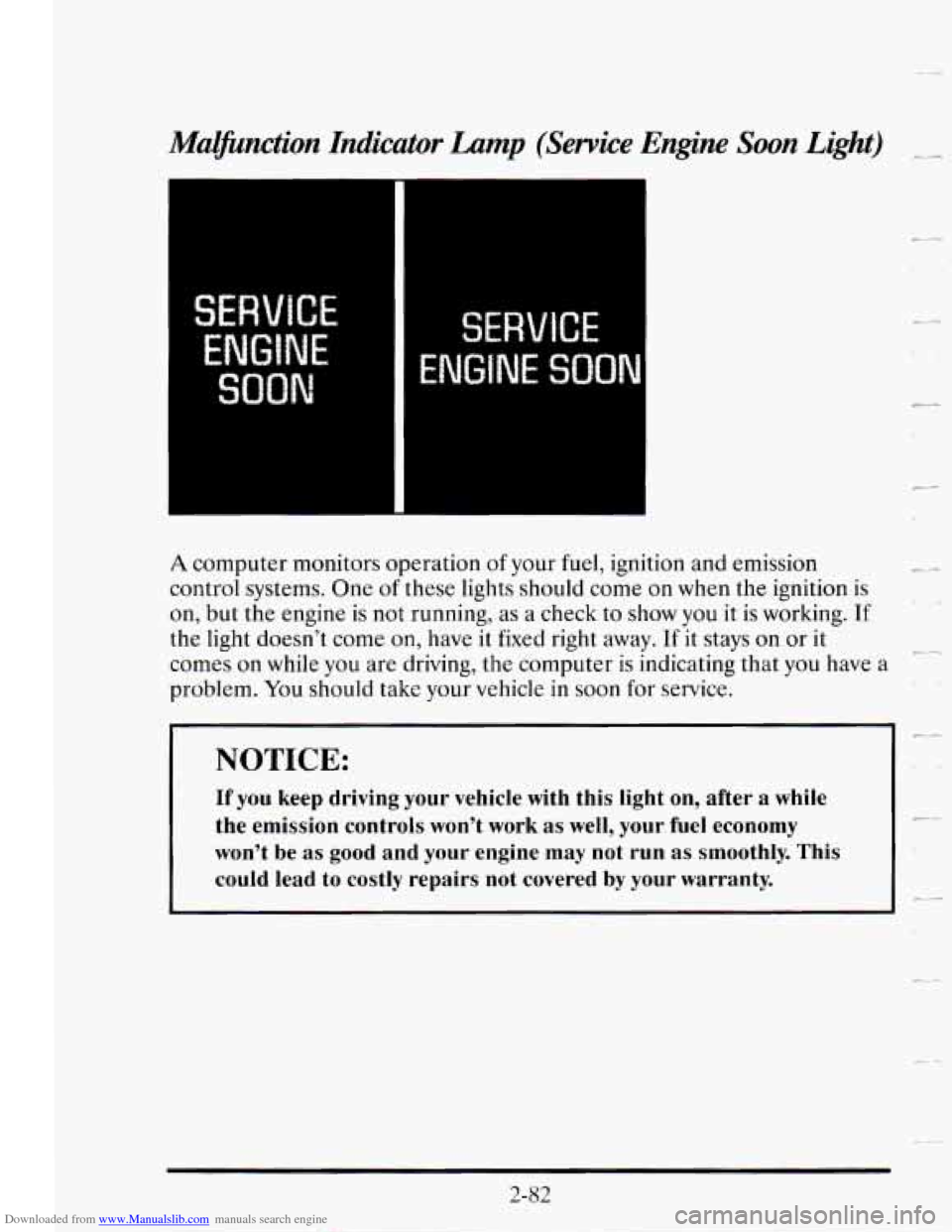

Downloaded from www.Manualslib.com manuals search engine Malfinction Indicator Lump (Service Engine Soon Light) -
SERVICE
ENGINE
SOON
SERVICE
ENGINE SOON
-.
Lr
c-. A computer monitors operation of your fuel, ignition and emission
control systems. One
of these lights should come on when the ignition is
on, but the engine
is not running, as a check to show you it is working. If
the light doesn’t come on, have it fixed right away. If it stays on or it
comes on while
you are driving, the computer is indicating that you have a
problem. You should take your vehicle in soon for service.
--.
NOTICE:
If you keep driving your vehicle with this light on, after a while
the emission controls won’t work as well, your fuel economy
won’t be
as good and your engine may not run as smoothly. This
could lead to costly repairs not covered
by your warranty.
2-82
c-
Page 154 of 410

Downloaded from www.Manualslib.com manuals search engine Engine Oil Warning Light (Canadian Only)
This light tells you if
there could be a
problem with your
engine oil pressure.
The light goes on when you turn your key to
RUN or START It goes off
once you start your engine. That’s just a check to be sure the light works.
If it doesn’t come on, be sure to have it fixed
so it will be th.ere to warn
you
if something goes wrong.
When the light
comes on and stays on, it means tha.t oil isn’t flowing
through your engine properly.
You could be low on oil or you might have
some other system problem.
NOTICE:
Damage to your engine from neglected oil problems can be
costly and
is not covered by your warranty.
Page 155 of 410

Downloaded from www.Manualslib.com manuals search engine L -1
L
6*
RPRIi x 1000

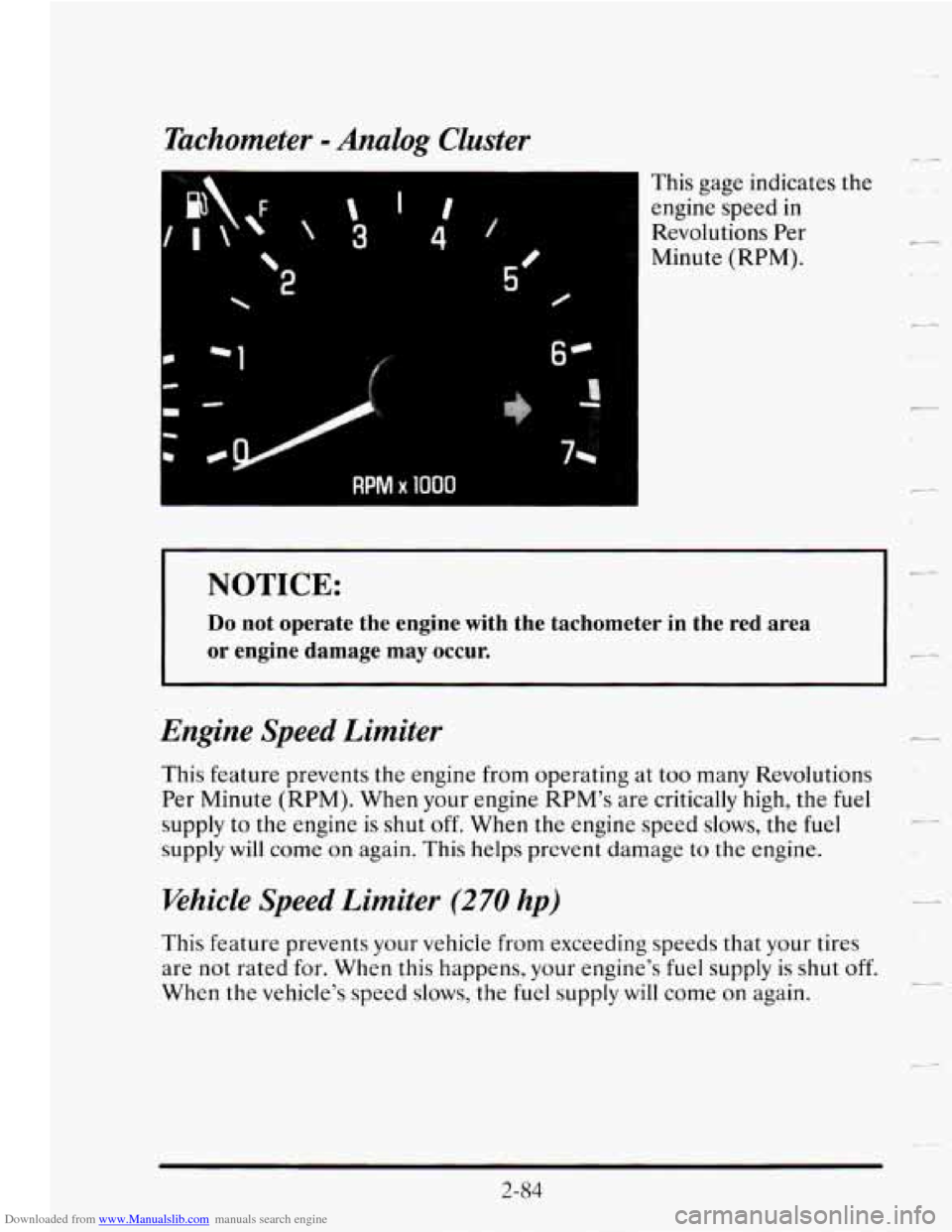

Tachometer = Analog Cluster
This gage indicates the
engine speed in
Revolutions Per
Minute (RPM).
-
t --
NOTICE:
-.-
Do not operate the engine with the tachometer in the red area
or engine damage may occur.
I
--
Engine Speed Limiter
This feature prevents the engine from operating at too many Revolutions
Per Minute (RPM). When your engine RPM’s are critically high, the fuel
supply to the engine is shut off. When the engine speed slows, the fuel
supply will come on again. This helps prevent damage
to the engine.
Y,hicle Speed Limiter (270 hp)
This feature prevents your vehicle from exceeding speeds that your tires
are not rated for. When this happens, your engine’s fuel supply is shut off.
When the vehicle’s speed
slows, the fuel supply will come on again.
2-84
Page 156 of 410

Downloaded from www.Manualslib.com manuals search engine -- -

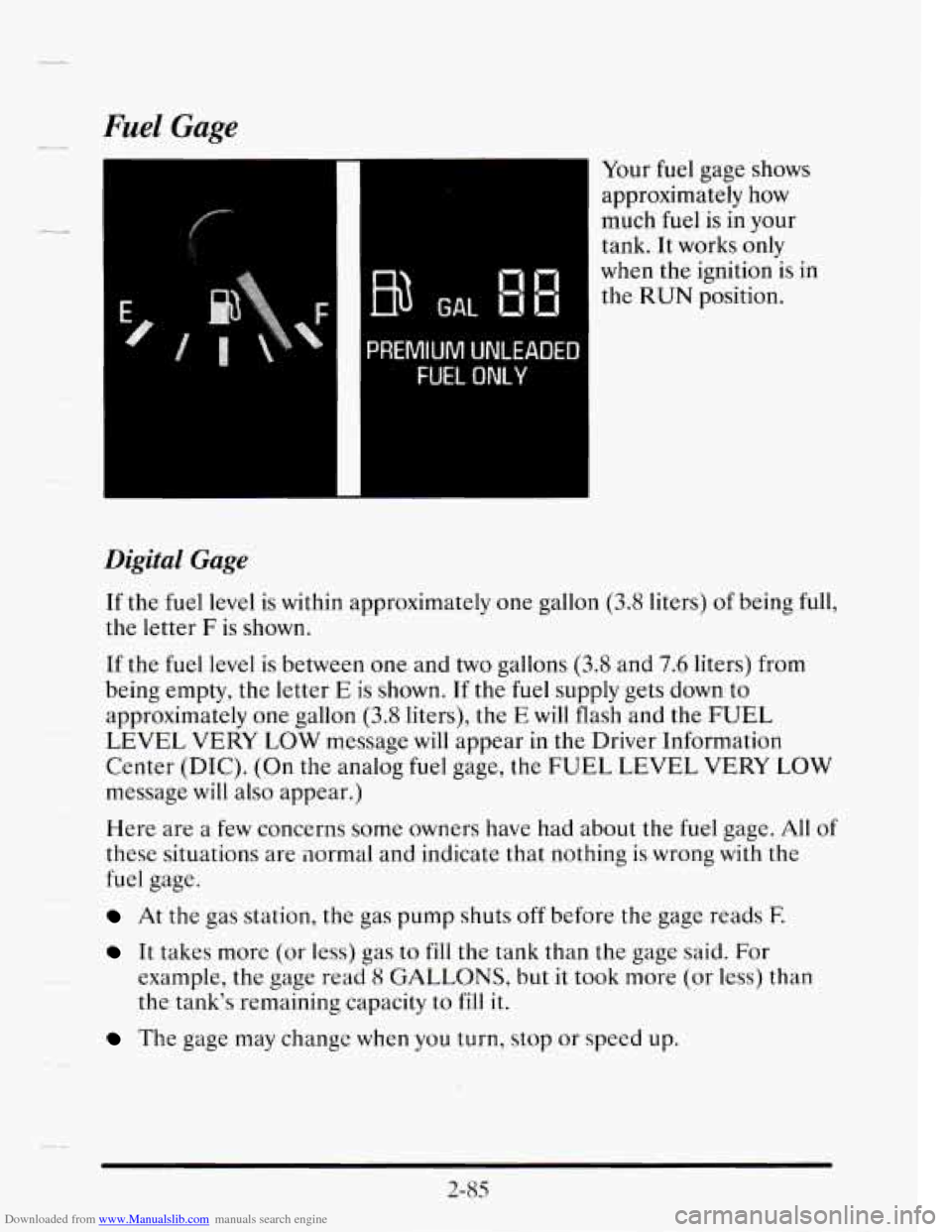

Fuel Gage
Your fuel gage shows
approximately how
much fuel is in your
tank. It works only
when the ignition is
in
the RUN position.
PREMIUM UNLEADED
FUEL
ONLY
-_ Digital Gage
i-
If the fuel level is within approximately one gallon (3.8 liters) of being full,
the letter
F is shown.
If the fuel level is between one and two gallons (3.8 and 7.6 liters) from
being empty, the letter
E is shown. If the fuel supply gets down to
approximately one gallon (3.8 liters), the E will flash and the FUEL
LEVEL VERY LOW message will appear in the Driver Information
Center (DIC).
(On the analog fuel gage, the FUEL LEVEL VERY LOW
message will also appear.)
Here are a few concerns
some owners have had about the fuel gage. All of
these situations are ilormal and indicate that nothing is wrong with the
fuel gage.
At the gas station, the gas pump shuts off before the gage reads E
It takes more (or less) gas to fill the tank than the gage said. For
example, the gage read
8 GALLONS, but it took more (or less) than
the tank’s remaining capacity to
fill it.
The gage may change when you turn, stop or speed up.
2-85
Page 157 of 410

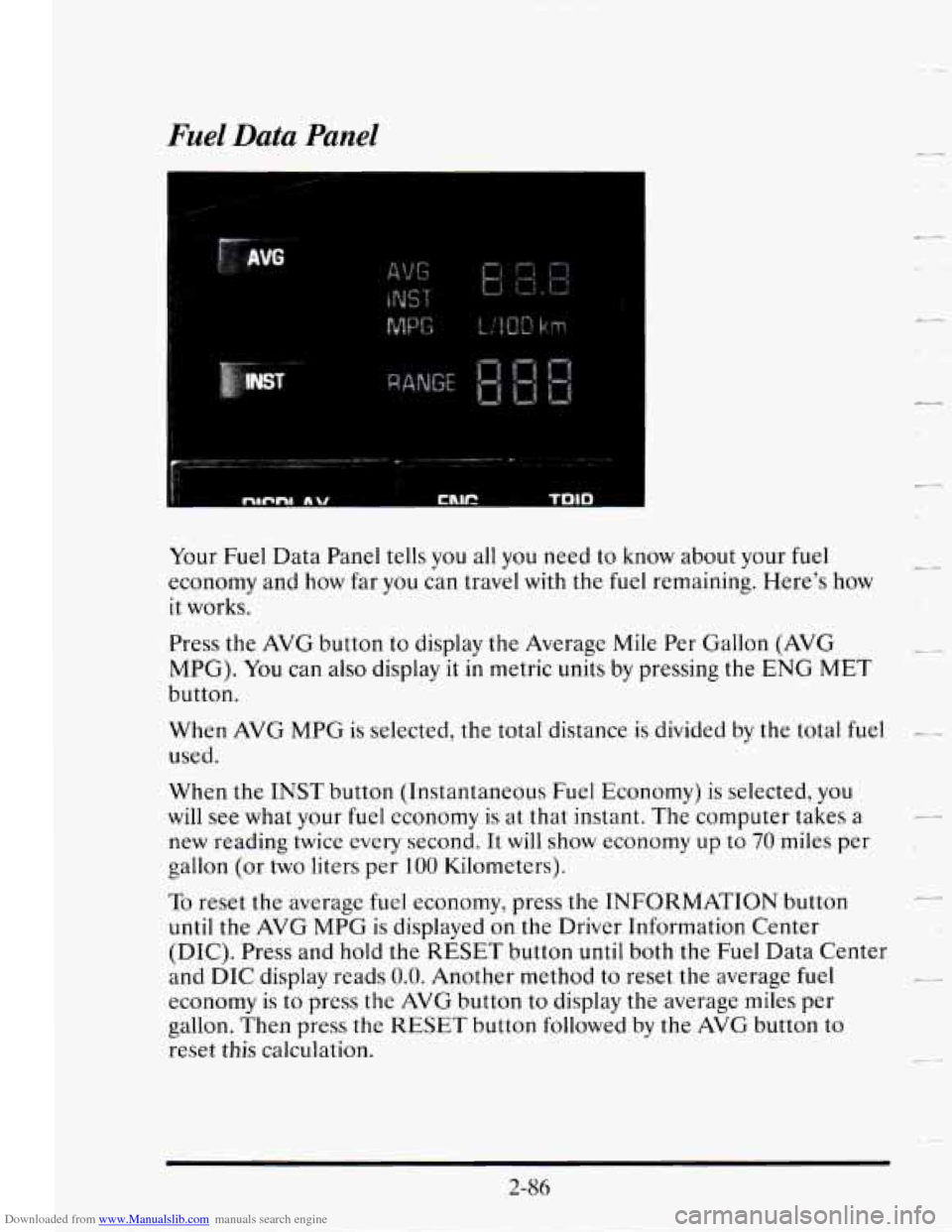

Downloaded from www.Manualslib.com manuals search engine Fuel Data Panel
Your Fuel Data Panel tells you all you need to know about your fuel
economy and how far you can travel with the fuel remaining. Here's how
it works.
Press
the AVG button to display the Average Mile Per Gallon (AVG
MPG). You can also display
it in metric units by pressing the ENG MET
button.
-.
When AVG MPG is selected, the total distance is divided by the total fuel -.-
used.
When the
INST button (Instantaneous Fuel Economy) is selected, you
will see what your fuel economy is at that instant. The computer takes a
new reading twice every second. It
will show economy up to 70 miles per
gallon (or
two liters per 100 Kilometers).
c4
L .#
To reset the average fuel economy, press the INFORMATION button I.-
until the AVG MPG is displayed on the Driver Information Center
(DIC). Press and hold the
RESET button until both the Fuel Data Center
and DIC display reads
0.0. Another method to reset the average fuel
economy is to press
the AVG button to display the average miles per
gallon.
Then press the RESET button followed by the AVG button to
reset
this calculation.
2-86
Page 158 of 410

Downloaded from www.Manualslib.com manuals search engine LL
--
--
The RANGE display shows how far the computer thinks you can travel
with the fuel that is in your tank. The computer does not know what
driving conditions will be like
for the rest of your trip, so the range is
estimated based on your recent fuel economy. Therefore, your range
reading may change as your driving habits change. (Going from city
to
highway driving may increase the range reading.)
If the range display shows
LO, you should stop for fuel as soon as
possible.
Your computer needs enough data
for the RANGE reading to work,
however,
so it will read LO when your vehicle is brand new (under 25
miles). It may also show LO if your battery has been disconnected.
Driver Information Center
Your Driver Information Center (DIC) display gives you the status of
many of your vehicle’s systems. The DIC is used to display driver
selectable information and warning/status messages.
If more than one problem is detected, the Driver Information Center will
automatically display all current messages.
2-87
Page 159 of 410

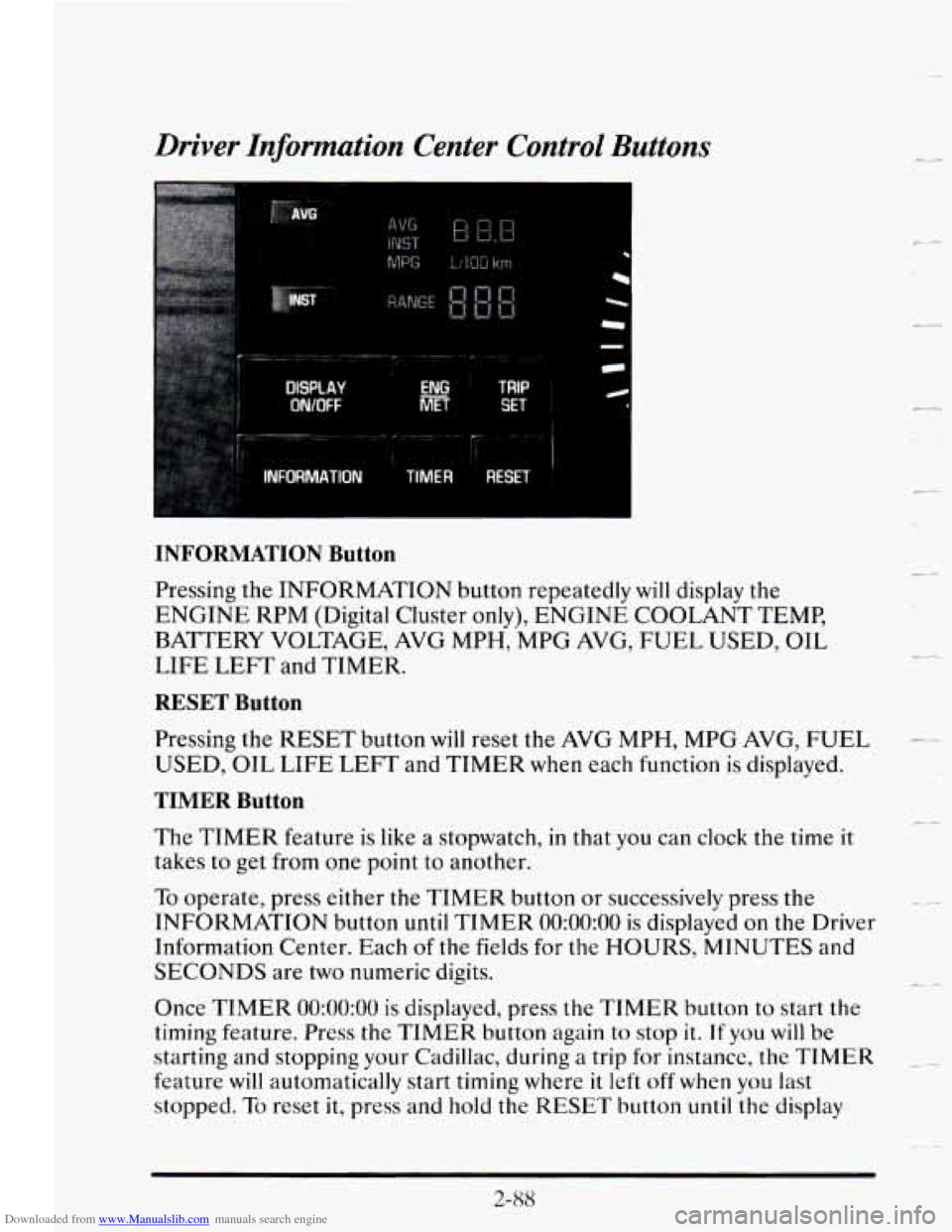

Downloaded from www.Manualslib.com manuals search engine Driver Information Center Control Buttons
AVG
DtSPtAV
WOFF
TRIP
SET
INFORMATION Button
Pressing the INFORMATION button repeatedly will display the
ENGINE RPM (Digital Cluster only), ENGINE COOLANT TEMP,
BATTERY VOLTAGE, AVG MPH, MPG AVG, FUEL USED, OIL
LIFE
LEFT and TIMER.
RESET Button
Pressing the RESET button will reset the AVG MPH, MPG AVG, FUEL
USED, OIL LIFE LEFT and TIMER when each function is displayed.
TIMER Button
The TIMER feature is like a stopwatch, in that you can clock the time it
takes to get from one point to another.
To operate, press either the TIMER button or successively press the
INFORMATION button
until TIMER 0O:OO:OO is displayed on the Driver
Information Center. Each
of the fields for the HOURS, MINUTES and
SECONDS are two numeric digits.
Once
TIMER 0O:OO:OO is displayed, press the TIMER button to start the
timing feature.
Press the TIMER button again to stop it. If you will be
starting and stopping
your Cadillac, during a trip for instance, the TIMER
feature will automatically start timing where it left off when you last
stopped.
To reset it, press and hold the RESET button until the display
(L4
L.
_4
t
c-
2-88
Page 160 of 410

Downloaded from www.Manualslib.com manuals search engine .-

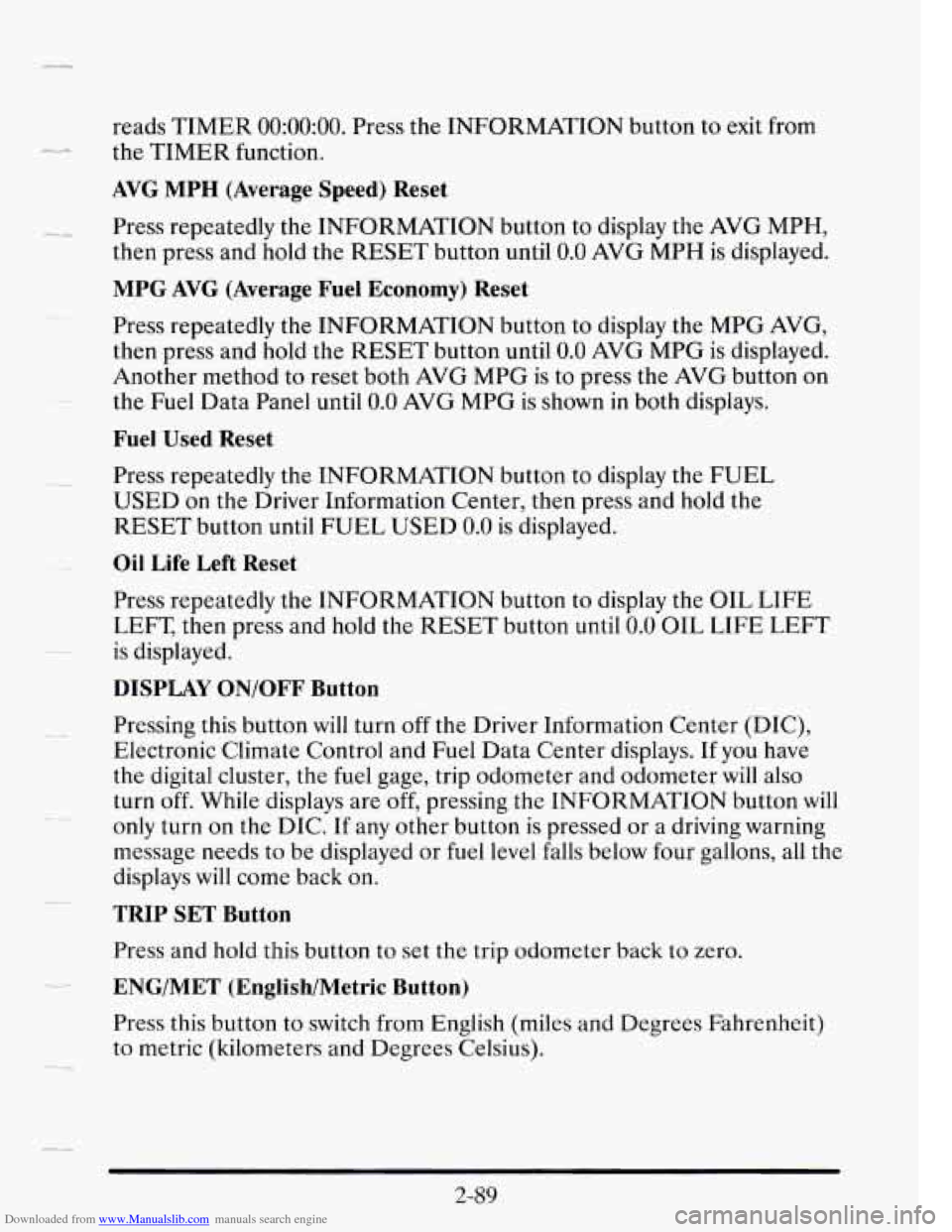

reads TIMER 0O:OO:OO. Press the INFORMATION button to exit from
the TIMER function.
AVG MPH (Average Speed) Reset
Press repeatedly the INFORMATION button to display the AVG MPH,
then press and hold the RESET button until
0.0 AVG MPH is displayed.
MPG AVG (Average Fuel Economy) Reset
Press repeatedly the INFORMATION button to display the MPG AVG,
then press and hold the RESET button until
0.0 AVG MPG is displayed.
Another method to reset both AVG MPG is
to press the AVG button on
the Fuel Data Panel until 0.0 AVG MPG is shown in both displays.
Fuel Used Reset
Press repeatedly the INFORMATION button to display the FUEL
USED on the Driver Information Center, then press and hold the
RESET button until
FUEL USED 0.0 is displayed.
Oil Life Left Reset
Press repeatedly the INFORMATION button to display the OIL LIFE
LEFT, then press and hold the RESET button until
0.0 OIL LIFE LEFT
is displayed.
DISPLAY ON/OFF Button
Pressing this button will turn off the Driver Information Center (DIC),
Electronic Climate Control and
Fuel Data Center displays. If you have
the digital cluster, the fuel gage, trip odometer and odometer will also
turn off. While displays are off, pressing the INFORMATION button
will
only turn on the DIC. If any other button is pressed or a driving warning
message needs to be displayed or fuel level falls below four gallons, all the
displays will come back on.
TRIP SET Button
Press and hold this button to set the trip odometer back to zero.
ENG/MET (English/Metric Button)
Press this button to switch from English (miles and Degrees Fahrenheit)
to metric (kilometers and Degrees Celsius).
2-89
