CADILLAC SEVILLE 1995 4.G Owners Manual
Manufacturer: CADILLAC, Model Year: 1995, Model line: SEVILLE, Model: CADILLAC SEVILLE 1995 4.GPages: 410, PDF Size: 19.98 MB
Page 131 of 410

Downloaded from www.Manualslib.com manuals search engine --

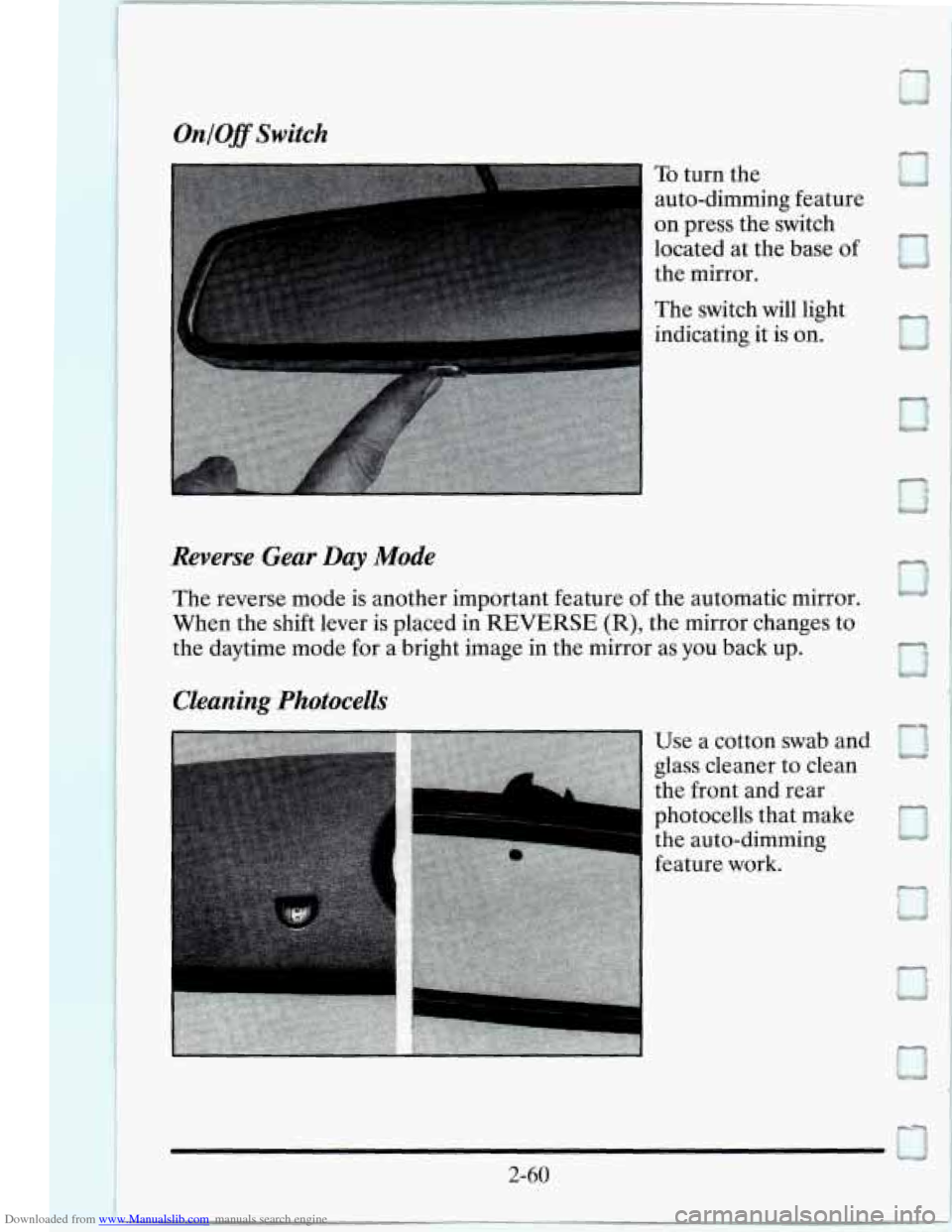

On /Off Switch
To turn the
auto-dimming feature
on press the switch
located at the base
of
the mirror.
The switch will light
indicating it is on.
Reverse Gear Day Mode
The reverse mode is another important feature of the automatic mirror.
When the shift lever is placed in
REVERSE (R), the mirror changes to
the daytime mode for a bright image in the mirror as
you back up.
Cleaning Photocells
I
Use a cotton swab and
glass cleaner to clean
the front and rear
photocells that make
the auto-dimming
feature work.
cl
2-60
Page 132 of 410

Downloaded from www.Manualslib.com manuals search engine r
. _.

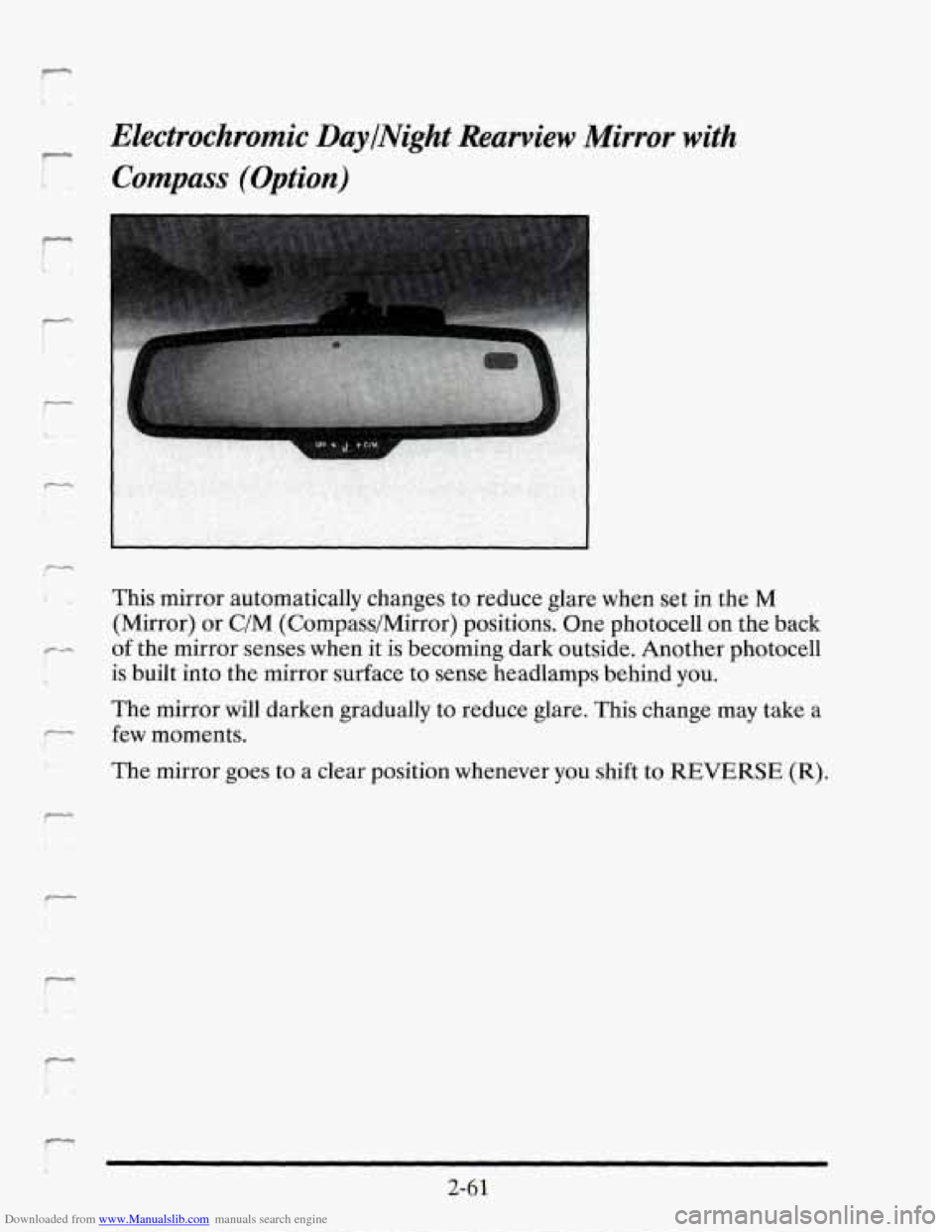

Electrochromic DaylNight Reuwiew Mirror with
Compass (Option)
This mirror automatically changes to reduce glare when set in the M
(Mirror) or C/M (CompasslMirror) positions. One photocell on the back
of the mirror senses when it is becoming dark outside. Another photocell
is built into the mirror surface to sense headlamps behind
you.
The mirror will darken gradually to reduce glare. This change may take a
few moments.
The mirror goes to a clear position whenever
you shift to REVERSE (R).
2-61
Page 133 of 410

Downloaded from www.Manualslib.com manuals search engine L 9

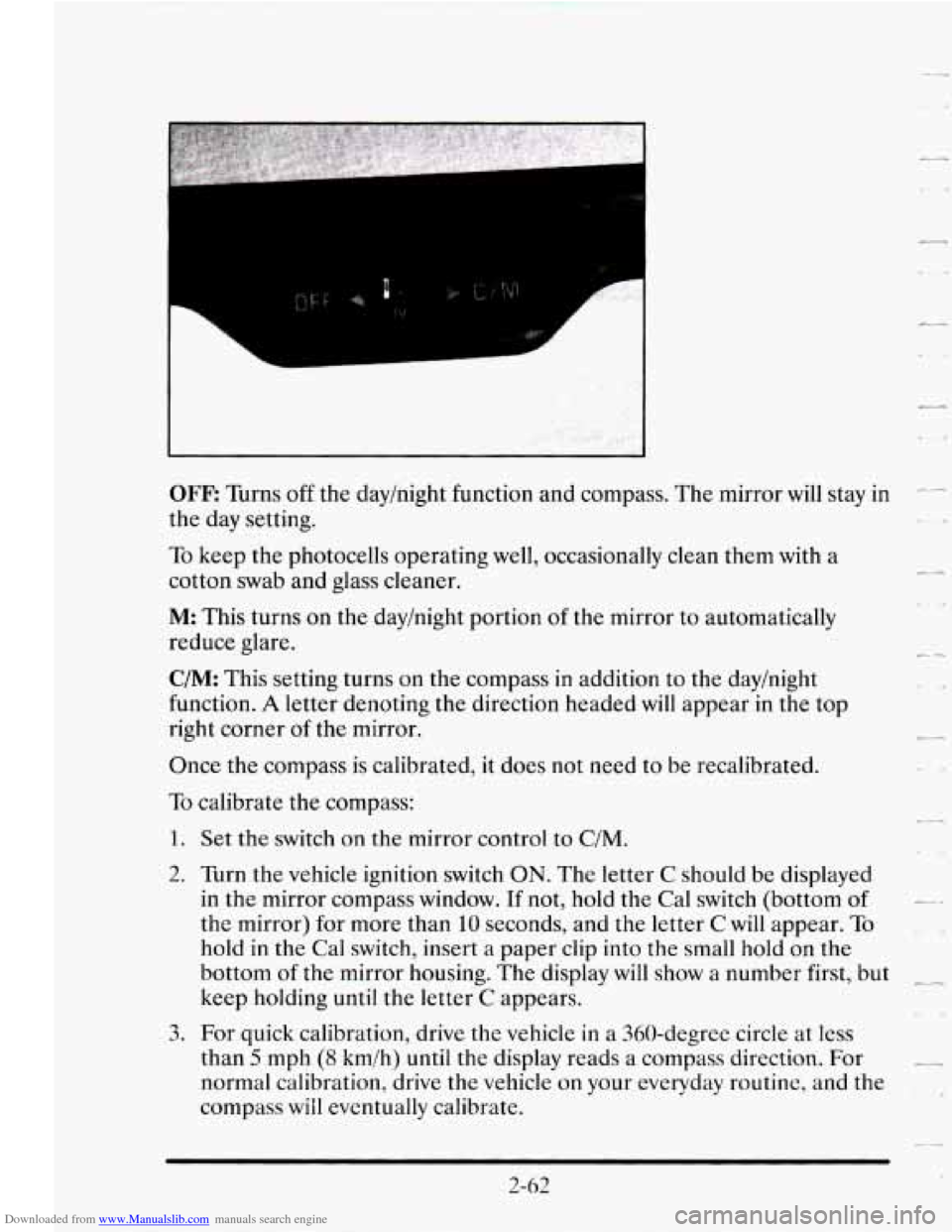

OFF: Turns off the day/night function and compass. The mirror will stay in --
the day setting.
To keep the photocells operating well, occasionally clean them with a
cotton swab and glass cleaner.
M This turns on the day/night portion of the mirror to automatically
reduce glare.
C/M: This setting turns on the compass in addition to the day/night
function.
A letter denoting the direction headed will appear in the top
right corner
of the mirror.
Once the compass is calibrated, it does not need to be recalibrated.
To calibrate the compass:
1. Set the switch on the mirror control to C/M.
2. Turn the vehicle ignition switch ON. The letter C should be displayed
in the mirror compass window.
If not, hold the Cal switch (bottom of
the mirror) for more than 10 seconds, and the letter C will appear. To
hold in the Cal switch, insert a paper clip into the small hold on the
bottom
of the mirror housing. The display will show a number first, but
keep holding until the letter
C appears. & -a
3. For quick calibration, drive the vehicle in a 360-degree circle at less
than
5 mph (8 kmlh) until the display reads a compass direction. For -
normal calibration, drive the vehicle on your everyday routine, and the
compass
will eventually calibrate.
L
2-62 . .a
Page 134 of 410

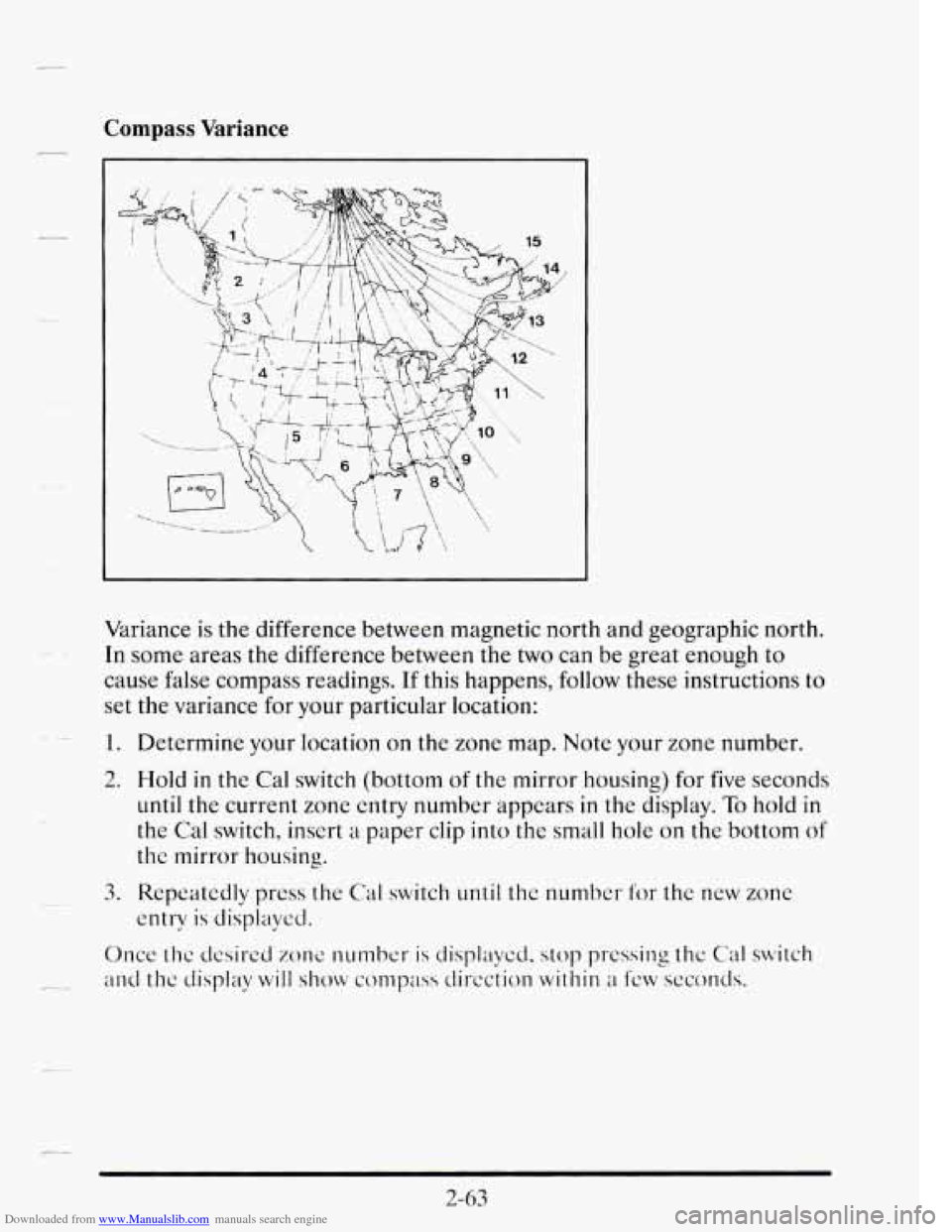

Downloaded from www.Manualslib.com manuals search engine Compass Variance
Variance is the difference between magnetic north ana geographic norm.
In some areas the difference between the two can be great enough to
cause false compass readings.
If this happens, follow these instructions to
set the variance for your particular location:
1. Determine your location on the zone map. Note your zone number.
2. Hold
in the Cal switch (bottom of the mirror housing) for five seconds
until the current zone entry number appears in the display. To hold in
the Cal switch, insert a paper clip into the small hole on the bottom of
the mirror housing.
entry
is displaycd.
3.
Repeatedly press the
Cal switch until the number for the new zone
Once thc dcsired zone number is displaycd, stop pressing thc Cal switch
-.- and the display will show compass dircction within a fcw seconds.
2-63
Page 135 of 410

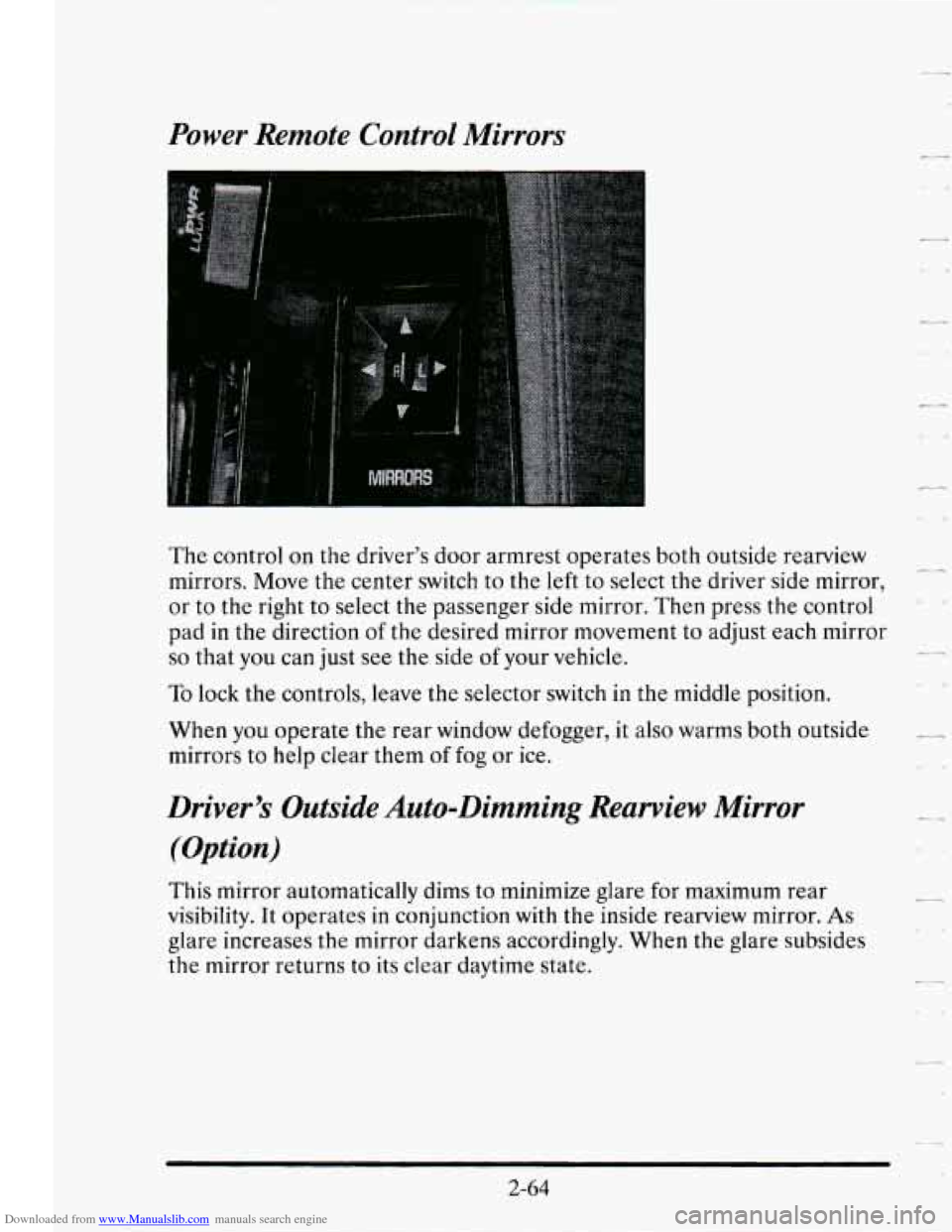

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirrors
The control on the driver’s door armrest operates both outside rearview
mirrors. Move the center switch to the
left to select the driver side mirror,
or
to the right to select the passenger side mirror. Then press the control
pad in the direction
of the desired mirror movement to adjust each mirror
so that you can just see the side of your vehicle.
To lock the controls, leave the selector switch in the middle position.
When
you operate the rear window defogger, it also warms both outside
mirrors to help clear them of
fog or ice.
-
c_
Driver’s Outside Auto-Dimming Rearview Mirror
(Option)
This mirror automatically dims to minimize glare for maximum rear
visibility. It operates
in conjunction with the inside rearview mirror. As
glare increases the mirror darkens accordingly. When the glare subsides
the mirror returns to its clear daytime state.
Page 136 of 410

Downloaded from www.Manualslib.com manuals search engine F
c---
..
r
r

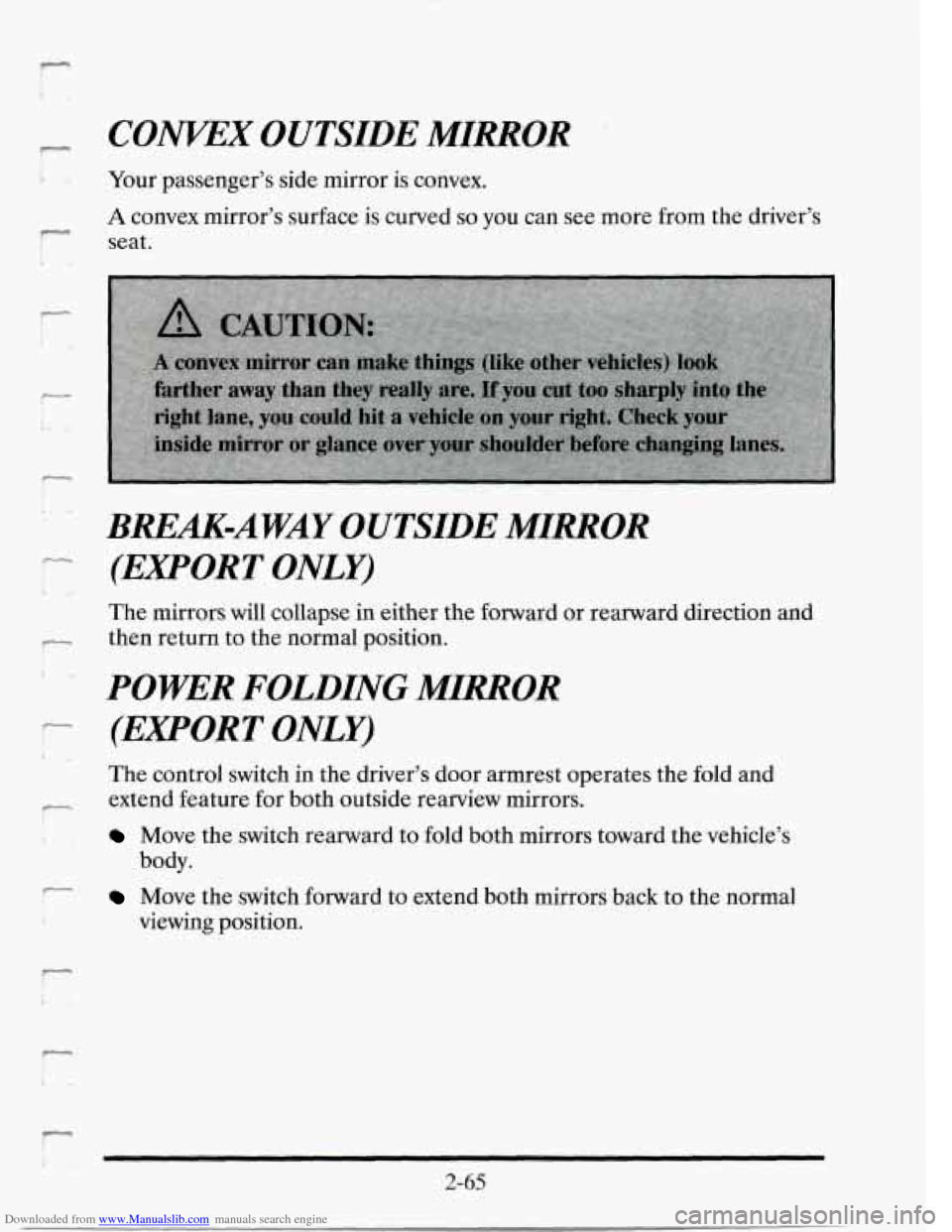

CONKEX OUTSIDE MIRROR
. <- ..
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
BREAK-AWAY OUTSIDE MIRROR
(EXPORT ONLY)
The mirrors will collapse in either the forward or rearward direction and
then return to the normal position.
POWER FOLDING MIMOR
(EXPORT ONLY)
The control switch in the driver’s door armrest operates the fold and
extend feature for both outside rearview mirrors.
Move the switch rearward to fold both mirrors toward the vehicle’s
Move the switch forward to extend both mirrors back to the normal
body.
viewing
position.
2-65
Page 137 of 410

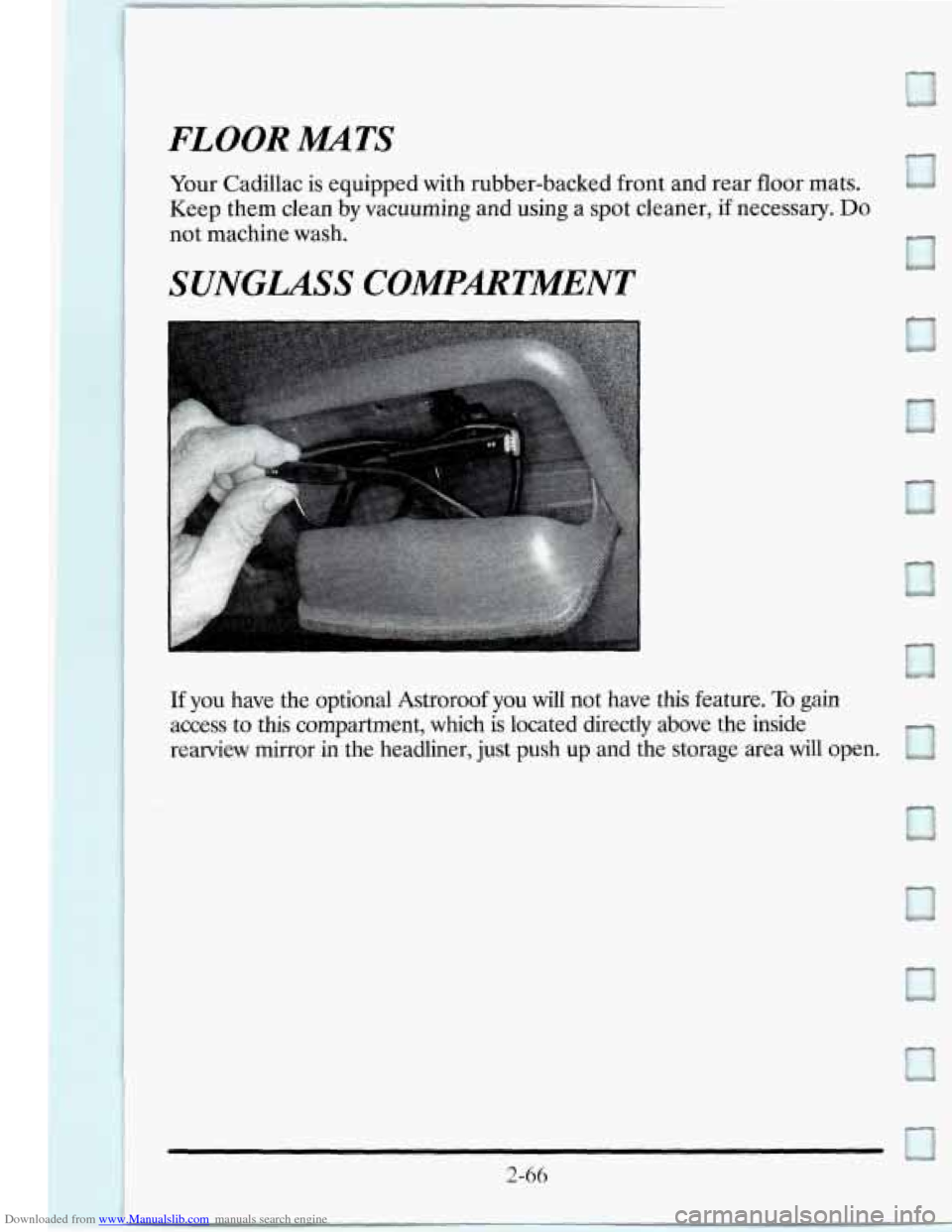

Downloaded from www.Manualslib.com manuals search engine FLOOR AUTS
Your Cadillac is equipped with rubber-backed front and rear floor mats.
Keep them clean by vacuuming and using a
spot cleaner, if necessary. Do
not machine wash.
SUNGLASS COMPMTMENT
I
Page 138 of 410

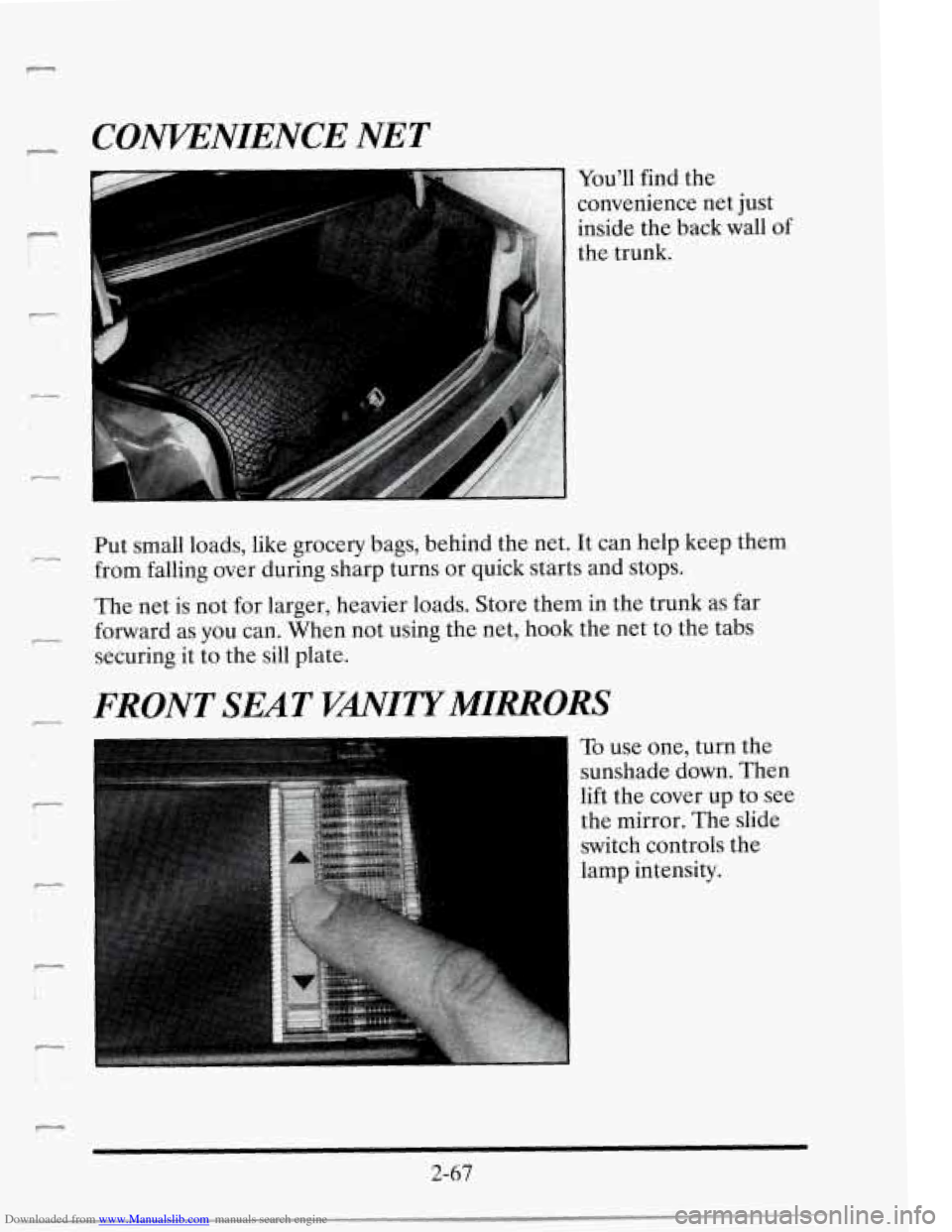

Downloaded from www.Manualslib.com manuals search engine COmNIENCE NET
r
r
You’ll find the
convenience net just
inside the back wall
of
the trunk.
Put small loads, like grocery bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and stops.
The net is not for larger, heavier loads. Store them in the trunk as far
forward as
you can. When not using the net, hook the net to the tabs
securing it to the sill plate.
FRONT SEAT VMITYMIIRRORS
To use one, turn the
sunshade down. Then
lift the cover up to see
the mirror. The slide
lamp intensitv.
I switch controls the
2-67
Page 139 of 410

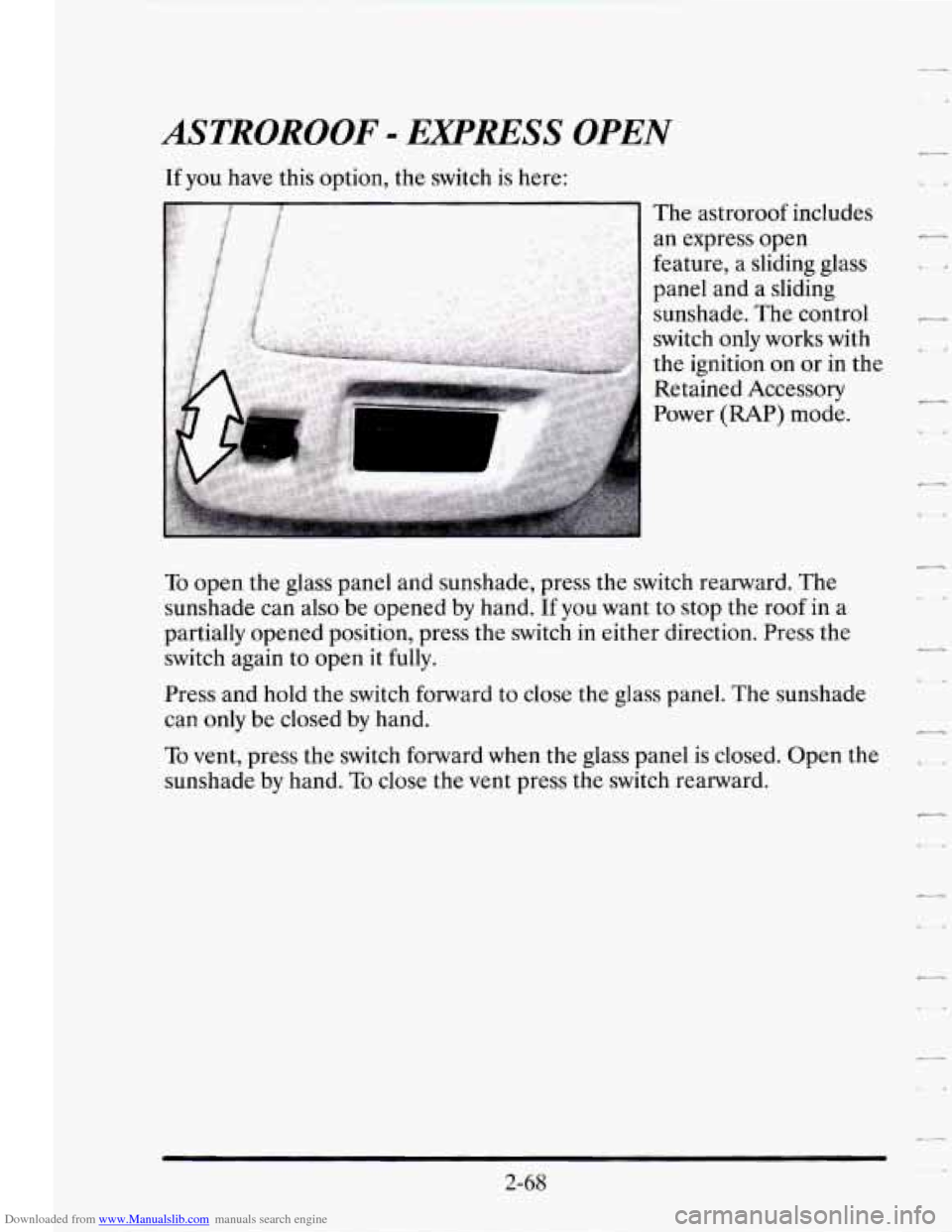

Downloaded from www.Manualslib.com manuals search engine ASTROROOF - EXPRESS OPEN
If you have this option, the switch is here:
The astroroof includes
an express open
feature, a sliding glass
panel and a sliding
sunshade. The control
switch only works with
the ignition
on or in the
Retained Accessory
Power
(RAP) mode.
To open the glass panel and sunshade, press the switch rearward. The
sunshade can also be opened by hand.
If you want to stop the roof in a
partially opened position, press the switch in either direction. Press the
switch again to open it fully.
Press and hold the switch forward to close the glass panel. The sunshade
can
only be closed by hand.
To vent, press the switch forward when the glass panel is closed. Open the
sunshade by hand. To close the vent press the switch rearward.
2-68
-
Page 140 of 410

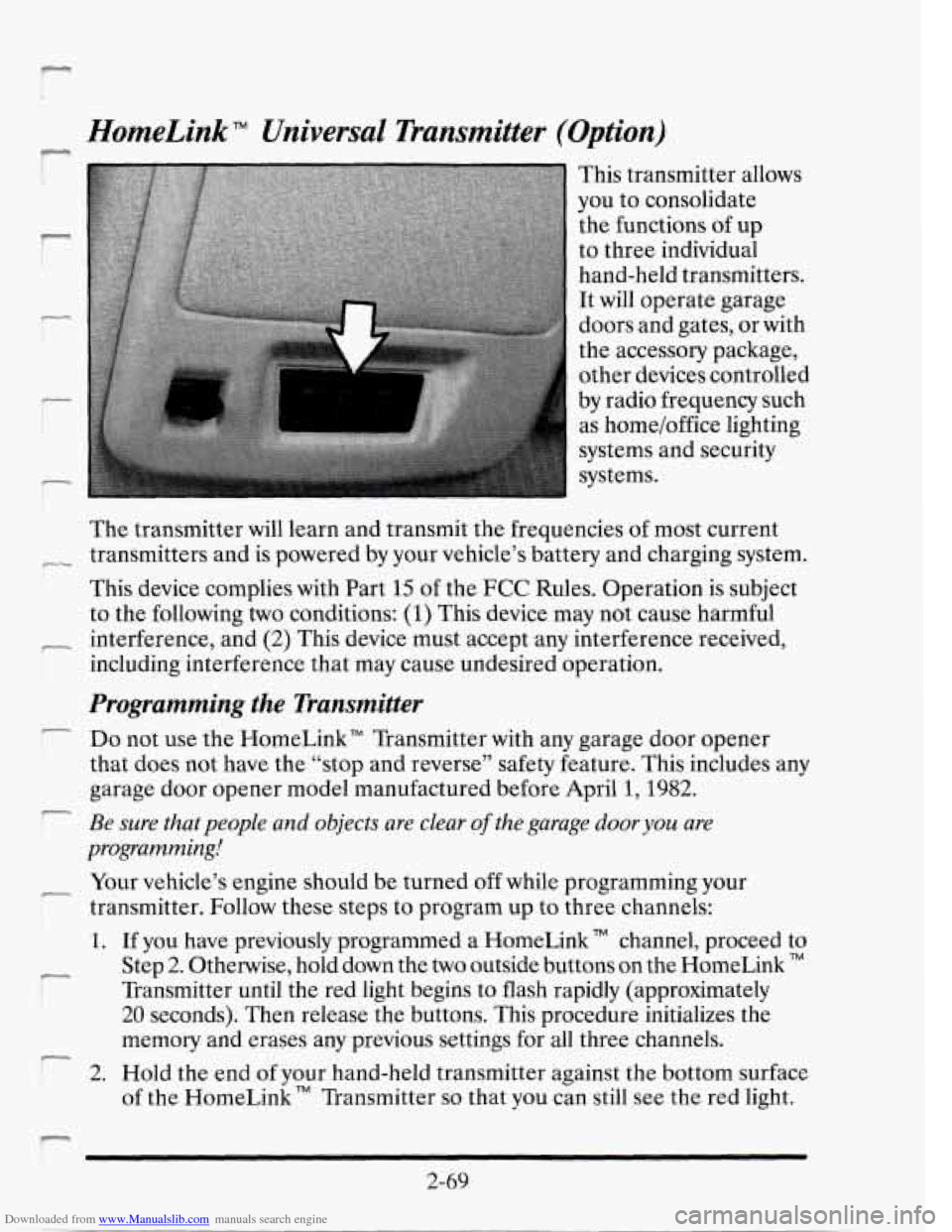

Downloaded from www.Manualslib.com manuals search engine HomeLink TM Universal Transmitter (Option) L
This transmitter allows
you to consolidate
to three individual
hand-held transmitters. It will operate garage
doors and gates, or with
the accessory package,
other devices controlled
as home/office lighting
r the functions of up
I
I by radio frequency such
systems and security
systems.
The transmitter will learn and transmit the frequencies
of most current
- transmitters and is powered by your vehicle’s battery and charging system.
This device complies with Part
15 of the FCC Rules. Operation is subject
to the following
two conditions: (1) This device may not cause harmful
including interference that may cause undesired operation.
- interference, and (2) This device must accept any interference received,
Programming the Transmitter
Do not use the HomeLink” Transmitter with any garage door opener
that does not have the “stop and reverse” safety feature. This includes any
garage door opener model manufactured before April
1,1982.
Be sure that people and objects are clear of the garage dooryou are
programming!
-
r
r Your vehicle’s engine should be turned off while programming your
transmitter. Follow these steps
to program up to three channels:
r
1. If you have previously programmed a HomeLink TM channel, proceed to
Step
2. Otherwise, hold down the two outside buttons on the HomeLink TM
Transmitter until the red light begins to flash rapidly (approximately
20 seconds). Then release the buttons. This procedure initializes the
memory and erases any previous settings for all three channels.
2. Hold the end of your hand-held transmitter against the bottom surface
of the HomeLink“ Transmitter so that you can still see the red light.
r
2-69
