CADILLAC SEVILLE 1995 4.G Owners Manual

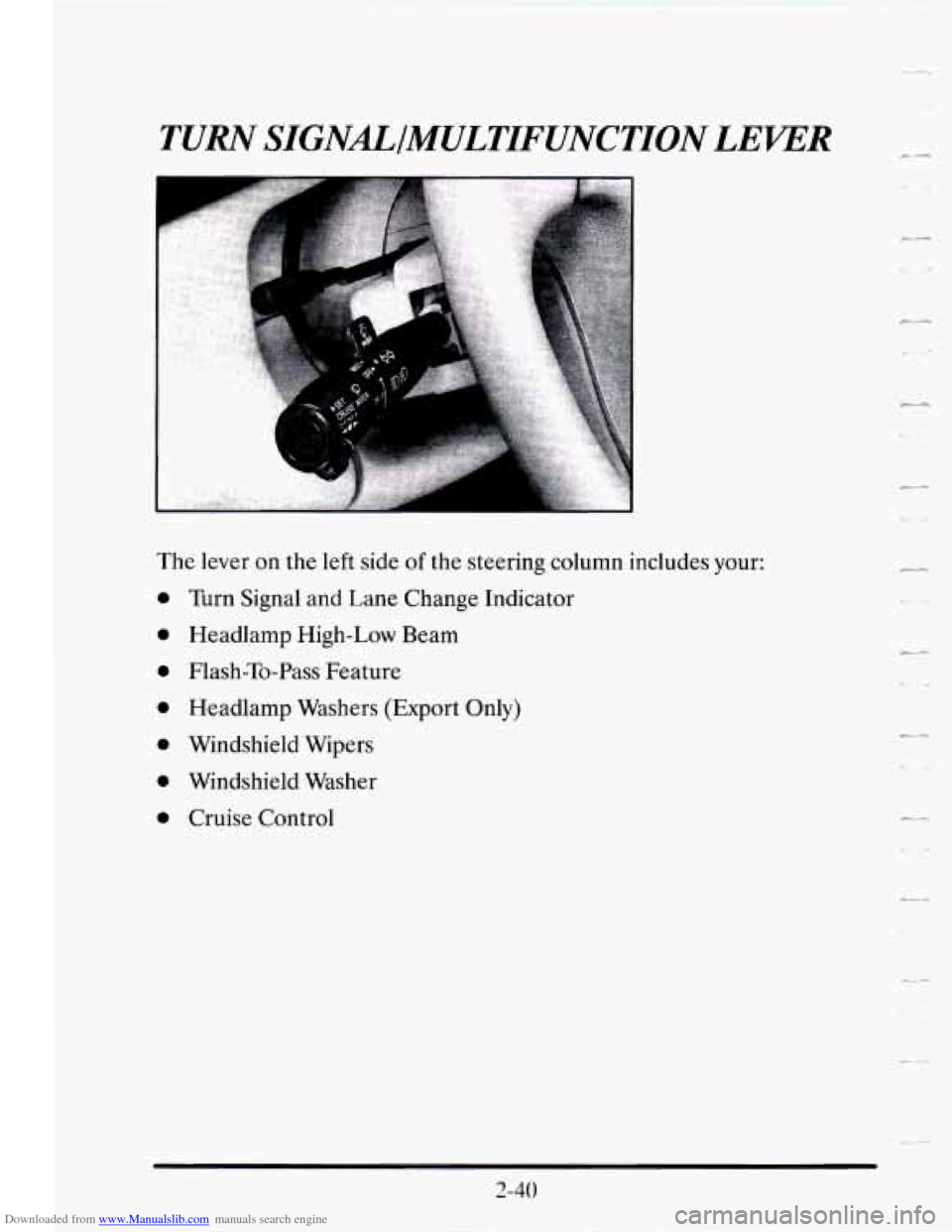

Downloaded from www.Manualslib.com manuals search engine TURN SIGNfiIMULTIFUNCTION LEVER
The lever on the left side of the steering column inch
Turn Signal and Lane Change Indicator
Headlamp High-Low Beam
Flash-To-Pass Feature
Headlamp Washers (Export Only)
Windshield Wipers
Windshield Washer
Cruise Control udes
your:
2-40

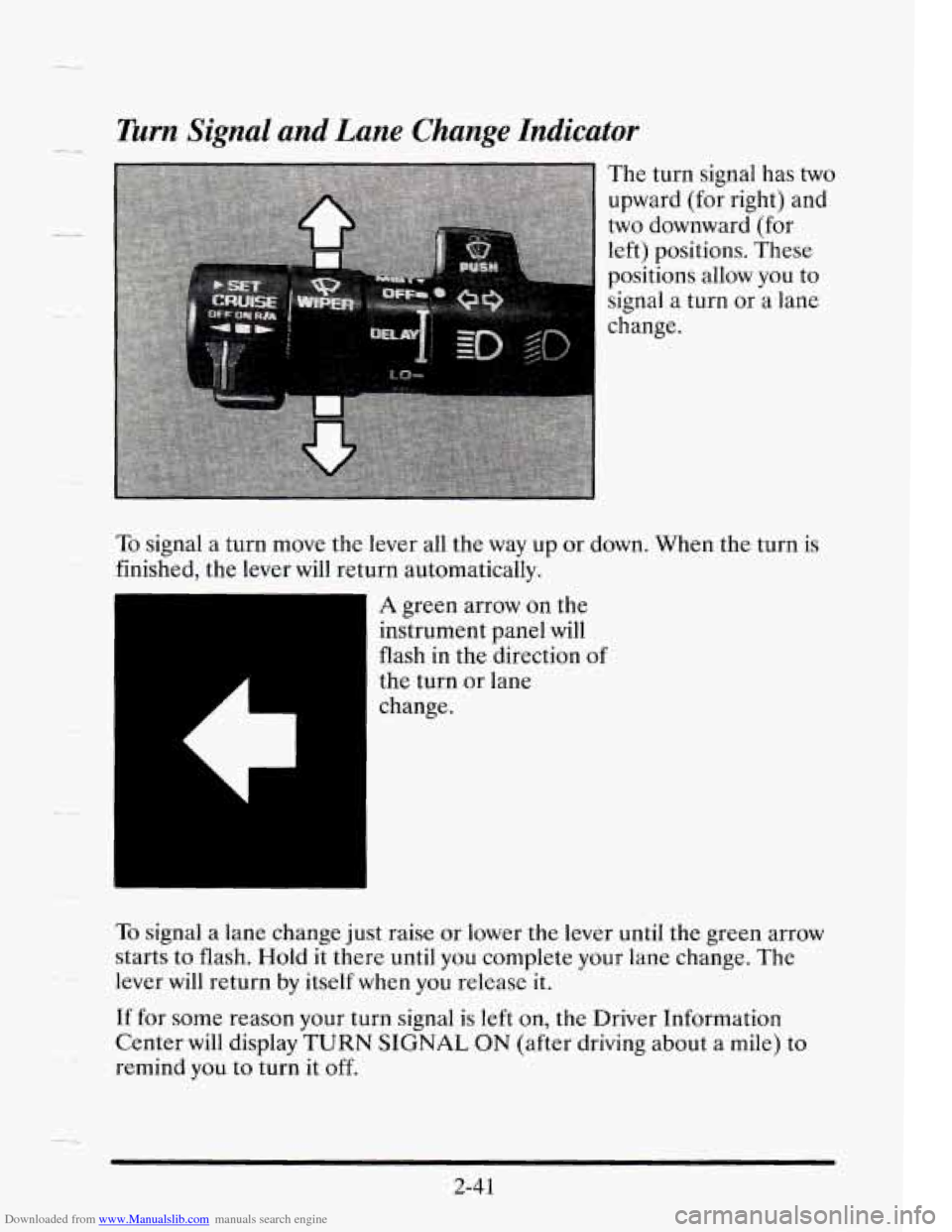

Downloaded from www.Manualslib.com manuals search engine Turn Signal and Lane Change Indicator
To signal a turn move the lever all the way up or down. When the turn is
finished, the lever will return automatically.
A green arrow on the
instrument panel will
flash in the direction
of
the turn or lane
change.
To signal a lane change just raise or lower the lever until the green arrow
starts to flash.
Hold it there until you complete your lane change. The
lever will return by itself when you release it.
If for some reason your turn signal is left on, the Driver Information
Center will display
TURN SIGNAL ON (after driving about a mile) to
remind you to turn it off.
2-41

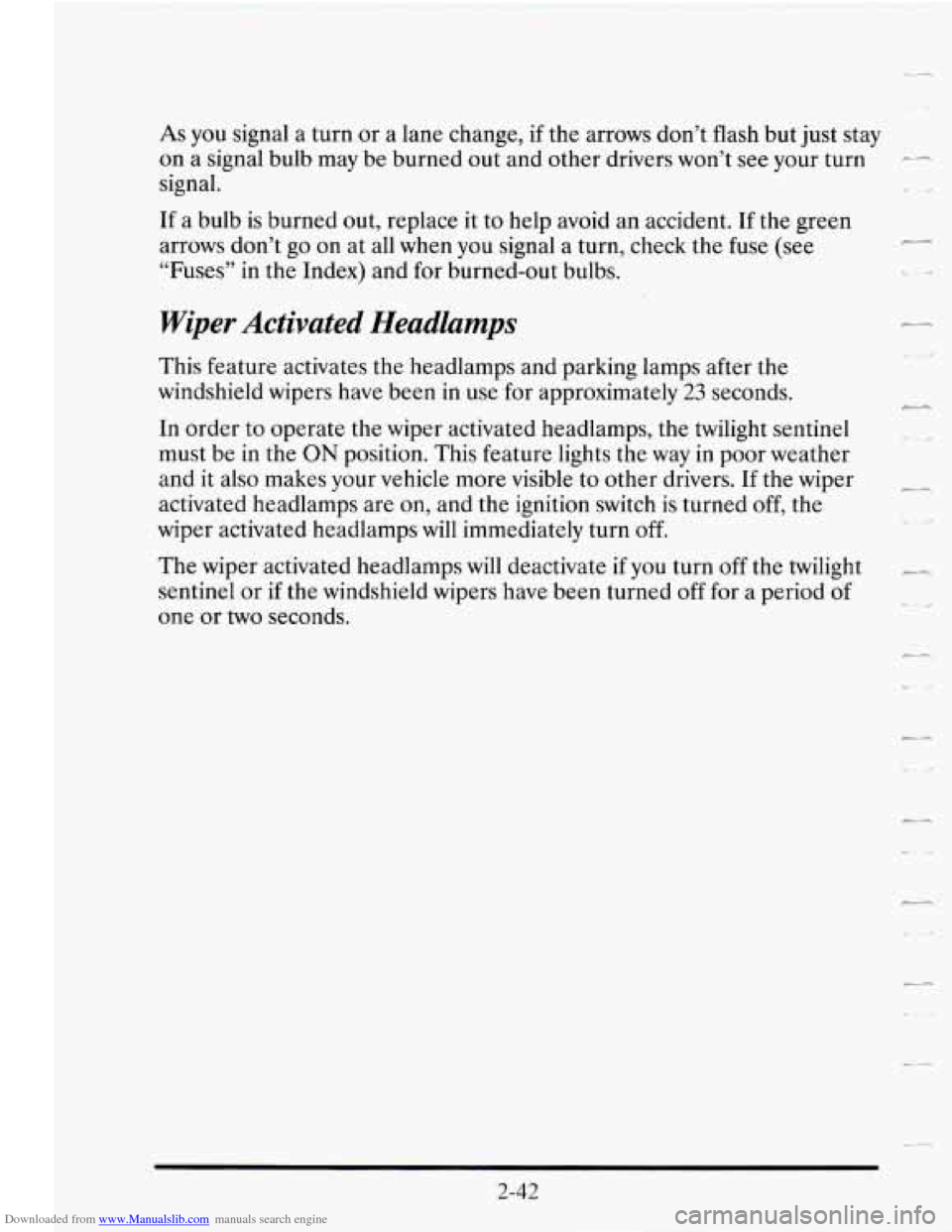

Downloaded from www.Manualslib.com manuals search engine As you signal a turn or a lane change, if the arrows don’t flash but just stay
on a signal bulb may be burned out and other drivers won’t see your turn
--
signal.
If
a bulb is burned out, replace it to help avoid an accident. If the green
arrows don’t go on at all when you signal
a turn, check the fuse (see
“Fuses’’ in the Index) and for burned-out bulbs.
Wiper Activated Headlamps
This feature activates the headlamps and parking lamps after the
windshield wipers have been in use
for approximately 23 seconds.
In order to operate the wiper activated headlamps, the twilight sentinel
must be in the
ON position. This feature lights the way in poor weather
and
it also makes your vehicle more visible to other drivers. If the wiper
activated headlamps are on, and the ignition switch is turned off, the
wiper activated headlamps
will immediately turn off.
The wiper activated headlamps will deactivate
if you turn off the twilight -
sentinel or if the windshield wipers have been turned off for a period of
one or two seconds.
2-42

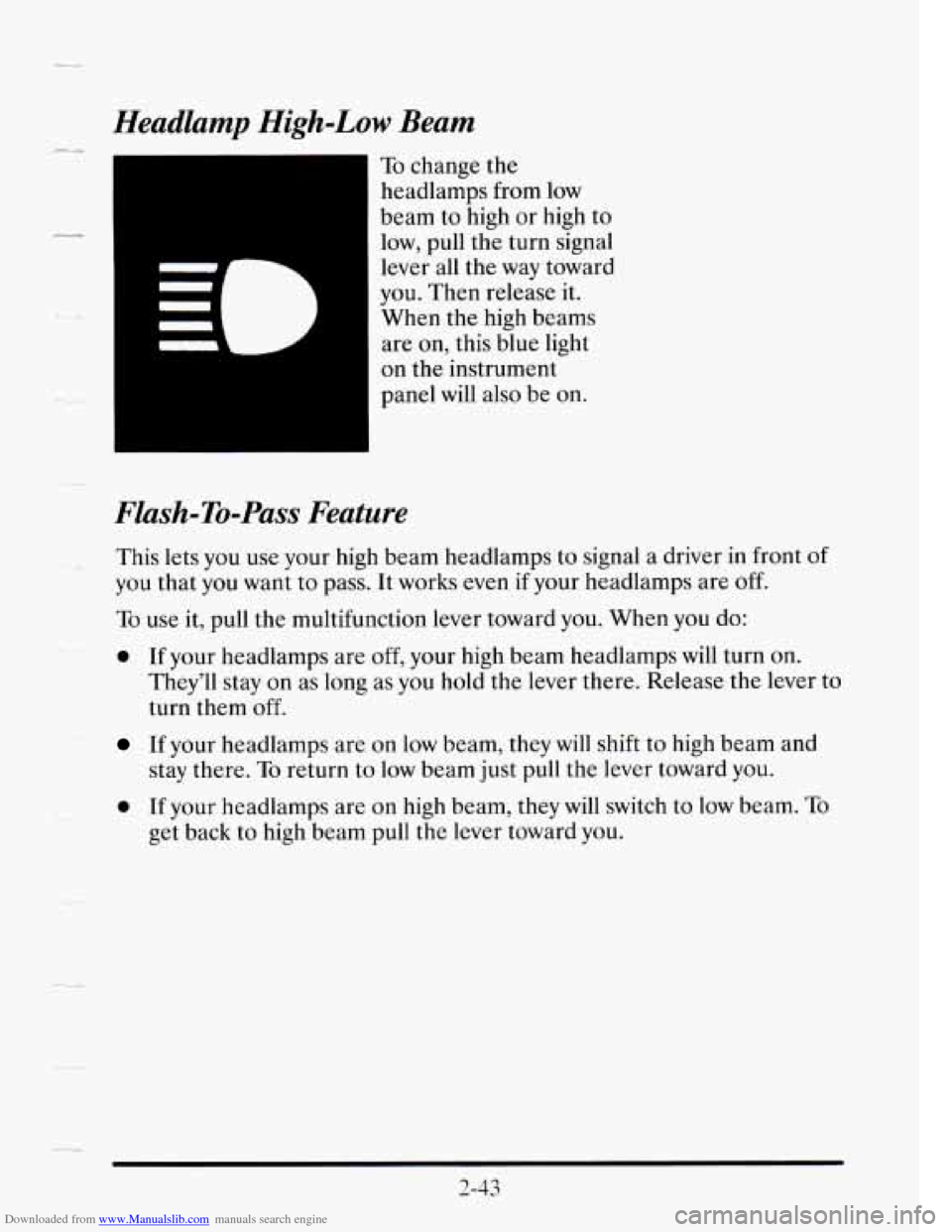

Downloaded from www.Manualslib.com manuals search engine Headlamp High-Low Beam
1
To change the
headlamps from low
beam to high or high to
low, pull the turn signal
lever all the way toward
you. Then release it.
When the high beams
are on, this blue light
I
on the instrument
panel will also be on.
--
Flash-To-Pass Feature
This lets you use your high beam headlamps to signal a driver in front of
you that you want to pass. It works even if your headlamps are off.
To use it, pull the multifunction lever toward you. When you do:
0 If your headlamps are off, your high beam headlamps will turn on.
They’ll stay on as long as you hold the lever there. Release the lever to
turn them
off.
If your headlamps are on low beam, they will shift to high beam and
stay there.
To return to low beam just pull the lever toward you.
0 If your headlamps are on high beam, they will switch to low beam. To
get back to high beam pull the lever toward you.

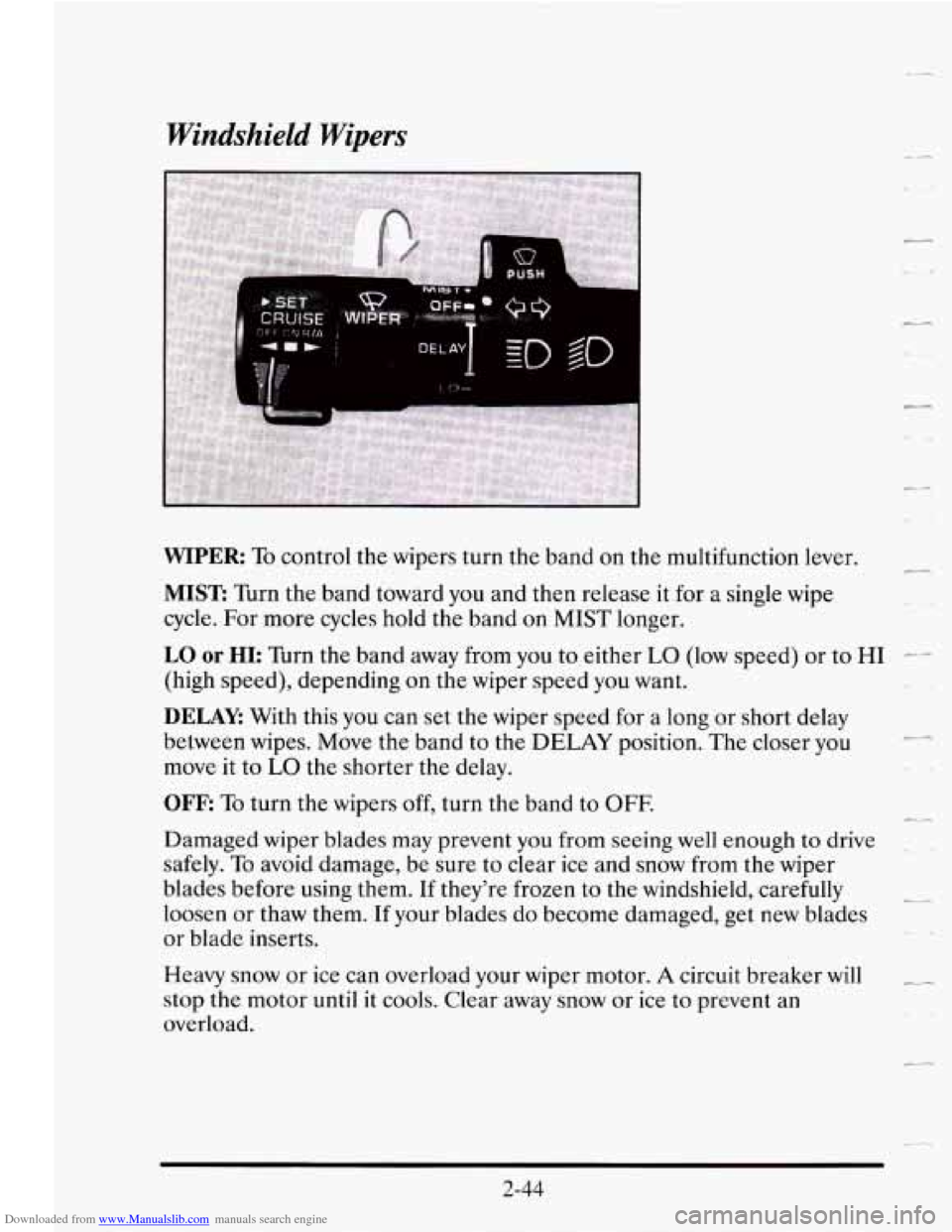

Downloaded from www.Manualslib.com manuals search engine Windshield Wipers
WIPER To control the wipers turn the band on the multifuncrlon lever.
MIST: Turn the band toward you and then release it for a single wipe
cycle. For more cyc1e.s hold the band
on MIST longer.
LO or HI: Turn the band away from you to either LO (low speed) or to HI --
(high speed), depending on the wiper speed you want.
c_
DELAY: With this you can set the wiper speed for a long or short delay
between wipes. Move the band to the
DELAY position. The closer you
move it to
LO the shorter the delay.
OFF To turn the wipers off, turn the band to OFF.
Damaged wiper blades may prevent you from seeing well enough to drive ~
safely. To avoid damage, be sure to clear ice and snow from the wiper
blades before using them. If they're frozen
to the windshield, carefully
loosen or thaw them.
If your blades do become damaged, get new blades
or blade inserts.
-
Heavy snow or ice can overload your wiper motor. A circuit breaker will __
stop the motor until it cools. Clear away snow or ice to prevent an
overload.
2-44

Downloaded from www.Manualslib.com manuals search engine F 4
7

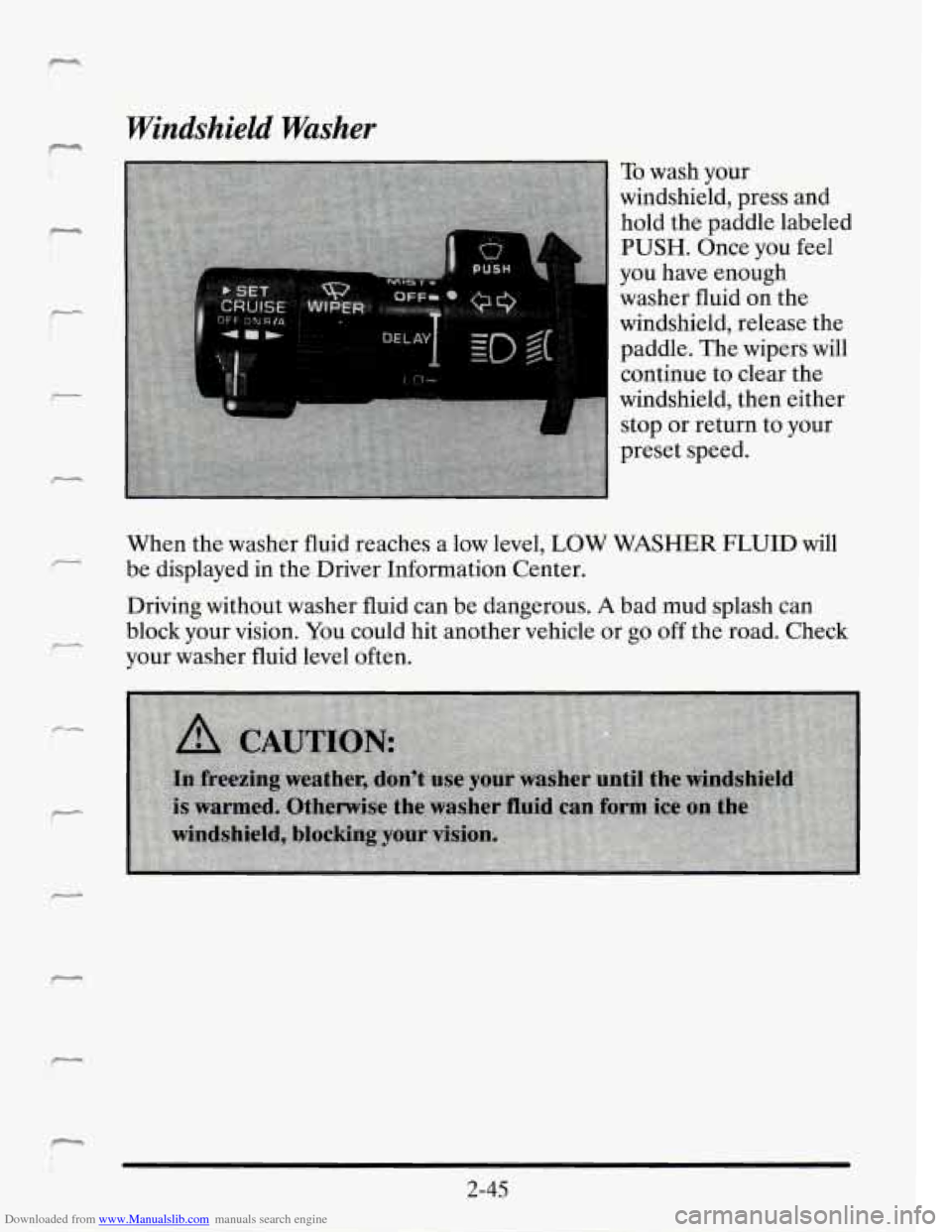

Windshield Washer
To wash your
windshield, press and
hold the paddle labeled
PUSH. Once you feel
you have enough
washer fluid on the
windshield, release the
paddle. The wipers will
continue to clear the
windshield, then either
stop or return to your
preset speed.
When the washer fluid reaches a low level,
LOW WASHER FLUID will
be displayed in the Driver Information Center.
Driving without washer fluid can be dangerous.
A bad mud splash can
block your vision.
You could hit another vehicle or go off the road. Check
your washer fluid level often.
2-45

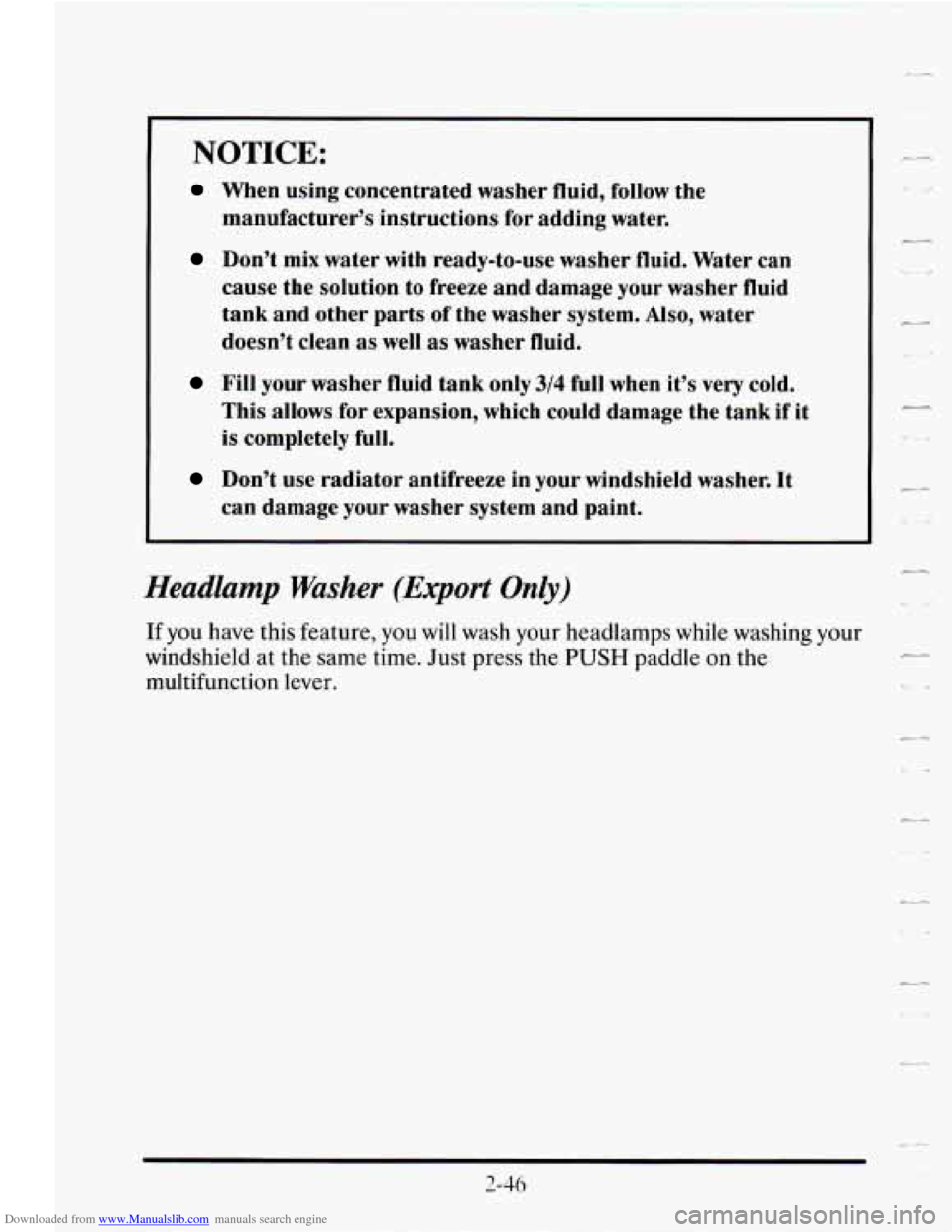

Downloaded from www.Manualslib.com manuals search engine NOTICE:
When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
Don’t mix water with ready-to-use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts
of the washer system. Also, water
doesn’t clean as well
as washer fluid.
Fill your washer fluid tank only 3/4 full when it’s very cold.
This allows for expansion, which could damage the tank if it
is completely full.
Don’t use radiator antifreeze in your windshield washer. It
can damage your washer system and paint.
Headlamp Washer (Export Only)
If you have this feature, you will wash your headlamps while washing your
windshield at the same time. Just press the
PUSH paddle on the
multifunction lever.

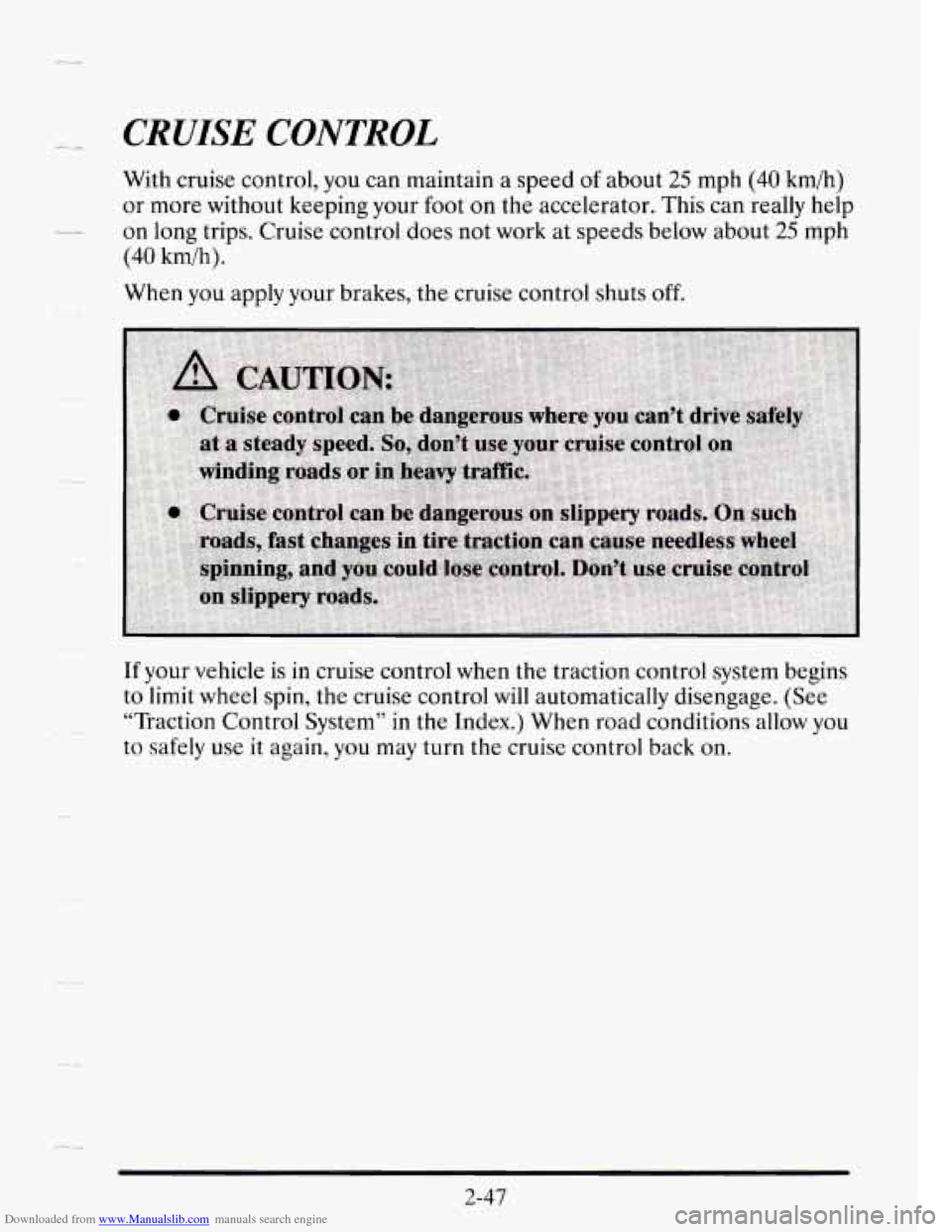

Downloaded from www.Manualslib.com manuals search engine -- CRUISE CONTROL
With cruise control, you can maintain a speed of about 25 mph (40 km/h)
or more without keeping your foot
on the accelerator. This can really help
(40 kmih).
When you apply your brakes, the cruise control shuts off.
-- on long trips. Cruise control does not work at speeds below about 25 mph
If your vehicle is in cruise control when the traction control system begins
to limit wheel spin, the cruise control will automatically disengage. (See
“Traction Control System”
in the Index.) When road conditions allow you
to safely use it again,
you may turn the cruise control back on.
A-
2-47

Downloaded from www.Manualslib.com manuals search engine To Set Cruise Control
W
1. Move the cruise
control switch to
ON.
0
0 5
c
0
2-48

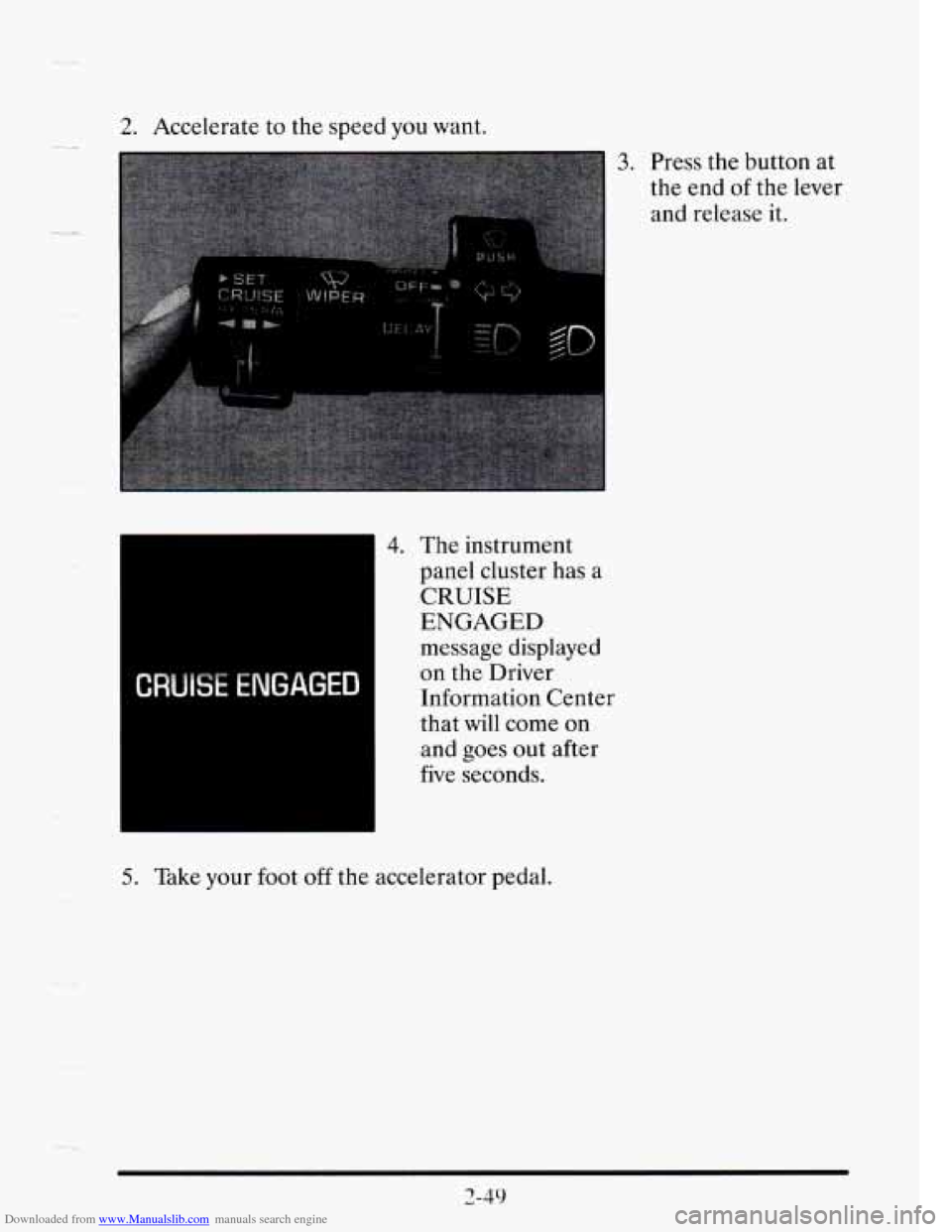

Downloaded from www.Manualslib.com manuals search engine 2. Accelerate to the speed you want.
3. Press the button at
the end
of the lever
and release it.
rc- -- I
message displayed
on the Driver
Information Center
that
will come on
and goes out after
five seconds.
5. Take your foot off the accelerator pedal.
