CADILLAC SEVILLE 1995 4.G Owners Manual

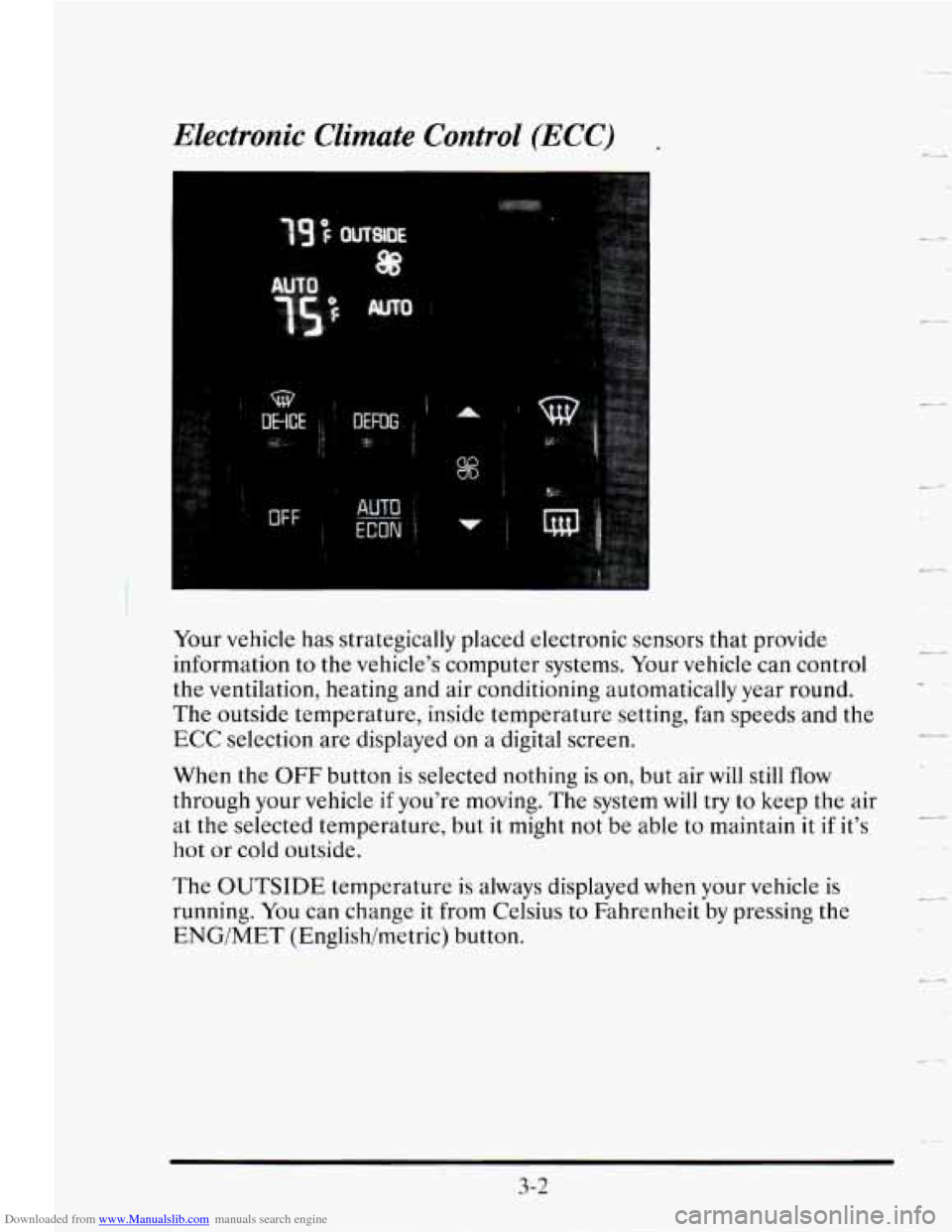

Downloaded from www.Manualslib.com manuals search engine Your vehicle has strategically placed electronic sensors that provide
information to the vehicle's computer systems. Your vehicle can control
the ventilation, heating and air conditioning automatically year round.
The outside temperature, inside temperature setting, fan speeds and the
ECC selection are displayed on a digital screen.
When the
OFF button is selected nothing is on, but air will still flow
through your vehicle if you're moving. The system will try to keep the air
at the selected temperature, but
it might not be able to maintain it if it's
hot or cold outside.
The
OUTSIDE temperature is always displayed when your vehicle is
running.
You can change it from Celsius to Fahrenheit by pressing the
ENG/MET (Englishhetric) button.
c-
-
3-2

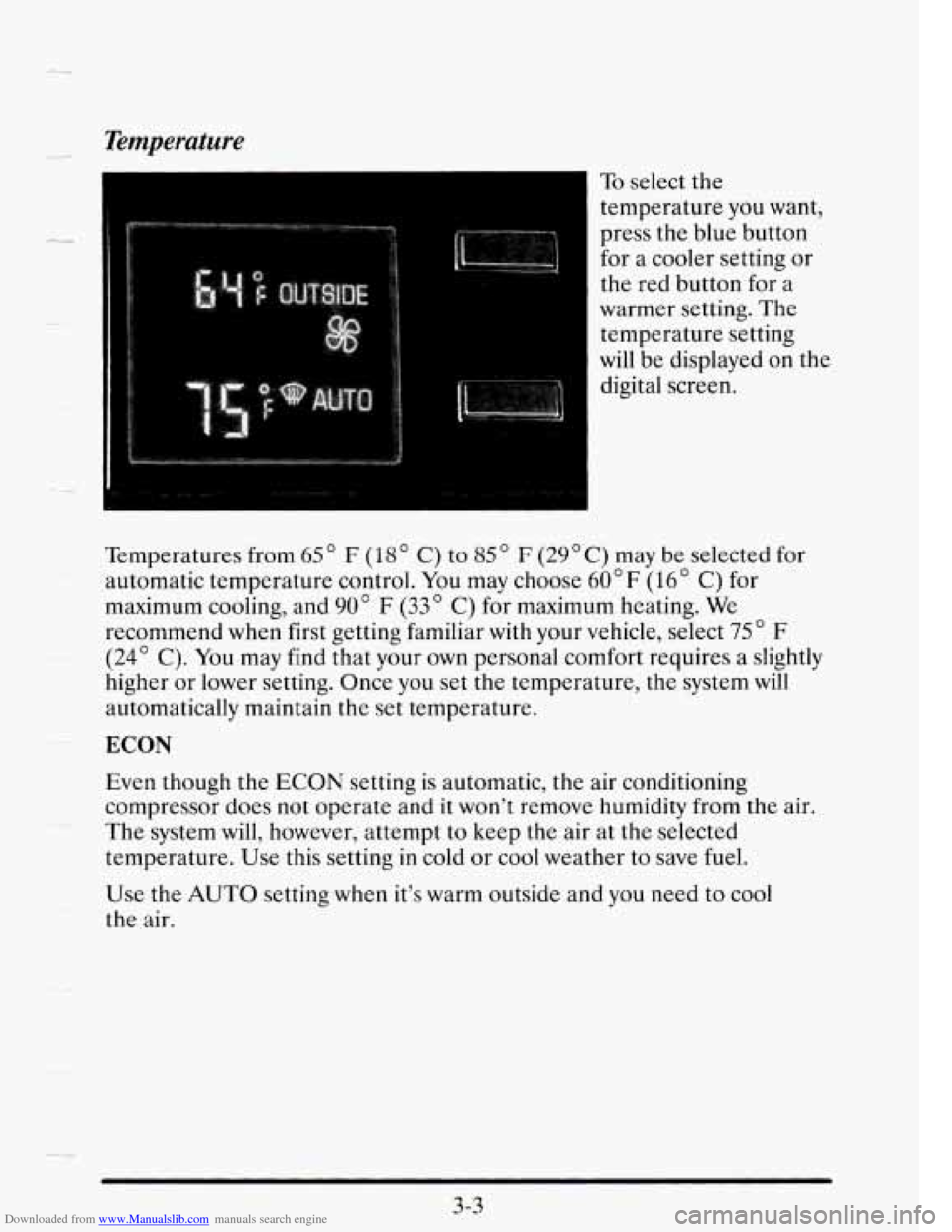

Downloaded from www.Manualslib.com manuals search engine Temperature
To select the
temperature you want,
press the blue button
for
a cooler setting or
the red button for a
warmer setting. The
temperature setting
will be displayed on the
digital screen.
Temperatures from
65" F (18" C) to 85 " F (29OC) may be selected for
automatic temperature control. You may choose
60" F (16" C) for
maximum cooling, and
90" F (33 C) for maximum heating. We
recommend when first getting familiar with your vehicle, select 75" F
(24' C). You may find that your own personal comfort requires a slightly
higher or lower setting. Once you set the temperature, the system will
automatically maintain the set temperature. --
ECON
Even though the ECON setting is automatic, the air conditioning
compressor does not operate and it won't remove humidity from the air.
The system will, however, attempt
to keep the air at the selected
temperature. Use this setting in cold or cool weather
to save fuel.
Use the AUTO setting when it's warm outside and you need to cool
the air.
3-3
-4

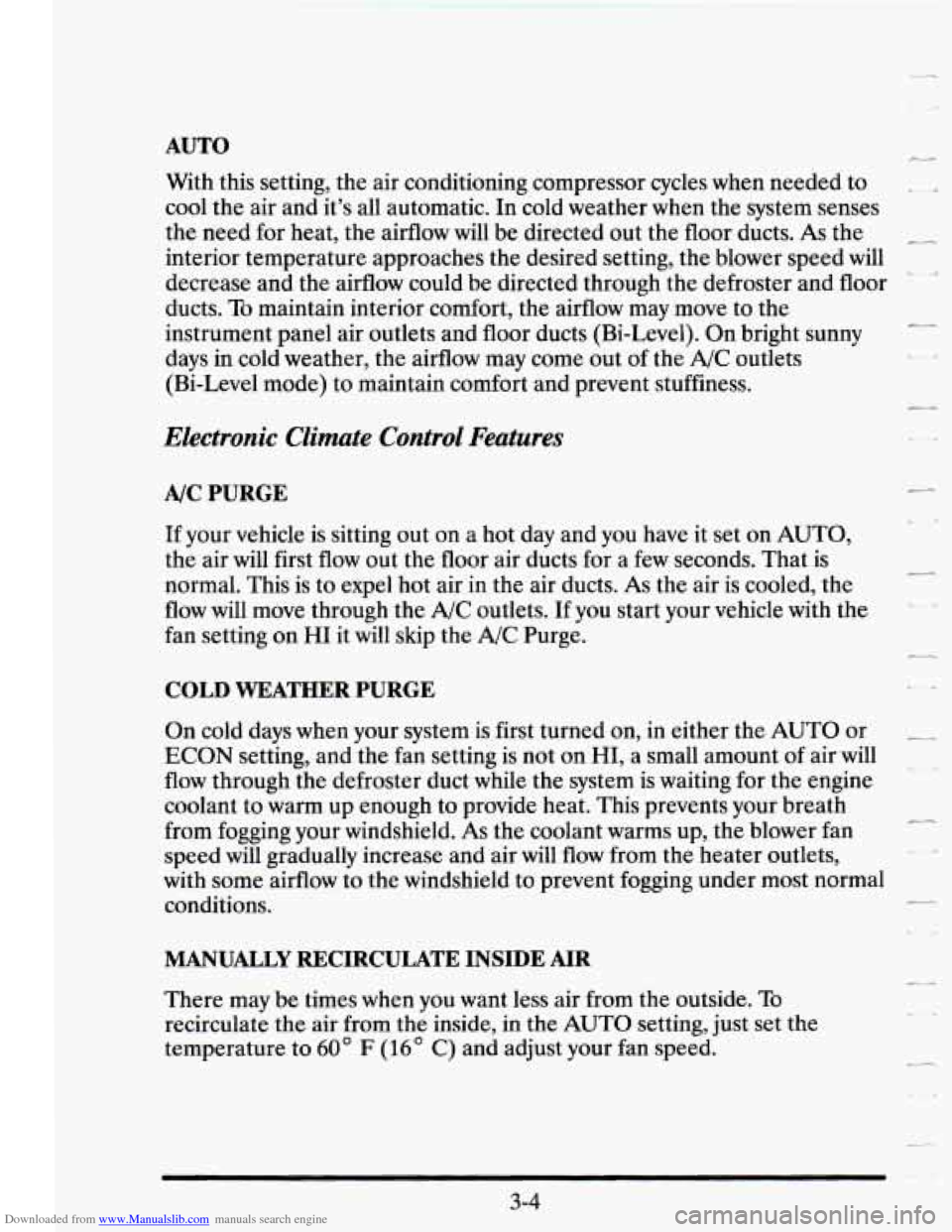

Downloaded from www.Manualslib.com manuals search engine AUTO
With this setting, the air conditioning compressor cycles when needed to
cool the air and it's all automatic. In cold weather when the system senses
the need
for heat, the airflow will be directed out the floor ducts. As the r--T
interior temperature approaches the desired setting, the blower speed will
decrease and the airflow could be directed through the defroster and floor
ducts.
To maintain interior comfort, the airflow may move to the
instrument panel air outlets and floor ducts (Bi-Level).
On bright sunny
days in cold weather, the airflow may come out
of the A/C outlets
(Bi-Level mode) to maintain comfort and prevent stuffiness.
Electronic Climate Control Features
A/C PURGE
If your vehicle is sitting out on a hot day and you have it set on AUTO,
the air will first
flow out the floor air ducts for a few seconds. That is
normal. This is to expel hot air in the air ducts.
As the air is cooled, the
flow will move through the
A/C outlets. If you start your vehicle with the
fan setting on HI it will skip the
A/C Purge.
COLD WEATHER PURGE
-.
On cold days when your system is first turned on, in either the AUTO or
ECON setting, and the fan setting is not on HI, a small amount of air will
flow through the defroster duct while the system is waiting for the engine
coolant to warm up enough to provide heat. This prevents your breath
from fogging your windshield. As the coolant warms up, the blower fan
speed will gradually increase and air will flow from the heater outlets, .. 3
with some airflow to the windshield to prevent fogging under most normal
conditions.
MANUALLY RECIRCULATE INSIDE AIR
There may be times when you want less air from the outside. To
recirculate the air from the inside, in the AUTO setting, just set the
temperature to
60" F (16O C) and adjust your fan speed.
-.
3-4

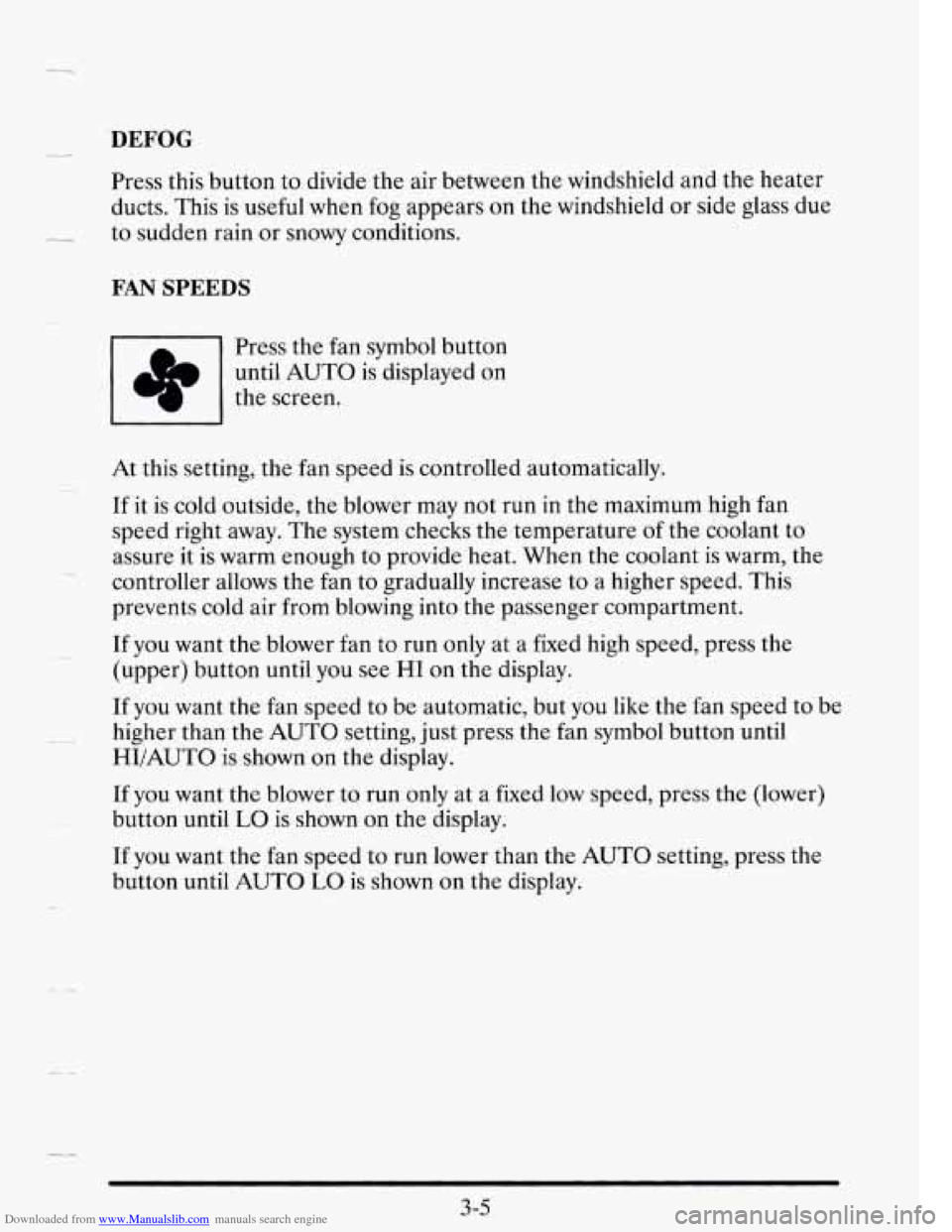

Downloaded from www.Manualslib.com manuals search engine DEFOG
Press this button to divide the air between the windshield and the heater
ducts. This is useful when fog appears on the windshield or side glass due
to sudden rain or snowy conditions.
FAN SPEEDS
Press the fan symbol button
until AUTO is displayed on
At this setting, the fan speed is controlled automatically.
If it is cold outside, the blower may not run in the maximum high fan
speed right away. The system checks the temperature of the coolant to
assure it is warm enough to provide heat. When the coolant is warm, the
controller allows the fan to gradually increase to a higher speed. This
prevents cold air from blowing into the passenger compartment.
If you want the blower fan to run only at a fixed high speed, press the
(upper) button until you see
HI on the display.
If you want the fan speed to be automatic, but you like the fan speed to be
higher than the AUTO setting, just press the fan symbol button until
HI/AUTO is shown on the display.
If
you want the blower to run only at a fixed low speed, press the (lower)
button until
LO is shown on the display.
If you want the fan speed to run lower than the AUTO setting, press the
button until AUTO
LO is shown on the display.
3-5

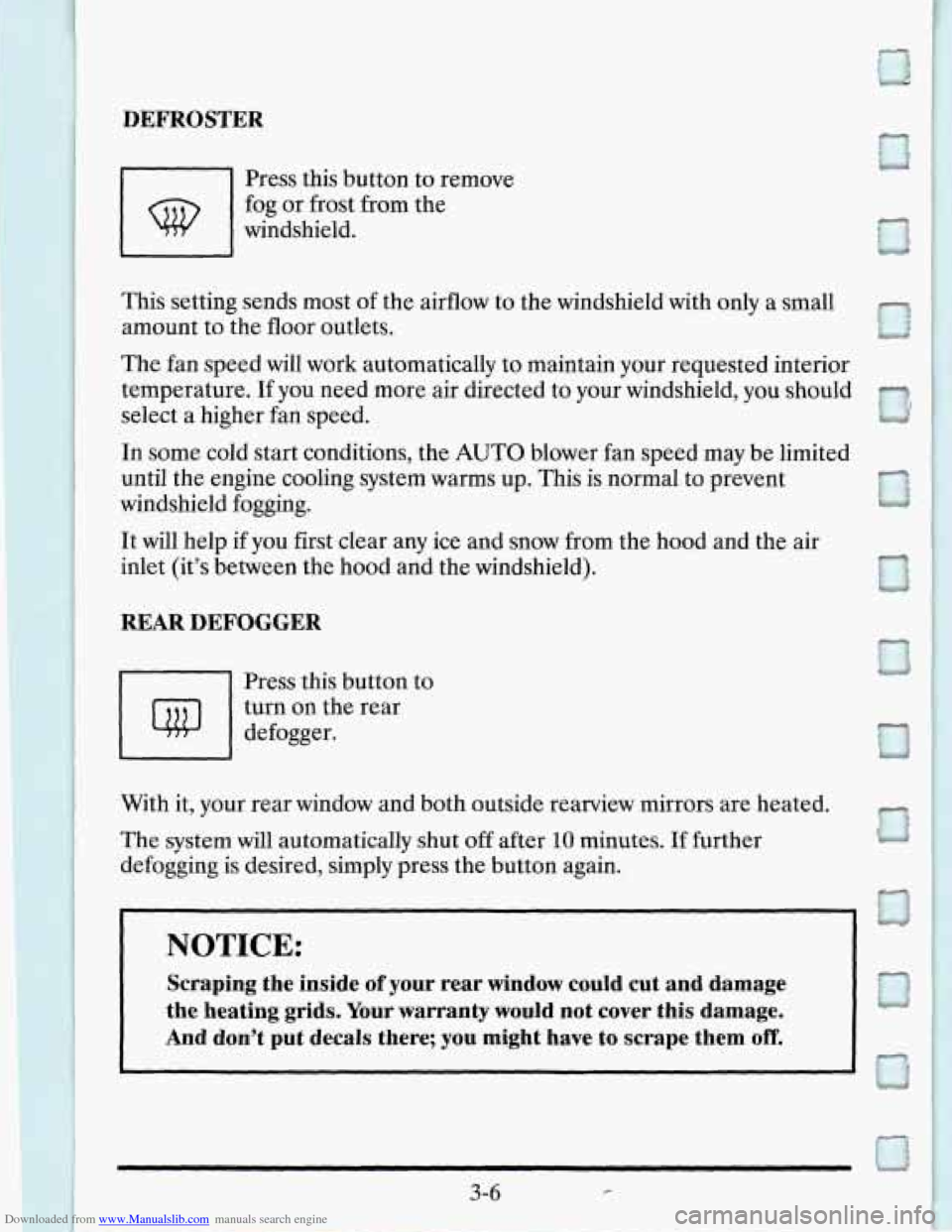

Downloaded from www.Manualslib.com manuals search engine DEFROSTER
Press this button to remove
fog
or frost from the
windshield.
This setting sends most
of the airflow to the winds
amount to the floor outlets. ,hield
with only a small
6(
The fan speed will work automatically to maintain your requested interior
temperature. If you need more air directed to your windshield, you should
select a higher fan speed.
f4
In some cold start conditions, the AUTO blower fan speed may be limited
until the engine cooling system warms up. This is normal to prevent
windshield fogging.
a
It will help if you first clear any ice and snow from the hood and the air
inlet (it’s between the hood and the windshield).
EAR DEFOGGER
n Press this button to
@ defogger. turn on the rear
With it, your rear window and both outside rearview mirrors are heated,
The system will automatically shut off after 10 minutes. If further
defogging
is desired, simply press the button again.
NOTICE:
Scraping the inside of your rear window could cut and damage
the heating
grids. Your warranty would not cover this damage.
And don’t put decals there; you might have to
scrape them off. 1
I
13
a
a
c1

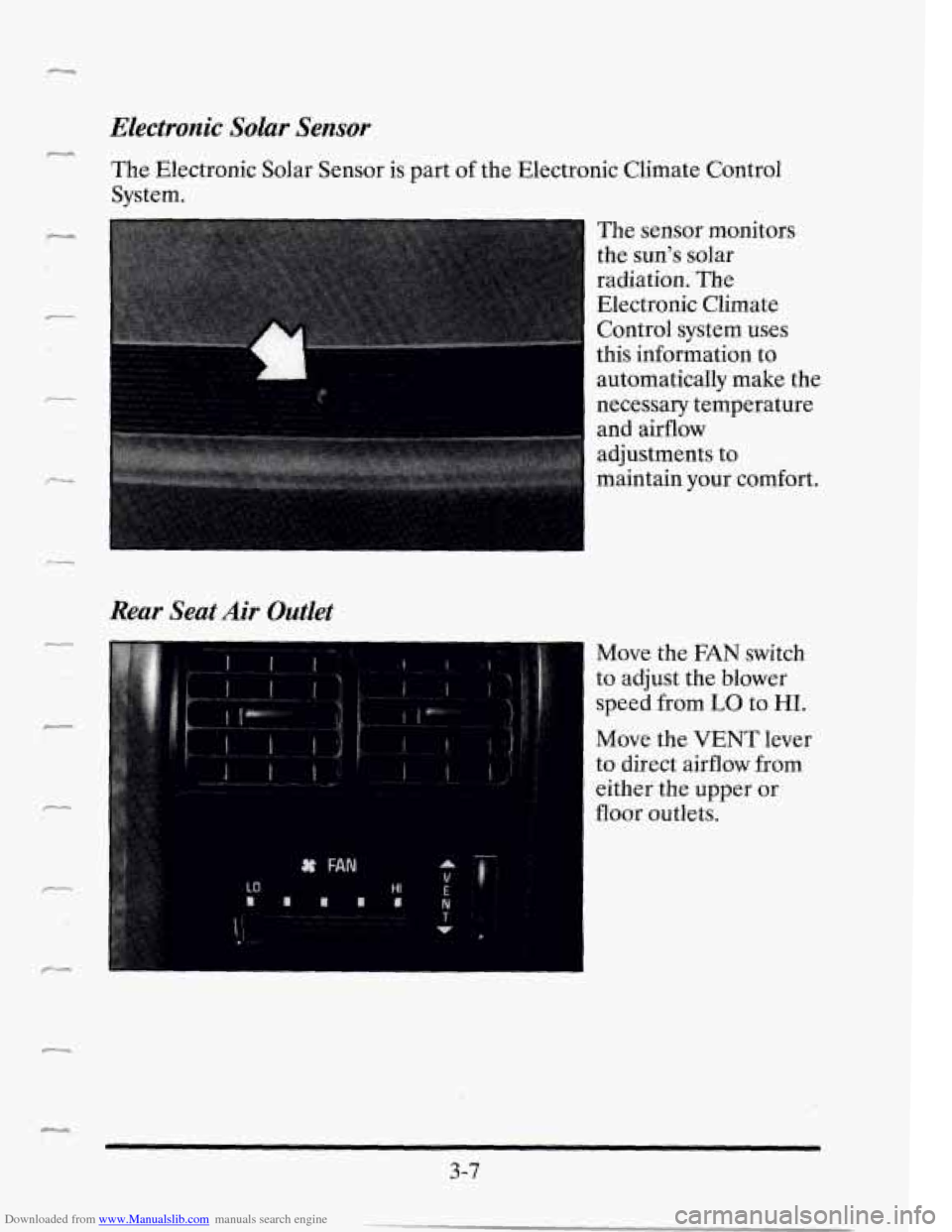

Downloaded from www.Manualslib.com manuals search engine Electronic Solar Sensor
The Electronic Solar Sensor is part of the Electronic Climate Control
System.
-
The sensor monitors
the sun's solar
radiation. The
Electronic Climate
Control system uses
this information to
I automatically make the
necessary temperature
and airflow
adjustments to
maintain your comfort.
f
Rear Seat Air Outlet
F
Move the FAN switch
to adjust the blower
speed from
LO to HI.
Move the VENT lever
to direct airflow from
either the upper or
floor outlets.
Ic.L,
3-7

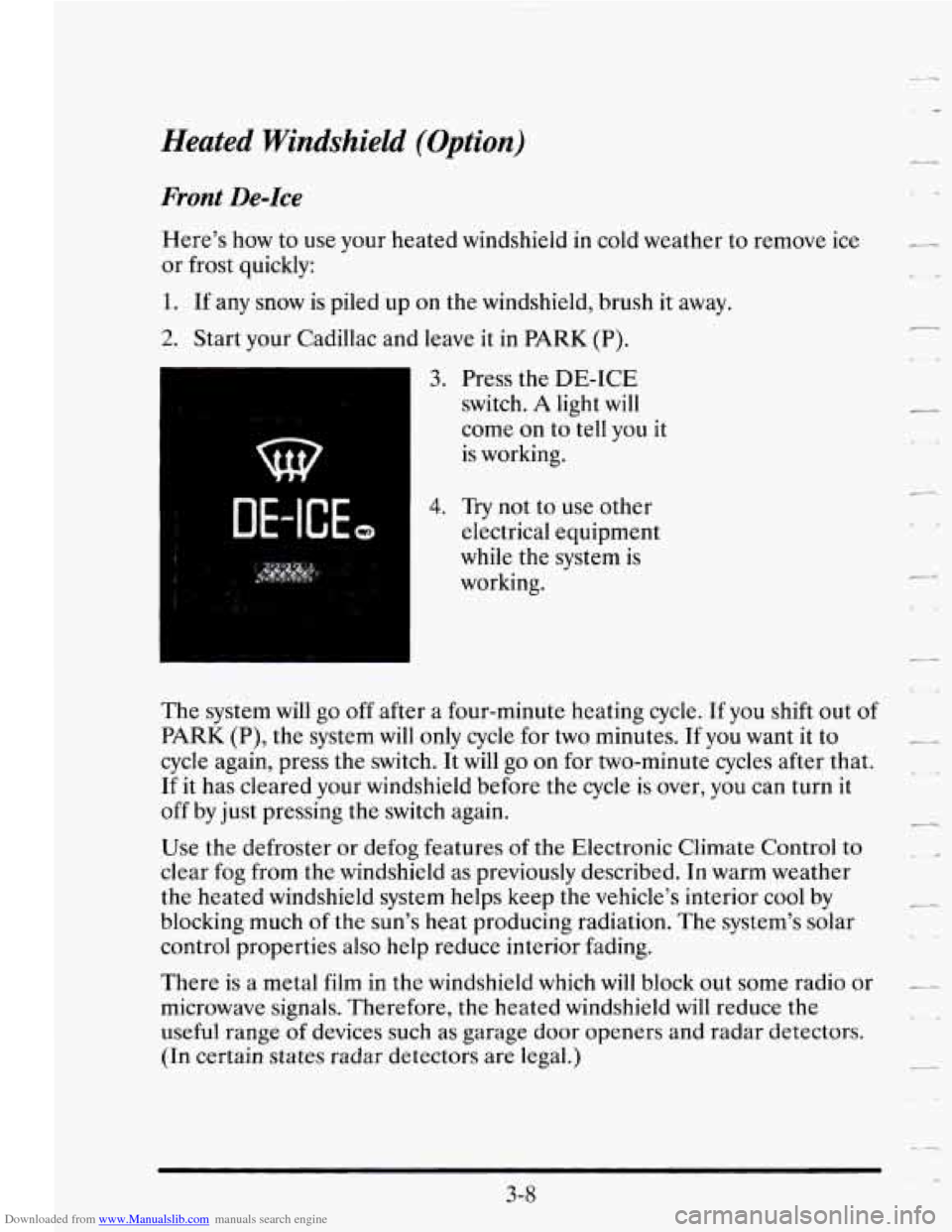

Downloaded from www.Manualslib.com manuals search engine Heated Windshield (Option)
Front De-Ice
Here’s how to use your heated windshield in cold weather to remove ice
or frost quickly:
1. If any snow is piled up on the windshield, brush it away.
2. Start your Cadillac and leave it in PARK (P).
w
DE-ICEa
3. Press the DE-ICE
switch.
A light will
come
on to tell you it
is working.
4. Try not to use other
electrical equipment
while the system is
working.
The system will go off after a four-minute heating cycle. If you shift out
of
PARK (P), the system will only cycle for two minutes. If you want it to
cycle again, press the switch. It will go on for two-minute cycles after that.
If it has cleared your windshield before the cycle is over, you can turn it
off by
just pressing the switch again.
Use the defroster or defog features of the Electronic Climate Control
to
clear fog from the windshield as previously described. In warm weather
the heated windshield system helps keep the vehicle’s interior cool by
blocking much
of the sun’s heat producing radiation. The system’s solar
control properties also help reduce interior fading.
There is
a metal film in the windshield which will block out some radio or
microwave signals. Therefore, the heated windshield will reduce the
useful range
of devices such as garage door openers and radar detectors.
(In certain
states radar detectors are legal.)
3-8
r

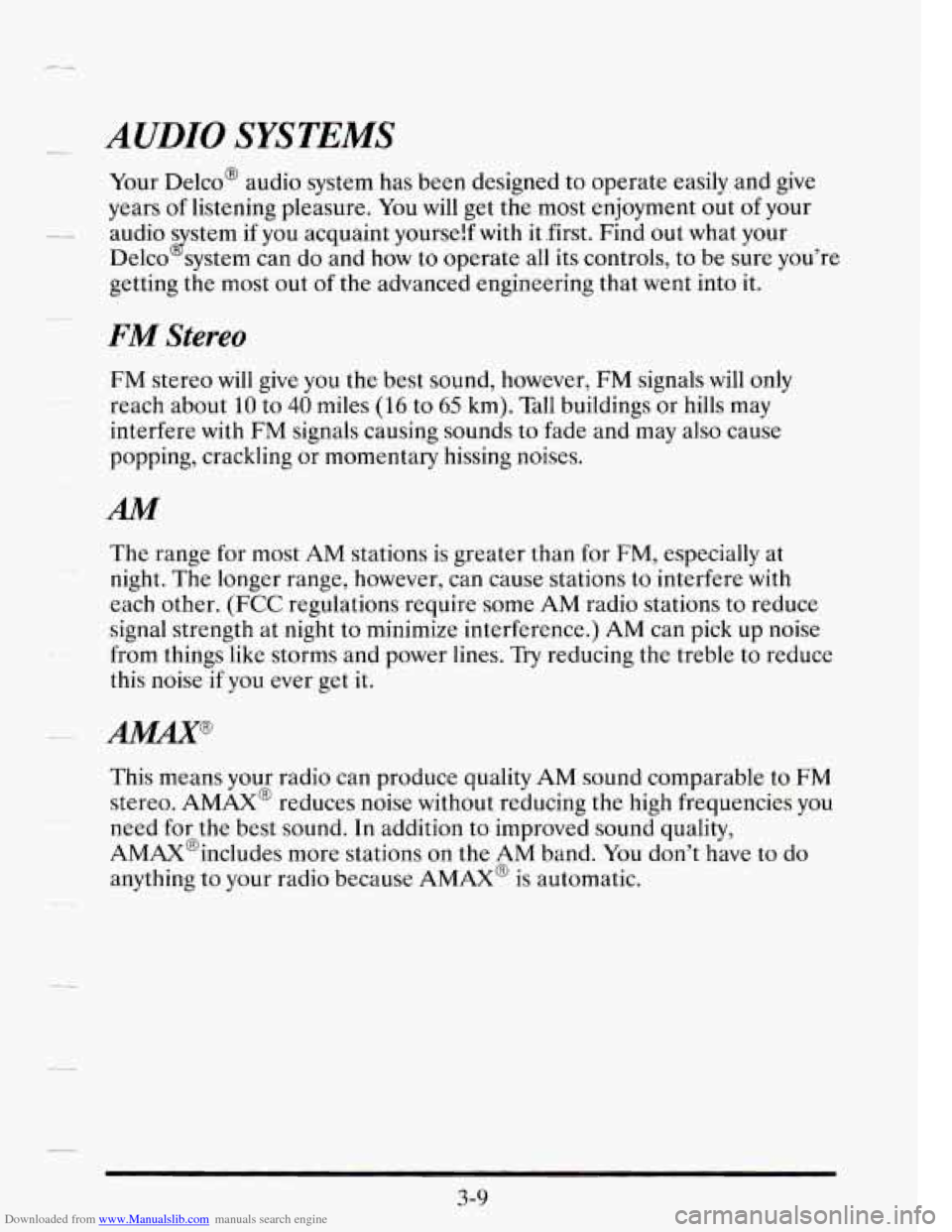

Downloaded from www.Manualslib.com manuals search engine - AUDIO SYSTEMS
Your Delco@ audio system has been designed to operate easily and give
years
of listening pleasure. You will get the most enjoyment out of your
Delco system can do and
how to operate all its controls, to be sure you’re
getting the most out
of the advanced engineering that went into it.
___ audio s stem if you acquaint yourself with it .first. Find out what your
J
FM Stereo
FM stereo will give you the best sound, however, FM signals will only
reach about
10 to 40 miles (16 to 65 km). Tall buildings or hills may
interfere with
FM signals causing sounds to fade and may also cause
popping, crackling or momentary hissing noises.
AM
-9 The range for most AM stations is greater than for EM, especially at
night. The longer range, however, can cause stations to interfere
with
each other. (FCC regulations require some AM radio stations to reduce
signal strength at night to minimize interference.) AM can pick up noise
from things like storms and power lines.
Try reducing the treble to reduce
this noise
if you ever get it.
This means your radio can produce quality AM sound comparable to
FM
stereo. AMAX@ reduces noise without reducing the high frequencies you
need for the best sound. In addition to improved sound quality,
AMAX@includes more stations on the AM band. You don’t have to
do
anything to your radio because AMAX@ is automatic.
3-9

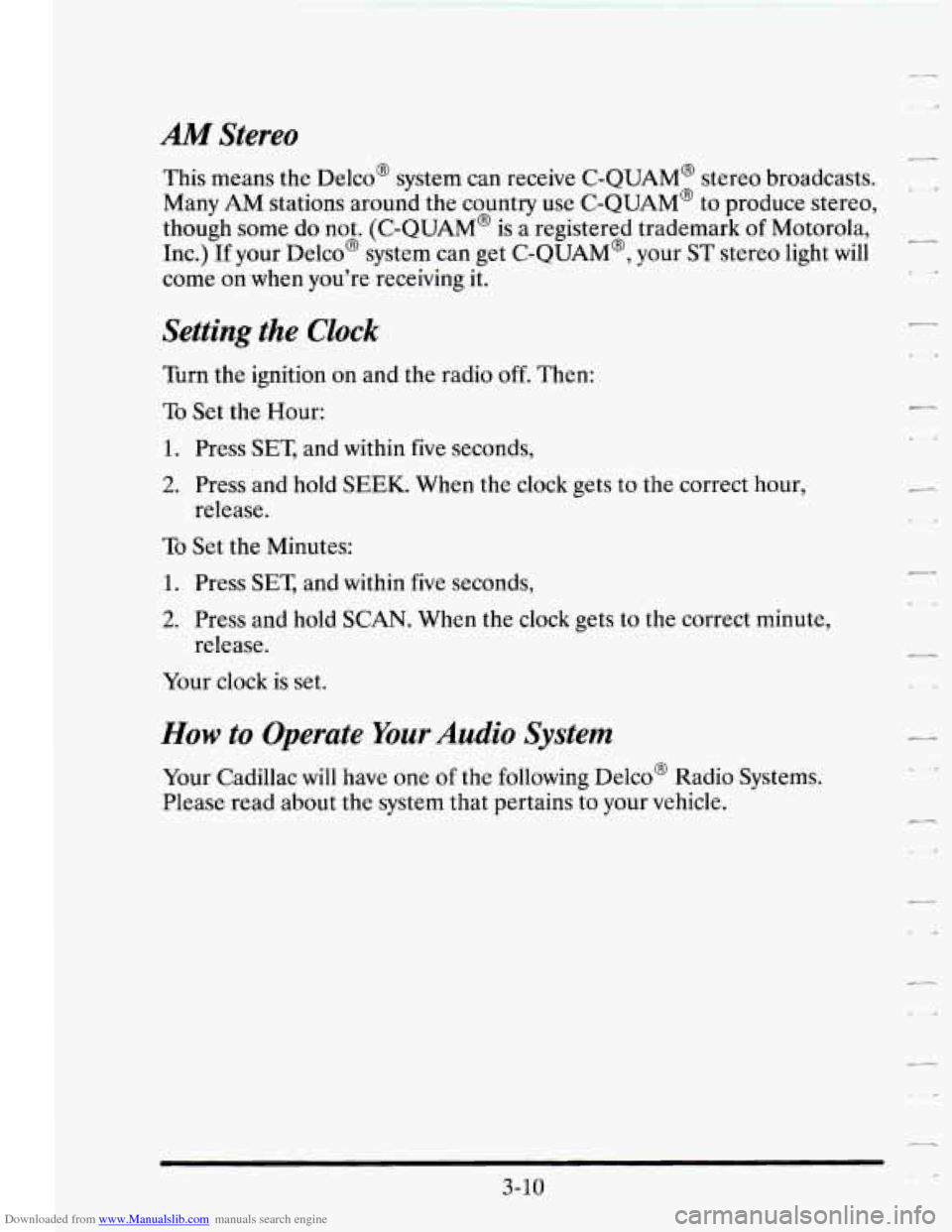

Downloaded from www.Manualslib.com manuals search engine AM Stereo
This means the Delco@ system can receive C-QUAM@ stereo broadcasts.
Many
AM stations around the country use C-QUAM@ to produce stereo,
though some
do not. (C-QUAM@ is a registered trademark of Motorola,
Inc.)
If your Delco@ system can get C-QUAM@, your ST stereo light will
come on when you’re receiving it.
Setting the Clock
Turn the ignition on and the radio off. Then:
To Set the Hour:
1. Press SET, and within five seconds,
2. Press and hold SEEK. When the clock gets to the correct hour,
To Set the Minutes:
1. Press SET, and within five seconds,
2. Press and hold SCAN. When the clock gets to the correct minute,
Your clock is set.
release.
release.
How to Operate Your Audio System
Your Cadillac will have one of the following Delco@ Radio Systems.
Please read about the system that pertains to your vehicle.
-.
-.
3-10

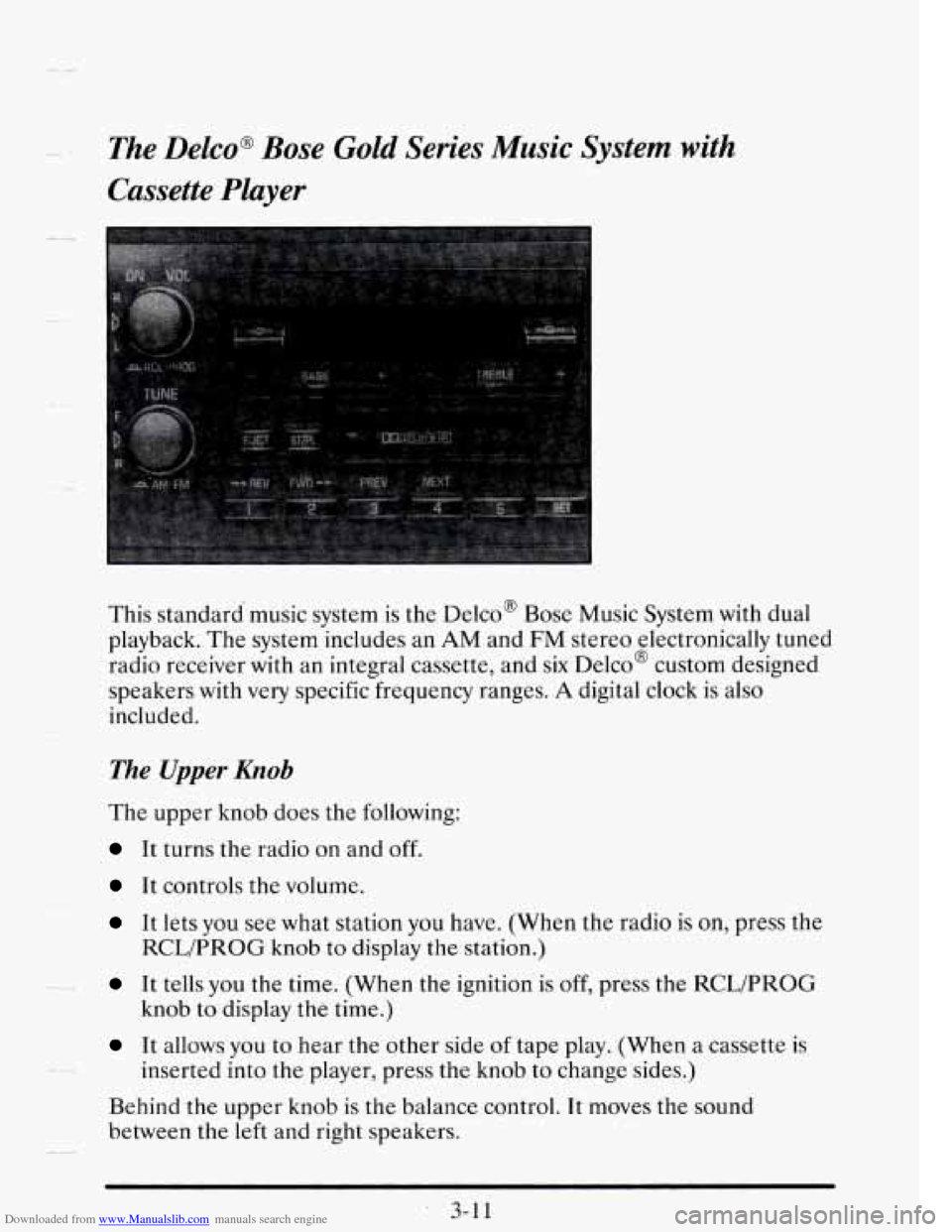

Downloaded from www.Manualslib.com manuals search engine t- The Delco@ Bose Gold Series Music System with
Cassette Player
This standard music system is the Delco' Bose Music System with dual
playback. The system includes an AM and
FM stereo electronically tuned
radio receiver with an integral cassette, and
six Delco@ custom designed
speakers with very specific frequency ranges.
A digital clock is also
included.
The Upper Knob
The upper knob does the following:
It turns the radio on and off.
It controls the volume.
It lets you see what station you have. (When the radio is on, press the
It tells you the time. (When the ignition is off, press the RCWPROG
It allows you to hear the other side of tape play. (When a cassette is
Behind the upper knob is
the balance control. It moves the sound
between the
left and right speakers.
RCL/PROG knob to display the station.)
knob
to display the time.)
inserted into the player, press the knob to change sides.)
3-1 1
