4. The indicator light will blink slowly. In order
from left to right, and within two and
one-half minutes, enter each switch setting
into the Universal Home Remote System.
Push one button for each switch as follows:
Left button = “on” switch position.
Right button = “off” switch position.
Middle button = “middle” switch position.
5. After entering the switch settings, press and
release all three buttons at the same time.
The indicator lights will turn on.6. Press and hold the button you would like to
use to control the garage door until the
garage door moves. The indicator light above
the selected button should slowly blink.
You may need to hold the button from
ve to 55 seconds.
7. Immediately release the button when the
garage door moves. The indicator light will
blink rapidly until programming is complete.
8. Press and release the button again. The
garage door should move, conrming that
programming is successful and complete.
To program another device such as an additional
garage door opener, a security device, or
home lighting, repeat Steps 1–8, choosing a
different function button in Step 6 than what you
used for the garage door opener.
147

Programming Universal Home
Remote — Rolling Code
Rolling code garage door openers are used for
garage doors produced after 1996 and are
code protected. Rolling code means the coded
signal is changed every time your remote control
garage door opener is used.
Programming a rolling code garage door opener
involves time-sensitive actions, so read the
entire procedure before you begin. If you do not
follow these actions, the device will time out
and you will have to repeat the procedure.
Follow these steps to program up to
three channels:
1. Press the two outside buttons at the same
time for one to two seconds, and immediately
release them.2. Go to the garage. Locate the garage door
motor head and press and release the
“learn” button.
After pressing the “learn” button, you have
10 to 30 seconds to complete Step 4
depending on your garage control unit. If you
cannot locate the “learn” button, refer to
the owners guide for your garage door opener.
148

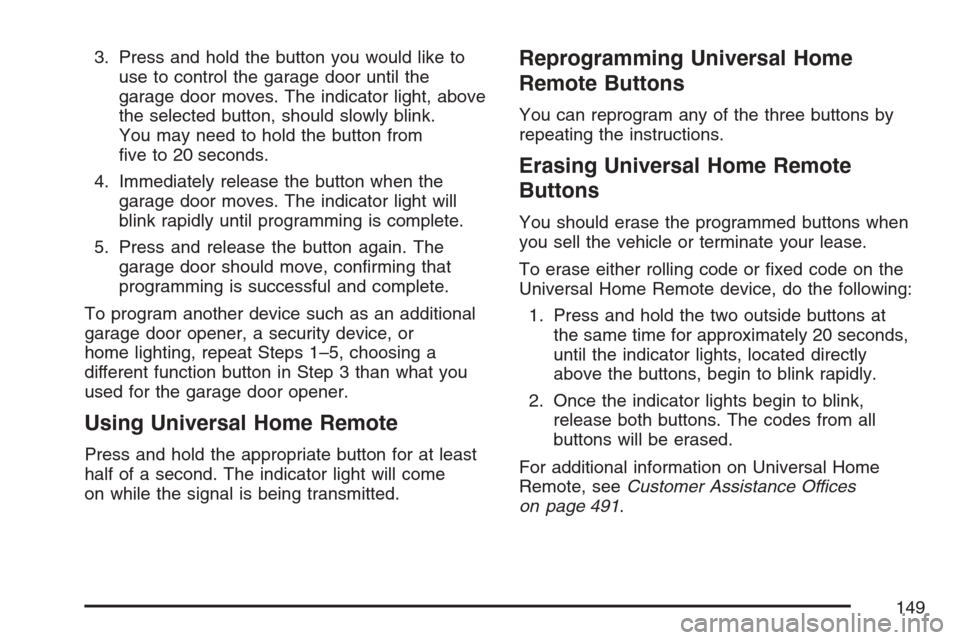

3. Press and hold the button you would like to
use to control the garage door until the
garage door moves. The indicator light, above
the selected button, should slowly blink.
You may need to hold the button from
ve to 20 seconds.
4. Immediately release the button when the
garage door moves. The indicator light will
blink rapidly until programming is complete.
5. Press and release the button again. The
garage door should move, conrming that
programming is successful and complete.
To program another device such as an additional
garage door opener, a security device, or
home lighting, repeat Steps 1–5, choosing a
different function button in Step 3 than what you
used for the garage door opener.
Using Universal Home Remote
Press and hold the appropriate button for at least
half of a second. The indicator light will come
on while the signal is being transmitted.
Reprogramming Universal Home
Remote Buttons
You can reprogram any of the three buttons by
repeating the instructions.
Erasing Universal Home Remote
Buttons
You should erase the programmed buttons when
you sell the vehicle or terminate your lease.
To erase either rolling code or xed code on the
Universal Home Remote device, do the following:
1. Press and hold the two outside buttons at
the same time for approximately 20 seconds,
until the indicator lights, located directly
above the buttons, begin to blink rapidly.
2. Once the indicator lights begin to blink,
release both buttons. The codes from all
buttons will be erased.
For additional information on Universal Home
Remote, seeCustomer Assistance Offices
on page 491.
149

Universal Home Remote System
Operation (With One Triangular LED)
Your vehicle may have the Universal Home
Remote System. If there is one triangular Light
Emitting Diode (LED) above the Universal
Home Remote buttons, follow the instructions
below. If your vehicle has three round LED above
the Universal Home Remote buttons, follow the
instructions under Universal Home Remote System
Operation (With three round LED).
Do not use the Universal Home Remote with any
garage door opener that does not have the
stop and reverse feature. This includes any garage
door opener model manufactured before April 1,
1982. If you have a newer garage door opener
with rolling codes, please be sure to follow Steps
6 through 8 to complete the programming of
your Universal Home Remote Transmitter.Read the instructions completely before attempting
to program the Universal Home Remote.
Because of the steps involved, it may be helpful to
have another person available to assist you in
the programming steps.
Keep the original hand-held transmitter for use in
other vehicles as well as for future Universal
Home Remote programming. It is also
recommended that upon the sale of the vehicle,
the programmed Universal Home Remote buttons
should be erased for security purposes. See
“Erasing Universal Home Remote Buttons” later in
this section or, for assistance, seeCustomer
Assistance Offices on page 491.
Be sure that people and objects are clear of the
garage door or gate operator you are
programming. When programming a garage door,
it is advised to park outside of the garage.
It is recommended that a new battery be installed
in your hand-held transmitter for quicker and
more accurate transmission of the radio-frequency
signal.
150

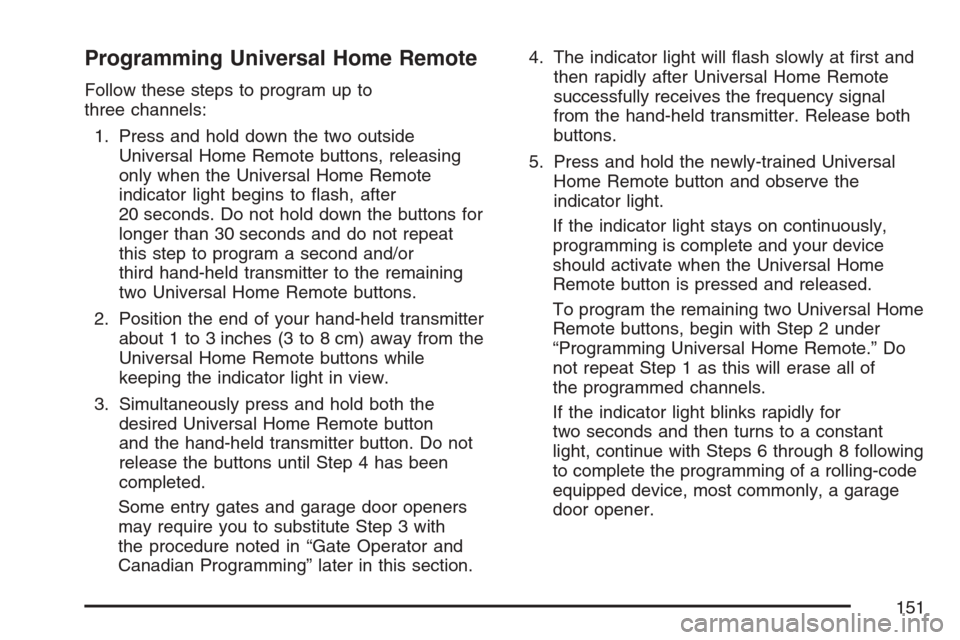

Programming Universal Home Remote
Follow these steps to program up to
three channels:
1. Press and hold down the two outside
Universal Home Remote buttons, releasing
only when the Universal Home Remote
indicator light begins to ash, after
20 seconds. Do not hold down the buttons for
longer than 30 seconds and do not repeat
this step to program a second and/or
third hand-held transmitter to the remaining
two Universal Home Remote buttons.
2. Position the end of your hand-held transmitter
about 1 to 3 inches (3 to 8 cm) away from the
Universal Home Remote buttons while
keeping the indicator light in view.
3. Simultaneously press and hold both the
desired Universal Home Remote button
and the hand-held transmitter button. Do not
release the buttons until Step 4 has been
completed.
Some entry gates and garage door openers
may require you to substitute Step 3 with
the procedure noted in “Gate Operator and
Canadian Programming” later in this section.4. The indicator light will ash slowly at rst and
then rapidly after Universal Home Remote
successfully receives the frequency signal
from the hand-held transmitter. Release both
buttons.
5. Press and hold the newly-trained Universal
Home Remote button and observe the
indicator light.
If the indicator light stays on continuously,
programming is complete and your device
should activate when the Universal Home
Remote button is pressed and released.
To program the remaining two Universal Home
Remote buttons, begin with Step 2 under
“Programming Universal Home Remote.” Do
not repeat Step 1 as this will erase all of
the programmed channels.
If the indicator light blinks rapidly for
two seconds and then turns to a constant
light, continue with Steps 6 through 8 following
to complete the programming of a rolling-code
equipped device, most commonly, a garage
door opener.
151

6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be
found where the hanging antenna wire is
attached to the motor-head unit.
7. Firmly press and release the “Learn” or
“Smart” button. The name and color of
the button may vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold
the programmed Universal Home Remote
button for two seconds, then release it.
Immediately press and hold the same button
a second time for two seconds, then
release it. Immediately, press and hold the
same button a third time for two seconds, then
release.
The Universal Home Remote should now
activate your rolling-code equipped device.
To program the remaining two Universal Home
Remote buttons, begin with Step 2 of
“Programming Universal Home Remote.” You do
not want to repeat Step 1, as this will erase
all previous programming from the Universal Home
Remote buttons.Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to time out or quit after several seconds
of transmission. This may not be long enough
for Universal Home Remote to pick up the signal
during programming. Similarly, some U.S. gate
operators are manufactured to time out in
the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator or garage door
opener by using the “Programming Universal
Home Remote” procedures, regardless of where
you live, replace Step 3 under “Programming
Universal Home Remote” with the following:
Continue to press and hold the Universal Home
Remote button while you press and release every
two seconds (cycle) the hand-held transmitter
button until the frequency signal has been
successfully accepted by the Universal Home
Remote. The Universal Home Remote indicator
light will ash slowly at rst and then rapidly.
Proceed with Step 4 under “Programming
Universal Home Remote” to complete.
152

Using Universal Home Remote
Press and hold the appropriate Universal Home
Remote button for at least half of a second.
The indicator light will come on while the signal is
being transmitted.
Erasing Universal Home Remote
Buttons
To erase programming from the three Universal
Home Remote buttons do the following:
1. Press and hold down the two outside buttons
until the indicator light begins to ash, after
20 seconds. Do not hold the two outside
buttons for longer than 30 seconds.
2. Release both buttons.
The Universal Home Remote is now in the training
(learning) mode and can be programmed at any
time beginning with Step 2 under “Programming
Universal Home Remote” shown earlier in
this section.
Individual buttons cannot be erased, but they can
be reprogrammed. See “Reprogramming a
Single Universal Home Remote Button” following
this section.
Reprogramming a Single Universal
Home Remote Button
To program a device to Universal Home Remote
using a Universal Home Remote button
previously trained, follow these steps:
1. Press and hold the desired Universal Home
Remote button. Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the Universal
Home Remote button, proceed with Step
2 under “Programming Universal Home
Remote” shown earlier in this section.
For additional information on Universal Home
Remote, seeCustomer Assistance Offices
on page 491.
Storage Areas
Glove Box
To open the glove box, lift up on the lever. Use
your door key to lock or unlock it.
153

Press the back of the sunroof switch to open the
sunroof. When the switch is pressed to the
rst stop the sunroof will open to a desired
position. Press the switch to the second stop to
express open the sunroof to a preset comfort
position. Press the second stop again to
fully express open the sunroof. Press the front of
the switch to close the sunroof. The rst stop
will close the sunroof at a desired position
at normal speed, and the second stop will express
close the roof.
Press the back of the sunshade switch to open
the sunshade. Press the front of the switch to the
rst stop to close the sunshade to a desired
position at a normal speed. Press the switch
forward to the second stop to express close the
sunshade.
Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the
object and stop the sunroof from closing at the
point of the obstruction. The sunroof will then
reverse. To close the sunroof once it has
re-opened, remove the obstruction and press the
front of the sunroof switch.
Resynchronization
To resynchronize the sunroof and sunshade, do
the following.
1. With the engine running, press and hold both
the sunroof switch in the open position and
the sunshade switch in the closed position for
six seconds.
2. Release both buttons.
3. When the sunroof reaches the fully closed
position, the sunshade will close.
4. After the sunroof and sunshade have fully
closed, continue to hold the sunroof switch
in the closed position for an additional three or
four seconds to complete the
resynchronization process.
157

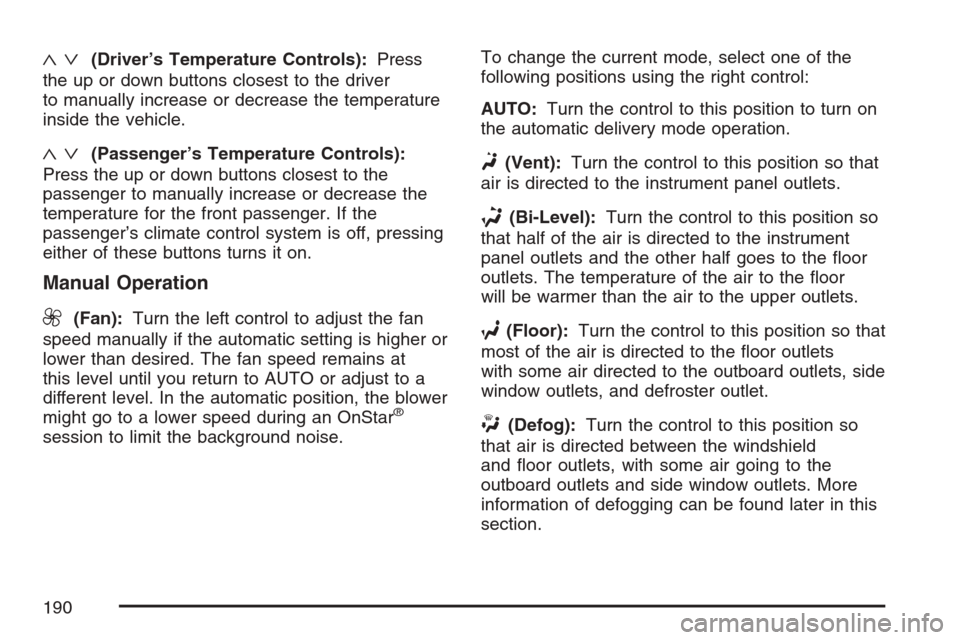

«ª(Driver’s Temperature Controls):Press
the up or down buttons closest to the driver
to manually increase or decrease the temperature
inside the vehicle.
«ª(Passenger’s Temperature Controls):
Press the up or down buttons closest to the
passenger to manually increase or decrease the
temperature for the front passenger. If the
passenger’s climate control system is off, pressing
either of these buttons turns it on.
Manual Operation
9(Fan):Turn the left control to adjust the fan
speed manually if the automatic setting is higher or
lower than desired. The fan speed remains at
this level until you return to AUTO or adjust to a
different level. In the automatic position, the blower
might go to a lower speed during an OnStar
®
session to limit the background noise.To change the current mode, select one of the
following positions using the right control:
AUTO:Turn the control to this position to turn on
the automatic delivery mode operation.
F(Vent):Turn the control to this position so that
air is directed to the instrument panel outlets.
*(Bi-Level):Turn the control to this position so
that half of the air is directed to the instrument
panel outlets and the other half goes to the oor
outlets. The temperature of the air to the oor
will be warmer than the air to the upper outlets.
7(Floor):Turn the control to this position so that
most of the air is directed to the oor outlets
with some air directed to the outboard outlets, side
window outlets, and defroster outlet.
W(Defog):Turn the control to this position so
that air is directed between the windshield
and oor outlets, with some air going to the
outboard outlets and side window outlets. More
information of defogging can be found later in this
section.
190

0(Defrost):Turn the control to this position so
that most of the air is directed to the windshield
with some air going to the side window outlets.
More information on defrosting can be found later
in this section.
O(On/Off):Press this button to turn the climate
control system on or off. While off, adjusting
any button or control, except recirculation and rear
window defog turns the system back on. The air
inlets default to outside air when the climate
control system is turned off.
PASS (Passenger’s Climate Control):Press this
button to turn the passenger’s climate control
system on or off. Then press the up or down
buttons to choose the desired setting. Pressing
the button again automatically sets the passengers
temperature to the drivers setting. Turning the
passenger’s temperature display off does not turn
off the climate control system for the passenger.
Recirculation Operation
There are three options for bringing air into the
climate control system. They are controlled
by pressing the center button on the climate
control panel. The climate control display indicates
one of the following three modes:
9AUTO (Auto Air Inlet):This mode lets the
automatic climate control system choose the
best air inlet position for cooling or warming the
vehicle. To have full automatic climate control,
the fan and mode controls must be set to
the AUTO position. Generally, recirculation will
only automatically be selected on hot days.
Your vehicle may have an optional Air Quality
Sensor. To activate the air quality sensor, the
auto air inlet setting must be used. For more
information, see Air Quality Sensor found later
in this section.
191
