remote start CADILLAC STS 2009 1.G Owner's Manual

Notice:Ignoring these steps could result in costly
damage to your vehicle that would not be covered
by your warranty.
Trying to start your vehicle by pushing or pulling it
will not work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice:If the other vehicle’s system is not a 12-volt
system with a negative ground, both vehicles can
be damaged. Only use vehicles with 12-volt systems
with negative grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles are not touching
each other. If they are, it could cause a ground
connection you do not want. You would not be able
to start your vehicle and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake rmly on both vehicles involved
in the jump start procedure. Put an automatic
transmission in P (Park) or a manual transmission
in NEUTRAL before setting the parking brake.Notice:If you leave the radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered by
the warranty. Always turn off the radio and other
accessories when jump starting the vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlets. Turn off
the radio and all lamps that are not needed.
This will avoid sparks and help save both batteries.
And it could save the radio!
4. Open the hoods and locate the positive (+)
and negative (−) terminal locations or the remote
positive (+) and remote negative (−) terminals of the
other vehicle. Then locate the remote positive (+)
location on your vehicle. SeeEngine Compartment
Overview on page 5-12for more information on
locations the terminals.
5-43

Your vehicle has a remote negative (−) ground
location, as shown in the illustration. It is located on
the passenger side front shock tower. SeeEngine
Compartment Overview on page 5-12. You should
always use this remote ground location, instead of
the terminal on the battery.Notice:If you connect a negative cable to the
Engine Control Module (ECM), ECM mounting
bracket, or any cables that attach to the ECM
bracket, you may damage the ECM. Always attach
the negative cable to your vehicle’s remote negative
ground location, instead of the ECM, ECM bracket,
or any cables attached to the ECM bracket.
{CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
5-44

6. Connect the red positive (+) cable to the positive (+)
terminal of the dead battery. Use a remote
positive (+) terminal if the vehicle has one.
7. Do not let the other end touch metal. Connect it to
the positive (+) terminal of the good battery. Use a
remote positive (+) terminal if the vehicle has one.8. Now connect the black negative (−) cable to the
negative terminal of the good battery. Use a remote
negative (−) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative (−) cable
does not go to the dead battery. It goes to a heavy,
unpainted metal engine part or to a remote
negative (−) terminal on the vehicle with the
dead battery.
9. Connect the other end of the negative (−) cable at
least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical
connection is just as good there, and the chance
of sparks getting back to the battery is much less.
Use a remote negative (−) terminal if the vehicle
has one. Your vehicle’s remote negative (−) ground
location is for this purpose.
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably needs
service.
5-46

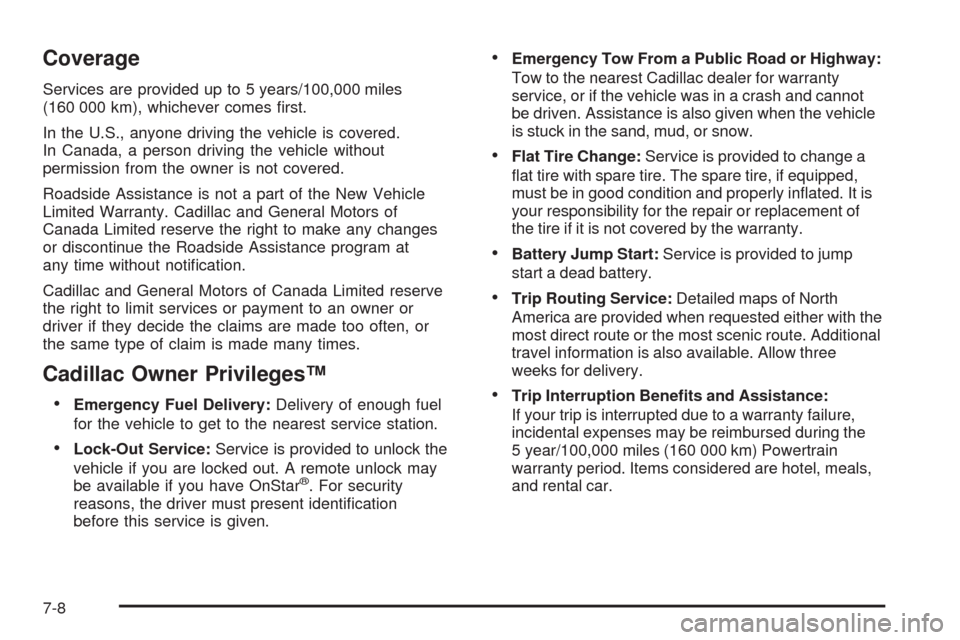

Coverage
Services are provided up to 5 years/100,000 miles
(160 000 km), whichever comes rst.
In the U.S., anyone driving the vehicle is covered.
In Canada, a person driving the vehicle without
permission from the owner is not covered.
Roadside Assistance is not a part of the New Vehicle
Limited Warranty. Cadillac and General Motors of
Canada Limited reserve the right to make any changes
or discontinue the Roadside Assistance program at
any time without notication.
Cadillac and General Motors of Canada Limited reserve
the right to limit services or payment to an owner or
driver if they decide the claims are made too often, or
the same type of claim is made many times.
Cadillac Owner Privileges™
Emergency Fuel Delivery:Delivery of enough fuel
for the vehicle to get to the nearest service station.
Lock-Out Service:Service is provided to unlock the
vehicle if you are locked out. A remote unlock may
be available if you have OnStar
®. For security
reasons, the driver must present identication
before this service is given.
Emergency Tow From a Public Road or Highway:
Tow to the nearest Cadillac dealer for warranty
service, or if the vehicle was in a crash and cannot
be driven. Assistance is also given when the vehicle
is stuck in the sand, mud, or snow.
Flat Tire Change:Service is provided to change a
at tire with spare tire. The spare tire, if equipped,
must be in good condition and properly inated. It is
your responsibility for the repair or replacement of
the tire if it is not covered by the warranty.
Battery Jump Start:Service is provided to jump
start a dead battery.
Trip Routing Service:Detailed maps of North
America are provided when requested either with the
most direct route or the most scenic route. Additional
travel information is also available. Allow three
weeks for delivery.
Trip Interruption Benets and Assistance:
If your trip is interrupted due to a warranty failure,
incidental expenses may be reimbursed during the
5 year/100,000 miles (160 000 km) Powertrain
warranty period. Items considered are hotel, meals,
and rental car.
7-8

OnStar®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and
use. See alsoOnStar
®System on page 2-50in this
manual for more information.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other
GM system containing personal information.
7-18

Power (cont.)
Reclining Seatbacks...................................... 1-4
Retained Accessory.....................................2-27
Seat ............................................................ 1-2
Steering Fluid.............................................5-37
Tilt Wheel and Telescopic Steering Column....... 3-6
Windows....................................................2-19
Privacy..........................................................7-16
Event Data Recorders..................................7-17
Navigation System.......................................7-18
OnStar .......................................................7-18
Radio Frequency Identication.......................7-18
Programmable Automatic Door Locks.................2-14
R
Radio Frequency Identication (RFID), Privacy......7-18
Radio(s)........................................................3-98
Radios
Navigation/Radio System, see Navigation
Manual.................................................3-116
Radio Personalization.................................3-126
Reception.................................................3-133
Setting the Clock.........................................3-98
Theft-Deterrent..........................................3-130
Rainsense™ II Wipers.....................................3-14
Reading Lamps..............................................3-41Rear Axle......................................................5-48
Limited-Slip.................................................4-12
Rear Climate Control System............................3-53
Rear Door Security Locks................................2-14
Rear Heated Seats........................................... 1-6
Rearview Mirror, Automatic Dimming..................2-38
Rearview Mirror with Compass and
Temperature................................................. 1-6
Reclining Seatbacks, Power............................... 1-4
Recommended Fluids and Lubricants.................6-13
Recreational Vehicle Towing.............................4-29
Remote, Keyless Access System........................ 2-4
Remote Vehicle Start.......................................2-11
Removing the Flat Tire and Installing
the Spare Tire.............................................5-97
Removing the Spare Tire and Tools...................5-96
Replacement Bulbs.........................................5-52
Replacement Parts, Maintenance......................6-15
Replacement, Windshield.................................5-52
Reporting Safety Defects
Canadian Government..................................7-15
General Motors...........................................7-15
United States Government............................7-14
Restraint System Check
Checking the Restraint Systems....................1-66
Replacing Restraint System Parts
After a Crash..........................................1-67
Retained Accessory Power...............................2-27
10

Stabilitrak®System........................................... 4-6
Start Vehicle, Remote......................................2-11
Starting the Engine.........................................2-27
Steering........................................................4-12
Steering Wheel Controls, Audio.......................3-131
Steering Wheel Controls, Memory.....................2-77
Steering Wheel, Heated..................................... 3-7
Steering Wheel, Power Tilt Wheel and
Telescopic Steering Column............................ 3-6
Storage Areas
Center Console Storage Area........................2-60
Convenience Net.........................................2-60
Cupholders.................................................2-60
Glove Box..................................................2-60
Storing the Tire Sealant and Compressor Kit.........5-94
Stuck in Sand, Mud, Ice, or Snow.....................4-23
Sun Visors.....................................................2-21
Sunroof.........................................................2-60
T
Tachometer....................................................3-57
TCS Warning Light..........................................3-63
Telescopic Steering Column, Power
Tilt Wheel.................................................... 3-6
Theft - Deterrent System..................................2-21
Theft-Deterrent, Radio....................................3-130Theft-Deterrent Systems...................................2-21
Immobilizer.................................................2-24
Immobilizer Operation...................................2-24
Time, Setting..................................................3-98
Tire
Pressure Light.............................................3-65
Tire Sealant
Storing.......................................................5-94
Tires.............................................................5-54
Aluminum or Chrome-Plated Wheels,
Cleaning...............................................5-110
Buying New Tires........................................5-74
Chains.......................................................5-81
Changing a Flat Tire....................................5-94
Cleaning...................................................5-111
Compact Spare Tire...................................5-104
Different Size..............................................5-76
High-Speed Operation..................................5-65
If a Tire Goes Flat.......................................5-84
Ination - Tire Pressure................................5-64
Inspection and Rotation................................5-71
Installing the Spare Tire................................5-97
Lifting the Vehicle........................................5-82
Pressure Monitor Operation...........................5-68
Pressure Monitor System..............................5-66
Removing the Flat Tire.................................5-97
Removing the Spare Tire and Tools...............5-96
12

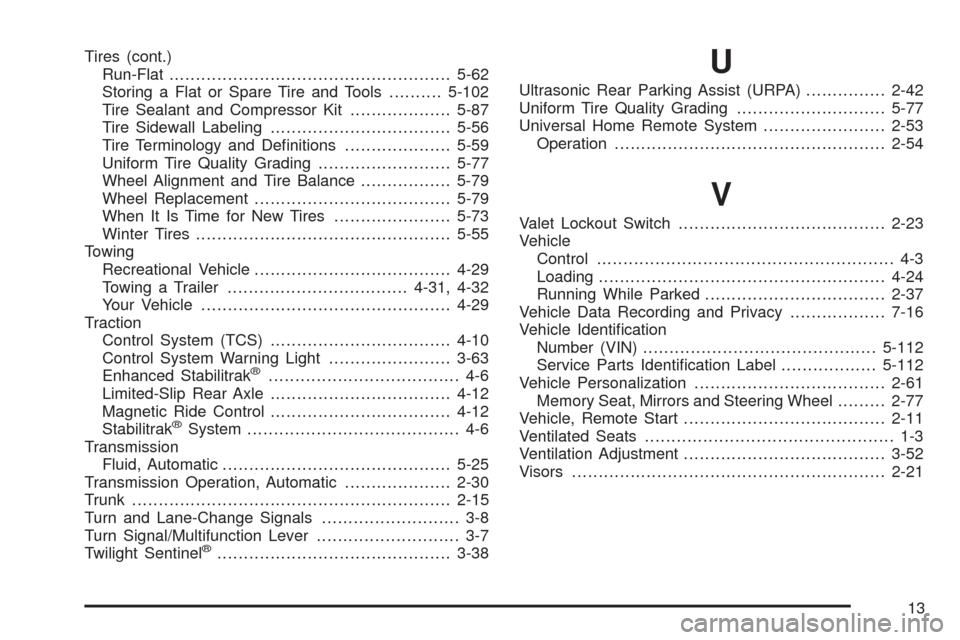

Tires (cont.)
Run-Flat.....................................................5-62
Storing a Flat or Spare Tire and Tools..........5-102
Tire Sealant and Compressor Kit...................5-87
Tire Sidewall Labeling..................................5-56
Tire Terminology and Denitions....................5-59
Uniform Tire Quality Grading.........................5-77
Wheel Alignment and Tire Balance.................5-79
Wheel Replacement.....................................5-79
When It Is Time for New Tires......................5-73
Winter Tires................................................5-55
Towing
Recreational Vehicle.....................................4-29
Towing a Trailer..................................4-31, 4-32
Your Vehicle...............................................4-29
Traction
Control System (TCS)..................................4-10
Control System Warning Light.......................3-63
Enhanced Stabilitrak
®.................................... 4-6
Limited-Slip Rear Axle..................................4-12
Magnetic Ride Control..................................4-12
Stabilitrak
®System........................................ 4-6
Transmission
Fluid, Automatic...........................................5-25
Transmission Operation, Automatic....................2-30
Trunk............................................................2-15
Turn and Lane-Change Signals.......................... 3-8
Turn Signal/Multifunction Lever........................... 3-7
Twilight Sentinel
®............................................3-38
U
Ultrasonic Rear Parking Assist (URPA)...............2-42
Uniform Tire Quality Grading............................5-77
Universal Home Remote System.......................2-53
Operation...................................................2-54
V
Valet Lockout Switch.......................................2-23
Vehicle
Control........................................................ 4-3
Loading......................................................4-24
Running While Parked..................................2-37
Vehicle Data Recording and Privacy..................7-16
Vehicle Identication
Number (VIN)............................................5-112
Service Parts Identication Label..................5-112
Vehicle Personalization....................................2-61
Memory Seat, Mirrors and Steering Wheel.........2-77
Vehicle, Remote Start......................................2-11
Ventilated Seats............................................... 1-3
Ventilation Adjustment......................................3-52
Visors...........................................................2-21
13
