Fuses MiniUsage
EKM/I/P MDLEasy Key Module (EKM), Instrument
Panel Module (I/P MDL)
EVEN COILS Even Ignition Coils, Even Fuel
Injectors
FOG LAMP Front Fog Lamps
FRT PWR OUTLET Front Accessory Power Outlet
FUEL COOL Fuel Cooling HORN Horn
HTD
WASH/AQS Heated Headlamp Washer, Air Quality
Sensor
HUD Heads-Up Display, Steering Column
Switch
I/BEAM IntelliBeam Relay
I/P MDL/ALDL Instrument Panel Module, Assembly
Line Data Link Connector
LIC DIM License Plate, Instrument Panel
Dimming
LT HI BEAM Driver Side High Beam Headlamp
LT LO BEAM Driver Side Low Beam Headlamp
Fuses Mini Usage
LT PRKDriver Side Park Lamp/Driver Side
Taillamp
ODD COILS Odd Ignition Coils, Odd Fuel Injectors
POST O2 SNSR Post Oxygen Sensor PRE O2 SNSR Pre Oxygen Sensor, CAM Sensors
RAIN
SNSR/TPM Rain Sensor, Relay Coil:
Headlamp Wash
RT HI BEAM Passenger Side High Beam
Headlamp
RT LO BEAM Passenger Side Low Beam Headlamp
RT PRK Passenger Side Park Lamp,
Passenger Side Taillamp
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
6-118

Black plate (3,1)Cadillac STS Owner Manual - 2011

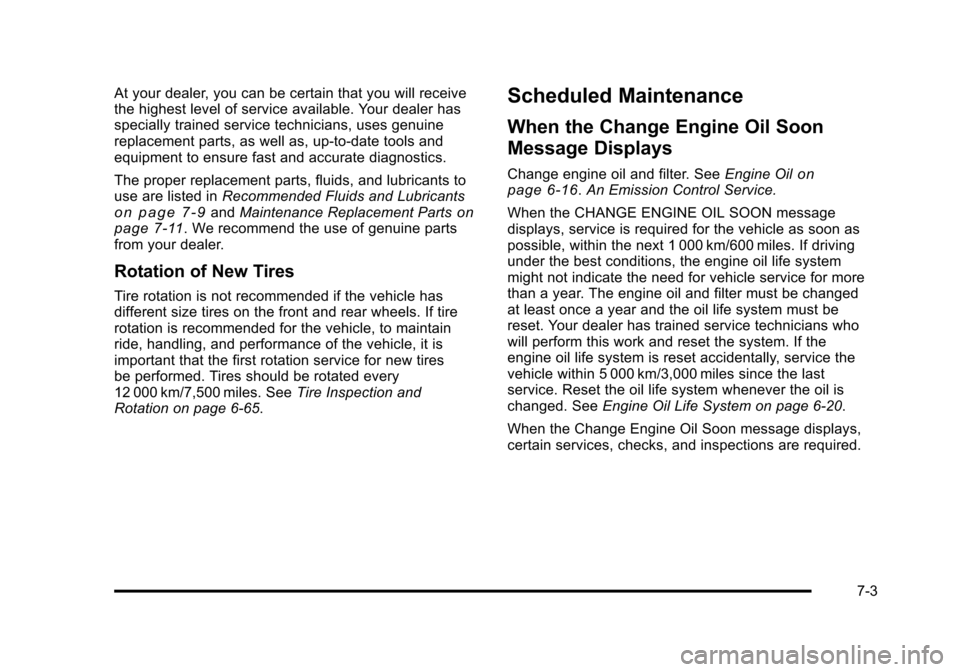

At your dealer, you can be certain that you will receive
the highest level of service available. Your dealer has
specially trained service technicians, uses genuine
replacement parts, as well as, up‐to‐date tools and
equipment to ensure fast and accurate diagnostics.
The proper replacement parts, fluids, and lubricants to
use are listed inRecommended Fluids and Lubricants
on page 7‑9andMaintenance Replacement Partson
page 7‑11. We recommend the use of genuine parts
from your dealer.
Rotation of New Tires
Tire rotation is not recommended if the vehicle has
different size tires on the front and rear wheels. If tire
rotation is recommended for the vehicle, to maintain
ride, handling, and performance of the vehicle, it is
important that the first rotation service for new tires
be performed. Tires should be rotated every
12 000 km/7,500 miles. See Tire Inspection and
Rotation on page 6‑65.
Scheduled Maintenance
When the Change Engine Oil Soon
Message Displays
Change engine oil and filter. See Engine Oilon
page 6‑16. An Emission Control Service.
When the CHANGE ENGINE OIL SOON message
displays, service is required for the vehicle as soon as
possible, within the next 1 000 km/600 miles. If driving
under the best conditions, the engine oil life system
might not indicate the need for vehicle service for more
than a year. The engine oil and filter must be changed
at least once a year and the oil life system must be
reset. Your dealer has trained service technicians who
will perform this work and reset the system. If the
engine oil life system is reset accidentally, service the
vehicle within 5 000 km/3,000 miles since the last
service. Reset the oil life system whenever the oil is
changed. See Engine Oil Life System on page 6‑20.
When the Change Engine Oil Soon message displays,
certain services, checks, and inspections are required.
7-3

Black plate (9,1)Cadillac STS Owner Manual - 2011

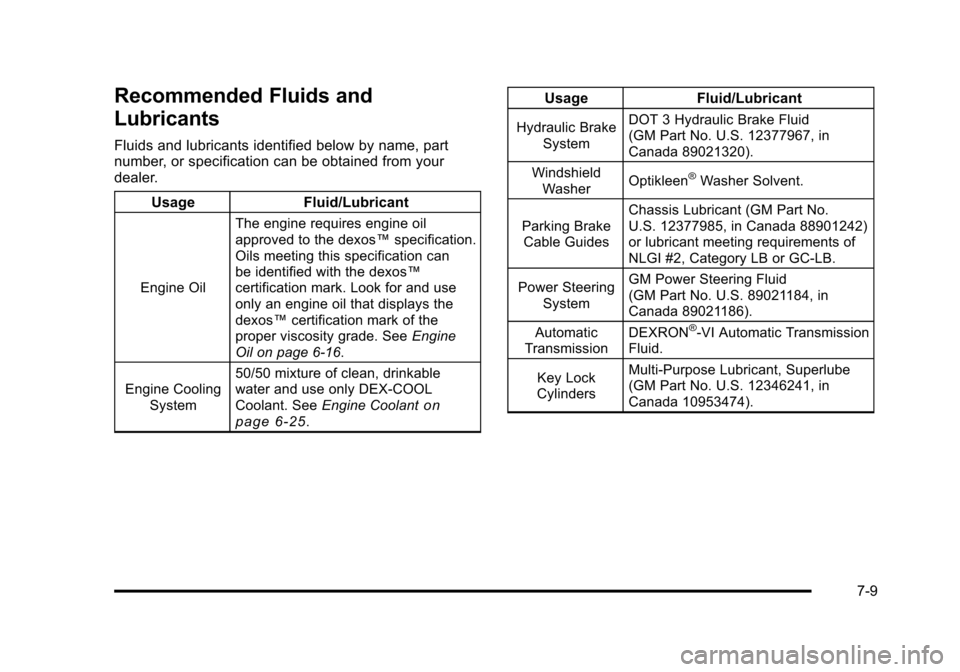

Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name, part
number, or specification can be obtained from your
dealer.Usage Fluid/Lubricant
Engine Oil The engine requires engine oil
approved to the dexos™
specification.
Oils meeting this specification can
be identified with the dexos™
certification mark. Look for and use
only an engine oil that displays the
dexos™ certification mark of the
proper viscosity grade. See Engine
Oil on page 6‑16.
Engine Cooling System 50/50 mixture of clean, drinkable
water and use only DEX-COOL
Coolant. See
Engine Coolant
on
page 6‑25.
Usage Fluid/Lubricant
Hydraulic Brake
System DOT 3 Hydraulic Brake Fluid
(GM Part No. U.S. 12377967, in
Canada 89021320).
Windshield Washer Optikleen
®Washer Solvent.
Parking Brake Cable Guides Chassis Lubricant (GM Part No.
U.S. 12377985, in Canada 88901242)
or lubricant meeting requirements of
NLGI #2, Category LB or GC-LB.
Power Steering System GM Power Steering Fluid
(GM Part No. U.S. 89021184, in
Canada 89021186).
Automatic
Transmission DEXRON
®-VI Automatic Transmission
Fluid.
Key Lock
Cylinders Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
7-9
