F5 MODE:Press this pushbutton to select from
NORMAL, RPT TRCK (Repeat Track), RPT
DISC (Repeat CD), RDM TRCK (Random Track),
and RDM ALL (Random All CDs).
NORMAL:Sets the system for normal play of
the CD(s). NORMAL does not display while in
this mode.
RPT TRCK (Repeat Track):Repeats the track
over again. RPT TRCK displays. Press the
MODE pushbutton again to turn off repeat play.
RPT TRCK disappears from the display.
RPT DISC (Repeat CD):Repeats the CD over
again. RPT DISC displays. Press the MODE
pushbutton again to turn off repeat play.
RPT DISC disappears from the display.
RDM TRCK (Random Track):Plays the tracks
on the current CD in random, rather than
sequential, order. RDM TRCK appears on the
display. Press the MODE pushbutton again to
turn off random play. RDM TRCK disappears
from the display.
RDM ALL (Random All CDs):Plays all of the
CDs loaded in random, rather than sequential,
order. RDM ALL displays. Press the MODE
pushbutton again to turn off random play. RDM
ALL disappears from the display.F6 DISP (Display):Press this pushbutton to
display the time of the track. Press this pushbutton
again to display CD PLAY MODE.
©¨(Seek):Press the left single arrow button to
go to the previous or press the right single
arrow button to go to the next track on the CD.
©¨(Scan):Press this double arrow button
to listen to each track for 10 seconds. The CD
goes to a track, play for 10 seconds, then go on to
the next track. Press this button again to stop
scanning.
SRCE (Source):Press this button to select a
source, either radio or CD. The CD must be loaded
to select the source and to play. CD displays if
a CD is loaded. If a CD is not loaded, the display
does not change from the radio source.
Z(Eject):Press this button to eject the CD that
is currently playing, or press and hold this
button to eject all of the CDs loaded. A beep
sounds. Eject can be activated with the ignition or
radio off.
295

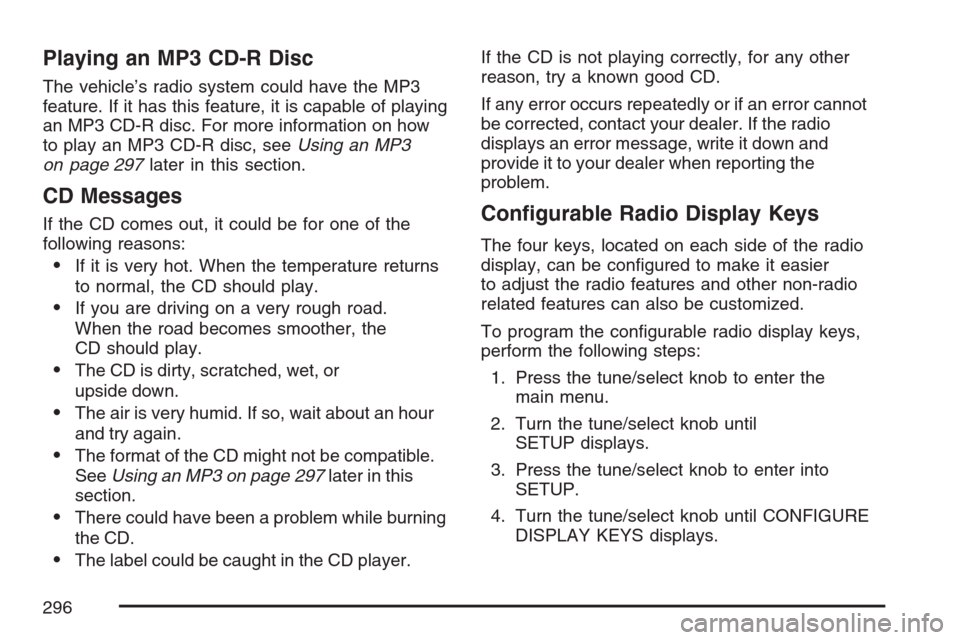

Playing an MP3 CD-R Disc
The vehicle’s radio system could have the MP3
feature. If it has this feature, it is capable of playing
an MP3 CD-R disc. For more information on how
to play an MP3 CD-R disc, seeUsing an MP3
on page 297later in this section.
CD Messages
If the CD comes out, it could be for one of the
following reasons:
If it is very hot. When the temperature returns
to normal, the CD should play.
If you are driving on a very rough road.
When the road becomes smoother, the
CD should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an hour
and try again.
The format of the CD might not be compatible.
SeeUsing an MP3 on page 297later in this
section.
There could have been a problem while burning
the CD.
The label could be caught in the CD player.If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer. If the radio
displays an error message, write it down and
provide it to your dealer when reporting the
problem.
Congurable Radio Display Keys
The four keys, located on each side of the radio
display, can be congured to make it easier
to adjust the radio features and other non-radio
related features can also be customized.
To program the congurable radio display keys,
perform the following steps:
1. Press the tune/select knob to enter the
main menu.
2. Turn the tune/select knob until
SETUP displays.
3. Press the tune/select knob to enter into
SETUP.
4. Turn the tune/select knob until CONFIGURE
DISPLAY KEYS displays.
296

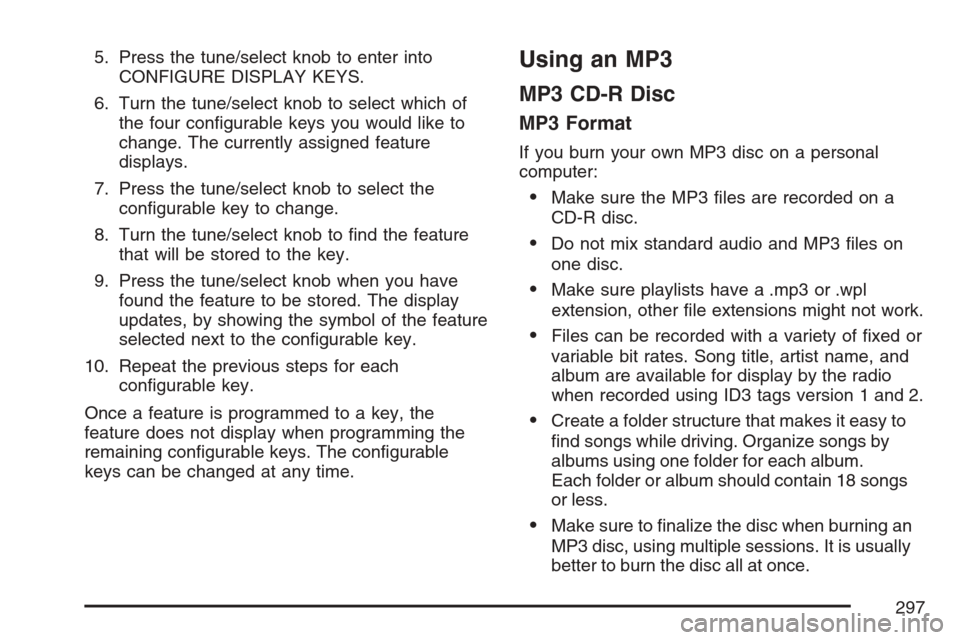

5. Press the tune/select knob to enter into
CONFIGURE DISPLAY KEYS.
6. Turn the tune/select knob to select which of
the four congurable keys you would like to
change. The currently assigned feature
displays.
7. Press the tune/select knob to select the
congurable key to change.
8. Turn the tune/select knob to nd the feature
that will be stored to the key.
9. Press the tune/select knob when you have
found the feature to be stored. The display
updates, by showing the symbol of the feature
selected next to the congurable key.
10. Repeat the previous steps for each
congurable key.
Once a feature is programmed to a key, the
feature does not display when programming the
remaining congurable keys. The congurable
keys can be changed at any time.Using an MP3
MP3 CD-R Disc
MP3 Format
If you burn your own MP3 disc on a personal
computer:
Make sure the MP3 les are recorded on a
CD-R disc.
Do not mix standard audio and MP3 les on
one disc.
Make sure playlists have a .mp3 or .wpl
extension, other le extensions might not work.
Files can be recorded with a variety of xed or
variable bit rates. Song title, artist name, and
album are available for display by the radio
when recorded using ID3 tags version 1 and 2.
Create a folder structure that makes it easy to
nd songs while driving. Organize songs by
albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
Make sure to nalize the disc when burning an
MP3 disc, using multiple sessions. It is usually
better to burn the disc all at once.
297

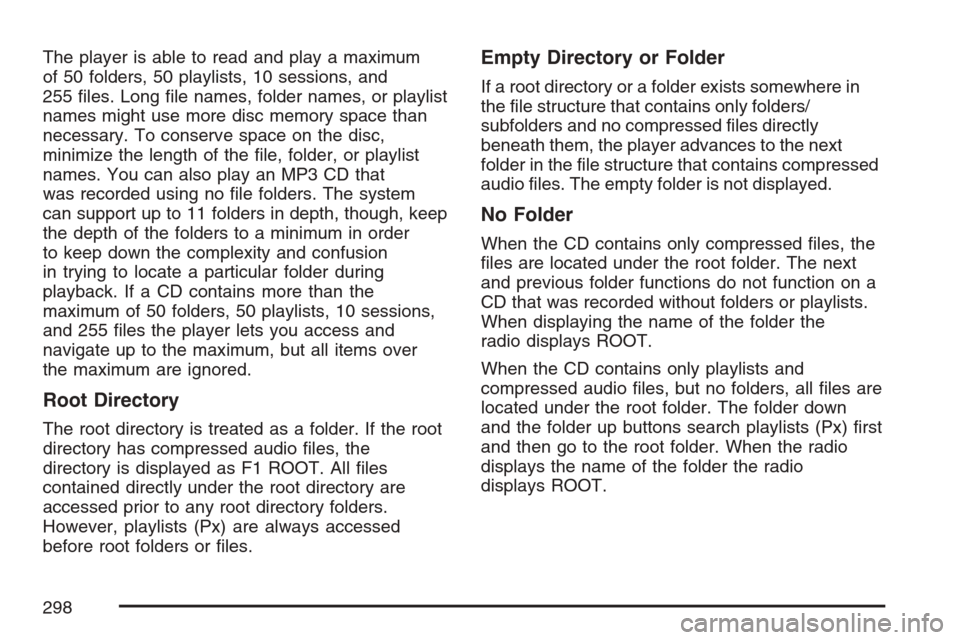

The player is able to read and play a maximum
of 50 folders, 50 playlists, 10 sessions, and
255 les. Long le names, folder names, or playlist
names might use more disc memory space than
necessary. To conserve space on the disc,
minimize the length of the le, folder, or playlist
names. You can also play an MP3 CD that
was recorded using no le folders. The system
can support up to 11 folders in depth, though, keep
the depth of the folders to a minimum in order
to keep down the complexity and confusion
in trying to locate a particular folder during
playback. If a CD contains more than the
maximum of 50 folders, 50 playlists, 10 sessions,
and 255 les the player lets you access and
navigate up to the maximum, but all items over
the maximum are ignored.
Root Directory
The root directory is treated as a folder. If the root
directory has compressed audio les, the
directory is displayed as F1 ROOT. All les
contained directly under the root directory are
accessed prior to any root directory folders.
However, playlists (Px) are always accessed
before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in
the le structure that contains only folders/
subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder is not displayed.
No Folder
When the CD contains only compressed les, the
les are located under the root folder. The next
and previous folder functions do not function on a
CD that was recorded without folders or playlists.
When displaying the name of the folder the
radio displays ROOT.
When the CD contains only playlists and
compressed audio les, but no folders, all les are
located under the root folder. The folder down
and the folder up buttons search playlists (Px) rst
and then go to the root folder. When the radio
displays the name of the folder the radio
displays ROOT.
298

Order of Play
Tracks are played in the following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
If the CD does not contain any playlists, then
play begins from the rst track under the root
directory. When all tracks from the root
directory have played, play continues from
les according to their numerical listing. After
playing the last track from the last folder,
play begins again at the rst track of the rst
folder or root directory.
When play enters a new folder, the display does
not automatically show the new folder name.
The new track name displays.
File System and Naming
The song name that is displayed is the song name
that is contained in the ID3 tag. If the song
name is not present in the ID3 tag, then the radio
displays the le name without the extension
(such as .mp3) as the track name.Track names longer than 32 characters or
4 pages are shortened. Parts of words on the
last page of text and the extension of the lename
does not display.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software can be accessed, however, they cannot
be edited using the radio. These playlists are
treated as special folders containing compressed
audio song les.
Playing an MP3
Insert a CD partway into the slot, label side up.
The player pulls it in, and LOADING CD appears
on the display. The CD should begin playing
and the CD symbol appears on the display. If the
ignition and the radio are on, the CD begins
playing. A CD can be loaded with the radio off,
but it does not start playing until the radio is on.
If the ignition or radio is turned off while a CD is
in the player, it stays in the player. When the
ignition or radio is turned on, the CD starts to play
where it stopped, if it was the last selected
audio source.
299

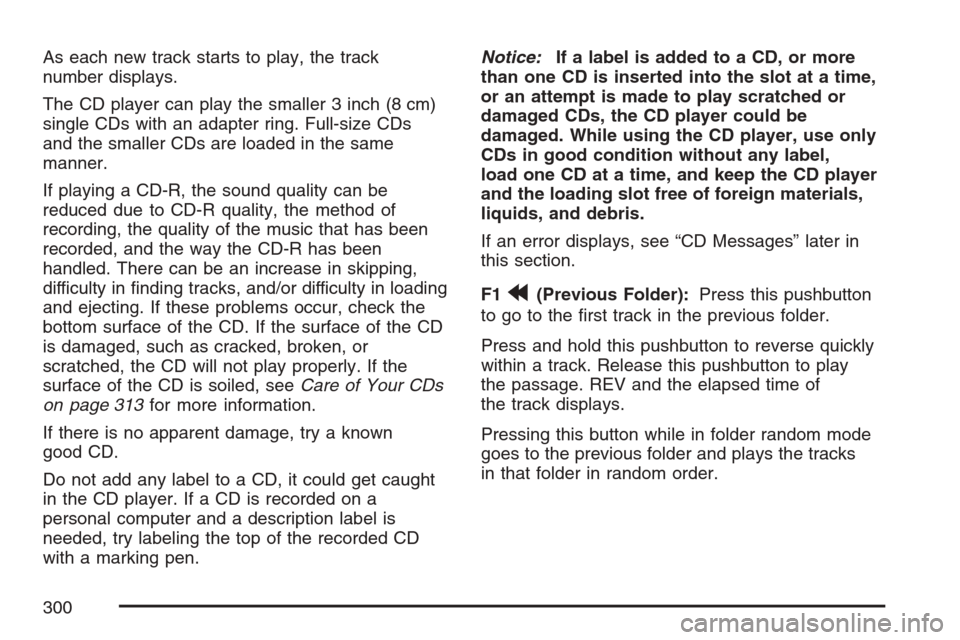

As each new track starts to play, the track
number displays.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs
and the smaller CDs are loaded in the same
manner.
If playing a CD-R, the sound quality can be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There can be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
on page 313for more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.Notice:If a label is added to a CD, or more
than one CD is inserted into the slot at a time,
or an attempt is made to play scratched or
damaged CDs, the CD player could be
damaged. While using the CD player, use only
CDs in good condition without any label,
load one CD at a time, and keep the CD player
and the loading slot free of foreign materials,
liquids, and debris.
If an error displays, see “CD Messages” later in
this section.
F1
r(Previous Folder):Press this pushbutton
to go to the rst track in the previous folder.
Press and hold this pushbutton to reverse quickly
within a track. Release this pushbutton to play
the passage. REV and the elapsed time of
the track displays.
Pressing this button while in folder random mode
goes to the previous folder and plays the tracks
in that folder in random order.
300

F2[(Next Folder):Press this pushbutton to go
to the rst track in the next folder.
Press and hold this pushbutton to advance quickly
within a track. Release this pushbutton to play
the passage. FWD and the elapsed time of
the track displays.
Pressing this button while in folder random mode
takes you to the next folder and plays the
tracks in that folder in random order.
F3 RDM (Random):To play the tracks on the CD
in random, rather than sequential order, press
and release this pushbutton until RDM TRCK
displays. Once all of the tracks in the current folder
or playlist have played, the system moves on to
the next folder or playlist and plays all of the tracks
in random order.
To play the tracks in the current folder in random,
rather than sequential order, press and release
this pushbutton until RDM FLDR displays.
This feature does not work with playlists.
While in random, pressing and releasing either
single seek arrow goes to the next or previous
random track.Press and release this pushbutton until NORMAL
displays to turn off random play.
F4 RPT (Repeat):To repeat the current track,
press and release this pushbutton until RPT
TRCK displays.
To repeat the tracks in the current folder,
press and release this pushbutton until RPT
FLDR displays.
Press and release this pushbutton until NORMAL
displays to turn off repeated play.
F6 DISP (Display):Press this pushbutton to
switch between the elapsed time of the track and
the MP3 playback information.
©¨(Seek):Press the left arrow to go to the
start of the previous track. Press the right arrow to
go to the start of the next track. Pressing either
arrow for more than two seconds searches
the previous or next tracks at two tracks per
second. Release the button to stop searching and
to play the track.
301

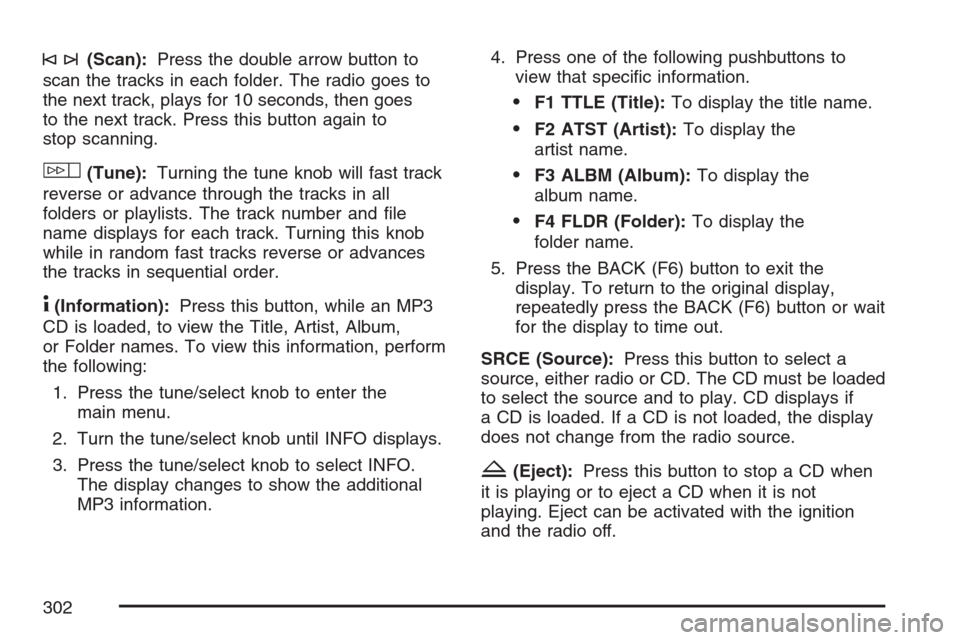

©¨(Scan):Press the double arrow button to
scan the tracks in each folder. The radio goes to
the next track, plays for 10 seconds, then goes
to the next track. Press this button again to
stop scanning.
w(Tune):Turning the tune knob will fast track
reverse or advance through the tracks in all
folders or playlists. The track number and le
name displays for each track. Turning this knob
while in random fast tracks reverse or advances
the tracks in sequential order.
4(Information):Press this button, while an MP3
CD is loaded, to view the Title, Artist, Album,
or Folder names. To view this information, perform
the following:
1. Press the tune/select knob to enter the
main menu.
2. Turn the tune/select knob until INFO displays.
3. Press the tune/select knob to select INFO.
The display changes to show the additional
MP3 information.4. Press one of the following pushbuttons to
view that specic information.
F1 TTLE (Title):To display the title name.
F2 ATST (Artist):To display the
artist name.
F3 ALBM (Album):To display the
album name.
F4 FLDR (Folder):To display the
folder name.
5. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or wait
for the display to time out.
SRCE (Source):Press this button to select a
source, either radio or CD. The CD must be loaded
to select the source and to play. CD displays if
a CD is loaded. If a CD is not loaded, the display
does not change from the radio source.
Z(Eject):Press this button to stop a CD when
it is playing or to eject a CD when it is not
playing. Eject can be activated with the ignition
and the radio off.
302

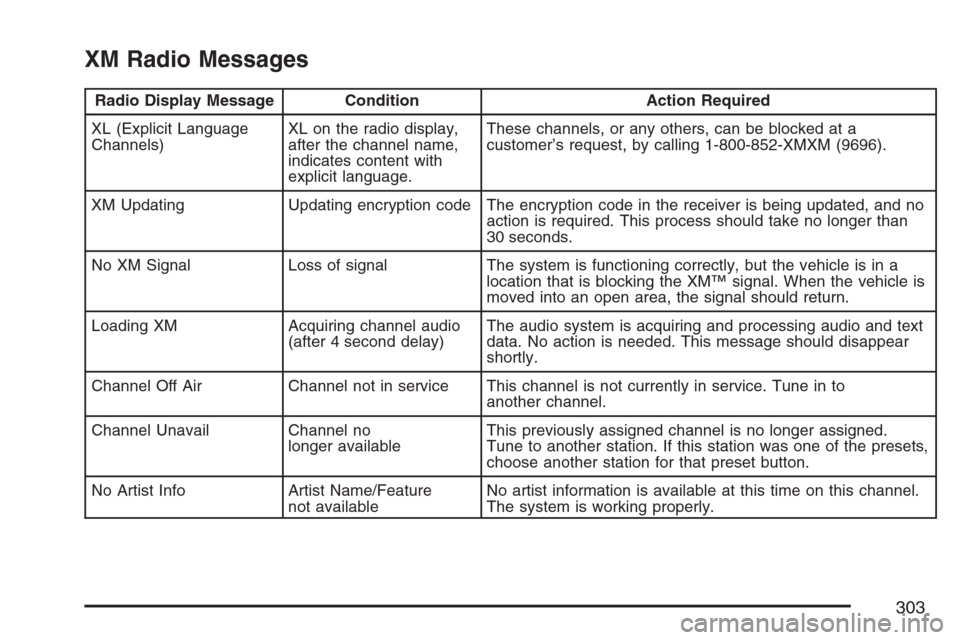

XM Radio Messages
Radio Display Message Condition Action Required
XL (Explicit Language
Channels)XL on the radio display,
after the channel name,
indicates content with
explicit language.These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
XM Updating Updating encryption code The encryption code in the receiver is being updated, and no
action is required. This process should take no longer than
30 seconds.
No XM Signal Loss of signal The system is functioning correctly, but the vehicle is in a
location that is blocking the XM™ signal. When the vehicle is
moved into an open area, the signal should return.
Loading XM Acquiring channel audio
(after 4 second delay)The audio system is acquiring and processing audio and text
data. No action is needed. This message should disappear
shortly.
Channel Off Air Channel not in service This channel is not currently in service. Tune in to
another channel.
Channel Unavail Channel no
longer availableThis previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the presets,
choose another station for that preset button.
No Artist Info Artist Name/Feature
not availableNo artist information is available at this time on this channel.
The system is working properly.
303

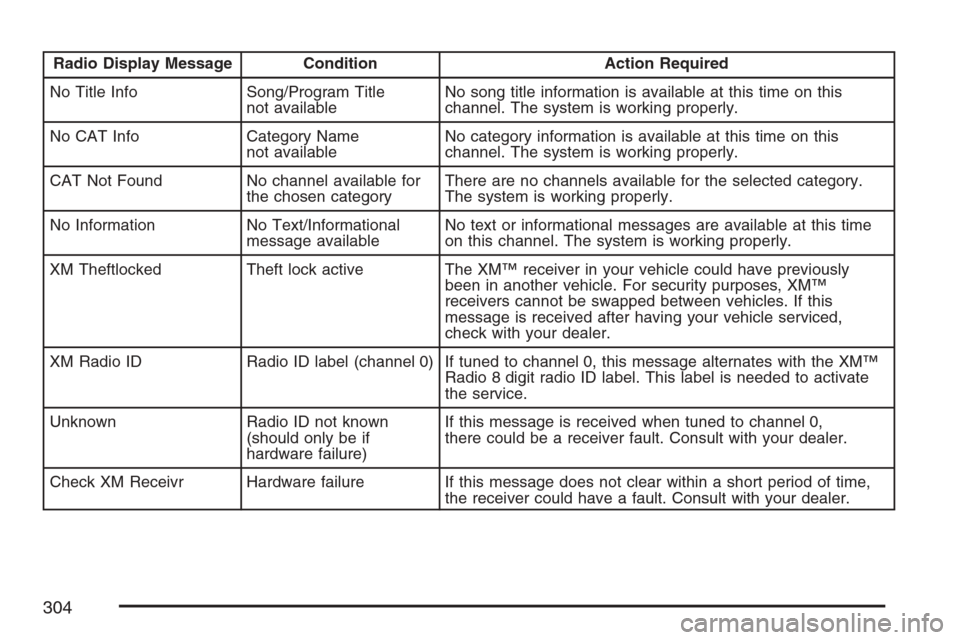

Radio Display Message Condition Action Required
No Title Info Song/Program Title
not availableNo song title information is available at this time on this
channel. The system is working properly.
No CAT Info Category Name
not availableNo category information is available at this time on this
channel. The system is working properly.
CAT Not Found No channel available for
the chosen categoryThere are no channels available for the selected category.
The system is working properly.
No Information No Text/Informational
message availableNo text or informational messages are available at this time
on this channel. The system is working properly.
XM Theftlocked Theft lock active The XM™ receiver in your vehicle could have previously
been in another vehicle. For security purposes, XM™
receivers cannot be swapped between vehicles. If this
message is received after having your vehicle serviced,
check with your dealer.
XM Radio ID Radio ID label (channel 0) If tuned to channel 0, this message alternates with the XM™
Radio 8 digit radio ID label. This label is needed to activate
the service.
Unknown Radio ID not known
(should only be if
hardware failure)If this message is received when tuned to channel 0,
there could be a receiver fault. Consult with your dealer.
Check XM Receivr Hardware failure If this message does not clear within a short period of time,
the receiver could have a fault. Consult with your dealer.
304
