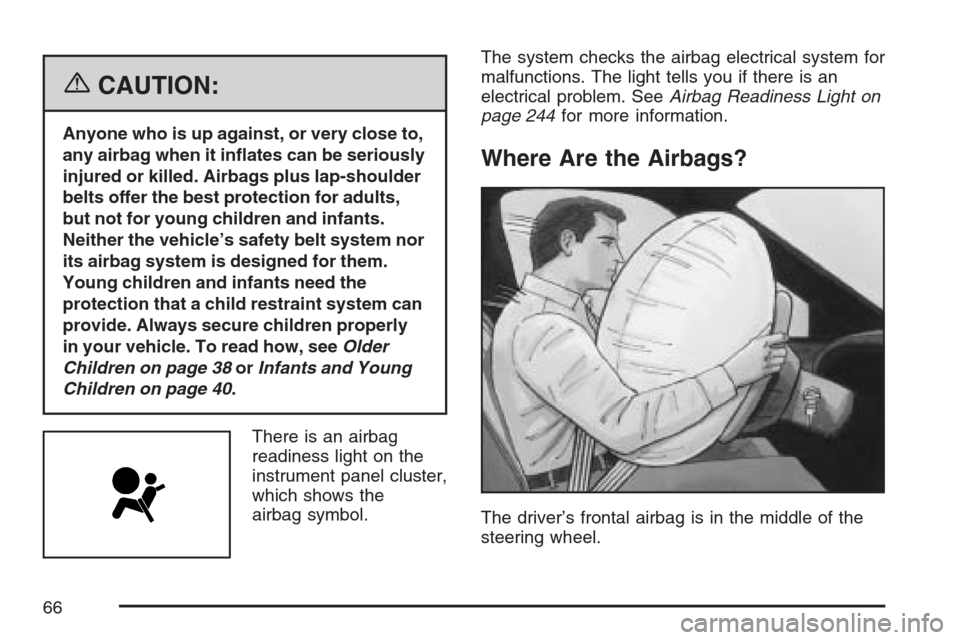

{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults,
but not for young children and infants.
Neither the vehicle’s safety belt system nor
its airbag system is designed for them.
Young children and infants need the
protection that a child restraint system can
provide. Always secure children properly
in your vehicle. To read how, seeOlder
Children on page 38orInfants and Young
Children on page 40.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 244for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
66

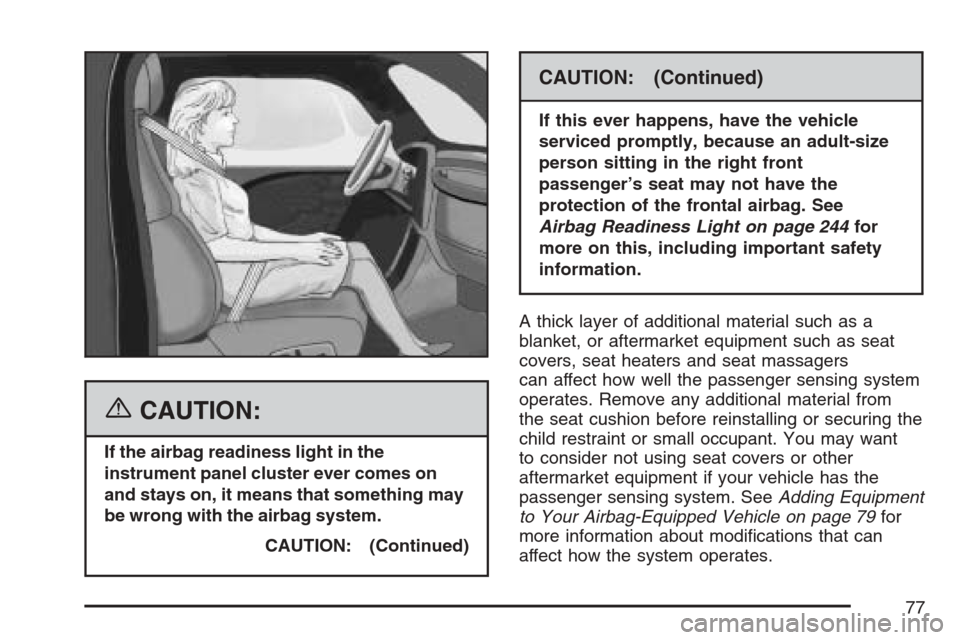

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system.
CAUTION: (Continued)
CAUTION: (Continued)
If this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the frontal airbag. See
Airbag Readiness Light on page 244for
more on this, including important safety
information.
A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters and seat massagers
can affect how well the passenger sensing system
operates. Remove any additional material from
the seat cushion before reinstalling or securing the
child restraint or small occupant. You may want
to consider not using seat covers or other
aftermarket equipment if your vehicle has the
passenger sensing system. SeeAdding Equipment
to Your Airbag-Equipped Vehicle on page 79for
more information about modications that can
affect how the system operates.
77

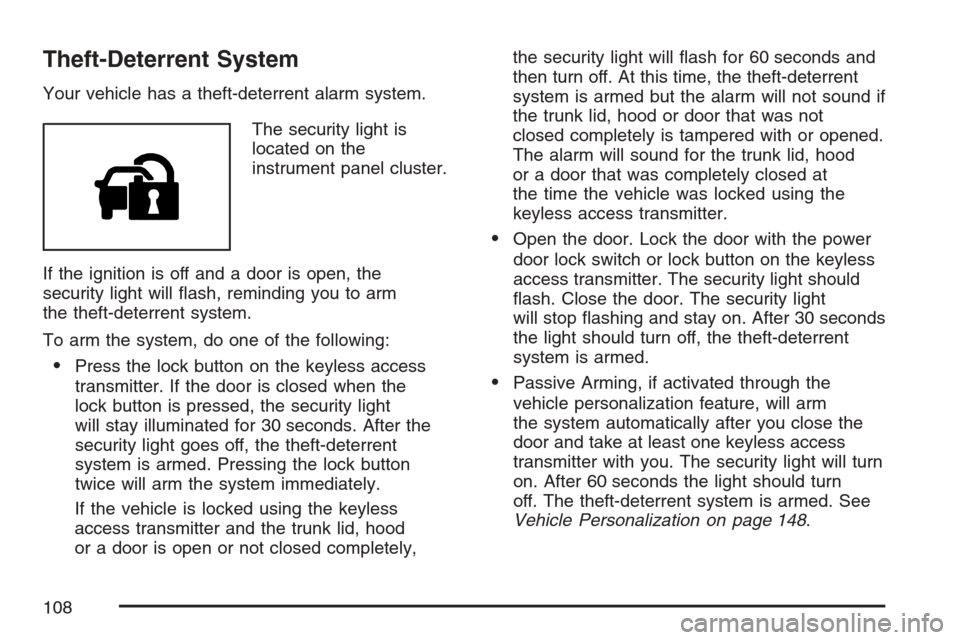

Theft-Deterrent System
Your vehicle has a theft-deterrent alarm system.
The security light is
located on the
instrument panel cluster.
If the ignition is off and a door is open, the
security light will ash, reminding you to arm
the theft-deterrent system.
To arm the system, do one of the following:
Press the lock button on the keyless access
transmitter. If the door is closed when the
lock button is pressed, the security light
will stay illuminated for 30 seconds. After the
security light goes off, the theft-deterrent
system is armed. Pressing the lock button
twice will arm the system immediately.
If the vehicle is locked using the keyless
access transmitter and the trunk lid, hood
or a door is open or not closed completely,the security light will ash for 60 seconds and
then turn off. At this time, the theft-deterrent
system is armed but the alarm will not sound if
the trunk lid, hood or door that was not
closed completely is tampered with or opened.
The alarm will sound for the trunk lid, hood
or a door that was completely closed at
the time the vehicle was locked using the
keyless access transmitter.
Open the door. Lock the door with the power
door lock switch or lock button on the keyless
access transmitter. The security light should
ash. Close the door. The security light
will stop ashing and stay on. After 30 seconds
the light should turn off, the theft-deterrent
system is armed.
Passive Arming, if activated through the
vehicle personalization feature, will arm
the system automatically after you close the
door and take at least one keyless access
transmitter with you. The security light will turn
on. After 60 seconds the light should turn
off. The theft-deterrent system is armed. See
Vehicle Personalization on page 148.
108

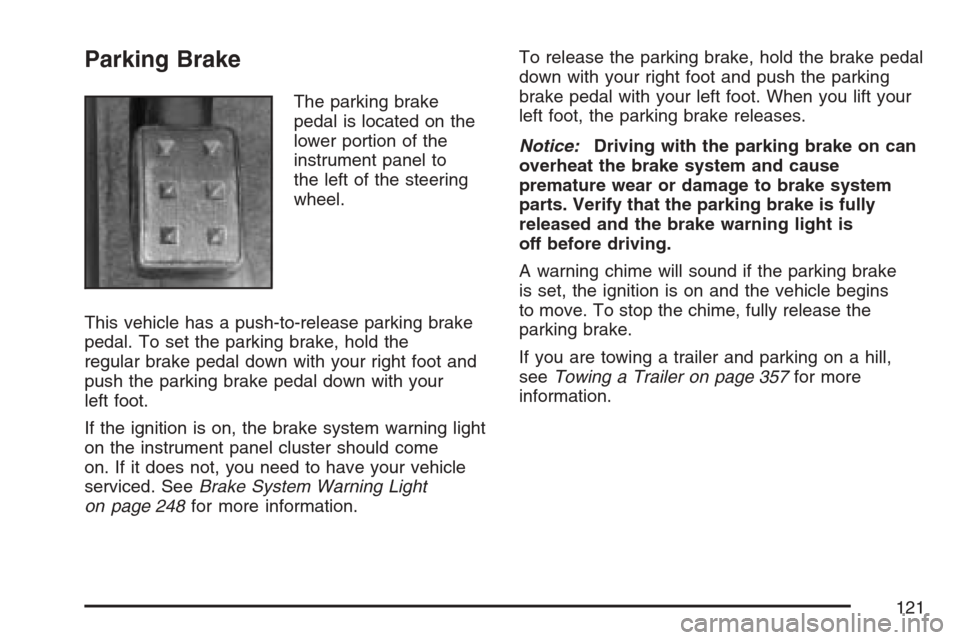

Parking Brake
The parking brake
pedal is located on the
lower portion of the
instrument panel to
the left of the steering
wheel.
This vehicle has a push-to-release parking brake
pedal. To set the parking brake, hold the
regular brake pedal down with your right foot and
push the parking brake pedal down with your
left foot.
If the ignition is on, the brake system warning light
on the instrument panel cluster should come
on. If it does not, you need to have your vehicle
serviced. SeeBrake System Warning Light
on page 248for more information.To release the parking brake, hold the brake pedal
down with your right foot and push the parking
brake pedal with your left foot. When you lift your
left foot, the parking brake releases.
Notice:Driving with the parking brake on can
overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
A warning chime will sound if the parking brake
is set, the ignition is on and the vehicle begins
to move. To stop the chime, fully release the
parking brake.
If you are towing a trailer and parking on a hill,
seeTowing a Trailer on page 357for more
information.
121

Instrument Panel Overview........................ 178
Hazard Warning Flashers.......................... 180
Other Warning Devices............................. 180
Horn.......................................................... 180
Power Tilt Wheel and Telescopic
Steering Column.................................... 181
Heated Steering Wheel............................. 181
Turn Signal/Multifunction Lever.................. 182
Turn and Lane-Change Signals................. 182
Headlamp High/Low-Beam Changer.......... 183
Forward Collision Alert (FCA) System.......... 184
Flash-to-Pass............................................ 188
Windshield Wipers..................................... 189
Rainsense™ II Wipers............................... 190
Windshield Washer.................................... 191
Headlamp Washer..................................... 192
Cruise Control........................................... 193
Adaptive Cruise Control............................. 197
Headlamps................................................ 211
Wiper Activated Headlamps....................... 215
Headlamps on Reminder........................... 216
Daytime Running Lamps (DRL)................. 216
Fog Lamps................................................ 217
Twilight Sentinel
®...................................... 218
Exterior Lighting Battery Saver.................. 219Instrument Panel Brightness...................... 220
Entry Lighting............................................ 220
Parade Dimming........................................ 220
Reading Lamps......................................... 221
Battery Load Management......................... 221
Electric Power Management...................... 221
Inadvertent Power Battery Saver............... 222
Head-Up Display (HUD)............................ 223
Ultrasonic Rear Parking
Assist (URPA)........................................ 226
Accessory Power Outlet(s)........................ 228
Ashtray(s) and Cigarette Lighter................ 229
Climate Controls......................................... 230
Dual Climate Control System..................... 230
Outlet Adjustment...................................... 237
Rear Climate Control System.................... 237
Passenger Compartment Air Filter............. 239
Warning Lights, Gages, and Indicators..... 241
Instrument Panel Cluster........................... 242
Speedometer and Odometer...................... 243
Tachometer............................................... 243
Safety Belt Reminder Light........................ 243
Passenger Safety Belt Reminder Light....... 244
Airbag Readiness Light............................. 244
Section 3 Instrument Panel
175

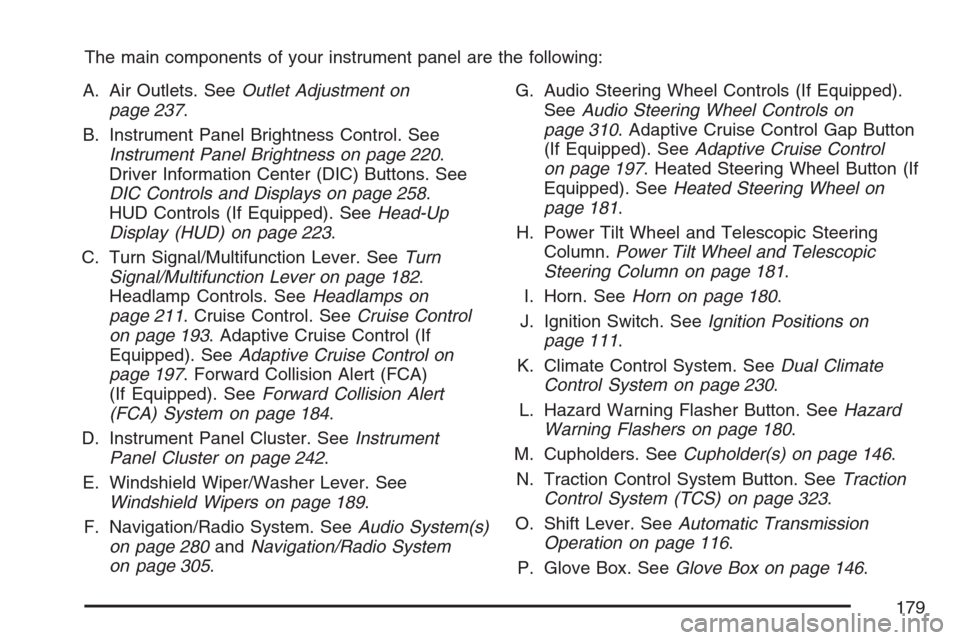

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 237.
B. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 220.
Driver Information Center (DIC) Buttons. See
DIC Controls and Displays on page 258.
HUD Controls (If Equipped). SeeHead-Up
Display (HUD) on page 223.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 182.
Headlamp Controls. SeeHeadlamps on
page 211. Cruise Control. SeeCruise Control
on page 193. Adaptive Cruise Control (If
Equipped). SeeAdaptive Cruise Control on
page 197. Forward Collision Alert (FCA)
(If Equipped). SeeForward Collision Alert
(FCA) System on page 184.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 242.
E. Windshield Wiper/Washer Lever. See
Windshield Wipers on page 189.
F. Navigation/Radio System. SeeAudio System(s)
on page 280andNavigation/Radio System
on page 305.G. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 310. Adaptive Cruise Control Gap Button
(If Equipped). SeeAdaptive Cruise Control
on page 197. Heated Steering Wheel Button (If
Equipped). SeeHeated Steering Wheel on
page 181.
H. Power Tilt Wheel and Telescopic Steering
Column.Power Tilt Wheel and Telescopic
Steering Column on page 181.
I. Horn. SeeHorn on page 180.
J. Ignition Switch. SeeIgnition Positions on
page 111.
K. Climate Control System. SeeDual Climate
Control System on page 230.
L. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 180.
M. Cupholders. SeeCupholder(s) on page 146.
N. Traction Control System Button. SeeTraction
Control System (TCS) on page 323.
O. Shift Lever. SeeAutomatic Transmission
Operation on page 116.
P. Glove Box. SeeGlove Box on page 146.
179

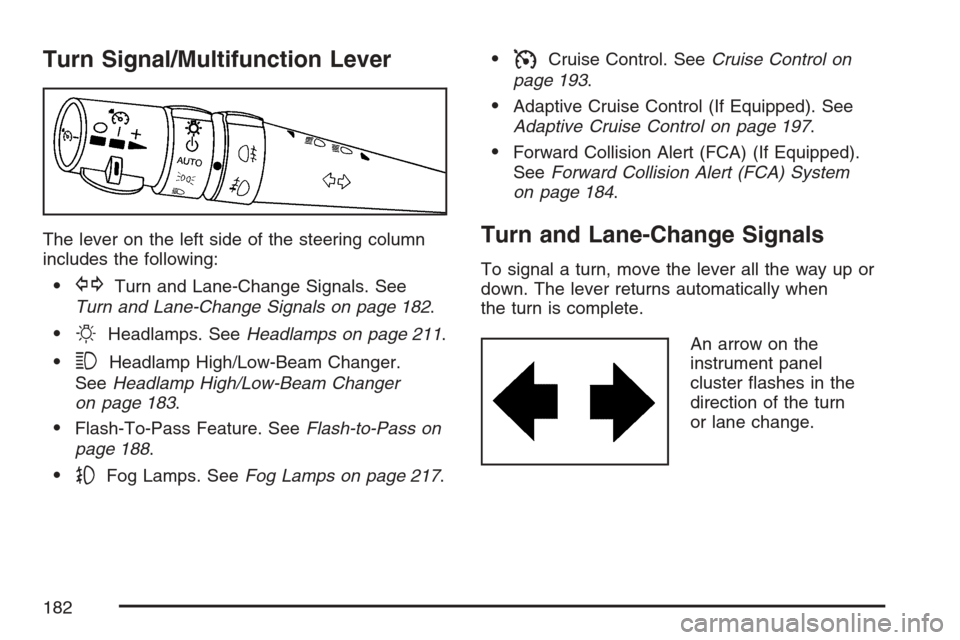

Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane-Change Signals. See
Turn and Lane-Change Signals on page 182.
OHeadlamps. SeeHeadlamps on page 211.
3Headlamp High/Low-Beam Changer.
SeeHeadlamp High/Low-Beam Changer
on page 183.
Flash-To-Pass Feature. SeeFlash-to-Pass on
page 188.
-Fog Lamps. SeeFog Lamps on page 217.
ICruise Control. SeeCruise Control on
page 193.
Adaptive Cruise Control (If Equipped). See
Adaptive Cruise Control on page 197.
Forward Collision Alert (FCA) (If Equipped).
SeeForward Collision Alert (FCA) System
on page 184.
Turn and Lane-Change Signals
To signal a turn, move the lever all the way up or
down. The lever returns automatically when
the turn is complete.
An arrow on the
instrument panel
cluster ashes in the
direction of the turn
or lane change.
182

Raise or lower the lever until the arrow starts to
ash to signal a lane change. Hold it there until the
lane change is complete. The lever returns to its
original position when it is released.
Rapid ashing of arrows when signaling for a turn
or lane change may be caused by a burned-out
signal bulb. Other driver’s will not see the signal.
Replace burned-out bulbs to help avoid possible
accidents. Check the fuse and for burned-out bulbs
if the arrow fails to work when signaling a turn.
SeeFuses and Circuit Breakers on page 487for
more information.
Turn Signal On Chime
If the turn signal is left on for about 1 mile (1.6 km),
a warning chime will sound and the TURN
SIGNAL ON message will appear on the Driver
Information Center (DIC) display. See “Turn Signal
On” underDIC Warnings and Messages on
page 264for more information.

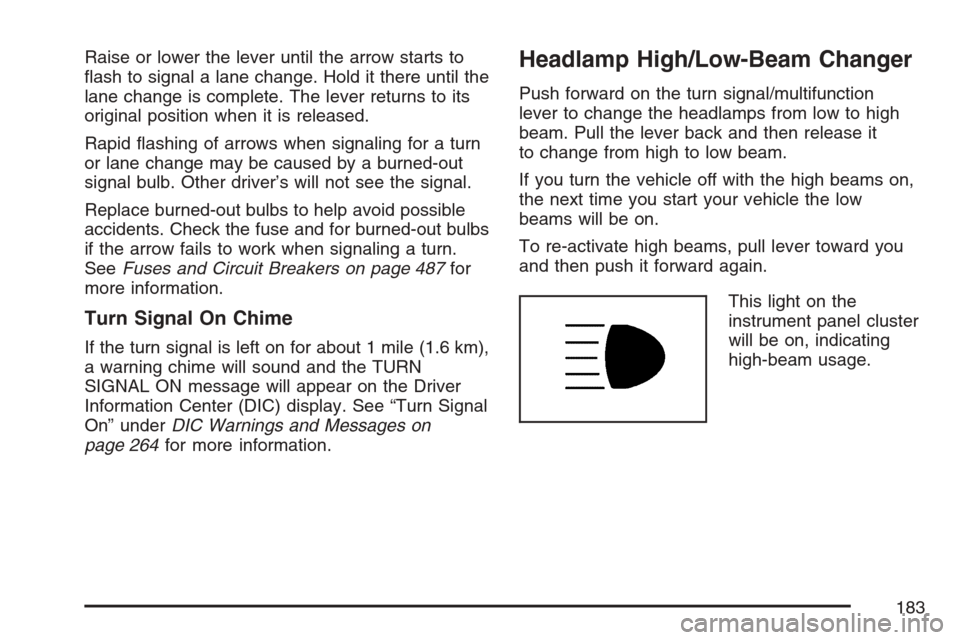

Headlamp High/Low-Beam Changer
Push forward on the turn signal/multifunction
lever to change the headlamps from low to high
beam. Pull the lever back and then release it
to change from high to low beam.
If you turn the vehicle off with the high beams on,
the next time you start your vehicle the low
beams will be on.
To re-activate high beams, pull lever toward you
and then push it forward again.
This light on the
instrument panel cluster
will be on, indicating
high-beam usage.
183

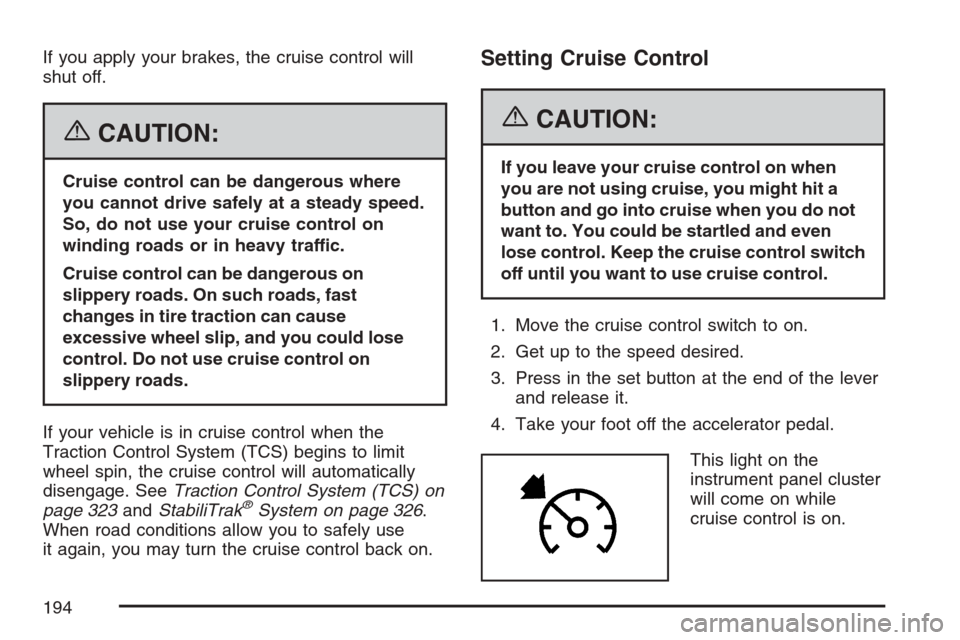

If you apply your brakes, the cruise control will
shut off.
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
If your vehicle is in cruise control when the
Traction Control System (TCS) begins to limit
wheel spin, the cruise control will automatically
disengage. SeeTraction Control System (TCS) on
page 323andStabiliTrak
®System on page 326.
When road conditions allow you to safely use
it again, you may turn the cruise control back on.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.
1. Move the cruise control switch to on.
2. Get up to the speed desired.
3. Press in the set button at the end of the lever
and release it.
4. Take your foot off the accelerator pedal.
This light on the
instrument panel cluster
will come on while
cruise control is on.
194

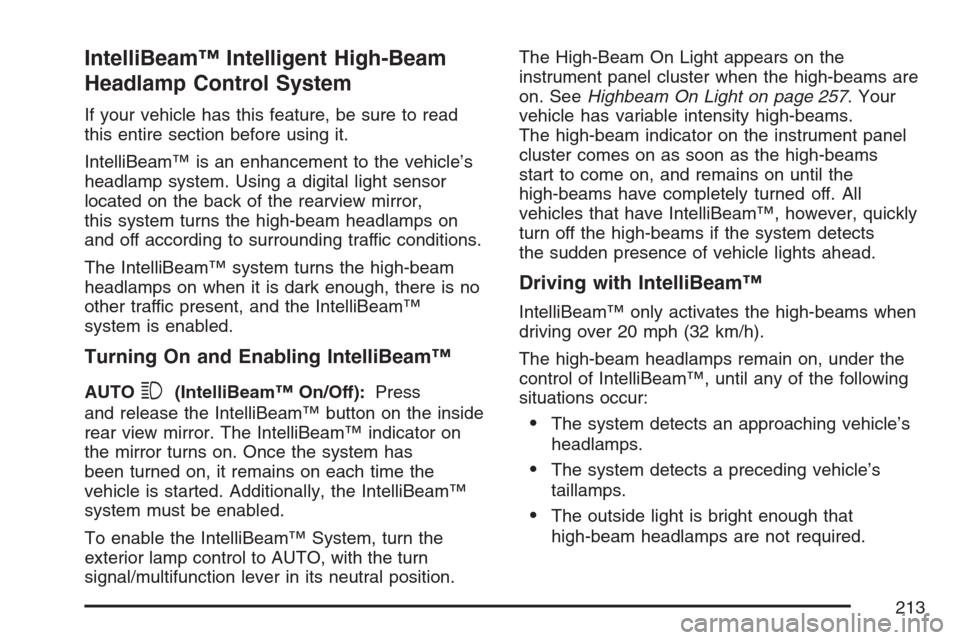

IntelliBeam™ Intelligent High-Beam
Headlamp Control System
If your vehicle has this feature, be sure to read
this entire section before using it.
IntelliBeam™ is an enhancement to the vehicle’s
headlamp system. Using a digital light sensor
located on the back of the rearview mirror,
this system turns the high-beam headlamps on
and off according to surrounding traffic conditions.
The IntelliBeam™ system turns the high-beam
headlamps on when it is dark enough, there is no
other traffic present, and the IntelliBeam™
system is enabled.
Turning On and Enabling IntelliBeam™
AUTO3(IntelliBeam™ On/Off):Press
and release the IntelliBeam™ button on the inside
rear view mirror. The IntelliBeam™ indicator on
the mirror turns on. Once the system has
been turned on, it remains on each time the
vehicle is started. Additionally, the IntelliBeam™
system must be enabled.
To enable the IntelliBeam™ System, turn the
exterior lamp control to AUTO, with the turn
signal/multifunction lever in its neutral position.The High-Beam On Light appears on the
instrument panel cluster when the high-beams are
on. SeeHighbeam On Light on page 257. Your
vehicle has variable intensity high-beams.
The high-beam indicator on the instrument panel
cluster comes on as soon as the high-beams
start to come on, and remains on until the
high-beams have completely turned off. All
vehicles that have IntelliBeam™, however, quickly
turn off the high-beams if the system detects
the sudden presence of vehicle lights ahead.
Driving with IntelliBeam™
IntelliBeam™ only activates the high-beams when
driving over 20 mph (32 km/h).
The high-beam headlamps remain on, under the
control of IntelliBeam™, until any of the following
situations occur:
The system detects an approaching vehicle’s
headlamps.
The system detects a preceding vehicle’s
taillamps.
The outside light is bright enough that
high-beam headlamps are not required.
213
