If you get the overheat warning with no sign of steam,
try this for a minute or so:
1. In heavy traffic, let the engine idle in NEUTRAL (N)
while stopped. If it is safe to do so, pull off the road,
shift to PARK (P) or NEUTRAL (N) and let the
engine idle.
2. Set the climate controls to the highest heat setting
and fan speed and open the windows as necessary.
If you no longer have the overheat warning, you
can drive. Just to be safe, drive slower for about
10 minutes. If the warning does not come back on,
you can drive normally.
If the warning continues, pull over, stop, and park
your vehicle right away.
If there is still no sign of steam, idle the engine for
three minutes while you are parked. If you still have the
warning, turn off the engine and get everyone out of
the vehicle until it cools down. Also, see “Overheated
Engine Protection Operating Mode” later in this section.
You may decide not to lift the hood but to get service
help right away.Overheated Engine Protection
Operating Mode
This operating mode allows your vehicle to be driven
to a safe place in an emergency situation. If an
overheated engine condition exists and the DIC
message ENGINE HOT, STOP ENGINE is displayed,
an overheat protection mode which alternates ring
groups of cylinders helps prevent engine damage.
In this mode, you will notice a signicant loss in
power and engine performance. Driving extended
miles (km) in the overheat protection mode should
be avoided.
Notice:After driving in the overheated engine
protection operating mode, to avoid engine damage,
allow the engine to cool before attempting any
repair. The engine oil will be severely degraded.
Repair the cause of coolant loss, change the oil
and reset the oil life system. SeeEngine Oil
on page 6-15.
6-27

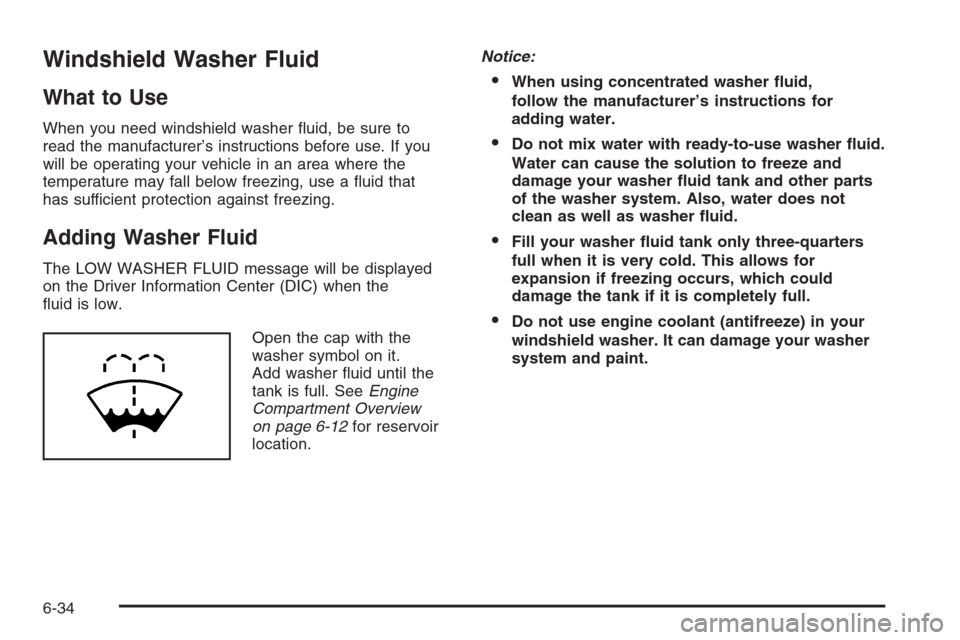

Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure to
read the manufacturer’s instructions before use. If you
will be operating your vehicle in an area where the
temperature may fall below freezing, use a uid that
has sufficient protection against freezing.
Adding Washer Fluid
The LOW WASHER FLUID message will be displayed
on the Driver Information Center (DIC) when the
uid is low.
Open the cap with the
washer symbol on it.
Add washer uid until the
tank is full. SeeEngine
Compartment Overview
on page 6-12for reservoir
location.Notice:
When using concentrated washer uid,
follow the manufacturer’s instructions for
adding water.
Do not mix water with ready-to-use washer uid.
Water can cause the solution to freeze and
damage your washer uid tank and other parts
of the washer system. Also, water does not
clean as well as washer uid.
Fill your washer uid tank only three-quarters
full when it is very cold. This allows for
expansion if freezing occurs, which could
damage the tank if it is completely full.
Do not use engine coolant (antifreeze) in your
windshield washer. It can damage your washer
system and paint.
6-34

Windshield Replacement
Keep in mind that your windshield is part of the Head-Up
Display (HUD) system. If you ever have to get your
windshield replaced, be sure to get one that is designed
for HUD or your HUD image may look blurred or out
of focus.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
or cracking. SeeScheduled Maintenance on page 7-4.
It is a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, seeNormal
Maintenance Replacement Parts on page 7-13.To replace the wiper blade assembly, do the following:
1. Place the vehicle in accessory mode and turn
the wipers on. Position the wipers on the
windshield in the mid-wipe position. Then with
a door open, turn the vehicle off.
2. Tip the blade up and pull up on the tab to release
the wiper blade assembly.
3. To install, align the wiper blade with the loop on the
wiper blade assembly, and push up to snap it
into place.
6-49

Remove the valve cap from the tire valve stem. Press
the tire gage rmly onto the valve to get a pressure
measurement. If the cold tire ination pressure matches
the recommended pressure on the Tire and Loading
Information label, no further adjustment is necessary.
If the ination pressure is low, add air until you reach the
recommended amount.
If you overll the tire, release air by pushing on the
metal stem in the center of the tire valve. Recheck the
tire pressure with the tire gage.
Be sure to put the valve caps back on the valve stems.
They help prevent leaks by keeping out dirt and
moisture.
Tire Pressure Monitor (TPM)
Your vehicle has a Tire Pressure Monitor (TPM) that
sends tire pressure information to the Driver Information
Center (DIC). Using the DIC control buttons, the
driver is able to check tire pressure levels in all four
road tires. SeeTire Pressure Monitor System on
page 6-59andDIC Controls and Displays on page 3-64
for additional information.
Tire Pressure Monitor System
The Tire Pressure Monitor System (TPMS) on your
vehicle, uses radio and sensor technology to check tire
pressure levels. Sensors, mounted on each tire and
wheel assembly transmit tire pressure readings to
a receiver located in the vehicle. The TPMS sensors
transmit tire pressure readings once every 60 seconds
while the vehicle is being driven and once every
60 minutes when the vehicle is stationary for more than
15 minutes. Using the Driver Information Center
(DIC), tire pressure levels can be viewed by the driver.
The TPMS also uses the DIC to warn the driver
when air pressure, in one or more tires, falls below
25 psi (172 kPa) or is above 42 psi (290 kPa).
For additional information and details about the
DIC operation and displays seeDIC Controls and
Displays on page 3-64andDIC Warnings and
Messages on page 3-67.
A low tire pressure warning light also appears on the
instrument panel cluster when a low tire condition exists.
The DIC message, CHECK TIRE PRESSURE and
the low tire pressure warning light will be shown each
time the engine is started and stays on until the low tire
condition is corrected.
6-59

Your vehicle’s TPMS can alert you about a low or high
tire pressure condition but it does not replace normal
tire maintenance. SeeTire Inspection and Rotation
on page 6-62
The SVC (Service) TIRE MONITOR message is
displayed when the TPM system is malfunctioning.
For example, one or more TPM sensors may be
inoperable or missing. See your dealer for service.
TPMS Sensor Identication Codes
Each TPMS sensor has a unique identication code.
Any time you replace one or more of the TPMS sensors
or rotate the vehicle’s tires, the identication codes
will need to be matched to the new tire/wheel position.
The sensors are matched, to the tire/wheel positions,
in the following order: driver’s side front tire, passenger’s
side front tire, passenger’s side rear tire, and
driver’s side rear tire using a TPMS diagnostic tool.
See your GM dealer for service.
Federal Communications
Commission (FCC) and Industry
and Science Canada
The Tire Pressure Monitor System (TPMS) operates
on a radio frequency and complies with Part 15 of
the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
The Tire Pressure Monitor System (TPMS) operates
on a radio frequency and complies with RSS-210
of Industry and Science Canada. Operation is subject
to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
6-61

If a Tire Goes Flat
It is unusual for a tire to “blow out” while you are
driving, especially if you maintain your tires properly.
If air goes out of a tire, it is much more likely to leak
out slowly. SeeTires on page 6-50for additional
information.
Your vehicle, when new, had run-at tires. This type
of tire can operate effectively with no air pressure,
so you will not need to stop on the side of the road
to change a at tire. You can just keep on driving.
The shorter the distance you drive and the slower the
speed, the greater the chance that the run-at tire
will not have to be replaced. Run-at tires perform
so well without any air that a Tire Pressure Monitor
(TPM) is used to alert you if a tire has lost pressure.
SeeRun-Flat Tires on page 6-56andTire Pressure
Monitor System on page 6-59.{CAUTION:
When the TIRE FLAT MAX SPD 55, REDUCED
HNDLG message is displayed on the Driver
Information Center, your vehicle’s handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could
lose control of your vehicle. You or others
could be injured. Don’t drive over 55 mph
(90 km/h) when the TIRE FLAT MAX SPD 55,
REDUCED HNDLG message is displayed.
Drive cautiously and check your tire pressures
as soon as you can.
If the TPM system detects a tire pressure below
5 psi (34 kPa), the TIRE FLAT MAX SPD 55, REDUCED
HNDLG warning message is displayed on the Driver
Information Center (DIC). SeeDIC Controls and
Displays on page 3-64andDIC Warnings and Messages
on page 3-67for information and details about the
DIC operation and displays.
6-75

Fuses Usage
20 OnStar
®
21Adaptive Cruise Control (ACC),
Driver Door Switch
22Power Tilt Wheel, Telescopic
Steering Column, Memory Seat,
Driver Seat Switch, Retractable
Hardtop Switch
23 Ignition Switch, Intrusion Sensor
24 Stop Lamp
25Inside Rearview Mirror, Climate
Control System, Column Lock,
Power Sounder
26Instrument Panel Cluster, Head-Up
Display (HUD)
27 Radio, S-Band, CD Changer
28 Tap-Up/Tap-Down Switch
29Climate Control System, Power
Sounder
30Rear Fog Lamps, Diagnostic Link
Connector
31 Power Folding Mirror
32Trunk Close Button, Parking Brake
Solenoid B
33 Power Seats
Fuses Usage
34 Door Controls
35 Run, Accessory Power
36 Not Used
37 Not Used
38 Rainsense™
39Steering Wheel Control
Button Lights
40 Power Lumbar
41 Passenger’s Side Heated Seat
42 Driver’s Side Heated Seat
43 Not Used
44 Retractable Hardtop, Trunk Latch
45 Auxiliary Power
46 Cigar Lighter
47 Park Brake Hold
48 Park Brake Release
49 Not Used
50 Not Used
51 Not Used
52 Fuel Door
6-88

D
Database Coverage Explanations......................4-50
Daytime Running Lamps..................................3-30
Defensive Driving............................................. 5-2
Diversity Antenna System.................................3-86
Doing Your Own Service Work........................... 6-4
Door
Automatic Door Lock....................................2-11
Locks.......................................................... 2-9
Power Door Locks.......................................2-11
Programmable Automatic Door Unlock............2-12
Driver
Position, Safety Belt.....................................1-10
Driver Information Center (DIC).........................3-64
DIC Controls and Displays............................3-64
DIC Vehicle Personalization..........................3-78
DIC Warnings and Messages........................3-67
Other Messages..........................................3-77
Driving
At Night.....................................................5-19
City ...........................................................5-22
Defensive..................................................... 5-2
Drunken....................................................... 5-3
Freeway.....................................................5-23
Hill and Mountain Roads..............................5-26
In Rain and on Wet Roads...........................5-20
Rocking Your Vehicle to Get it Out.................5-32
Winter........................................................5-27Dual Climate Control System............................3-41
DVD
Player........................................................4-69
E
Edit
Avoid Point/Area..........................................4-25
Memory Point.............................................4-19
Waypoint....................................................4-23
Electrical System
Add-On Equipment......................................6-86
Fuses and Circuit Breakers...........................6-86
Instrument Panel Fuse Block.........................6-87
Power Windows and Other Power Options......6-86
Underhood Fuse Block.................................6-89
Windshield Wiper Fuses...............................6-86
Engine
Air Cleaner/Filter.........................................6-20
Battery.......................................................6-38
Check and Service Engine Soon Light............3-58
Coolant......................................................6-22
Coolant Heater............................................2-24
Coolant Temperature Gage...........................3-57
Drive Belt Routing.......................................7-14
Engine Compartment Overview......................6-12
Exhaust.....................................................2-34
Oil .............................................................6-15
4

Getting Started
Getting Started, Navigation............................. 4-4
Global Positioning System (GPS)......................4-48
Glove Box.....................................................2-45
GM Mobility Reimbursement Program.................. 8-5
H
Hazard Warning Flashers................................... 3-6
Headlamp
Aiming .......................................................6-45
Vertical Aiming............................................6-46
Headlamps
Adaptive Forward Lighting System.................3-31
Bulb Replacement.......................................6-48
Daytime Running Lamps...............................3-30
Flash-to-Pass............................................... 3-8
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-29
Washer......................................................3-11
Wiper Activated...........................................3-29
Head-Up Display (HUD)...................................3-34
Heated Seats................................................... 1-3
Heater...........................................................3-41
Highbeam On Light.........................................3-62Highway Hypnosis...........................................5-25
Hill and Mountain Roads..................................5-26
Hood
Checking Things Under................................6-10
Release.....................................................6-11
Horn ............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-10
I
Ignition Positions.............................................2-21
Infants and Young Children, Restraints...............1-20
Ination - Tire Pressure...................................6-58
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-33
Cluster.......................................................3-49
J
Jump Starting.................................................6-39
6
