CADILLAC XT5 2023 Owners Manual

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
410 Vehicle Care
Warning (Continued)
If you do not follow these
steps exactly, some or all of
these things can hurt you.
Caution
Ignoring these steps could
result in costly damage to
the vehicle that would not
be covered by the vehicle
warranty. Trying to start the
vehicle by pushing or pulling
it will not work, and it could
damage the vehicle.
Caution
If the jumper cables are
connected or removed in the
wrong order, electrical
shorting may occur and
damage the vehicle. The
repairs would not be
covered by the vehicle
warranty. Always connect
and remove the jumper(Continued)
Caution (Continued)
cables in the correct order,
making sure that the cables
do not touch each other or
other metal.
3.6L V6 Shown, 2.0L L4Similar
Connection Points and
Sequence
1. Discharged Battery Positive (+) Terminal
2. Good Battery Positive (+) Terminal 3. Good Battery Negative (−)
Terminal
4. Discharged Battery Negative (−) Grounding
Point
The discharged battery
positive (+) terminal and the
discharged battery negative
(–) grounding point are on the
driver side of the vehicle.
The good battery negative (–)
terminal and the good battery
positive (+) terminal are on the
battery of the vehicle
providing the jump start.
The discharged battery
positive (+) terminal is under a
cover. Remove the cover to
expose the terminal.
1. Check the other vehicle. It must have a 12-volt
battery with a negative
ground system.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 411
Caution
If the other vehicle does not
have a 12-volt system with a
negative ground, both
vehicles can be damaged.
Only use a vehicle that has a
12-volt system with a
negative ground for jump
starting.
2. Position the two vehicles so that they are not
touching.
3. Set the parking brake firmly and put the
transmission in P (Park).
See Shifting Into Park
0258.
Caution
If any accessories are left on
or plugged in during the
jump starting procedure,
they could be damaged. The
repairs would not be
covered by the vehicle
warranty. Whenever
(Continued)
Caution (Continued)
possible, turn off or unplug
all accessories on either
vehicle when jump starting.
4. Turn the ignition off. Turn off all lights and
accessories in both
vehicles, except the hazard
warning flashers if needed.
{Warning
An electric fan can start up
even when the engine is not
running and can injure you.
Keep hands, clothing, and
tools away from any
underhood electric fan.
{Warning
Using a match near a
battery can cause battery
gas to explode. People have
been hurt doing this, and
(Continued)
Warning (Continued)
some have been blinded.
Use a flashlight if you need
more light.
Battery fluid contains acid
that can burn you. Do not
get it on you. If you
accidentally get it in your
eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly.
Keep your hands away from
moving parts once the
engine is running.
5. Connect one end of the red positive (+) cable to the
discharged battery
positive (+) terminal.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
412 Vehicle Care
6. Connect the other end ofthe red positive (+) cable to
the good battery
positive (+) terminal.
7. Connect one end of the black negative (–) cable to
the good battery negative
(–) terminal.
8. Connect the other end of the black negative (–) cable
to the discharged battery
negative (–) grounding
point.
9. Start the engine in the vehicle with the good
battery and run the engine
at idle speed for at least
four minutes.
10. Try to start the vehicle that had the dead battery.
If it will not start after a
few tries, it probably needs
service.
Jumper Cable Removal
Reverse the sequence exactly
when removing the jumper
cables. After starting the disabled
vehicle and removing the
jumper cables, allow it to idle
for several minutes.
Towing the
Vehicle
Transporting a
Disabled Vehicle
Caution
Incorrectly transporting a
disabled vehicle may cause
damage to the vehicle. Use
proper tire straps to secure
the vehicle to the flatbed
tow truck. Do not strap or
hook to any frame,
underbody, or suspension
component not specified
below. Do not move vehicles
with drive axle tires on the
ground. Damage is not
covered by the vehicle
warranty.
Caution
The vehicle may be equipped
with an electric parking
brake and/or an electronic
shifter. In the event of a loss
of 12-volt battery power, the
electric parking brake
cannot be released, and the
vehicle cannot be shifted to
N (Neutral). Tire skates or
dollies must be used under
the non-rolling tires to
prevent damage while
loading/unloading the
vehicle. Dragging the vehicle
will cause damage not
covered by the vehicle
warranty.
Caution
The vehicle may be equipped
with a tow eye. Improper use
of the tow eye may cause
damage to the vehicle and is
not covered by the vehicle
warranty. If equipped, use
(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 413
Caution (Continued)
the tow eye to load the
vehicle onto a flatbed tow
truck from a flat road
surface, or to move the
vehicle a very short distance
at a walking pace. The tow
eye is not designed for
off-road recovery. The
vehicle must be in
N (Neutral) with the electric
parking brake released when
using the tow eye.
Contact a professional towing
service if the disabled vehicle
must be transported. GM
recommends a flatbed tow
truck to transport a disabled
vehicle. Use ramps to help
reduce approach angles,
if necessary.
If equipped, a tow eye may be
located near the spare tire or
emergency jack. Do not use
the tow eye to pull the vehicle
from the snow, mud, sand,
or ditch. Tow eye threads may have right or left-hand
threads. Use caution when
installing or removing the
tow eye.
The vehicle must be in
N (Neutral) and the electric
parking brake must be
released when loading the
vehicle onto a flatbed tow
truck.
.If the vehicle is equipped
with car wash mode and has
12-volt battery power, refer
to
“Car Wash Mode” under
Automatic Transmission
0 261 to place the vehicle in
N (Neutral).
.If the 12-volt battery is dead
and/or the engine will not
start, the vehicle will not
move. Try to jump start the
vehicle. Refer to Jump
Starting - North America
0 409 and if the jump start is
successful, retry the “Car
Wash Mode” procedure.
.If jump starting is
unsuccessful, the vehicle will
not move. Tire skates or dollies must be used under
the non-rolling tires to
prevent vehicle damage.
Front Attachment Points
The vehicle is equipped with
specific attachment points to
be used by the towing
provider. These holes may be
used to pull the vehicle from a
flat road surface onto the
flatbed tow truck.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
414 Vehicle Care
Recreational Vehicle
Towing
Recreational vehicle towing
means towing the vehicle
behind another vehicle, such
as behind a motor home. The
two most common types of
recreational vehicle towing are
known as dinghy towing and
dolly towing. Dinghy towing is
towing the vehicle with all four
wheels on the ground. Dolly
towing is towing the vehicle
with two wheels on the
ground and two wheels up on
a device known as a dolly.
Here are some important
things to consider before
recreational vehicle towing:
.Become familiar with the
local laws that apply to
recreational vehicle towing.
These laws may vary by
region.
.The towing capacity of the
towing vehicle. Be sure to
read the tow vehicle
manufacturer's
recommendations.
.How far the vehicle will be
towed. Some vehicles have
restrictions on how far and
how long they can be towed.
.The proper towing
equipment. See your dealer
or trailering professional for
additional advice and
equipment
recommendations.
.If the vehicle is ready to be
towed. Just as preparing the
vehicle for a long trip, make
sure the vehicle is prepared
to be towed.
Caution
Use of a shield mounted in
front of the vehicle grille
could restrict airflow and
cause damage to the
transmission. The repairs
would not be covered by the(Continued)
Caution (Continued)
vehicle warranty. If using a
shield, only use one that
attaches to the towing
vehicle.
Dinghy Towing
Caution
If the vehicle is towed with
all four wheels on the
ground, the drivetrain
components could be
damaged. The repairs would
not be covered by the(Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22

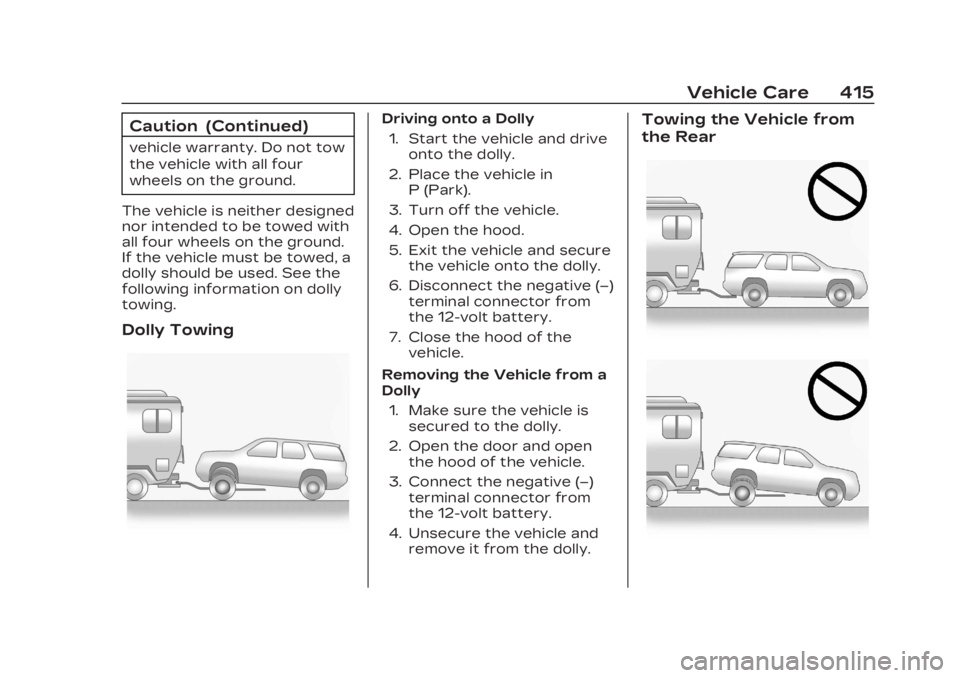

Vehicle Care 415
Caution (Continued)
vehicle warranty. Do not tow
the vehicle with all four
wheels on the ground.
The vehicle is neither designed
nor intended to be towed with
all four wheels on the ground.
If the vehicle must be towed, a
dolly should be used. See the
following information on dolly
towing.
Dolly Towing
Driving onto a Dolly 1. Start the vehicle and drive onto the dolly.
2. Place the vehicle in P (Park).
3. Turn off the vehicle.
4. Open the hood.
5. Exit the vehicle and secure the vehicle onto the dolly.
6. Disconnect the negative (–) terminal connector from
the 12-volt battery.
7. Close the hood of the vehicle.
Removing the Vehicle from a
Dolly 1. Make sure the vehicle is secured to the dolly.
2. Open the door and open the hood of the vehicle.
3. Connect the negative (–) terminal connector from
the 12-volt battery.
4. Unsecure the vehicle and remove it from the dolly.Towing the Vehicle from
the Rear

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
416 Vehicle Care
Caution
Towing the vehicle from the
rear could damage it. Also,
repairs would not be
covered by the vehicle
warranty. Never have the
vehicle towed from the rear.
Do not tow the vehicle from
the rear.
Appearance Care
Exterior Care
Locks
Locks are lubricated at the
factory. Use a de-icing agent
only when absolutely
necessary, and have the locks
greased after using. See
Recommended Fluids and
Lubricants 0433.
Washing the Vehicle
To preserve the vehicle's
finish, wash it often and out of
direct sunlight.
Caution
Do not use
petroleum-based, acidic,
or abrasive cleaning agents
as they can damage the
vehicle's paint, metal,
or plastic parts. If damage
occurs, it would not be
covered by the vehicle
warranty. Approved cleaning
products can be obtained
from your dealer. Follow all
manufacturer directions
regarding correct product
usage, necessary safety
precautions, and
appropriate disposal of any
vehicle care product.
Caution
Avoid using high-pressure
washes closer than 30 cm
(12 in) to the surface of the
vehicle. Use of power
washers exceeding
(Continued)
Caution (Continued)
8 274 kPa (1,200 psi) can
result in damage or removal
of paint and decals.
If using an automatic car wash,
follow the car wash
instructions. The windshield
wiper and rear window wiper,
if equipped, must be off.
Remove any accessories that
may be damaged or interfere
with the car wash equipment.
Rinse the vehicle well, before
washing and after, to remove
all cleaning agents completely.
If they are allowed to dry on
the surface, they could stain.
Dry the finish with a soft, clean
chamois or an all-cotton towel
to avoid surface scratches
and water spotting.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 417
Cleaning Underhood
Components
Caution
Do not power wash any
component under the hood
that has this
esymbol.
This could cause damage
that would not be covered
by the vehicle warranty.
Solvents or aggressive
cleaners may harm underhood
components. The usages of
these chemicals should be
avoided.
Recommend water only.
A pressure washer may be
used, but care must be utilized.
The following criteria must be
followed:
.Water pressure must be
kept below 14,000 KPa
(2,000 PSI).
.Water temperature must be
below 80 °C (180 °F).
.Spray nozzle with a
40 degree wide angle spray
pattern or wider must
be used.
.Nozzle must be kept at least
30 cm (1 ft) away from all
surfaces.
Finish Care
Application of aftermarket
clearcoat sealant/wax
materials is not recommended.
If painted surfaces are
damaged, see your dealer to
have the damage assessed
and repaired. Foreign
materials such as calcium
chloride and other salts, ice
melting agents, road oil and
tar, tree sap, bird droppings,
chemicals from industrial
chimneys, etc., can damage
the vehicle's finish if they
remain on painted surfaces.
Wash the vehicle as soon as
possible. If necessary, use
non-abrasive cleaners that are
marked safe for painted
surfaces to remove foreign
matter. Occasional hand waxing or
mild polishing should be done
to remove residue from the
paint finish. See your dealer
for approved cleaning
products.
Do not apply waxes or
polishes to uncoated plastic,
vinyl, rubber, decals, simulated
wood, or flat paint as damage
can occur.
Caution
Machine compounding or
aggressive polishing on a
basecoat/clearcoat paint
finish may damage it. Use
only non-abrasive waxes and
polishes that are made for a
basecoat/clearcoat paint
finish on the vehicle.
To keep the paint finish
looking new, keep the vehicle
garaged or covered whenever
possible.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
418 Vehicle Care
Protecting Exterior Bright
Metal Moldings
Caution
Failure to clean and protect
the bright metal moldings
can result in a hazy white
finish or pitting. This damage
would not be covered by the
vehicle warranty.
The bright metal moldings on
the vehicle are aluminum,
chrome, or stainless steel. To
prevent damage always follow
these cleaning instructions:
.Be sure the molding is cool
to the touch before applying
any cleaning solution.
.Use only approved cleaning
solutions for aluminum,
chrome, or stainless steel.
Some cleaners are highly
acidic or contain alkaline
substances and can damage
the moldings.
.Always dilute a concentrated
cleaner according to the
manufacturer’s instructions.
.Do not use cleaners that are
not intended for
automotive use.
.Use a nonabrasive wax on
the vehicle after washing to
protect and extend the
molding finish.
Cleaning Exterior Lamps/
Lenses, Emblems, Decals,
and Stripes
Use only lukewarm or cold
water, a soft cloth, and a car
washing soap to clean exterior
lamps, lenses, emblems,
decals, and stripes. Follow
instructions under "Washing
the Vehicle" previously in this
section.
Lamp covers are made of
plastic, and some have a UV
protective coating. Do not
clean or wipe them when dry.
Do not use any of the
following on lamp covers:
.Abrasive or caustic agents.
.Washer fluids and other
cleaning agents in higher
concentrations than
suggested by the
manufacturer.
.Solvents, alcohols, fuels,
or other harsh cleaners.
.Ice scrapers or other hard
items.
.Aftermarket appearance
caps or covers while the
lamps are illuminated, due to
excessive heat generated.
Caution
Failure to clean lamps
properly can cause damage
to the lamp cover that would
not be covered by the
vehicle warranty.
Caution
Using wax on low gloss black
finish stripes can increase
the gloss level and create a (Continued)

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
Vehicle Care 419
Caution (Continued)
non-uniform finish. Clean low
gloss stripes with soap and
water only.
Air Intakes
Clear debris from the air
intakes, between the hood and
windshield, when washing the
vehicle.
Shutter System
The vehicle may have a
shutter system designed to
help improve fuel economy.
Keep the shutter system clearof debris, snow and ice. If the
check engine light is activated,
please check to see if the
shutter system is clear of
debris, snow or ice.
Windshield and Wiper
Blades
Clean the outside of the
windshield with glass cleaner.
Clean rubber blades using a
lint-free cloth or paper towel
soaked with windshield
washer fluid or a mild
detergent. Wash the
windshield thoroughly when
cleaning the blades. Bugs,
road grime, sap, and a buildup
of vehicle wash/wax
treatments may cause wiper
streaking.
Replace the wiper blades if
they are worn or damaged.
Damage can be caused by
extreme dusty conditions,
sand, salt, heat, sun, snow,
and ice.
Weatherstrips
Apply weatherstrip lubricant
on weatherstrips to make
them last longer, seal better,
and not stick or squeak.
Lubricate weatherstrips at
least once a year. Hot, dry
climates may require more
frequent application. Black
marks from rubber material on
painted surfaces can be
removed by rubbing with a
clean cloth. See
Recommended Fluids and
Lubricants
0433.
Tires
Use a stiff brush with tire
cleaner to clean the tires.
Caution
Using petroleum-based tire
dressing products on the
vehicle may damage the
paint finish and/or tires.
When applying a tire
dressing, always wipe off
(Continued)
