Page 1021 of 1903

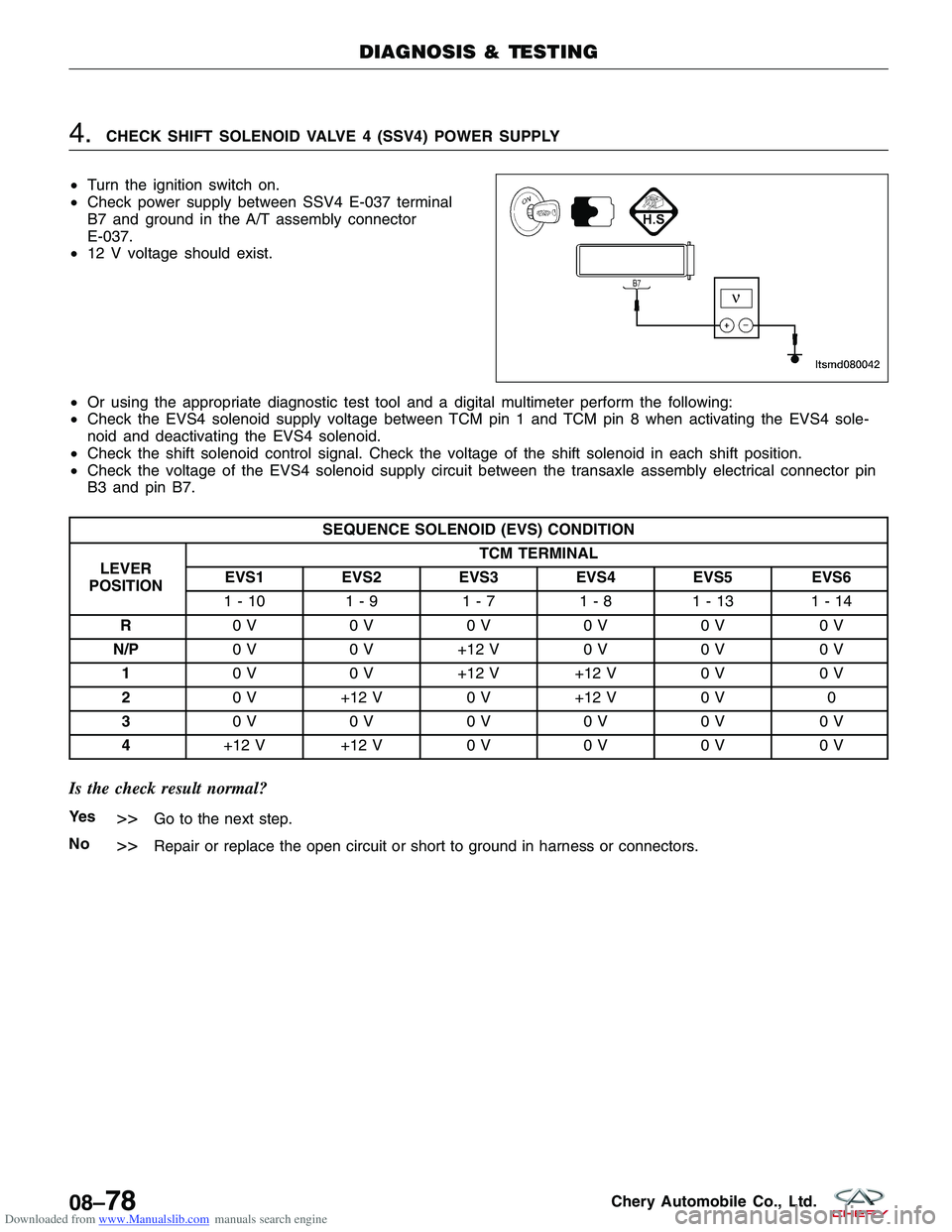

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 4 (SSV4) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between SSV4 E-037 terminal
B7 and g

Page 1022 of 1903

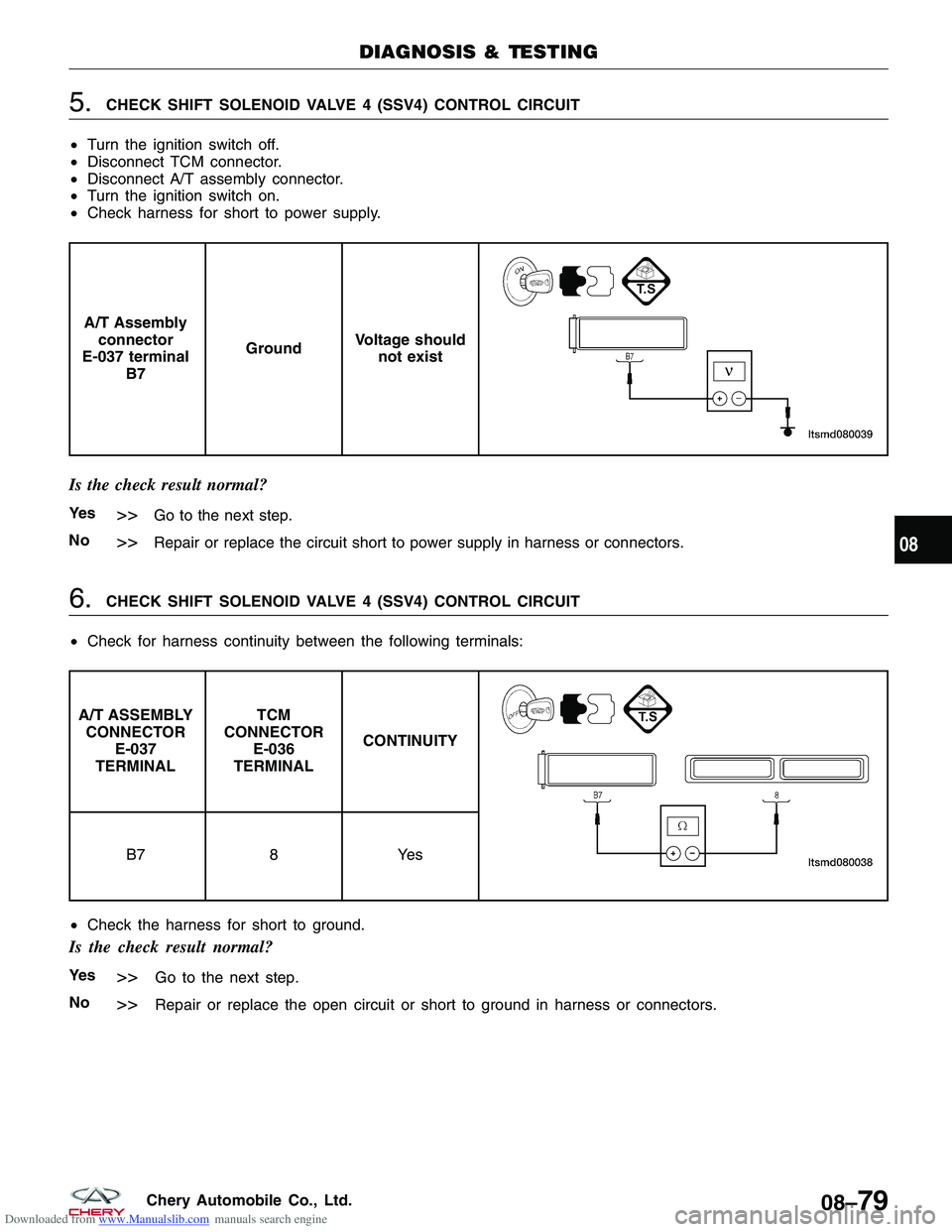

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 4 (SSV4) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assemb

Page 1023 of 1903

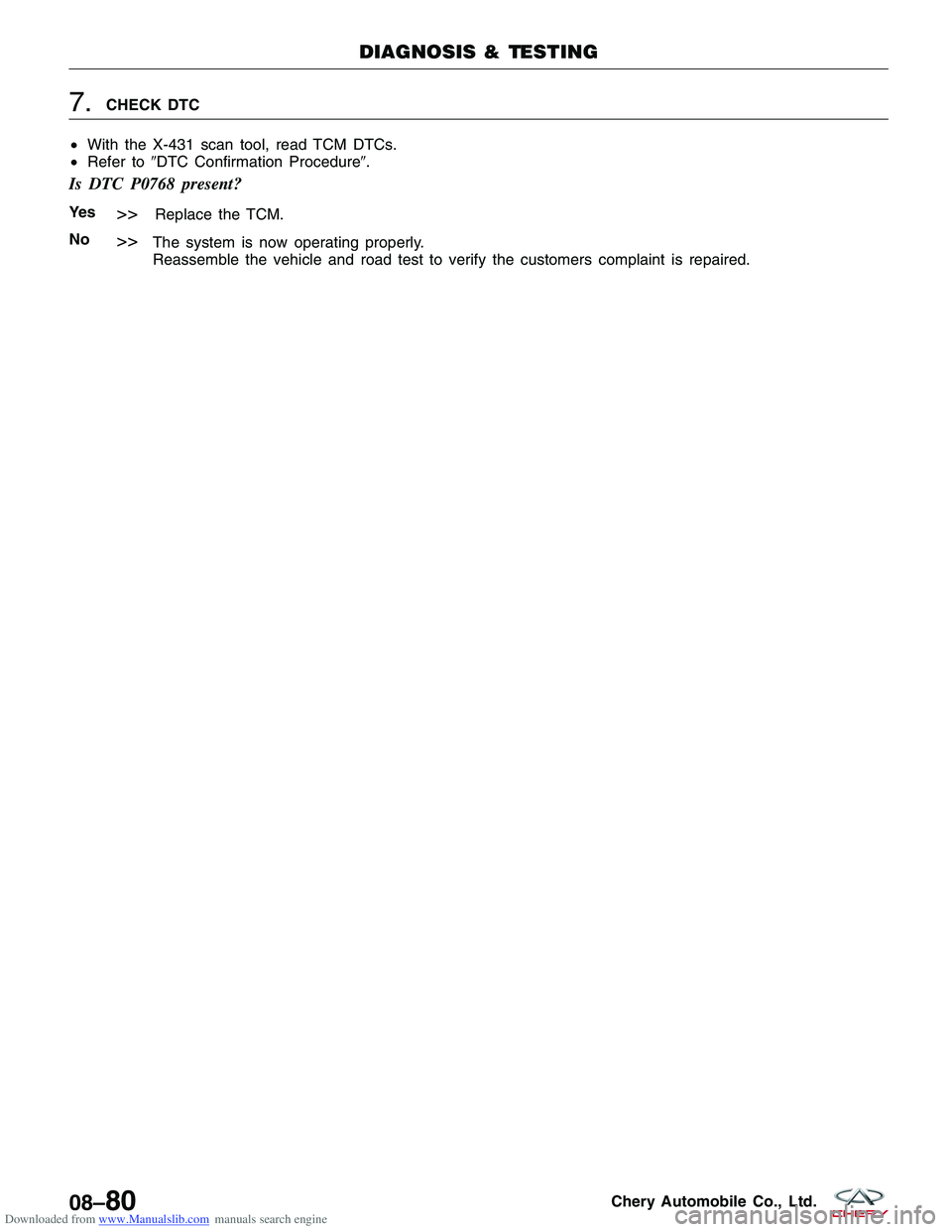

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 7.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0768 present?
Ye s>>Replace the TCM

Page 1024 of 1903

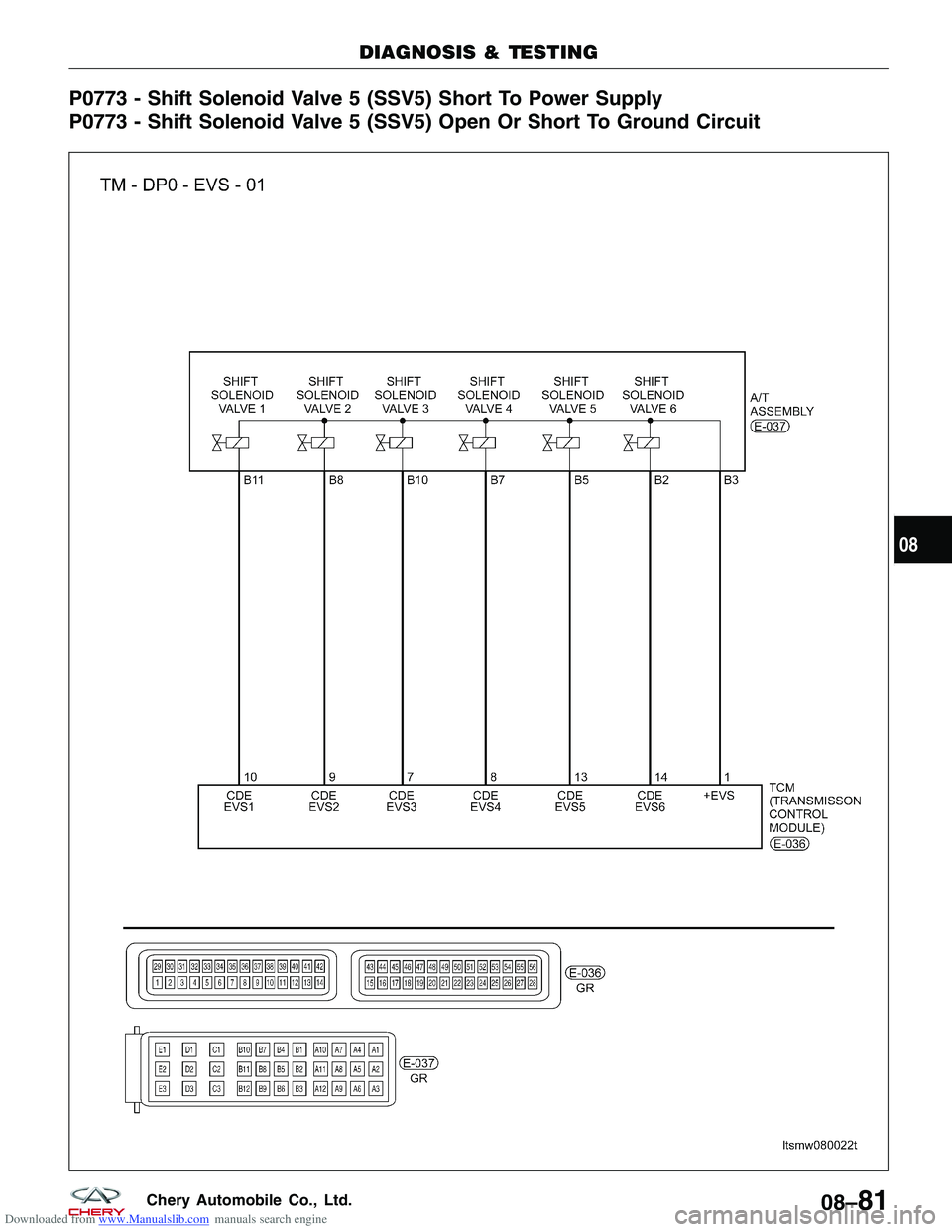

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine P0773 - Shift Solenoid Valve 5 (SSV5) Short To Power Supply
P0773 - Shift Solenoid Valve 5 (SSV5) Open Or Short To Ground Circuit
DIAGNOSIS & T

Page 1025 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC
DEFINITION DTC
DETECTION CONDITION DTC SET CONDITION
POSSIBLE
CAUSES
P

Page 1026 of 1903

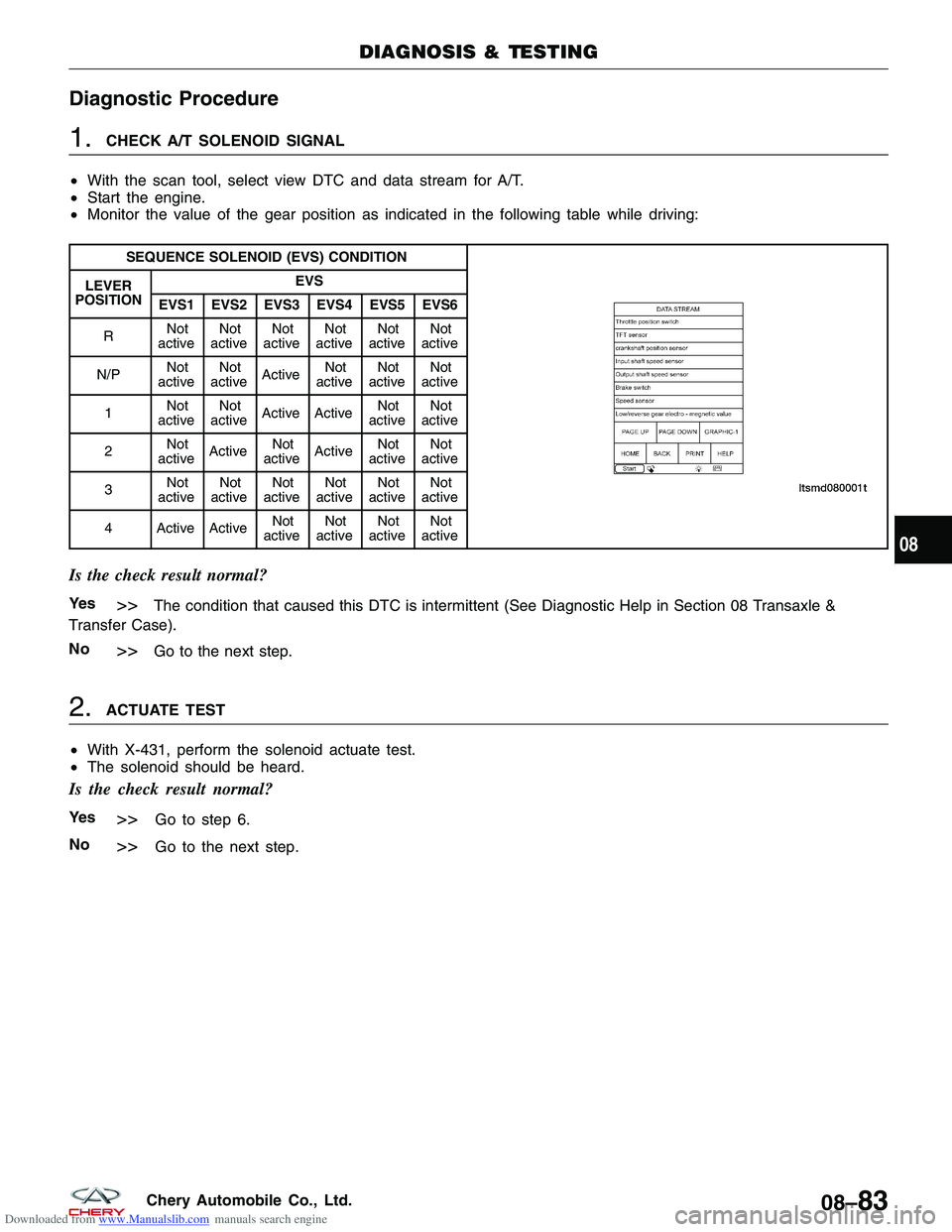

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Mon

Page 1027 of 1903

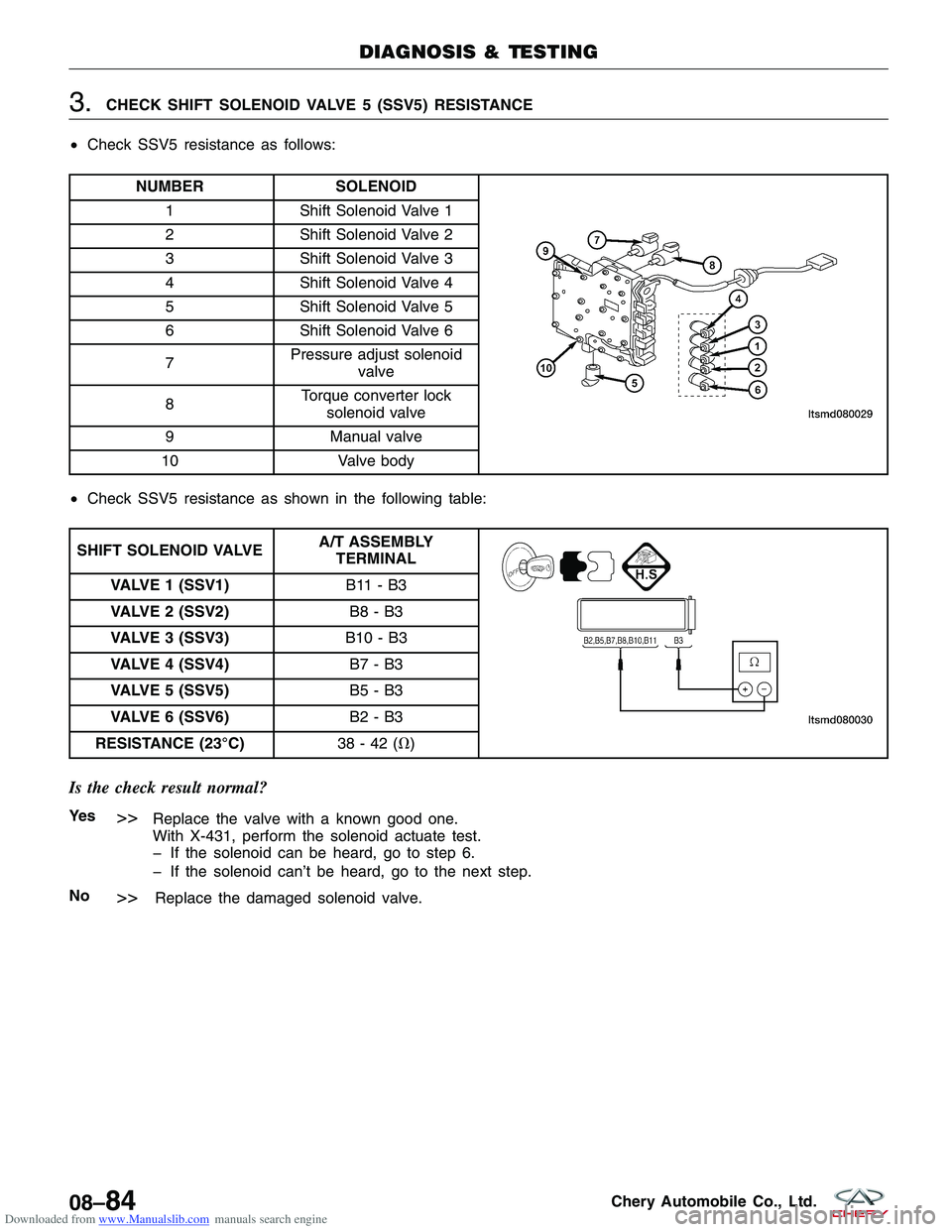

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 5 (SSV5) RESISTANCE
• Check SSV5 resistance as follows:
NUMBER SOLENOID
1Shift Solenoid Valve 1
2 Shift Solenoid

Page 1028 of 1903

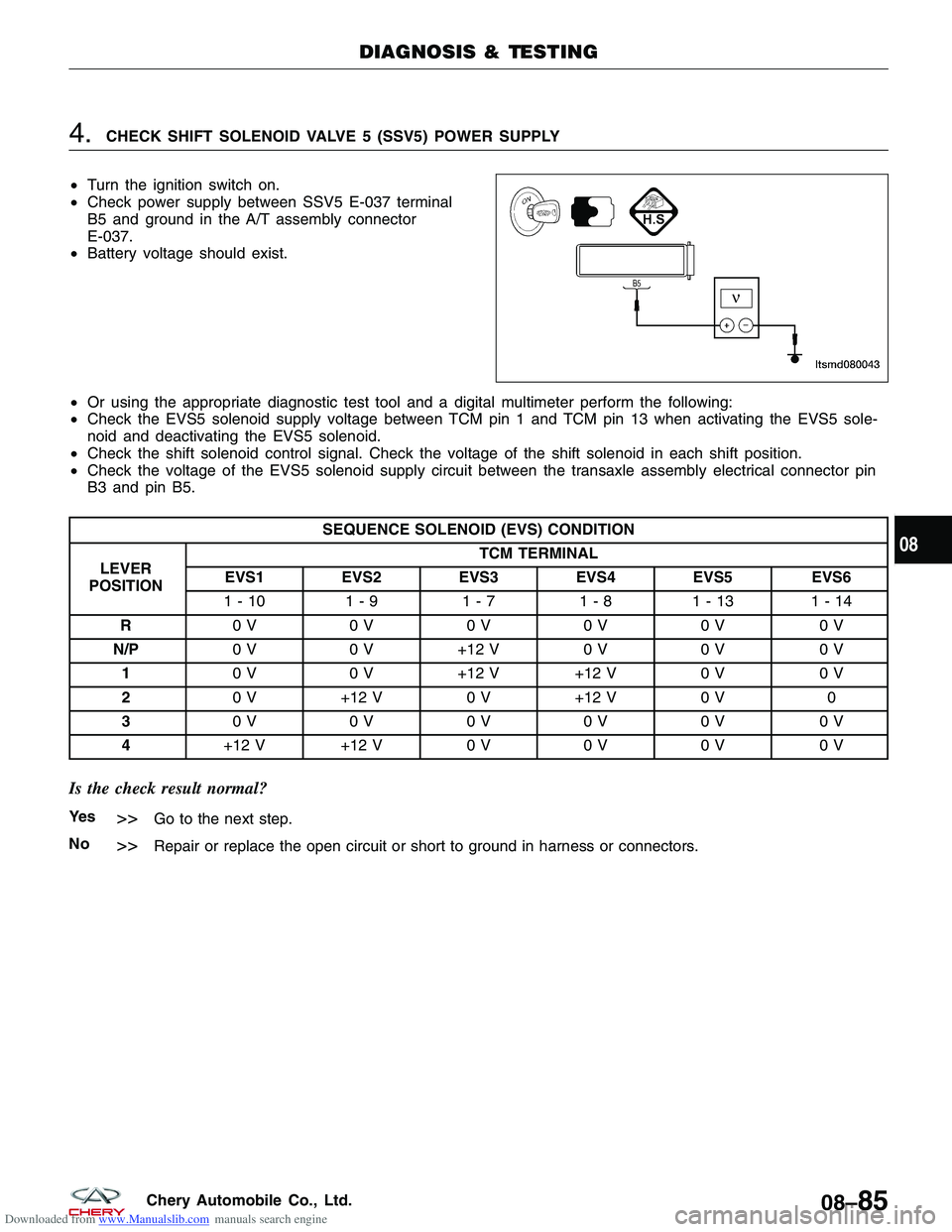

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 5 (SSV5) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between SSV5 E-037 terminal
B5 and g

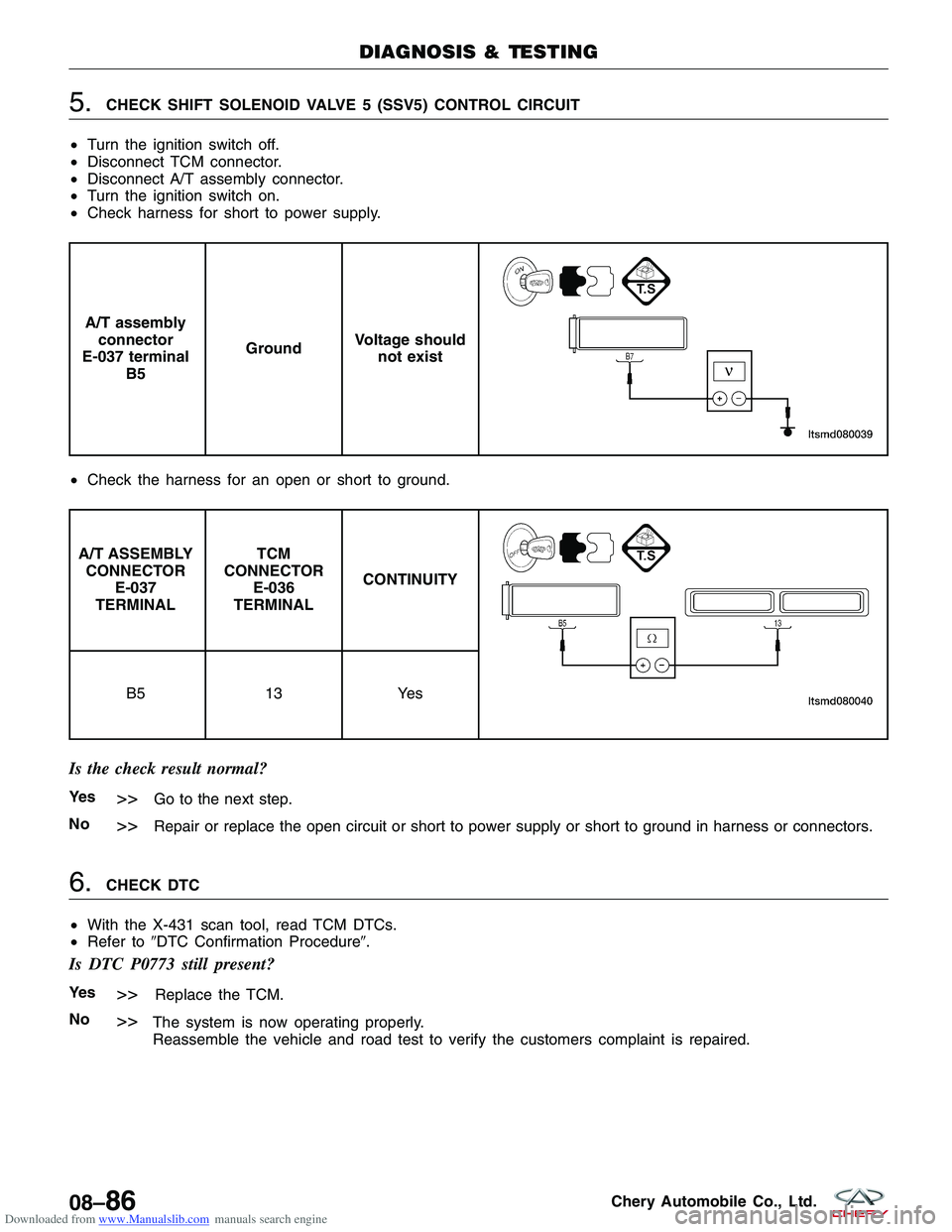

Page 1029 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 5 (SSV5) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assemb

Page 1030 of 1903

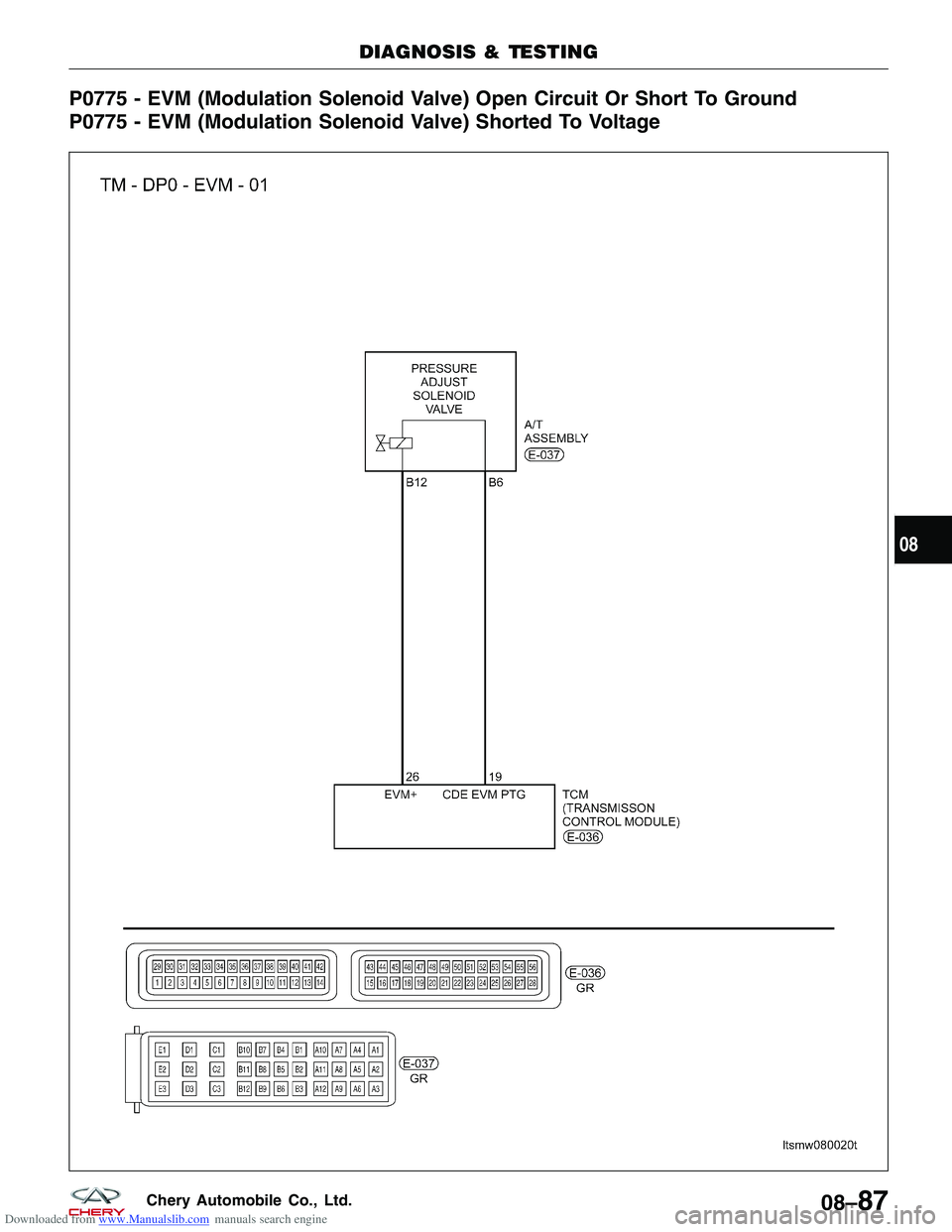

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine P0775 - EVM (Modulation Solenoid Valve) Open Circuit Or Short To Ground
P0775 - EVM (Modulation Solenoid Valve) Shorted To Voltage
DIAGNOSIS &
