Page 1041 of 1903

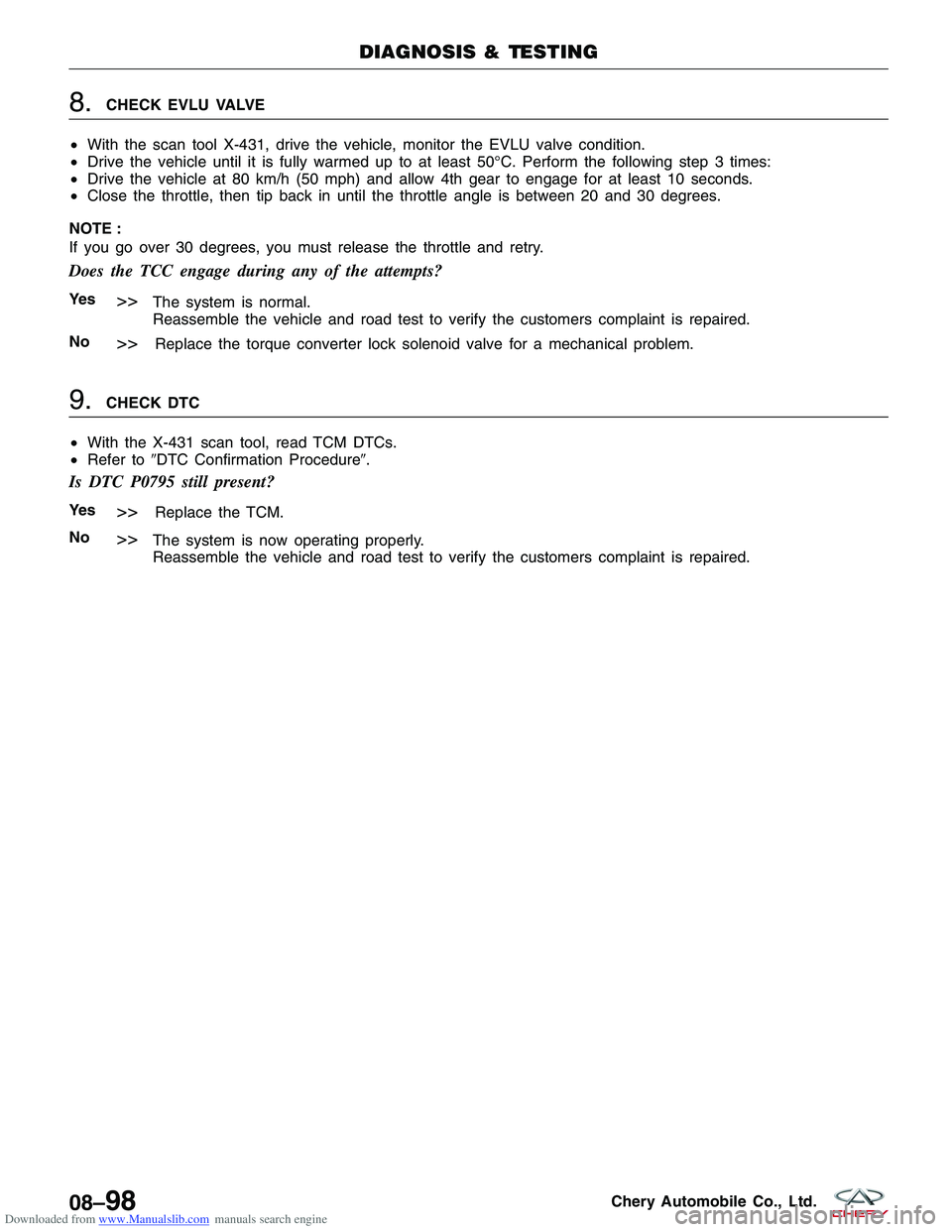

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 8.CHECK EVLU VALVE
• With the scan tool X-431, drive the vehicle, monitor the EVLU valve condition.
• Drive the vehicle until it is fully w

Page 1042 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine P0840 - Pressure Sensor
DIAGNOSIS & TESTING
LTSMW080015T
08
08–99Chery Automobile Co., Ltd.

Page 1043 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSES
P

Page 1044 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T FLUID PRESSURE SENSOR SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start vehicl

Page 1045 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 3.CHECK FLUID PRESSURE SENSOR POWER SUPPLY
• Stop vehicle and turn ignition switch off.
• Turn the ignition switch on.
• Check sensor pow

Page 1046 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 6.CHECK FLUID PRESSURE SENSOR SIGNAL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM and sensor connector.
• Check harness conti

Page 1047 of 1903

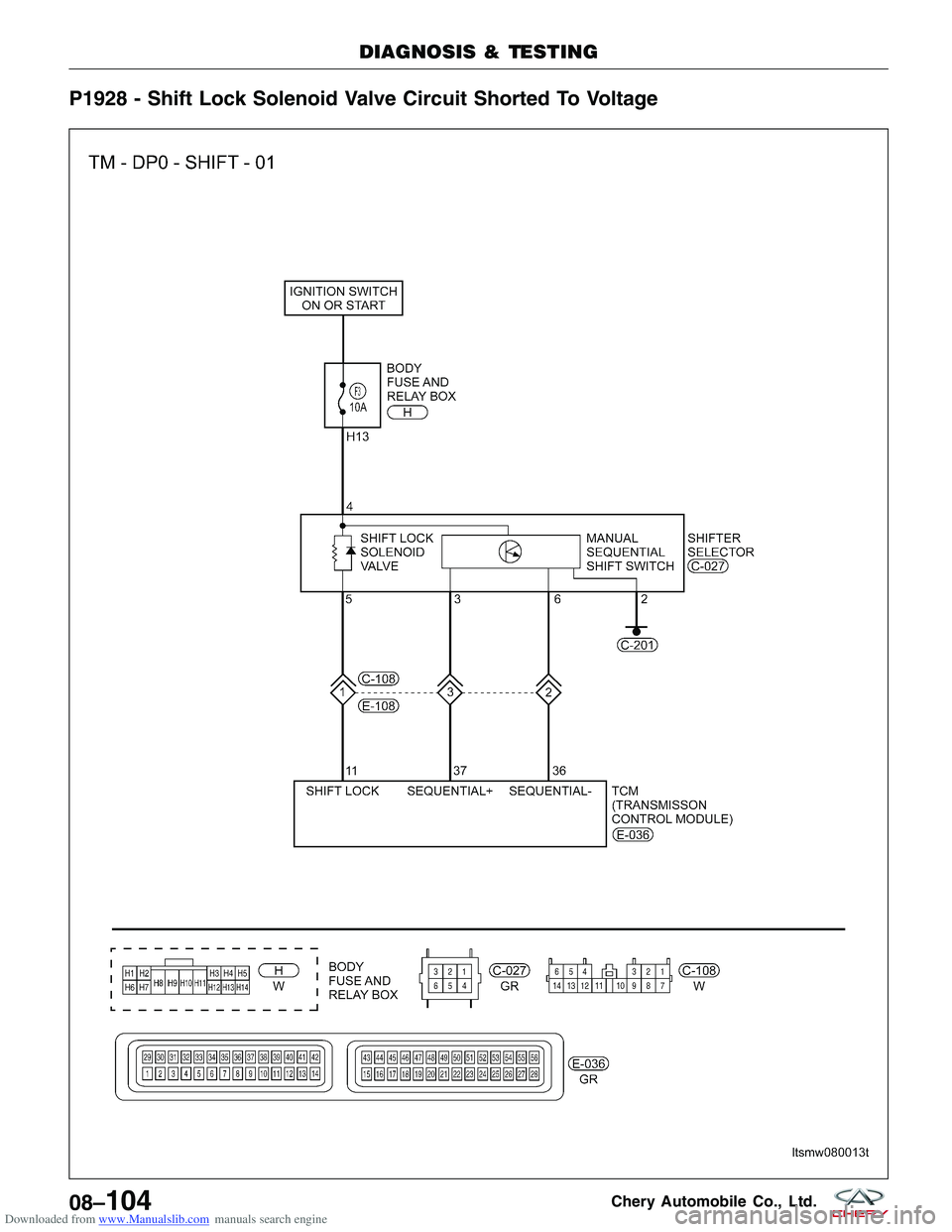

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine P1928 - Shift Lock Solenoid Valve Circuit Shorted To Voltage
DIAGNOSIS & TESTING
LTSMW080013T
08–104Chery Automobile Co., Ltd.

Page 1048 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC
DEFINITION DTC
DETECTION CONDITION DTC SET CONDITION
POSSIBLE
CAUSES
P

Page 1049 of 1903

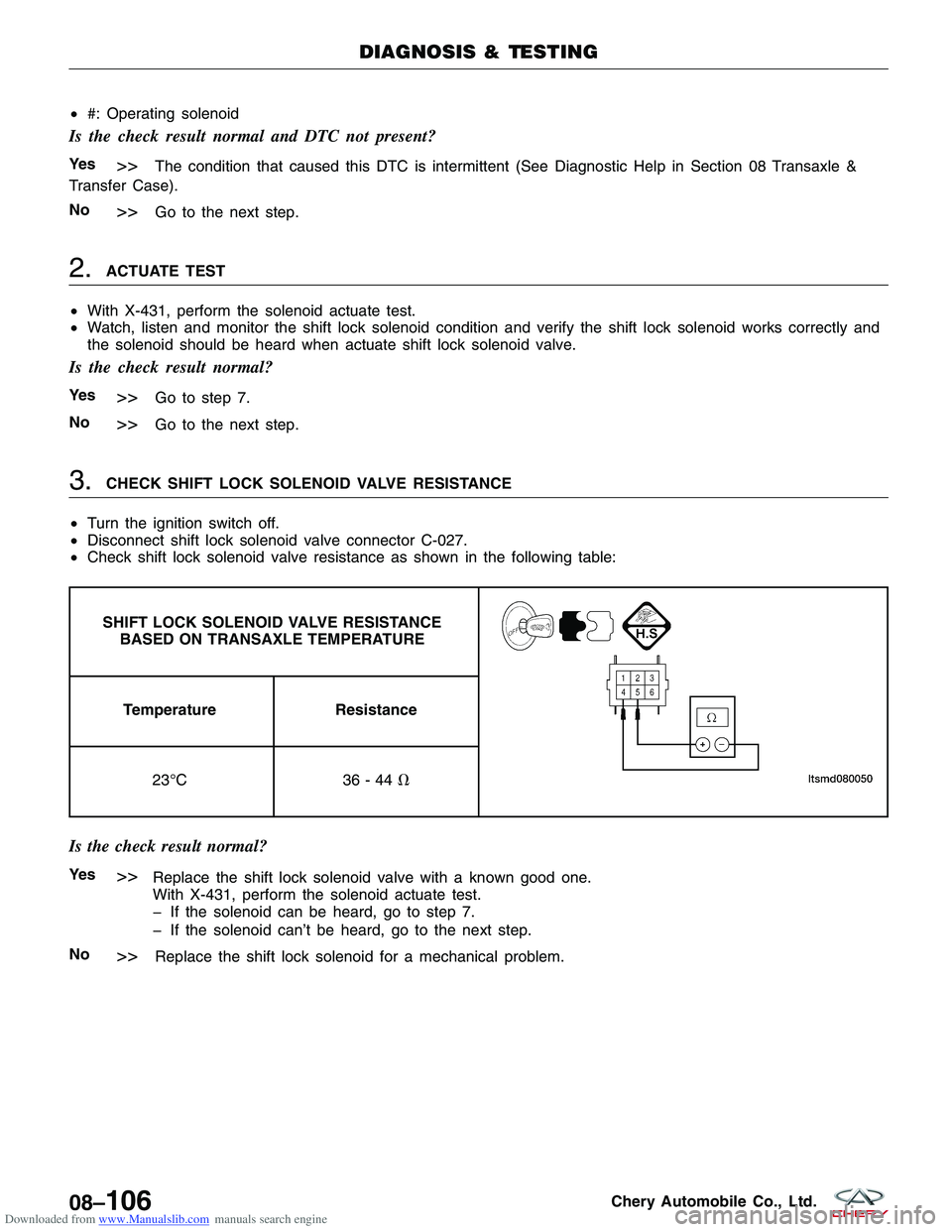

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine •#: Operating solenoid
Is the check result normal and DTC not present?
Ye s>>The condition that caused this DTC is intermittent (See Diagnost

Page 1050 of 1903

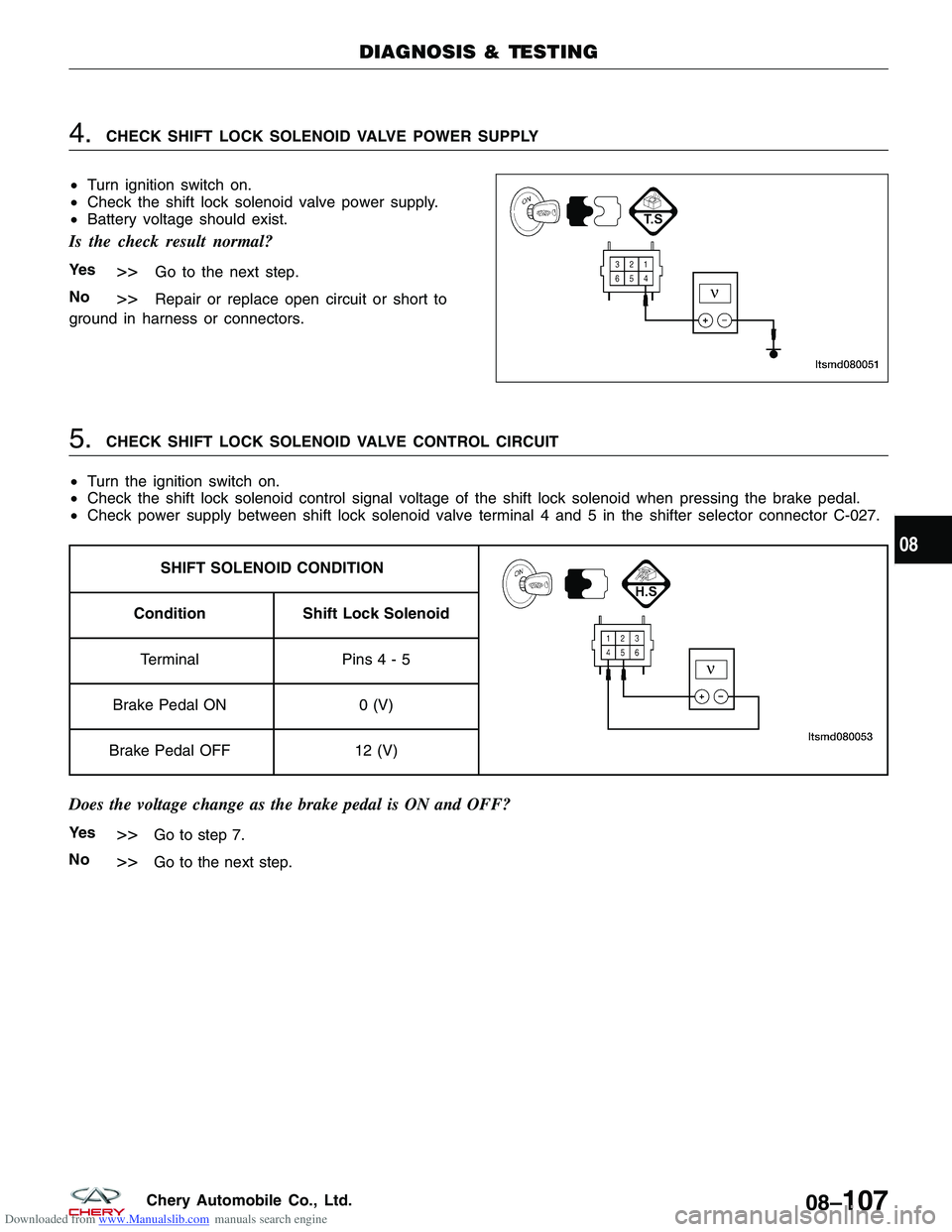

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT LOCK SOLENOID VALVE POWER SUPPLY
• Turn ignition switch on.
• Check the shift lock solenoid valve power supply.
• Battery v
