CHERY TIGGO 2009 Service Repair Manual
Manufacturer: CHERY, Model Year: 2009, Model line: TIGGO, Model: CHERY TIGGO 2009Pages: 1903, PDF Size: 33.38 MB
Page 1001 of 1903

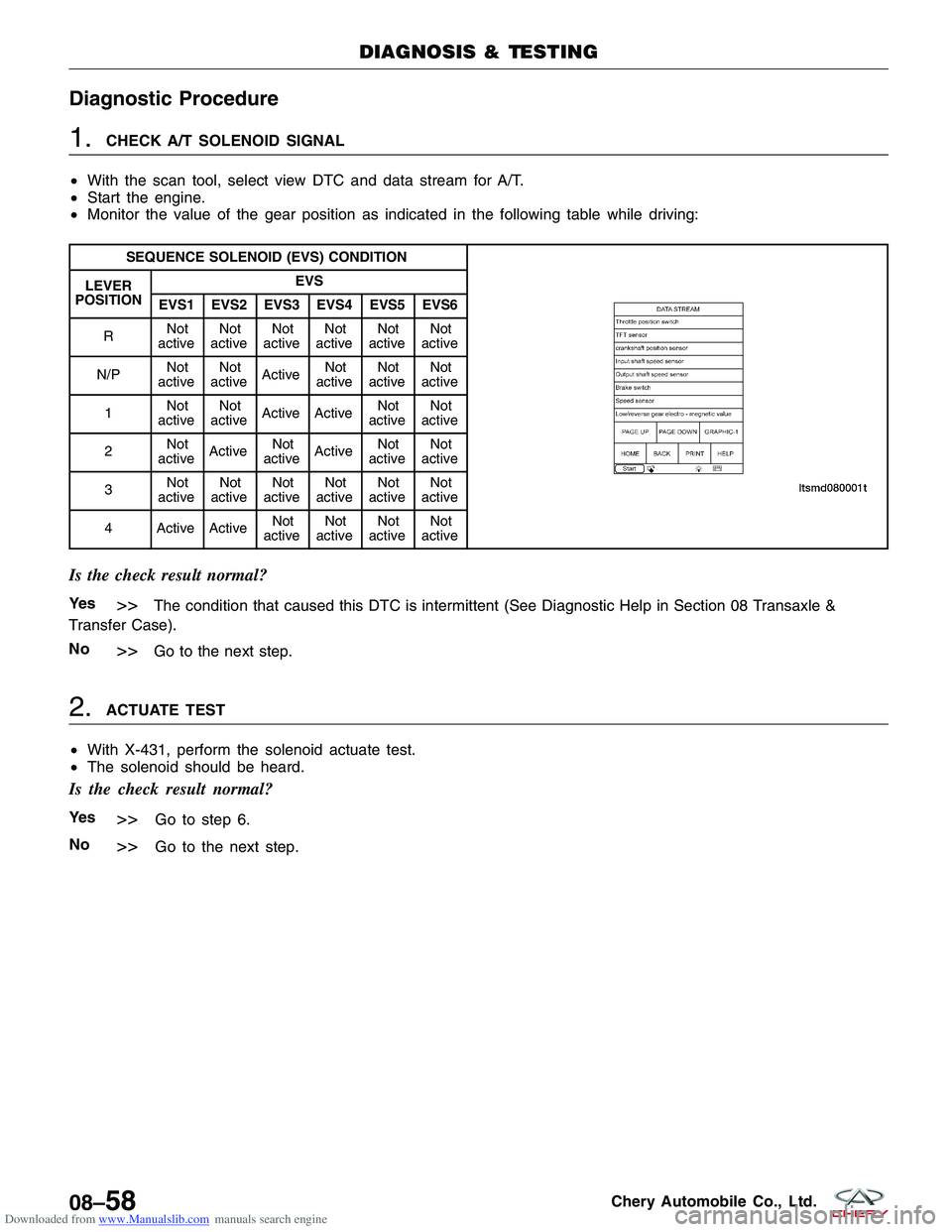

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION EVS
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
R Not
active Not
active Not
active Not
active Not
active Not
active
N/P Not
active Not
active Active Not
active Not
active Not
active
1 Not
active Not
active Active Active Not
active Not
active
2 Not
active Active Not
active Active Not
active Not
active
3 Not
active Not
active Not
active Not
active Not
active Not
active
4 Active Active Not
active Not
active Not
active Not
active
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–58Chery Automobile Co., Ltd.
Page 1002 of 1903

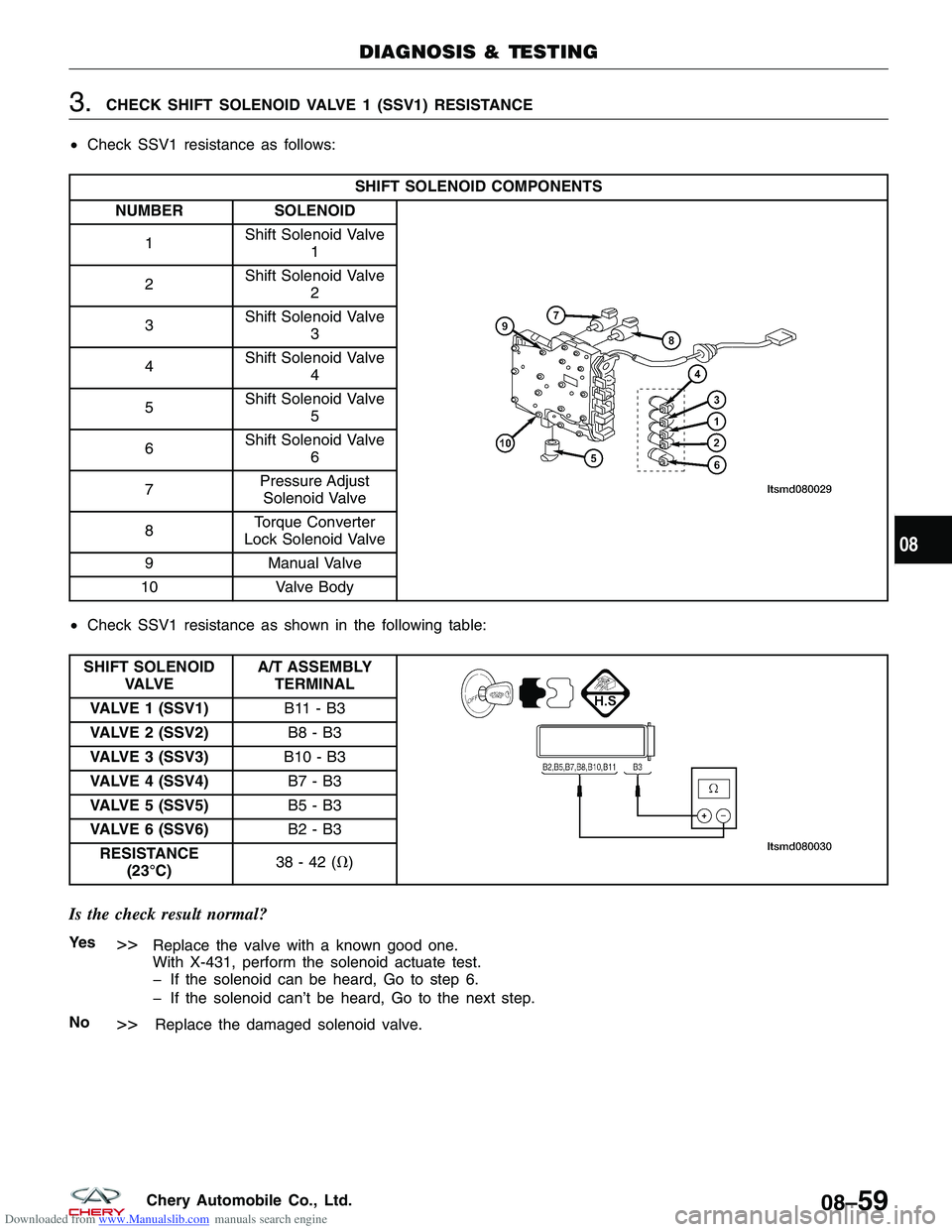

Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 1 (SSV1) RESISTANCE
• Check SSV1 resistance as follows:
SHIFT SOLENOID COMPONENTS
NUMBER SOLENOID
1Shift Solenoid Valve
1
2 Shift Solenoid Valve
2
3 Shift Solenoid Valve
3
4 Shift Solenoid Valve
4
5 Shift Solenoid Valve
5
6 Shift Solenoid Valve
6
7 Pressure Adjust
Solenoid Valve
8 Torque Converter
Lock Solenoid Valve
9 Manual Valve
10 Valve Body
• Check SSV1 resistance as shown in the following table:
SHIFT SOLENOID
VA LV E A/T ASSEMBLY
TERMINAL
VALVE 1 (SSV1) B11-B3
VALVE 2 (SSV2) B8-B3
VALVE 3 (SSV3) B10-B3
VALVE 4 (SSV4) B7-B3
VALVE 5 (SSV5) B5-B3
VALVE 6 (SSV6) B2-B3
RESISTANCE (23°C) 38-42(
)
Is the check result normal?
Ye s>>Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, Go to step 6.
If the solenoid can’t be heard, Go to the next step.
No
>>Replace the damaged solenoid valve.
DIAGNOSIS & TESTING
08
08–59Chery Automobile Co., Ltd.
Page 1003 of 1903

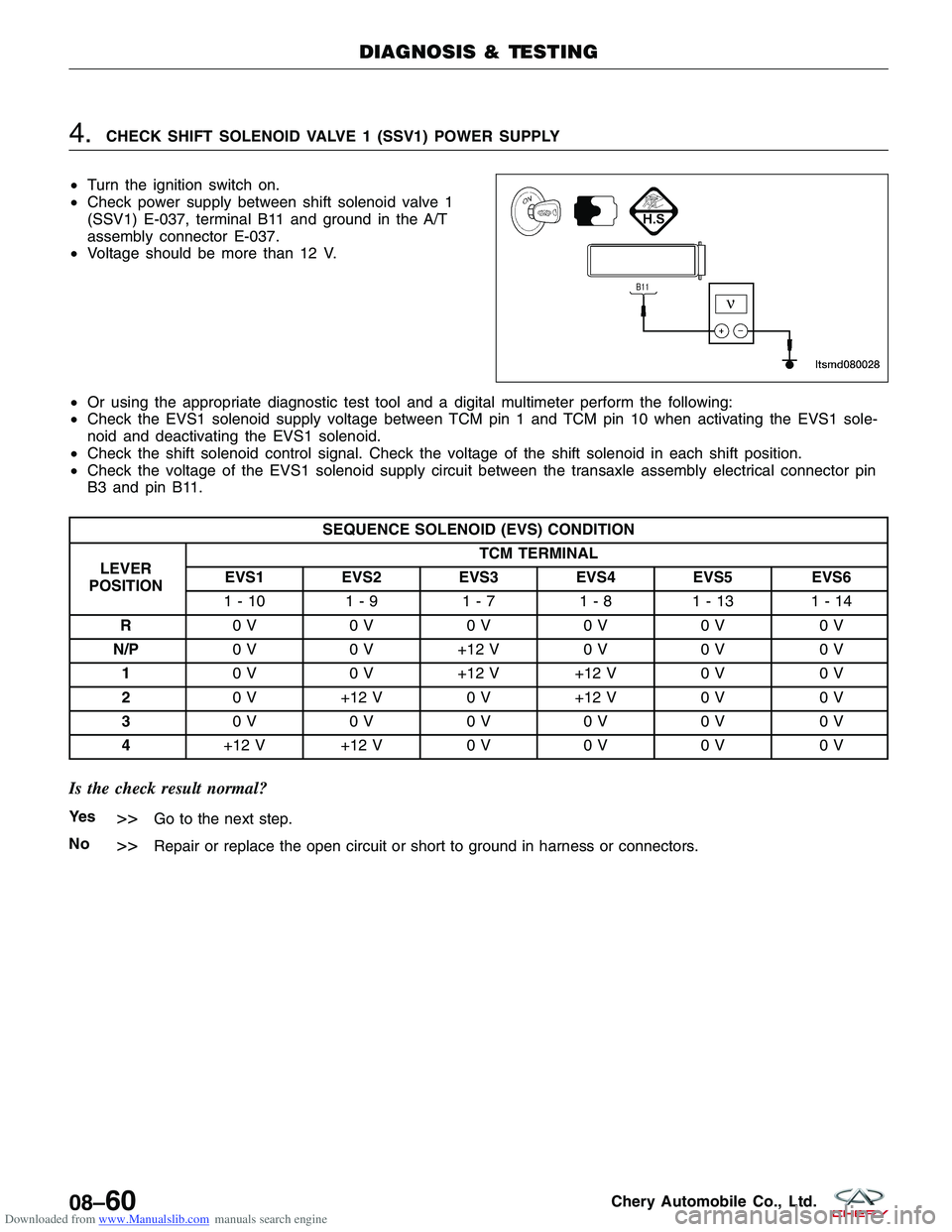

Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 1 (SSV1) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between shift solenoid valve 1
(SSV1) E-037, terminal B11 and ground in the A/T
assembly connector E-037.
• Voltage should be more than 12 V.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS1 solenoid supply voltage between TCM pin 1 and TCM pin 10 when activating the EVS1 sole-
noid and deactivating the EVS1 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS1 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B11.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0V 0V0V0V0V 0V
N/P 0V0V+12V 0V0V 0V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V0 V
3 0V 0V0V0V0V 0V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080028
08–60Chery Automobile Co., Ltd.
Page 1004 of 1903

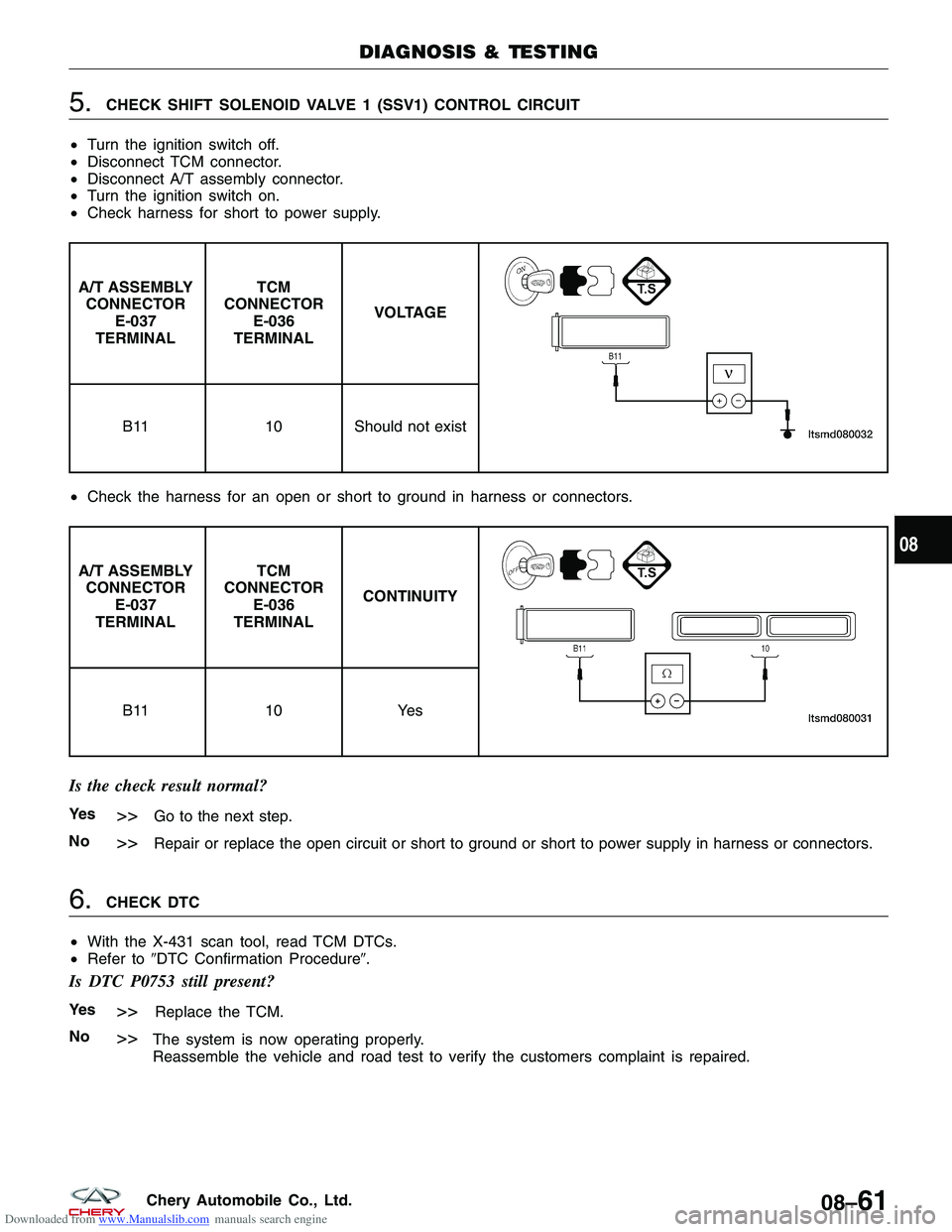

Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 1 (SSV1) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assembly connector.
• Turn the ignition switch on.
• Check harness for short to power supply.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL VOLTAGE
B11
10 Should not exist
• Check the harness for an open or short to ground in harness or connectors.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL CONTINUITY
B11
10Yes
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power supply in harness or connectors.
6.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0753 still present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–61Chery Automobile Co., Ltd.
Page 1005 of 1903

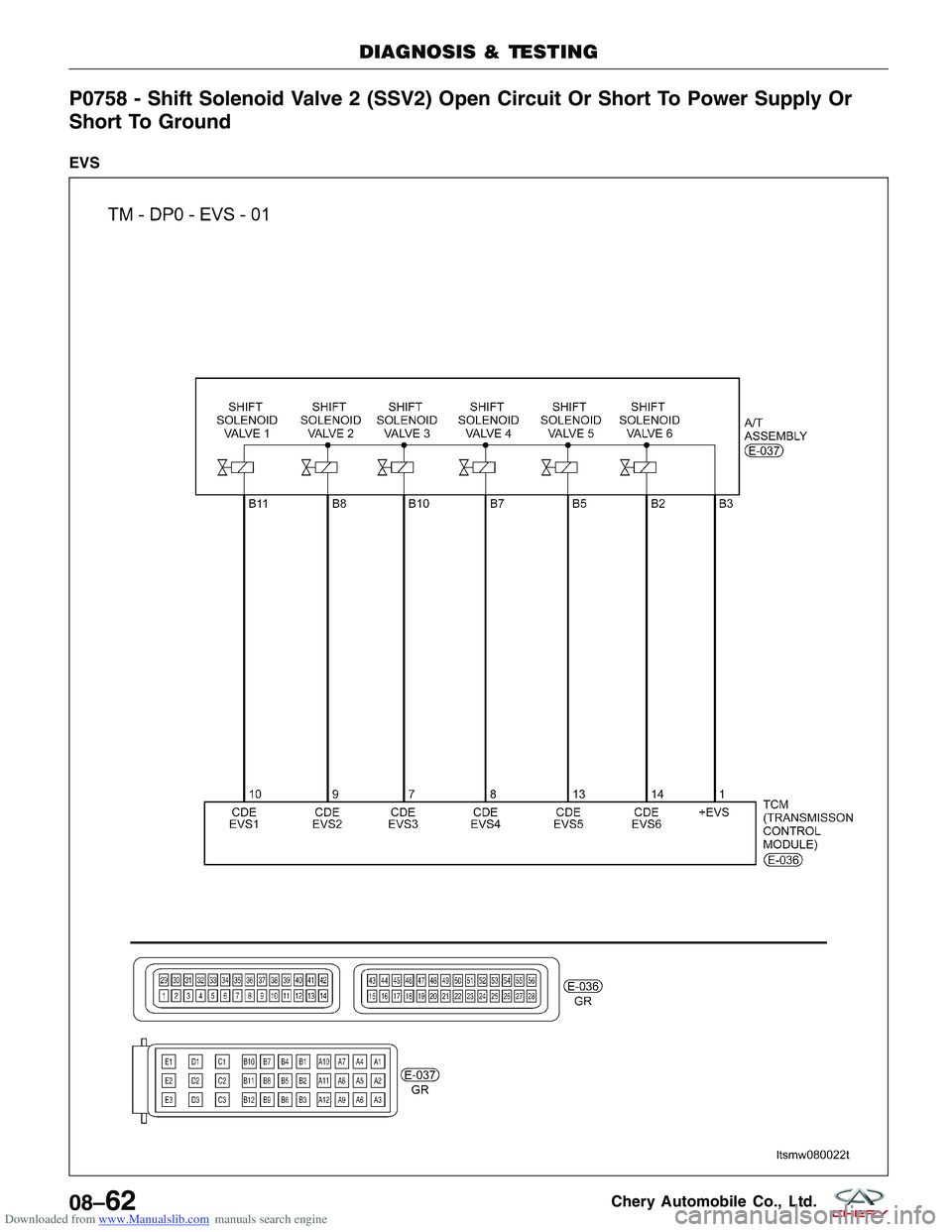

Downloaded from www.Manualslib.com manuals search engine P0758 - Shift Solenoid Valve 2 (SSV2) Open Circuit Or Short To Power Supply Or
Short To Ground
EVS
DIAGNOSIS & TESTING
LTSMW080022T
08–62Chery Automobile Co., Ltd.
Page 1006 of 1903
Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC
DEFINITION DTC
DETECTION CONDITION DTC SET CONDITION
POSSIBLE
CAUSES
P0758 Shift Solenoid
Valve 2 (SSV2) short to power supply Vehicle is
driving The Transaxle Control Module
(TCM) will set this DTC when the
TCM detected an improper voltage
drop when it tries to operate the
solenoid valve. •
Shift Solenoid
Valve 2 (SSV2)
• Harness or
connectors (The
sensor circuit
short to power
supply)
• Transaxle
Control Module
(TCM)
P0758 Shift Solenoid
Valve 2 (SSV2)
open or short to ground circuit Vehicle is driving The Transaxle Control Module
(TCM) will set this DTC when the
TCM detected an improper voltage
drop when it tries to operate the
solenoid valve. •
Shift Solenoid
Valve 2 (SSV2)
• Harness or
connectors (The
sensor circuit is
open or shorted)
• Transaxle
Control Module
(TCM)
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
• If using the appropriate diagnostic test tool, you can diagnose the TCM harness while the TCM is still connected.
• Using the appropriate diagnostic test tool in this way will help prevent electrical connector terminal damage.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
08
08–63Chery Automobile Co., Ltd.
Page 1007 of 1903

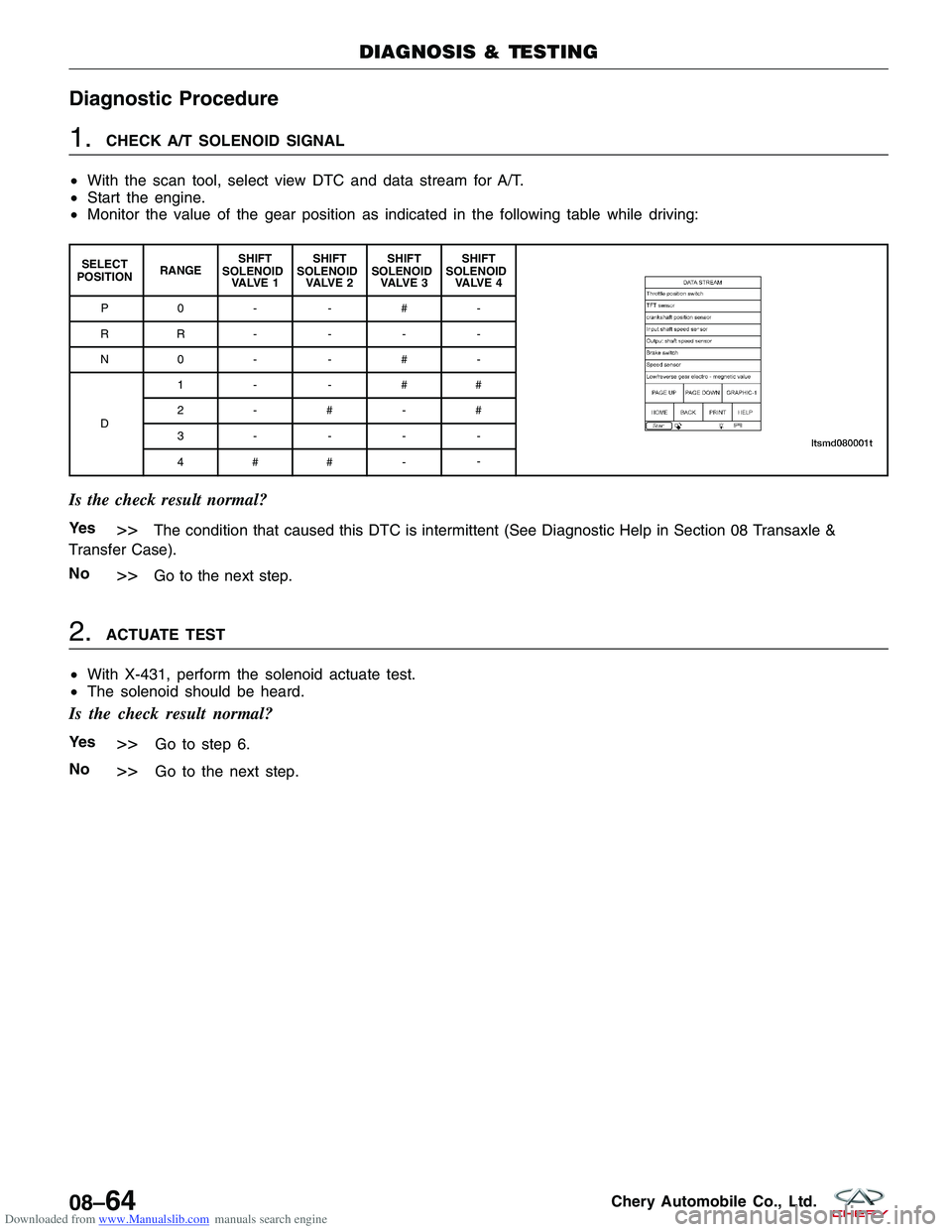

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
SELECT
POSITION RANGESHIFT
SOLENOID VA LV E 1 SHIFT
SOLENOID VA LV E 2 SHIFT
SOLENOID VA LV E 3 SHIFT
SOLENOID VA LV E 4
P0- -#-
RR----
N0 - - # -
D 1- -##
2-#-#
3----
4## -
-
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–64Chery Automobile Co., Ltd.
Page 1008 of 1903

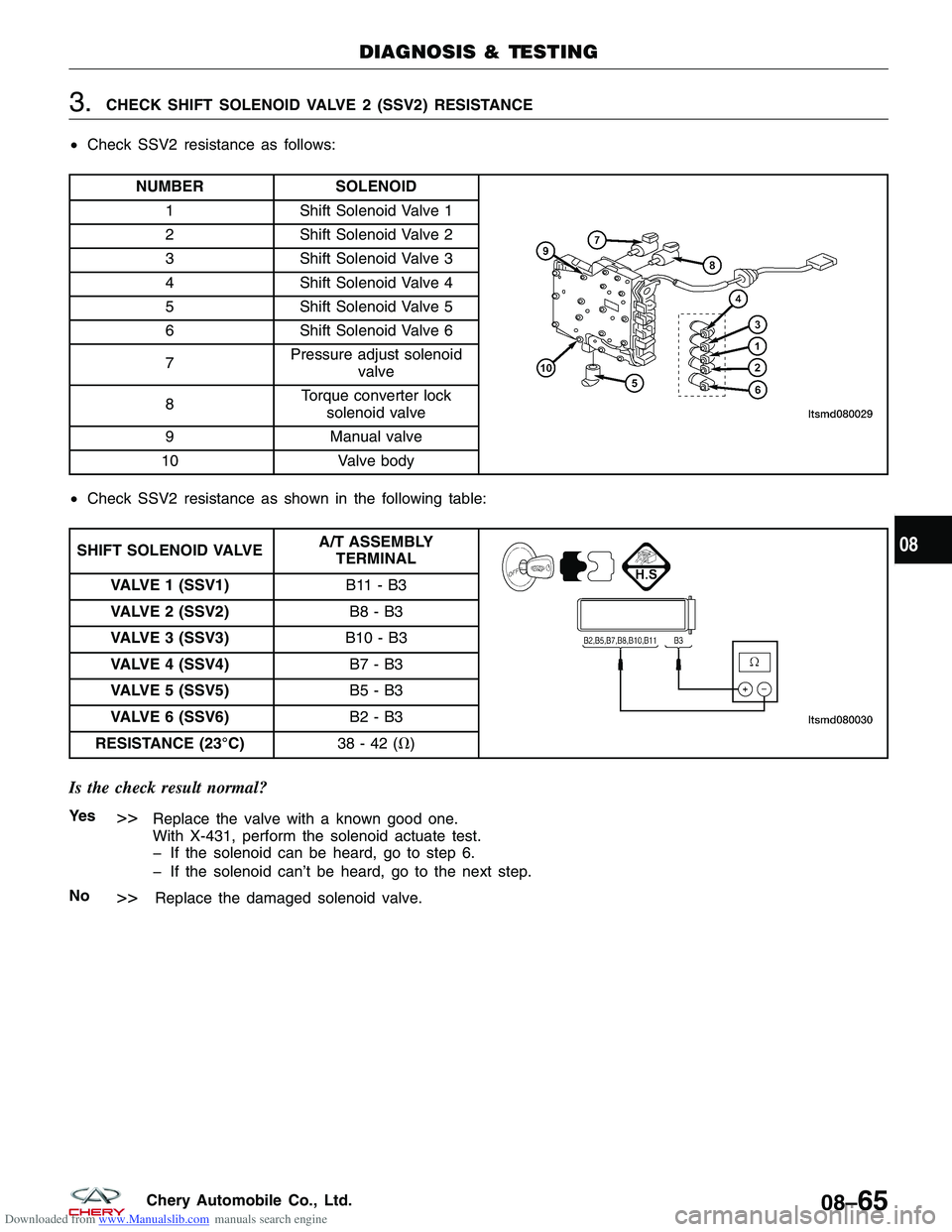

Downloaded from www.Manualslib.com manuals search engine 3.CHECK SHIFT SOLENOID VALVE 2 (SSV2) RESISTANCE
• Check SSV2 resistance as follows:
NUMBER SOLENOID
1Shift Solenoid Valve 1
2 Shift Solenoid Valve 2
3 Shift Solenoid Valve 3
4 Shift Solenoid Valve 4
5 Shift Solenoid Valve 5
6 Shift Solenoid Valve 6
7 Pressure adjust solenoid
valve
8 Torque converter lock
solenoid valve
9 Manual valve
10 Valve body
• Check SSV2 resistance as shown in the following table:
SHIFT SOLENOID VALVE A/T ASSEMBLY
TERMINAL
VALVE 1 (SSV1) B11-B3
VALVE 2 (SSV2) B8-B3
VALVE 3 (SSV3) B10-B3
VALVE 4 (SSV4) B7-B3
VALVE 5 (SSV5) B5-B3
VALVE 6 (SSV6) B2-B3
RESISTANCE (23°C) 38-42()
Is the check result normal?
Ye s>>Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, go to step 6.
If the solenoid can’t be heard, go to the next step.
No
>>Replace the damaged solenoid valve.
DIAGNOSIS & TESTING
08
08–65Chery Automobile Co., Ltd.
Page 1009 of 1903

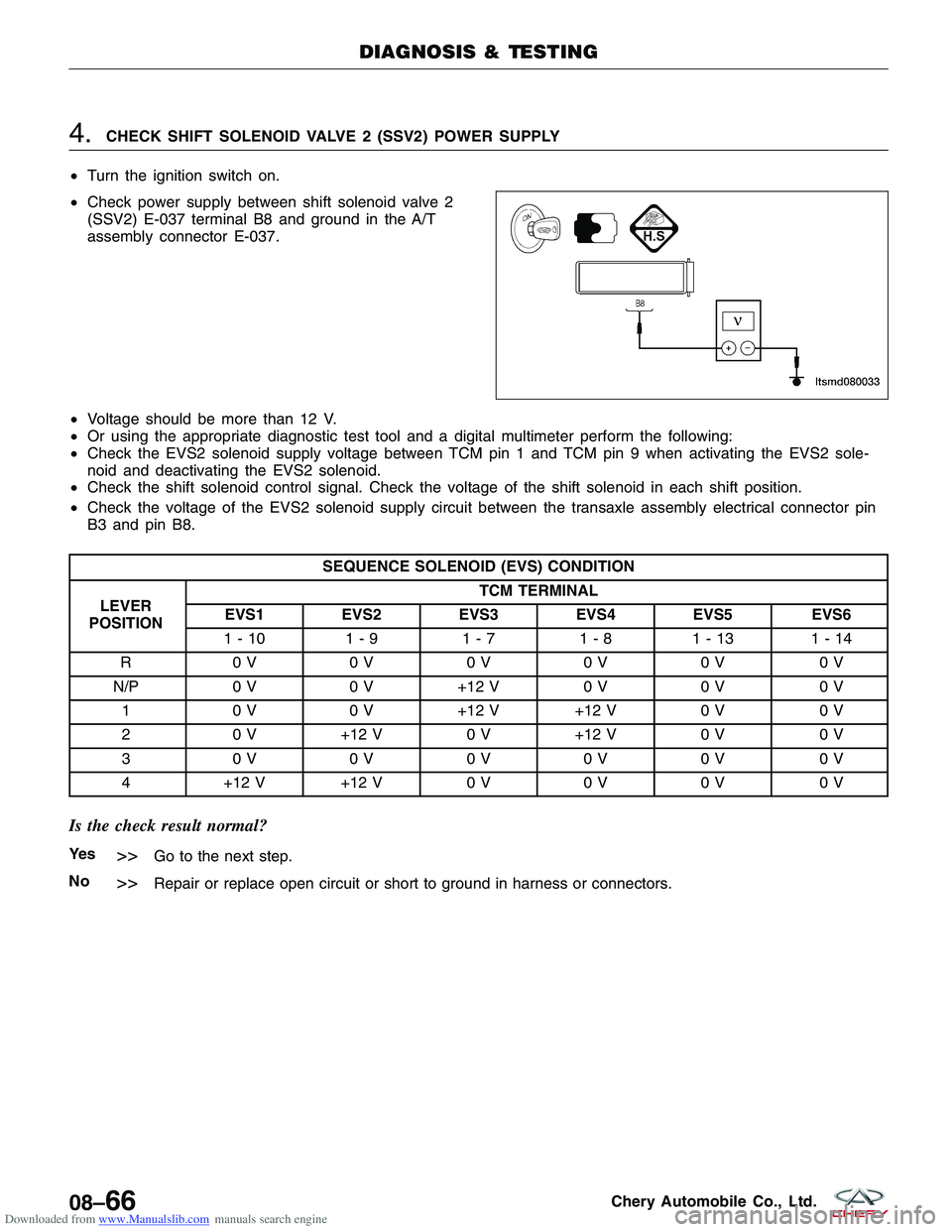

Downloaded from www.Manualslib.com manuals search engine 4.CHECK SHIFT SOLENOID VALVE 2 (SSV2) POWER SUPPLY
• Turn the ignition switch on.
• Check power supply between shift solenoid valve 2
(SSV2) E-037 terminal B8 and ground in the A/T
assembly connector E-037.
• Voltage should be more than 12 V.
• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:
• Check the EVS2 solenoid supply voltage between TCM pin 1 and TCM pin 9 when activating the EVS2 sole-
noid and deactivating the EVS2 solenoid.
• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.
• Check the voltage of the EVS2 solenoid supply circuit between the transaxle assembly electrical connector pin
B3 and pin B8.
SEQUENCE SOLENOID (EVS) CONDITION
LEVER
POSITION TCM TERMINAL
EVS1 EVS2 EVS3 EVS4 EVS5 EVS6
1-10 1-9 1-71-8 1-13 1-14
R 0 V0V0V0V0V 0 V
N/P 0 V0 V+12 V 0 V0 V 0 V
1 0 V 0 V+12 V +12 V 0 V0 V
2 0 V+12 V 0 V+12 V 0 V0 V
3 0 V0V0V0V0V 0 V
4 +12 V +12 V 0 V0 V0 V 0 V
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace open circuit or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD080033
08–66Chery Automobile Co., Ltd.
Page 1010 of 1903

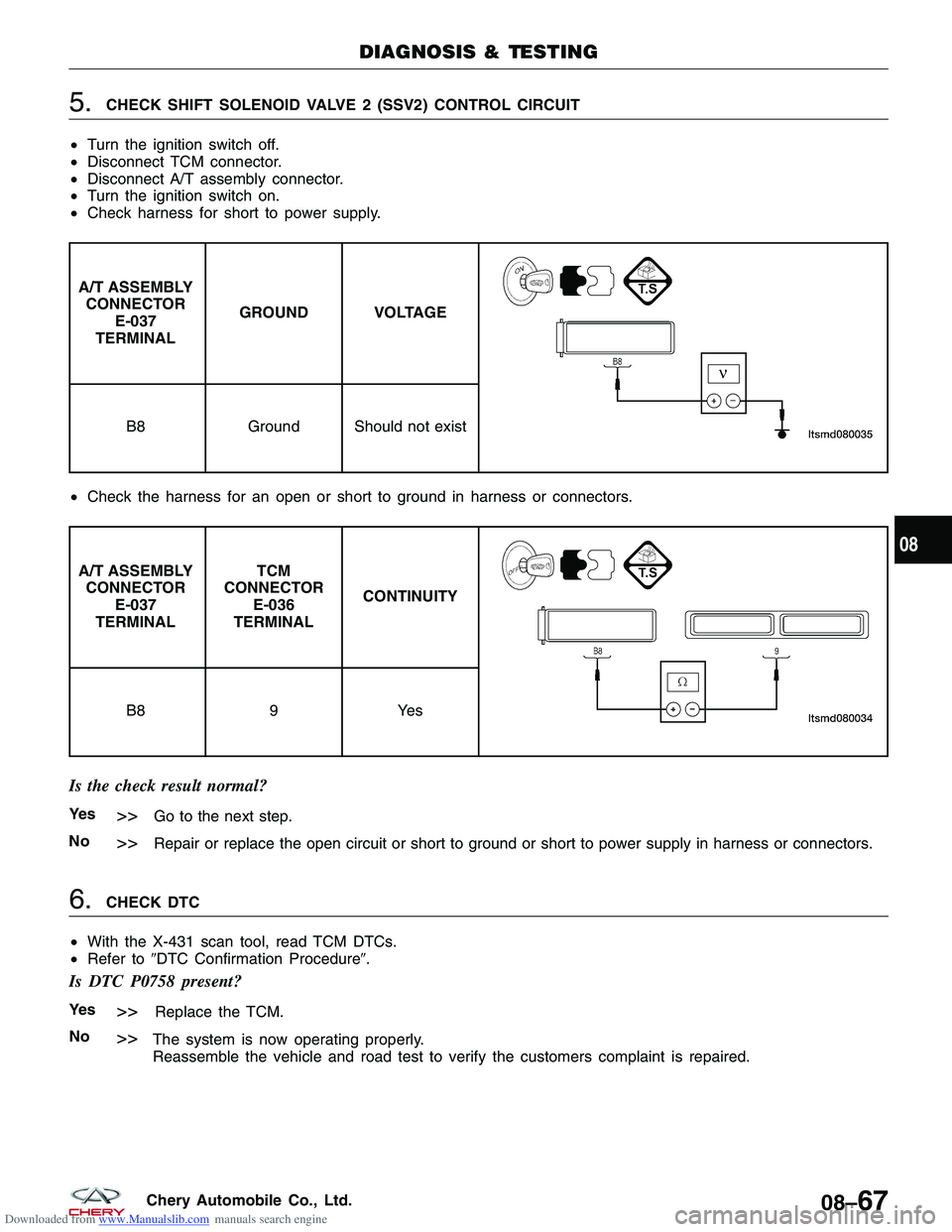

Downloaded from www.Manualslib.com manuals search engine 5.CHECK SHIFT SOLENOID VALVE 2 (SSV2) CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Disconnect A/T assembly connector.
• Turn the ignition switch on.
• Check harness for short to power supply.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL GROUND VOLTAGE
B8
Ground Should not exist
• Check the harness for an open or short to ground in harness or connectors.
A/T ASSEMBLY
CONNECTOR E-037
TERMINAL TCM
CONNECTOR E-036
TERMINAL CONTINUITY
B8
9Yes
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power supply in harness or connectors.
6.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0758 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–67Chery Automobile Co., Ltd.
