Page 1031 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC
DEFINITION DTC
DETECTION CONDITION DTC SET CONDITION
POSSIBLE
CAUSES
P

Page 1032 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Mon

Page 1033 of 1903

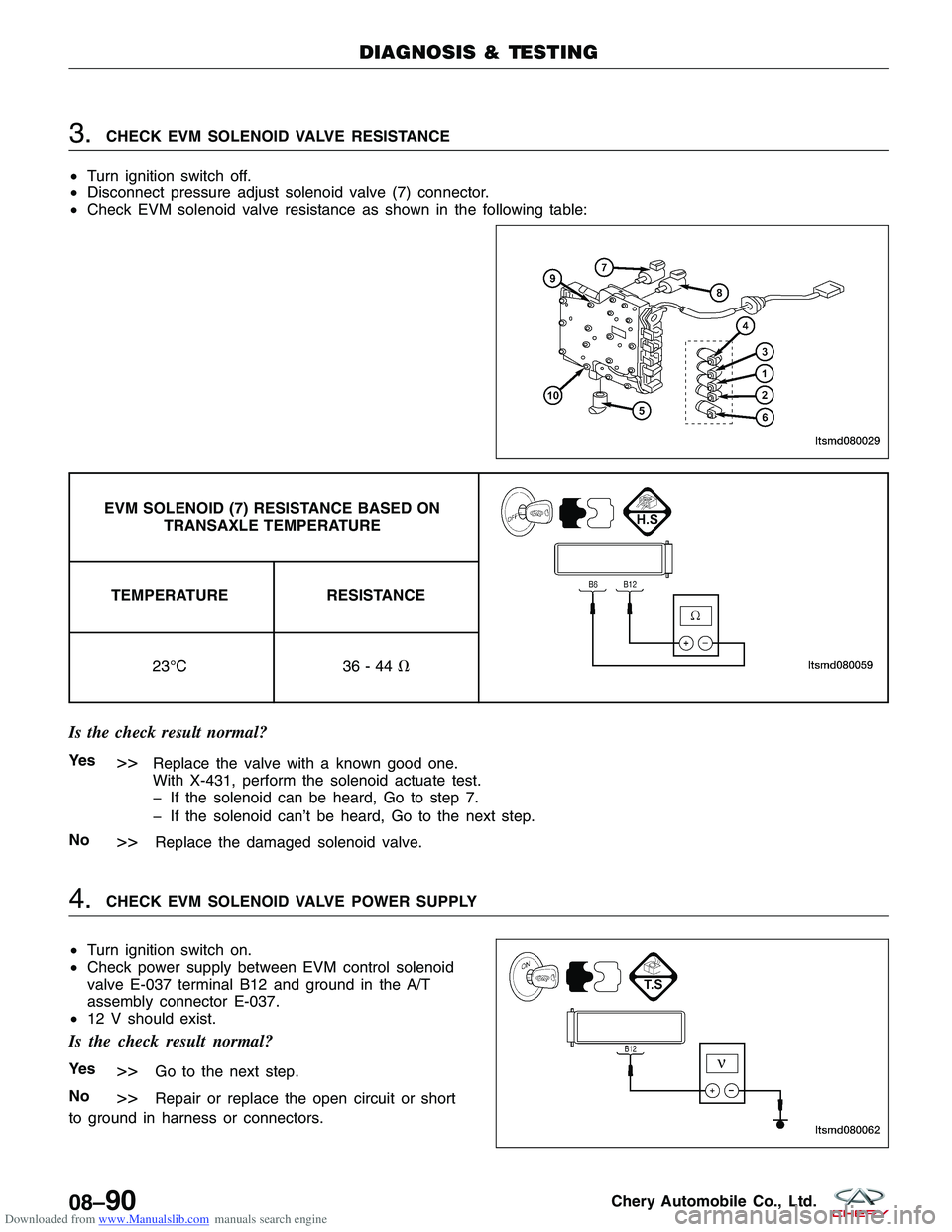

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 3.CHECK EVM SOLENOID VALVE RESISTANCE
• Turn ignition switch off.
• Disconnect pressure adjust solenoid valve (7) connector.
• Check EVM

Page 1034 of 1903

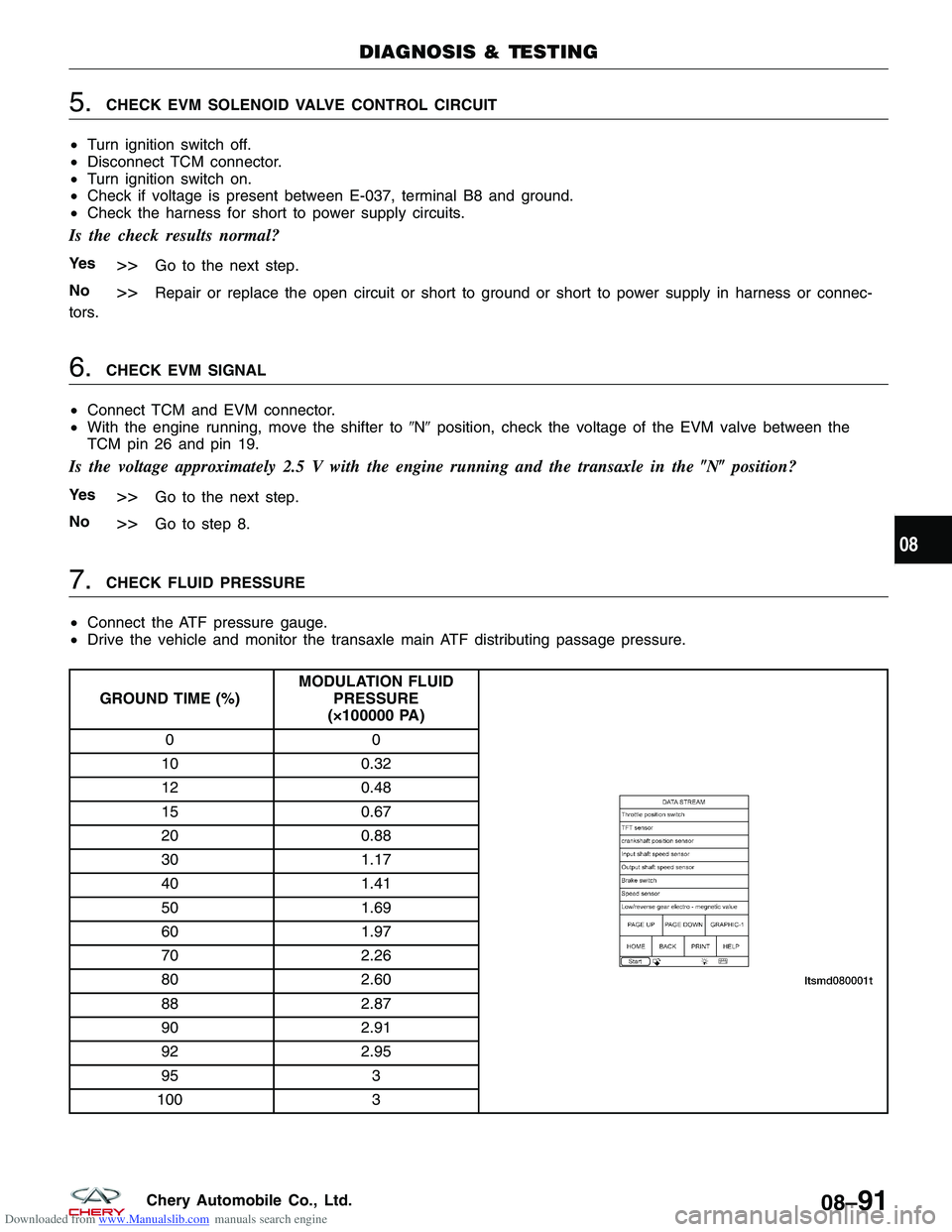

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 5.CHECK EVM SOLENOID VALVE CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Turn ignition switch on.
• Check i

Page 1035 of 1903

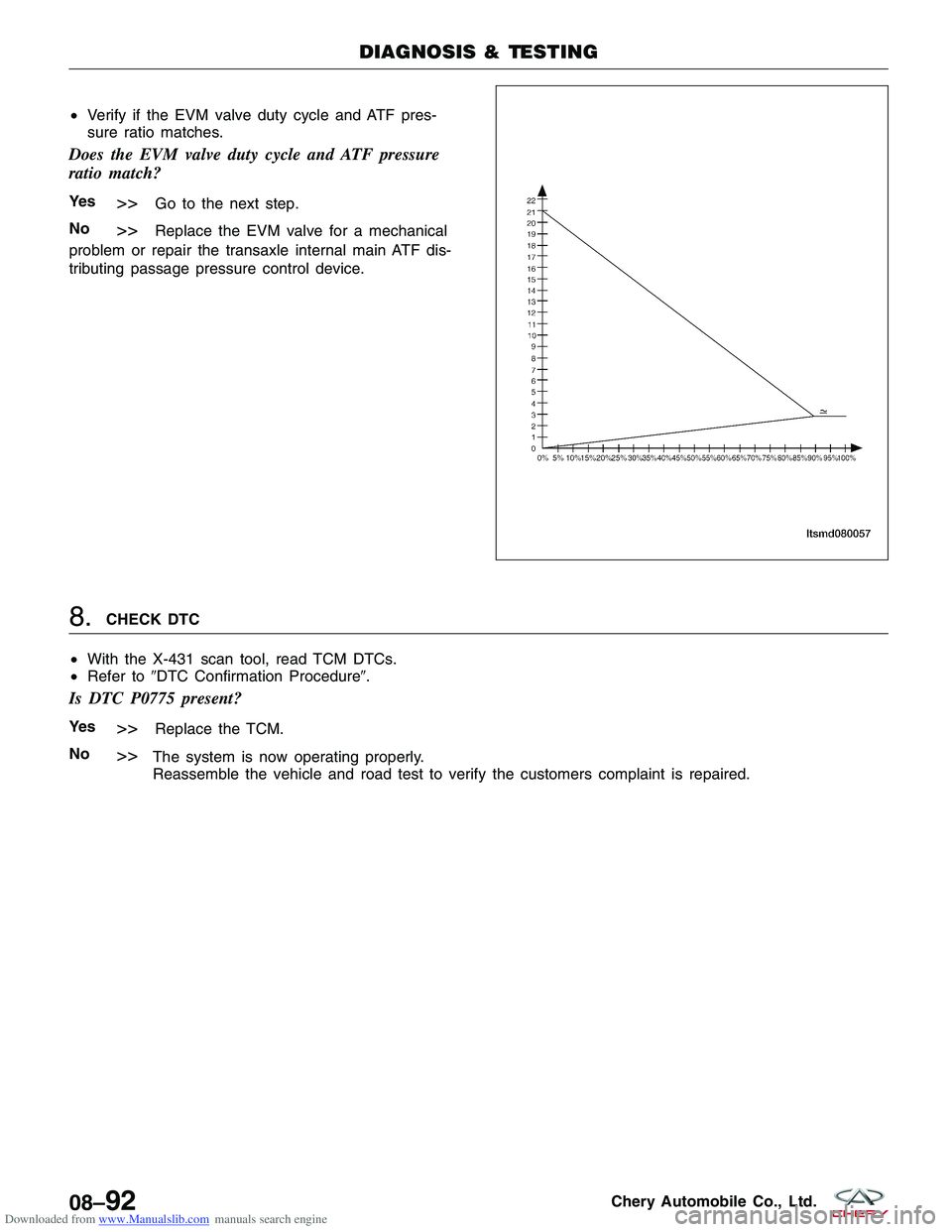

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine •Verify if the EVM valve duty cycle and ATF pres-
sure ratio matches.
Does the EVM valve duty cycle and ATF pressure
ratio match?
Ye s>>Go to

Page 1036 of 1903

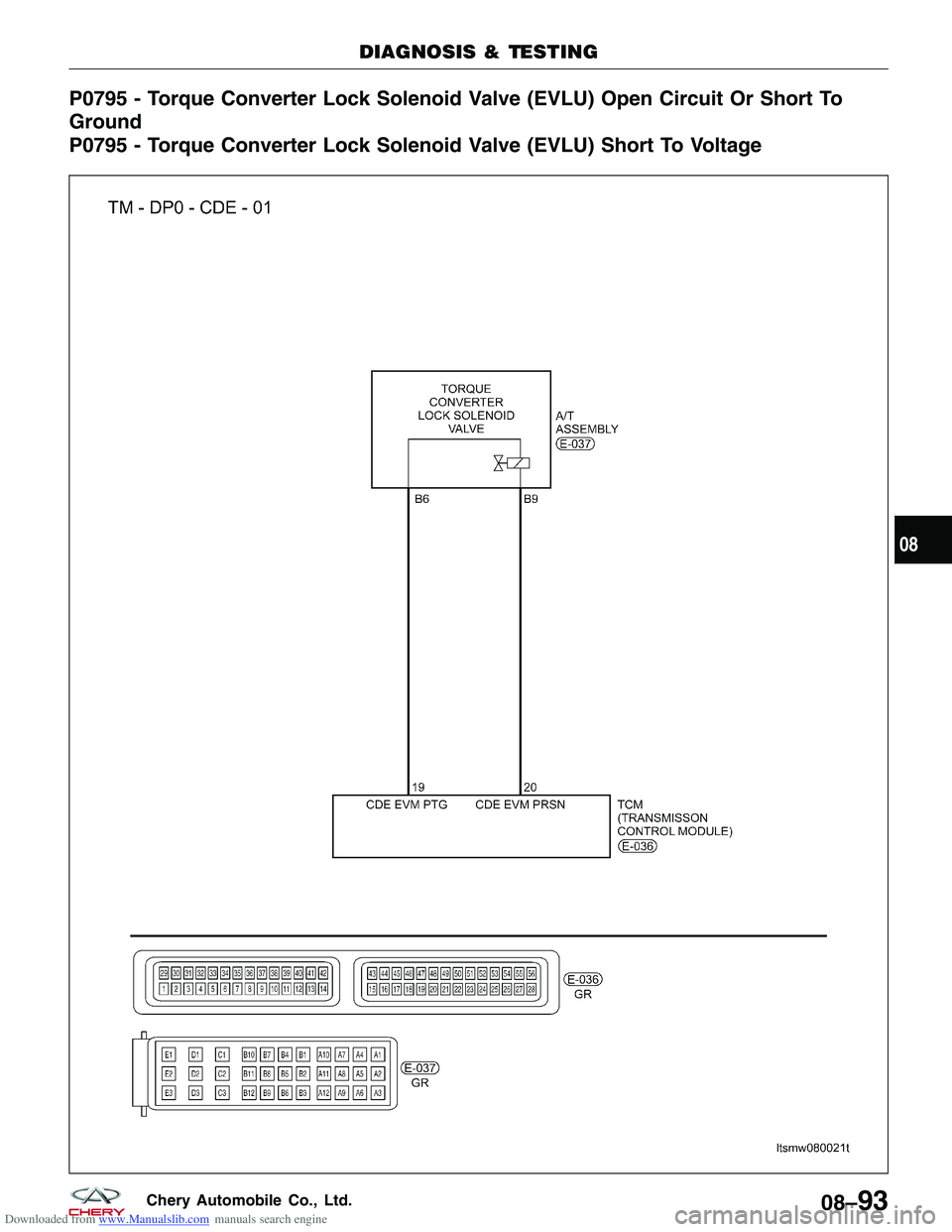

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine P0795 - Torque Converter Lock Solenoid Valve (EVLU) Open Circuit Or Short To
Ground
P0795 - Torque Converter Lock Solenoid Valve (EVLU) Short T

Page 1037 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC
DEFINITION DTC
DETECTION CONDITION DTC SET CONDITION
POSSIBLE
CAUSES
P

Page 1038 of 1903

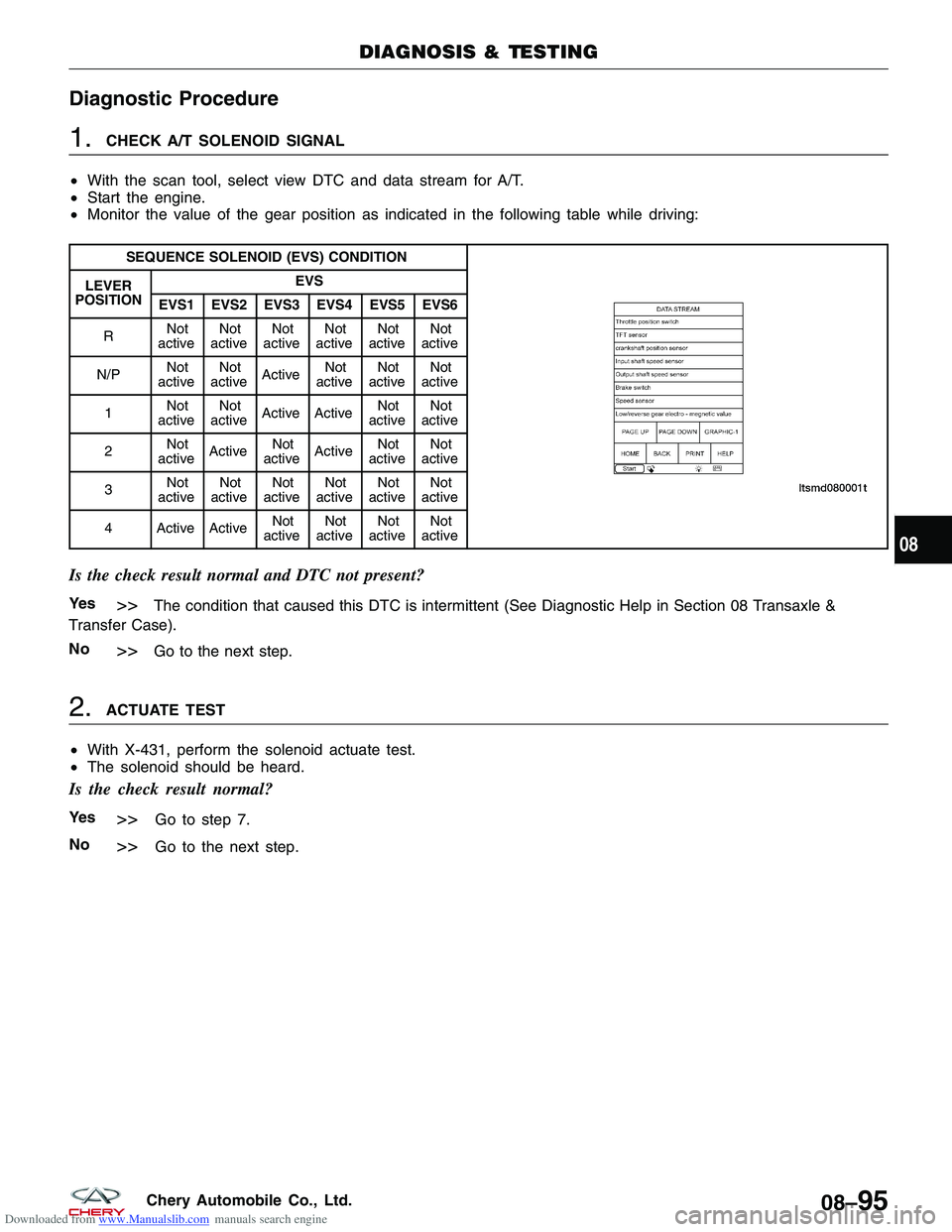

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Mon

Page 1039 of 1903

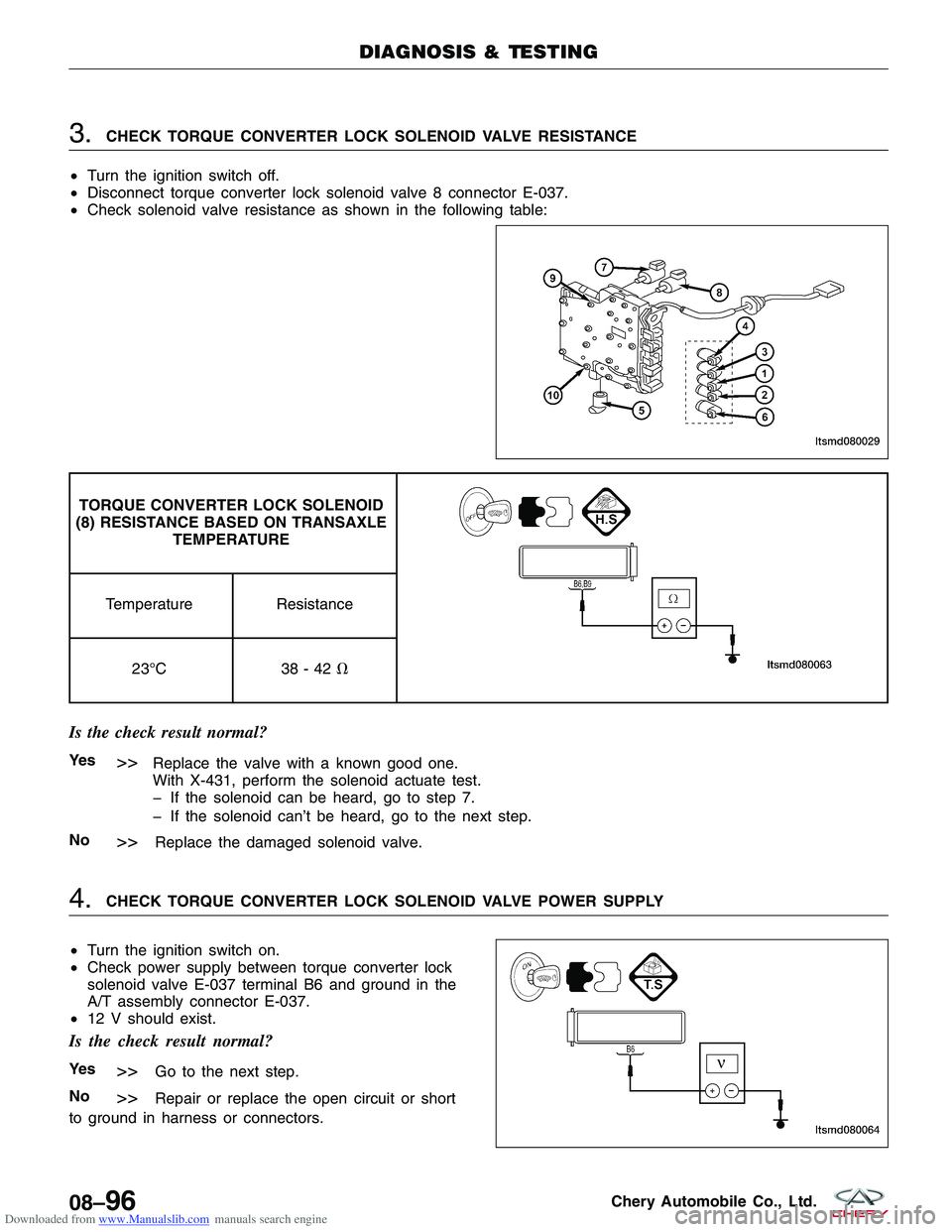

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 3.CHECK TORQUE CONVERTER LOCK SOLENOID VALVE RESISTANCE
• Turn the ignition switch off.
• Disconnect torque converter lock solenoid valve 8

Page 1040 of 1903

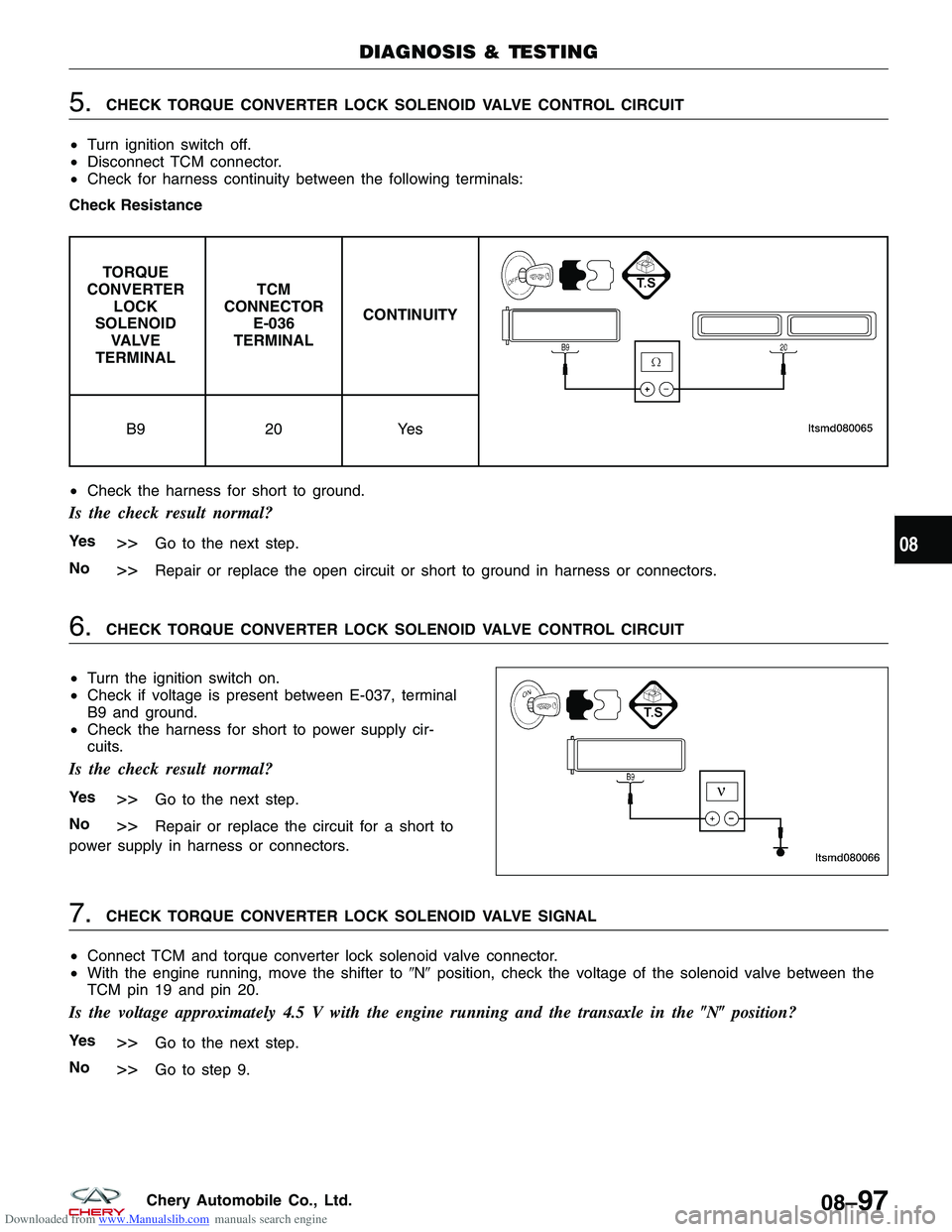

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 5.CHECK TORQUE CONVERTER LOCK SOLENOID VALVE CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness
