CHERY TIGGO 2009 Service Repair Manual
Manufacturer: CHERY, Model Year: 2009, Model line: TIGGO, Model: CHERY TIGGO 2009Pages: 1903, PDF Size: 33.38 MB
Page 1891 of 1903

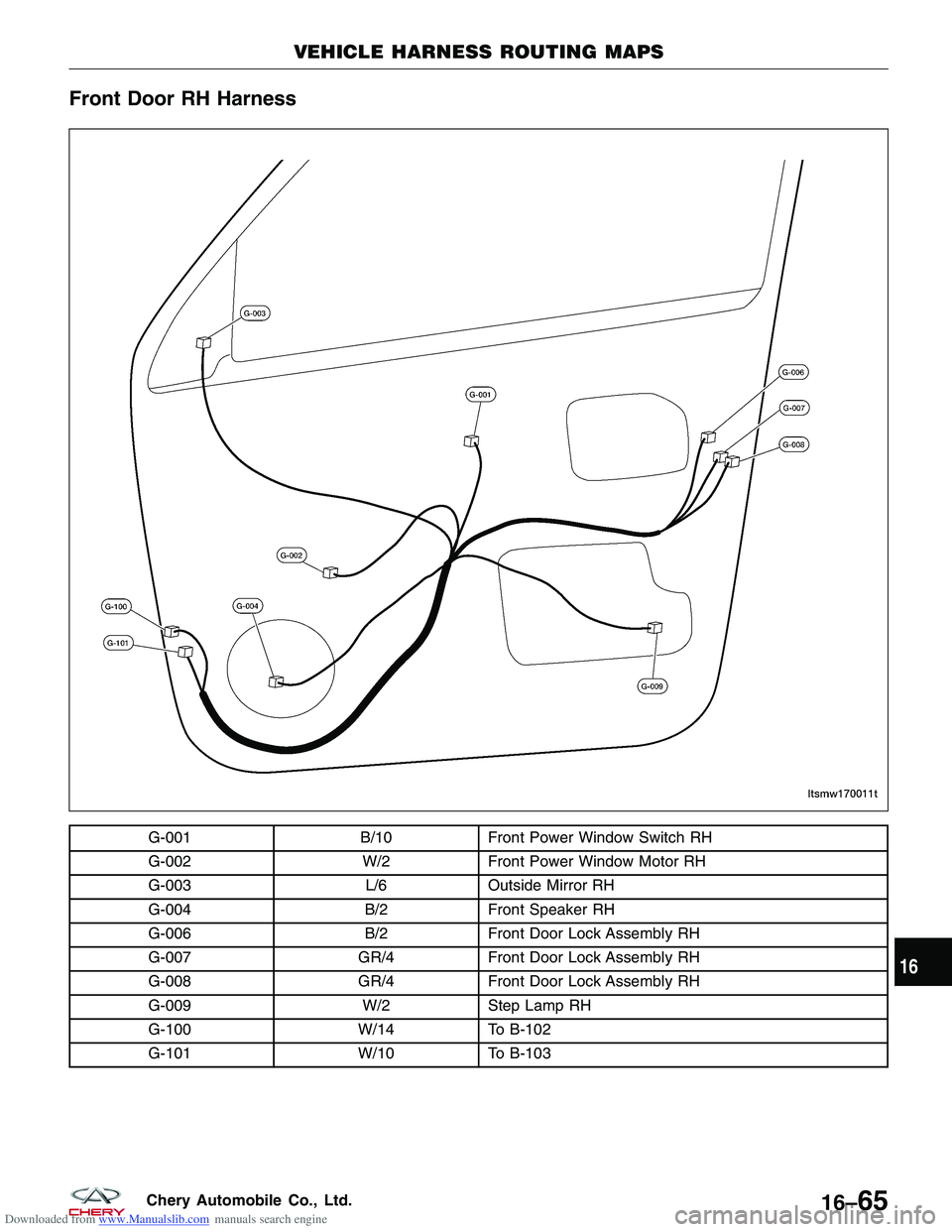

Downloaded from www.Manualslib.com manuals search engine Front Door RH Harness
G-001B/10Front Power Window Switch RH
G-002 W/2Front Power Window Motor RH
G-003 L/6Outside Mirror RH
G-004 B/2Front Speaker RH
G-006 B/2Front Door Lock Assembly RH
G-007 GR/4Front Door Lock Assembly RH
G-008 GR/4Front Door Lock Assembly RH
G-009 W/2Step Lamp RH
G-100 W/14To B-102
G-101 W/10To B-103
VEHICLE HARNESS ROUTING MAPS
LTSMW170011T
16
16–65Chery Automobile Co., Ltd.
Page 1892 of 1903

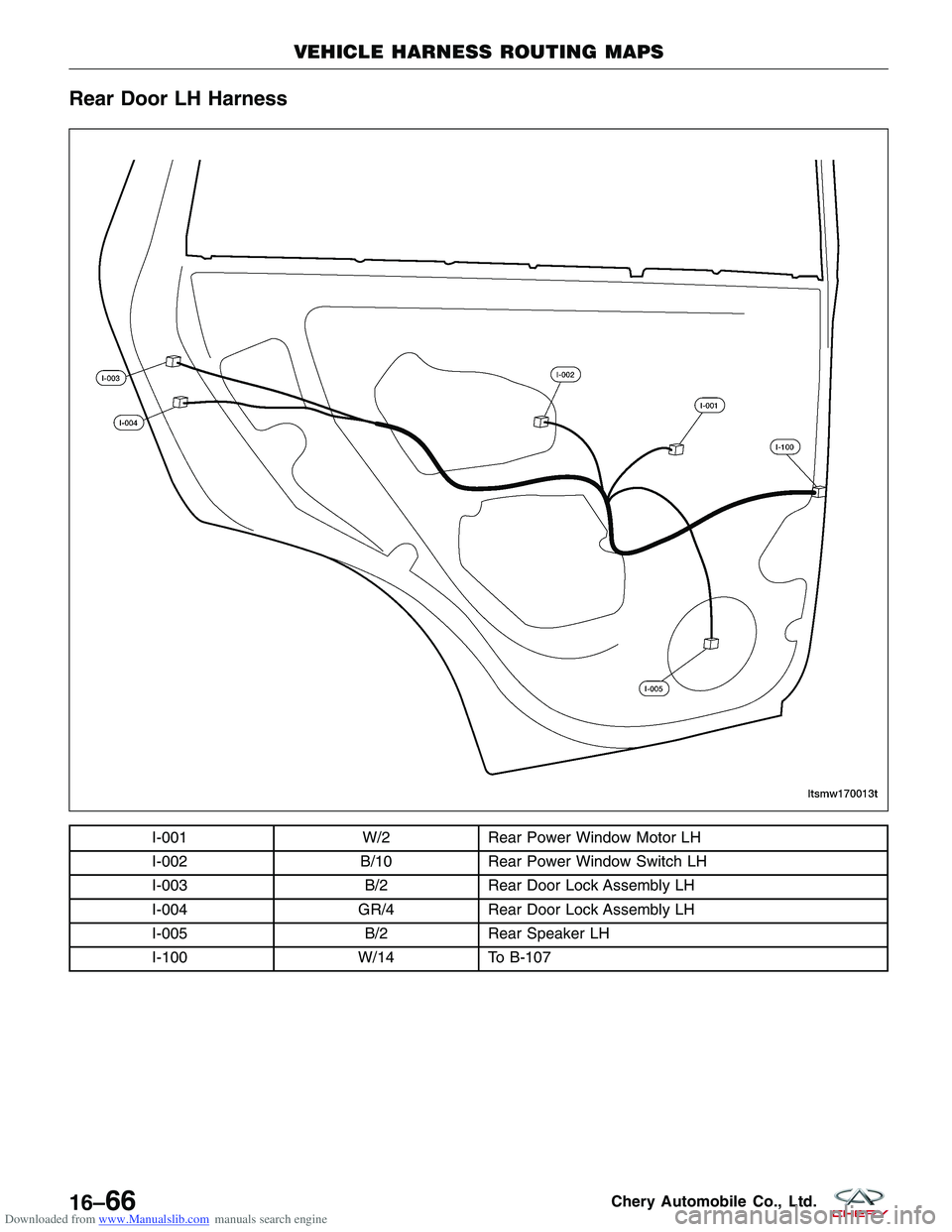

Downloaded from www.Manualslib.com manuals search engine Rear Door LH Harness
I-001W/2Rear Power Window Motor LH
I-002 B/10Rear Power Window Switch LH
I-003 B/2Rear Door Lock Assembly LH
I-004 GR/4Rear Door Lock Assembly LH
I-005 B/2Rear Speaker LH
I-100 W/14To B-107
VEHICLE HARNESS ROUTING MAPS
LTSMW170013T
16–66Chery Automobile Co., Ltd.
Page 1893 of 1903

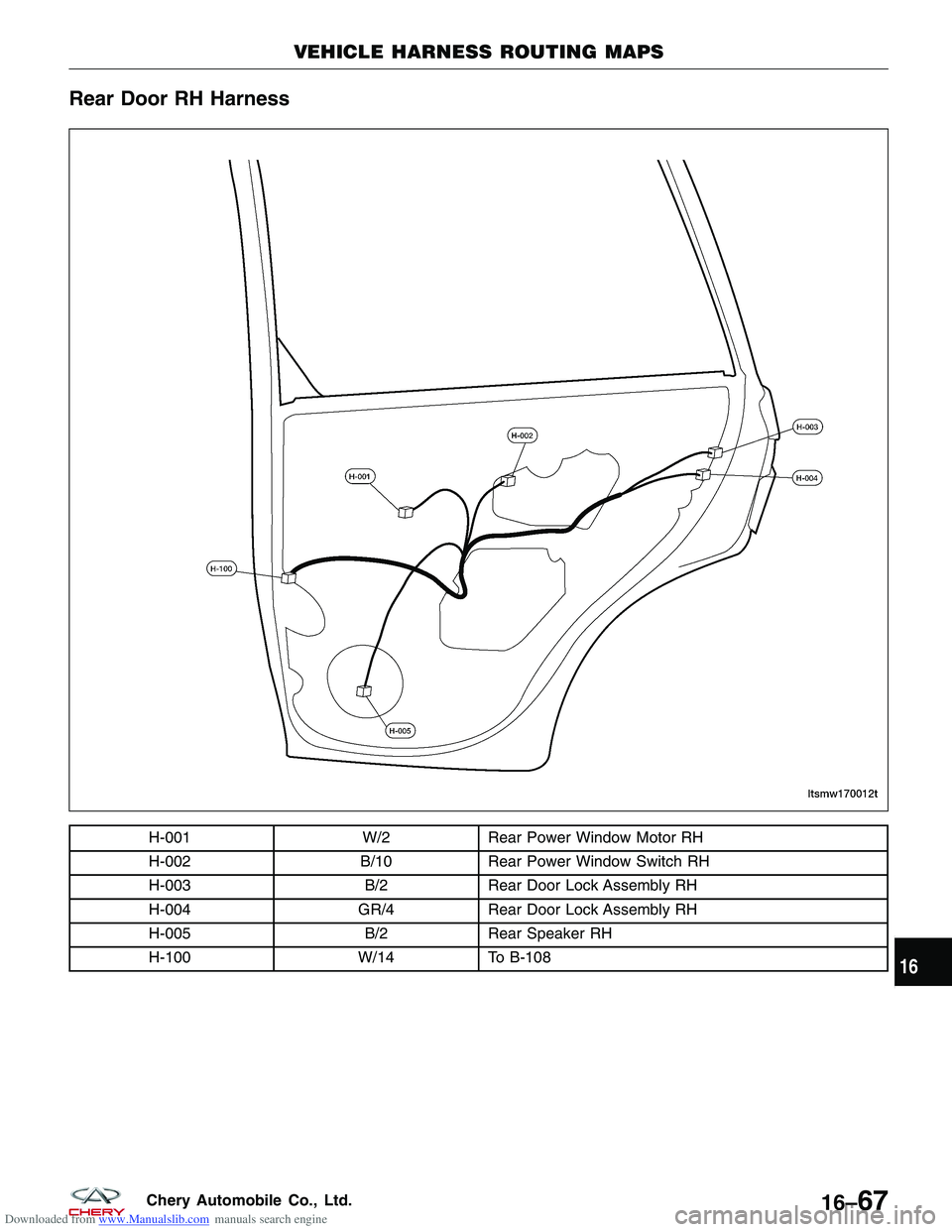

Downloaded from www.Manualslib.com manuals search engine Rear Door RH Harness
H-001W/2Rear Power Window Motor RH
H-002 B/10Rear Power Window Switch RH
H-003 B/2Rear Door Lock Assembly RH
H-004 GR/4Rear Door Lock Assembly RH
H-005 B/2Rear Speaker RH
H-100 W/14To B-108
VEHICLE HARNESS ROUTING MAPS
LTSMW170012T
16
16–67Chery Automobile Co., Ltd.
Page 1894 of 1903

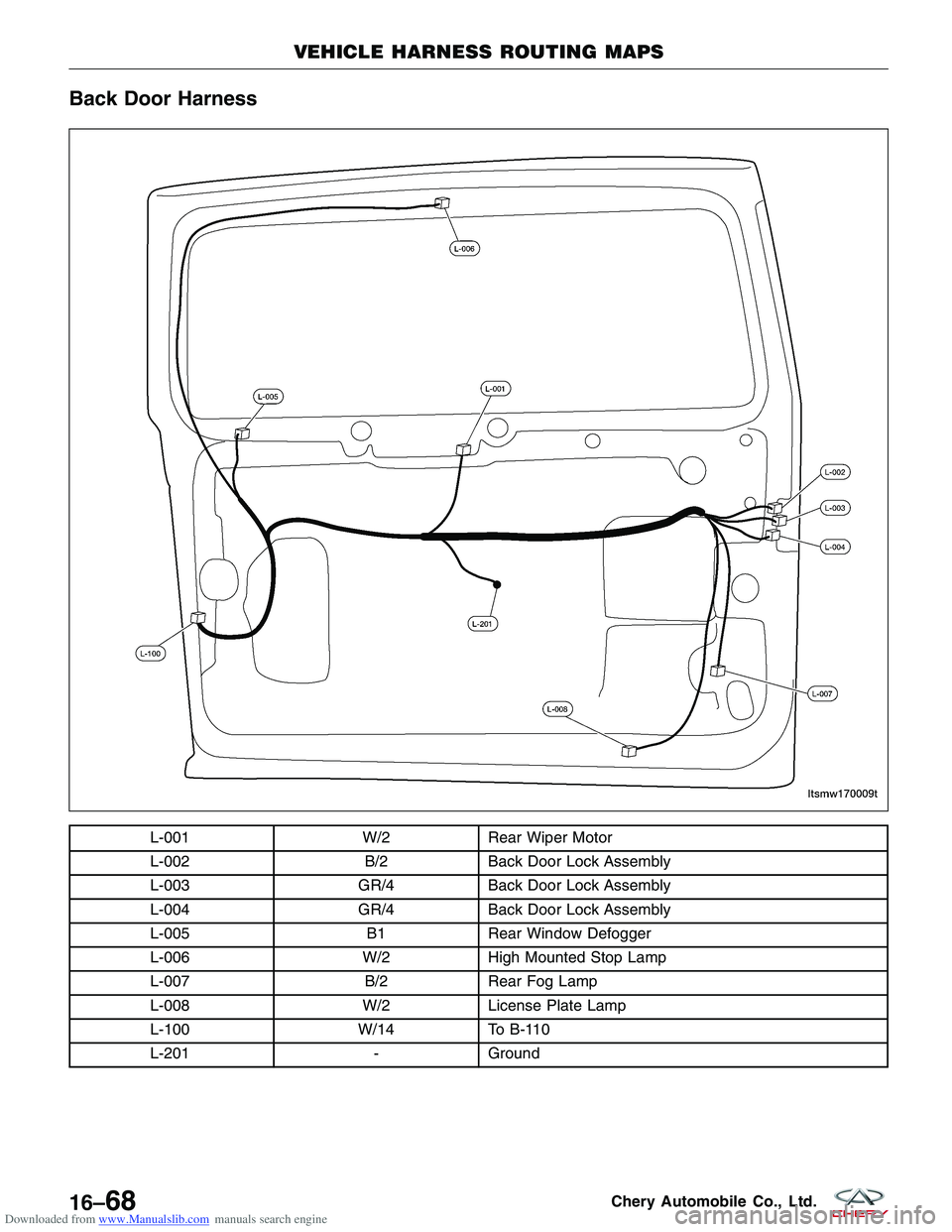

Downloaded from www.Manualslib.com manuals search engine Back Door Harness
L-001W/2Rear Wiper Motor
L-002 B/2Back Door Lock Assembly
L-003 GR/4Back Door Lock Assembly
L-004 GR/4Back Door Lock Assembly
L-005 B1Rear Window Defogger
L-006 W/2High Mounted Stop Lamp
L-007 B/2Rear Fog Lamp
L-008 W/2License Plate Lamp
L-100 W/14To B-110
L-201 -Ground
VEHICLE HARNESS ROUTING MAPS
LTSMW170009T
16–68Chery Automobile Co., Ltd.
Page 1895 of 1903

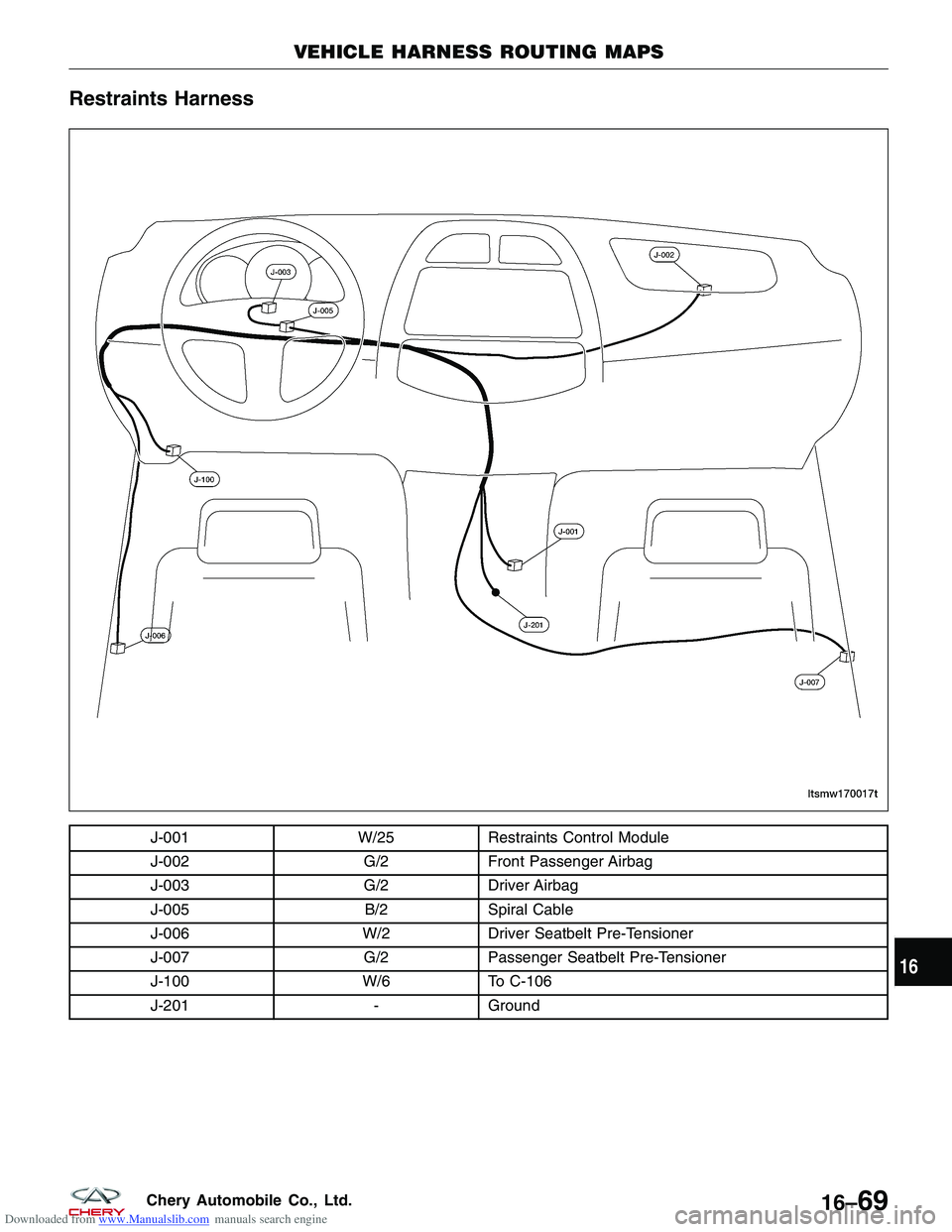

Downloaded from www.Manualslib.com manuals search engine Restraints Harness
J-001W/25Restraints Control Module
J-002 G/2Front Passenger Airbag
J-003 G/2Driver Airbag
J-005 B/2Spiral Cable
J-006 W/2Driver Seatbelt Pre-Tensioner
J-007 G/2Passenger Seatbelt Pre-Tensioner
J-100 W/6To C-106
J-201 -Ground
VEHICLE HARNESS ROUTING MAPS
LTSMW170017T
16
16–69Chery Automobile Co., Ltd.
Page 1896 of 1903
Downloaded from www.Manualslib.com manuals search engine A
A-Pillar Trim Panel, Body Interior................15-11
A/C System Evacuation and Recharge, System Plumbing ......................... 13-37
Accelerator Pedal Position (APP) Sensor, 2.0L Engine Controls .......................... 3-438
Accelerator Pedal Position Sensor, 1.6L & 1.8L Engine Controls .......................... 3-224
Accelerator Sensor, 1.6L & 1.8L Engine Controls .....3-221
Accelerator Sensor, 2.0L Engine Controls ..........3-432
Accessory Drive Belt, 1.6L & 1.8L Engine Mechanical . . 2-17
Accessory Drive Belt, 2.0L Engine Mechanical ........2-91
Accessory Drive Belt, 2.4L Engine Mechanical .......2-167
Accumulator, System Plumbing .................13-43
Air Cleaner Element, 1.6L & 1.8L Engine Mechanical . . . 2-18
Air Cleaner Element, 2.0L Engine Mechanical .........2-92
Air Cleaner Element, 2.4L Engine Mechanical ........2-168
Air Cleaner Housing, 1.6L & 1.8L Engine Mechanical . . . 2-18
Air Cleaner Housing, 2.0L Engine Mechanical ........2-93
Air Cleaner Housing, 2.4L Engine Mechanical .......2-169
Air Distribution ............................ 13-25
Air Flow Sensor - 1.8L, 1.6L & 1.8L Engine Controls . . 3-223
Air Flow Sensor, 2.0L Engine Controls ............3-431
Air Flow Sensor, 2.4L Engine Controls ............3-537
Airbag System ............................. 14-1
Airbag System Disarming Procedure, Airbag System . . . 14-46
Alignment ................................ 10-38
Antenna, Body Interior ....................... 15-10
Antilock Brake System (ABS) Bleeding Procedure, Antilock Brakes .......................... 12-76
Antilock Brake System (ABS) Hydraulic Control Module, Antilock Brakes .......................... 12-77
Antilock Brakes ............................ 12-34
Assist Handle, Body Interior ...................15-13
Audio System, Body Interior ....................15-4
Automatic Shifter Selector, DP0 Automatic Transaxle . . . 8-140
Automatic Shifter Selector, F4A4 Automatic Transaxle . . 8-243
B
B-Pillar Lower Trim Panel, Body Interior ...........15-11
B-Pillar Upper Trim Panel, Body Interior ...........15-12
Back Cargo Door, Body Exterior ................15-175
Base Brakes ............................... 12-1
Battery Hold Down, Starting System ...............5-8
Battery Tray, Starting System ....................5-9
Battery, Starting System ........................5-7
Bleeding Hydraulic Clutch, Clutch System ..........8-325Blower Motor Resistor, Manual Temperature Control . . . 13-16
Blower Motor, Air Distribution
..................13-30
Body Control Module (BCM), Body Interior .........15-44
Body Control Module - BCM, Body Interior .........15-38
Body Dimensions, Body Exterior ................15-147
Body Exterior ............................ 15-145
Body Fuse and Relay Box, Vehicle Fuse Box Information .......................... 16-42
Body Interior .............................. 15-1
Body Interior Trim, Body Interior ................15-11
Body, Body Exterior ........................ 15-157
Brake Bleeding, Base Brakes ....................12-9
Bumpers, Body Exterior ..................... 15-166
C
C-Pillar Lower Trim Panel, Body Interior ...........15-12
C-Pillar Upper Trim Panel, Body Interior ...........15-13
Camshaft Position (CMP) Sensor, 1.6L & 1.8L Engine Controls .......................... 3-220
Camshaft Position (CMP) Sensor, 2.0L Engine Controls ............................... 3-431
Camshaft Position (CMP) Sensor, 2.4L Engine Controls ............................... 3-536
Camshaft, 1.6L & 1.8L Engine Mechanical ......2-20, 2-66
Camshaft, 2.0L Engine Mechanical ...........2-139, 2-94
Camshaft, 2.4L Engine Mechanical ..........2-171, 2-243
CAN Vehicle Communications, Body Interior ........15-16
Canister Control Solenoid Valve 2.4L, Evaporative Emissions ...................... 3-584
Canister Control Valve 1.6L & 1.8L & 2.0L, Evaporative Emissions ...................... 3-584
Catalytic Converter, Exhaust System ................7-6
Charging System ............................ 5-11
Chime, Body Interior ........................ 15-19
Clutch and Pressure Plate, Clutch System ..........8-319
Clutch Assembly Service, Clutch System ...........8-319
Clutch Master Cylinder, Clutch System ............8-322
Clutch Slave Cylinder, Clutch System .............8-324
Clutch System ............................. 8-316
Compressor, System Plumbing .................13-39
Condenser, System Plumbing ..................13-42
Connecting Rods, 1.6L & 1.8L Engine Mechanical .....2-58
Connecting Rods, 2.0L Engine Mechanical ..........2-131
Connecting Rods, 2.4L Engine Mechanical ..........2-229
Coolant Pump, Cooling System ..................6-16
Coolant Temperature Sensor (For Instrument Cluster), 2.4L Engine Controls ....................... 3-532
Cooling Fan, Cooling System ...................6-18
INDEX
AI
AI-1
Page 1897 of 1903
Downloaded from www.Manualslib.com manuals search engine Cooling System.............................6-1
Cooling System Draining and Filling, Cooling System . . . 6-13
Crankshaft Position (CKP) Sensor, 1.6L & 1.8L Engine Controls .......................... 3-220
Crankshaft Position (CKP) Sensor, 2.0L Engine Controls ............................... 3-430
Crankshaft Position (CKP) Sensor, 2.4L Engine Controls ............................... 3-542
Crankshaft, 1.6L & 1.8L Engine Mechanical .........2-60
Crankshaft, 2.0L Engine Mechanical ..............2-133
Crankshaft, 2.4L Engine Mechanical ..............2-233
Cylinder Head Cover, 1.6L & 1.8L Engine Mechanical . . . 2-19
Cylinder Head Cover, 2.0L Engine Mechanical ........2-93
Cylinder Head Cover, 2.4L Engine Mechanical .......2-170
Cylinder Head Unit Repair, 1.6L & 1.8L Engine Mechanical .............................. 2-63
Cylinder Head Unit Repair, 2.0L Engine Mechanical ....2-136
Cylinder Head Unit Repair, 2.4L Engine Mechanical ....2-241
Cylinder Head, 1.6L & 1.8L Engine Mechanical . . . 2-23, 2-63
Cylinder Head, 2.0L Engine Mechanical ........2-136, 2-97
Cylinder Head, 2.4L Engine Mechanical .......2-175, 2-241
D
Diagnosing Electrical Failures, Electrical Circuit Diagnosis
Information .............................. 1-16
Diagnosis & Testing, 1.6L & 1.8L Engine Controls .....3-22
Diagnosis & Testing, 1.6L & 1.8L Engine Mechanical . . . 2-13
Diagnosis & Testing, 2.0L Engine Controls .........3-247
Diagnosis & Testing, 2.0L Engine Mechanical ........2-87
Diagnosis & Testing, 2.4L Engine Controls .........3-458
Diagnosis & Testing, 2.4L Engine Mechanical .......2-163
Diagnosis & Testing, 5-Speed Manual Transaxle ......8-259
Diagnosis & Testing, Air Distribution .............13-28
Diagnosis & Testing, Airbag System ...............14-8
Diagnosis & Testing, Alignment .................10-42
Diagnosis & Testing, Antilock Brakes .............12-45
Diagnosis & Testing, Base Brakes ................12-7
Diagnosis & Testing, Body Exterior ..............15-228
Diagnosis & Testing, Body Interior .........15-113, 15-64
Diagnosis & Testing, Charging System .............5-16
Diagnosis & Testing, DP0 Automatic Transaxle .......8-19
Diagnosis & Testing, Drive Shaft (4x4) .............9-26
Diagnosis & Testing, F4A4 Automatic Transaxle ......8-158
Diagnosis & Testing, Front Axle ..................9-4
Diagnosis & Testing, Front Suspension .............10-6
Diagnosis & Testing, Fuel Delivery System ..........4-12
Diagnosis & Testing, Manual Temperature Control ....13-12 Diagnosis & Testing, Parking Brake
..............12-82
Diagnosis & Testing, Power Steering Pump .........11-33
Diagnosis & Testing, Rear Axle ..................9-11
Diagnosis & Testing, Rear Suspension ............10-29
Diagnosis & Testing, Steering Column ............11-11
Diagnosis & Testing, Steering Gear ..............11-20
Diagnosis & Testing, Steering System .............11-4
Diagnosis & Testing, System Plumbing ............13-35
Diagnosis & Testing, Wheels and Tires ............10-50
Diagnosis and Testing, Cooling System .............6-11
Diagnosis and Testing, Exhaust System .............7-4
Diagnosis and Testing, Starting System .............5-6
Diagnostic Help, Antilock Brakes ................12-45
Diagnostic Trouble Code (DTC) List, Airbag System ....14-9
Diagnostic Trouble Code (DTC)
List, Antilock Brakes . . . 12-46
Diagnostic Trouble Code (DTC) List, Body Interior .......................... 15-114, 15-65
Diagnostic Trouble Code (DTC) List, DP0 Automatic Transaxle ................................ 8-20
Diagnostic Trouble Code (DTC) List, F4A4 Automatic Transaxle ............................... 8-159
Diagnostic Trouble Code (DTC) Tests, 1.6L & 1.8L Engine Controls ........................... 3-35
Diagnostic Trouble Code (DTC) Tests, 2.0L Engine Controls ............................... 3-261
Diagnostic Trouble Code (DTC) Tests, 2.4L Engine Controls ............................... 3-469
Diagnostic Trouble Code (DTC) Tests, Airbag System . . 14-11
Diagnostic Trouble Code (DTC) Tests, Antilock Brakes . . 12-47
Diagnostic Trouble Code (DTC) Tests, Body Interior .......................... 15-117, 15-66
Diagnostic Trouble Code (DTC) Tests, DP0 Automatic Transaxle ................................ 8-22
Diagnostic Trouble Code (DTC) Tests, F4A4 Automatic Trans- axle .................................. 8-160
Differential Carrier, Front Differential ..............8-312
Differential Unit Repair, Front Differential ...........8-312
Door Lock Assembly, Body Interior ..............15-35
Door Lock Switch, Body Interior ................15-35
Door Locks, Body Interior ..................... 15-29
Doors, Body Exterior ....................... 15-167
DP0 Automatic Transaxle .......................8-1
DPO Automatic Transaxle Assembly, DP0 Automatic Transaxle ............................... 8-136
Drive Shaft (4x4) ........................... 9-24
Driver Side Airbag, Airbag System ...............14-46
INDEX
AI-2
Page 1898 of 1903
Downloaded from www.Manualslib.com manuals search engine E
ECM Power Supply and Ground Circuit Test, 1.6L & 1.8LEngine Controls ........................... 3-28
ECM Power Supply and Ground Circuit Test, 2.0L Engine Controls ............................... 3-254
ECM Power Supply and Ground Circuit Test, 2.4L Engine Controls ............................... 3-462
EGR Control Solenoid Valve 2.4L, Evaporative Emissions .............................. 3-587
EGR Valve 2.4L, Evaporative Emissions ............3-588
Electrical Circuit Diagnosis Information .............1-15
Electrical Components, Wiring Information ..........16-9
Electrical Information ......................... 1-20
Electrical Repair, Wiring Information ...............16-8
Electrical Schematics, Vehicle Ground Distribution ....16-29
Electrical Schematics, Vehicle Power Distribution .....16-14
Electrical Troubleshooting Tools, Wiring Information ....16-6
Electrical Troubleshooting, Wiring Information ........16-5
Electronic Throttle Control Actuator, 1.6L & 1.8L Engine Controls .......................... 3-225
Electronic Throttle Control Actuator, 2.0L Engine Controls ............................... 3-439
Engine Assembly, 1.6L & 1.8L Engine Mechanical .....2-31
Engine Assembly, 2.0L Engine Mechanical ..........2-105
Engine Assembly, 2.4L Engine Mechanical ..........2-183
Engine Block, 1.6L & 1.8L Engine Mechanical ........2-50
Engine Block, 2.0L Engine Mechanical ............2-123
Engine Block, 2.4L Engine Mechanical ............2-217
Engine Control Module (ECM), 1.6L & 1.8L Engine Controls .......................... 3-226
Engine Control Module (ECM), 2.0L Engine Controls . . . 3-440
Engine Control Module (ECM), 2.4L Engine Controls . . . 3-539
Engine Coolant Temperature (ECT) Sensor, 1.6L & 1.8L Engine Controls .......................... 3-217
Engine Coolant Temperature (ECT) Sensor, 2.0L Engine Controls ............................... 3-427
Engine Coolant Temperature (ECT) Sensor, 2.4L Engine Controls ............................... 3-531
Engine Mounts, 1.6L & 1.8L Engine Mechanical ......2-29
Engine Mounts, 2.0L Engine Mechanical ...........2-103
Engine Mounts, 2.4L Engine Mechanical ...........2-181
Engine Timing Belt, 1.6L & 1.8L Engine Mechanical ....2-38
Engine Timing Belt, 2.0L Engine Mechanical ........2-112
Engine Timing Belt, 2.4L Engine Mechanical ........2-189
Engine Unit Repair, 1.6L & 1.8L Engine Mechanical ....2-50
Engine Unit Repair ,
2.0L Engine Mechanical ........2-123
Engine Unit Repair, 2.4L Engine Mechanical ........2-217
Evaporative Emissions ....................... 3-576Evaporator, System Plumbing
..................13-42
Exhaust Manifold, 1.6L & 1.8L Engine Mechanical .....2-41
Exhaust Manifold, 2.0L Engine Mechanical .........2-115
Exhaust Manifold, 2.4L Engine Mechanical .........2-200
Exhaust Pipe Assembly, Exhaust System ............7-5
Exhaust System .............................7-1
Exterior Lamps, Body Exterior .................15-178
F
F4A4 Automatic Transaxle ..................... 8-143
F4A4 Automatic Transaxle Assembly, F4A4 Automatic Transaxle ............................... 8-240
Fastener Usage, Vehicle Information ...............1-14
Fender, Body Exterior ....................... 15-199
Frame, Body Exterior ....................... 15-153
Front Axle .................................9-1
Front Axle Shaft, Front Axle .....................9-6
Front Body Structure, Body Exterior .............15-148
Front Brake Caliper, Base Brakes ...........12-18, 12-27
Front Brake Pads, Base Brakes .................12-24
Front Brake Rotor, Base Brakes .................12-21
Front Bumper, Body Exterior ..................15-166
Front Coil Spring, Front Suspension ..............10-16
Front Combination Lamp Assembly, Body Exterior . . . 15-189
Front Crankshaft Oil Seal, 1.6L & 1.8L Engine Mechanical ......................... 2-25
Front Crankshaft Oil Seal, 2.0L Engine Mechanical .....2-99
Front Crankshaft Oil Seal, 2.4L Engine Mechanical ....2-177
Front Differential ........................... 8-307
Front Door Weatherstrip, Body Exterior ...........15-231
Front Door, Body Exterior .................... 15-168
Front Fender, Body Exterior ...................15-199
Front Fog Lamp, Body Exterior ................15-192
Front Fuse and Relay Box, Vehicle Fuse Box Information ............................. 16-40
Front Hub and Bearing, Front Axle ................9-5
Front Intermediate Drive Shaft, Drive Shaft (4x4) ......9-27
Front Lower Control Arm, Front Suspension .........10-9
Front Passenger Side Airbag, Airbag System ........14-47
Front Room Lamp, Body Interior ................15-91
Front Seat Belt and Pre-Tensioner, Seat Belt System . . . 14-52
Front Seat, Body Interior ..................... 15-106
Front Stabilizer Bar Link, Front Suspension .........10-11
Front Stabilizer Bar, Front Suspension .............10-12
Front Steering Knuckle, Front Suspension ...........10-7
Front Structure, Body Exterior .................15-151
Front Strut Assembly, Front Suspension ...........10-13
INDEX
AI
AI-3
Page 1899 of 1903
Downloaded from www.Manualslib.com manuals search engine Front Strut, Front Suspension..................10-21
Front Sub-Frame Assembly, Front Suspension .......10-17
Front Suspension ........................... 10-1
Front Wheel Alignment, Alignment ...............10-44
Front Wheel Speed Sensor, Antilock Brakes .........12-77
Front Windshield, Body Exterior ................15-219
Front Wiper Arm, Body Exterior ................15-240
Front Wiper Link, Body Exterior ................15-241
Front Wiper Motor, Body Exterior ...............15-238
Fuel Delivery System ..........................4-1
Fuel Door, Body Exterior ..................... 15-200
Fuel Door, Body Exterior ........................200
Fuel Filter, Fuel Delivery System .................4-18
Fuel Injector Rail, Fuel Delivery System ............4-19
Fuel Injector, Fuel Delivery System ................4-20
Fuel Pressure Regulator - With Mitsubishi 2.4L Engine, Fuel Delivery System ..................4-23
Fuel Pressure Relief Procedure, Fuel Delivery System . . . 4-15
Fuel Pump, Fuel Delivery System .................4-15
G
Gear Selector & Shifter Assembly, 5-Speed Manual
Transaxle ............................... 8-264
General Information, 1.6L & 1.8L Engine Controls ......3-3
General Information, 1.6L & 1.8L Engine Mechanical ....2-3
General Information, 2.0L Engine Controls ..........3-229
General Information, 2.0L Engine Mechanical .........2-77
General Information, 2.4L Engine Controls ..........3-442
General Information, 2.4L Engine Mechanical ........2-151
General Information, 5-Speed Manual Transaxle ......8-247
General Information, Air Distribution ..............13-26
General Information, Airbag System ...............14-2
General Information, Alignment .................10-39
General Information, Antilock Brakes .............12-35
General Information, Base Brakes ................12-2
General Information, Body Interior ..............15-104
General Information, Charging System .............5-12
General Information, Clutch System ..............8-317
General Information, Cooling System ...............6-2
General Information, DP0 Automatic Transaxle .........8-3
General Information, Drive Shaft (4x4) .............9-25
General Information, Evaporative Emissions .........3-577
General Information, Exhaust System ...............7-2
General Information, F4A4 Automatic Transaxle ......8-144
General Information, Front Axle ...................9-2
General Information, Front Differential .............8-308General Information, Front Suspension
.............10-2
General Information, Fuel Delivery System ...........4-2
General Information, Ignition Control .............3-566
General Information, Interactive Torque Management (ITM) System (4x4) ...............9-17
General Information, Manual Temperature Control .....13-2
General Information, Parking Brake ..............12-80
General Information, Power Steering Pump .........11-32
General Information, Rear Axle ...................9-9
General Information, Rear Suspension ............10-26
General Information, Seat Belt System ............14-51
General Information, Starting System ...............5-2
General Information, Steering Column .............11-9
General Information, Steering Gear ...............11-19
General Information, Steering System ..............11-2
General Information, System Controls .............13-19
General Information, System Plumbing ............13-33
General Information, T
ransfer Case (4x4)..........8-327
General Information, Vehicle Fuse Box Information ....16-38
General Information, Vehicle Ground Distribution .....16-28
General Information, Vehicle Power Distribution ......16-13
General Information, Vehicle Wiring Harness Layout . . . 16-45
General Information, Wheels and Tires ............10-48
General Information, Wiring Information ............16-2
Generator, Charging System ....................5-17
Grille, Body Exterior ........................ 15-201
Grille, Body Exterior ...........................201
H
Headlamp, Body Exterior ..................... 15-191
Headliner, Body Interior ...................... 15-15
Heated Seat Element, Body Interior ..............15-109
Heated Seat Switch, Body Interior ..............15-109
Heater Core, System Plumbing .................13-47
High Mounted Stop Lamp, Body Exterior ..........15-197
Hood Release Cable, Body Exterior ..............15-203
Hood, Body Exterior ........................ 15-202
Hood, Body Exterior ...........................202
Horn, Body Exterior .................. 15-206, 15-208
How To Locate Electrical Schematics In The Service Manual, Electrical Information ............1-25
How To Read Electrical Schematics, Electrical Information .............................. 1-21
How To Use This Manual, Service Information ........1-2
HVAC Housing, Air Distribution .................13-29
INDEX
AI-4
Page 1900 of 1903
Downloaded from www.Manualslib.com manuals search engine I
Idle Air Control (IAC) Motor, 2.4L Engine Controls....3-541
Idler Pulley, 1.6L & 1.8L Engine Mechanical .........2-45
Idler Pulley, 2.0L Engine Mechanical ..............2-119
Ignition Coil 1.6L & 1.8L & 2.0L, Ignition Control ....3-571
Ignition Coil 2.4L, Ignition Control ...............3-572
Ignition Control ............................ 3-565
Immobilizer Control Module, Body Interior . . . 15-110, 15-144
Input Shaft, 5-Speed Manual Transaxle ............8-278
Instrument Cluster, Body Interior ...........15-52, 15-84
Instrument Panel, Body Interior .................15-45
Intake Manifold, 1.6L & 1.8L Engine Mechanical ......2-43
Intake Manifold, 2.0L Engine Mechanical ...........2-117
Intake Manifold, 2.4L Engine Mechanical ...........2-201
Interactive Torque Management (ITM) Control Module, Interactive Torque Management (ITM) System
(4x4) .................................. 9-23
Interactive Torque Management (ITM) Controller, Interactive Torque Management (ITM) System (4x4) . . 9-21
Interactive Torque Management (ITM) System (4x4) ....9-16
Interior Lamps, Body Interior ..................15-85
International Symbols, Vehicle Information ..........1-13
K
Key Hole Lamp, Body Interior ..................15-92
Knock Sensor, 1.6L & 1.8L Engine Controls ........3-218
Knock Sensor, 2.0L Engine Controls ..............3-428
Knock Sensor, 2.4L Engine Controls ..............3-533
L
License Plate Lamp, Body Exterior ..............15-197
Liquid Line, System Plumbing ..................13-44
Lower Balance Shaft, 2.4L Engine Mechanical .......2-208
Lower Console, Body Interior ..................15-50
Luggage Rack, Body Exterior ..................15-204
Luggage Rack, Body Exterior .....................204
M
Manifold Absolute Pressure Sensor - 1.6L, 1.6L & 1.8L
Engine Controls .......................... 3-222
Manual Temperature Control ....................13-1
Manual Temperature Control Module, Manual Temperature Control ................................ 13-15
Manual Transaxle Assembly, 5-Speed Manual Transaxle ............................... 8-260
Manual Transaxle Unit Repair, 5-Speed Manual Transaxle ............................... 8-270
Master Cylinder - LHD, Base Brakes ..............12-11Master Cylinder - RHD, Base Brakes
.............12-12
Middle/Rear Courtesy/Dome Lamp, Body Interior .....15-91
Mirrors, Body Exterior ...................... 15-209
Muffler, Exhaust System ........................7-6
N
Negative Battery Cable, Starting System .............5-8
O
Oil Filter, 1.6L & 1.8L Engine Mechanical ...........2-46
Oil Filter, 2.0L Engine Mechanical ................2-119
Oil Filter, 2.4L Engine Mechanical ................2-212
Oil Pan, 1.6L & 1.8L Engine Mechanical ............2-47
Oil Pan, 2.0L Engine Mechanical ................2-120
Oil Pan, 2.4L Engine Mechanical ................2-213
Oil Pump, 1.6L & 1.8L Engine Mechanical ..........2-48
Oil Pump, 2.0L Engine Mechanical ...............2-121
Oil Pump, 2.4L Engine Mechanical ...............2-215
Oil Strainer, 1.6L & 1.8L Engine Mechanical .........2-49
Oil Strainer, 2.0L Engine Mechanical ..............2-122
Oil Strainer, 2.4L Engine Mechanical ..............2-216
On-Vehicle Service, 1.6L & 1.8L Engine Controls .....3-217
On-Vehicle Service, 1.6L & 1.8L Engine Mechanical ....2-17
On-Vehicle Service, 2.0L Engine Controls ..........3-427
On-Vehicle Service, 2.0L Engine Mechanical .........2-91
On-Vehicle Service, 2.4L Engine Controls ..........3-531
On-Vehicle Service, 2.4L Engine Mechanical ........2-167
On-Vehicle Service, 5-Speed Manual Transaxle .......8-260
On-Vehicle Service, Air Distribution ..............13-29
On-Vehicle Service, Airbag System ...............14-46
On-Vehicle Service, Alignment ..................10-44
On-Vehicle Service, Antilock Brakes ..............12-76
On-Vehicle Service, Base Brakes .................12-9
On-Vehicle Service, Body Exterior ...............15-229
On-Vehicle Service, Body Interior .....15-144, 15-44, 15-84
On-Vehicle Service, Charging System ..............5-17
On-Vehicle Service, Cooling System ...............6-13
On-Vehicle Service, DP0 Automatic Transaxle ........8-136
On-Vehicle Service, Drive Shaft (4x4) ..............9-27
On-Vehicle Service, Evaporative Emissions ..........3-584
On-Vehicle Service, Exhaust System ................7-5
On-Vehicle Service, F4A4 Automatic Transaxle .......8-240
On-Vehicle Service, Front Axle ...................9-5
On-Vehicle Service, Front Suspension ..............10-7
On-Vehicle Service, Fuel Delivery System ...........4-15
On-Vehicle Service, Ignition
Control .............. 3-571
INDEX
AI
AI-5
