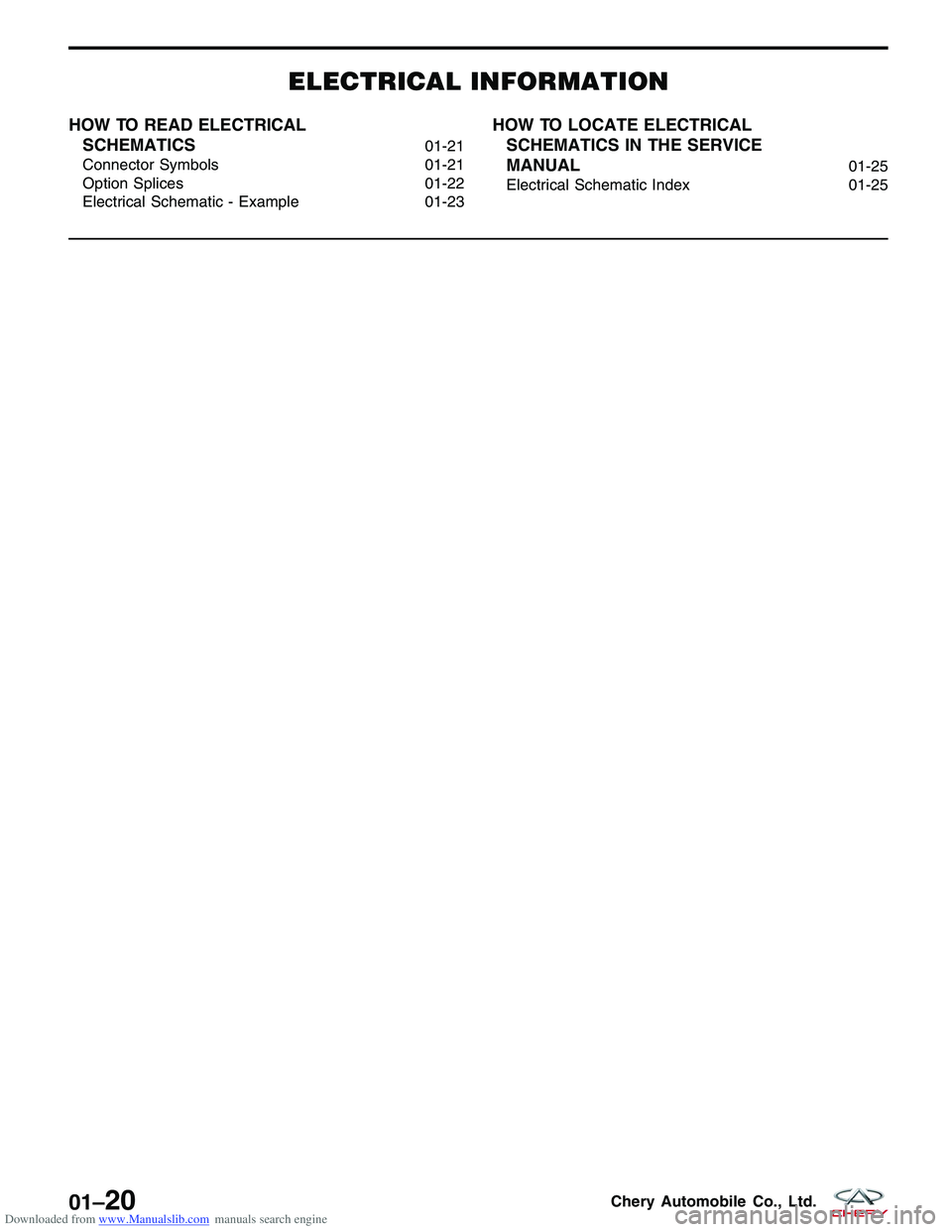

Downloaded from www.Manualslib.com manuals search engine ELECTRICAL INFORMATION
HOW TO READ ELECTRICALSCHEMATICS
01-21
Connector Symbols 01-21
Option Splices 01-22
Electrical Schematic - Example 01-23
HOW TO LOCATE ELECTRICAL SCHEMATICS IN THE SERVICE
MANUAL
01-25
Electrical Schematic Index 01-25
01–20Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine HOW TO READ ELECTRICAL SCHEMATICS
Connector Symbols
•Connector symbols shown from the terminal side
are enclosed by a single line and followed by the
direction mark.
• Connector symbols shown from the harness side
are enclosed by a double line and followed by the
direction mark.
• Most of the connector symbols in the wiring dia-
grams are shown from the terminal side.
• In electrical schematics, female terminal end views
are shown at the bottom of the page for all compo-
nents that are shown on the schematic page.
BESMW010003T
PZSMW010009
01
01–21Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Option Splices
•Option splices are shown with solid diamond-shaped boxes with identification numbers inside.
HOW TO READ ELECTRICAL SCHEMATICS
BESMW010002T
01–22Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electrical Schematic - Example
HOW TO READ ELECTRICAL SCHEMATICS
BESMW010001T
01
01–23Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine NUMBERITEM DESCRIPTION
1 Power source This represents the condition when the system receives battery
positive voltage.
2 Fuse The single line represents that this is a fuse.
3 Current rating This represents the current rating of the fuse.
4 Fuse location This represents the location of the fuse in the Power Fuse Box or
Front Fuse and Relay Box.
5 Connectors This represents connector E-101 is female and connector C-101 is
male.
6 Terminal number This represents the terminal number of a connector.
7 Component name This represents the name of a component.
8 Connector number This represents the connector number.
The letter represents which harness the connector is located in.
9 SpliceThe shaded circle represents that the splice is always on the
vehicle.
10 Optional splice The open circle represents that the splice is optional depending on
vehicle application.
11 Option abbreviation This represents that the circuit is optional depending on vehicle
application.
12 Ground (GND) This represents the ground connection. (See Ground Distribution in
Section 16 Wiring).
Ground connector number has no view face.
13 Page crossing This arrow represents that the circuit continues to an adjacent page.
The
Acorresponds with the Aon the adjoining page of the
electrical schematic.
14 Data linkThis represents that the system branches to another system
identified by cell data code.
15 Option description This represents a description of the option abbreviation used on the
page.
16 Connector views This represents the connector information.
This component side is described by the connector symbols.
17 Connector color This shows a code for the color of the connector:
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
BR = Brown
O = Orange
GR = Gray
18 Shielded line The line enclosed by broken line circle represents shielded wire.
19 Light-emitting diodes As an illumination tool, in the circuit and instrument cluster.
HOW TO READ ELECTRICAL SCHEMATICS
01–24Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine HOW TO LOCATE ELECTRICAL SCHEMATICS IN THESERVICE MANUAL
Electrical Schematic Index
The following table shows where to locate a specific electrical schematic for a vehicle component or system. The
electrical schematics are found throughout the service manual and are easily identified by their components or vehi-
cle systems.
NOTE :
Some service manual chapters DO NOT contain electrical schematics, and will be identified as Nonein the Com-
ponent/Vehicle System column.
SERVICE MANUAL CHAPTER COMPONENT / VEHICLE SYSTEM
01 - General Information •None
02 - Engine •None
03 - Electronic Engine Controls •
Engine Control Module (ECM)
• Engine Coolant Temperature Sensor
• Knock Sensor
• Upstream Oxygen Sensor
• Downstream Oxygen Sensor
• Crankshaft Position Sensor
• Camshaft Position Sensor
• Ignition Coil
• Canister Control Valve
• Front Fuse and Relay Box
• A/C Compressor
• Immobilizer Control Module
• Fuel Injectors
• Manifold Absolute Pressure Sensor (1.6L Only)
• Accelerator Pedal Position Sensor
• Vehicle Speed Sensor
• Throttle Pedal Position Sensor
• Power Steering Switch
• Clutch Pedal Switch (if equipped)
• Electronic Throttle Control Actuator
04 - Fuel Delivery •
Fuel Injectors
• Fuel Level Sensor and Fuel Pump
05 - Starting & Charging •
Starter Motor
• Ignition Switch
• Clutch Pedal Switch (if equipped)
• Generator
06 - Cooling System •Cooling Fan
07 - Exhaust •None
01
01–25Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine SERVICE MANUAL CHAPTERCOMPONENT / VEHICLE SYSTEM
08 - Transaxle & Transfer Case •
Transaxle Control Module (TCM)
• Automatic Transaxle Shifter Selector
• Automatic Transaxle Assembly
• Manual Transaxle Assembly
• Winter Mode Switch
• EPDE Solenoid Valve
• Backup Lamp Switch
• Integrated Torque Management (ITM) Control Module
09 - Driveline & Axle •None
10 - Suspension •None
11 - Steering •Power Steering Switch
12 - Brakes •
Antilock Brake System (ABS) Module
• Wheel Speed Sensors
• Brake Switch
• Parking Brake Switch
• Brake Fluid Level Switch
13 - Heating & Air Conditioning •
Manual Temperature Control System
• Blower Motor
• A/C Compressor
• Refrigerant Pressure Switch
14 - Restraints •
Restraints Control Module
• Seat Belt Buckle Switch
• Front Crash Sensors
• Driver Airbag
• Passenger Airbag
HOW TO LOCATE ELECTRICAL SCHEMATICS IN THE SERVICE MANUAL
01–26Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine SERVICE MANUAL CHAPTERCOMPONENT / VEHICLE SYSTEM
15 - Body & Accessories •
Windshield Wiper Motor
• Windshield Washer Motor
• Rear Window Defroster
• Power Door Locks
• Power Windows
• Power Mirrors
• Sunroof Control Unit
• Radio
• Interior Lights
• Exterior Lights
• Oil Pressure Switch
• Warning Buzzer
• Body Control Module (BCM)
• Instrument Cluster
• Key Switch
• Power Outlet
• Data Link Connector
• Immobilizer Control Module
• Horn
16 - Wiring •
Power Distribution
• Front Fuse and Relay Box
• Power Fuse Box
• Ignition Switch
• Ground Distribution
Abbreviation List
TERM ABBREVIATION
Antilock Brake System ABS
Accelerator Sensor AES
Accelerator Pedal Position Sensor APS
Automatic Temperature Control ATC
Automatic Transaxle Fluid ATF
Body Control Module BCM
Brake Pressure Sensor BPS
Camshaft Position Sensor CMP
Clutch Pedal Position Switch CPP Switch
Crankshaft Position Sensor CKP
Data Link Connector DLC
Diagnostic Trouble Code DTC
Engine Control Module ECM
Engine Coolant Temperature ECT
Engine Speed RPM
Evaporative Emission EVAP
Evaporative Emission Canister EVAP Canister
Evaporative Emission System EVAP System
Exhaust Gas Recirculation Valve EGR Valve
HOW TO LOCATE ELECTRICAL SCHEMATICS IN THE SERVICE MANUAL
01
01–27Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine TERMABBREVIATION
Front Left Wheel Speed Sensor FLS
Front Right Wheel Speed Sensor FRS
Rear Left Wheel Speed Sensor RCS
Rear Right Wheel Speed Sensor RRS
Ground GND
Heated Oxygen Sensor O2S
Idle Air Control IAC
Intake Air Temperature IAT
Ignition IGN
Ignition Control IC
Immobilizer Control Module ICM
Injector INJ
Input Shaft Speed Sensor ISS Sensor
Knock Sensor KS
Manifold Absolute Pressure MAP
Mass Air Flow MAF
Malfunction Indicator Lamp MIL
Oil Pressure Switch OPS
Output Shaft Speed Sensor OSS Sensor
Positive Crankcase Ventilation Valve PCV Valve
Power Supply PWR
SRS Airbag Control System SRC
Throttle Position Sensor TPS
Transaxle Control Module TCM
Turbine Speed Sensor TSS
Vehicle Identification Number VIN
Vehicle Speed Sensor VSS
HOW TO LOCATE ELECTRICAL SCHEMATICS IN THE SERVICE MANUAL
01–28Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine ENGINE
02
CONTENTSpage
1.6L & 1.8L Engine Mechanical ......................................................... 02-1
2.0L Engine Mechanical .............................................................. 02-76
2.4L Engine Mechanical ............................................................. 02-149
1.6L & 1.8L ENGINE MECHANICAL
GENERAL INFORMATION02-3
Description 02-3
Operation 02-3
Specifications 02-3
Special Tools 02-7
Lubrication System 02-10
DIAGNOSIS & TESTING02-13
Engine Performance Diagnostics 02-13
Engine Mechanical Diagnostics 02-14
Cylinder Compression Pressure Test 02-16
Cylinder Head Gasket Test 02-16
ON-VEHICLE SERVICE02-17
Accessory Drive Belt 02-17
Removal & Installation 02-17
Air Cleaner Element 02-18
Removal & Installation 02-18
Air Cleaner Housing 02-18
Removal & Installation 02-18
Cylinder Head Cover 02-19
Removal & Installation 02-19
Camshaft 02-20
Removal & Installation 02-20
Cylinder Head 02-23
Removal & Installation 02-23
Front Crankshaft Oil Seal 02-25
Removal & Installation 02-25 Rear Crankshaft Oil Seal
02-27
Removal & Installation 02-27
Engine Mounts 02-29
Removal & Installation - Left Mount 02-29
Removal & Installation - Right Mount 02-30
Removal & Installation - Front Mount 02-30
Removal & Installation - Rear Mount 02-31
Engine Assembly 02-31
Removal & Installation 02-31
Engine Timing Belt 02-38
Removal & Installation 02-38
Exhaust Manifold 02-41
Removal & Installation 02-41
Intake Manifold 02-43
Removal & Installation 02-43
Idler Pulley 02-45
Removal & Installation 02-45
Oil Filter 02-46
Removal & Installation 02-46
Oil Pan 02-47
Removal & Installation 02-47
Oil Pump 02-48
Removal & Installation 02-48
Oil Strainer 02-49
Removal & Installation 02-49
02
