Page 421 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 4.CHECK UPSTREAM O2SENSOR SIGNAL CIRCUIT
• Disconnect ECM harness connector.
• Check harness continuity between the following terminals.
CO

Page 422 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
6.DETECT MALFUNCTIONING PART
• Check the following:
� Fuel pump and

Page 423 of 1903

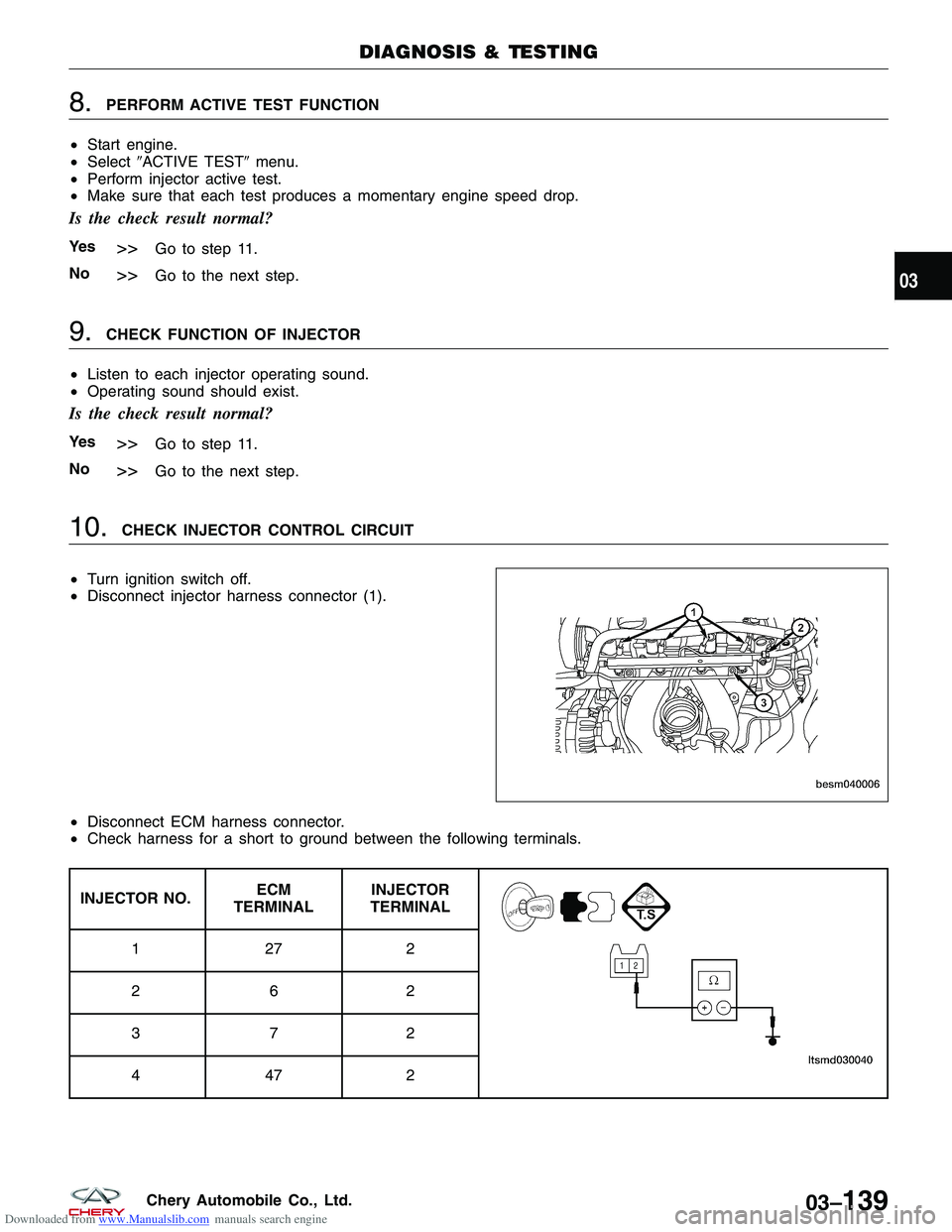

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 8.PERFORM ACTIVE TEST FUNCTION
• Start engine.
• Select ACTIVE TEST menu.
• Perform injector active test.
• Make sure that each test

Page 424 of 1903

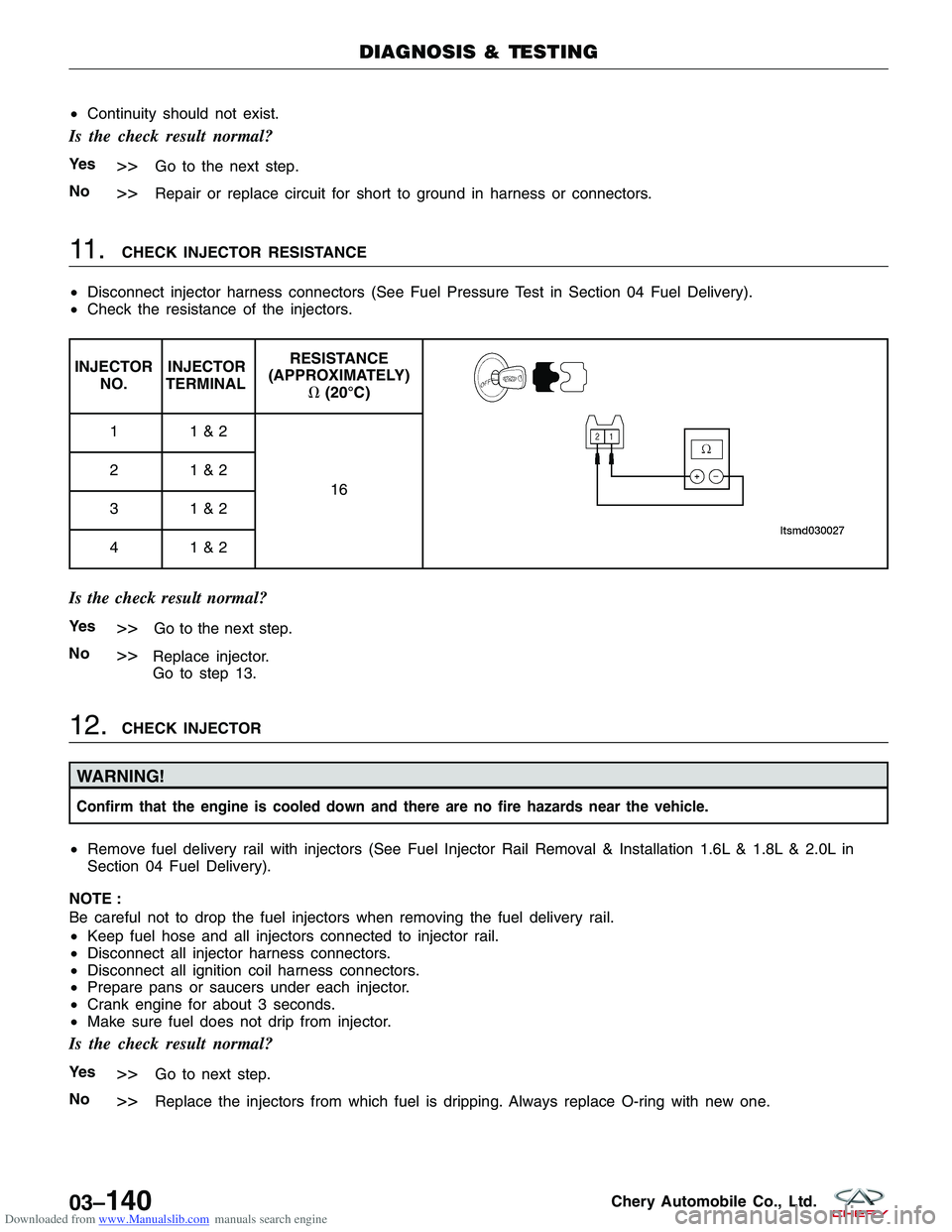

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine •Continuity should not exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace circuit for short to ground in ha

Page 425 of 1903

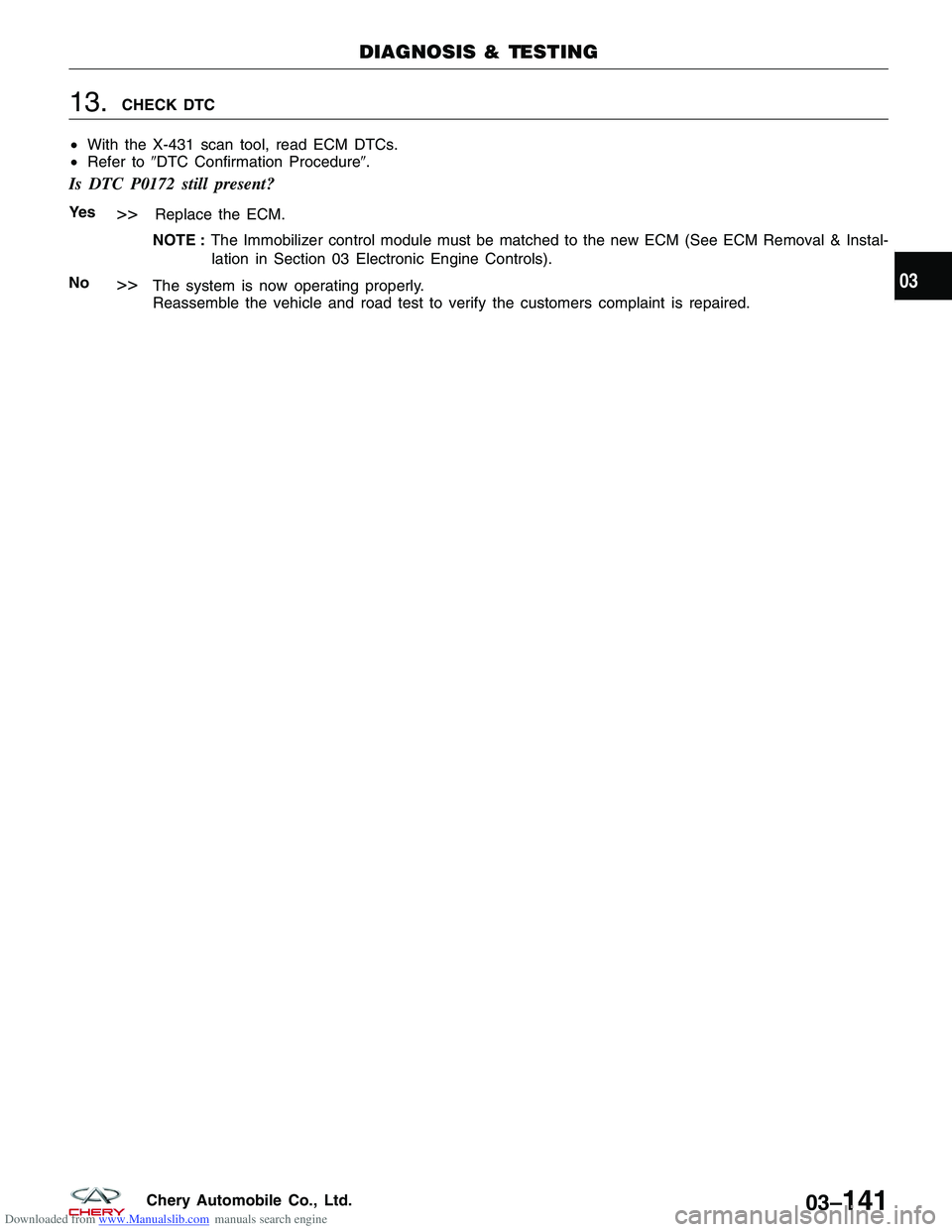

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 13.CHECK DTC
• With the X-431 scan tool, read ECM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC P0172 still present?
Ye s>>Replace

Page 426 of 1903

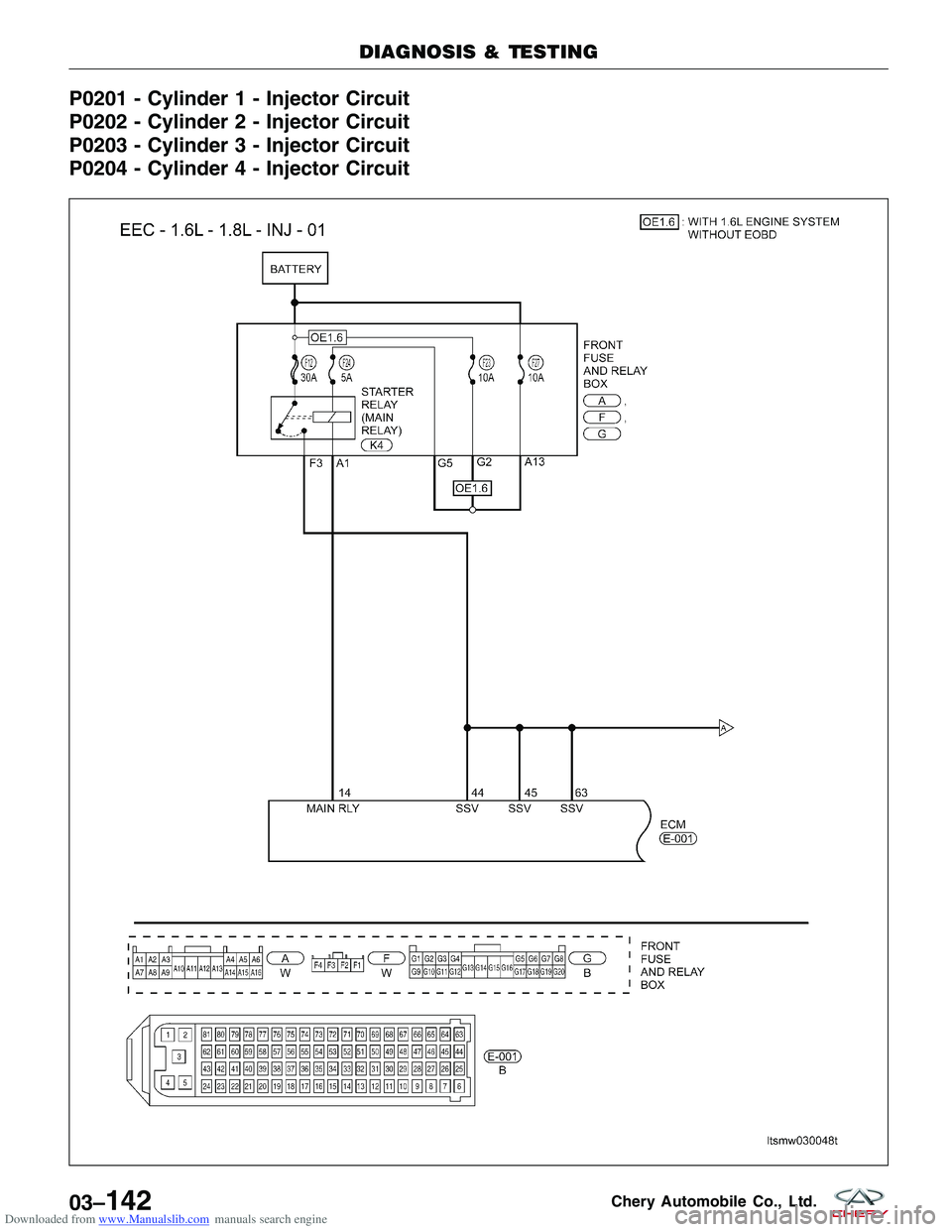

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine P0201 - Cylinder 1 - Injector Circuit
P0202 - Cylinder 2 - Injector Circuit
P0203 - Cylinder 3 - Injector Circuit
P0204 - Cylinder 4 - Injector

Page 427 of 1903

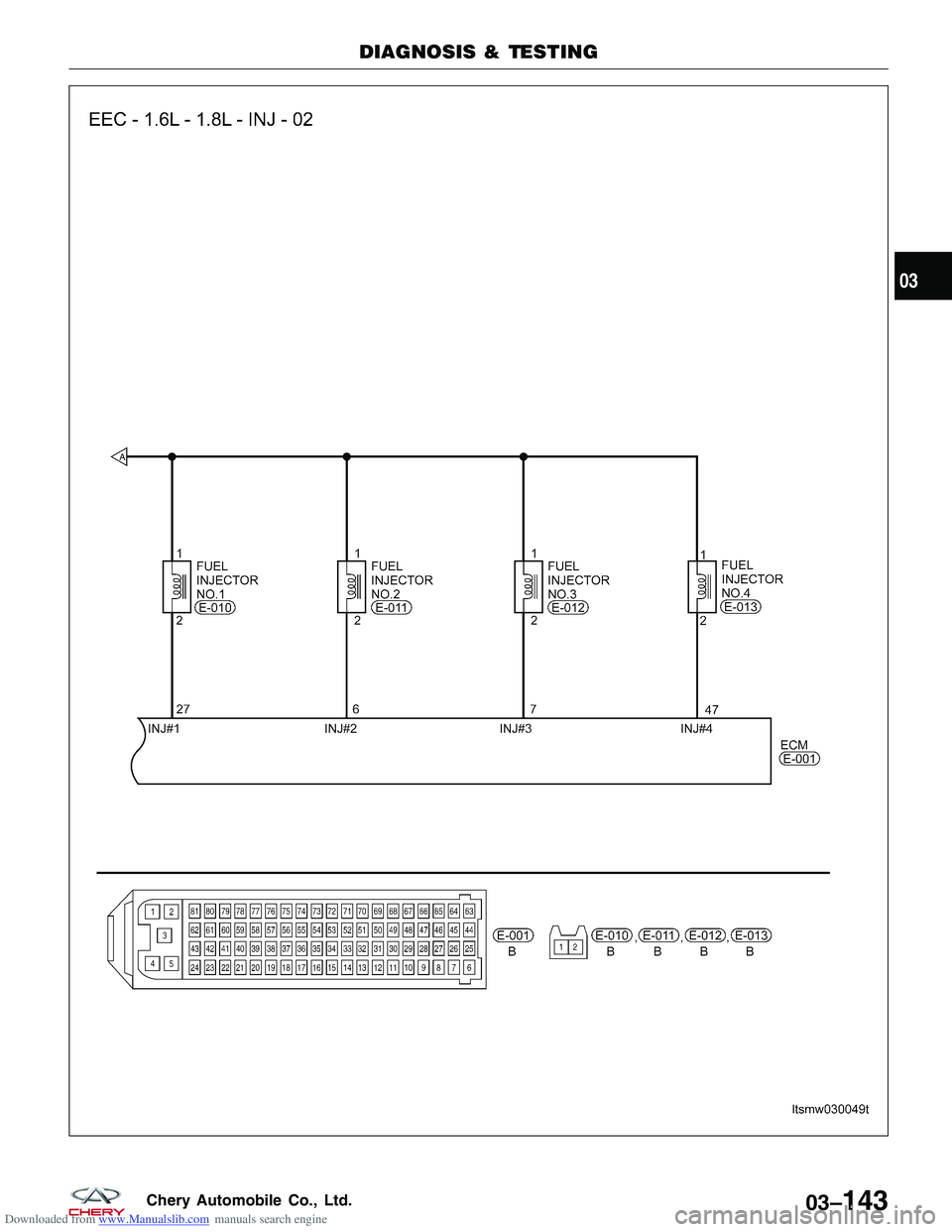

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
LTSMW030049T
03
03–143Chery Automobile Co., Ltd.

Page 428 of 1903

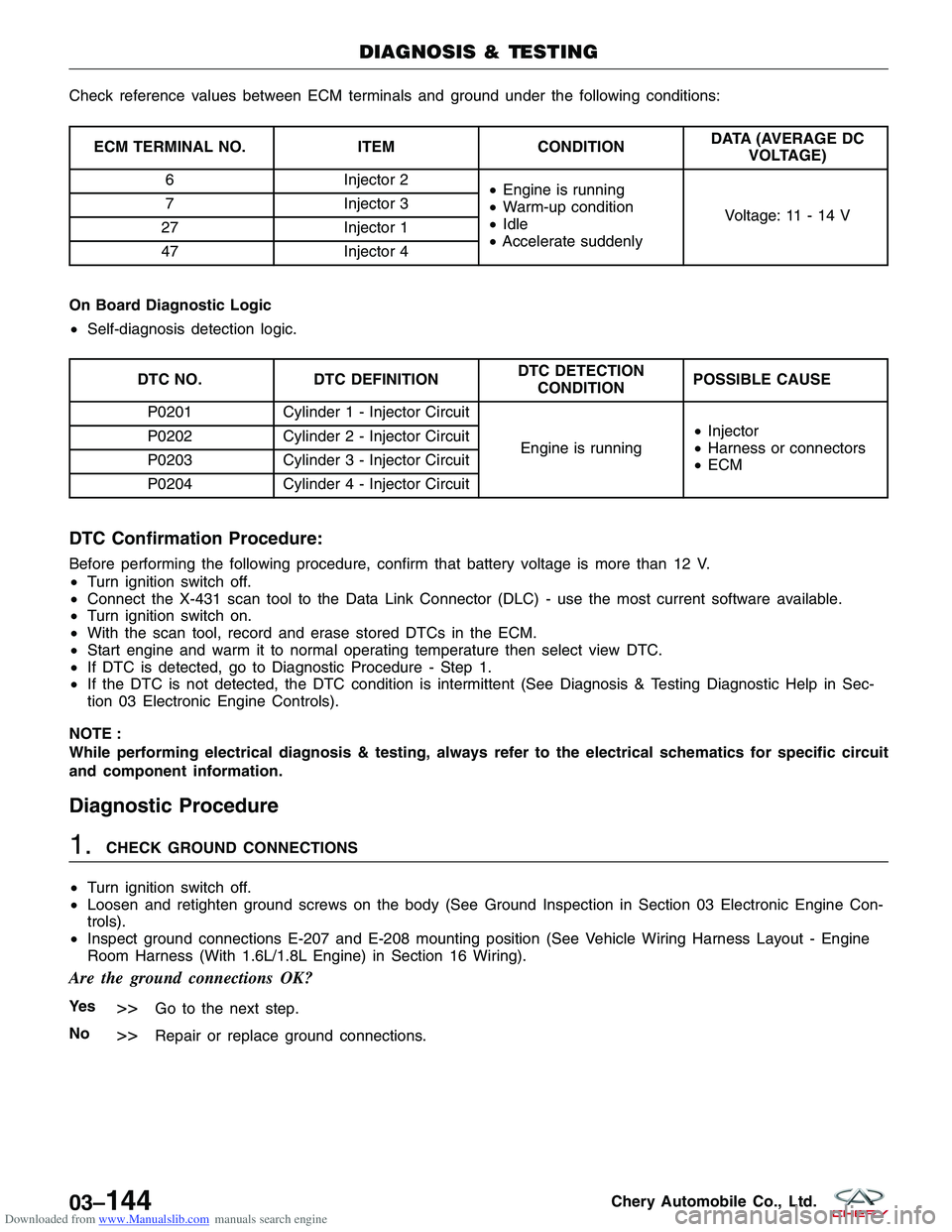

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINAL NO.ITEMCONDITIONDATA (AVERAGE DC
VOLTAGE)

Page 429 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 2.INSPECTION START
• Start the engine.
Is any cylinder ignited?
Ye s>>If with the X-431, go to the next step.
If without the X-431, go to ste

Page 430 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine 6.CHECK INJECTOR POWER SUPPLY CIRCUIT FOR OPEN
• Turn ignition switch on.
• Check injector supply voltage between sensor ter-
minal and gro
