CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine 9.PERFORM ACTIVE TEST FUNCTION
• Start engine.
• Select ACTIVE TEST menu.
• Perform injector active test.
• Make sure that each test produces a momentary engine speed drop.
Is the check result normal?
Ye s>>Go to step 12.
No
>>Go to the next step.
10.CHECK FUNCTION OF INJECTOR
• Listen to each injector operating sound.
• Operating sound should exist.
Is the check result normal?
Ye s>>Go to step 12.
No
>>Go to the next step.
DIAGNOSIS & TESTING
03
03–127Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 11 .CHECK INJECTOR POWER SUPPLY CIRCUIT AND CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect injector harness connector (1).
• Turn ignition switch on.
• Check injector supply voltage between sensor ter-
minal and ground in the electrical connector.
• Battery voltage should exist.
• Turn ignition switch off.
• Disconnect ECM harness connector.
• Check harness continuity between following terminals.
INJECTOR NO. ECM
TERMINAL INJECTOR
TERMINAL
12 72
262
372
44 72
• Continuity should exist.
• Check harness for short to power.
Is the check result normal?
Ye s>>Go to step next step.
No
>>Repair or replace circuit for an open or short to power or short to ground in harness or connectors.
DIAGNOSIS & TESTING
BESM040006
LTSMD030024
03–128Chery Automobile Co., Ltd.

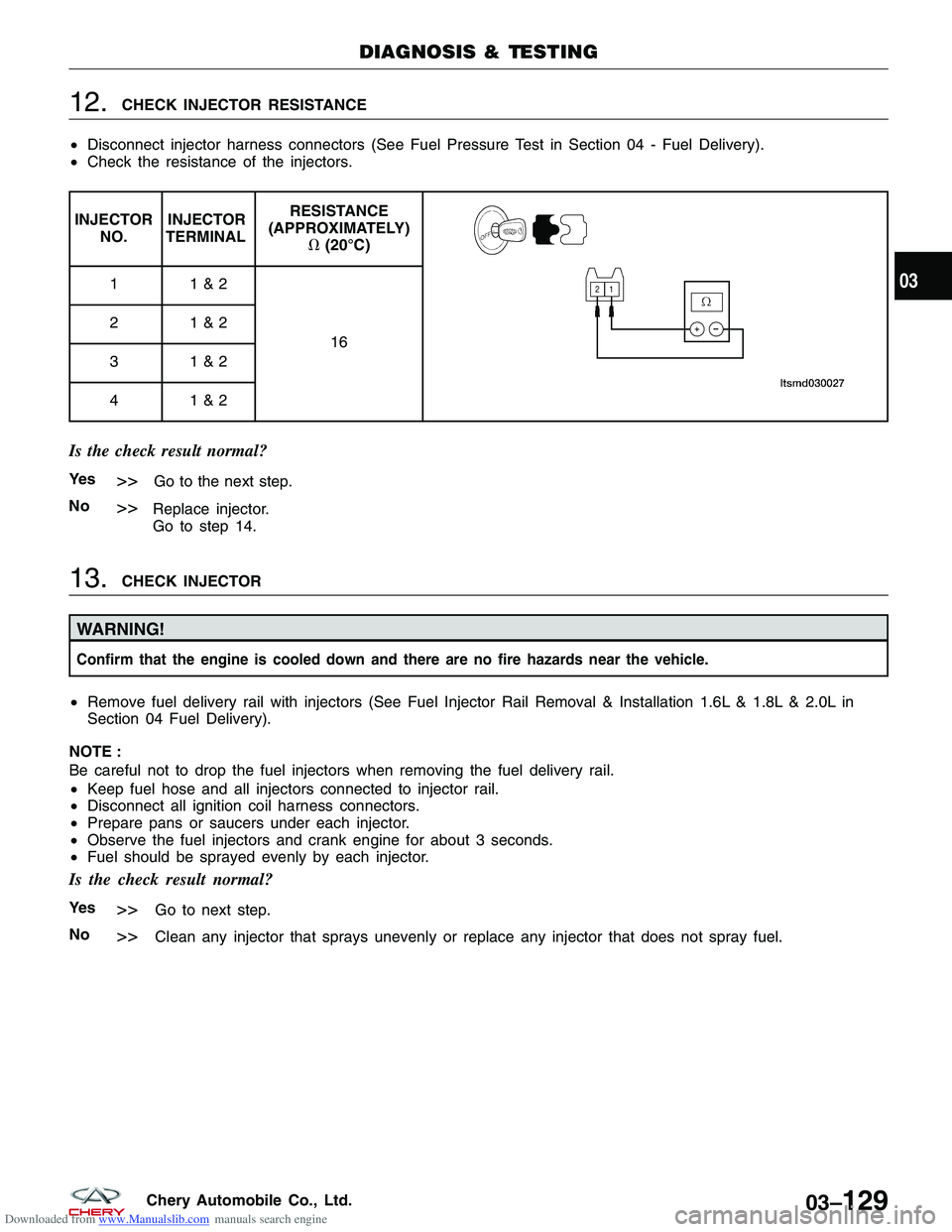

Downloaded from www.Manualslib.com manuals search engine 12.CHECK INJECTOR RESISTANCE
• Disconnect injector harness connectors (See Fuel Pressure Test in Section 04 - Fuel Delivery).
• Check the resistance of the injectors.
INJECTOR
NO. INJECTOR
TERMINAL RESISTANCE
(APPROXIMATELY) (20°C)
11&2
16
21&2
31&2
41&2
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace injector.
Go to step 14.
13.CHECK INJECTOR
WARNING!
Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
• Remove fuel delivery rail with injectors (See Fuel Injector Rail Removal & Installation 1.6L & 1.8L & 2.0L in
Section 04 Fuel Delivery).
NOTE :
Be careful not to drop the fuel injectors when removing the fuel delivery rail.
• Keep fuel hose and all injectors connected to injector rail.
• Disconnect all ignition coil harness connectors.
• Prepare pans or saucers under each injector.
• Observe the fuel injectors and crank engine for about 3 seconds.
• Fuel should be sprayed evenly by each injector.
Is the check result normal?
Ye s>>Go to next step.
No
>>Clean any injector that sprays unevenly or replace any injector that does not spray fuel.
DIAGNOSIS & TESTING
03
03–129Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 14.CHECK DTC
• With the X-431 scan tool, read ECM DTCs.
• See DTC Confirmation Procedure.
Is DTC P0171 still present?
Ye s>>Replace the ECM.
NOTE : The Immobilizer control module must be matched to the new ECM (See ECM Removal & Instal-
lation in Section 03 Electronic Engine Controls).
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
03–130Chery Automobile Co., Ltd.

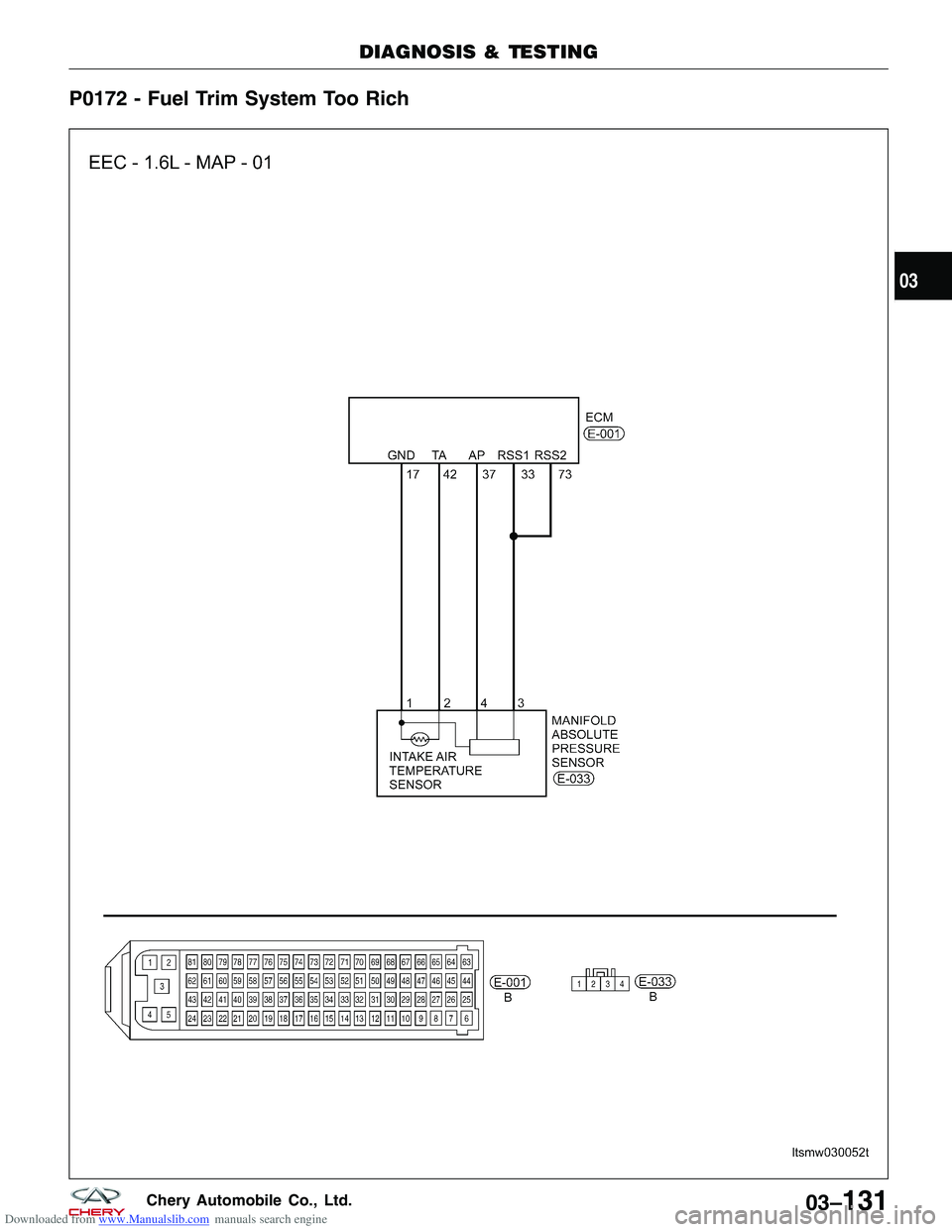

Downloaded from www.Manualslib.com manuals search engine P0172 - Fuel Trim System Too Rich
DIAGNOSIS & TESTING
LTSMW030052T
03
03–131Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING

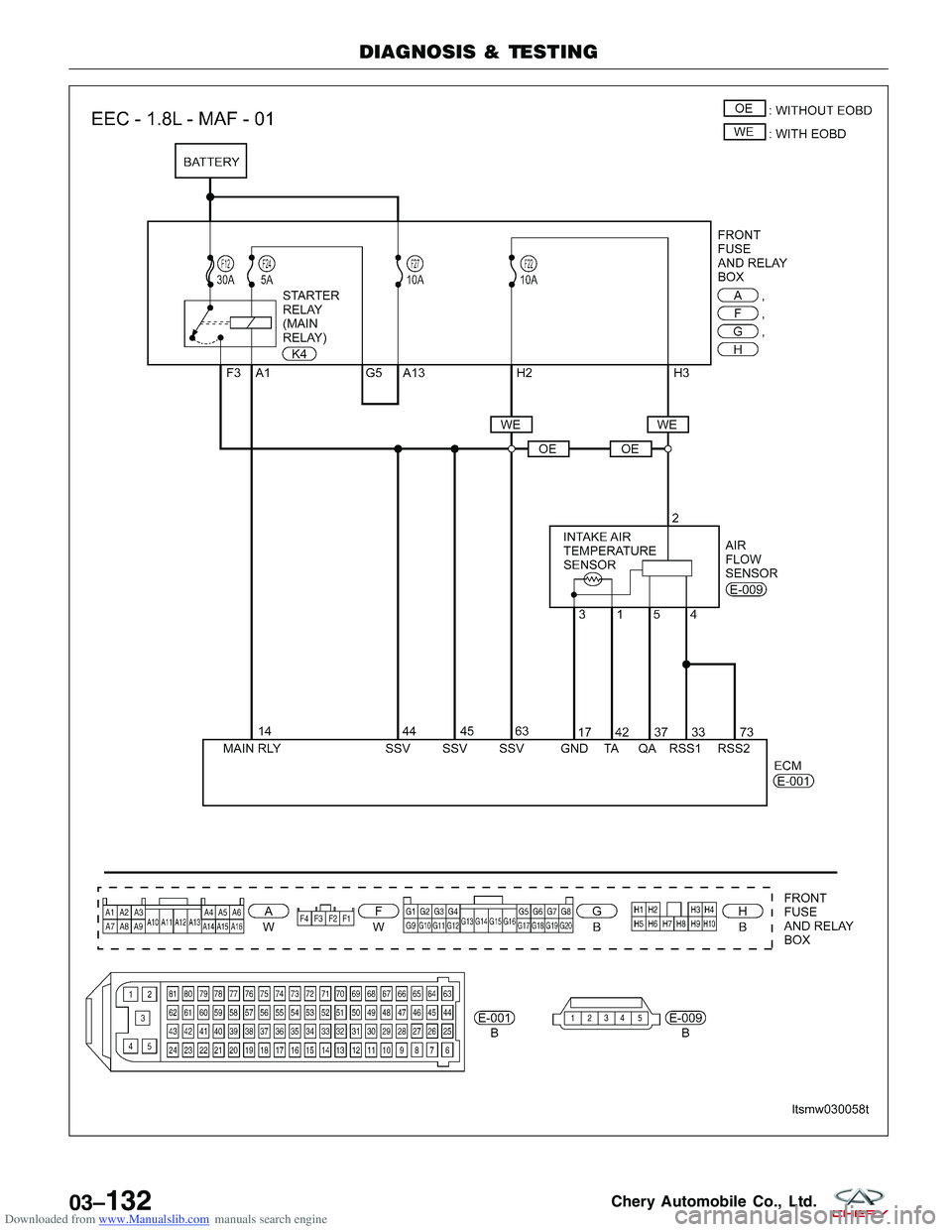

LTSMW030058T
03–132Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING

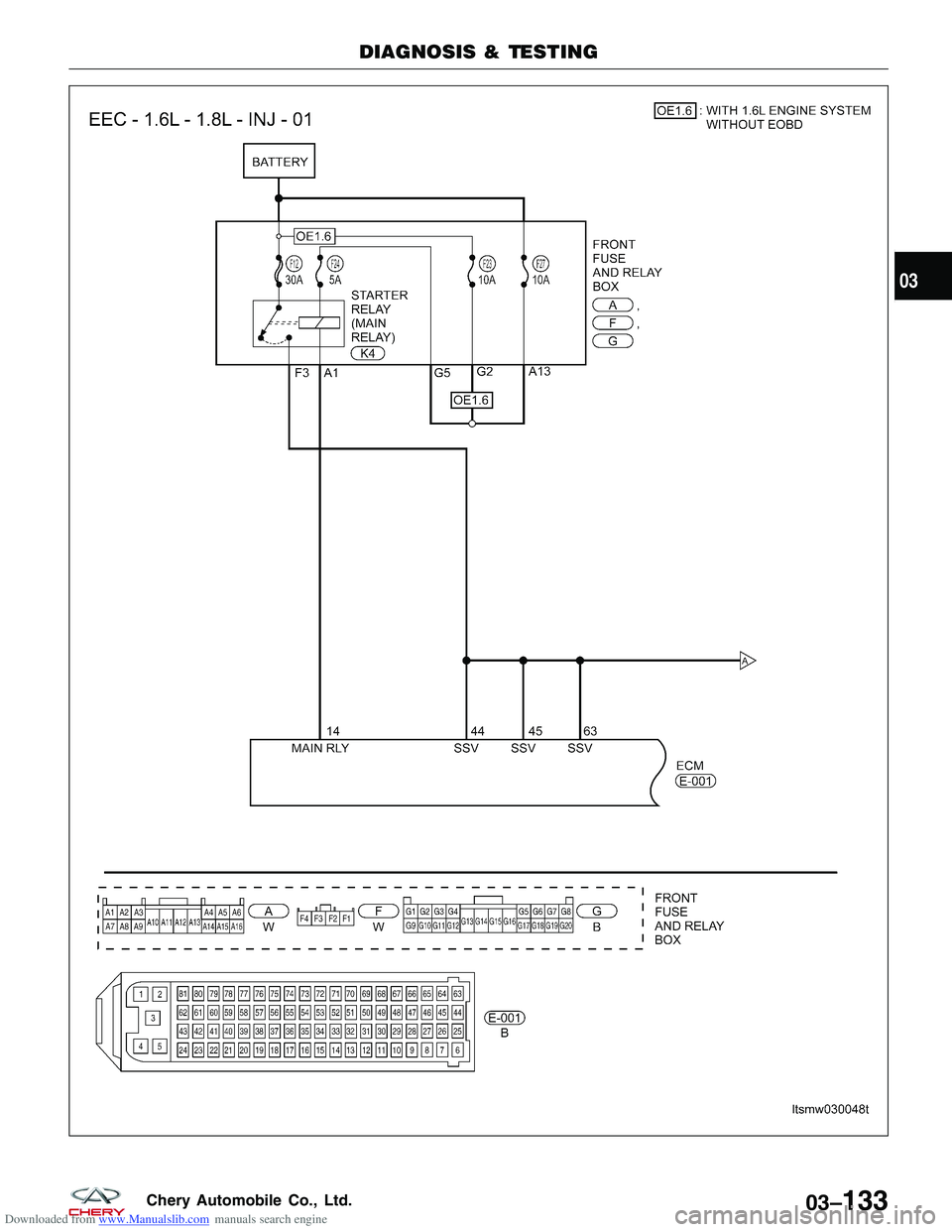

LTSMW030048T
03
03–133Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING

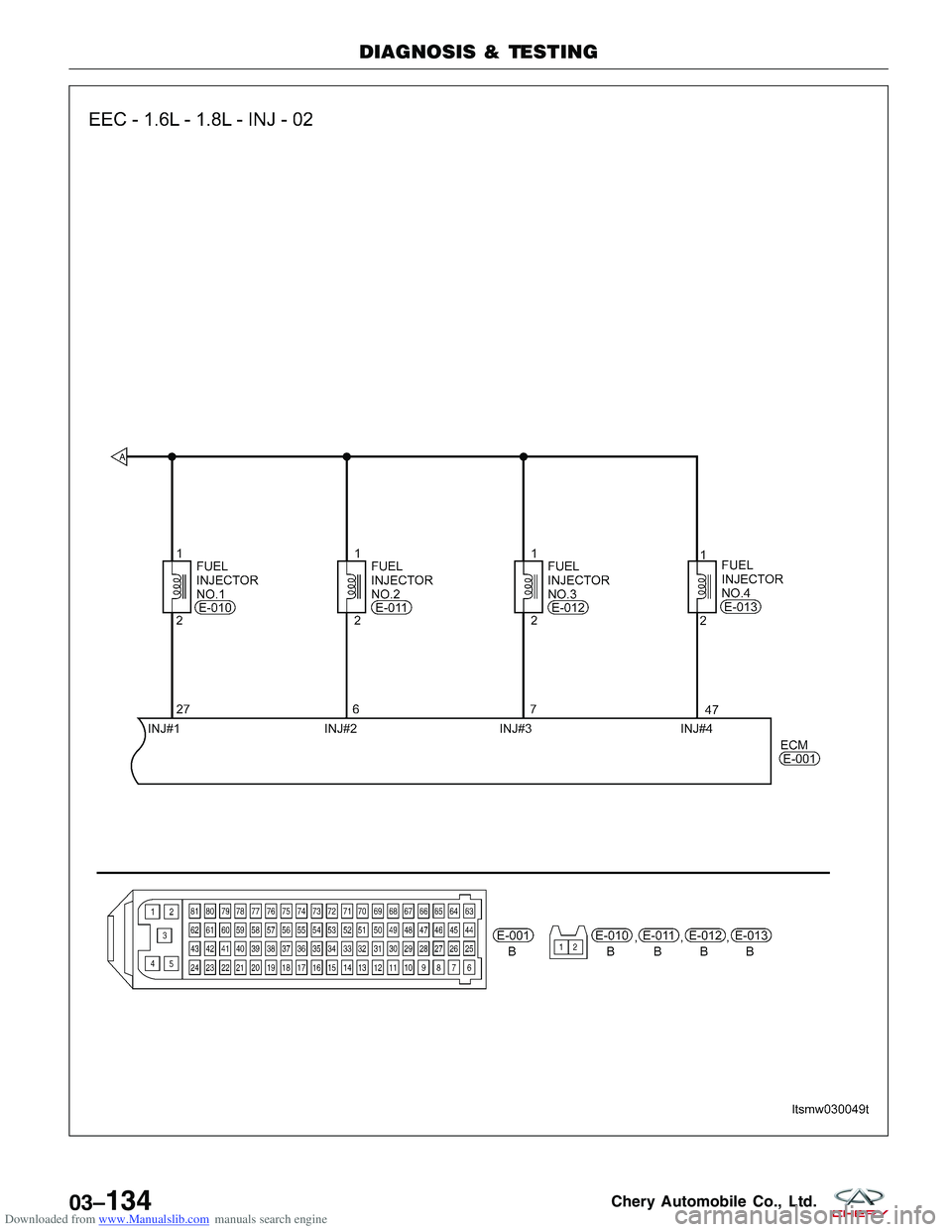

LTSMW030049T
03–134Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINAL NO.ITEMCONDITIONDATA (AVERAGE DC
VOLTAGE)
6 Injector 2
•Engine is running
• Warm-up condition
• Idle
• Accelerate suddenly Voltage: 11 - 14 V
7
Injector 3
27 Injector 1
47 Injector 4
ECM TERMINAL NO. ITEMCONDITIONDATA (AVERAGE DC
VOLTAGE)
17 Sensor (GND)
•Engine is running
• Warm-up condition:
78°C
• Idle: 795 RPM
• IAT: 36°C
• IAT signal: 1.88 V 0V
33 Regulated sensor supply 1 5 V
37 Air flow sensor (1.8L) 322 kg/h
1.39 V
73 Regulated sensor supply 1 5 V
ECM TERMINAL NO.ITEMCONDITIONDATA (AVERAGE DC
VOLTAGE)
37 Manifold Absolute
Pressure (MAP) sensor (1.6L) •
Engine running: Idle
• Press accelerator pedal
slowly Approximately 1.3 V
• Engine running: 2000
RPM Approximately 1.5 V
• Press accelerator pedal
quickly Up to approximately 4 V
(instantaneous)
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
P0172 Fuel trim system too
rich Engine is running The amount of
mixture ratio
compensation is too
large (The mixture
ratio is too rich) •
Air flow sensor
• Manifold Absolute
Pressure (MAP)
sensor
• Fuel injector
• Exhaust gas leaks
• Incorrect fuel
pressure
• Upstream O
2sensor
•ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ECM.
DIAGNOSIS & TESTING
03
03–135Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine •Start engine and warm it to normal operating temperature, then select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK EXHAUST GAS LEAK
• Start engine and run it at idle.
• Listen for exhaust leak before three way catalyst.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace.
2.CHECK ECM CONTROL SIGNAL IN DATA STREAM
• With the X-431, select view data stream.
MONITOR ITEM CONDITION DATA
Injector pulse •
Engine: Warm up
• Shift: P or N
• Air condition: Off
• No load Idle
Approximately 2.5 ms
Is the check result normal?
Ye s>>Go to next 5.
No
>>Go to the next step.
3.CHECK O2SENSOR ELECTRICAL CONNECTOR
• Disconnect upstream O
2sensor (1) harness con-
nector.
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
DIAGNOSIS & TESTING
BESM030017
03–136Chery Automobile Co., Ltd.
