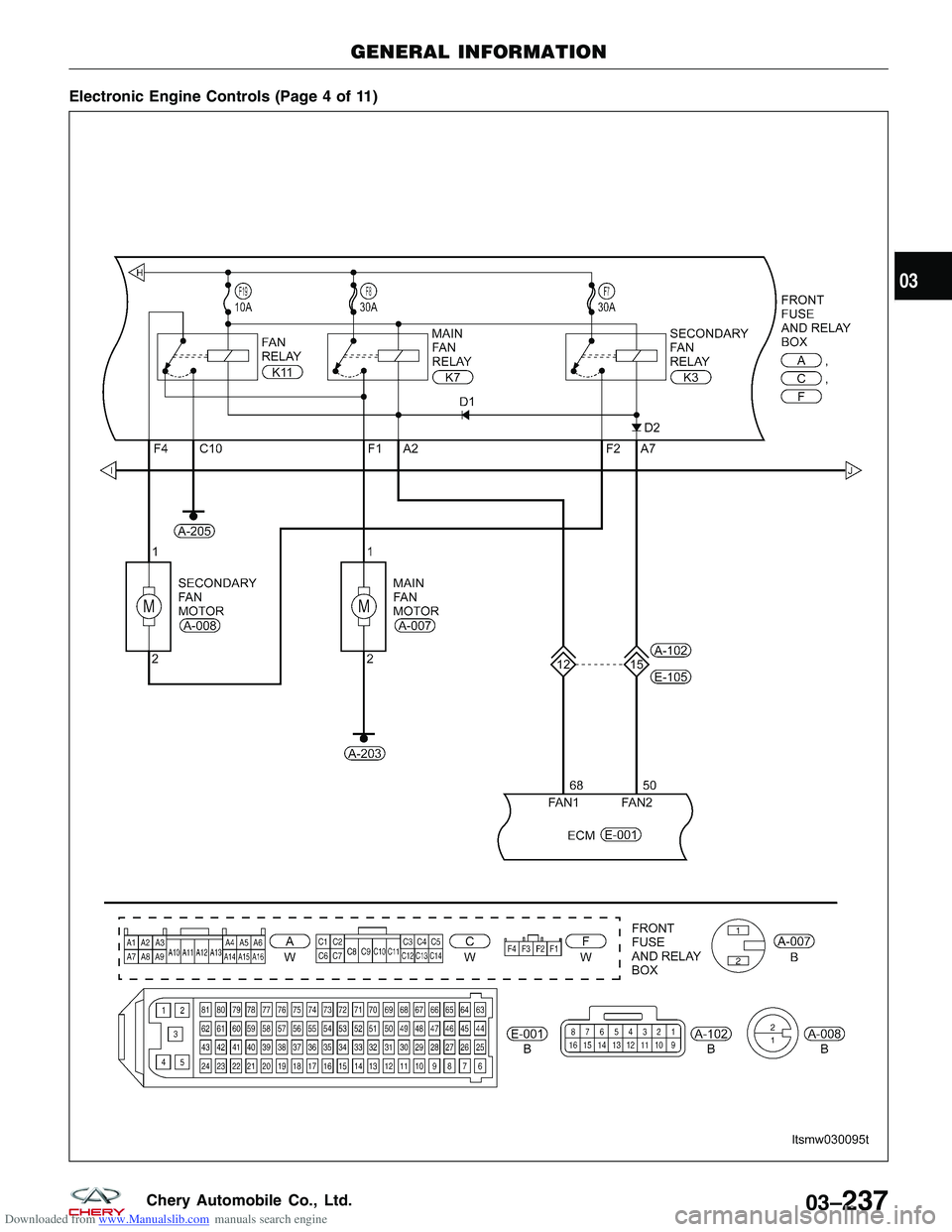

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 4 of 11)
GENERAL INFORMATION
LTSMW030095T
03
03–237Chery Automobile Co., Ltd.

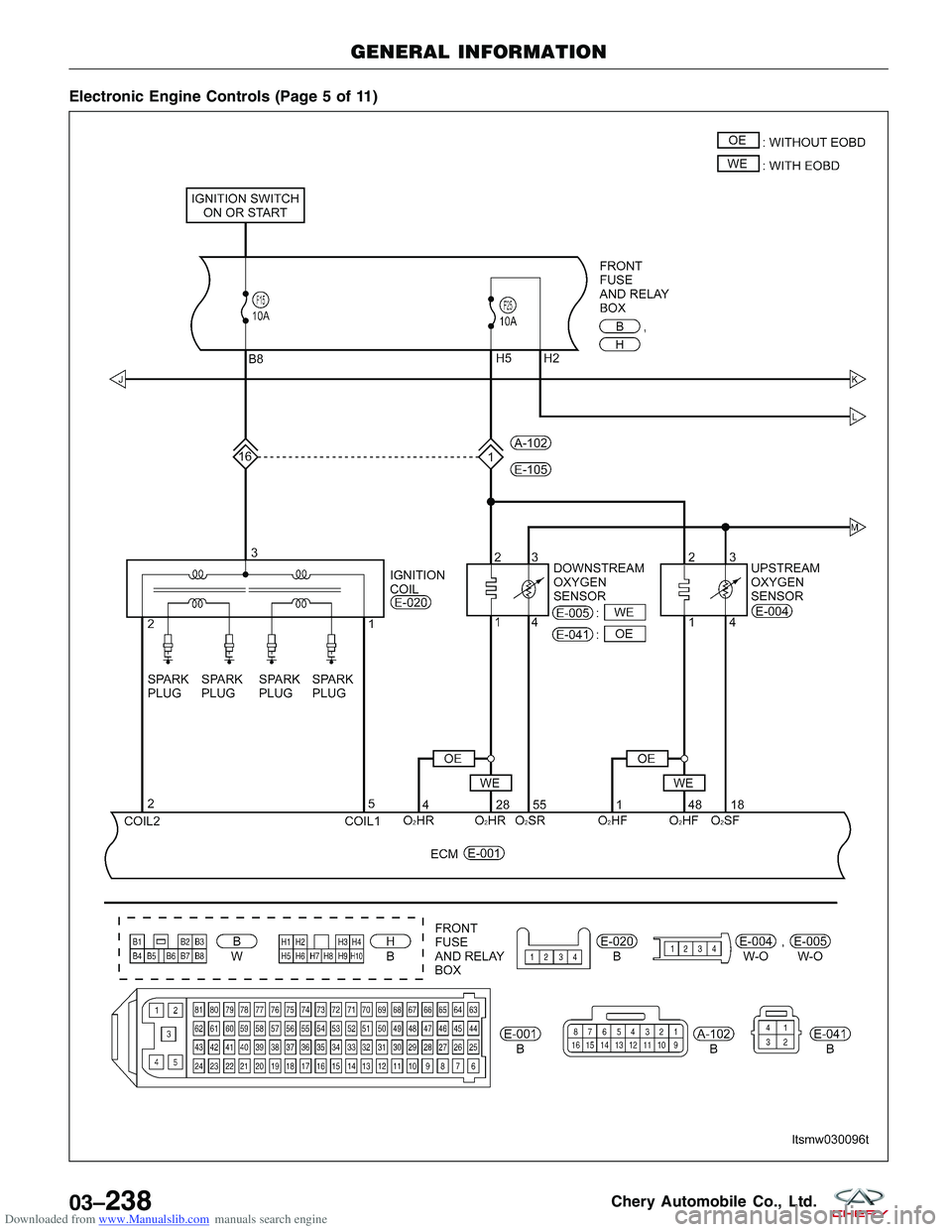

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 5 of 11)
GENERAL INFORMATION
LTSMW030096T
03–238Chery Automobile Co., Ltd.

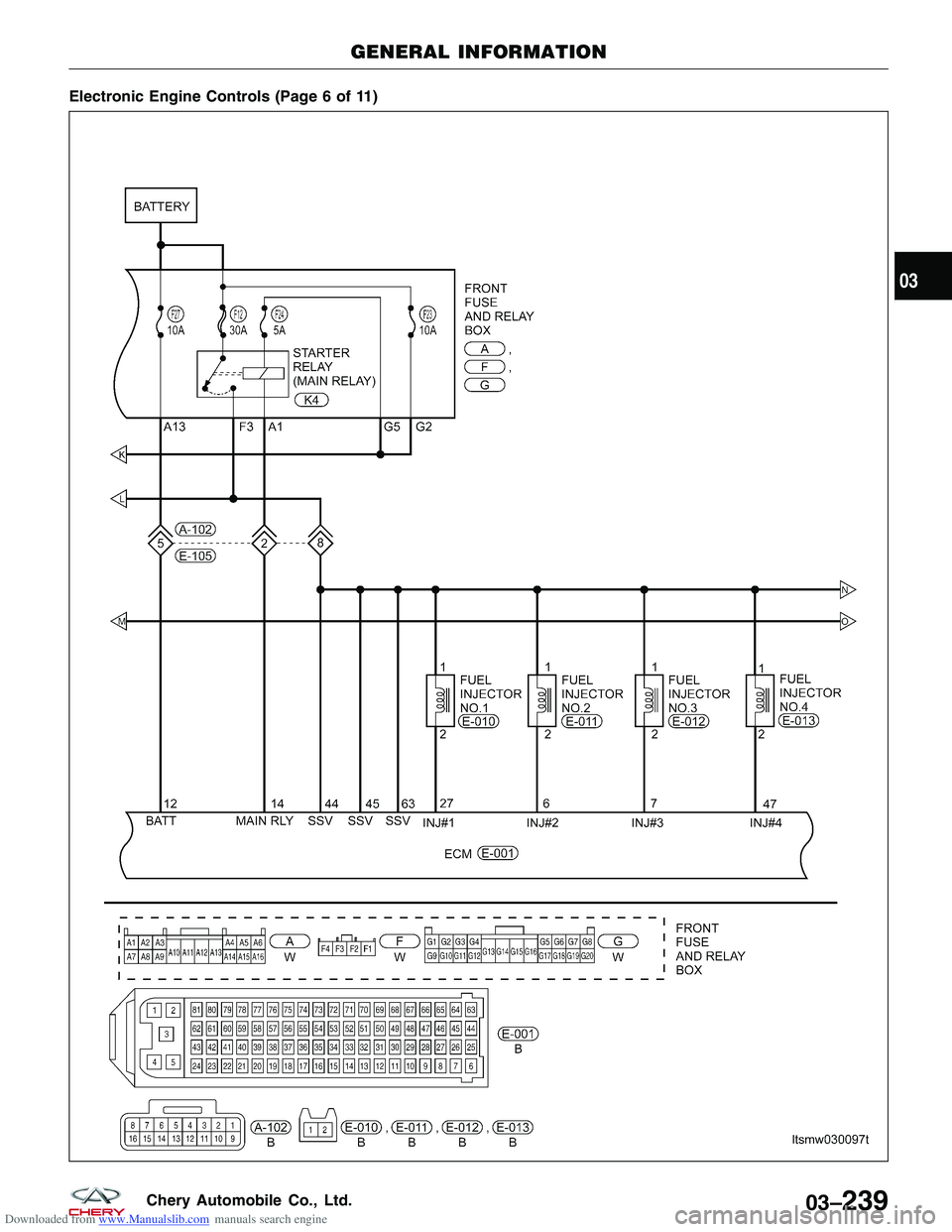

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 6 of 11)
GENERAL INFORMATION
LTSMW030097T
03
03–239Chery Automobile Co., Ltd.

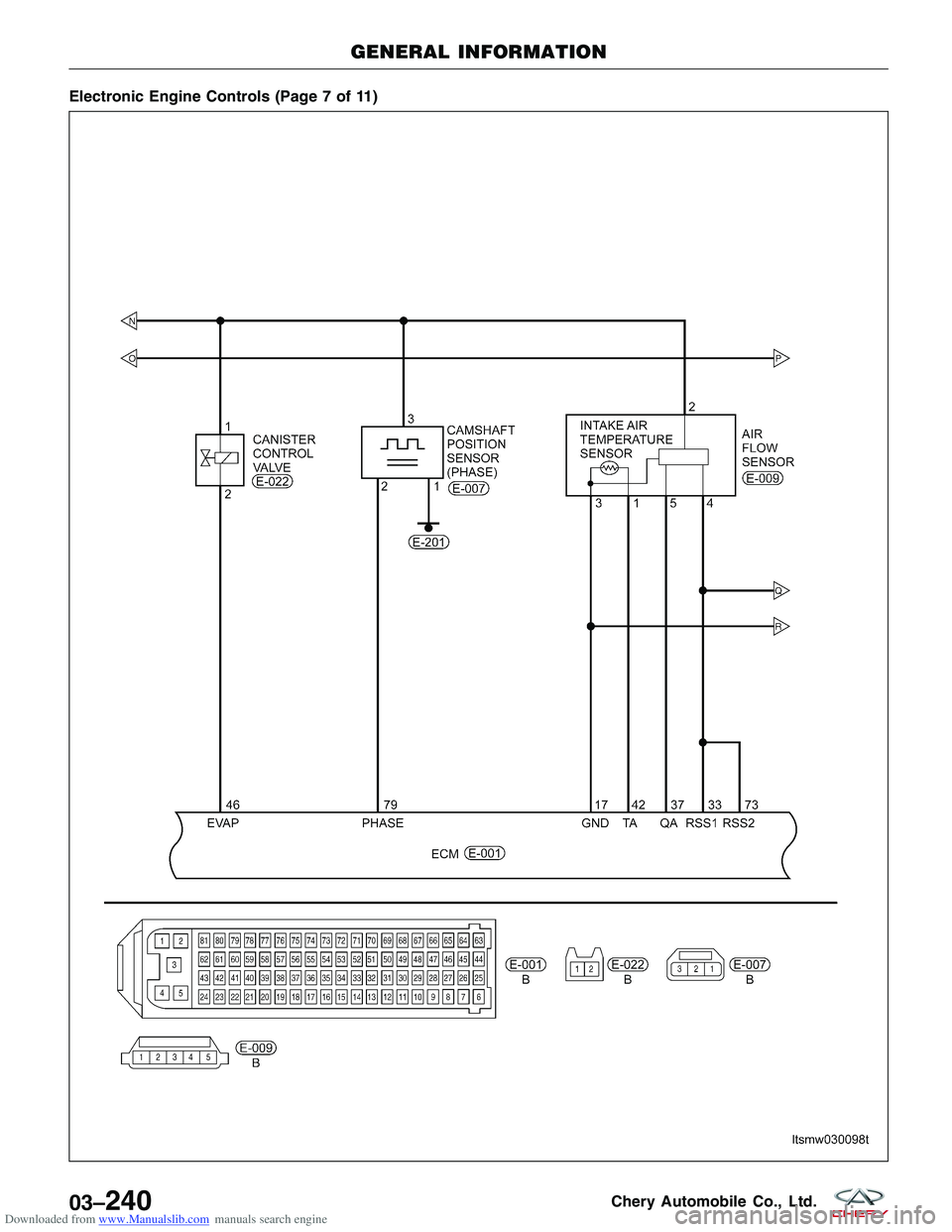

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 7 of 11)
GENERAL INFORMATION
LTSMW030098T
03–240Chery Automobile Co., Ltd.

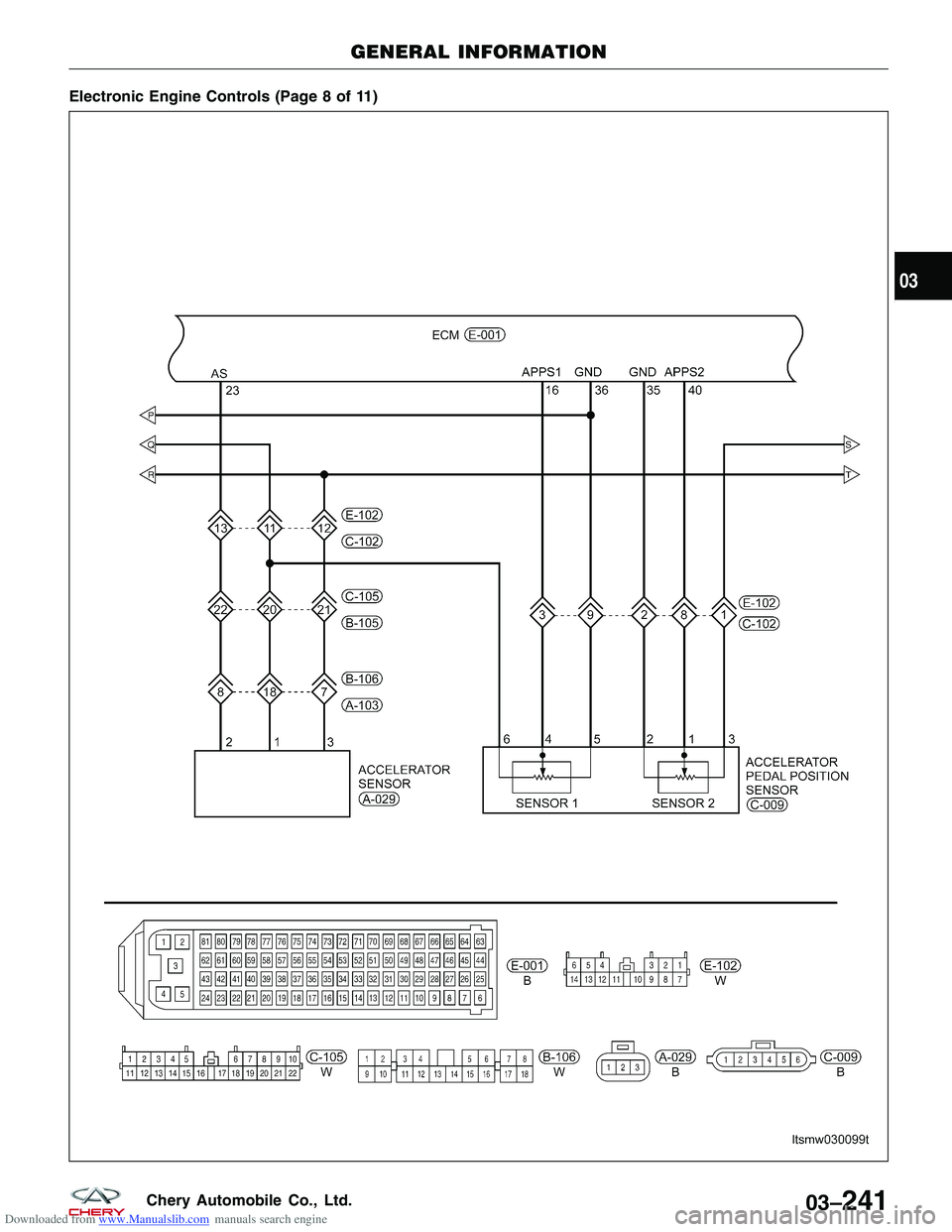

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 8 of 11)
GENERAL INFORMATION
LTSMW030099T
03
03–241Chery Automobile Co., Ltd.

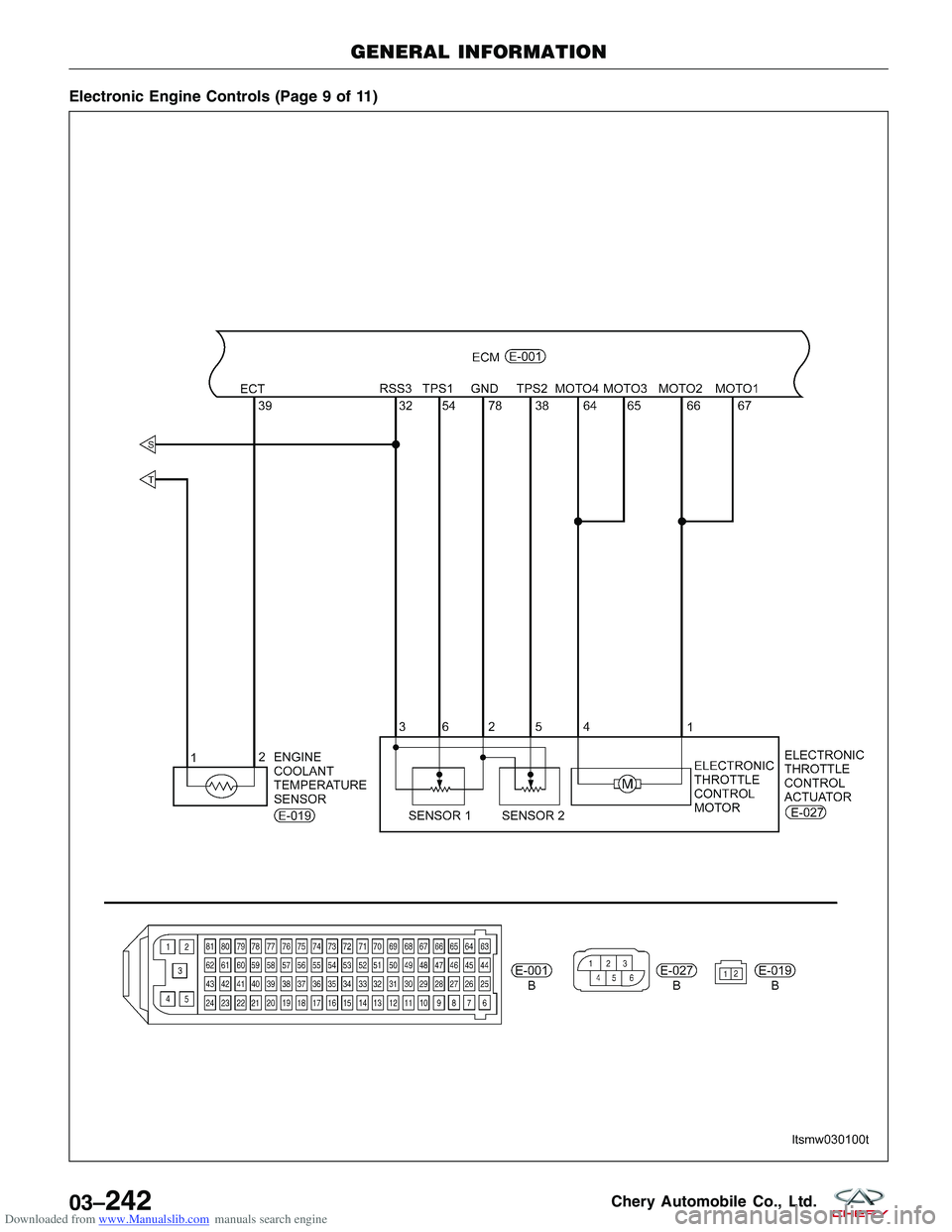

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 9 of 11)
GENERAL INFORMATION
LTSMW030100T
03–242Chery Automobile Co., Ltd.

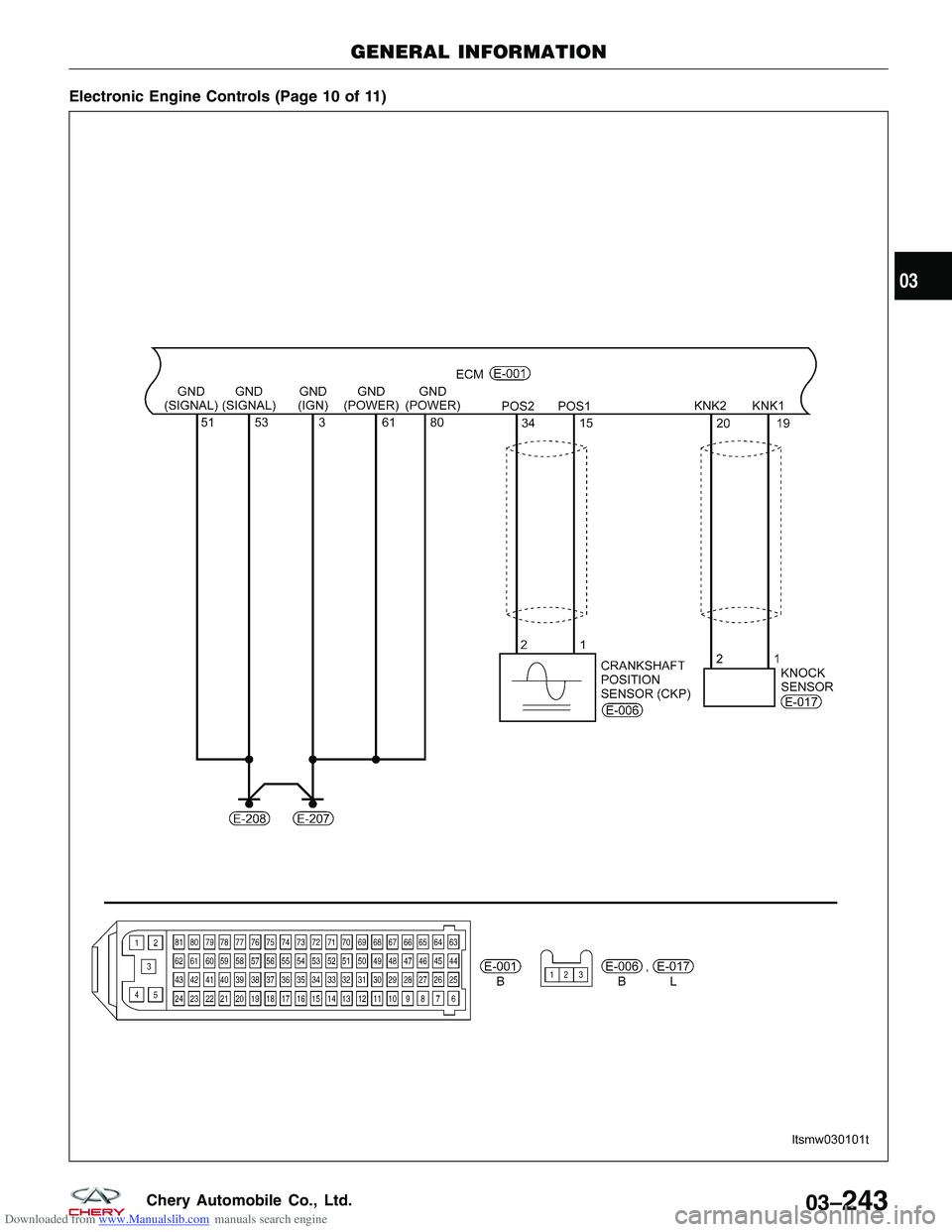

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 10 of 11)
GENERAL INFORMATION
LTSMW030101T
03
03–243Chery Automobile Co., Ltd.

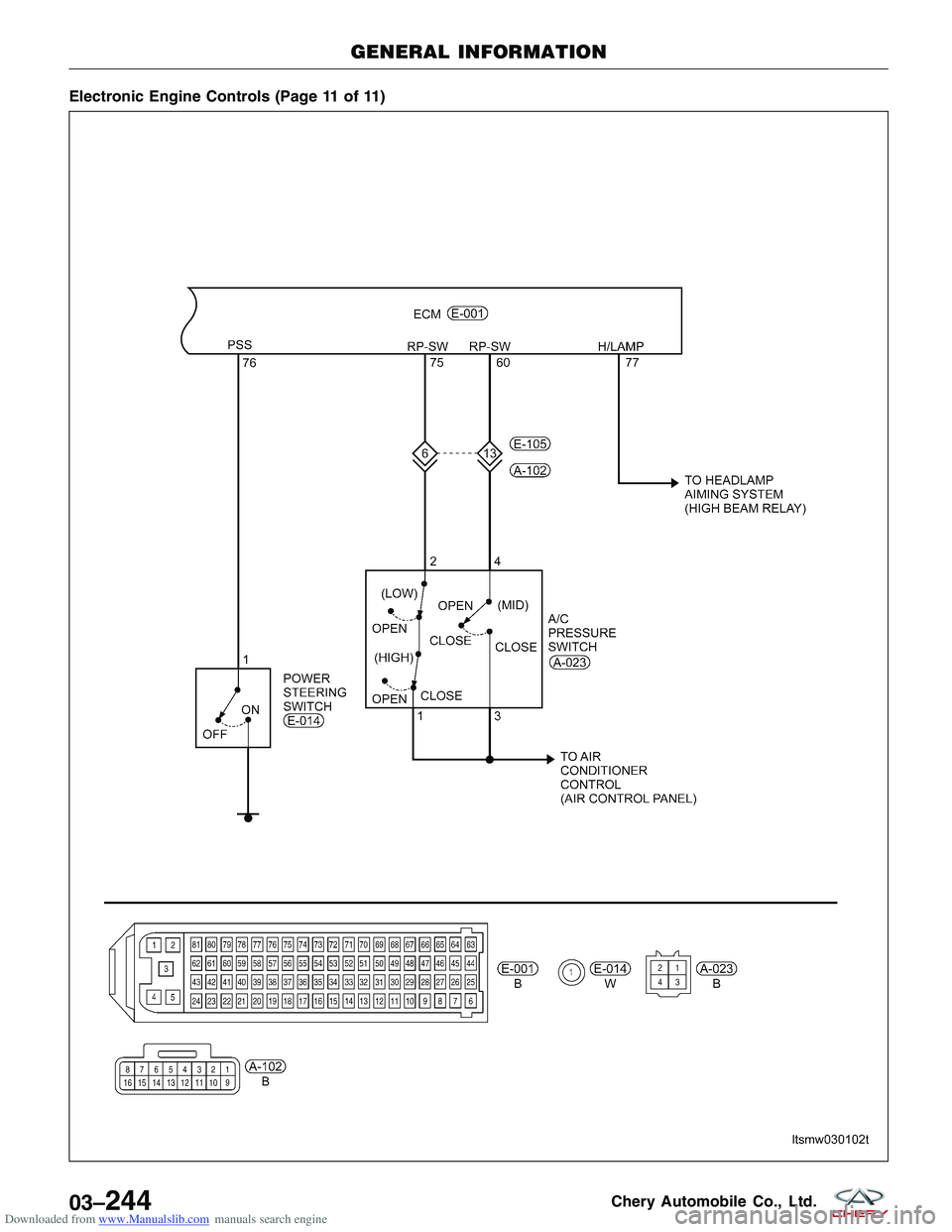

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 11 of 11)
GENERAL INFORMATION
LTSMW030102T
03–244Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine ECM Connector Pin-Out Table
ECM PIN-OUT TABLE
PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
1 (With EOBD)
42Intake Air Temperature Sensor
Upstream Oxygen Sensor Heater (Without
EOBD)
2 Ignition Coil 2 43-
3 GND (Ignition) 44Switched Supply Voltage
4 (With EOBD)
45Switched Supply Voltage
Downstream Oxygen Sensor Heater
(Without EOBD)
5 Ignition Coil 1 46Canister Control Valve
6 Injector 2 47Injector 4
7 Injector 3 48Upstream Oxygen Sensor Heater (With
EOBD)
(Without EOBD)
8 Engine Speed Output 49-
9 Coolant Temperature Output 50Fan Relay Control
10 Fuel Consumption Output 51GND (Signal)
11 EPC Lamp 52-
12 Continuous Supply Voltage 53GND (Signal)
13 Ignition Switch 54 Electronic Throttle Control Actuator
14 EMS Relay (Main Relay) 55Downstream Oxygen Sensor
15 Crankshaft Position Sensor 56-
16 Accelerator Position Sensor 57-
17 Sensor (GND) 58Brake Switch
18 Upstream Oxygen Sensor 59-
19 Knock Sensor 1 60A/C Middle Pressure Switch
20 Knock Sensor 2 61GND (Power)
21 Brake Switch 62CAN-H
22 -63Switched Supply Voltage
23 Accelerator Sensor 64 Electronic Throttle Control Actuator
24 -65 Electronic Throttle Control Actuator
25 -66 Electronic Throttle Control Actuator
26 -67 Electronic Throttle Control Actuator
27 Injector 1 68Fan Relay Control 2
28 Downstream Oxygen Sensor Heater (With
EOBD) 69Air Compressor Relay
(Without EOBD)
29 -70Fuel Pump Relay
30 -71Diagnostic Link K
31 MIL Lamp 72-
32 Regulated Sensor Supply 3 73Regulated Sensor Supply 2
33 Regulated Sensor Supply 1 74-
34 Crankshaft Position Sensor 75A/C Stand By
GENERAL INFORMATION
03
03–245Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
35 Sensor (GND) 76Power Steering Switch
36 Sensor (GND) 77Headlamp Switch
37 Air Flow Sensor 78Sensor (GND)
38 Electronic Throttle Control Actuator (Position
Sensor) 79
Camshaft Position Sensor
39 Engine Coolant Temperature Sensor 80 GND (Power)
40 Accelerator Pedal Position Sensor 81 CAN-L
41 -
GENERAL INFORMATION
03–246Chery Automobile Co., Ltd.
