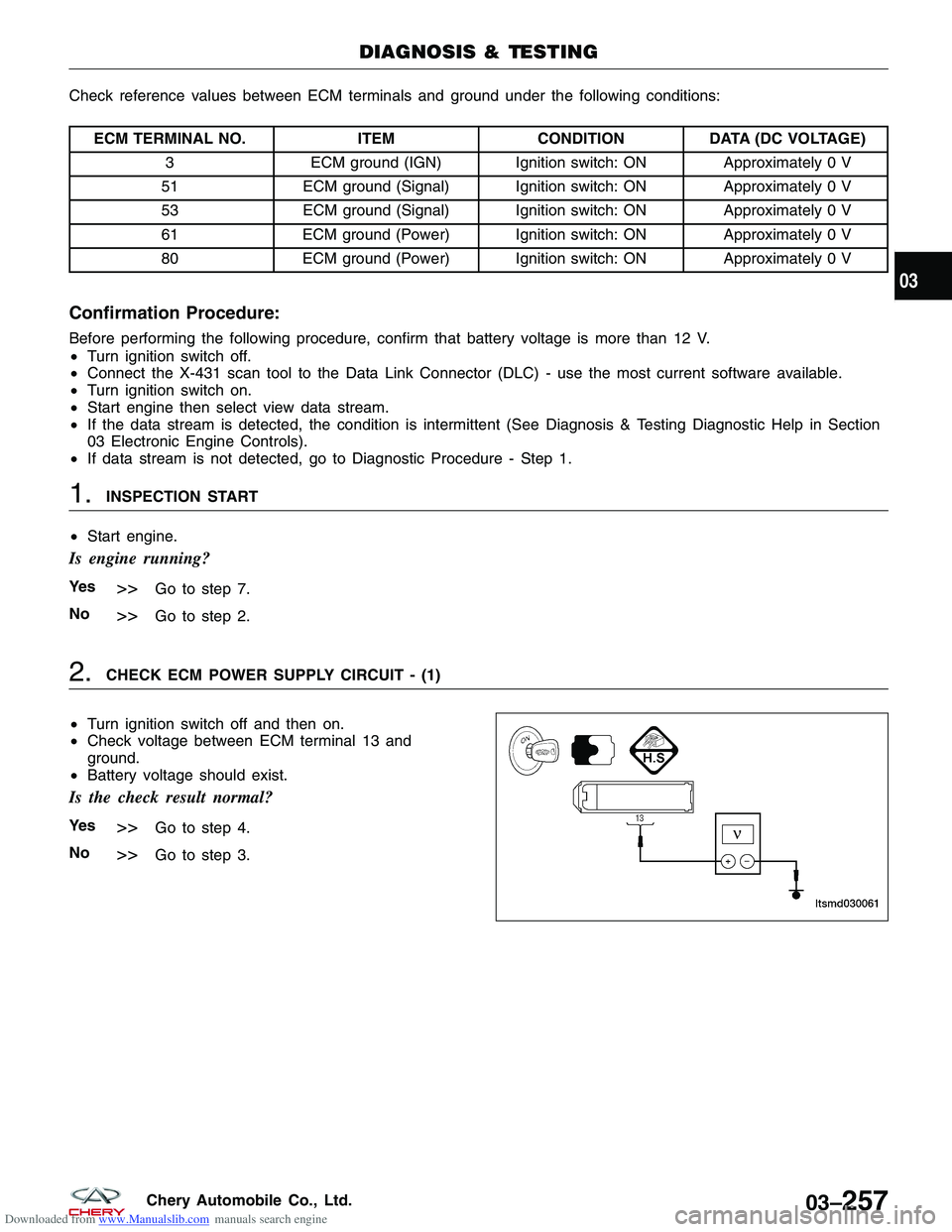

Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINAL NO.ITEMCONDITIONDATA (DC VOLTAGE)
3 ECM ground (IGN) Ignition switch: ON Approximately 0 V
51 ECM ground (Signal) Ignition switch: ON Approximately 0 V
53 ECM ground (Signal) Ignition switch: ON Approximately 0 V
61 ECM ground (Power) Ignition switch: ON Approximately 0 V
80 ECM ground (Power) Ignition switch: ON Approximately 0 V
Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
•Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• Start engine then select view data stream.
• If the data stream is detected, the condition is intermittent (See Diagnosis & Testing Diagnostic Help in Section
03 Electronic Engine Controls).
• If data stream is not detected, go to Diagnostic Procedure - Step 1.
1.INSPECTION START
• Start engine.
Is engine running?
Ye s>>Go to step 7.
No
>>Go to step 2.
2.CHECK ECM POWER SUPPLY CIRCUIT - (1)
• Turn ignition switch off and then on.
• Check voltage between ECM terminal 13 and
ground.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 4.
No
>>Go to step 3.
DIAGNOSIS & TESTING
LTSMD030061
03
03–257Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors C-103, E-103, terminal 14
Front fuse and relay box connector A
Fuse 17
• Check harness for open or short between ECM and fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning part.
4.CHECK GROUND CONNECTIONS
• Turn ignition switch off.
• Loosen and retighten one ground screw on the body.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace ground connections.
5.CHECK ECM GROUND CIRCUIT FOR AN OPEN OR SHORT
• Disconnect ECM harness connector.
• Check harness continuity between ECM terminals 3, 51, 53, 61, 80 and ground.
• Continuity should exist.
• Check harness for short to power.
Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
6.DETECT MALFUNCTIONING PART
• Check harness for open or short between ECM terminals 3, 51, 53, 61, 80 and ground.
• Check harness for an open or short to power in harness or connectors.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to power in harness or connectors.
DIAGNOSIS & TESTING
03–258Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 7.CHECK ECM POWER SUPPLY CIRCUIT - (2)
• Turn ignition switch on and then off.
• Check voltage between ECM terminals 44, 45, 63
and ground.
• Voltage: Turn the ignition

switch on and battery
voltage should exist. Turning the ignition switch


OFF, battery voltage will exist for a few seconds,
then drop to approximately 0 V.
Is the check result normal?
Ye s>>Check the starting system.
No
>>Go to the next step.
8.CHECK THE STARTER RELAY CONTROL CIRCUIT
• Turn ignition switch OFF. Wait for at least 10 sec-
onds.
• Check voltage between ECM terminal 14 and


ground.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Go to step 10.
9.CHECK ECM POWER SUPPLY CIRCUIT - (3)
• Disconnect ECM harness connector.
• Disconnect front fuse and relay box harness connector F.
• Check harness continuity between ECM terminals 44, 45, 63 and front fuse and relay box terminal F3.
• Continuity should exist.
• Check harness for short to ground and short to power.
Is the check result normal?
Ye s>>Go to step 12.
No
>>Repair circuit for an open or short to power or short to ground in harness or connectors.
DIAGNOSIS & TESTING
LTSMD030062
LTSMD030063
03
03–259Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 10.CHECK STARTER RELAY CONTROL CIRCUIT
• Disconnect ECM harness connector.
• Disconnect front fuse and relay box harness connector A.
• Check harness continuity between ECM terminal 14 and front fuse and relay box terminal A1.
• Check harness continuity between front fuse and relay box terminal G2 and G5.
• Continuity should exist.
• Also check harness for short to ground and short to power.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair circuit for an open or short to ground or short to power in harness or connectors.
11 .CHECK FUSE
• Disconnect fuse 23 (10A), fuse 24 (5A) in front fuse and relay box.
• Check fuses.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace fuse 23 or 24.
12.CHECK FRONT FUSE AND RELAY BOX
• Check the front fuse and relay box for damage.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace front fuse and relay box.
13.REPLACE AND PROGRAM ECM
• Replace the ECM.
NOTE :
The Immobilizer control module must be matched to the new ECM (See ECM Removal & Installation in Section 03
Electronic Engine Controls).
DIAGNOSIS & TESTING
03–260Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Trouble Code (DTC) Tests

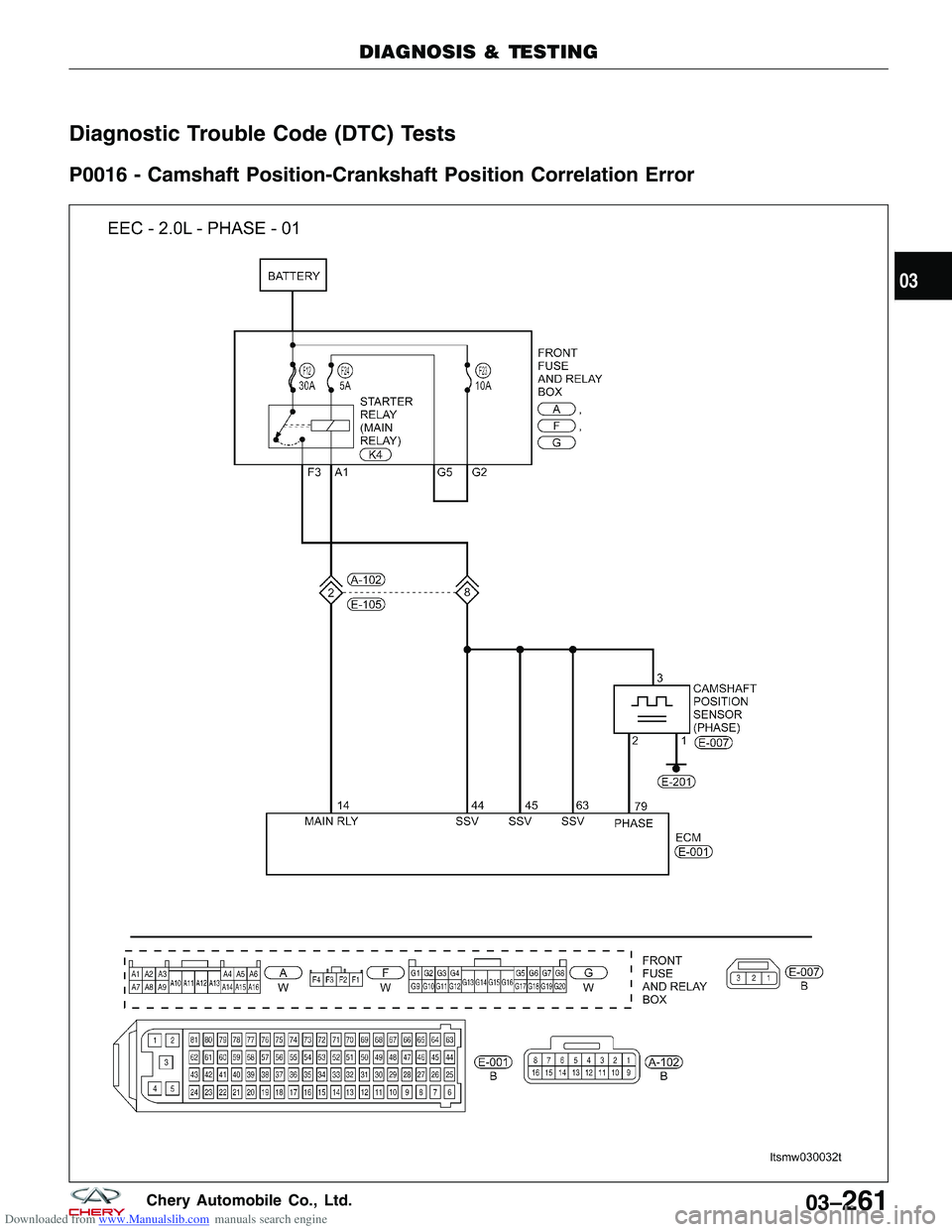

P0016 - Camshaft Position-Crankshaft Position Correlation Error
DIAGNOSIS & TESTING
LTSMW030032T
03
03–261Chery Automobile Co., Ltd.

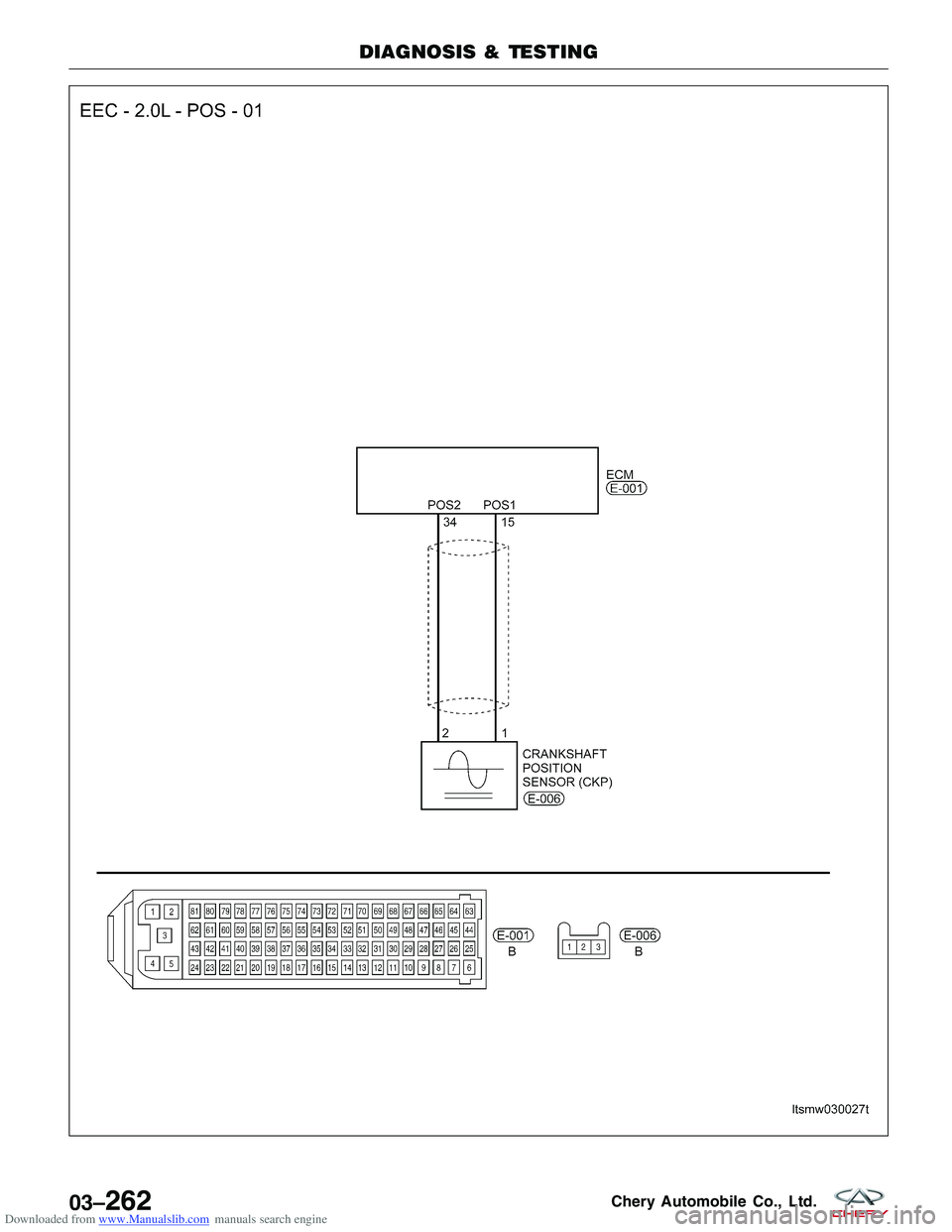

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
LTSMW030027T
03–262Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINAL NO.ITEMCONDITIONDATA (AVERAGE DC
VOLTAGE)
15 Crankshaft Position (CKP)
sensor •
Ignition switch: ON
• Engine: Not cranking 3V
34
79 Camshaft Position (CMP)
sensor •
Ignition switch: ON
• Engine: Not cranking 11 V
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
P0016 Camshaft position-
Crankshaft position correlation error Engine is running ECM detects that
the CMP sensor is out of phase with CKP sensor. •
Crankshaft
Position (CKP)
sensor
• Camshaft Position
(CMP) sensor
• Harness or
connectors
• Crankshaft signal
plate
• Camshaft signal
plate
• Timing
misalignment
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the diagnostic connector (DLC) - use the most current software available, press
the POWER key to start the X-431.
• Turn ignition switch on and record and erase DTC.
• Start engine and warm it up to the normal operating temperature.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 03 Electronic Engine Controls for more information.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
03
03–263Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK GROUND CONNECTIONS
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 03 Electronic Engine Con-
trols).
• Inspect ground connections E-207 and E-208 mounting position (See Vehicle Wiring Harness Layout - Engine
Room Harness (With 2.0L Engine) in Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground harness or connections.
2.CHECK CMP SENSOR ELECTRICAL CONNECTOR
• Disconnect the CMP sensor electrical connector (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
3.CHECK CMP SENSOR POWER SUPPLY CIRCUIT FOR AN OPEN OR SHORT
• Turn ignition switch on.
• Check CMP sensor supply voltage between sensor
connector E-007, terminal 3 and ground in the sen-
sor electrical connector.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 5.
No
>>Go to the next step.
DIAGNOSIS & TESTING
VISMD030001
LTSMD030044
03–264Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Front fuse and relay box F3
Fuse 22, Fuse 12
Check harness for open or short between CMP sensor and fuse.
• With the X-431 scan tool, read ECM DTCs.
Is DTC P0016 still present?
Ye s>>Go to the next step.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
5.CHECK CMP SENSOR GROUND CIRCUIT FOR AN OPEN AND SHORT
• Turn ignition switch off.
• Check harness continuity between CMP sensor terminal 1 and ground.
• Continuity should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace circuit for an open or short to power in harness or connectors.
6.CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR AN OPEN AND SHORT
• Turn ignition switch on.
• Check voltage between CMP sensor terminal 2 and ground.
• 11 V should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace circuit for an open or short to power or short to ground in harness or connectors.
If circuit is normal, go to the next step.
DIAGNOSIS & TESTING
03
03–265Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 7.CHECK CMP SENSOR SIGNAL
• Turn ignition switch off.
• Connect CMP sensor connector.
• Check signal voltage between CMP sensor terminal 2 and ground when engine is running.
• Approximately 6 V square wave signal should exist.
ENGINE ANALYZER (KES-200) CMP SENSOR SIGNAL
Is the CMP output signal normal?
Ye s>>Go to step 10.
No
>>Go to the next step.
8.CHECK CMP SENSOR
• Remove the CMP sensor (1).
• Inspect and clean the CMP sensor and mounting
area for any condition that would result in an incor-
rect signal, such as damage, foreign material, or
excessive movement.
Is the mounting area OK?
Ye s>>Go to the next step.
No
>>Repair or replace the sensor as
necessary.
DIAGNOSIS & TESTING
VISMD030001
03–266Chery Automobile Co., Ltd.
