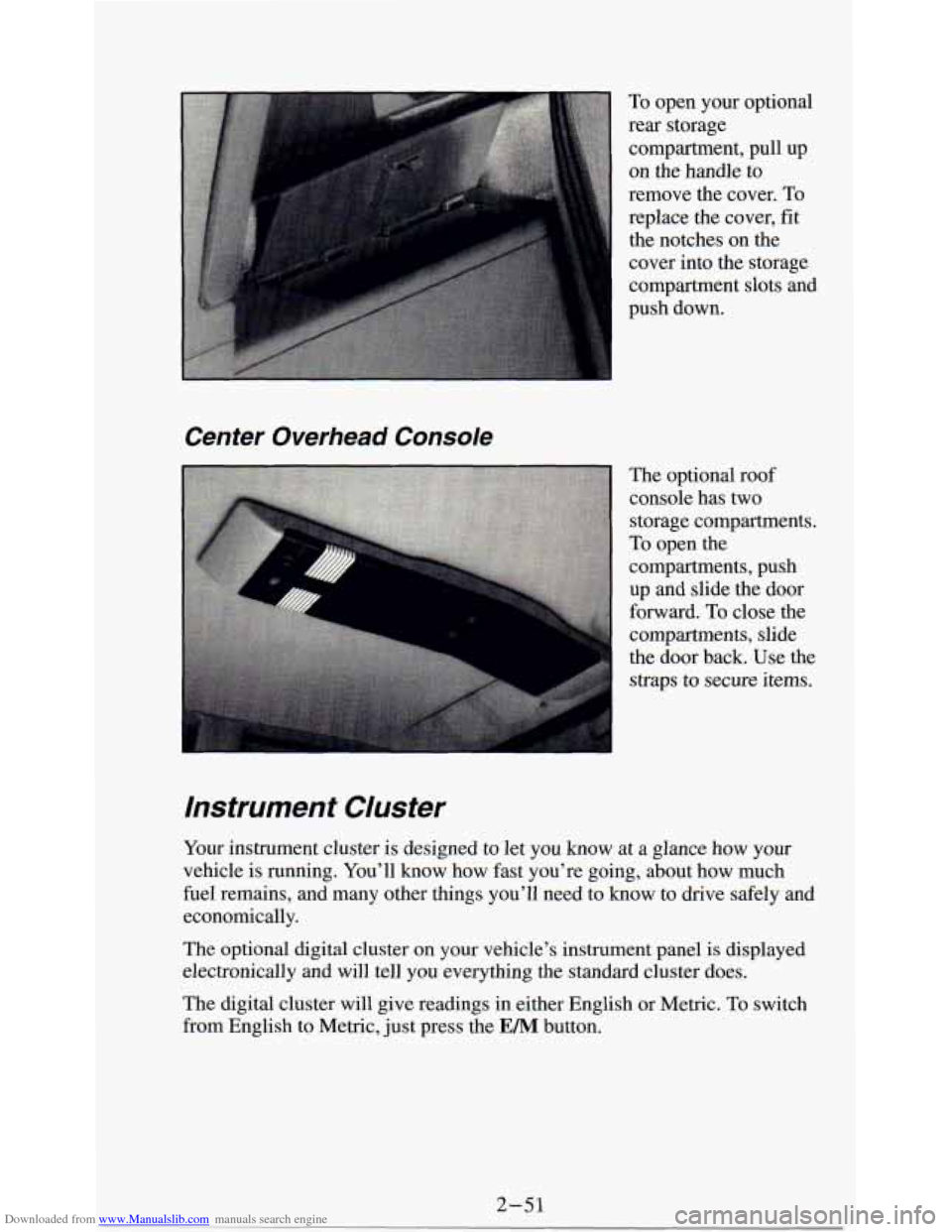

rear storage compartment, pull up
on the handle to
remove the cover.
To
replace the cover, fit
the notches on the
cover into the storage
compartment slots and
push down.
Center Overhead Console
The optional roof
console has two
storage compartments.
To open the
compartments, push
up and slide the door
forward.
To close the
compartments, slide
the door back. Use the
straps to secure items.
Instrument Cluster
Your instrument cluster is designed to let you know at a glance how your
vehicle is running. You’ll know how fast you’re going, about how much
fuel remains, and many other things you’ll need to know to
drive safely and
economically.
The optional digital cluster
on your vehicle’s instrument panel is displayed
electronically and will tell you everything the standard cluster does.
The digital cluster will give readings in either English or Metric. To switch
from English to Metric, just press the
E/M button.
2-51

Downloaded from www.Manualslib.com manuals search engine Instrument Panel

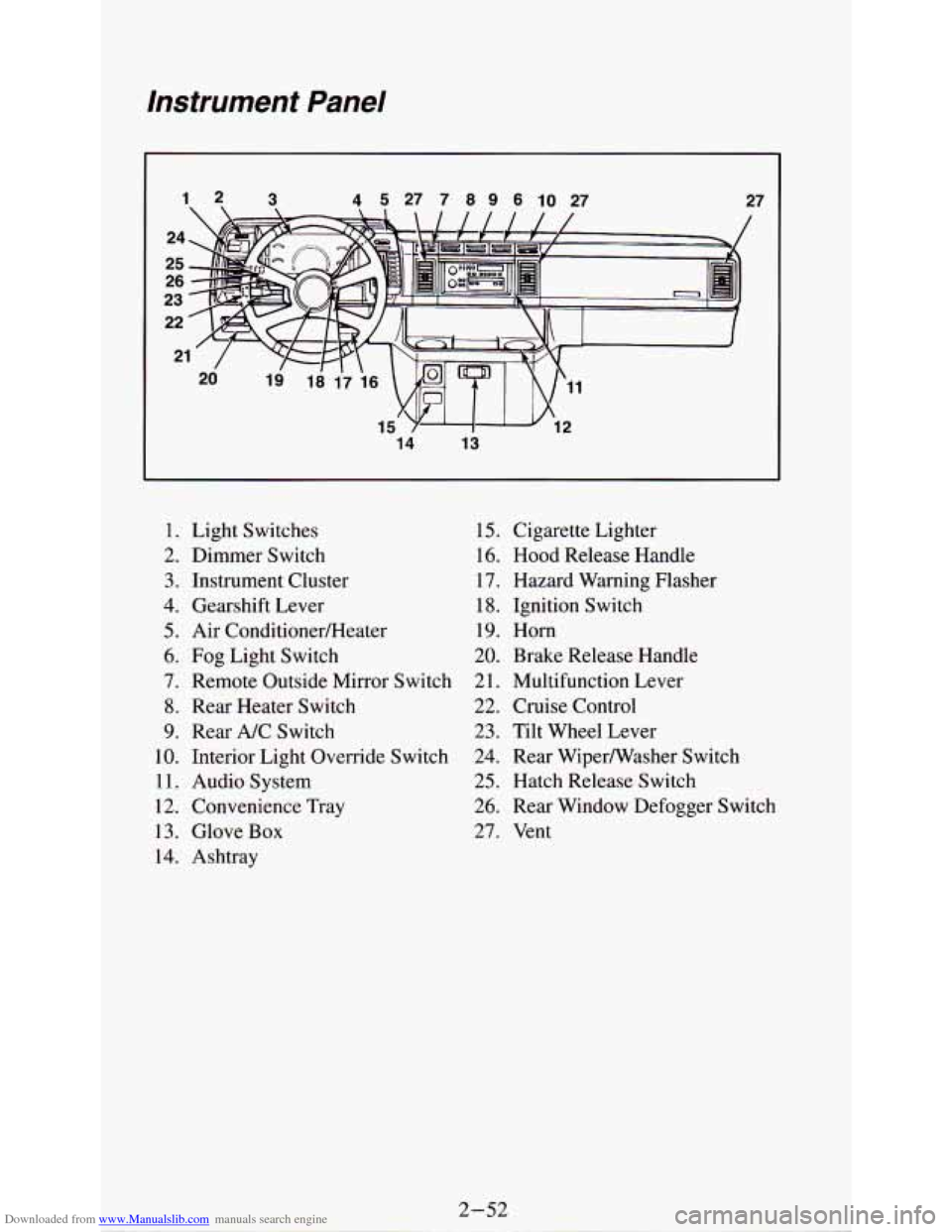

14 13
27
/
1. Light Switches
2. Dimmer Switch
3. Instrument Cluster
4. Gearshift Lever
5. Air ConditionedHeater
6. Fog Light Switch
7. Remote Outside Mirror Switch
8. Rear Heater Switch
9. Rear A/C Switch
10. Interior Light Override Switch
11. Audio System
12. Convenience Tray
13. Glove
Box
14. Ashtray
15. Cigarette Lighter
16.
Hood Release Handle
17. Hazard Warning Flasher
18. Ignition Switch
19. Horn
20. Brake Release Handle
2
1. Multifunction Lever
22. Cruise Control
23. Tilt Wheel Lever
24. Rear Wipermasher Switch
25. Hatch Release Switch
26. Rear Window Defogger Switch
27. Vent

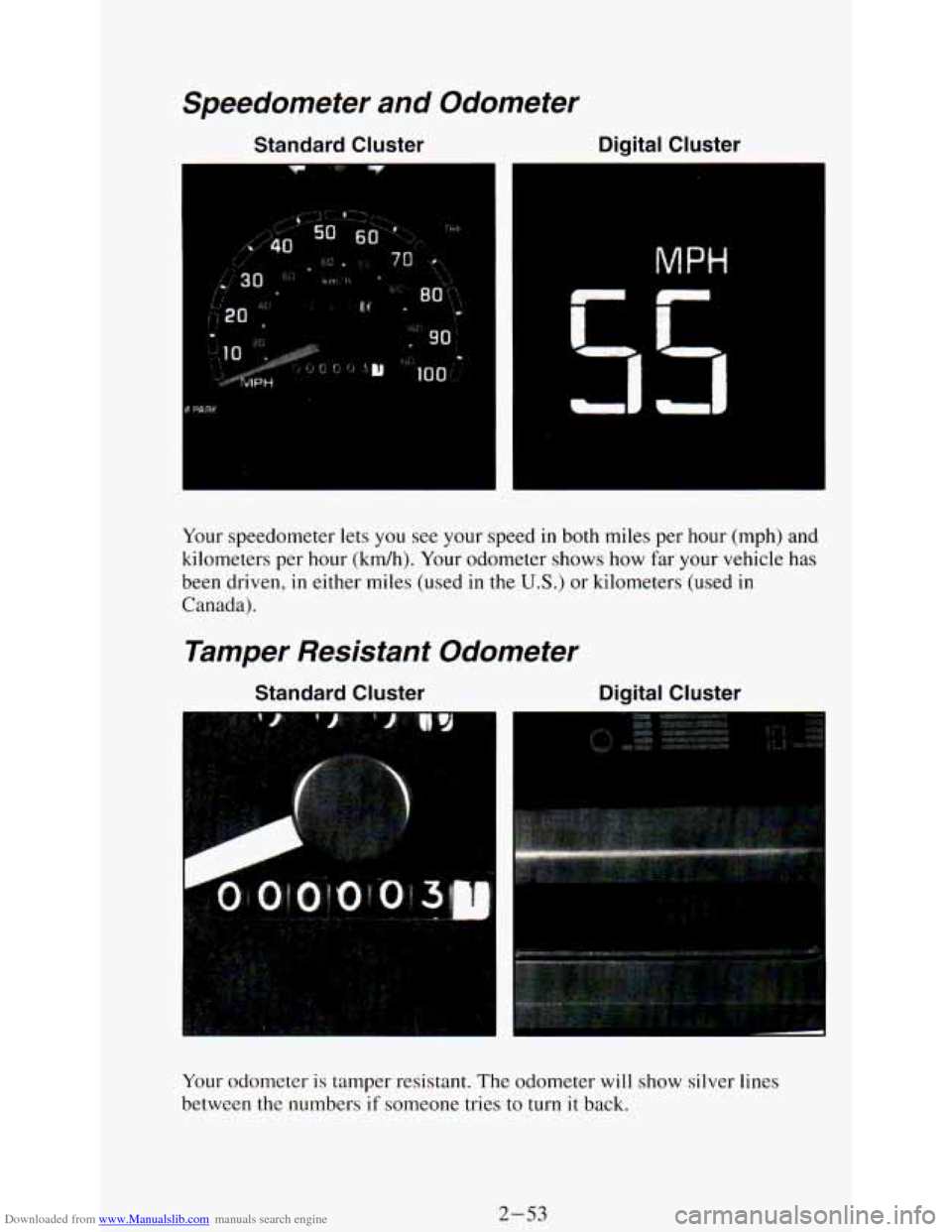

Downloaded from www.Manualslib.com manuals search engine Speedometer and Odometer
Standard Cluster Digital Cluster
PH
Your
speedometer lets you see your speed in both miles per hour (mph) and
kilometers per hour (kdh). Your odometer shows how far your vehicle has
been driven,
in either miles (used in the US.) or kilometers (used in
Canada).
Tamper Resistant Odometer
Standard Cluster Digital Cluster
.
..
Your odometer is tamper resistant. The odometer will show silver lines
between the numbers
if someone tries to turn it back.
2-53

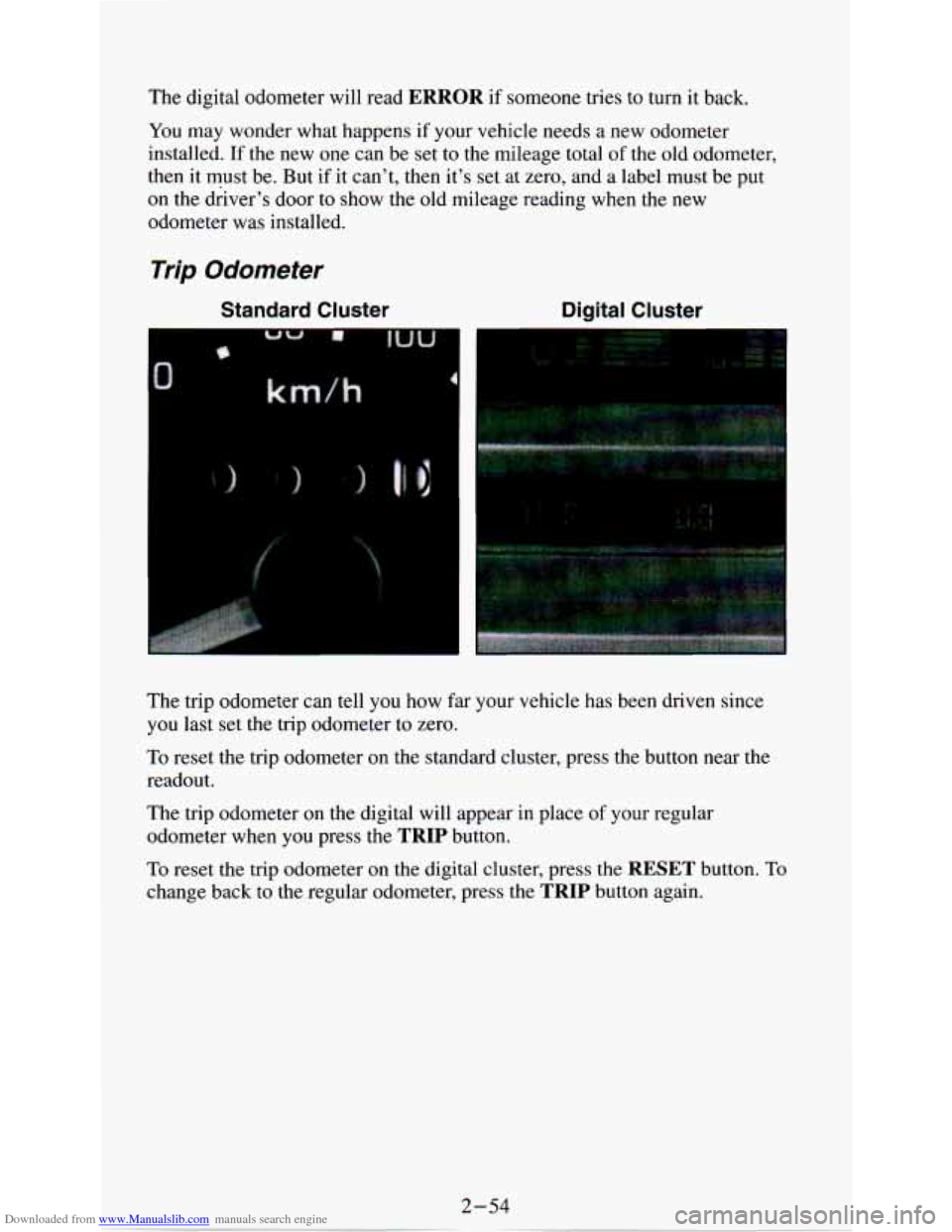

Downloaded from www.Manualslib.com manuals search engine The digital odometer will read ERROR if someone tries to turn it back.
You may wonder what happens if your vehicle needs a new odometer
installed.
If the new one can be set to the mileage total of the old odometer,
then it must be. But if it can’t, then it’s set at zero, and a label must be put
on the driver’s door to show the old mileage reading when the new
odometer was installed.
Trip Odometer
Standard Cluster
m
Digital Cluster
The trip odometer can tell you how far your vehicle has been driven since
you last set the trip odometer to zero.
To reset the trip odometer
on the standard cluster, press the button near the
readout.
The trip odometer
on the digital will appear in place of your regular
odometer when
you press the TRIP button.
To reset the trip Odometer on the digital cluster, press the RESET button. To
change back to the regular odometer, press the TRIP button again.

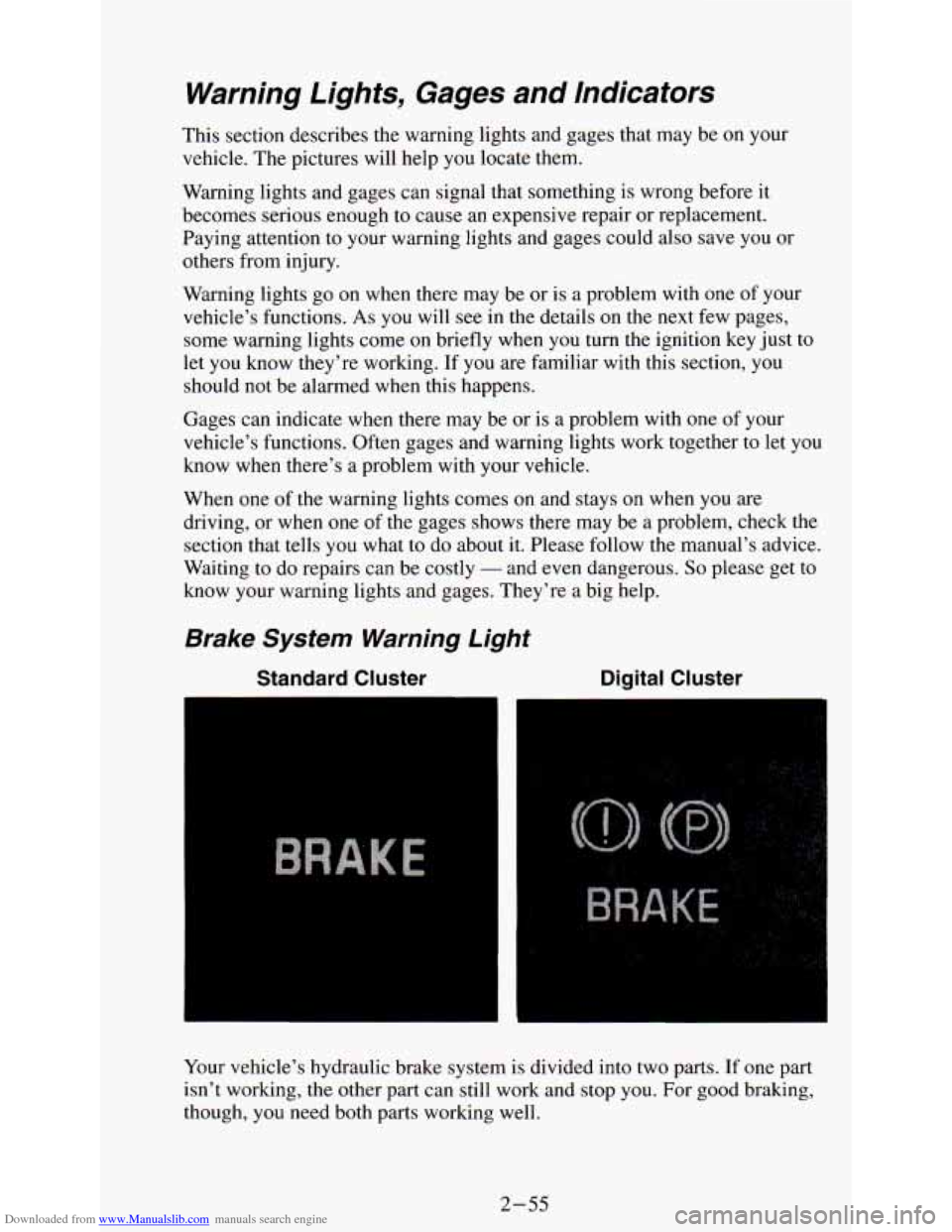

Downloaded from www.Manualslib.com manuals search engine Warning Lights, Gages and Indicators
This section describes the warning lights and gages that may be on your
vehicle. The pictures will help you locate them.
Warning lights and gages can signal that something is wrong before it
becomes serious enough to cause an expensive repair or replacement.
Paying attention
to your warning lights and gages could also save you or
others from injury.
Warning lights go on when there may be or is a problem with
one of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when
you turn the ignition key just to
let you know they’re working. If you are familiar with this section, you
should not be alarmed when this happens.
Gages can indicate when there may be or
is a problem with one of your
vehicle’s functions. Often gages and warning lights work together to let you
know when there’s a problem with your vehicle.
When one of the warning lights comes
on and stays on when you are
driving, or when one
of the gages shows there may be a problem, check the
section that tells you what
to do about it. Please follow the manual’s advice.
Waiting to do repairs can be costly
- and even dangerous. So please get to
know your warning lights and gages. They’re a big help.
Brake System Warning Light
Standard Cluster Digital Cluster
Your
vehicle’s hydraulic brake system is divided into two parts. If one part
isn’t working,
the other part can still work and stop you. For good braking,
though,
you need both parts working well.
2-55

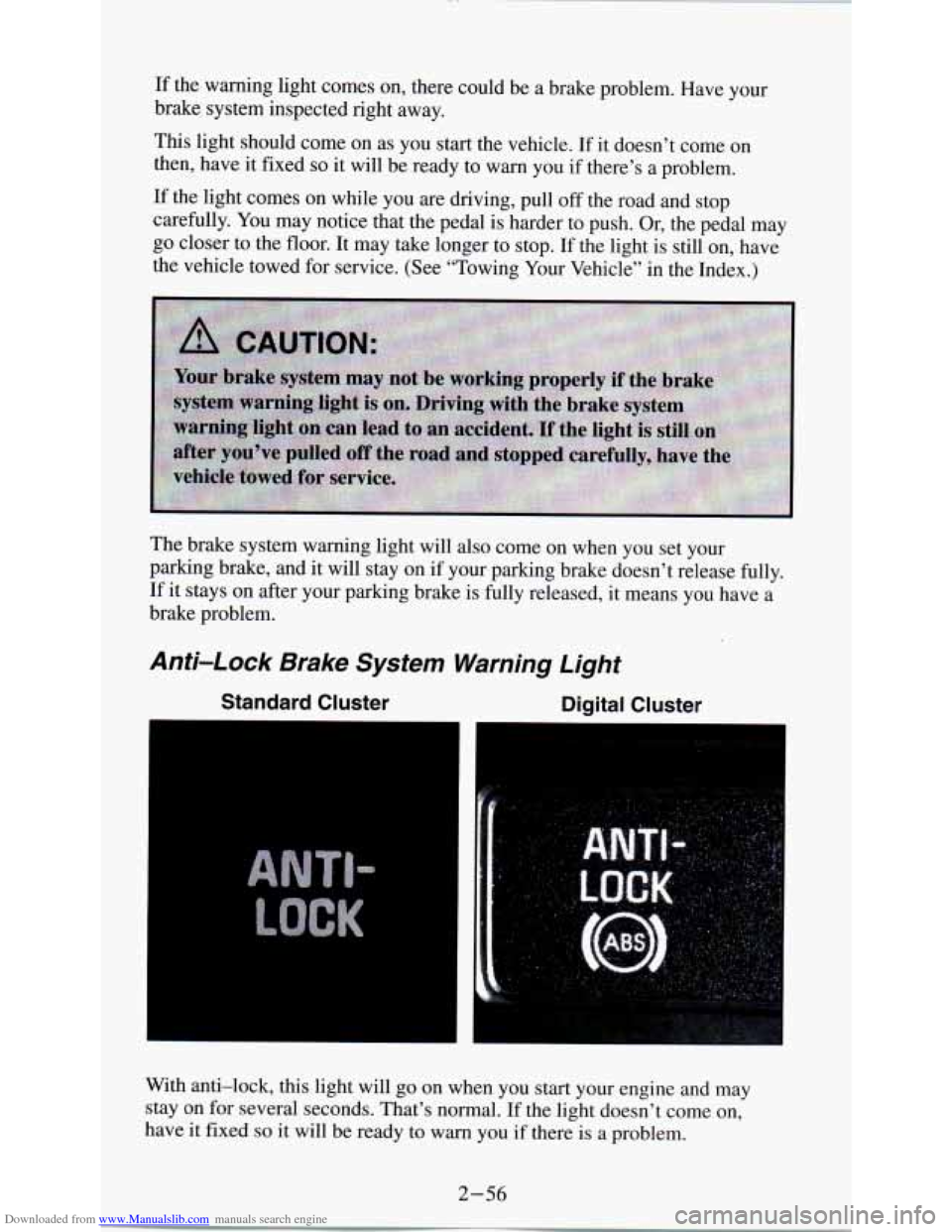

Downloaded from www.Manualslib.com manuals search engine If the warning light comes on, there could be a brake problem. Have your
brake system inspected right away.
This light should come on as you start the vehicle. If it doesn’t come on
then, have it fixed
so it will be ready to warn you if there’s a problem.
If the light comes on while you are driving, pull off the road and stop
carefully. You may notice that the pedal is harder to push.
Or, the pedal may
go closer to the floor. It may take longer to stop. If the light is still
on, have
the vehicle towed for service. (See “Towing Your Vehicle” in the Index.)
The brake system warning light will also come on when
YOU set your
parking brake, and it will stay on
if your parking brake doesn’t release fully.
If it stays on after your parking brake is fully released, it means YOU have a
brake problem.
Anti-Lock Brake System Warning Light
Standard Cluster Digital Cluster
I
With anti-lock, this light will go on when you start your engine and may
stay on for several seconds. That’s normal. If the light doesn’t come on,
have it fixed
so it will be ready to warn you if there is a problem.
2-56

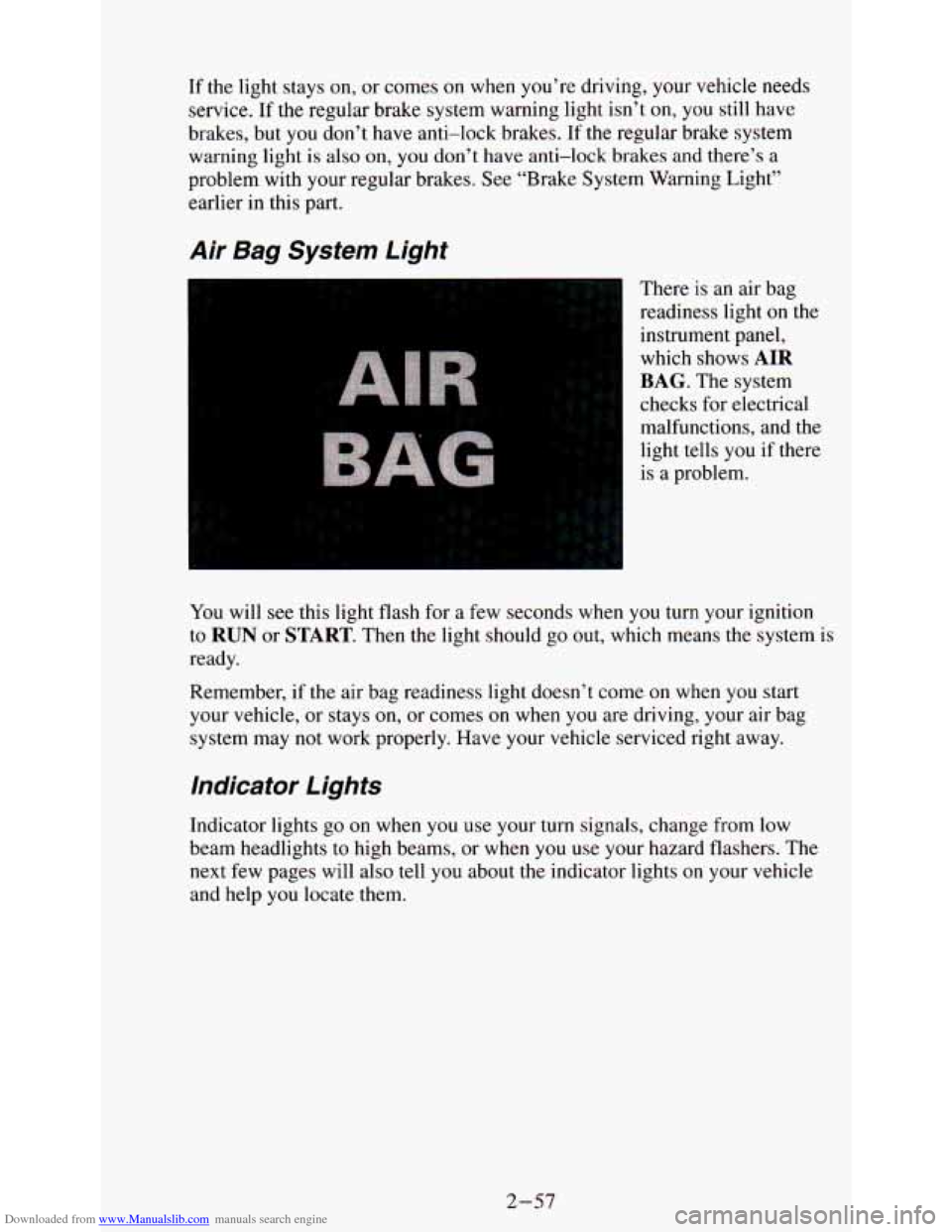

Downloaded from www.Manualslib.com manuals search engine If the light stays on, or comes on when you’re driving, your vehicle needs
service. If the regular brake system warning light isn’t
on, you still have
brakes, but you don’t have anti-lock brakes. If the regular brake system
warning light is also on,
you don’t have anti-lock brakes and there’s a
problem with your regular brakes. See “Brake System Warning Light”
earlier in this part.
Air Bag System Light
There is an air bag
readiness light
on the
instrument panel,
which shows
AIR
BAG. The system
checks for electrical
malfunctions, and the
light tells
you if there
is a problem.
You will
see this light flash for a few seconds when you turn your ignition
to
RUN or START. Then the light should go out, which means the system is
ready.
Remember, if the air bag readiness light doesn’t come
on when you start
your vehicle, or stays
on, or comes on when you are driving, your air bag
system may not work properly. Have your vehicle serviced right \
away.
Indicator Lights
Indicator lights go on when you use your turn signals, change from low
beam headlights to high beams, or when
you use your hazard flashers. The
next few pages will also tell you about the indicator lights on your vehicle
and help
you locate them.
2-57

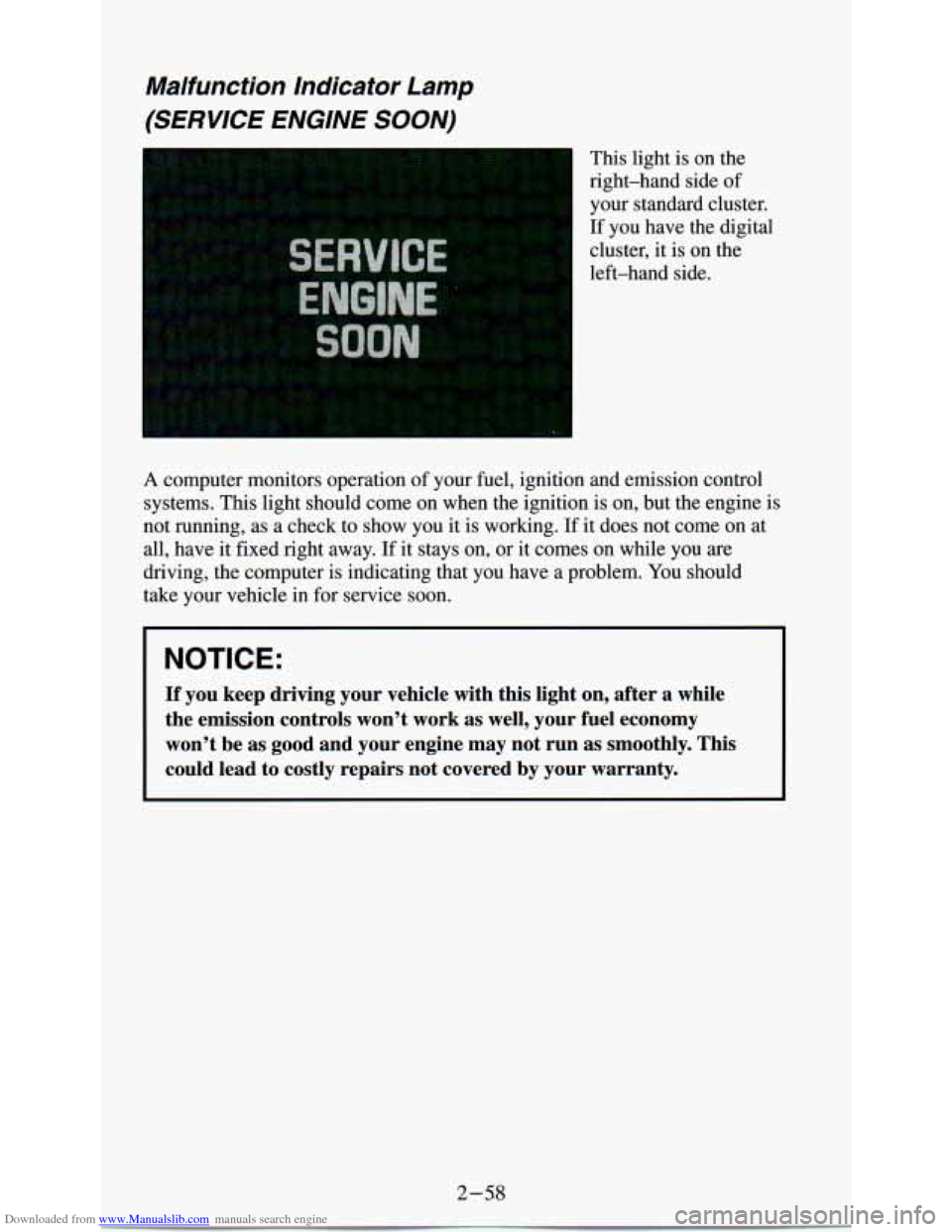

Downloaded from www.Manualslib.com manuals search engine Malfunction Indicator Lamp
(SERVICE ENGINE SOON)
This light is on the
right-hand side of
your standard cluster.
If you have the digital
cluster, it is on the
left-hand side.
A computer monitors operation of your fuel, ignition and emission \
control
systems. This light should come on when the ignition is on, but the engine is
not running, as a check to show you it is working. If it does not come
on at
all, have it fixed right away. If it stays on, or it comes on while you
are
driving, the computer is indicating that you have a problem. You should
take your vehicle in for service soon.
NOTICE:
If you keep driving your vehicle with this light on, after a whi\
le
the emission controls won’t work
as well, your fuel economy
won’t be as good and your engine may not run
as smoothly. This
could lead to costly repairs not covered by your warranty.
2-58

Downloaded from www.Manualslib.com manuals search engine The charging system light will come on briefly when you turn the ignition
on, but the engine is not running, as a check to show you the light is
working. Then
it should go out once the engine is running. If it stays on, or
comes on while you are driving, you may have a problem with the electrical
charging system. It could indicate that you have a loose accessory drive belt,
or another electrical problem. Have it checked right away. Driving while
this light
is on could drain your battery.
The charging system light is on the left bottom corner of your standard
cluster. It is part
of the digital cluster voltmeter.
If you must drive a short distance with the light on, be certain to turn off all
your accessories, such as the radio and heatedair conditioner.
2-59

Downloaded from www.Manualslib.com manuals search engine Daytime Running Lights (DRL) lndicator Light
(Canadian Vehicles Only)
L,
The DRL indicator is
on whenever the
ignition and the
headlight switch and
parking brake are off.
For more details about
DRL, see “Lights” in
this part.
The
DRL indicator light is on the lower left of the standard cluster. If you
have the digital cluster, it is
on the top left.
Headlight High Beam Indicator Light
The high beam
indicator is on
whenever
you use
your high beam
headlights. For more
details, see “Headlight
High-Low Beam
Changer” in this part.
The light
is on the left hand side of the standard cluster. If you have the
digital cluster, it is on the top of the cluster.
