CHEVROLET ASTRO PASSENGER 1994 1.G Owners Manual

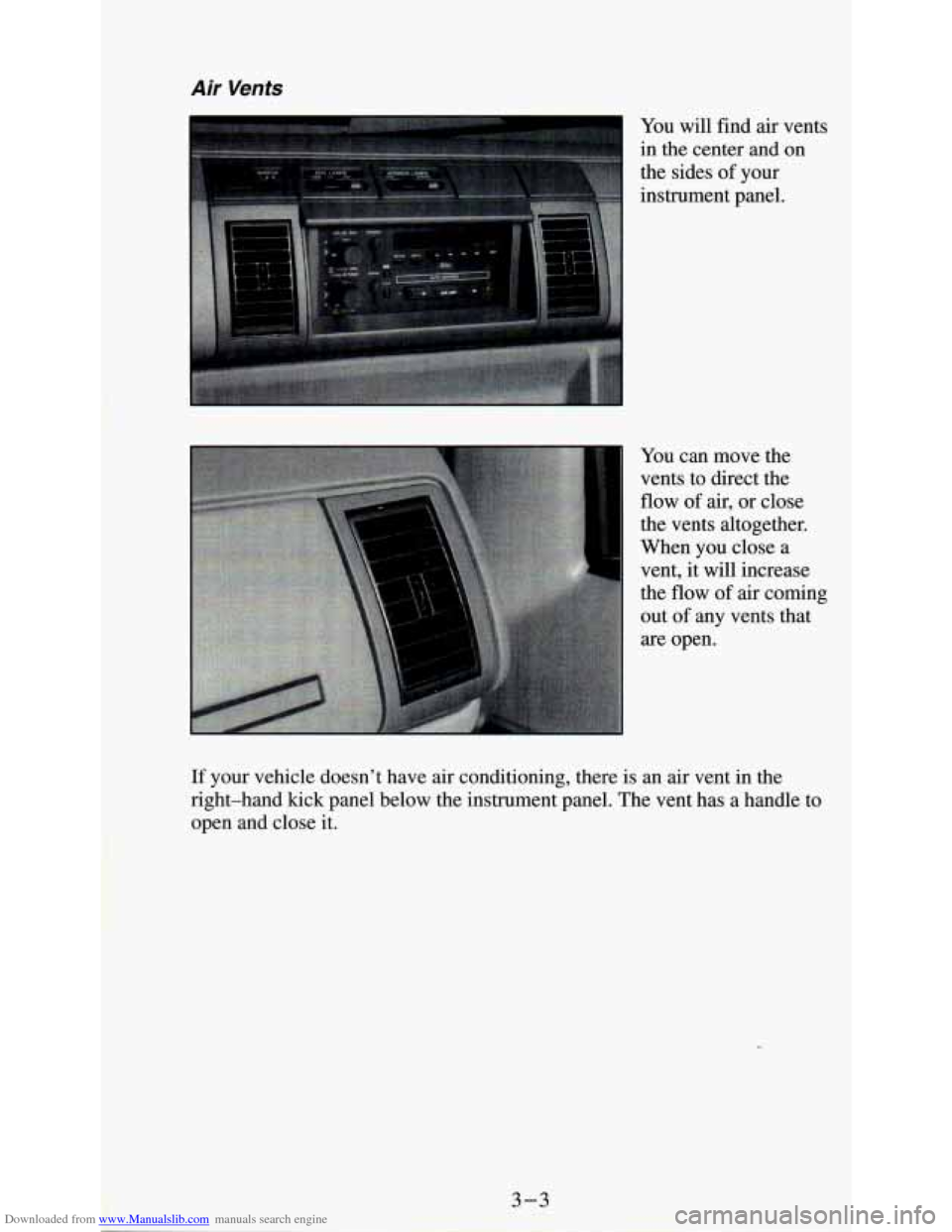

Downloaded from www.Manualslib.com manuals search engine Air Vents
I You will find air vents
in the center and on
the sides of your
instrument panel.
You can move the
vents to direct the
flow
of air, or close
the vents altogether.
When
you close a
vent, it will increase
the
flow of air corning
out of any vents that
are open.
If your vehicle doesn’t have air conditioning, there is an air vent in the
right-hand kick panel below the instrument panel. The vent has a handle to
open
and close it.
3-3

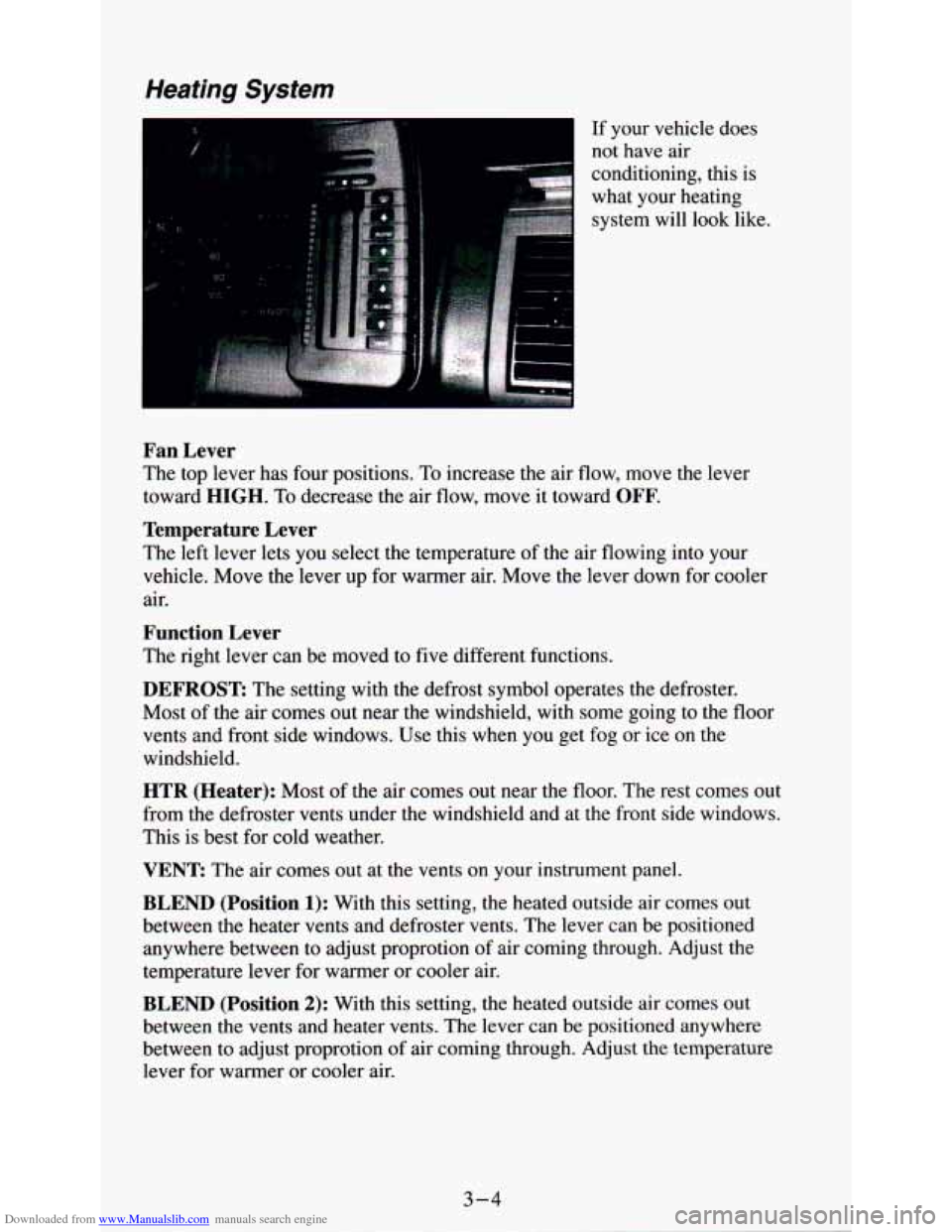

Downloaded from www.Manualslib.com manuals search engine Heating System
If your vehicle does
conditioning, this is
what your heating system will look like.
I not have air
Fan Lever
The top lever has four positions. To increase the air flow, move the lever
toward
HIGH. To decrease the air flow, move it toward OFF.
Temperature Lever
The left lever lets you select the temperature of the air flowing into your
vehicle. Move the lever up for warmer air. Move the lever down for cooler
air.
Function Lever
The right lever can be moved to five different functions.
DEFROST The setting with the defrost symbol operates the defroster.
Most of the air comes out near
the windshield, with some going to the floor
vents and front side windows. Use this when you get fog or ice on the
windshield.
HTR (Heater): Most of the air comes out near the floor. The rest comes out
from the defroster vents under the windshield and at
the front side windows.
This is best for cold weather.
VENT The air comes out at the vents on your instrument panel.
BLEND (Position 1): With this setting, the heated outside air comes out
between the heater vents and defroster vents. The lever can be positioned
anywhere between to adjust proprotion of air coming through. Adjust the
temperature lever for warmer or cooler air.
BLEND (Position 2): With this setting, the heated outside air comes out
between the vents and heater vents. The lever can be positioned anywhere
between to adjust proprotion of air coming through. Adjust the temperature
lever for warmer
or cooler air.
3-4

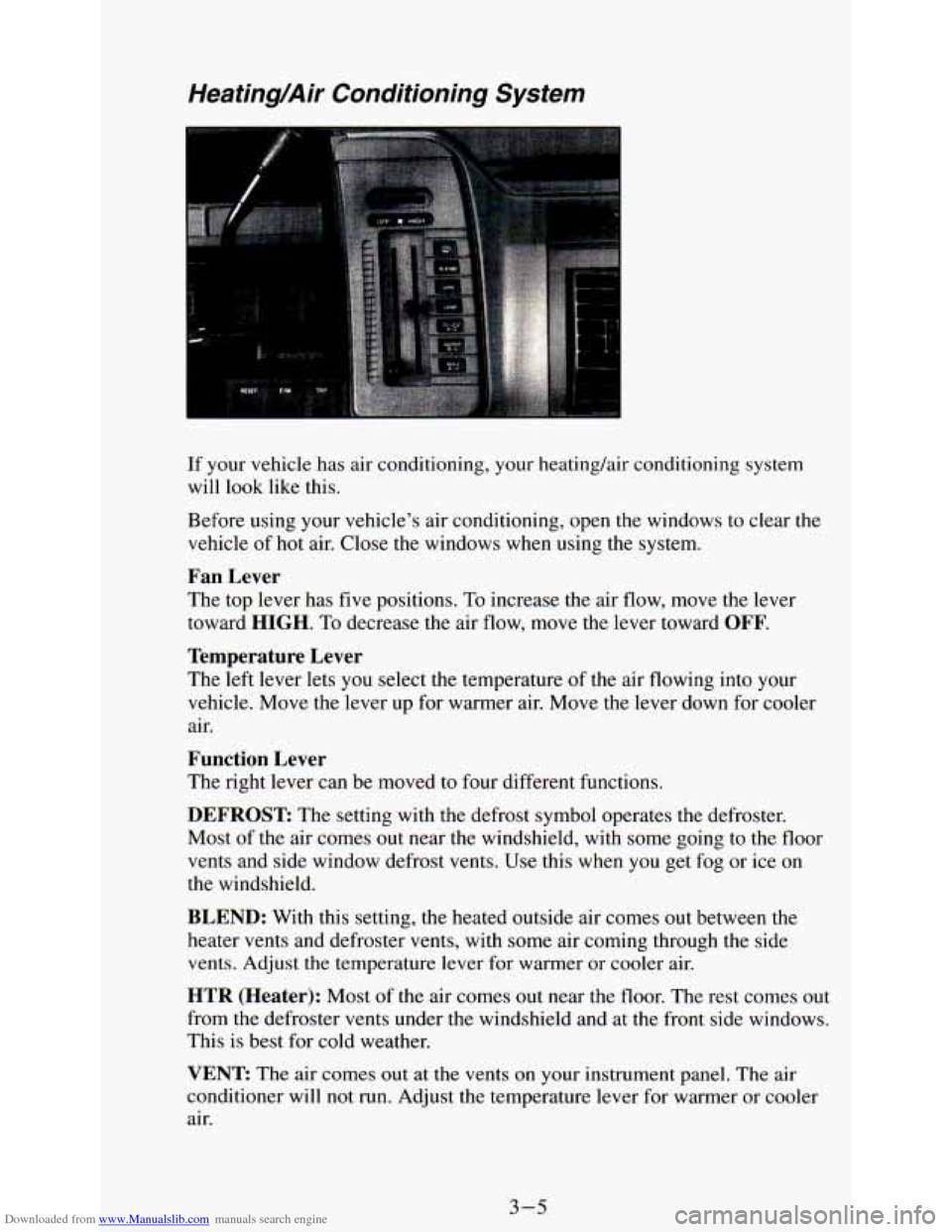

Downloaded from www.Manualslib.com manuals search engine Heating/Air Conditioning System
If your vehicle has air conditioning, your heating/air conditioning system
will look like this.
Before using your
vehicle's air conditioning, open the windows to clear the
vehicle of hot air. Close the windows when using the system.
Fan Lever
The top lever has five positions. To increase the air flow, move the lever
toward
HIGH. To decrease the air flow, move the lever toward OFF.
Temperature Lever
The left lever lets you select the temperature of the air flowing into your
vehicle. Move the lever up for warmer air. Move
the lever down for cooler
air.
Function Lever
The right lever can be moved to four different functions.
DEFROST The setting with the defrost symbol operates the defroster.
Most of the air comes out near the windshield, with some going to the floor
vents and side window defrost vents. Use this when you get fog or ice on
the windshield.
BLEND: With this setting, the heated outside air comes out between the
heater vents and defroster vents, with some air coming through the side
vents. Adjust the temperature lever for warmer or cooler air.
HTR (Heater): Most of the air comes out near the floor. The rest comes out
from the defroster vents under the windshield and at the front side windows.
This
is best for cold weather.
VENT: The air comes out at the vents on your instrument panel, The air
conditioner will not run. Adjust the temperature lever for warmer or cooler
air.
3-5

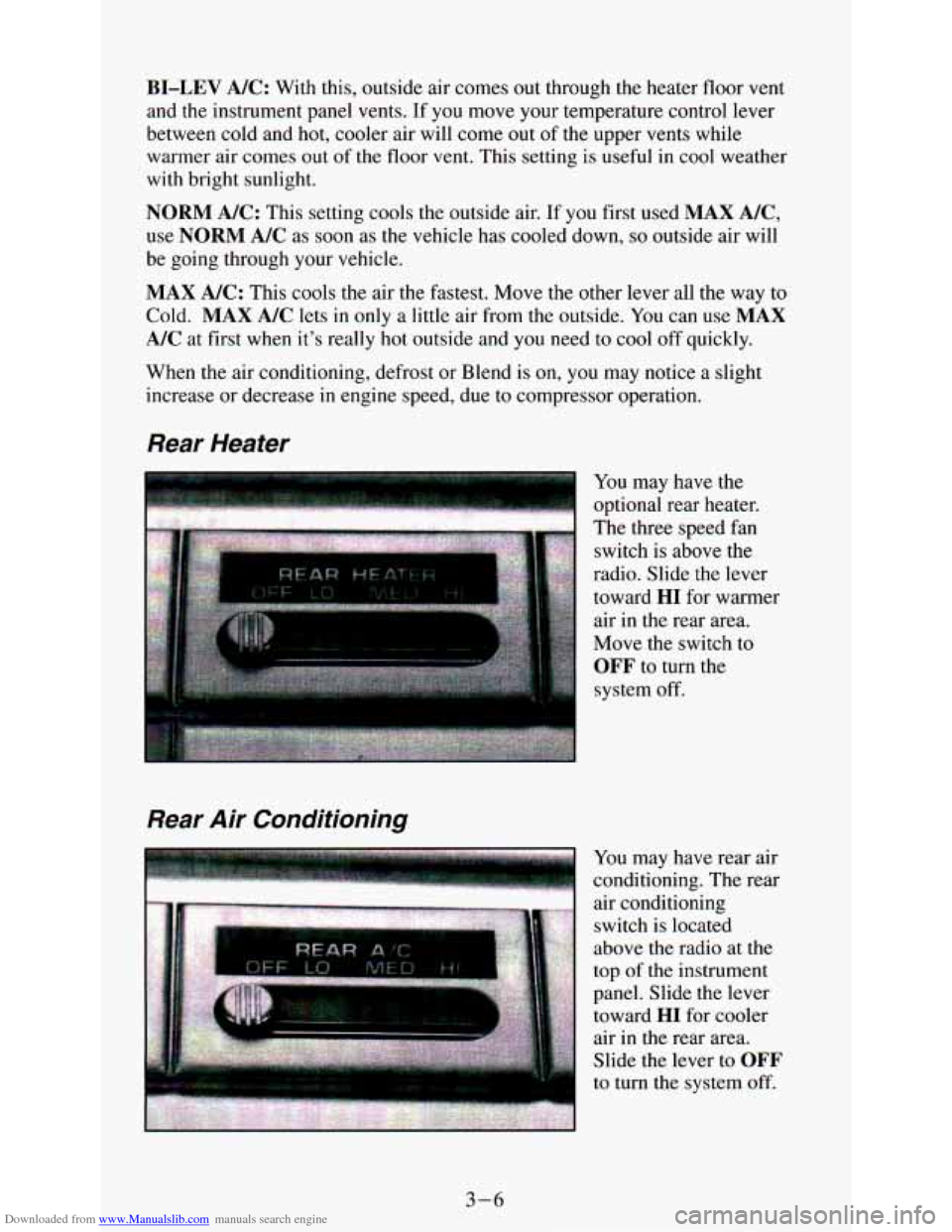

Downloaded from www.Manualslib.com manuals search engine BI-LEV A/C: With this, outside air comes out through the heater floor vent
and the instrument panel vents. If you move your temperature control lever
between cold and hot, cooler air will come out of the upper vents while
warmer air comes out of the floor vent. This setting is useful
in cool weather
with bright sunlight.
NORM A/C: This setting cools the outside air. If you first used MAX A/C,
use NORM A/C as soon as the vehicle has cooled down, so outside air will
be going through your vehicle.
MAX A/C: This cools the air the fastest. Move the other lever all the way to
Cold.
MAX A/C lets in only a little air from the outside. You can use MAX
A/C at first when it's really hot outside and you need to cool off quickly.
When the air conditioning, defrost or Blend is on, you
may notice a slight
increase or decrease
in engine speed, due to compressor operation.
Rear Heater
You may have the
optional rear heater.
The three speed fan
switch is above the
radio. Slide the lever
toward
HI for warmer
air in the rear area.
Move the switch to
OFF to turn the
system off.
Rear Air Conditioning
You may have rear air
conditioning. The rear
air conditioning
switch is located
above the radio at the
top
of the instrument
panel. Slide the lever
toward
HI for cooler
air
in the rear area.
Slide the lever to
OFF
to turn the system off.
3-6

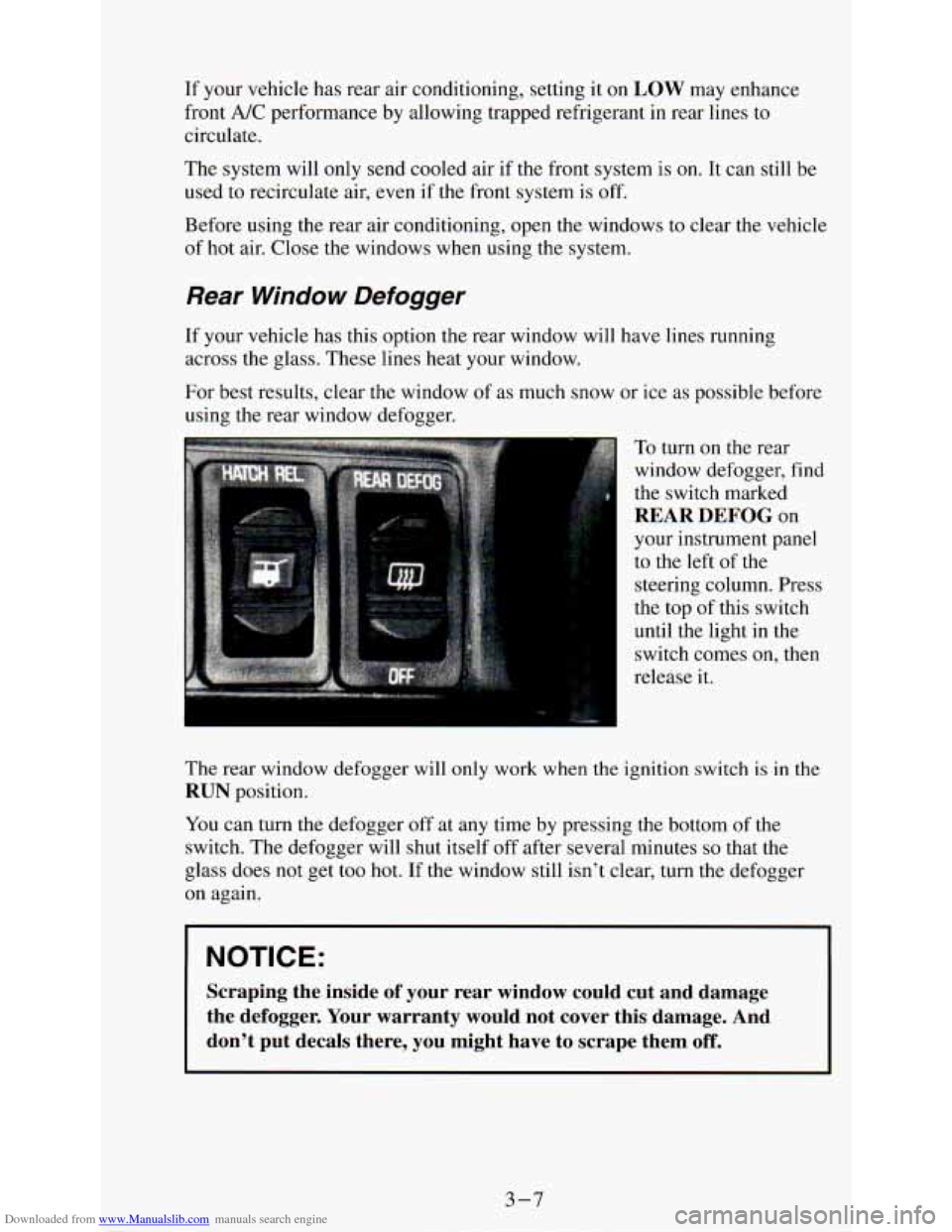

Downloaded from www.Manualslib.com manuals search engine If your vehicle has rear air conditioning, setting it on LOW may enhance
front A/C performance by allowing trapped refrigerant in rear lines to
circulate.
The system will only send cooled air if the front system is on. It can still be
used to recirculate air, even if the front system is off.
Before using the rear air conditioning, open the windows to clear the vehicle
of hot air. Close the windows when using the system.
Rear Window Defogger
If your vehicle has this option the rear window will have lines running
across the glass. These lines heat your window.
For best results, clear the window
of as much snow or ice as possible before
using the rear window defogger.
To turn on the rear
window defogger, find
the switch marked
REAR DEFOG on
your instrument panel
to the left
of the
steering column. Press
the top of this switch
until the light in the
switch comes on, then
release it.
The rear window defogger will only work when the ignition switch is in \
the
RUN position.
You can turn the defogger off at any time by pressing the bottom of the
switch. The defogger will shut itself off after several minutes
so that the
glass does not get too hot. If
the window still isn’t clear, turn the defogger
on again.
I NOTICE:
Scraping the inside of your rear window could cut and damage
the defogger. Your warranty would not cover this damage. And
don’t put decals there, you might have to scrape them
off.
I
3-7

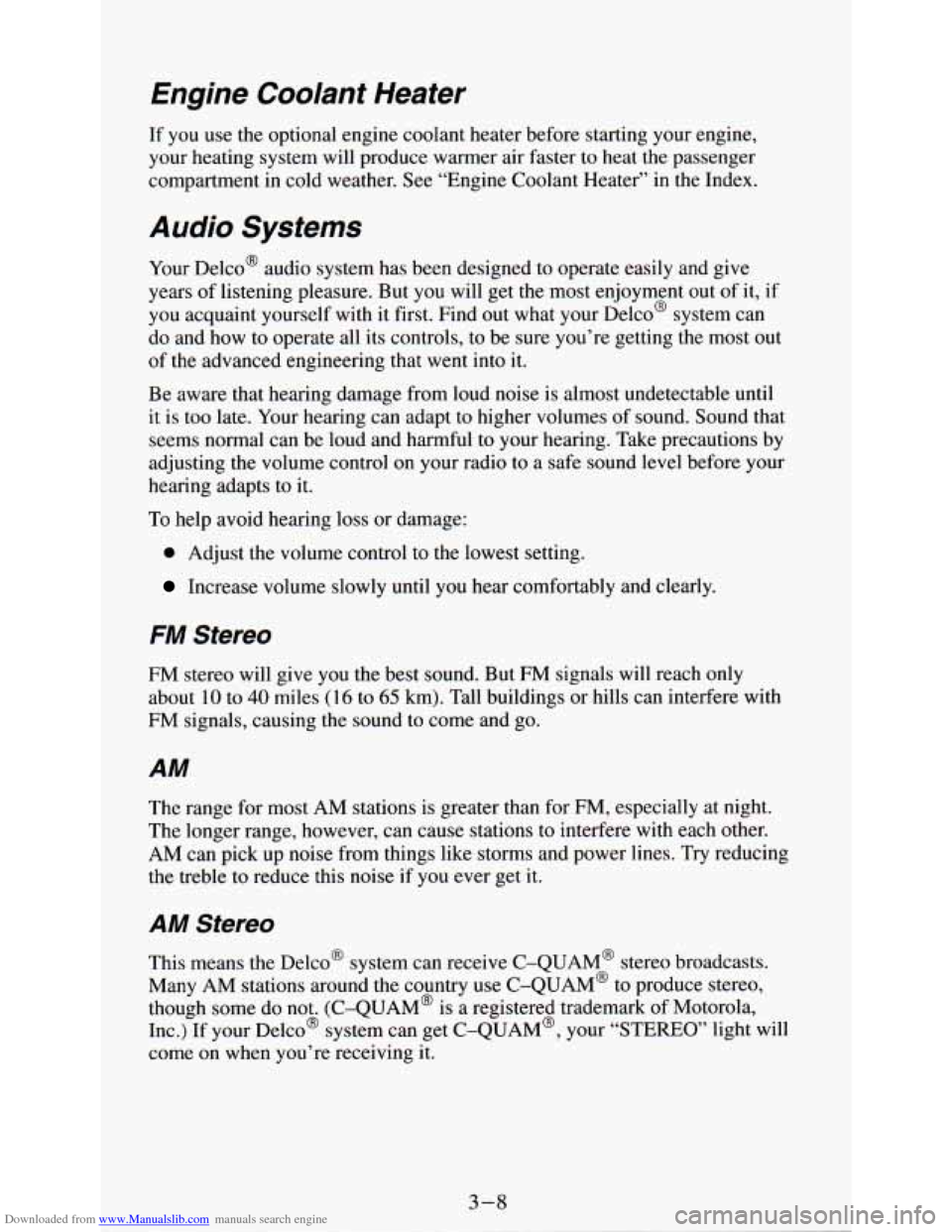

Downloaded from www.Manualslib.com manuals search engine Engine Coolant Heater
If you use the optional engine coolant heater before starting your engine,
your heating system will produce warmer air faster to heat the passenger
compartment in cold weather. See “Engine Coolant Heater” in the Index.
Audio Systems
Your Delco@ audio system has been designed to operate easily and give
years
of listening pleasure. But you will get the most enjoyment out of it, if
you acquaint yourself
with it first. Find out what your Delco@ system can
do and how to operate all its controls, to be sure you’re getting the most out
of
the advanced engineering that went into it.
Be aware that hearing damage from loud noise is almost undetectable until
it is too late. Your hearing can adapt to higher volumes of sound. Sound that
seems normal can be loud and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe sound level before your
hearing adapts to it.
To help avoid hearing loss or damage:
0 Adjust the volume control to the lowest setting.
Increase volume slowly until you hear comfortably and clearly.
FM Stereo
FM stereo will give you the best sound. But FM signals will reach only
about
10 to 40 miles (16 to 65 km). Tall buildings or hills can interfere with
FM signals, causing the sound to come and go.
The range for most AM stations is greater than for FM, especially at night.
The longer range, however, can cause stations to interfere
with each other.
AM can pick up noise from things like storms and power lines. Try reducing
the treble to reduce this noise
if you ever get it.
AM Stereo
This means the Delco@ system can receive C-QUAM@ stereo broadcasts.
Many AM stations around the country use C-QUAM@ to produce stereo,
though some do not. (C-QUAM@ is
a registered trademark of Motorola,
Inc.) If your Delco@ system can get C-QUAM@, your
“STEREO” light will
come on
when you’re receiving it.

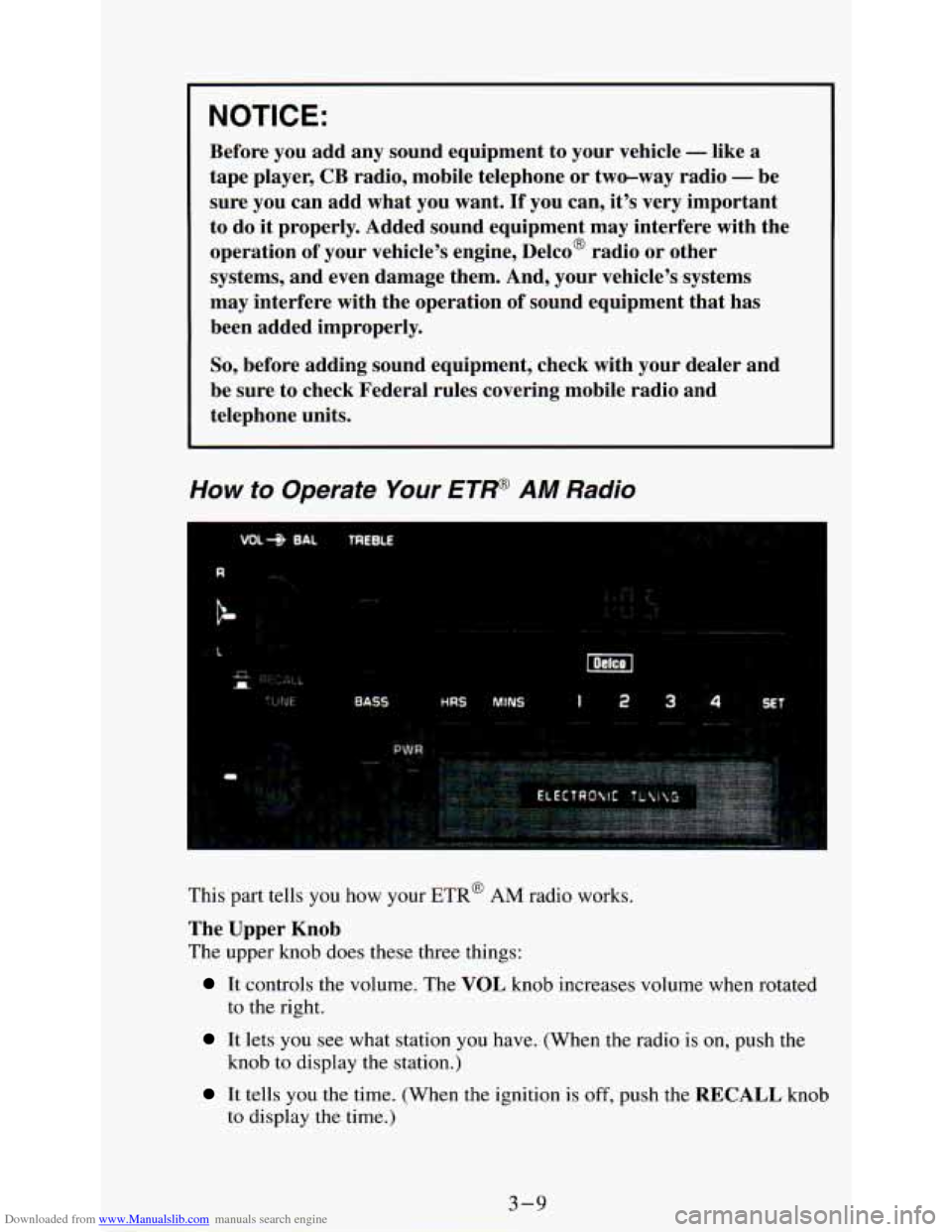

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Before you add any sound equipment to your vehicle - like a
tape player, CB radio, mobile telephone or two-way radio - be
sure you can add what you want.
If you can, it’s very important
to do
it properly. Added sound equipment may interfere with the
operation
of your vehicle’s engine, Delco@ radio or other
systems, and even damage them. And, your vehicle’s systems
may interfere with the operation
of sound equipment that has
been added improperly.
So, before adding sound equipment, check with your dealer and
be sure to check Federal rules covering mobile radio and
telephone units.
How to Operate Your ETR@ AM Radio
. .: .
i
This part tells you how your ETR@ AM radio works.
The Upper Knob
The upper knob does these three things:
It controls the volume. The VOL knob increases volume when rotated
to the right.
It lets you see what station you have. (When the radio is on, push the
knob to display the station.)
It tells you the time. (When the ignition is off, push the RECALL knob
to display
the time.)
3-9

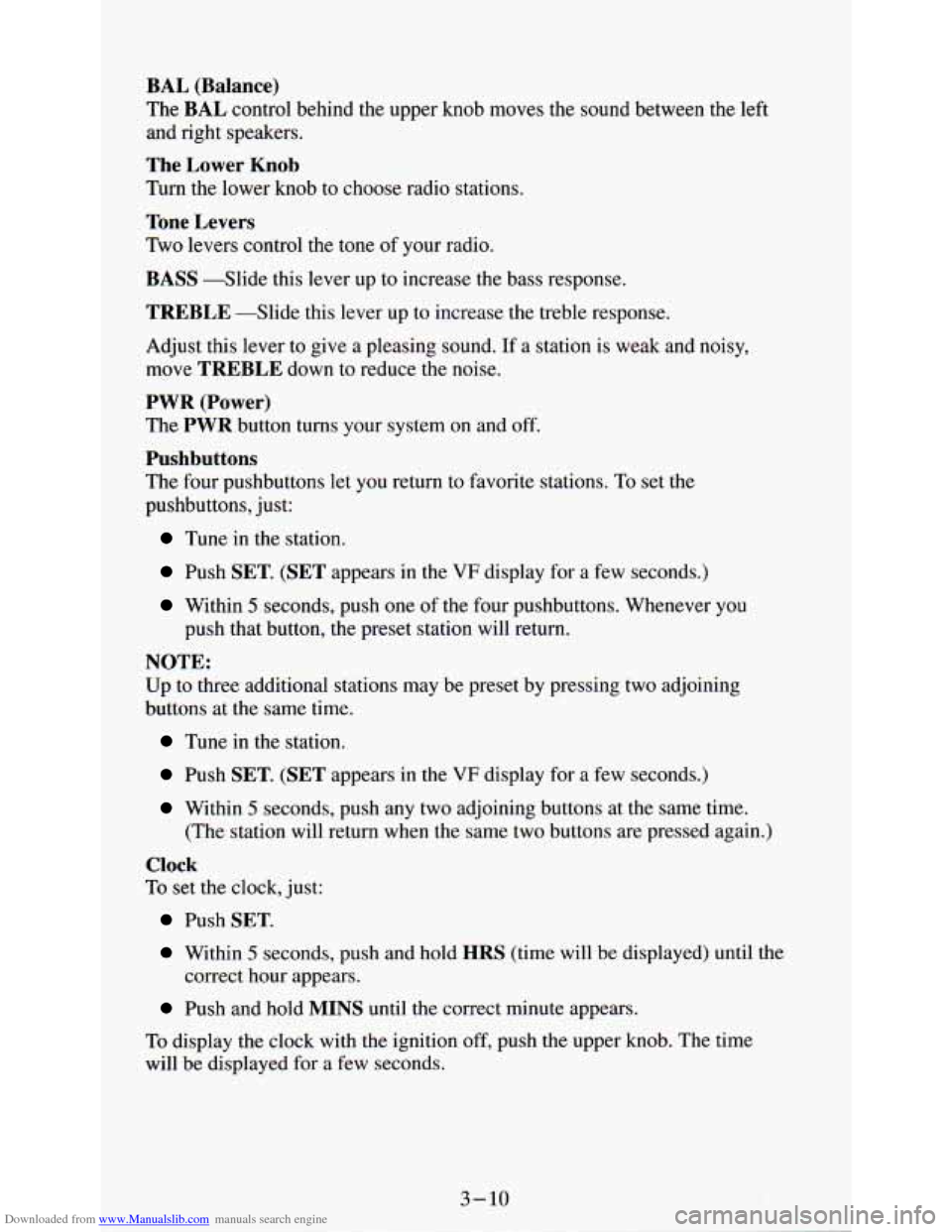

Downloaded from www.Manualslib.com manuals search engine BAL (Balance)
The BAL control behind the upper knob moves the sound between the left
and right speakers.
The Lower Knob
Turn the lower knob to choose radio stations.
Tone Levers
Two levers control the tone of your radio.
BASS -Slide this lever up to increase the bass response.
TREBLE -Slide this lever up to increase the treble response.
Adjust this lever to give a pleasing sound.
If a station is weak and noisy,
move
TREBLE down to reduce the noise.
PWR (Power)
The PWR button turns your system on and off.
Pushbuttons
The four pushbuttons let you return to favorite stations. To set the
pushbuttons, just:
Tune in the station.
Push SET. (SET appears in the VF display for a few seconds.)
Within 5 seconds, push one of the four pushbuttons. Whenever you
push that button, the preset station will return.
NOTE:
Up to three additional stations may be preset by pressing two adjoining
buttons at the same time.
Tune in the station.
Push SET. (SET appears in the VF display for a few seconds.)
Within 5 seconds, push any two adjoining buttons at the same time.
(The station will return when the same two buttons are pressed again.)
Clock
To set the clock, just:
Push SET.
Within 5 seconds, push and hold HRS (time will be displayed) until the
correct hour appears.
Push and hold MINS until the correct minute appears.
To display the clock with the ignition off, push the upper knob. The time
will be displayed for a few seconds.
3-10

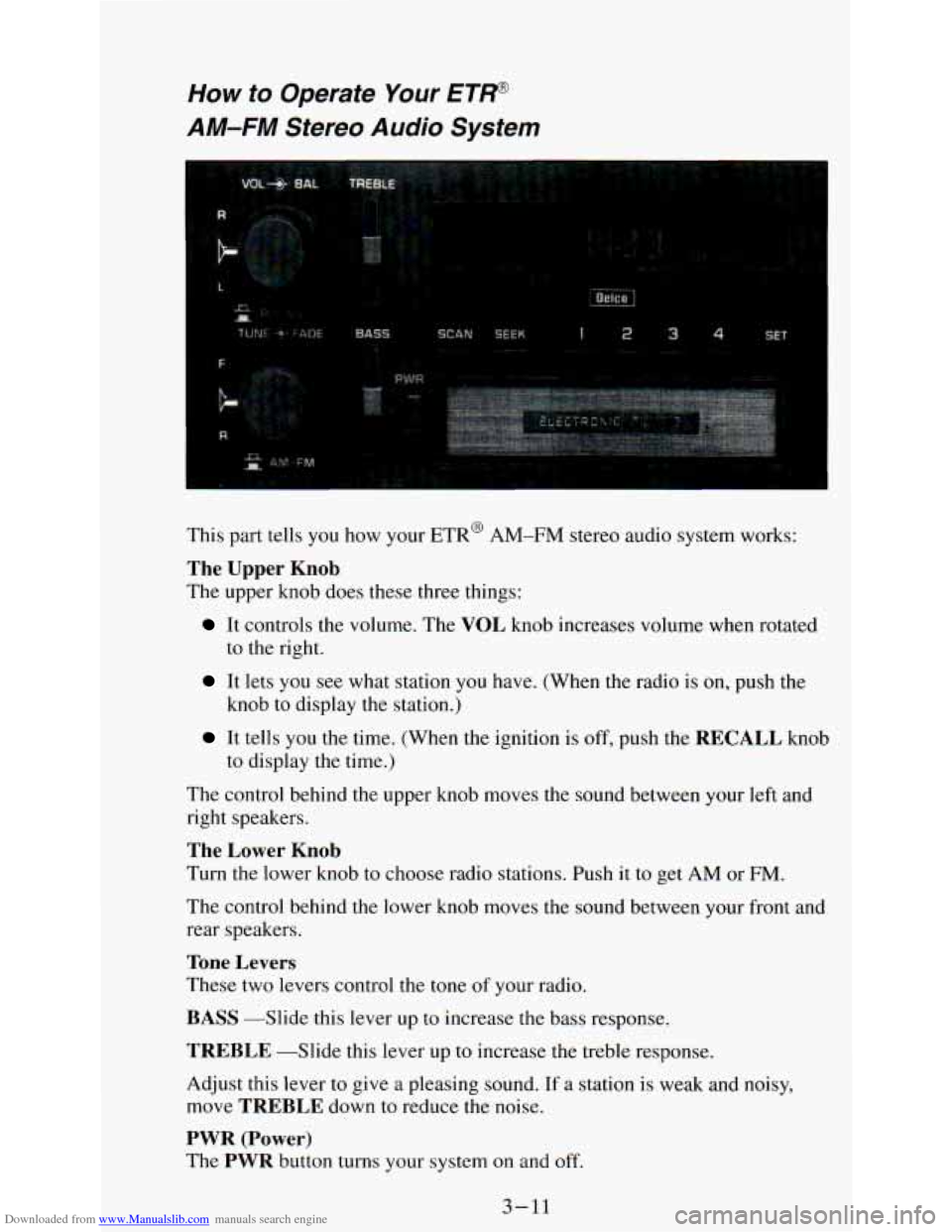

Downloaded from www.Manualslib.com manuals search engine How to Operate Your ETW
AM-FM Stel o Audio System
This part tells you how your ETR@ AM-FM stereo audio system works:
The Upper Knob
The upper knob does these three things:
It controls the volume. The VOL knob increases volume when rotated
to the right.
It lets you see what station you have. (When the radio is on, push the
knob
to display the station.)
It tells you the time. (When the ignition is off, push the RECALL knob
to display the time.)
The control behind the upper knob moves the sound between your left and
right speakers.
The Lower Knob
Turn the lower knob to choose radio stations. Push it to get AM or FM.
The control behind the lower knob moves the sound between your front and
rear speakers.
Tone Levers
These two levers control the tone of your radio.
BASS -Slide this lever up to increase the bass response.
TREBLE -Slide this lever up to increase the treble response.
Adjust this lever
to give a pleasing sound. If a station is weak and noisy,
move
TREBLE down to reduce the noise.
PWR (Power)
The PWR button turns your system on and off.
3-11

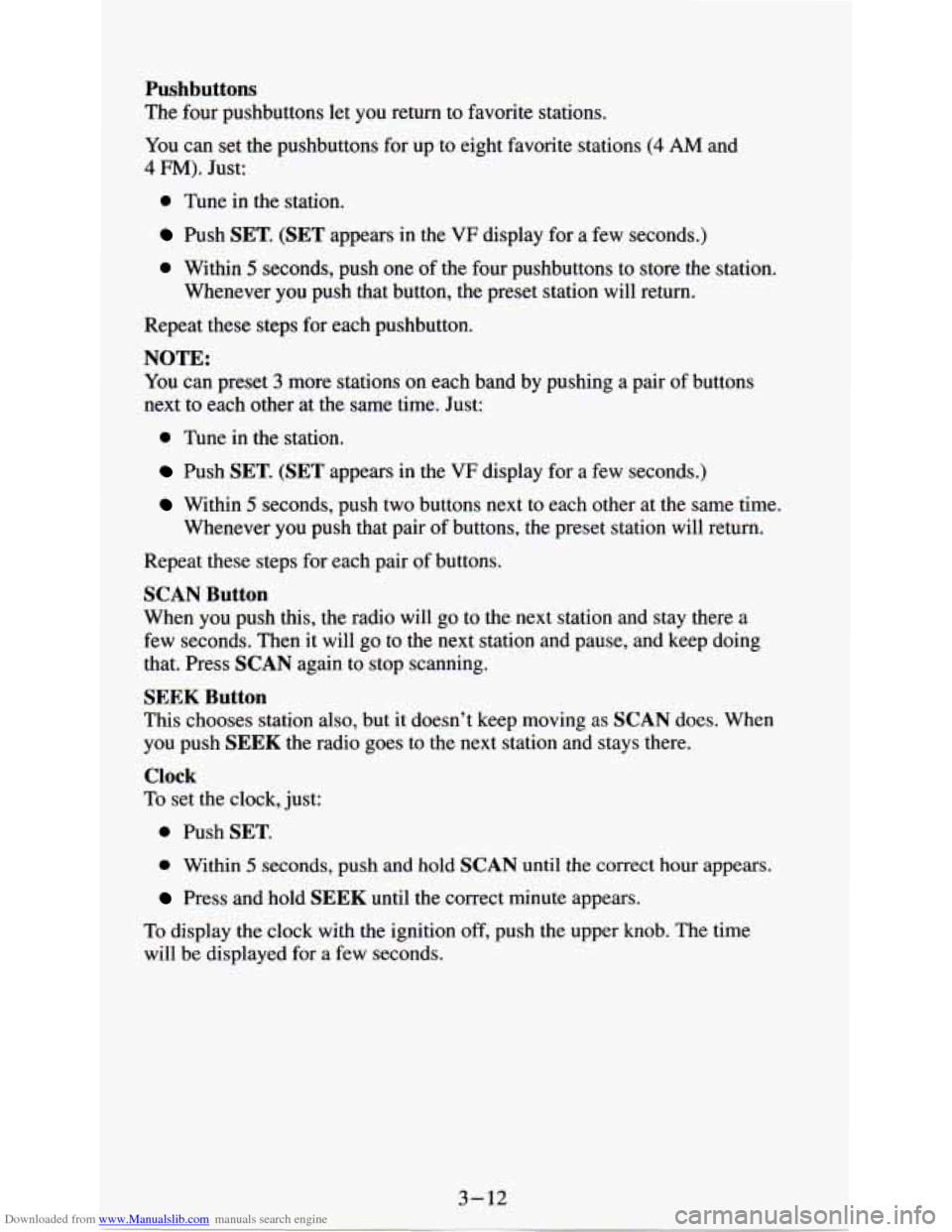

Downloaded from www.Manualslib.com manuals search engine Pushbuttons
The four pushbuttons let you return to favorite stations.
You can set the pushbuttons for up to eight favorite stations
(4 AM and
4 FM). Just:
0 Tune in the station.
Push SET. (SET appears in the VF display for a few seconds.)
0 Within 5 seconds, push one of the four pushbuttons to store the station.
Whenever you push that button, the preset station will return.
Repeat these steps for each pushbutton.
NOTE:
You can preset 3 more stations on each band by pushing a pair of buttons
next to each other at the same time. Just:
0 Tune in the station.
Push SET. (SET appears in the VF display for a few seconds.)
Within 5 seconds, push two buttons next to each other at the same time.
Whenever you push that pair
of buttons, the preset station will return.
Repeat these steps for each pair of buttons.
SCAN Button
When you push this, the radio will go to the next station and stay there a
few seconds. Then it will go to the next station and pause, and keep doing
that. Press
SCAN again to stop scanning.
SEEK Button
This chooses station also, but it doesn’t keep moving as SCAN does. When
you push
SEEK the radio goes to the next station and stays there.
Clock
To set the clock, just:
0 Push SET.
0 Within 5 seconds, push and hold SCAN until the correct hour appears.
Press and hold SEEK until the correct minute appears.
To display the clock with the ignition off, push the upper knob. The time
will be displayed for a few seconds.
3-12
