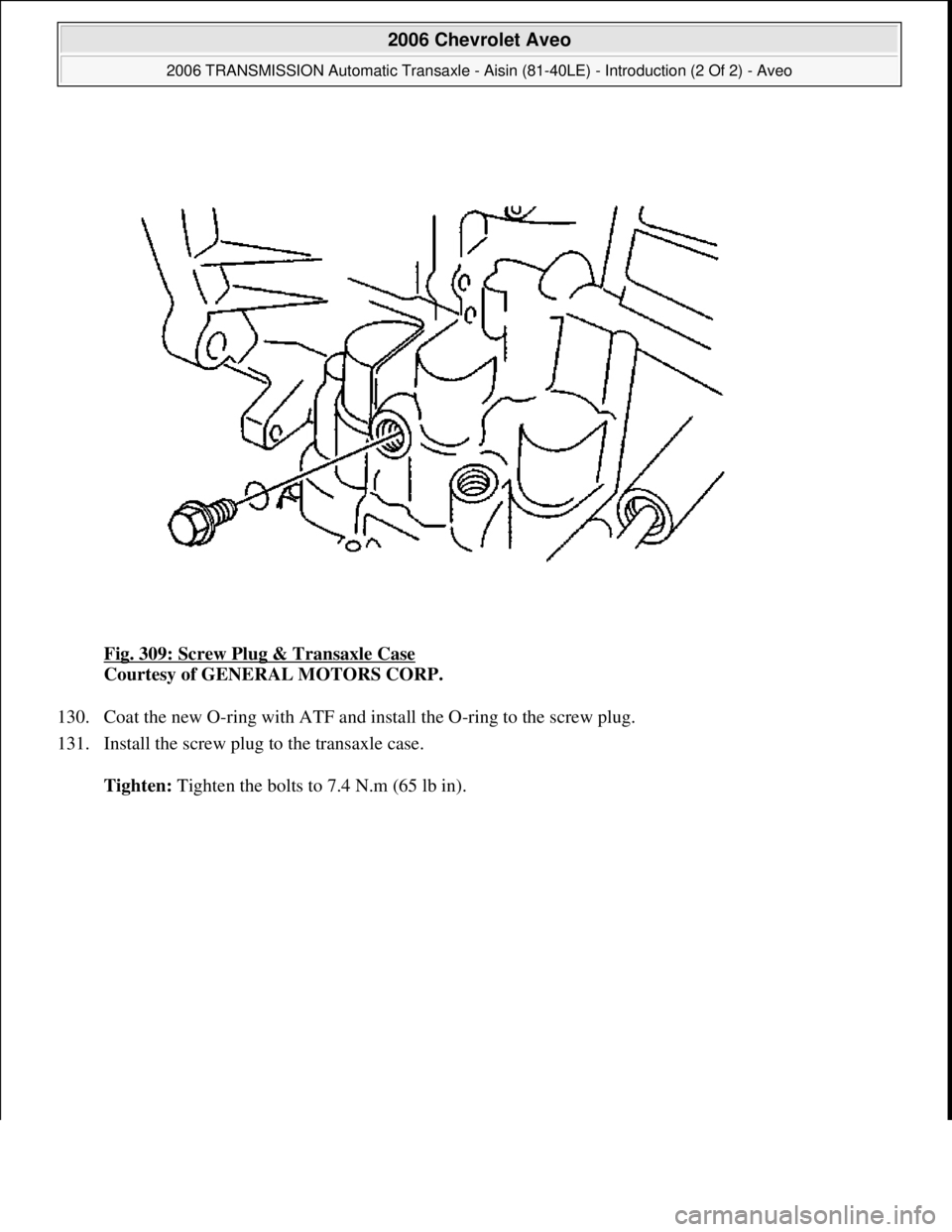

Fig. 309: Screw Plug & Transaxle Case
Courtesy of GENERAL MOTORS CORP.
130. Coat the new O-ring with ATF and install the O-ring to the screw plug.
131. Install the screw plug to the transaxle case.
Tighten: Tighten the bolts to 7.4 N.m (65 lb in).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:27 PMPage 322 © 2005 Mitchell Repair Information Company, LLC.

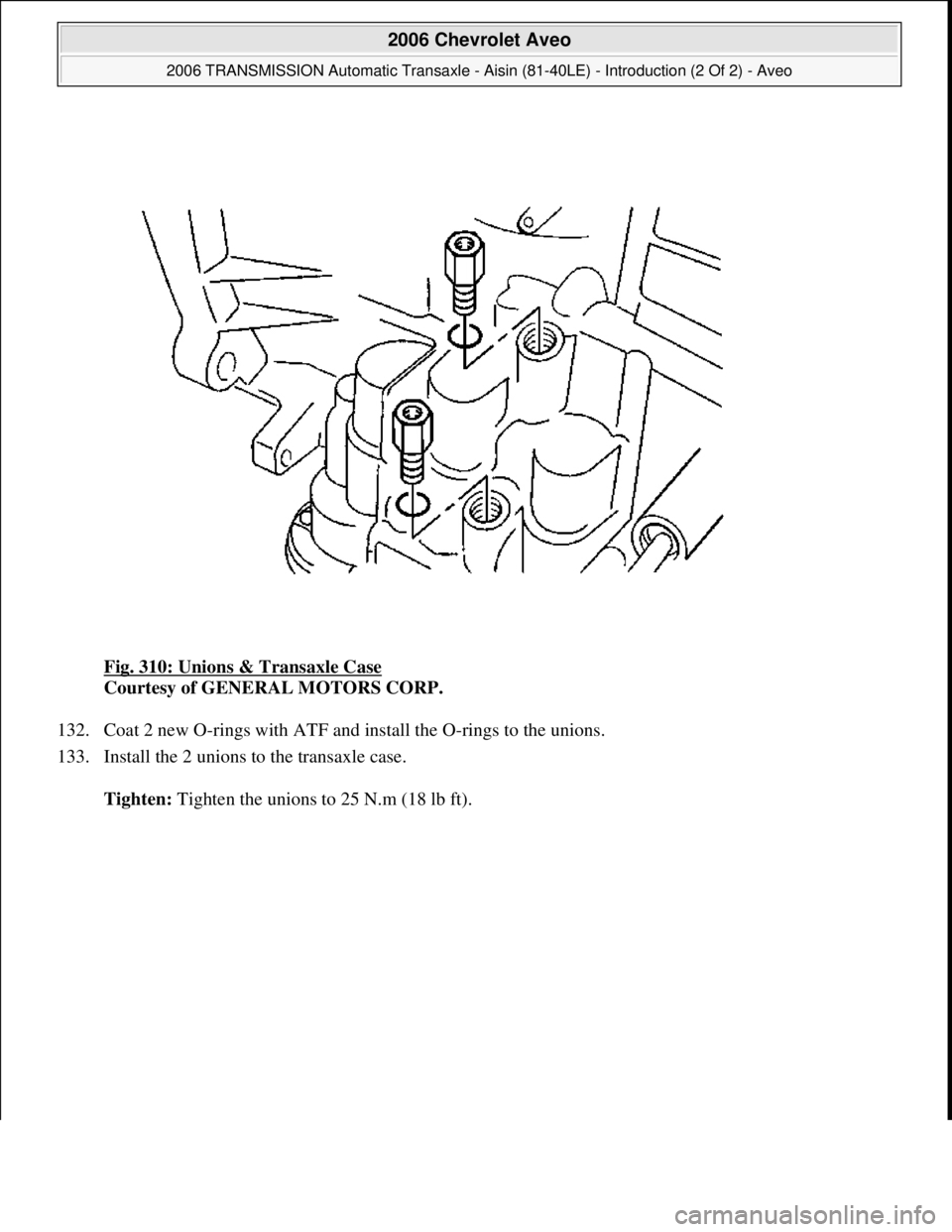

Fig. 310: Unions & Transaxle Case
Courtesy of GENERAL MOTORS CORP.
132. Coat 2 new O-rings with ATF and install the O-rings to the unions.
133. Install the 2 unions to the transaxle case.
Tighten: Ti
ghten the unions to 25 N.m (18 lb ft).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:27 PMPage 323 © 2005 Mitchell Repair Information Company, LLC.

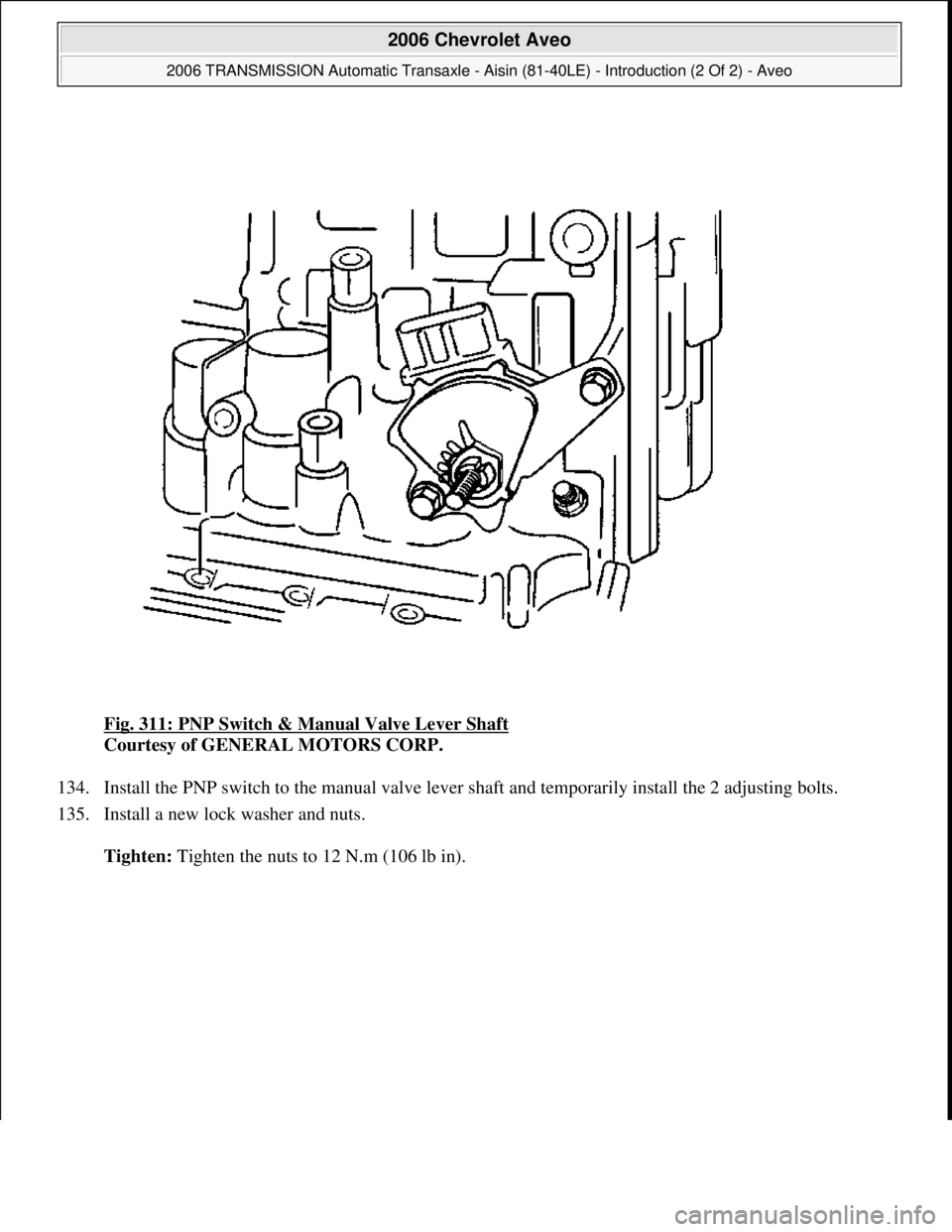

Fig. 311: PNP Switch & Manual Valve Lever Shaft
Courtesy of GENERAL MOTORS CORP.
134. Install the PNP switch to the manual valve lever shaft and temporarily install the 2 adjusting bolts.
135. Install a new lock washer and nuts.
Tighten: Tighten the nuts to 12 N.m (106 lb in).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:27 PMPage 324 © 2005 Mitchell Repair Information Company, LLC.

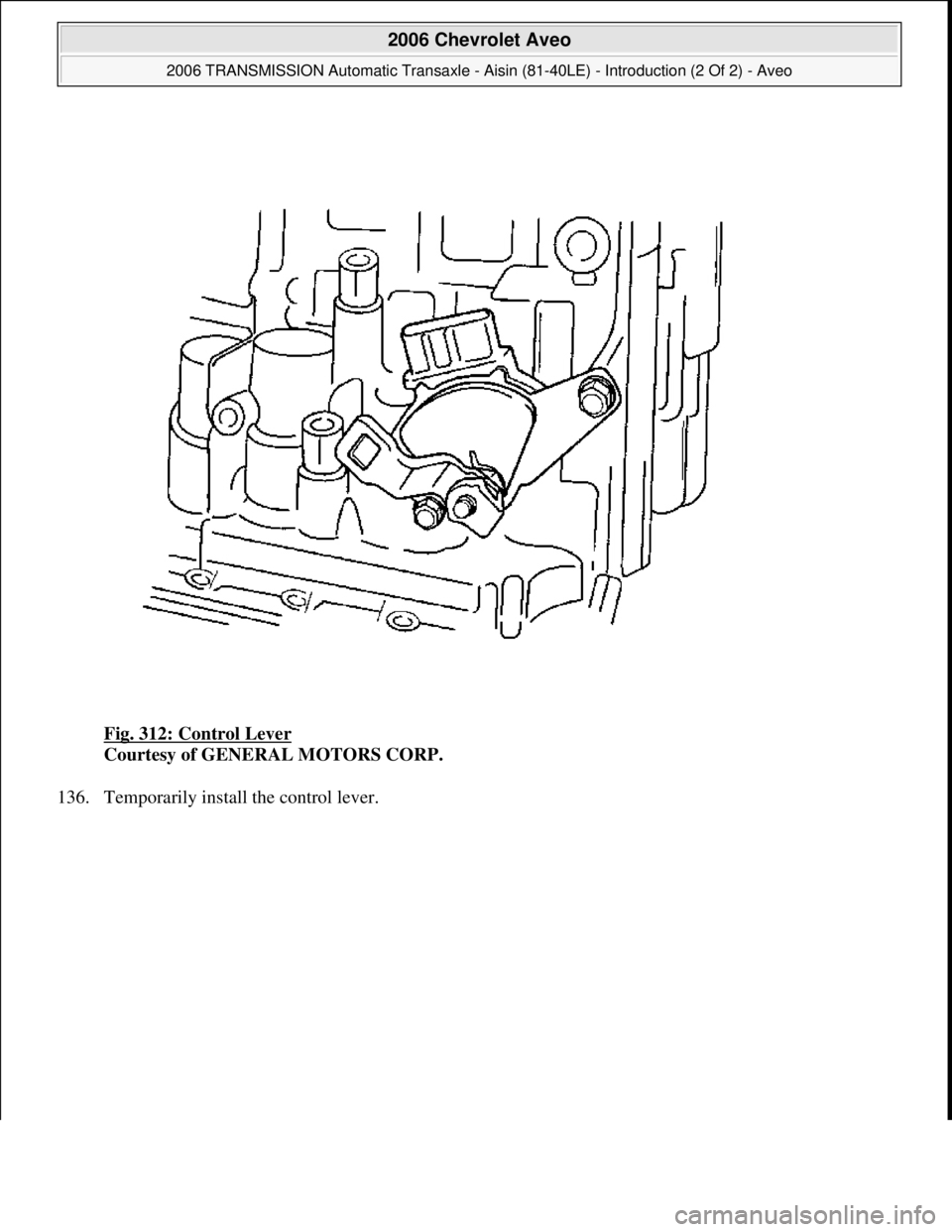

Fig. 312: Control Lever
Courtesy of GENERAL MOTORS CORP.
136. Temporaril
y install the control lever.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:27 PMPage 325 © 2005 Mitchell Repair Information Company, LLC.

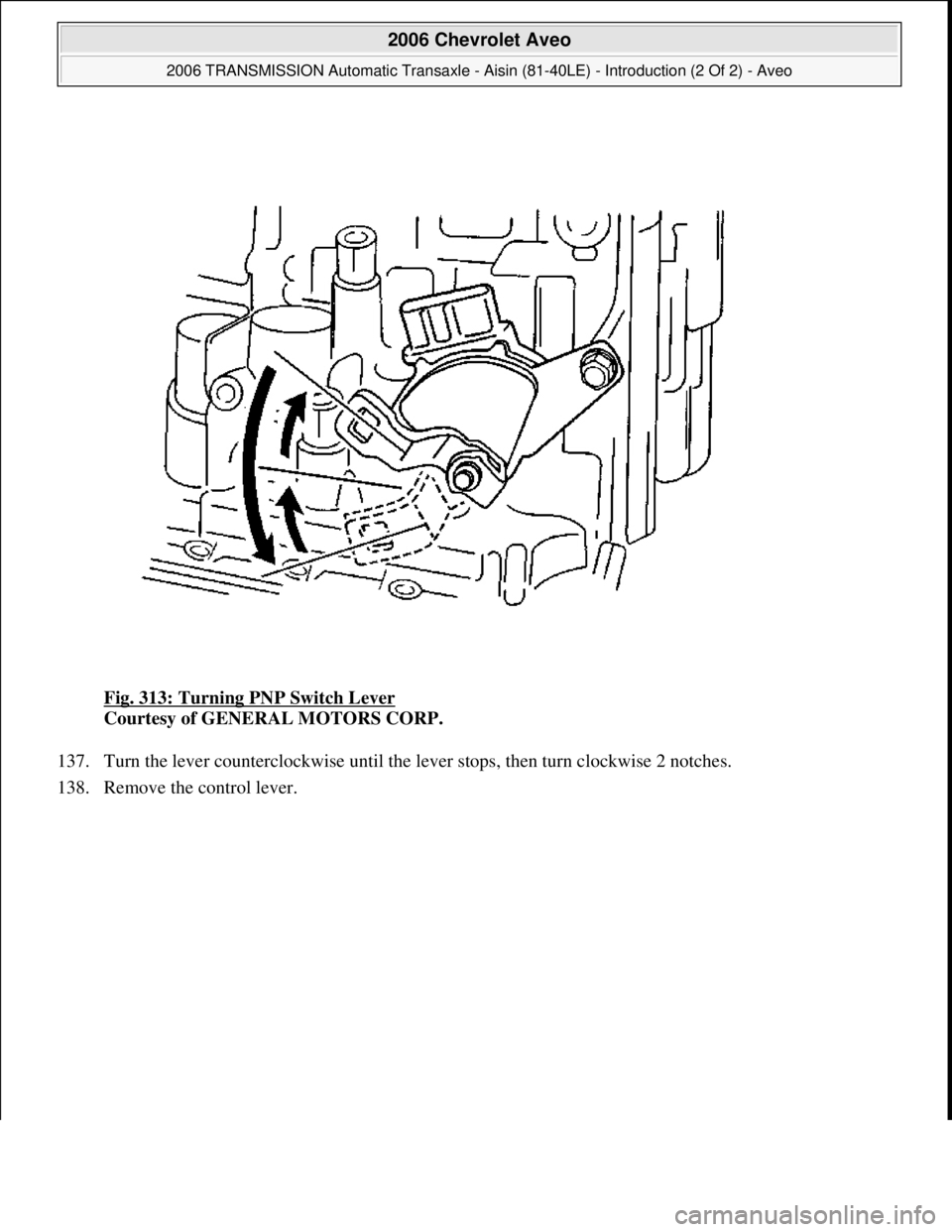

Fig. 313: Turning PNP Switch Lever
Courtesy of GENERAL MOTORS CORP.
137. Turn the lever counterclockwise until the lever stops, then turn clockwise 2 notches.
138. Remove the control lever.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 326 © 2005 Mitchell Repair Information Company, LLC.

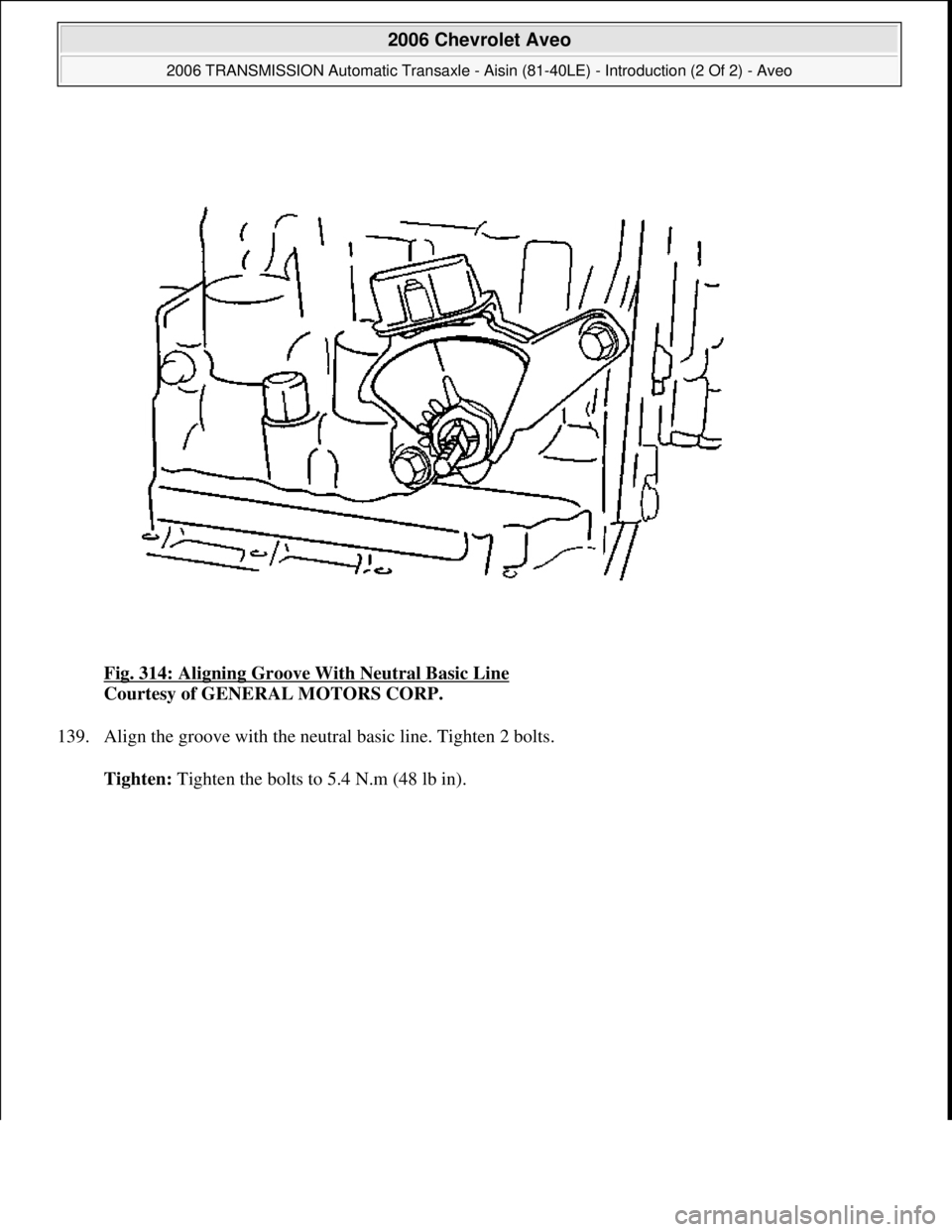

Fig. 314: Aligning Groove With Neutral Basic Line
Courtesy of GENERAL MOTORS CORP.
139. Align the groove with the neutral basic line. Tighten 2 bolts.
Tighten: Tighten the bolts to 5.4 N.m (48 lb in).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 327 © 2005 Mitchell Repair Information Company, LLC.

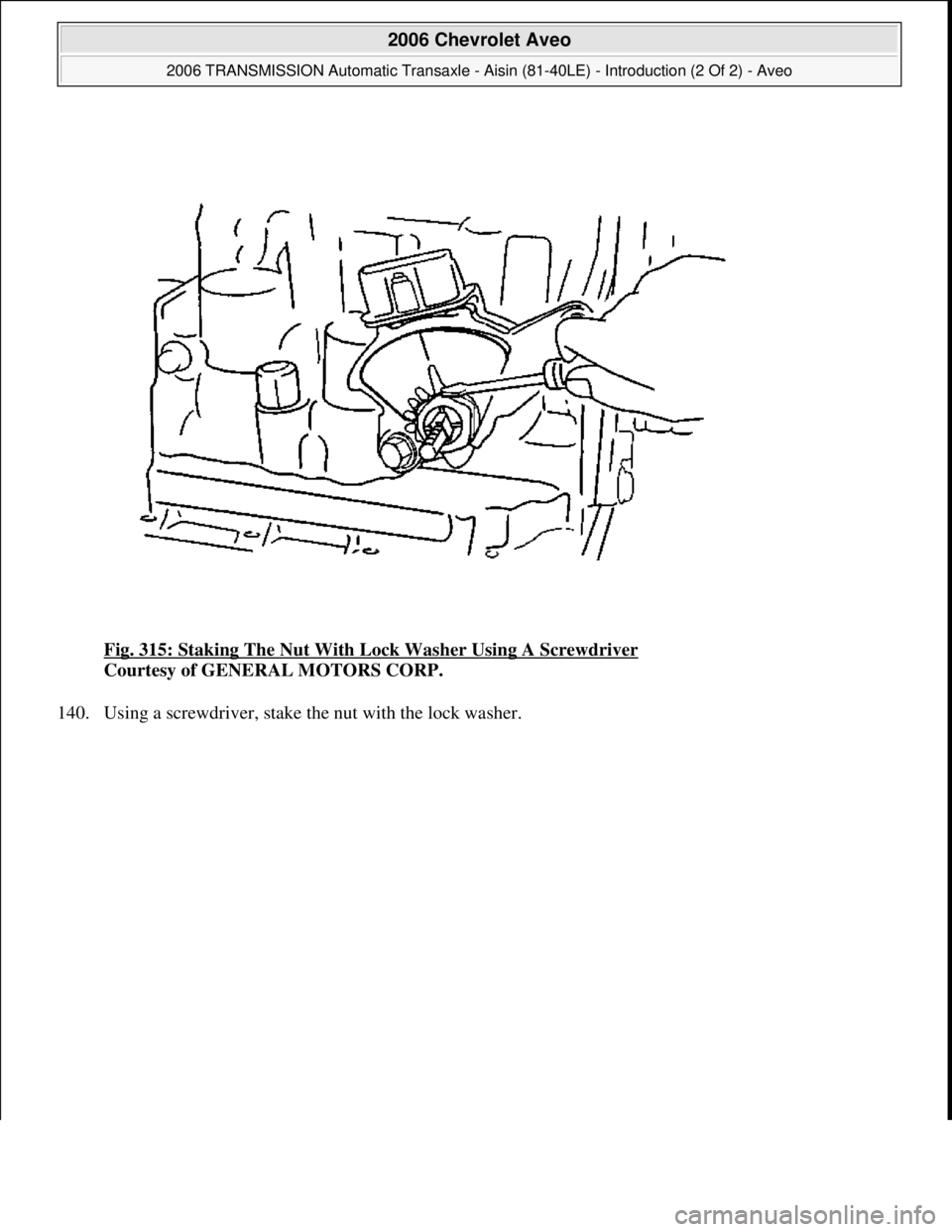

Fig. 315: Staking The Nut With Lock Washer Using A Screwdriver
Courtesy of GENERAL MOTORS CORP.
140. Usin
g a screwdriver, stake the nut with the lock washer.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 328 © 2005 Mitchell Repair Information Company, LLC.

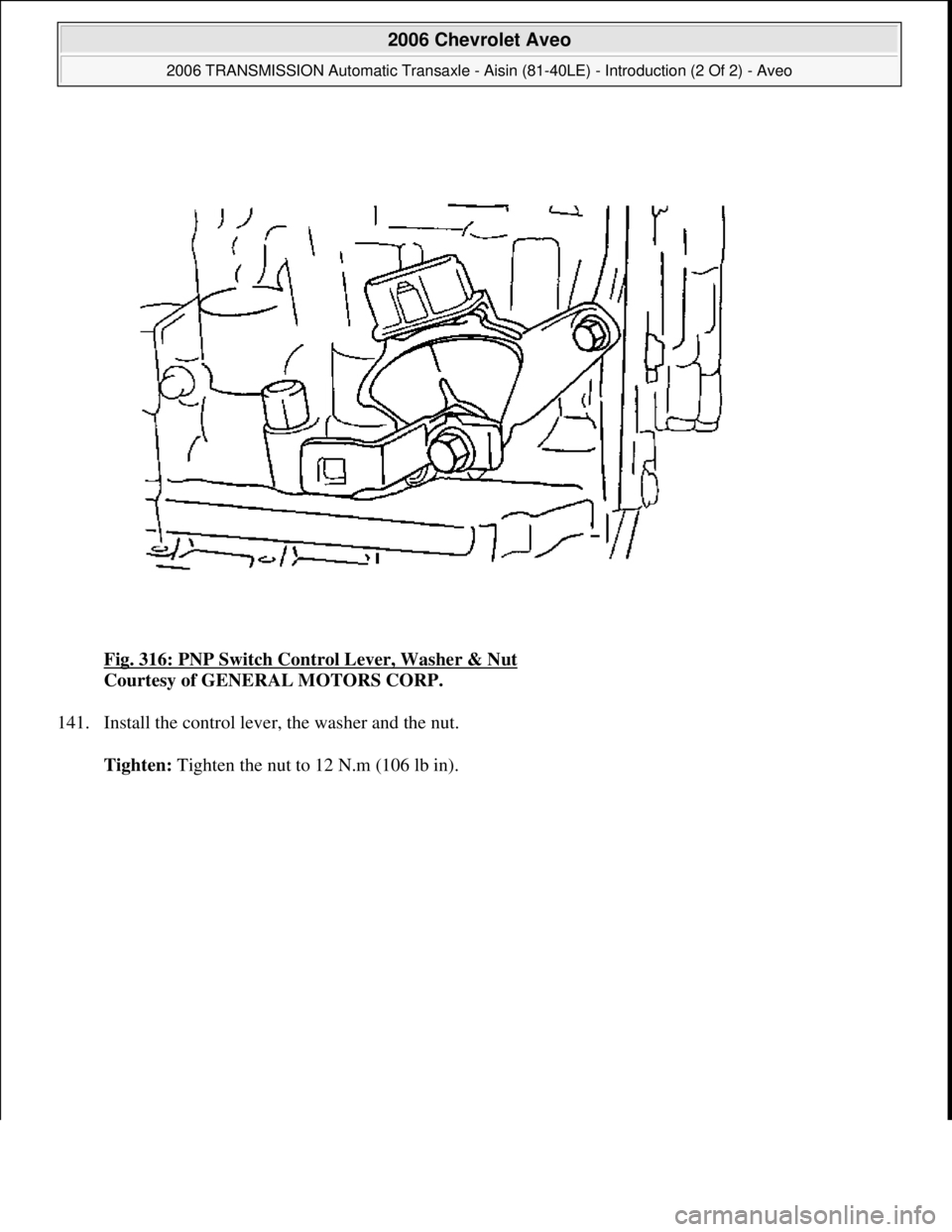

Fig. 316: PNP Switch Control Lever, Washer & Nut
Courtesy of GENERAL MOTORS CORP.
141. Install the control lever, the washer and the nut.
Tighten: Tighten the nut to 12 N.m (106 lb in).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 329 © 2005 Mitchell Repair Information Company, LLC.

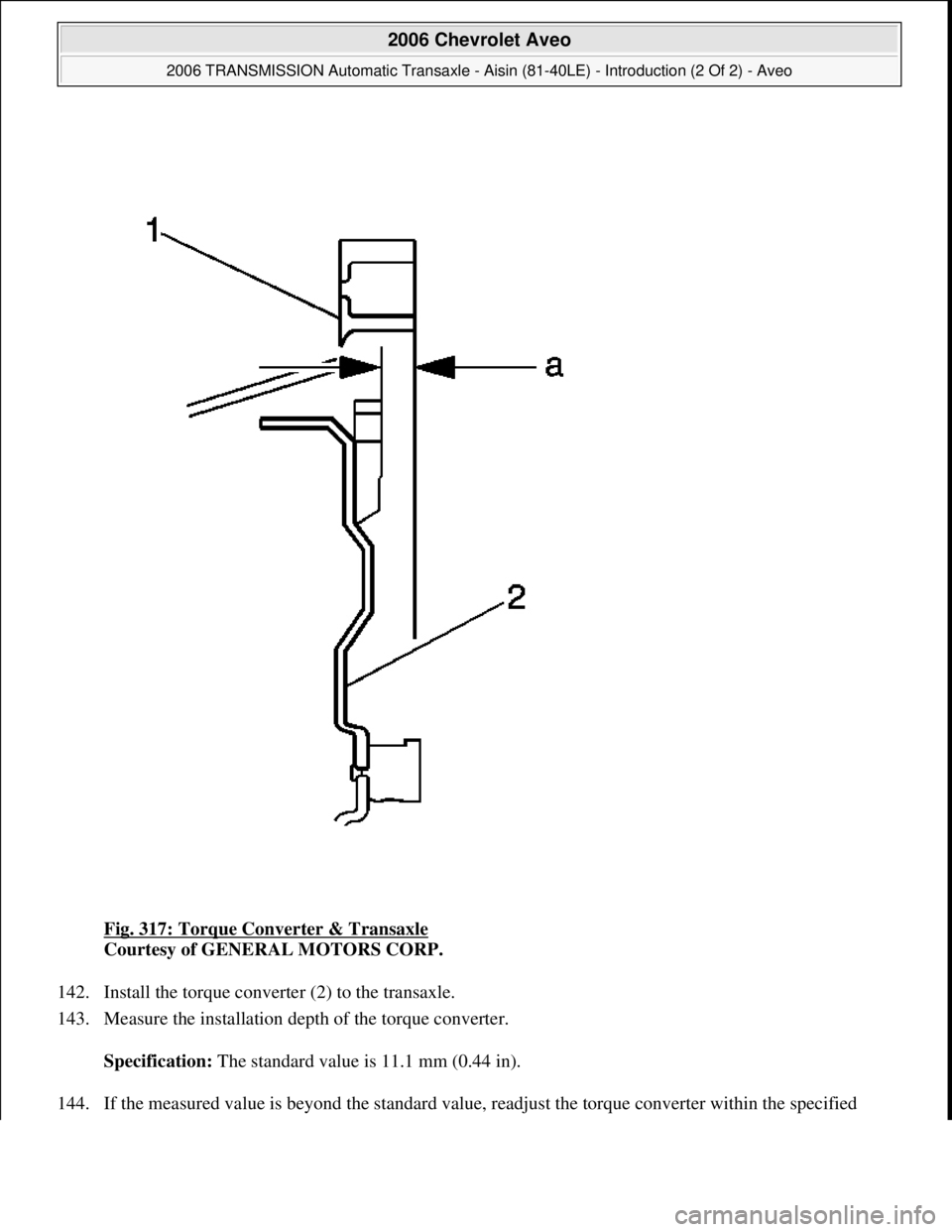

Fig. 317: Torque Converter & Transaxle
Courtesy of GENERAL MOTORS CORP.
142. Install the torque converter (2) to the transaxle.
143. Measure the installation depth of the torque converter.
Specification: The standard value is 11.1 mm (0.44 in).
144. If the measured value is beyond the standard value, readjust the torque converter within the specified

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 330 © 2005 Mitchell Repair Information Company, LLC.

value.
OIL PUMP DISASSEMBLE

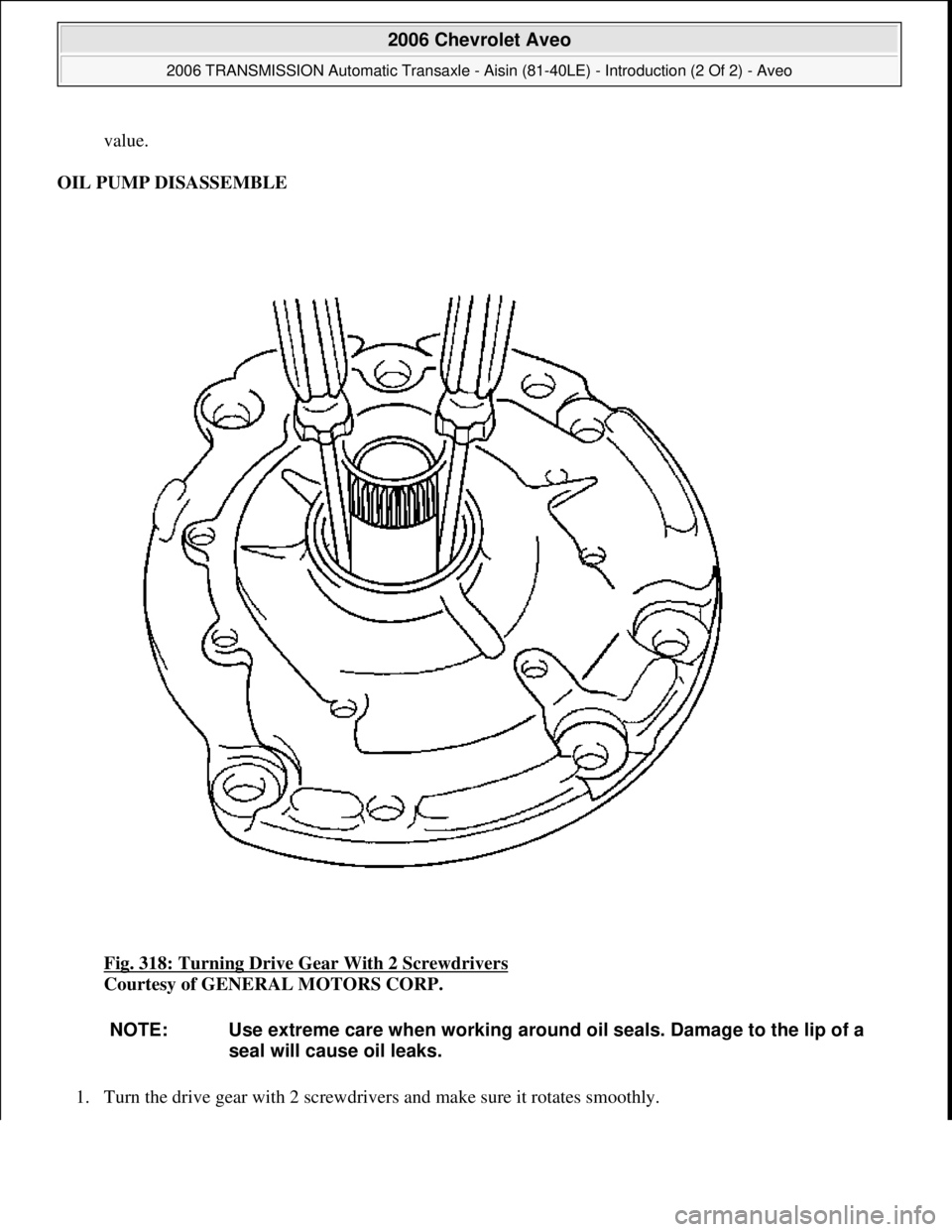

Fig. 318: Turning Drive Gear With 2 Screwdrivers

Courtesy of GENERAL MOTORS CORP.
1. Turn the drive
gear with 2 screwdrivers and make sure it rotates smoothly.
NOTE: Use extreme care when working around oil seals. Damage to the lip of a
seal will cause oil leaks.
