CHEVROLET AVEO 2008 1.G Owners Manual

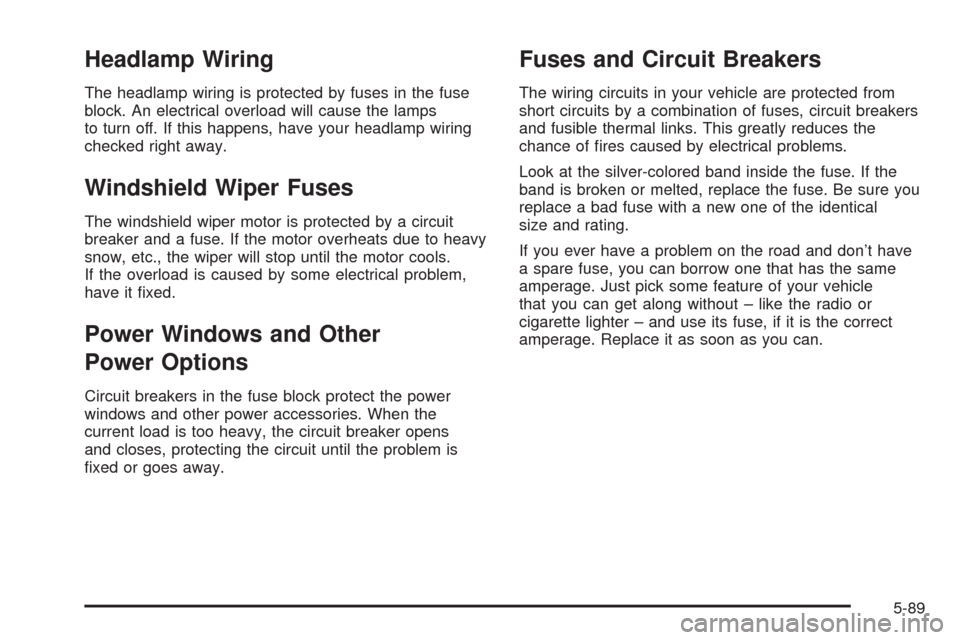

Headlamp Wiring
The headlamp wiring is protected by fuses in the fuse
block. An electrical overload will cause the lamps
to turn off. If this happens, have your headlamp wiring
checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
have it fixed.
Power Windows and Other
Power Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the
current load is too heavy, the circuit breaker opens
and closes, protecting the circuit until the problem is
fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick some feature of your vehicle
that you can get along without – like the radio or
cigarette lighter – and use its fuse, if it is the correct
amperage. Replace it as soon as you can.
5-89

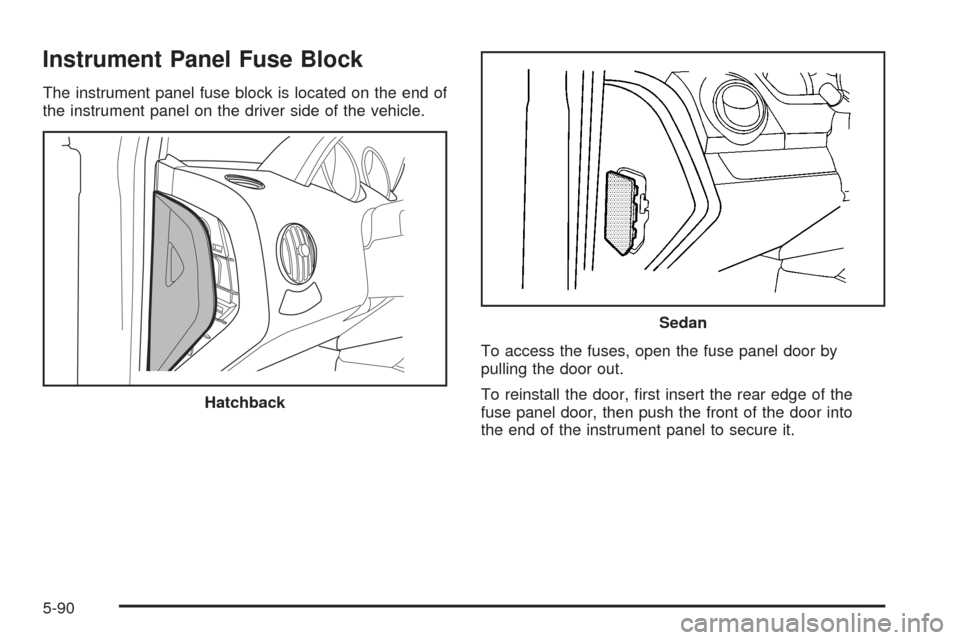

Instrument Panel Fuse Block
The instrument panel fuse block is located on the end of
the instrument panel on the driver side of the vehicle.
To access the fuses, open the fuse panel door by
pulling the door out.
To reinstall the door, first insert the rear edge of the
fuse panel door, then push the front of the door into
the end of the instrument panel to secure it. Hatchback
Sedan
5-90

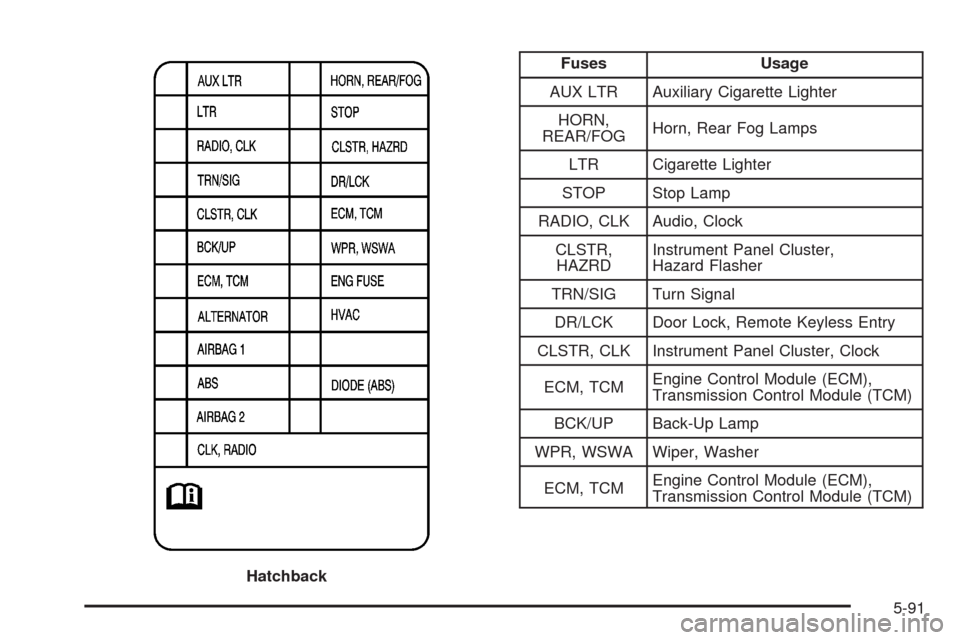

Fuses Usage
AUX LTR Auxiliary Cigarette Lighter
HORN,
REAR/FOGHorn, Rear Fog Lamps
LTR Cigarette Lighter
STOP Stop Lamp
RADIO, CLK Audio, Clock
CLSTR,
HAZRDInstrument Panel Cluster,
Hazard Flasher
TRN/SIG Turn Signal
DR/LCK Door Lock, Remote Keyless Entry
CLSTR, CLK Instrument Panel Cluster, Clock
ECM, TCMEngine Control Module (ECM),
Transmission Control Module (TCM)
BCK/UP Back-Up Lamp
WPR, WSWA Wiper, Washer
ECM, TCMEngine Control Module (ECM),
Transmission Control Module (TCM)
Hatchback
5-91

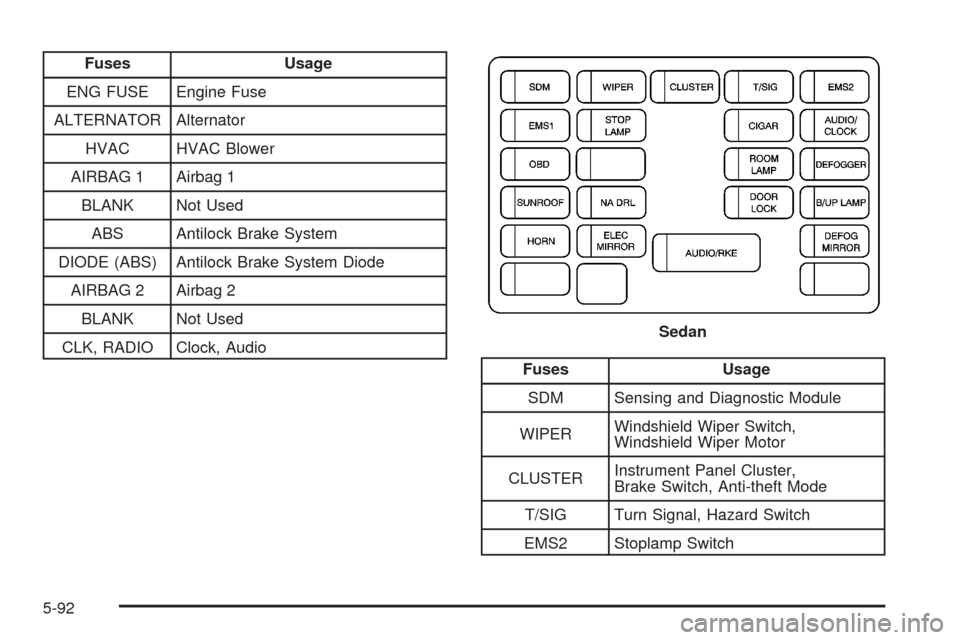

Fuses Usage
ENG FUSE Engine Fuse
ALTERNATOR Alternator
HVAC HVAC Blower
AIRBAG 1 Airbag 1
BLANK Not Used
ABS Antilock Brake System
DIODE (ABS) Antilock Brake System Diode
AIRBAG 2 Airbag 2
BLANK Not Used
CLK, RADIO Clock, Audio
Fuses Usage
SDM Sensing and Diagnostic Module
WIPERWindshield Wiper Switch,
Windshield Wiper Motor
CLUSTERInstrument Panel Cluster,
Brake Switch, Anti-theft Mode
T/SIG Turn Signal, Hazard Switch
EMS2 Stoplamp SwitchSedan
5-92

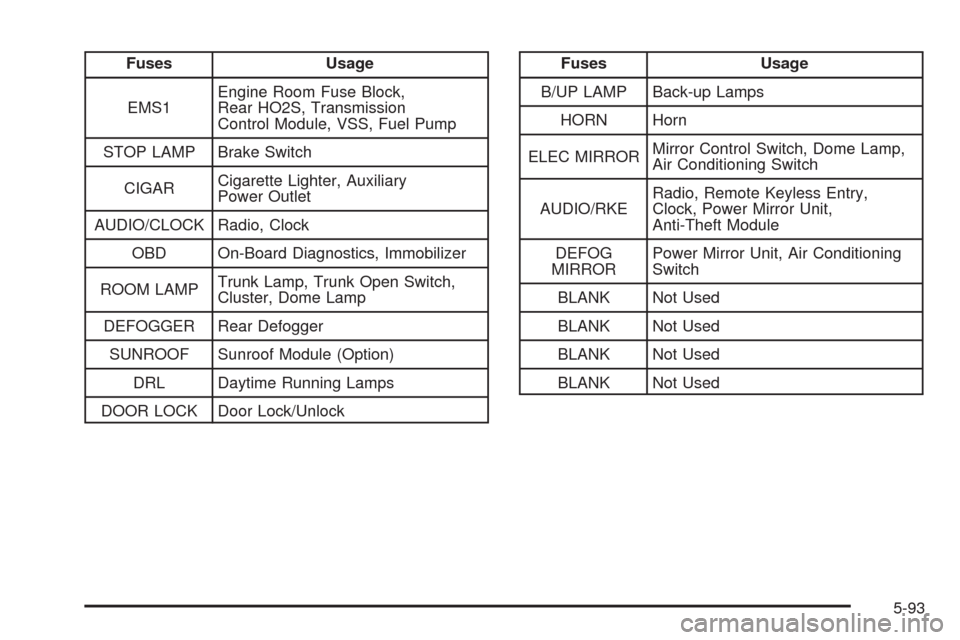

Fuses Usage
EMS1Engine Room Fuse Block,
Rear HO2S, Transmission
Control Module, VSS, Fuel Pump
STOP LAMP Brake Switch
CIGARCigarette Lighter, Auxiliary
Power Outlet
AUDIO/CLOCK Radio, Clock
OBD On-Board Diagnostics, Immobilizer
ROOM LAMPTrunk Lamp, Trunk Open Switch,
Cluster, Dome Lamp
DEFOGGER Rear Defogger
SUNROOF Sunroof Module (Option)
DRL Daytime Running Lamps
DOOR LOCK Door Lock/UnlockFuses Usage
B/UP LAMP Back-up Lamps
HORN Horn
ELEC MIRRORMirror Control Switch, Dome Lamp,
Air Conditioning Switch
AUDIO/RKERadio, Remote Keyless Entry,
Clock, Power Mirror Unit,
Anti-Theft Module
DEFOG
MIRRORPower Mirror Unit, Air Conditioning
Switch
BLANK Not Used
BLANK Not Used
BLANK Not Used
BLANK Not Used
5-93

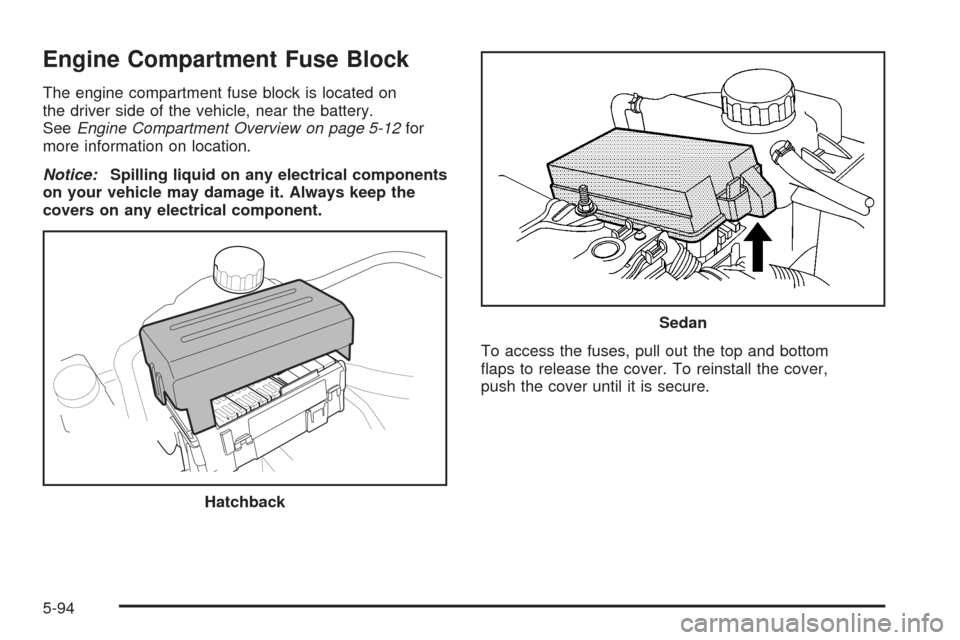

Engine Compartment Fuse Block
The engine compartment fuse block is located on
the driver side of the vehicle, near the battery.
SeeEngine Compartment Overview on page 5-12for
more information on location.
Notice:Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
To access the fuses, pull out the top and bottom
flaps to release the cover. To reinstall the cover,
push the cover until it is secure.
Hatchback
Sedan
5-94

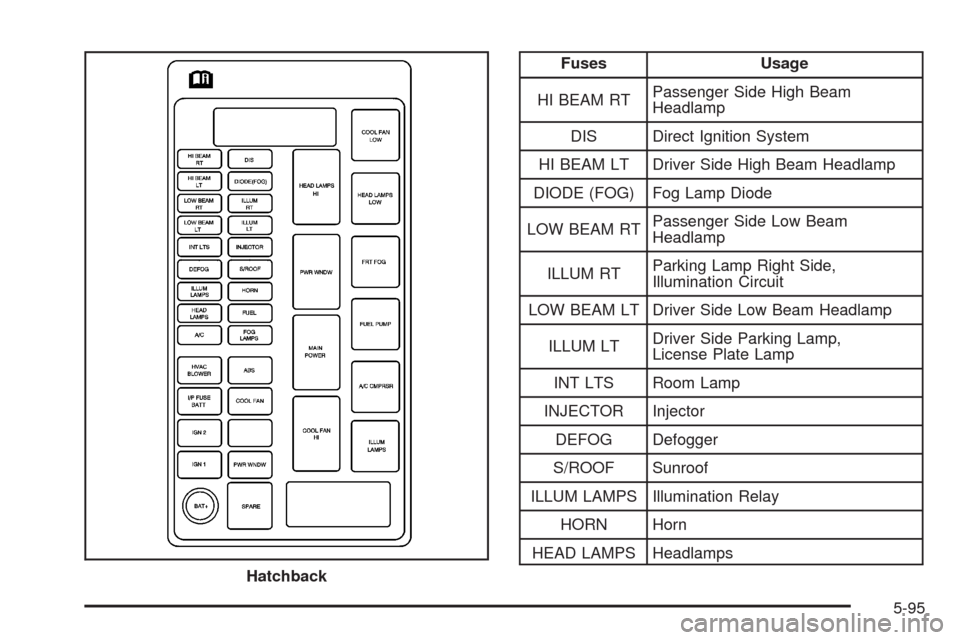

Fuses Usage
HI BEAM RTPassenger Side High Beam
Headlamp
DIS Direct Ignition System
HI BEAM LT Driver Side High Beam Headlamp
DIODE (FOG) Fog Lamp Diode
LOW BEAM RTPassenger Side Low Beam
Headlamp
ILLUM RTParking Lamp Right Side,
Illumination Circuit
LOW BEAM LT Driver Side Low Beam Headlamp
ILLUM LTDriver Side Parking Lamp,
License Plate Lamp
INT LTS Room Lamp
INJECTOR Injector
DEFOG Defogger
S/ROOF Sunroof
ILLUM LAMPS Illumination Relay
HORN Horn
HEAD LAMPS Headlamps
Hatchback
5-95

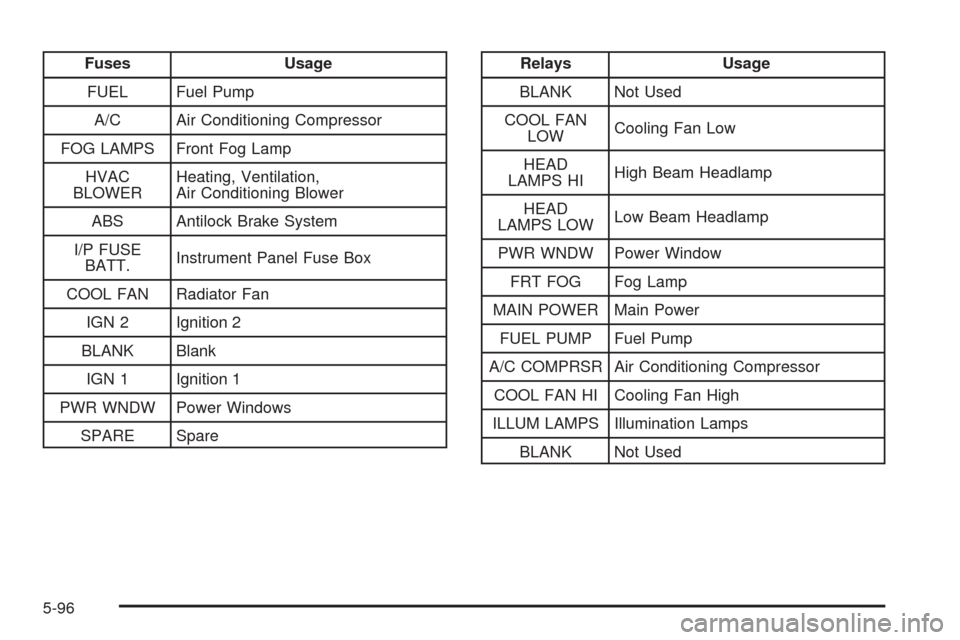

Fuses Usage
FUEL Fuel Pump
A/C Air Conditioning Compressor
FOG LAMPS Front Fog Lamp
HVAC
BLOWERHeating, Ventilation,
Air Conditioning Blower
ABS Antilock Brake System
I/P FUSE
BATT.Instrument Panel Fuse Box
COOL FAN Radiator Fan
IGN 2 Ignition 2
BLANK Blank
IGN 1 Ignition 1
PWR WNDW Power Windows
SPARE SpareRelays Usage
BLANK Not Used
COOL FAN
LOWCooling Fan Low
HEAD
LAMPS HIHigh Beam Headlamp
HEAD
LAMPS LOWLow Beam Headlamp
PWR WNDW Power Window
FRT FOG Fog Lamp
MAIN POWER Main Power
FUEL PUMP Fuel Pump
A/C COMPRSR Air Conditioning Compressor
COOL FAN HI Cooling Fan High
ILLUM LAMPS Illumination Lamps
BLANK Not Used
5-96

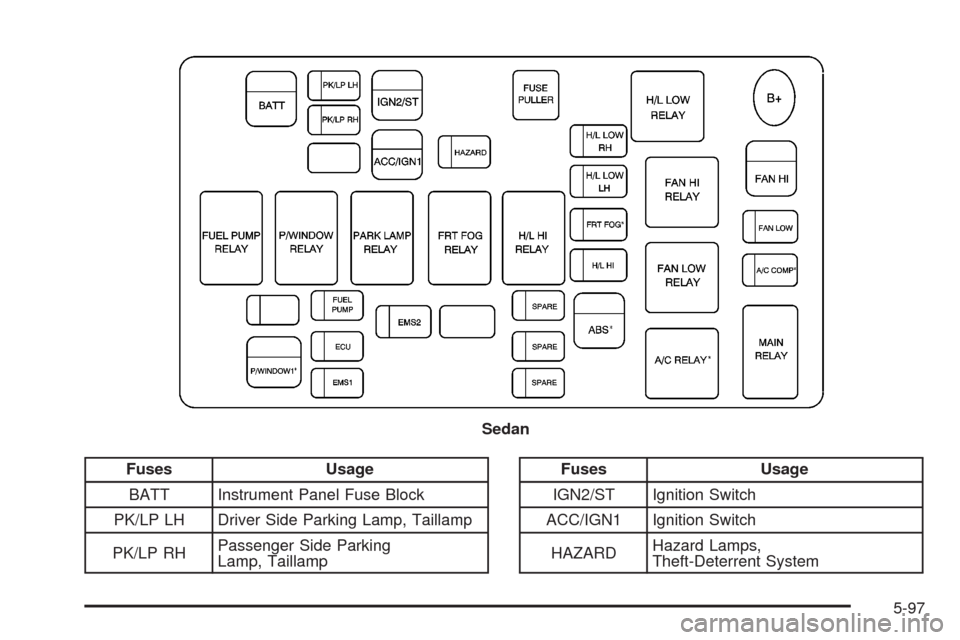

Fuses Usage
BATT Instrument Panel Fuse Block
PK/LP LH Driver Side Parking Lamp, Taillamp
PK/LP RHPassenger Side Parking
Lamp, TaillampFuses Usage
IGN2/ST Ignition Switch
ACC/IGN1 Ignition Switch
HAZARDHazard Lamps,
Theft-Deterrent System Sedan
5-97

Fuses Usage
H/L LOW RHPassenger Side Low-Beam
Headlamp
FAN HI Cooling Fan High Speed
H/L LOW LH Driver Side Low-Beam Headlamp
FRT FOG Front Fog Lamps (Option)
FAN LOW Cooling Fan Low Speed
H/L HI High-Beam Headlamps
A/C COMPAir Conditioning Compressor
(Option)
FUEL PUMP Fuel Pump
SPARE Spare
ABS Antilock Brake System (Option)
EMS2LEGR Valve, HO2S, EVAP Canister
Purge Solenoid, CMP Sensor
P/WINDOW1 Power Window Switch (Option)
ECUEngine Control Module,
Transmission Control Module
SPARE Spare
EMS1Engine Control Module, Injector,
Cooling Fan, Air Conditioning
Compressor
SPARE SpareRelays Usage
H/L LOW
RELAYLow-Beam Headlamp Relay
FAN HI RELAY Cooling Fan High Speed Relay
FUEL PUMP
RELAYFuel Pump Relay
P/WINDOW
RELAYPower Window Relay
PARK LAMP
RELAYParking Lamp Relay
FRT FOG
RELAYFront Fog Lamps Relay
H/L HI RELAY High-Beam Headlamp Relay
FAN LOW
RELAYCooling Fan Low Speed Relay
A/C RELAY Air Conditioning Relay (Option)
MAIN RELAY Main Relay
Misc. Usage
FUSE PULLER Fuse Puller
5-98
