CHEVROLET BLAZER 1997 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Universal Transmitter (If Equipped)
L

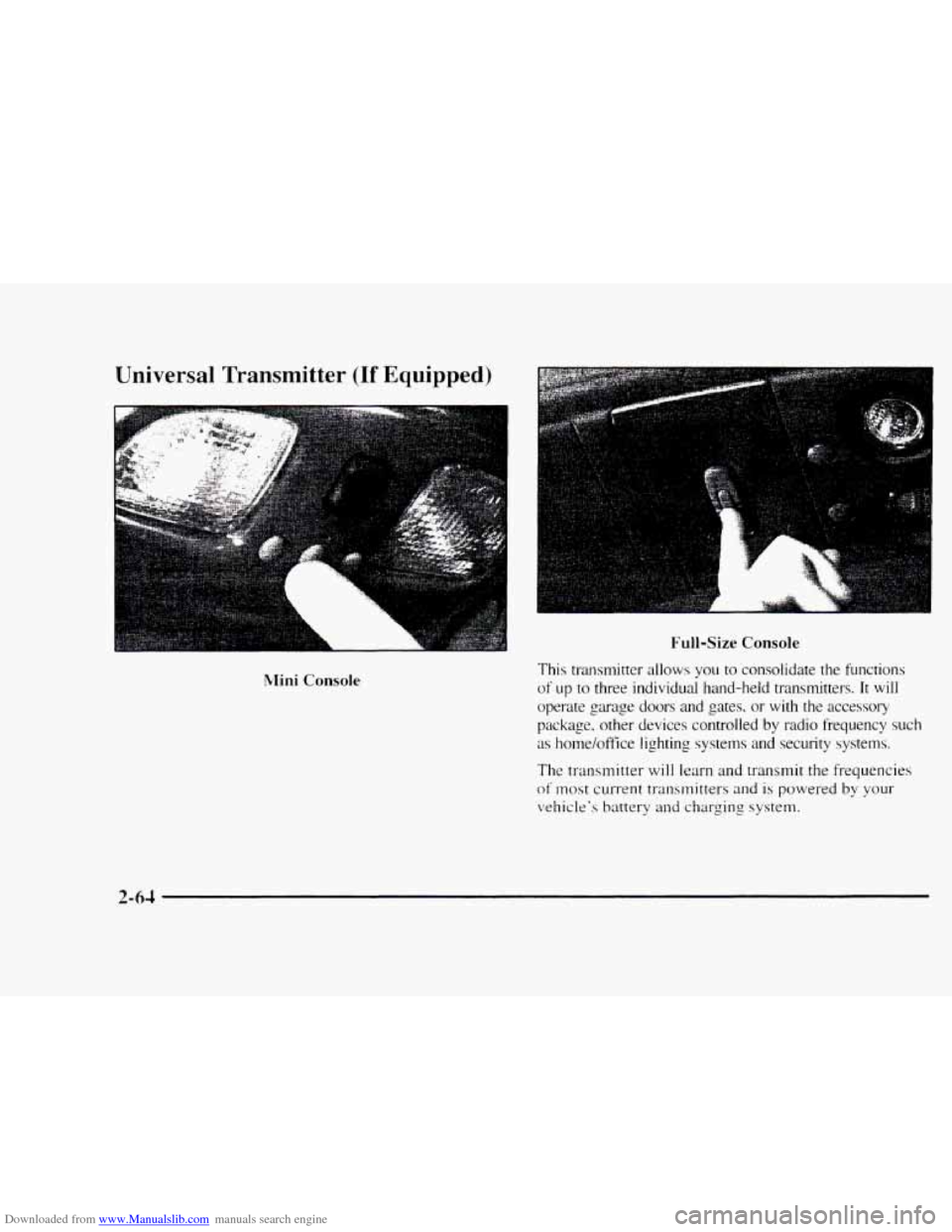

!Mini Console
Full-Size Console
This transmitter allows you to consolidate the functions
of up to three individual hand-held transmitters. It will
operate garrage doors and gates. or with the accessory
package, other devices controlled by radio frequency such
as home/office lighting systems and security systems.
The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
vehicle's battery
and charging system.

Downloaded from www.Manualslib.com manuals search engine This device complies with Part 15 of the FCC Rules.

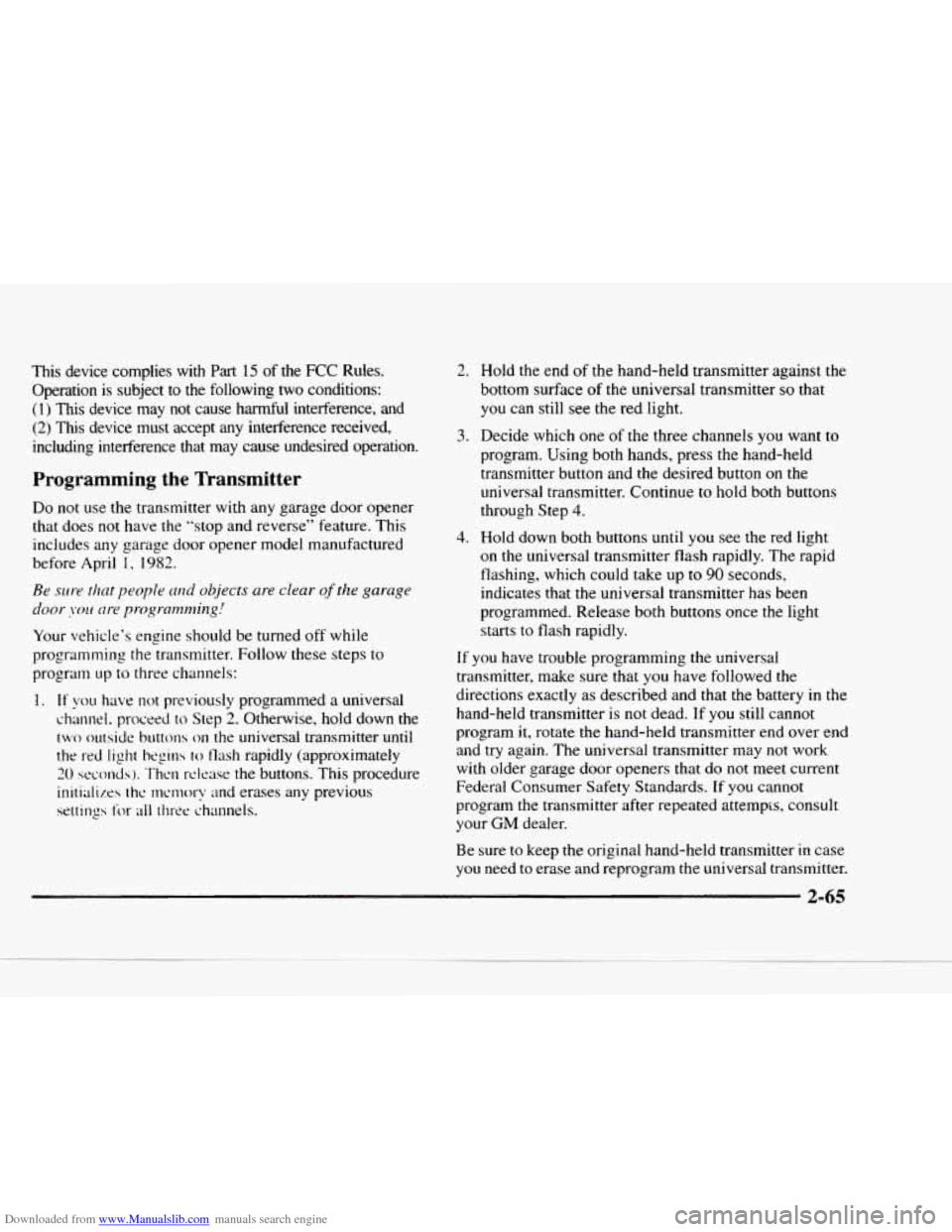

Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference
that may cause undesired operation.
Programming the Transmitter
Do not use the transmitter with any garage door opener
that does
not have the “stop and reverse’’ feature. This
includes any garage door opener model manufactured
before April
1, 1982.
Be sure that people crnd objects are clear of the garage
door j~ur are progrmnming!
Your vehicle’s engine should be turned off while
programming
the transmitter. Follow these steps to
program up to three channels:
1. If you have not previously programmed a universal
channel. proceed to Step
2. Otherwise, hold down the
two outside buttons on the universal transmitter until
the
red light begins IO !lash rapidly (approximately
20 seconds). Then release the buttons. This procedure
initialiLes
thc memory and erases any previous
settings tor all three channels.
2. Hold the end of the hand-held transmitter against the
bottom surface of the universal transmitter so that
you can still see the red light.
3. Decide which one of the three channels you want to
program. Using both hands, press
the hand-held
transmitter button and
the desired button on the
universal transmitter. Continue
to hold both buttons
through Step
4.
4. Hold down both buttons until you see the red light
on
the universal transmitter flash rapidly. The rapid
flashing, which could take up
to 90 seconds,
indicates that
the universal transmitter has been
programmed. Release both buttons once
the light
starts to flash rapidly.
11 you have trouble programming the universal
transmitter, make sure that you have followed
the
directions exactly as described and that the battery in the
hand-held transmitter is
not dead. If you still cannot
program
it, rotate the hand-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that
do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempLs, consult
your
GM dealer.
Be sure to keep the original hand-held transmitter
in case
you need to erase and reprogram
the universal transmitter.
2-65

Downloaded from www.Manualslib.com manuals search engine Operating the Transmitter

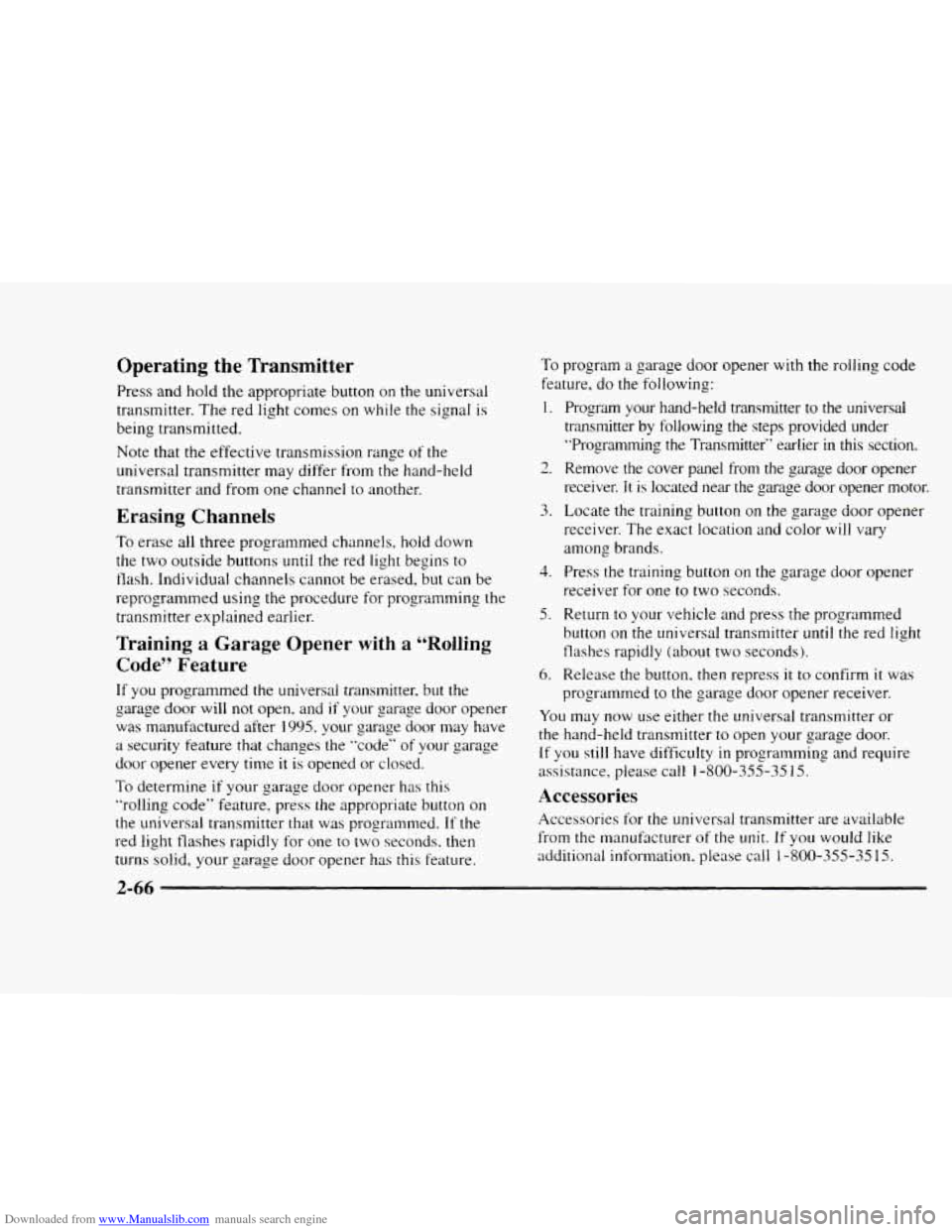

Press and hold the appropriate button on the universal
transmitter.
The red light comes on while the signal is
being transmitted.
Note
that the effective transmission range of the
universal transmitter may differ from the hand-held
transmitter
and from one channel to another.
Erasing Channels
To erase all three programmed channels. hold down
the two outside buttons
until the red light begins to
flash. Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the transmitter explained earlier.
Training a Garage Opener with a “Rolling
Code” Feature
If you programmed the universal transmitter, but the
garage door
will not open. and if your garage door opener
was manufactured after
1995, your garage door may have
a security feature that changes the ”code” of your garage
door opener every time
it is opened or closed.
To determine if your garage door opener has this
“rolling code” feature, press the appropriate button on
the universal transmitter that was programmed.
If the
red light flashes rapidly for
one to two seconds. then
turns solid, your ,oarage door opener
has this feature.
To program a garage door opener with the rolling code
feature, do the following:
1.
2.
3.
3.
5.
6.
Program your hand-held transmitter to the universal
transmitter by following the steps provided under
“Programming
the Transmitter“ earlier in this section.
Remove the cover panel from the garage door opener
receiver.
It is located near the garage door opener motor.
Locate the training button on the garage door opener
receiver. The exact location and color will vary
among brands.
Press the training button on the garage door opener
receiver for one to two seconds.
Return to your vehicle and press the programmed
button on the universal transmitter until the red light
flashes rapidly (about two seconds).
Release the button. then repress it to confirm
it was
programmed to
the garage door opener receiver.
You may now use either
the universal transmitter or
the hand-held transmitter to open your garage door.
If you still have difficulty in programming and require
assistance, please
call 1-800-355-35 15.
Accessories
Accessories for the universal transmitter are available
from the manufacturer of the unit.
If you would like
additional information. please call
1-800-355-35 15.
2-66

Downloaded from www.Manualslib.com manuals search engine Instrument Panel
I
I
2-67

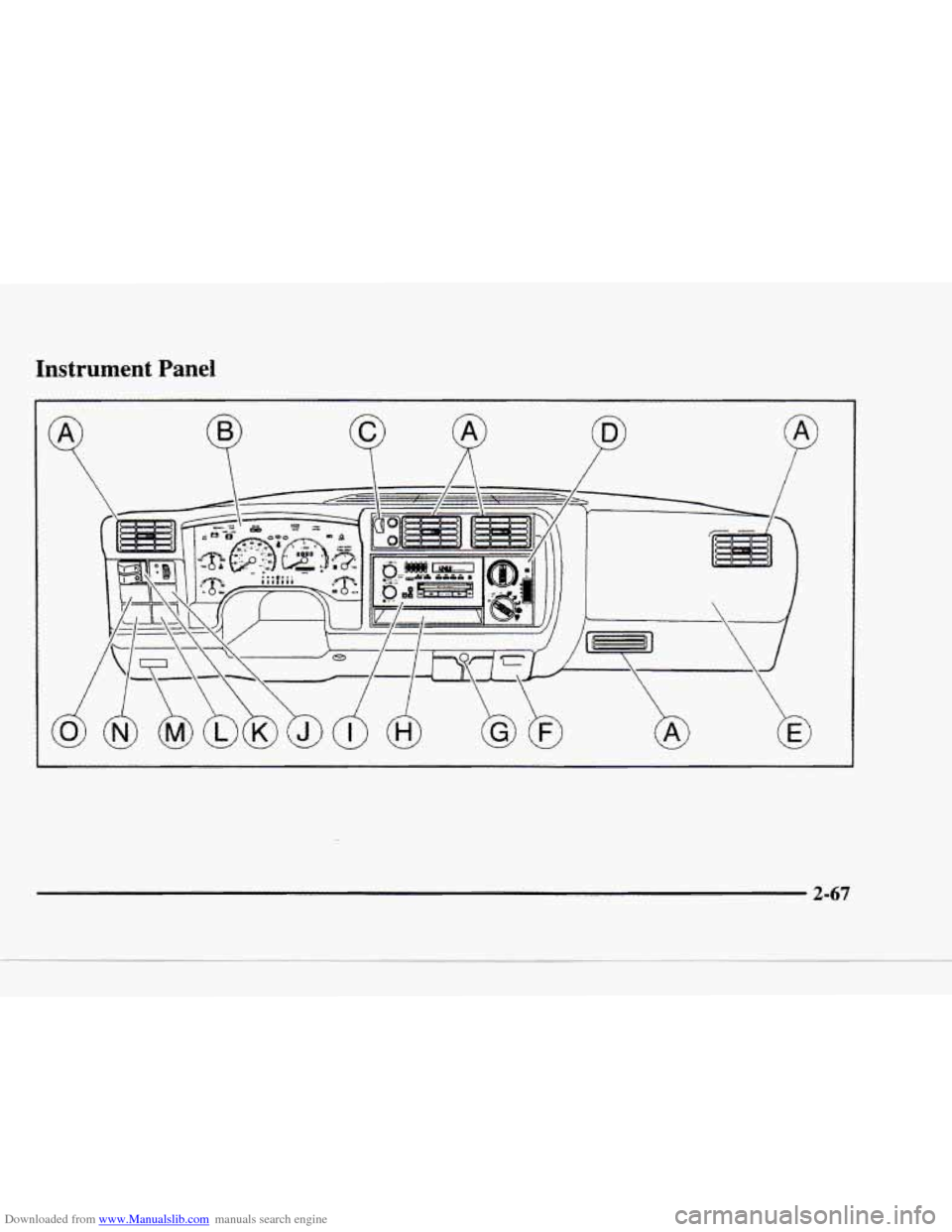

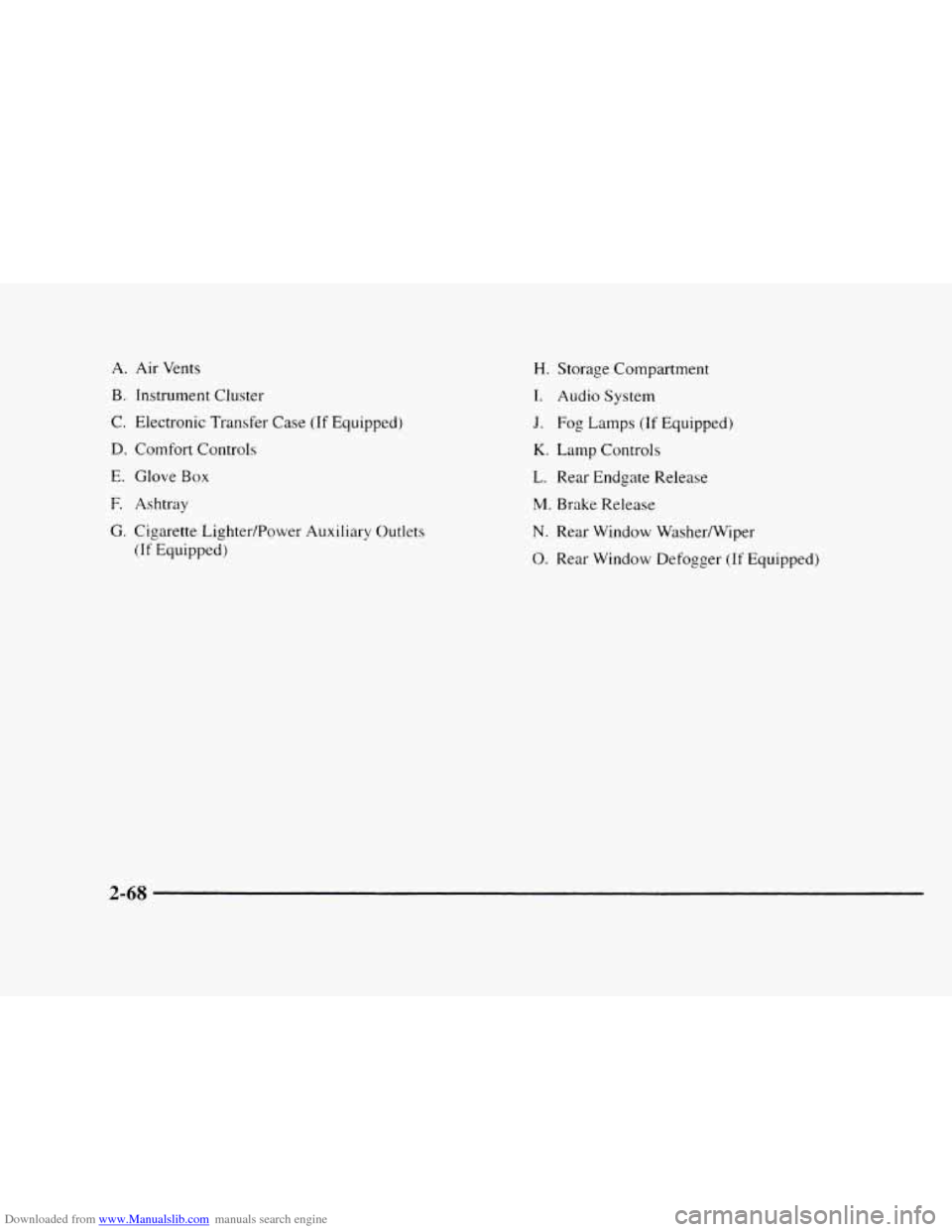

Downloaded from www.Manualslib.com manuals search engine A. Air Vents
B. Instrument Cluster
C. Electronic Transfer Case
(If Equipped)
D. Comfort Controls
E. Glove Box
F. Ashtray
G. Cigarette LightedPower Auxiliary
Outlets
(If Equipped)
H. Storage Compartment
I. Audio System
J. Fog Lamps (If Equipped)
K. Lamp Controls
L. Rear Endgate Release
M. Brake Release
N. Rear Window Washermiper
0. Rear Window Defogger (If Equipped)
2-68

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Cluster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You'll know how fast you're
going, about how much fuel you've used,
and many other things you'll need to know to drive safely and economically.
MPH PRN@D21
I000000
1 SERVICE GATE ENGINE
AJAR SHIFT 0
UNLEAMD FUEL ONLY

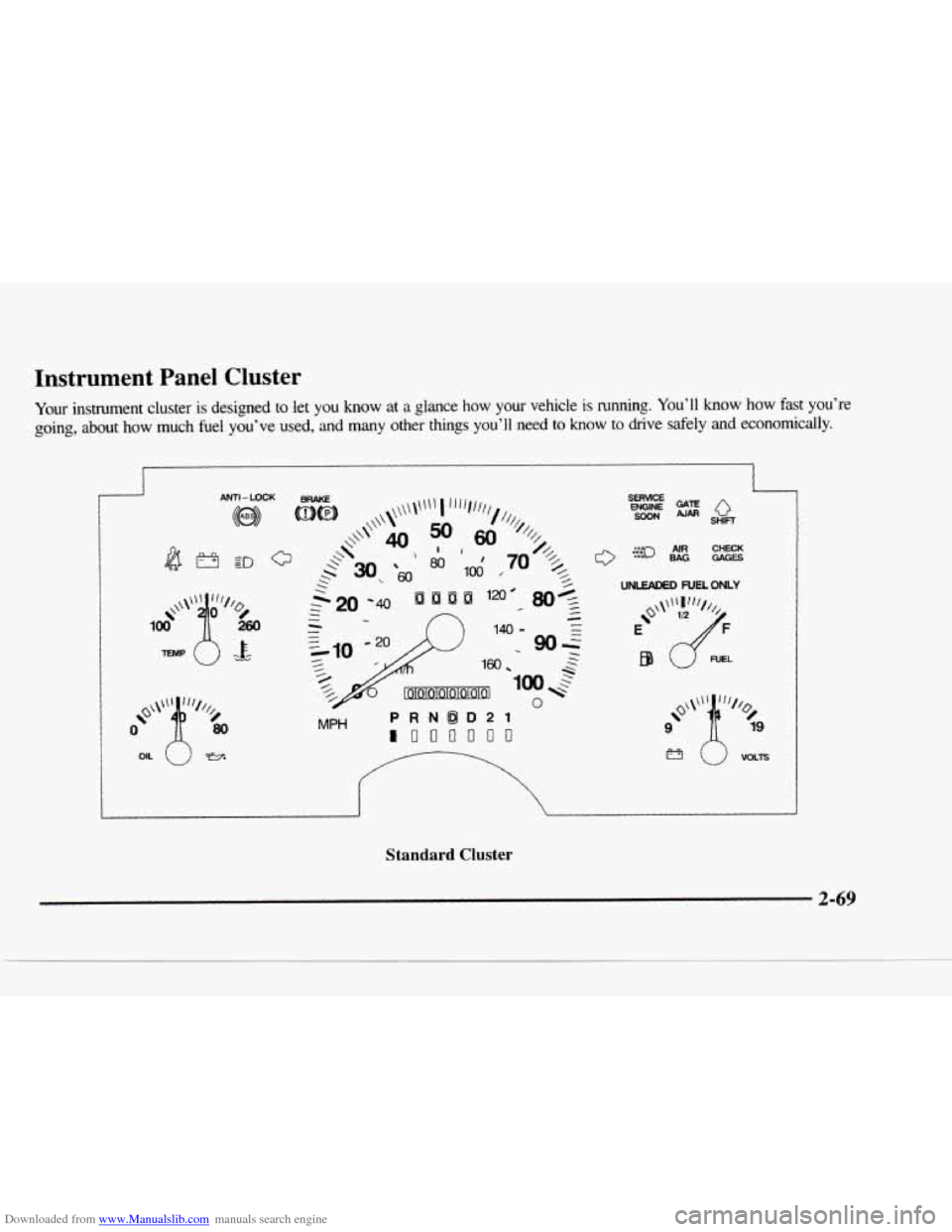

Standard Cluster
2-69

Downloaded from www.Manualslib.com manuals search engine OIL 0 53%
CHECK GAGES

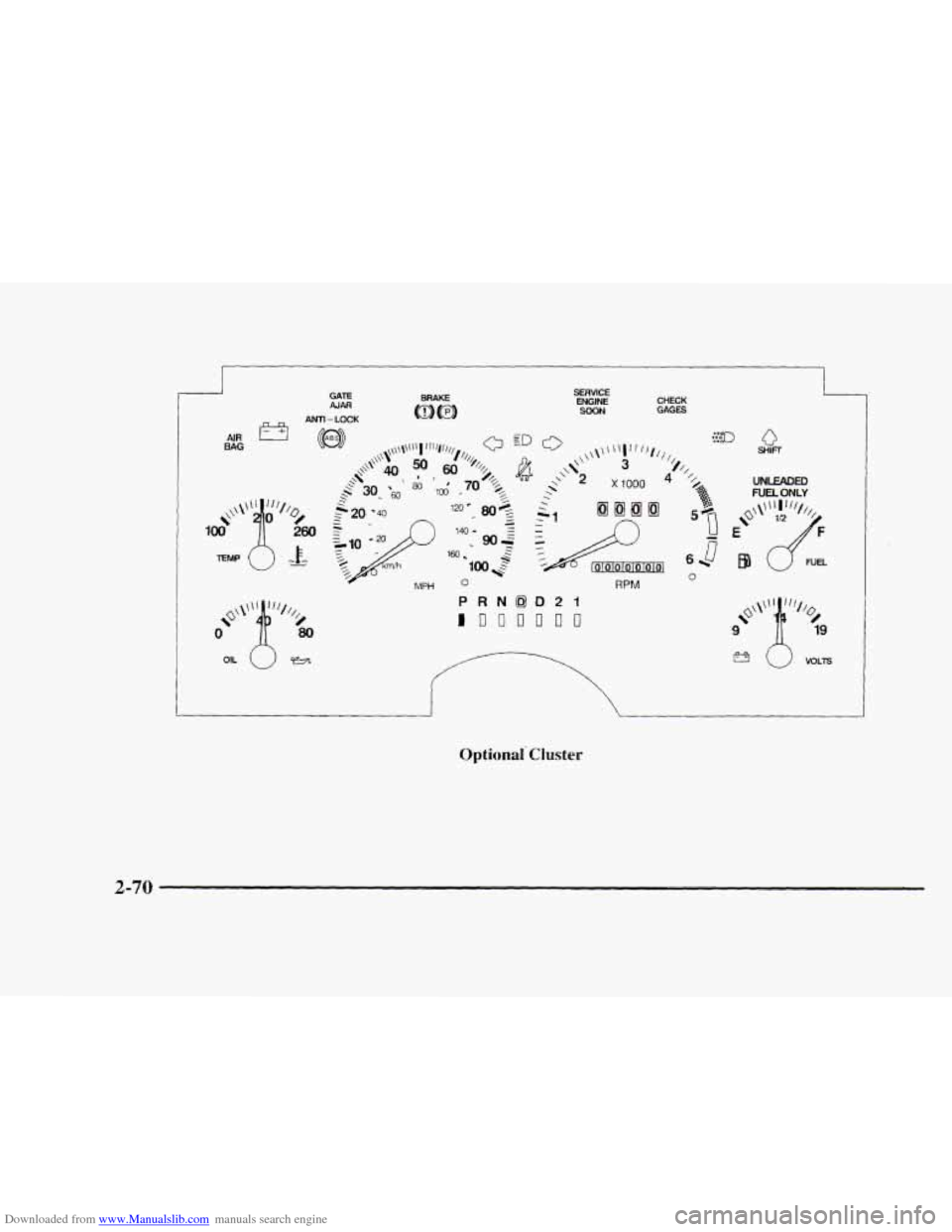

OptionaI'CIuster
2-70

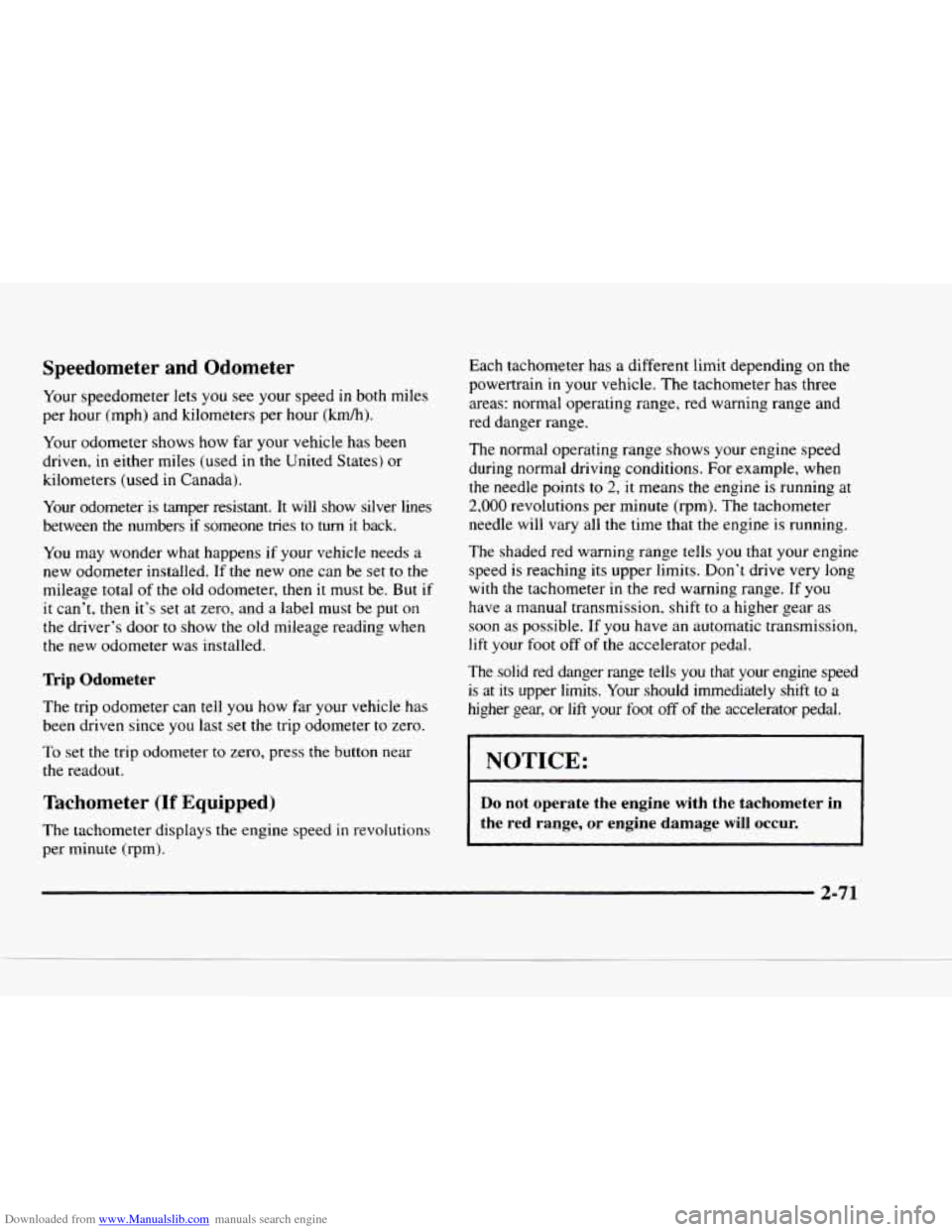

Downloaded from www.Manualslib.com manuals search engine Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven,
in either miles (used in the United States) or
kilometers (used
in Canada).
Your odometer is tamper resistant. It will show silver lines
between the numbers
if someone tries to turn it back.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of
the old odometer, then it must be. But if
it can’t, then it’s set at zero, and a label must be put on
the driver’s door to show the old mileage reading when
the new odometer was installed.
Trip Odometer
The trip odometer can tell you how far your vehicle has
been driven since you last set the trip odometer to zero.
To set the trip odometer to zero, press the button near
the readout
.
Tachometer (If Equipped)
The tachometer displays the engine speed in revolutions
per minute (rpm). Each
tachometer has
a different limit depending on the
powertrain
in your vehicle. The tachometer has three
areas: normal operating range, red warning range and
red danger range.
The normal operating range shows your engine speed
during normal driving conditions.
For example, when
the needle points to
2, it means the engine is running at
2,000 revolutions per minute (rpm). The tachometer
needle
will vary all the time that the engine is running.
The shaded red warning range teIls you
that your engine
speed is reaching
its upper limits. Don’t drive very long
with the tachometer in the red warning range. If you
have
a manual transmission, shift to a higher gear as
soon as possible. If you have an automatic transmission,
lift your foot off of the accelerator pedal.
The solid red danger range tells
you that your engine speed
is at its upper limits. Your should immediately shift to a
higher gear, or lift your foot off of the accelerator pedal.
I NOTICE:
Do not operate the engine with the tachometer in
the red range,
or engine damage will occur.
2-71

Downloaded from www.Manualslib.com manuals search engine Warning Lights, Gages and Indicators

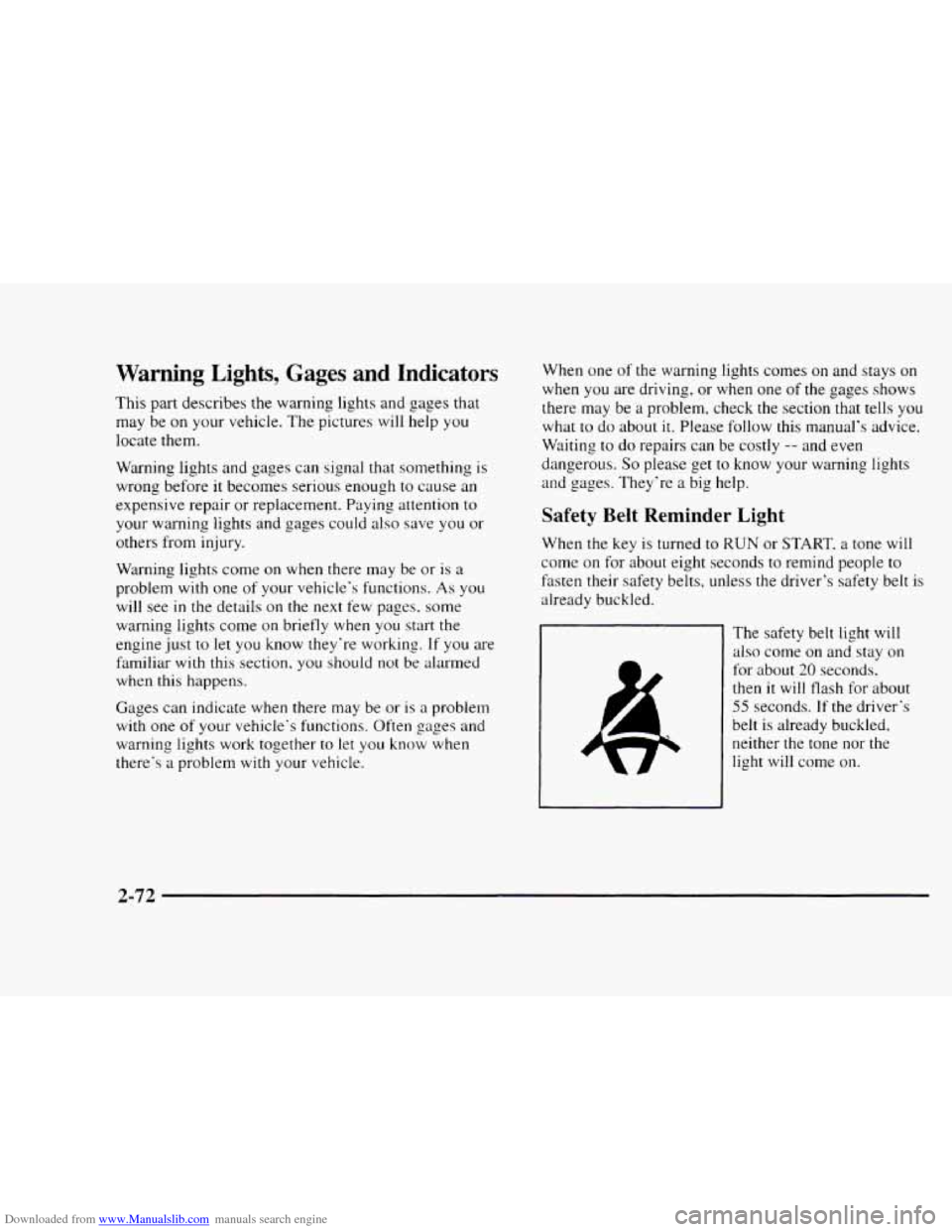

This part describes the warning lights and gages that
may be on
your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you
or
others from injury.
Warning lights come on when there may be
or is a
problem with one of
your vehicle's functions. As you
will see in the details on the next few pages. some
warning lights come on briefly when
you start the
engine just
to let you know they're workinz. If you are
familiar with this section, you
should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle's functions. Often gages and
warning lights
work together to let you know when
there's a problem
with your vehicle. When
one
of the warning lights comes on and stays on
when you are driving, or when one
of the gages shows
there may be a problem, check the section that tells
you
what to do about it. Please follow this manual's advice.
Waiting
to do repairs can be costly -- and even
dangerous.
So please get to know your warning lights
and gages. They're
a big help.
Safety Belt Reminder Light
When the key is turned to RUN or START. a tone will
come on for about eight seconds
to remind people to
fasten their safety belts, unless the driver's safety belt is
already buckled.
The safety belt
light will
also come on and stay on
for about
20 seconds.
then
it will flash for about
55 seconds. If the driver's
belt is already buckled,
neither the tone nor the
light
will come on.
2-72

Downloaded from www.Manualslib.com manuals search engine Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows
AIR BAG. The system checks the
air bag’s electrical system for malfunctions. The light
tells you
if there is an electrical problem. The system
check includes
the air bag sensors, the air bag module,
the wiring and
the diagnostic module. For more
information
on the air bag system, see ‘*Air Bag” in
the Index.
AIR
BAG
This light will come on
when you start your engine,
and
it will flash for a few
seconds.
Then the light
should
go out. This means
the system
is ready.
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your air bag
system may
not work properly. Have your vehicle
serviced right away. The
air bag
readiness light should flash for a few
seconds when
you turn the ignition key to RUN. If the
light doesn’t corne
on then, have it fixed so it will be
ready
to warn you if there is a problem.
Charging System Indicator Light
II..
~ The charging system light
~ will come on briefly when
you turn on the ignition,
but the engine is not
running,
as a check to
show you it is working.
It should go out once the engine is running. If it stays
on, or comes on while you are driving, you may have
a problem with the charging system. It could indicate
that
you have problems with a generator drive belt, or
another electrical problem. Have
it checked right away.
Driving while
this light is on could drain your battery.
If you must drive a short distance with the light on, be
certain to turn off all your accessories, such as the radio
and air conditioner.
2-73
