Downloaded from www.Manualslib.com manuals search engine Door Locks

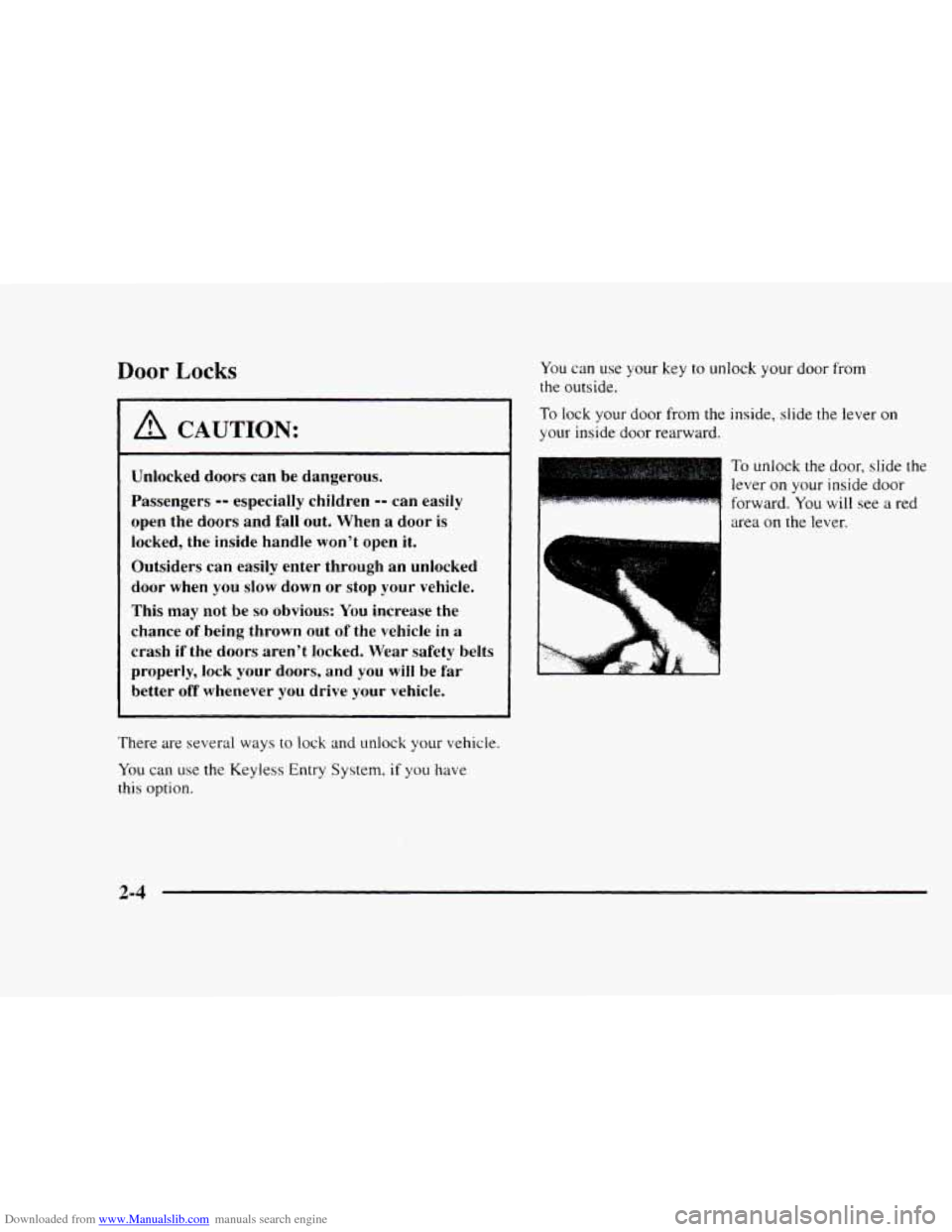

A CAUTION:
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and
fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down
or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle
in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
I
There are several ways to lock and unlock your vehicle.
You can use the Keyless Entry System,
if you have
this option. You
can use your key to unlock your door from
the outside.
To lock your door from the inside, slide the lever on
your inside door rearward.
To unlock the door, slide the
lever on your inside door
forward. You
will see a red
area
on the lever.
2-4

Downloaded from www.Manualslib.com manuals search engine Power Door Locks (If Equipped)

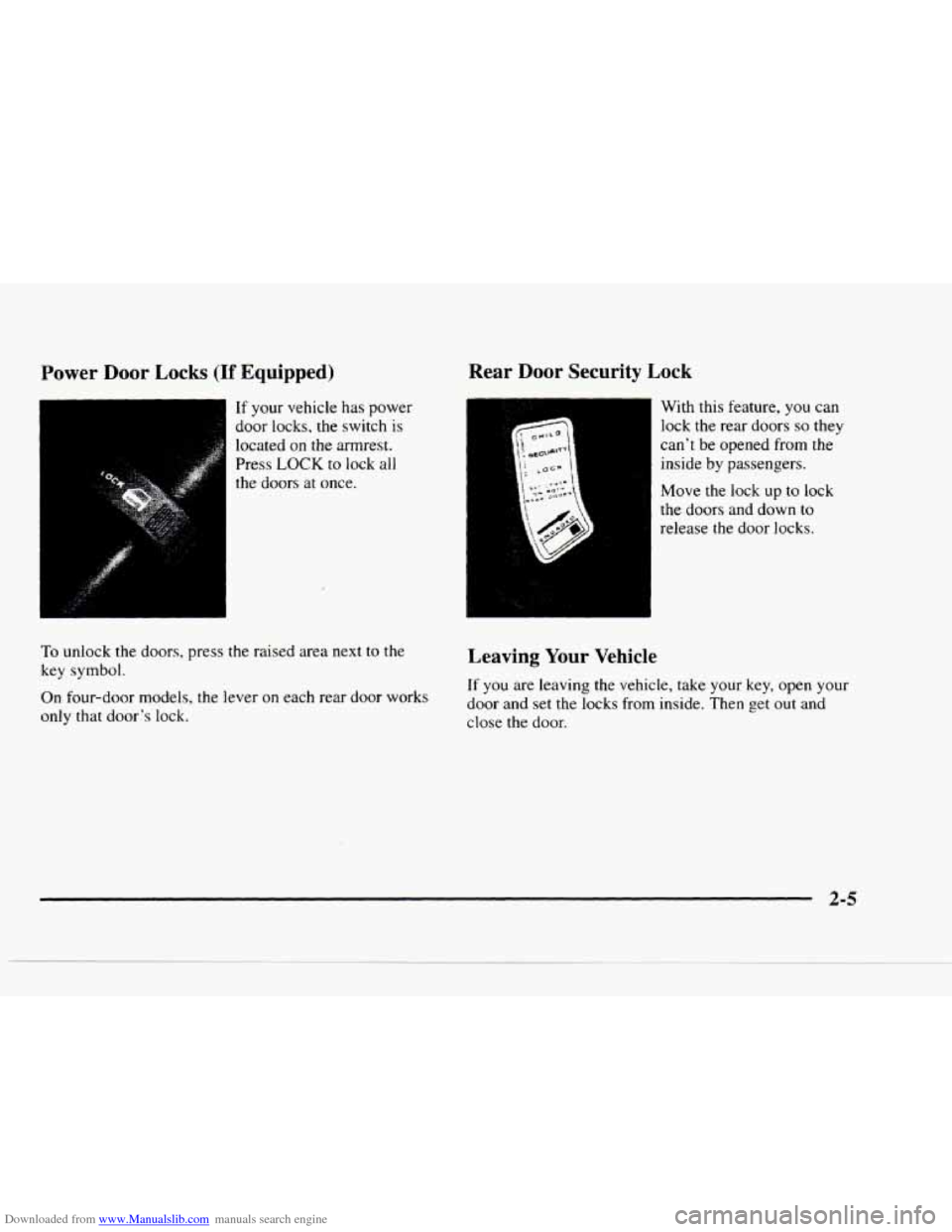

If your vehicle has power
door locks, the switch is
located
on the armrest.
Press
LOCK to lock all
the doors at once.
Rear Door Security Lock
4s
With this feature, you can
lock the rear doors
so they
can’t be opened from the
inside by passengers.
Move the lock
up to lock
the doors and down to
release the door locks.
To unlock the doors, press the raised area next to the
key symbol.
On four-door models, the lever on eacn rear
aoor worm
only that door’s lock.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door.

Downloaded from www.Manualslib.com manuals search engine Keyless Entry System (If Equipped)
If your vehicle has this option, you can lock and unlock
your doors and rear endgate from up
to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your Keyless Entry System operates on
a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry and
Science Canada.
This device complies with
Part 15 of the FCC Rules.
Operation
is subject to the following two conditions:
(1 ) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that
may cause undesired operation.
This device complies with
RSS-210 of Industry and
Science Canada. Operation is subject
to the following
two conditions:
(1) this device may not cause
interference, and
(2) this device must accept any
interference received. including interference that may
cause undesired operation
of the device.
Changes or modifications to this system other than an
authorized service facility could void authorization
to
use this equipment. This
system has
a range of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work, try this:
0
e
e
e
Check to determine if battery replacement or
resynchronization
is necessary. See the instructions
that follow.
Check the distance.
You may be too far from your
vehicle. You may
need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take
a few steps to the left or right,
and
try again.
If you're still having trouble. see your GM dealer or
a qualified technician for service.
Changes or modifications
to this system by other than an
authorized service facility could void authorization to
use this equipment.
2-6

Downloaded from www.Manualslib.com manuals search engine Operation

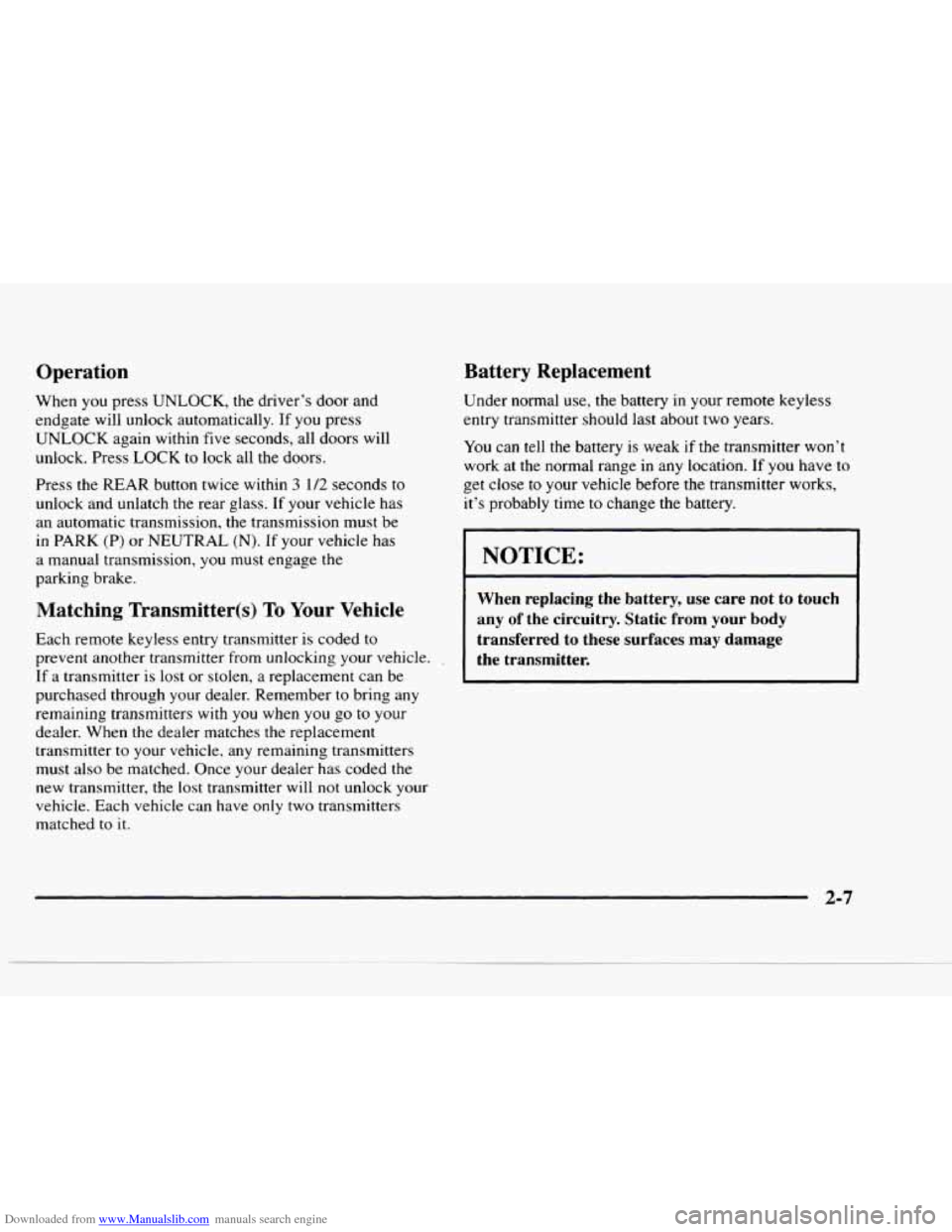

When you press UNLOCK, the driver’s door and endgate will unlock automatically.
If you press
UNLOCK again within five seconds, all doors will
unlock. Press
LOCK to lock all the doors.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should
last about two years.
Press the REAR button twice within
3 1/2 seconds to
unlock and unlatch
the rear glass. If your vehicle has
an automatic transmission, the transmission must be
in PARK (P) or NEUTRAL (N).
If your vehicle has
a manual transmission, you must engage the
parking brake.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters
with you when you go to your
dealer. When
the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only two transmitters
matched
to it.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
2-7

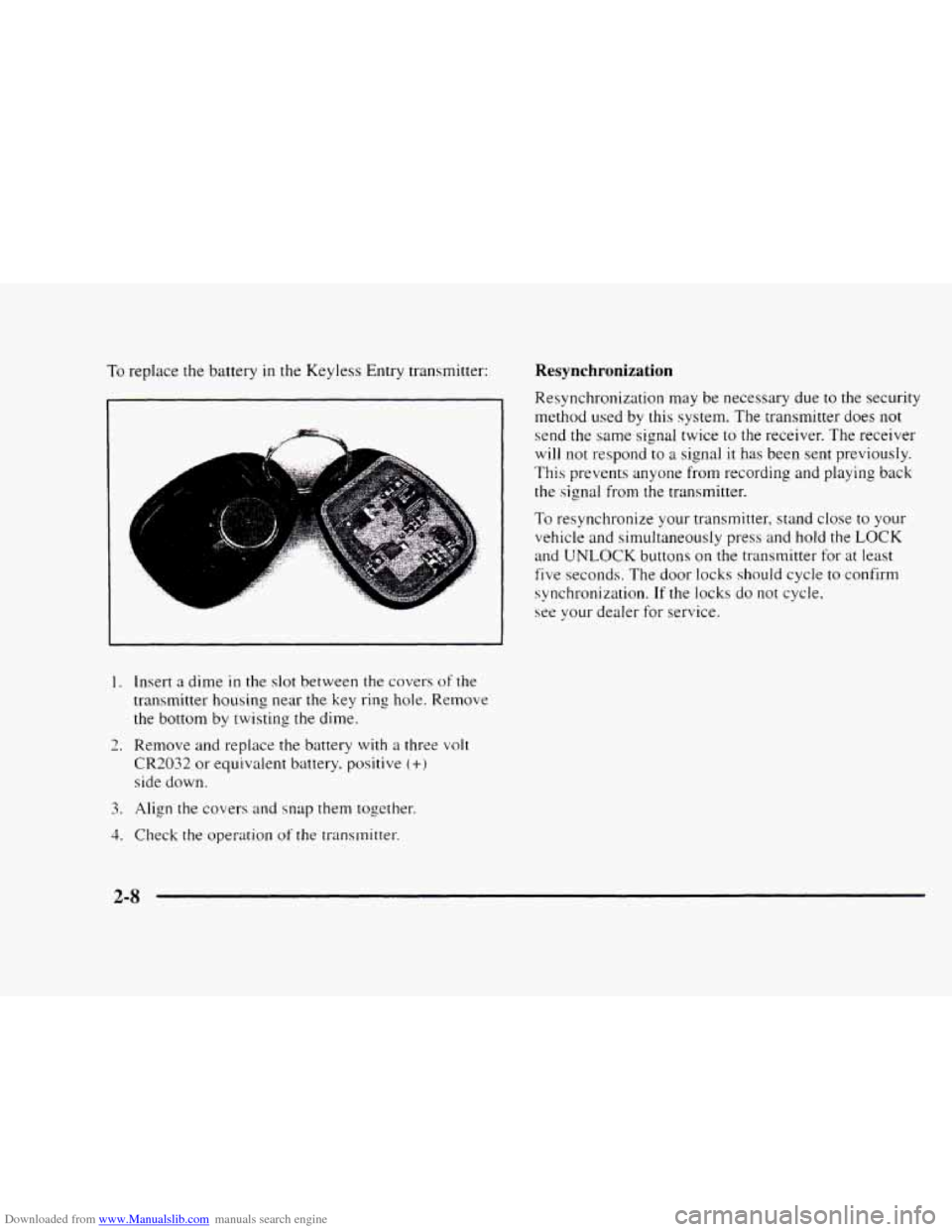

Downloaded from www.Manualslib.com manuals search engine To replace the battery in the Keyless Entry transmitter:
L
&.
I.
2.
3.
4.
Insert a dime in the slot between the covers of the
transmitter housing near the key ring hole. Remove
the bottom by twisting the dime.
Remove and replace the battery with
a three volt
CR2032 or equivalent battery, positive (+)
side down.
Align
the covers and snap them together.
Check the operation
of the transmitter.
Resynchronization
Resynchronization may be necessary due to the security
method used by this system. The transmitter does
not
send the same signal twice to the receiver. The receiver
will not respond to a signal it has been sent previously.
This prevents anyone from recording
and playing back
the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold the
LOCK
and UNLOCK buttons on the transmitter for at least
five seconds. The door locks should cycle to confirm
synchronization.
If the locks do not cycle,
see your dealer for service.
2-8

Downloaded from www.Manualslib.com manuals search engine EndgateLiftgate

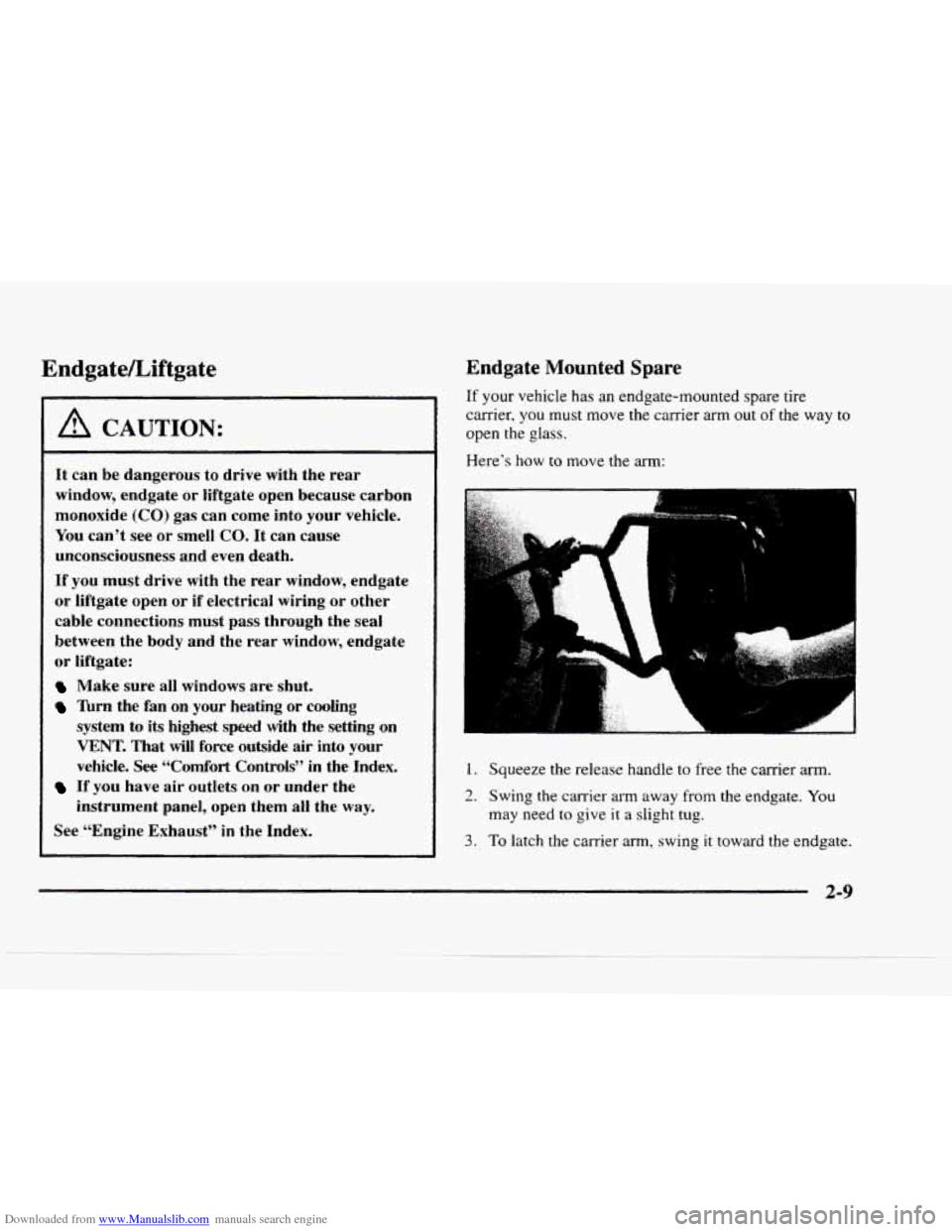

A CAUTION:
It can be dangerous to drive with the rear
window, endgate or liftgate open because carbon
monoxide (CO) gas can come into your vehicle.
You can’t see or smell CO. It can cause
unconsciousness and even death.
If you must drive with the rear window, endgate
or liftgate open or
if electrical wiring or other
cable connections must pass through the seal
between the body and the rear window, endgate
or liftgate:
Make sure all windows are shut.
Turn the fan on your heating or cooling
system to
its highest speed with the setting on
VENT. That will force outside air into your
vehicle. See
“Comfort Controis” in the Index.
instrument panel, open them all the way.
If you have air outlets on or under the
See “Engine Exhaust”
in the Index.
Endgate Mounted Spare
If your vehicle has an endgate-mounted spare tire
carrier,
you must move the carrier arm out of the way to
open the glass.
Here’s how to move the arm:
d
I
1. Squeeze the release handle to free the carrier arm.
2. Swing the carrier arm away from the endgate. You
3. To latch the carrier arm, swing it toward the endgate.
may need
to give it a slight tug.
2-9

Downloaded from www.Manualslib.com manuals search engine Endgate Release
To open a mechanical lock system from the outside,
insert the key
into the lock and turn it counterclockwise
to unlock the glass.
The endgate and glass will automatically lock when shut.
To open a power lock system from the outside, insert the
key into the lock button and turn counterclockwise.
All
doors will unlock.
You may also use the keyless entry system, or the power
door locks,
if you're vehicle is so equipped.
When doors are
press the button
the
glass.
unlocked,
to open Reach inside
the endgate
to lift the
handle and open
the endgate.
The endgate can be opened without
a key if the driver's
door
is unlocked. The endgate glass will not release if
the vehicle is in gear.
To lock a power lock system from the outside, insert
the
key into the lock button and turn clockwise. All
doors will lock.
2-10

Downloaded from www.Manualslib.com manuals search engine Remote Rear Glass Release
REAR HATCH I

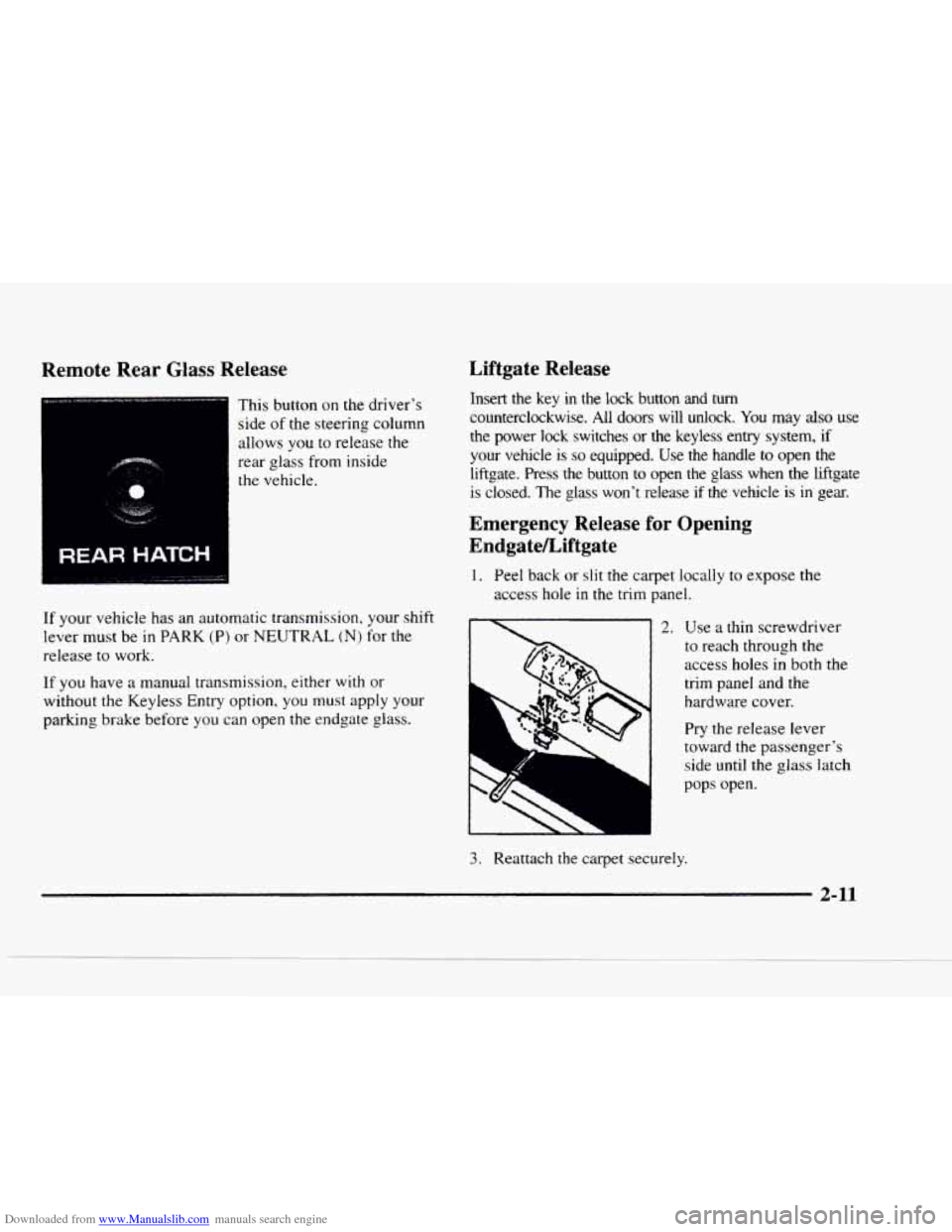

This button on the driver's
side
of the steering column
allows
you to release the
rear glass from inside
the vehicle.
If your vehicle has an automatic transmission, your shift
lever must be
in PARK (P) or NEUTRAL (,N) for the
release to work.
If you have
a manual transmission, either with or
without the Keyless Entry option, you must apply your
parking brake before you can open
the endgate glass.
Liftgate Release
Insert the key in the lock button and turn
counterclockwise. All doors will unlock. You may also use
the power lock switches or the keyless entry system, if
your vehicle
is so equipped. Use the handle to open the
liftgate. Press the button
to open the glass when the liftgate
is closed. The glass won't release if the vehicle
is in gear.
Emergency Release for Opening
EndgateLiftgate
1. Peel back or slit the carpet locally to expose the
access hole
in the trim panel.
ii 2. Use a thin screwdriver
1
~ 2'''
to reach through the
access holes in both the
trim panel and the
hardware cover.
Pry the release lever
toward the passenger's
side until
the glass latch
pops open.
3. Reattach the carpet securely.
- 44

Downloaded from www.Manualslib.com manuals search engine Theft Parking at Night

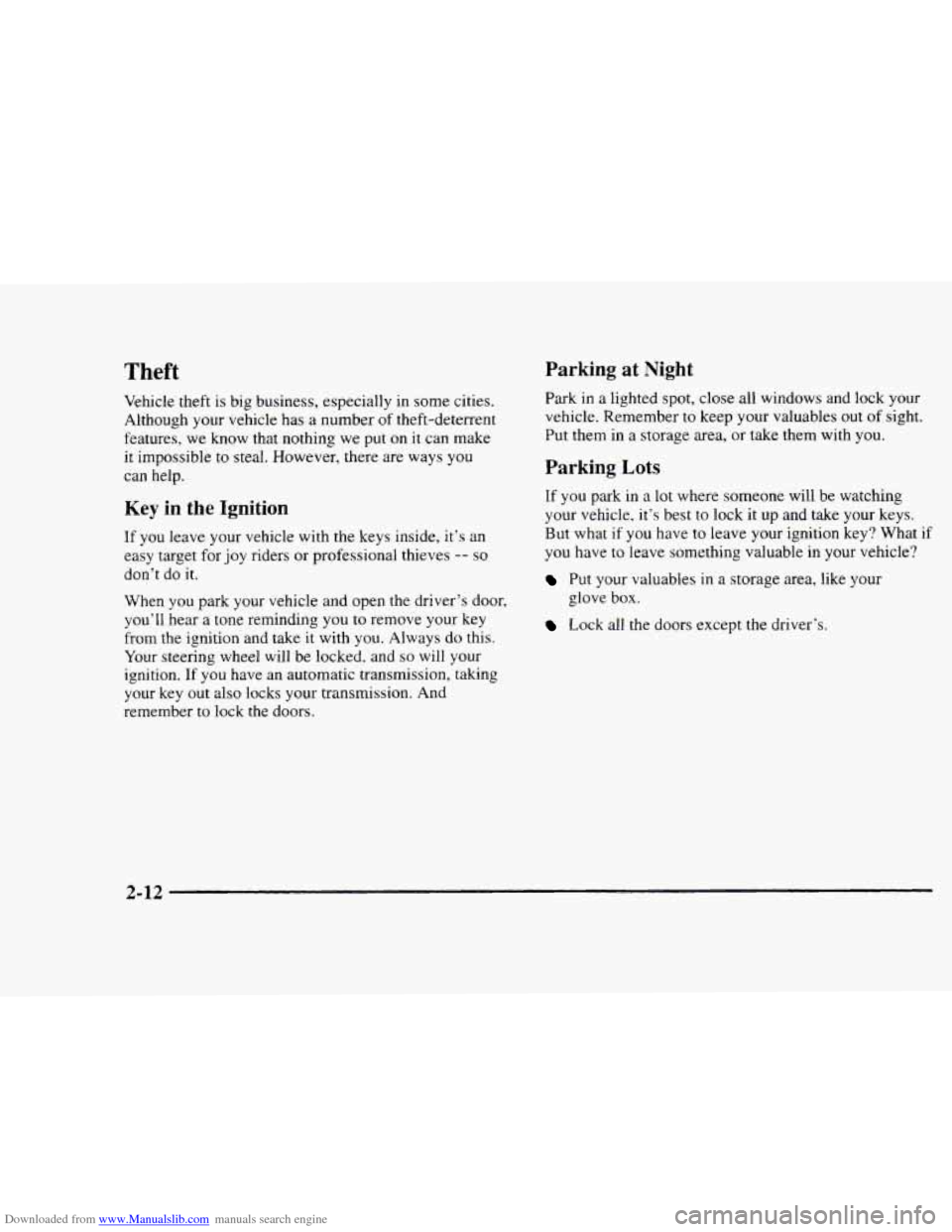

Vehicle theft is big business, especially in some cities.
Although your vehicle has a number
of theft-deterrent
features, we know that nothing we put on
it can make
it impossible
to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for
joy riders or professional thieves -- so
don‘t do it.
When you park your vehicle and open the driver’s door,
you’II hear a tone reminding
you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked. and
so will your
ignition. If you have an automatic transmission, taking
your key
out also locks your transmission. And
remember to lock the doors. Park
in a
lighted spot, close all windows and lock your
vehicle. Remember
to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle. it’s best
to lock it up and take your keys.
But what
if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your
glove box.
Lock all the doors except the driver’s.
2-12

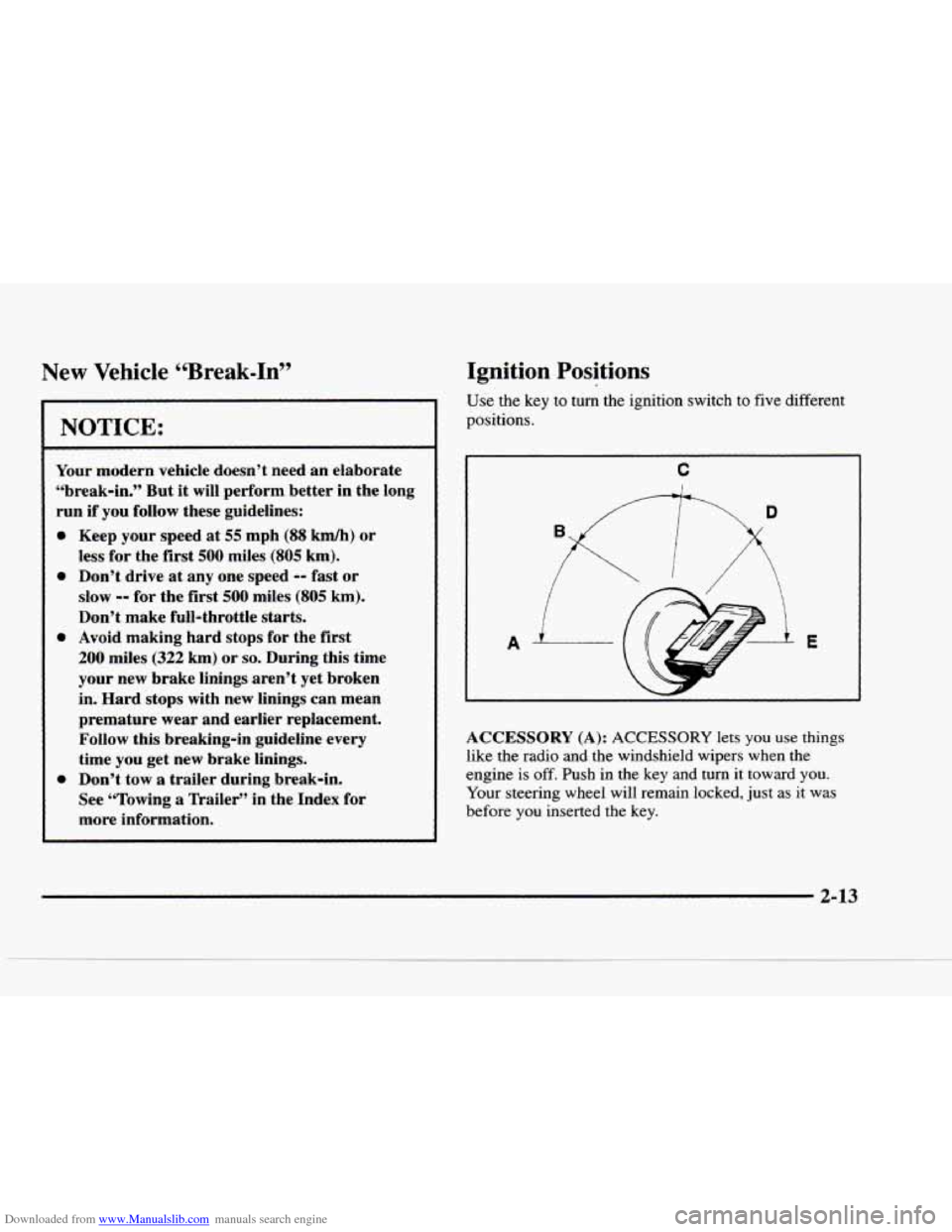

Downloaded from www.Manualslib.com manuals search engine New Vehicle “Break-In”
I NOTICE:
~ ~~ ~ ~
Your modern vehicle doesn’t need an elaborate
“break-in.” But
it will perform better in the long
run if you follow these guidelines:
0 Keep your speed at 55 mph (88 km/h) or
less for the
first 500 miles (805 km).
0 Don’t drive at any one speed -- fast or
slow
-- for the first 500 miles (805 km).
Don’t make full-throttle starts.
200 miles (322 km) or so. During this time
your new brake linings aren’t yet broken
in. Hard
stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
See “Towing
a Trailer’’ in the Index for
more information.
0 Avoid making hard stops for the first
0 Don’t tow a trailer during break-in.
Ignition Positions
Use the key to turn the ignition switch to five different
positions.
A
C
E
ACCESSORY (A): ACCESSORY lets you use things
like the radio and the windshield wipers when
the
engine is off. Push in the key and turn it toward you.
Your steering wheel will remain locked, just as it was
before
you inserted the key.
2-13
