CHEVROLET BLAZER 1997 2.G Owner's Guide

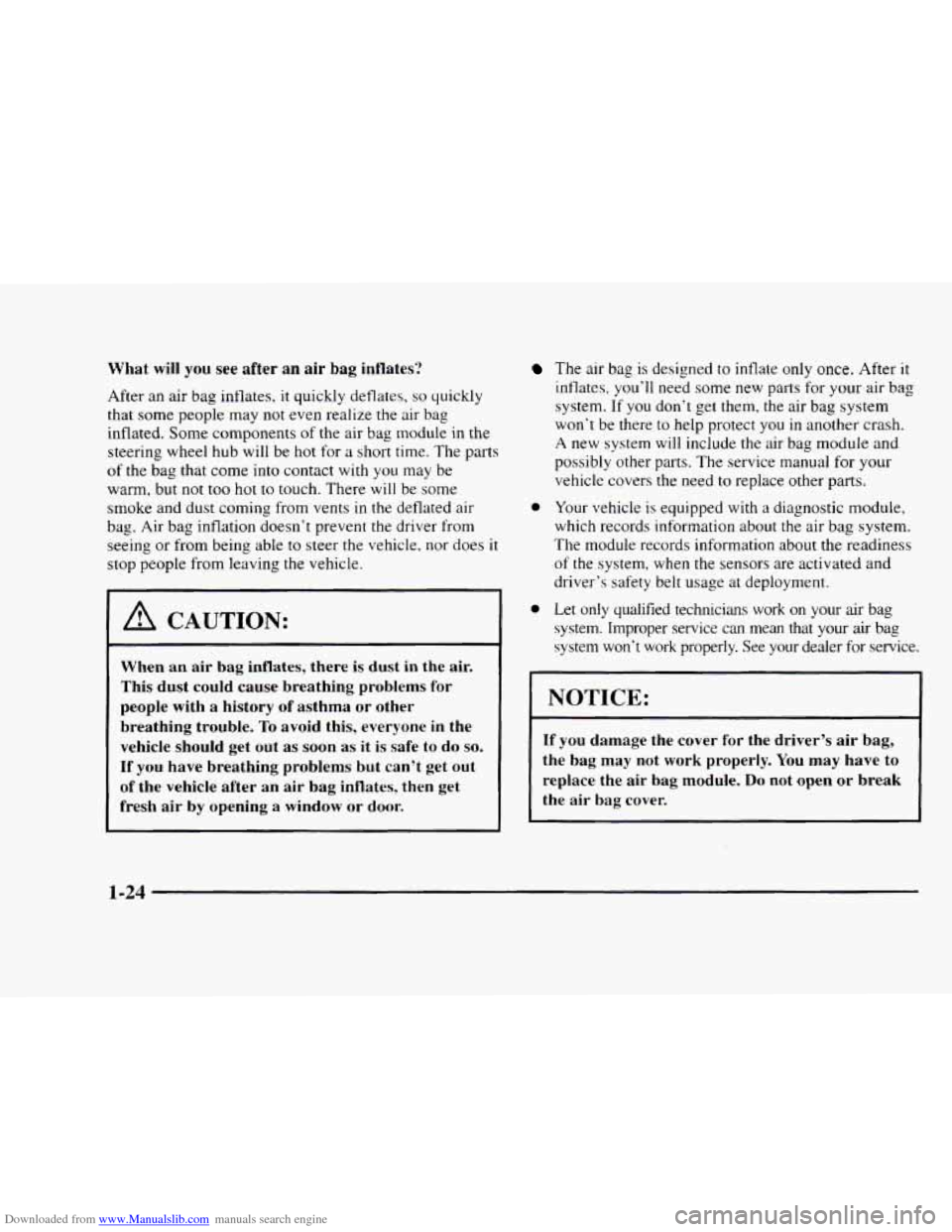

Downloaded from www.Manualslib.com manuals search engine What will you see after an air bag inflates?
After an air bag inflates, it quickly deflates, so quickly
that some people may not even realize the air bag
inflated. Some components of the air bag module
in the
steering wheel hub will be hot for a short time. The parts
of the bag that come into contact with you may be
warm, but not too
hot to touch. There will be some
smoke and dust coming from vents
in the deflated air
bag. Air bag inflation doesn’t prevent the driver from
seeing or from being able to steer
the vehicle. nor does it
stop people from leaving the vehicle.
A CAUTION:
When an air bag inflates, there is dust in the air.
This dust could cause breathing problems for
people with
a history of asthma or other
breathing trouble. To avoid this, everyone in the
vehicle should get out as soon as it
is safe to do so.
If you have breathing problems but can’t get out
of the vehicle after an air bag inflates, then get
fresh air
by opening a window or door.
0
0
The air bag is designed to inflate only once. After it
inflates, you’ll need some new parts for your air bag
system. If you don’t get them, the air bag system
won’t be there to help protect you in another crash.
A new system will include the air bag module and
possibly other parts. The service manual for your
vehicle covers the need
to replace other parts.
Your vehicle is equipped with
it diagnostic module,
which records information about the air bag system.
The module records information about the readiness
of the system. when the sensors are activated and
driver’s safety belt usage at deployment.
Let only qualified technicians work on your
air bag
system. Improper service can mean
that your air bag
system won’t work properly. See your dealer for service.
NOTICE:
If you damage the cover for the driver’s air bag,
the bag may not work properly. You may have to
replace the air bag module.
Do not open or break
the
air bag cover.
1-24

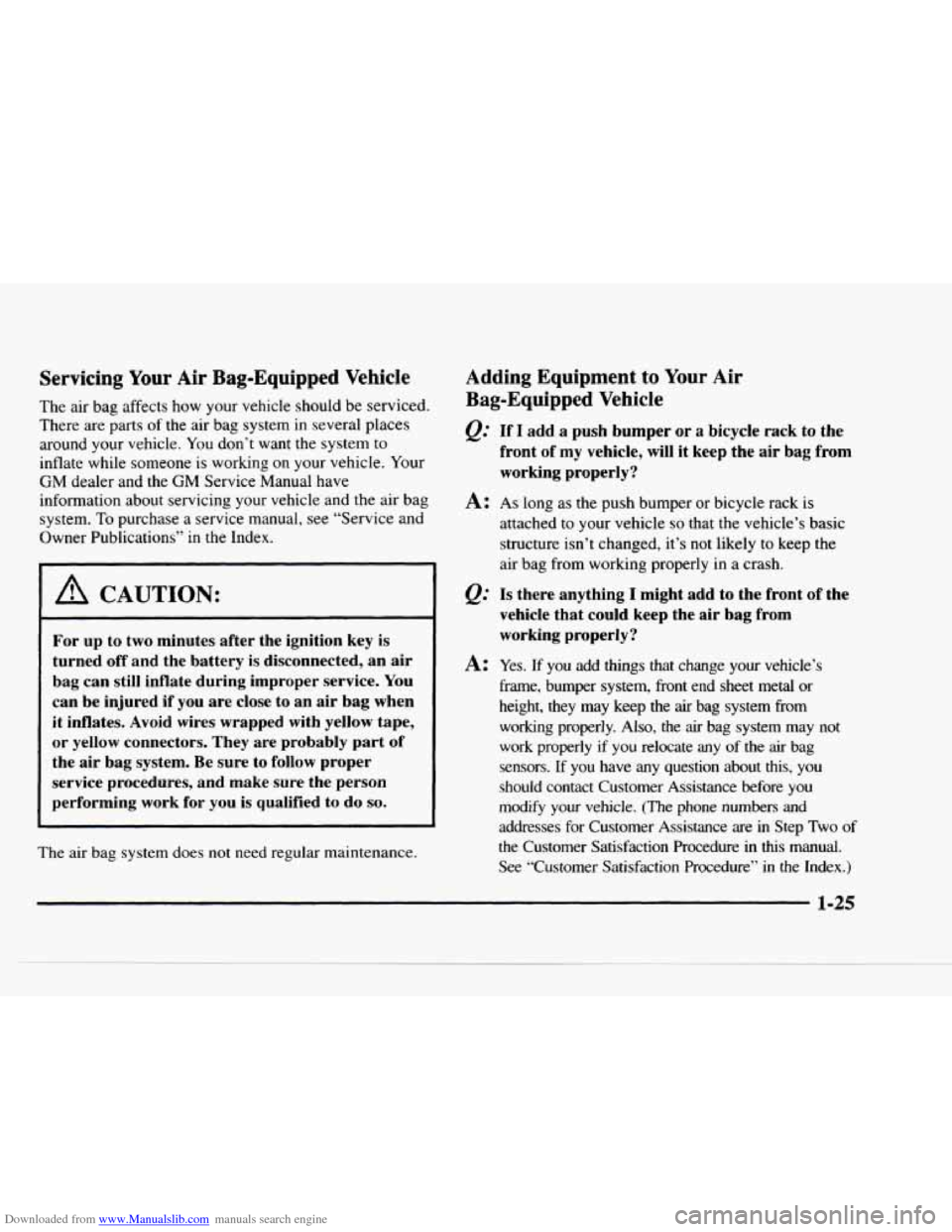

Downloaded from www.Manualslib.com manuals search engine Servicing Your Air Bag-Equipped Vehicle
The air bag affects how your vehicle should be serviced.
There are parts
of the air bag system in several places
around your vehicle. You don’t
want the system to
inflate while someone is working on your vehicle. Your
GM dealer and the GM Service Manual have
information about servicing your vehicle and the air bag
system. To purchase a service manual, see “Service and
Owner Publications” in the Index.
A CAUTION:
For up to two minutes after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service.
You
can be injured if you are close to an air bag when
it inflates. Avoid wires wrapped with yellow tape,
or yellow connectors. They are probably part
of
the air bag system. Be sure to follow proper
service procedures, and make sure the person
performing work for you
is qualified to do so.
~ ~ ~~~~ ~ ~
The air bag system does not need regular maintenance.
Adding Equipment to Your Air
Bag-Equipped Vehicle
Q: If I add a push bumper or a bicycle rack to the
front
of my vehicle, will it keep the air bag from
working properly?
A: As long as the push bumper or bicycle rack is
attached to your vehicle
so that the vehicle’s basic
structure isn’t changed, it’s not likely to keep the
air bag from working properly in a crash.
@’ Is there anything I might add to the front of the
vehicle that could keep the air
bap from
working properly?
A: Yes. If you add things that change your vehicle’s
frame, bumper system, front end sheet metal or
height, they may keep the
air bag system from
working properly. Also, the
air bag system may not
work properly
if you relocate any of the air bag
sensors.
If you have any question about this, you
should contact Customer Assistance before you
modify your vehicle. (The phone numbers
and
addresses for Customer Assistance are in Step Two of
the Customer Satisfaction Procedure in this manual.
See “Customer Satisfaction Procedure” in the Index.)

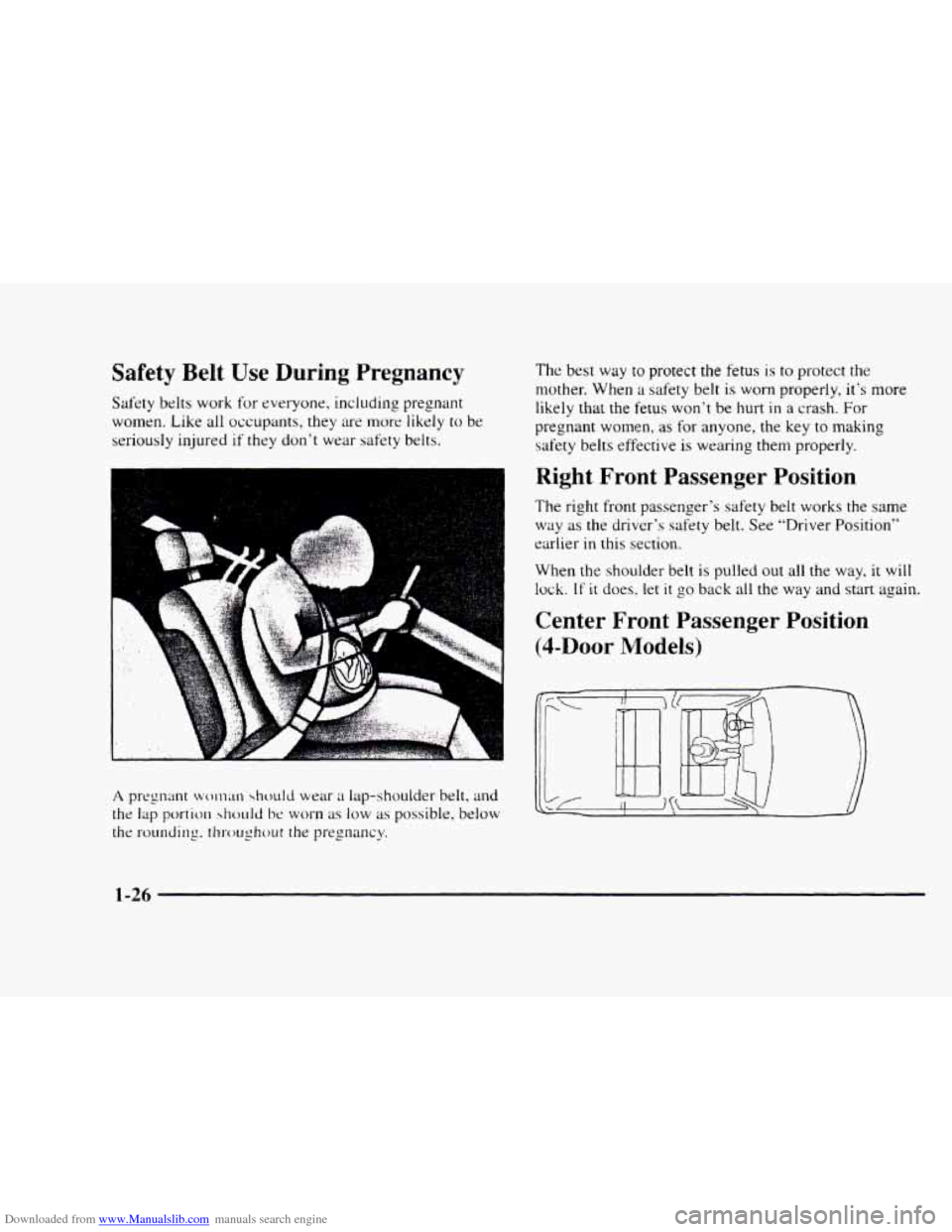

Downloaded from www.Manualslib.com manuals search engine Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like
all occupants, they are more likely to be
seriously injured
if they don't wear safety belts. The
best way to protect the fetus is to protect the
mother.
When a safety belt is worn properly, it's more
likely
that the fetus won't be hurt in a crash. For
pregnant women,
as for anyone, the key to making
safety belts effective
is wearing them properly.
Right Front Passenger Position
The right front passenger's safety belt works the same
way
as the driver's safety belt. See "Driver Position"
earlier in this section.
When the shoulder belt
is pulled out all the way, it will
lock. If it does, let it go back all the way and start again.
Center Front Passenger Position
(4-Door Models)
1-26

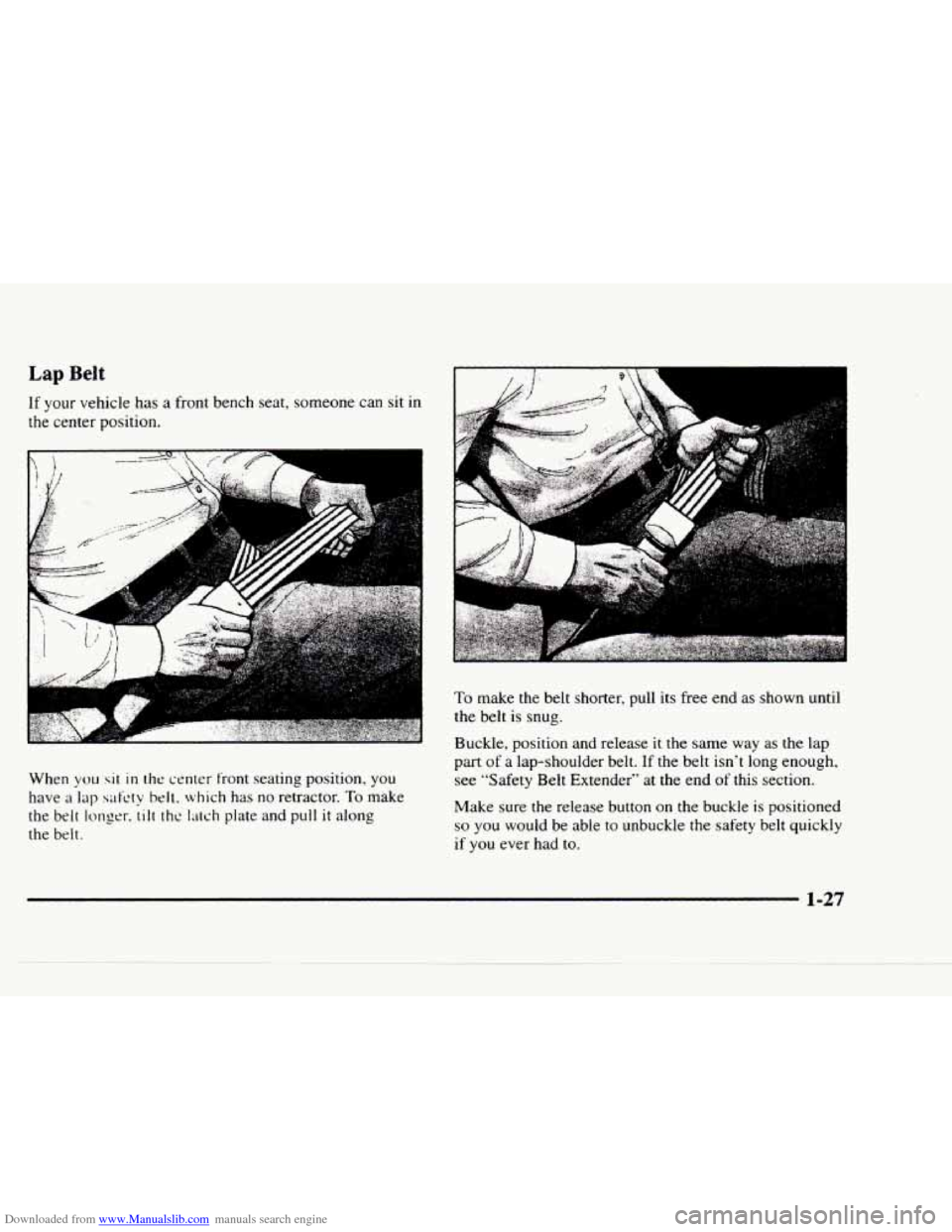

Downloaded from www.Manualslib.com manuals search engine Lap Belt
If your vehicle has a front bench seat, someone can sit in
the center position.
When
you sit in rhr center front seating position, you
have a lap safety belt. which has no retractor. To make
the belt
longer. tilt the latch plate and pull it along
the belt.
To make the belt shorter, pull its free end as shown until
the belt is snug.
Buckle, position and release
it the same way as the lap
part of a lap-shoulder belt. If the belt isn’t long enough,
see “Safety Belt Extender’’ at the end of this section.
Make sure
the release button on the buckle is positioned
so you would be able to unbuckle the safety belt quickly
if you ever had to.
1-27

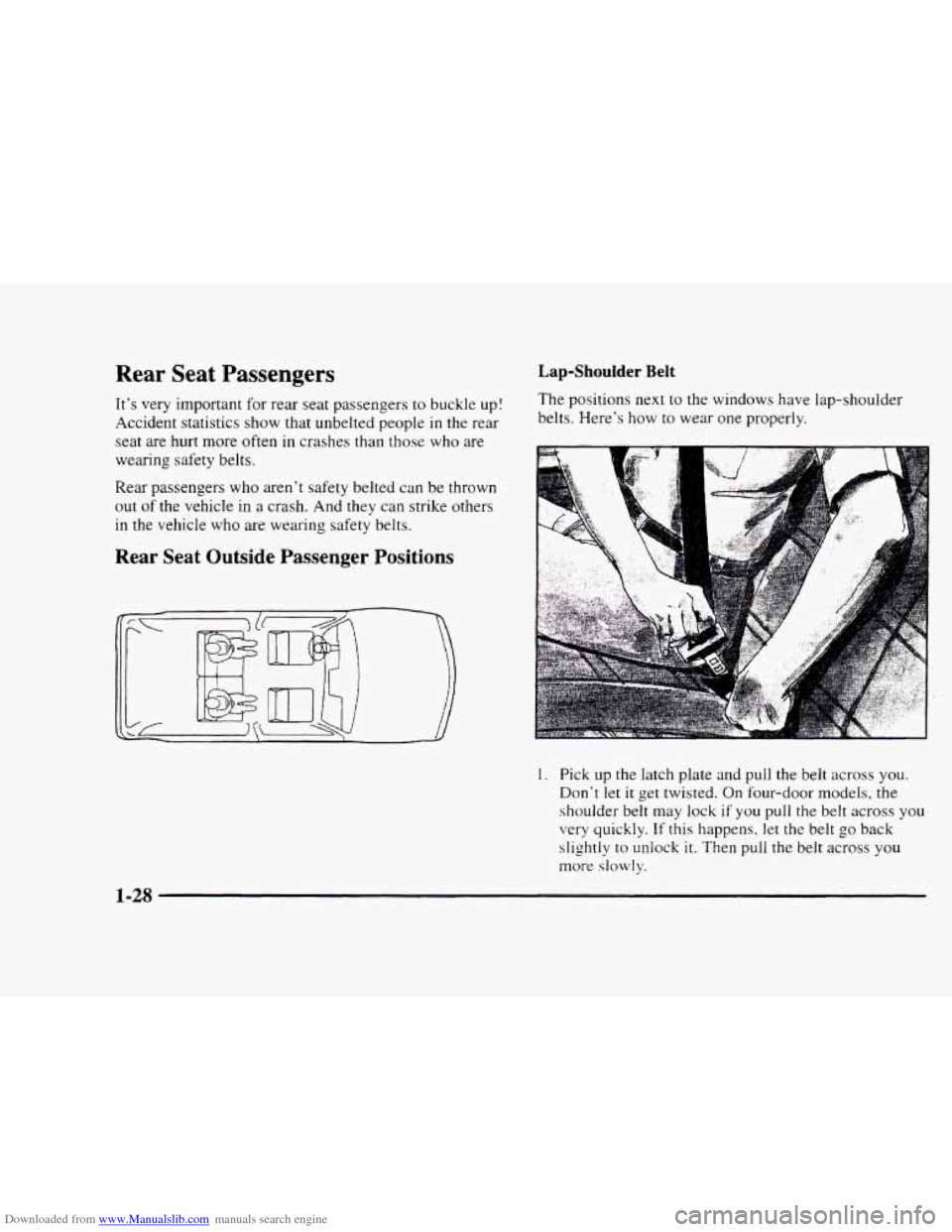

Downloaded from www.Manualslib.com manuals search engine Rear Seat Passengers
It’s very important for rear seat passengers to buckle up!
Accident statistics show that unbelted people
in the rear
seat are hurt more often
in crashes than those who are
wearing safety belts.
Rear passengers
who aren’t safety belted can be thrown
out
of the vehicle in a crash. And they can strike others
in the vehicle who are wearing safety belts.
Rear Seat Outside Passenger Positions
Lap-Shoulder Belt
The positions next to the windows have lap-shoulder
belts. Here’s
how to wear one properly.
1. Pick up the latch plate and pull the belt across you.
Don’t let it get twisted. On four-door models, the
shoulder belt may lock
if you pull the belt across you
very quickly. If this happens, let the belt go back
slightly to unlock
it. Then pull the belt across you
more slowly.
1-28

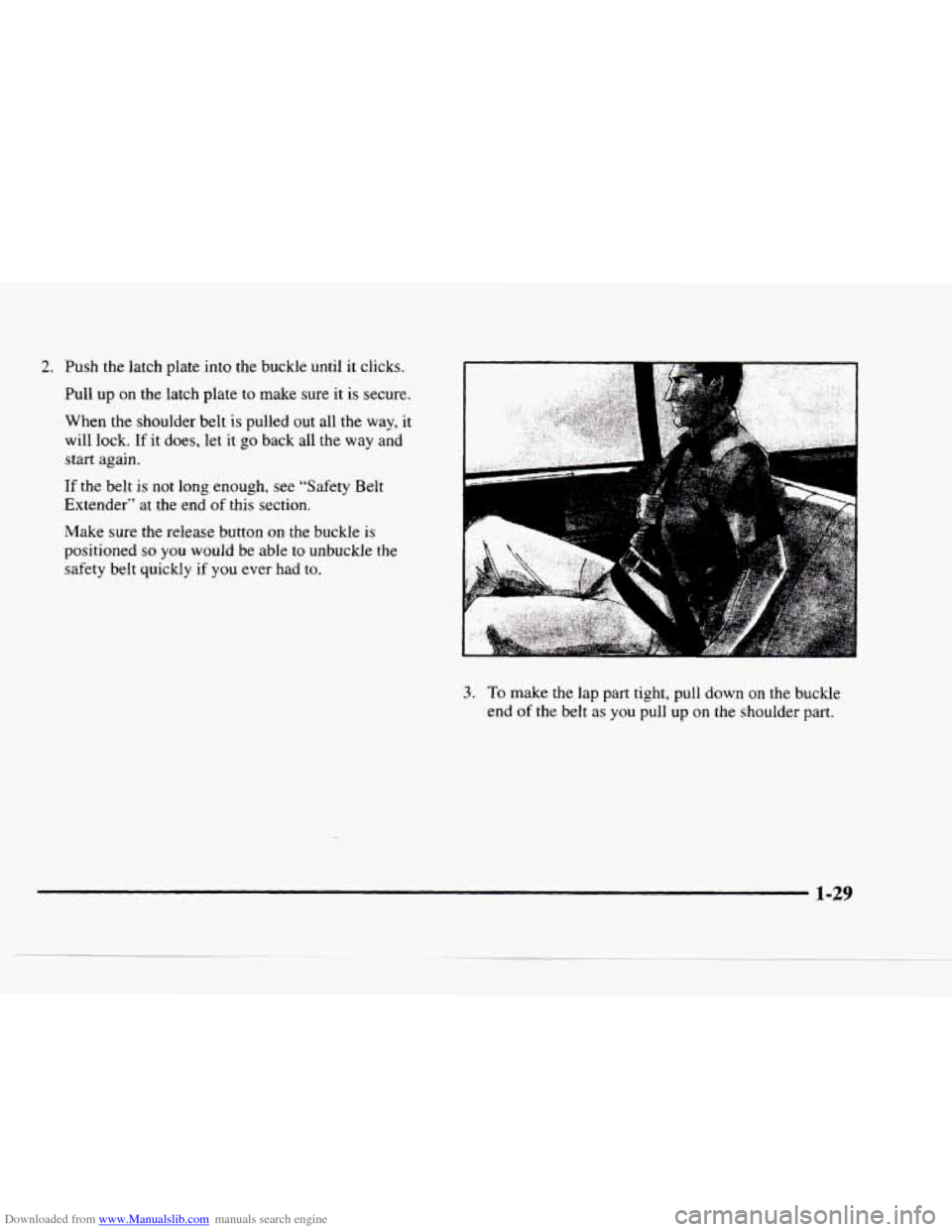

Downloaded from www.Manualslib.com manuals search engine 2. Push the latch plate into the buckle until it clicks.
Pull up
on the latch plate to make sure it is secure.
When the shoulder belt
is pulled out all the way, it
will lock. If it does, let it go back all the way and
start again.
If the belt is
not long enough, see “Safety Belt
Extender” at the end
of this section.
Make sure the release button on the buckle is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
3. To make the lap part tight, pull down on the buckle
end
of the belt as you pull up on the shoulder part.
1-29

Downloaded from www.Manualslib.com manuals search engine m

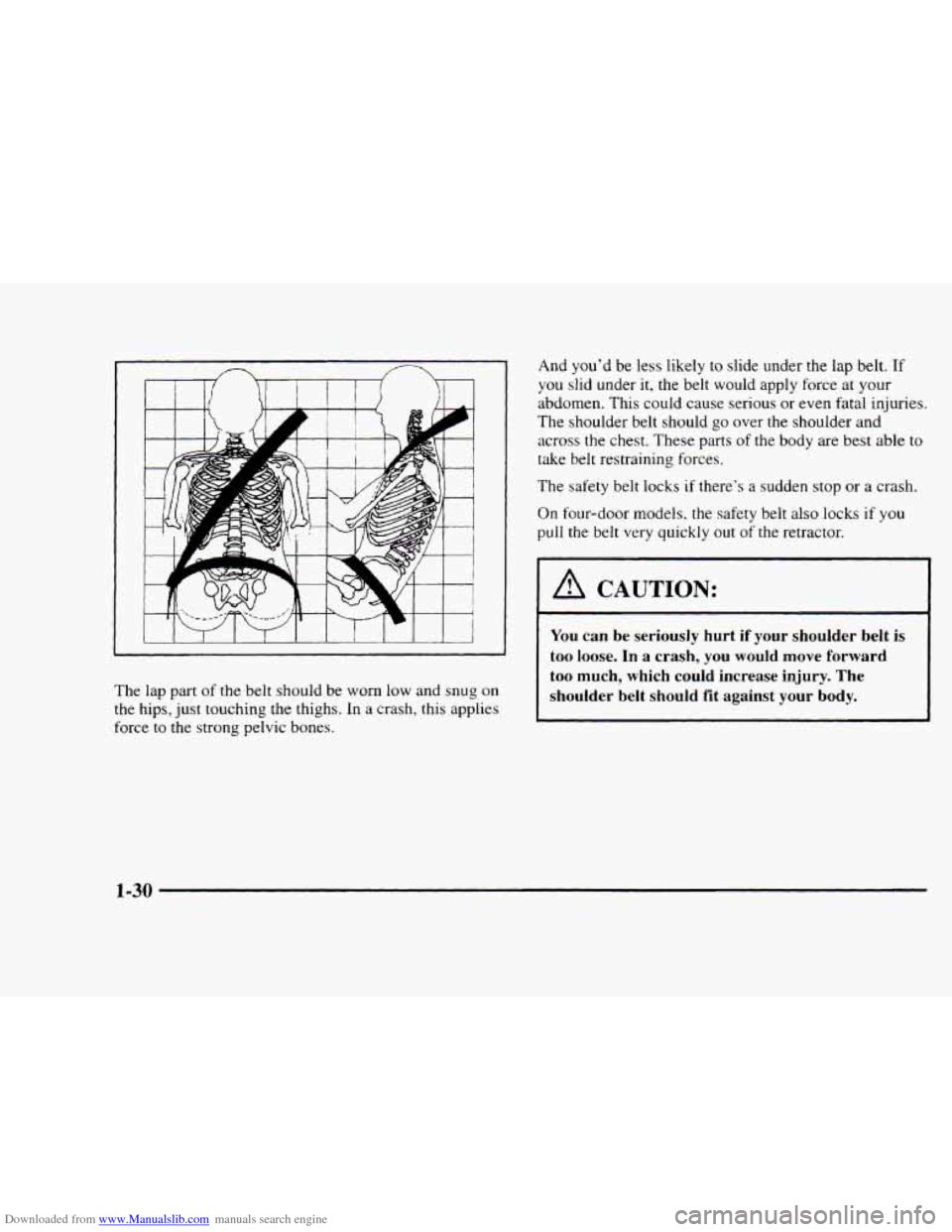

The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And
you'd be less
likely to slide under the lap belt. If
you slid under it, the belt would apply force at your
abdomen.
This could cause serious or even fatal injuries.
The shoulder belt should go over the shoulder
and
across the chest. These parts of the body are best able to
take belt restraining forces.
The safety belt locks
if there's a sudden stop or a crash.
On four-door models, the safety belt also locks if you
pull the belt very quickly out of the retractor.
A CAUTION:
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit
against your body.
1-30

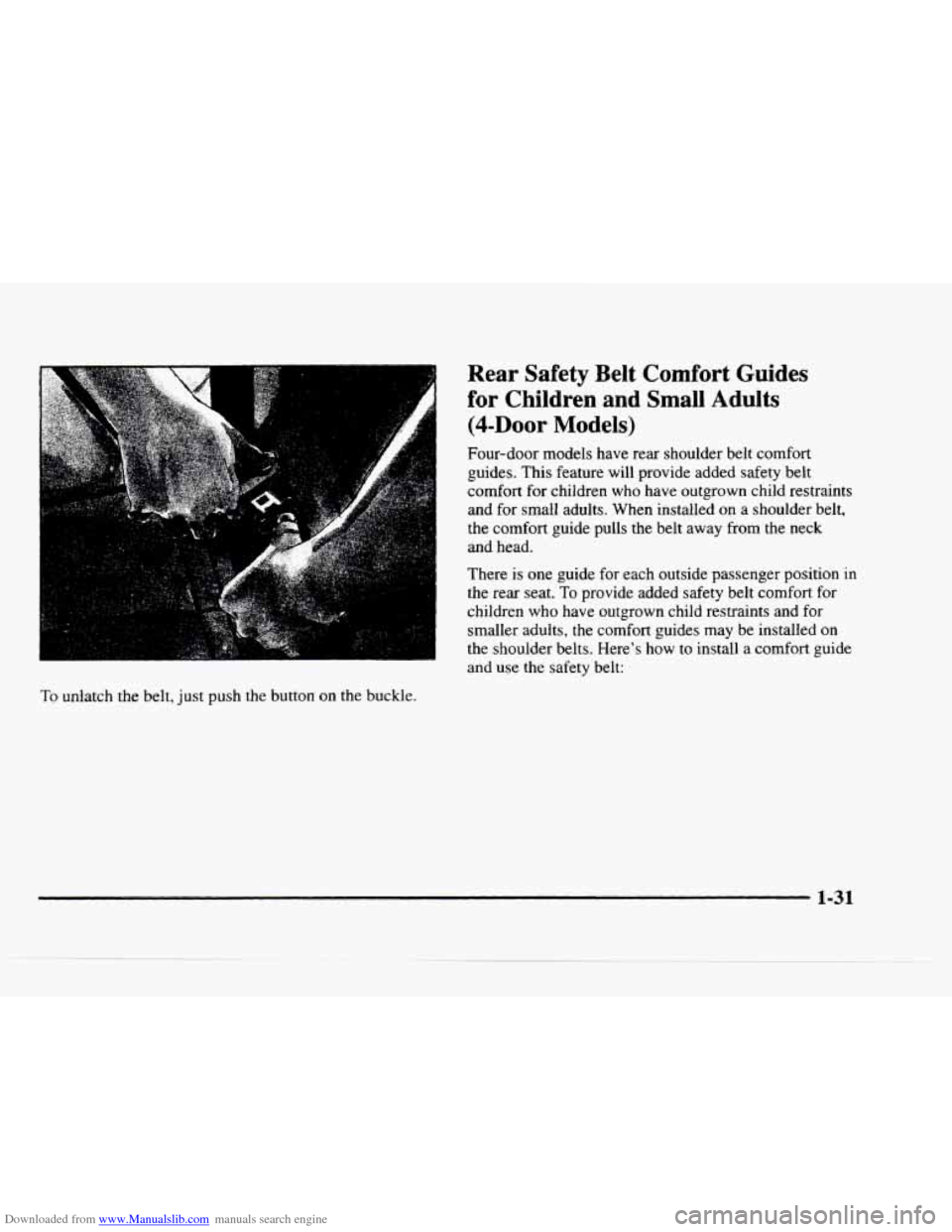

Downloaded from www.Manualslib.com manuals search engine To unlatch the belt, just push the button on the buckle.
Rear Safety Belt Comfort Guides
for Children
and Small Adults
(4-DOOr Models)
Four-door models have rear shoulder belt comfort
guides. This feature will provide added safety belt
comfort for children who have outgrown child restraints
and
for small adults. When installed on a shoulder belt,
the comfort guide pulls the belt away from
the neck
and head.
There is one guide for each outside passenger position in the
rear seat. To provide added safety belt comfort for
children who have outgrown child restraints and for smaller adults, the comfort guides may be installed
on
the shoulder belts. Here’s how to install a comfort guide
and use the safety belt:
1-31

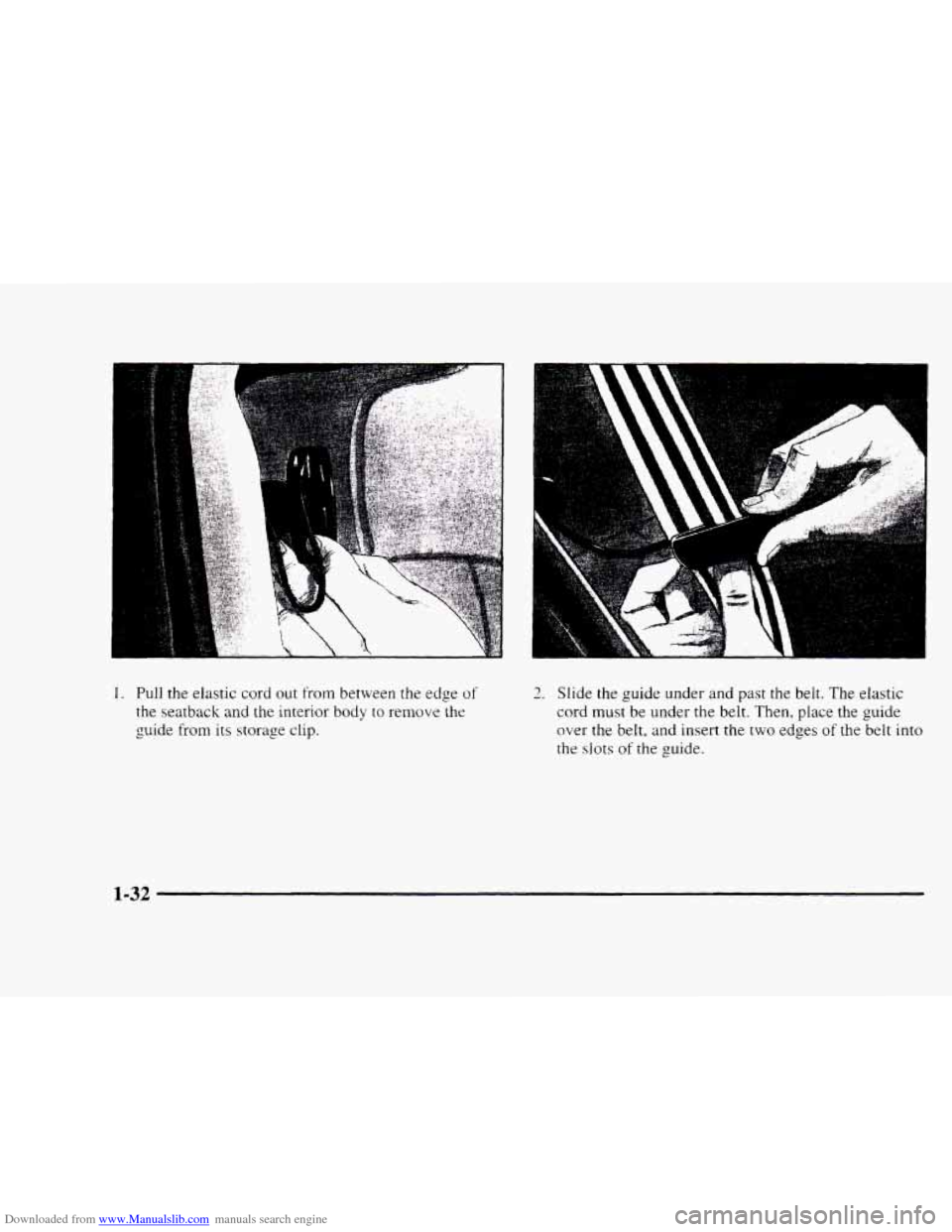

Downloaded from www.Manualslib.com manuals search engine Pull the elastic cord out from between the edge of
the seatback and the interior body to remove the
guide from its storage clip.
2. Slide the guide under and past the belt. The elastic
cord
must be under the belt. Then, place the guide
over the belt, and insert the two edges of the belt into
the slots
of the guide.
1-32

Downloaded from www.Manualslib.com manuals search engine n

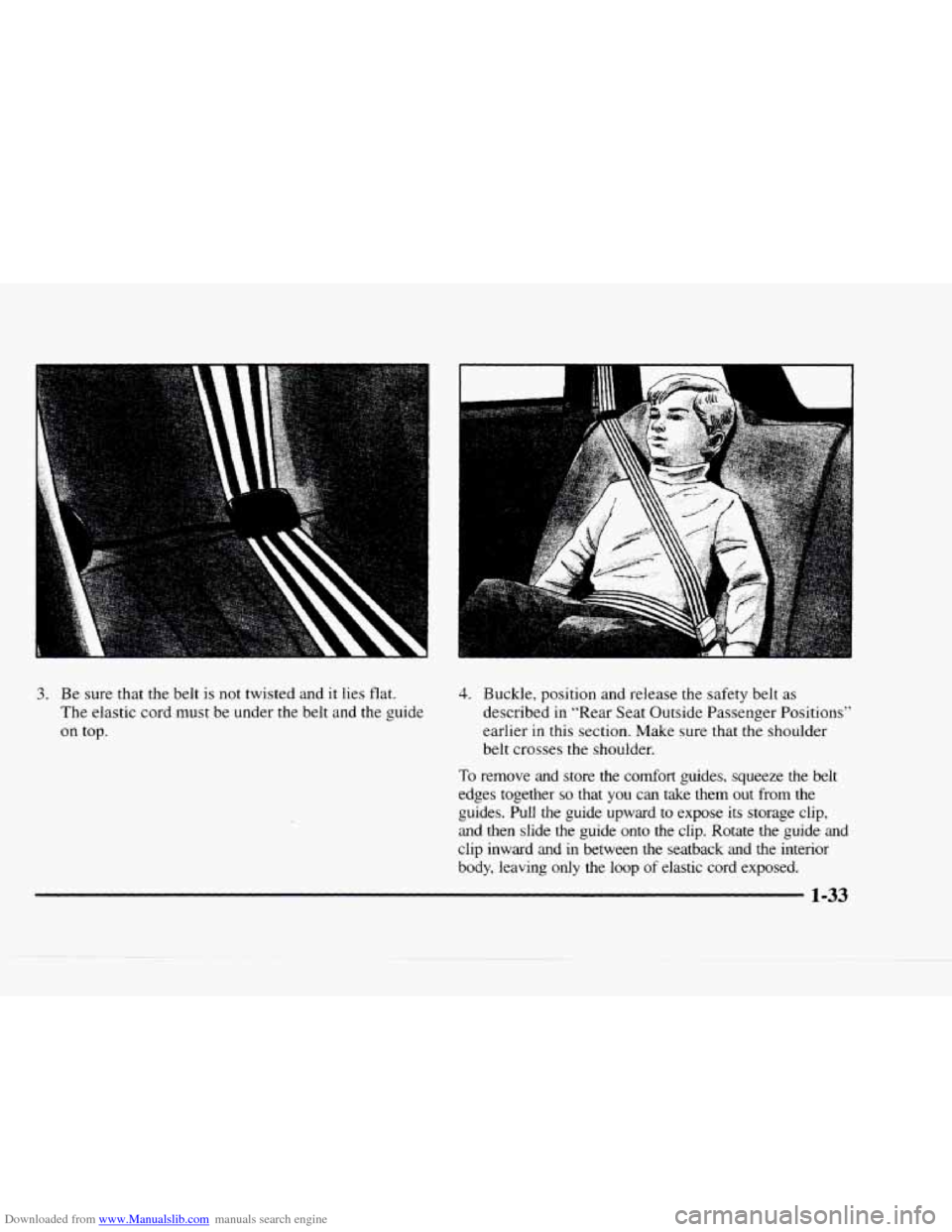

3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the guide
on top.
4. Buckle, position and release the safety belt as
described in “Rear Seat Outside Passenger Positions”
earlier in this section. Make sure that the shoulder
belt crosses the shoulder.
To remove and store the comfort guides, squeeze the belt
edges together so that you can take them out from the
guides. Pull the guide upward to expose its storage clip,
and then slide the guide onto the clip. Rotate the guide and
clip inward and in between the seatback and the interior
body, leaving only the loop
of elastic cord exposed.
1-33
