CHEVROLET BLAZER 1998 2.G Owners Manual

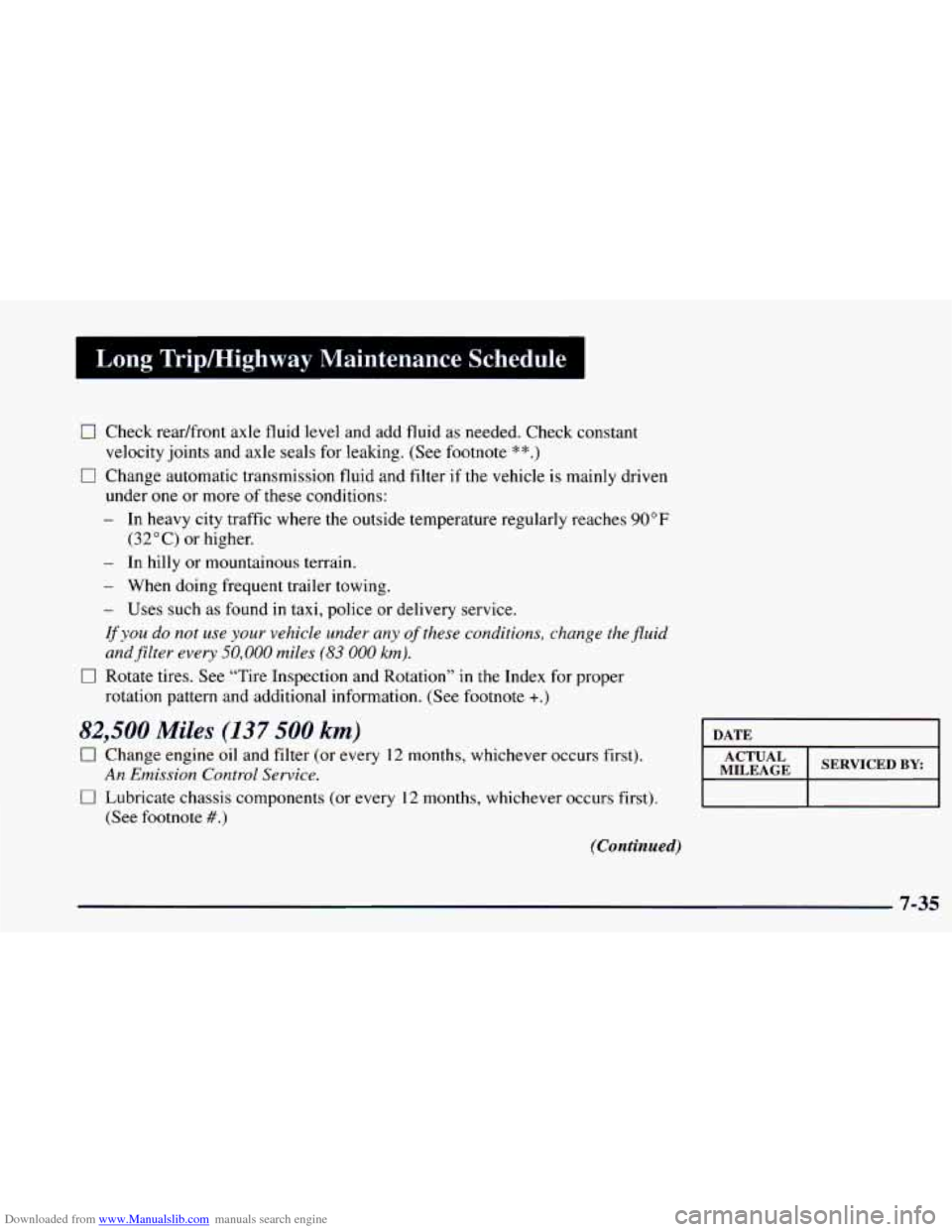

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule
0 Check readfront axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking. (See footnote
**.)
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more
of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
(3 2 O C) or higher.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, change the fluid
and filter every
50,000 miles (83 000 km).
rotation pattern and additional information. (See footnote +.)
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
82,500 Miles (137 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
An Emission Control Service.
(See footnote #.)
(Continued)
DATE
7-35

Downloaded from www.Manualslib.com manuals search engine I -- I

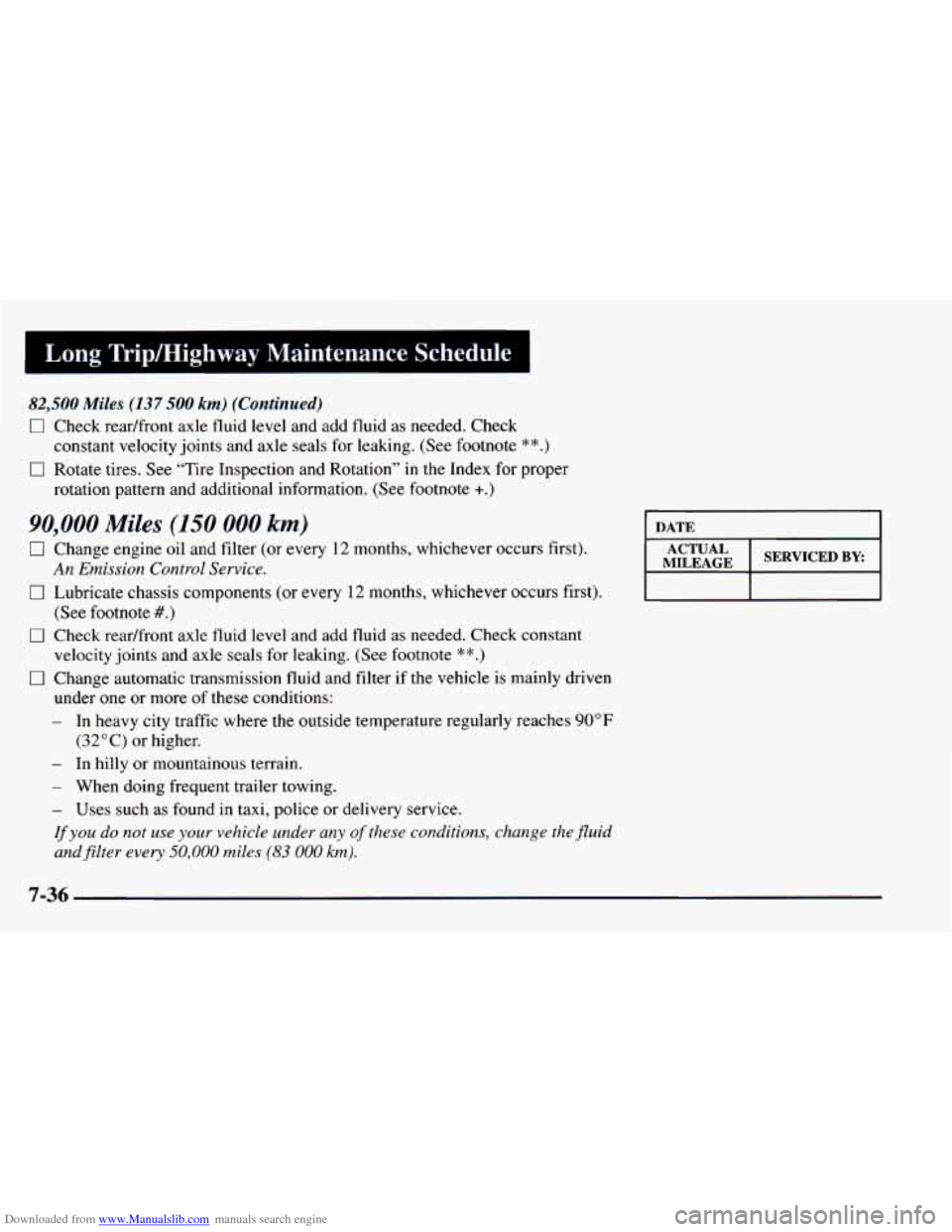

Long Tripmighway Maintenance Schedule
82,500 Miles (137 500 km) (Continued)
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information. (See footnote
+.)
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)
0 Check readfront axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking. (See footnote
**.)
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, change the fluid
andfilter every
50,000 miles (83 000 km).
(32 O C) or higher.
DATE I
7-36

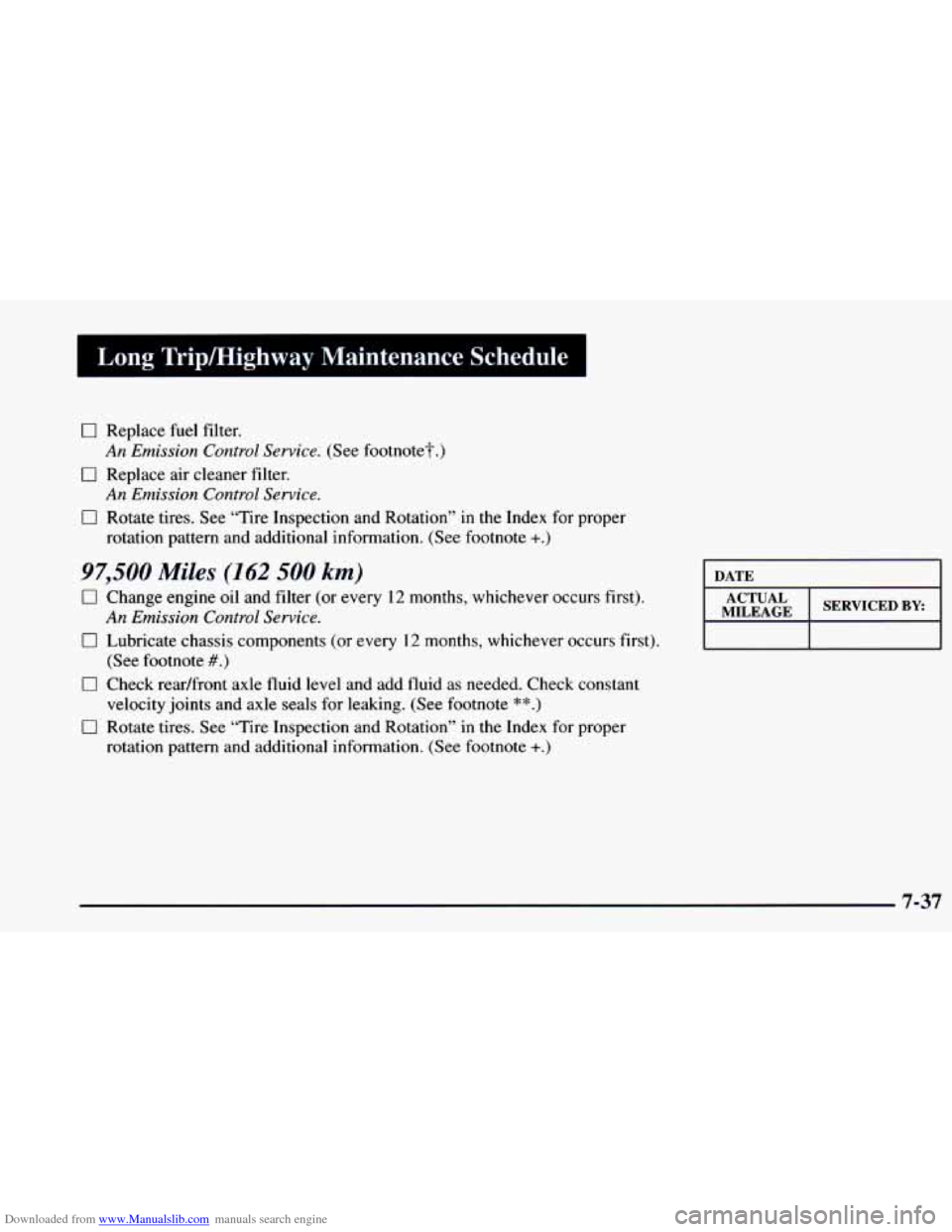

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule
0 Replace fuel filter.
0 Replace air cleaner filter.
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service. (See footnote?.)
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check constant
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
(See footnote #.)
velocity joints and axle seals for leaking. (See footnote **.)
rotation pattern and additional information. (See footnote +.)
DATE I
7-37

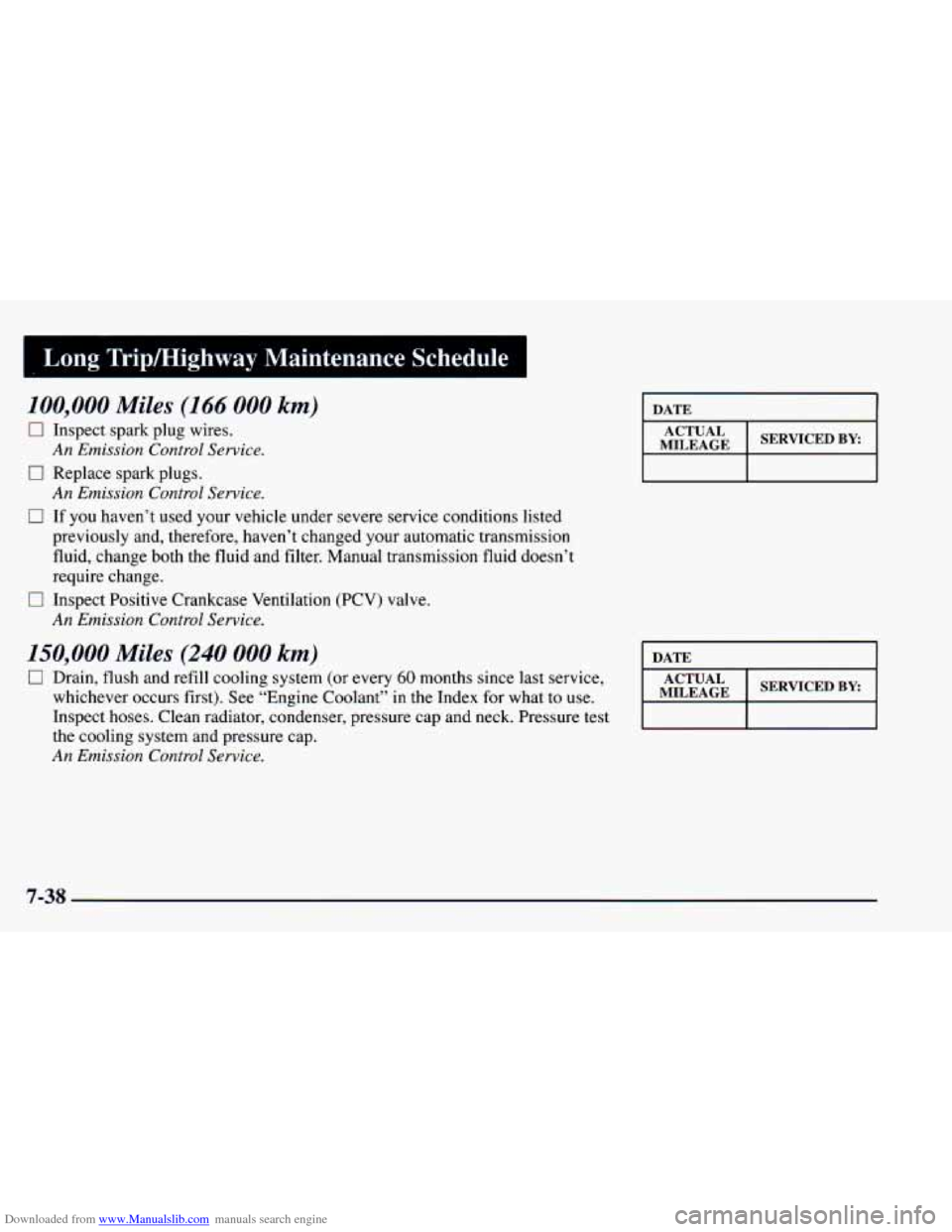

Downloaded from www.Manualslib.com manuals search engine I Long Trip/Highway Maintenance Schedule
100,000 Miles (166 000 km)
0 Inspect spark plug wires.
0 Replace spark plugs.
0 If you haven’t used your vehicle under severe service conditions lis\
ted
An Emission Control Service.
An Emission Control Service.
previously and, therefore, haven’t changed your automatic tran\
smission
fluid, change both the fluid and filter. Manual transmission fluid doesn’t
require change.
An Emission Contrul Service.
0 Inspect Positive Crankcase Ventilation (PCV) valve.
150,000 Miles (240 000 km)
0 Drain, flush and refill cooling system (or every 60 months since last service,
whichever occurs first). See “Engine Coolant” in the Index for what to use.
Inspect hoses. Clean radiator, condenser, pressure cap and neck. Pressure test
the cooling system and pressure cap.
An Emission Control Service.
I DATE I
ACTUAL
I MILEAGE I SERVrCEDBy I
DATE I
I MILEAGE ACTUAL I SERVICEDBY I
7-38

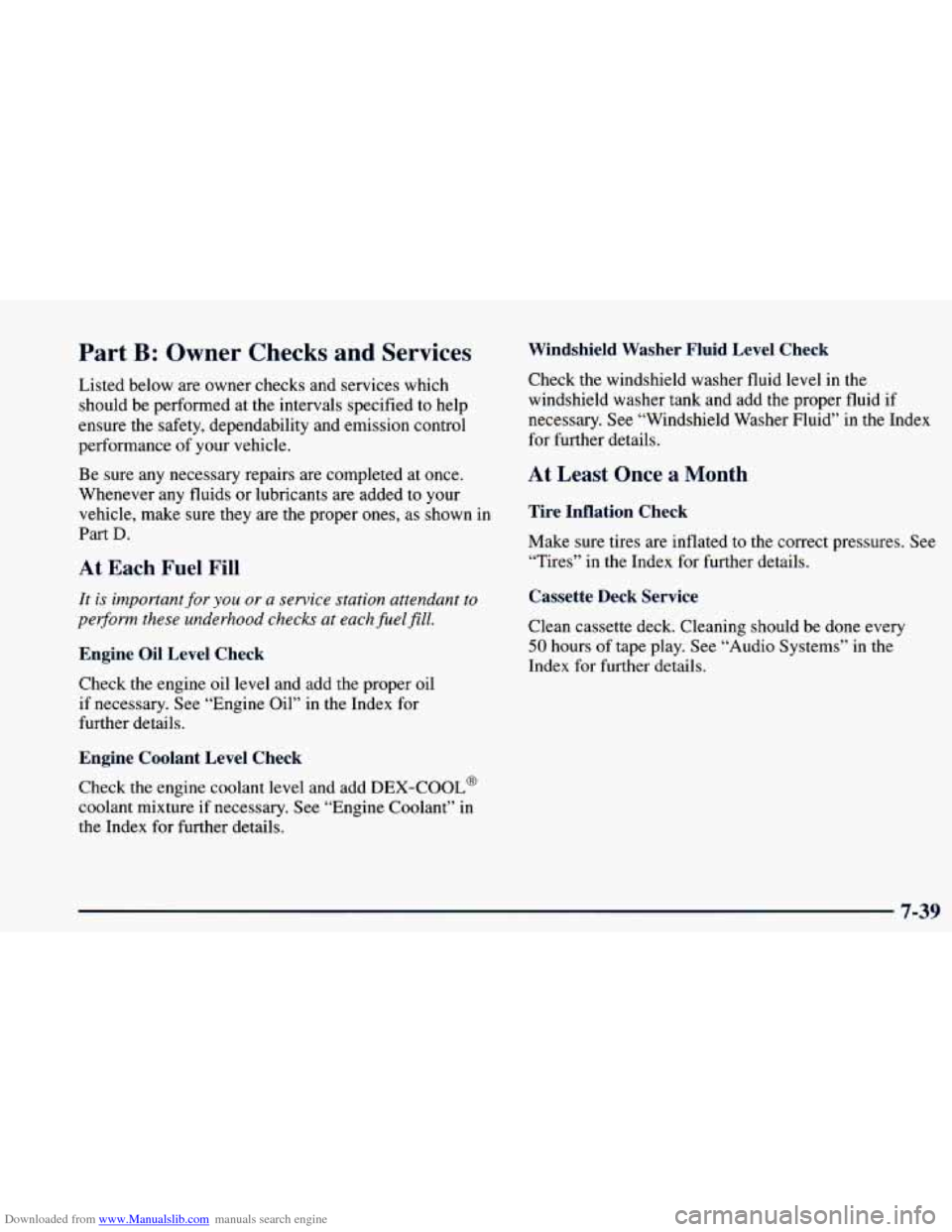

Downloaded from www.Manualslib.com manuals search engine Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids
or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel
fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL@
coolant mixture if necessary. See “Engine Coolant” in
the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tin - ation Check
Make sure tires are inflated to the correa pressures. See
“Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
7-39

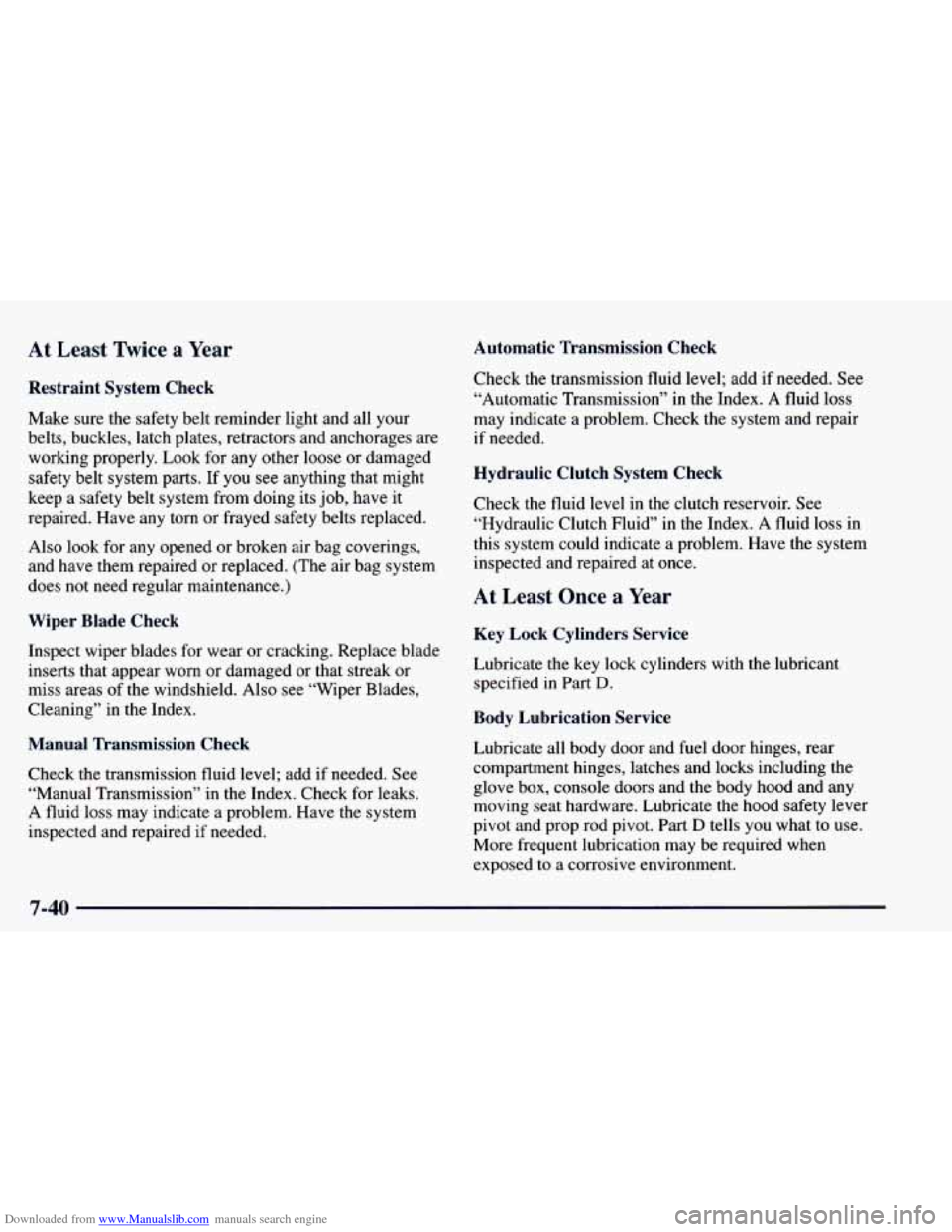

Downloaded from www.Manualslib.com manuals search engine At Least Twice a Year Automatic Transmission Check
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are working properly. Look
for any other loose or damaged
safety belt system parts. If you
see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The
air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas
of the windshield. Also see “Wiper Blades,
Cleaning” in the Index.
Manual Transmission Check
Check the transmission fluid level; add if needed. See
“Manual Transmission’’ in the Index. Check for leaks.
A fluid loss may indicate a problem. Have the system
inspected and repaired if needed. Check the transmission fluid level; add
if needed. See
“Automatic Transmission” in the Index.
A fluid loss
may indicate a problem. Check the system and repair
if needed.
Hydraulic Clutch System Check
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index. A fluid loss in
this system could indicate a problem. Have the system inspected and repaired at once.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication Service
Lubricate all body door and fuel door hinges, rear
compartment hinges, latches and locks including the
glove box, console doors and the body hood and any moving seat hardware. Lubricate the hood safety lever
pivot and prop rod pivot.
Part D tells you what to use.
More frequent lubrication may be required when
exposed to
a corrosive environment.
7-40

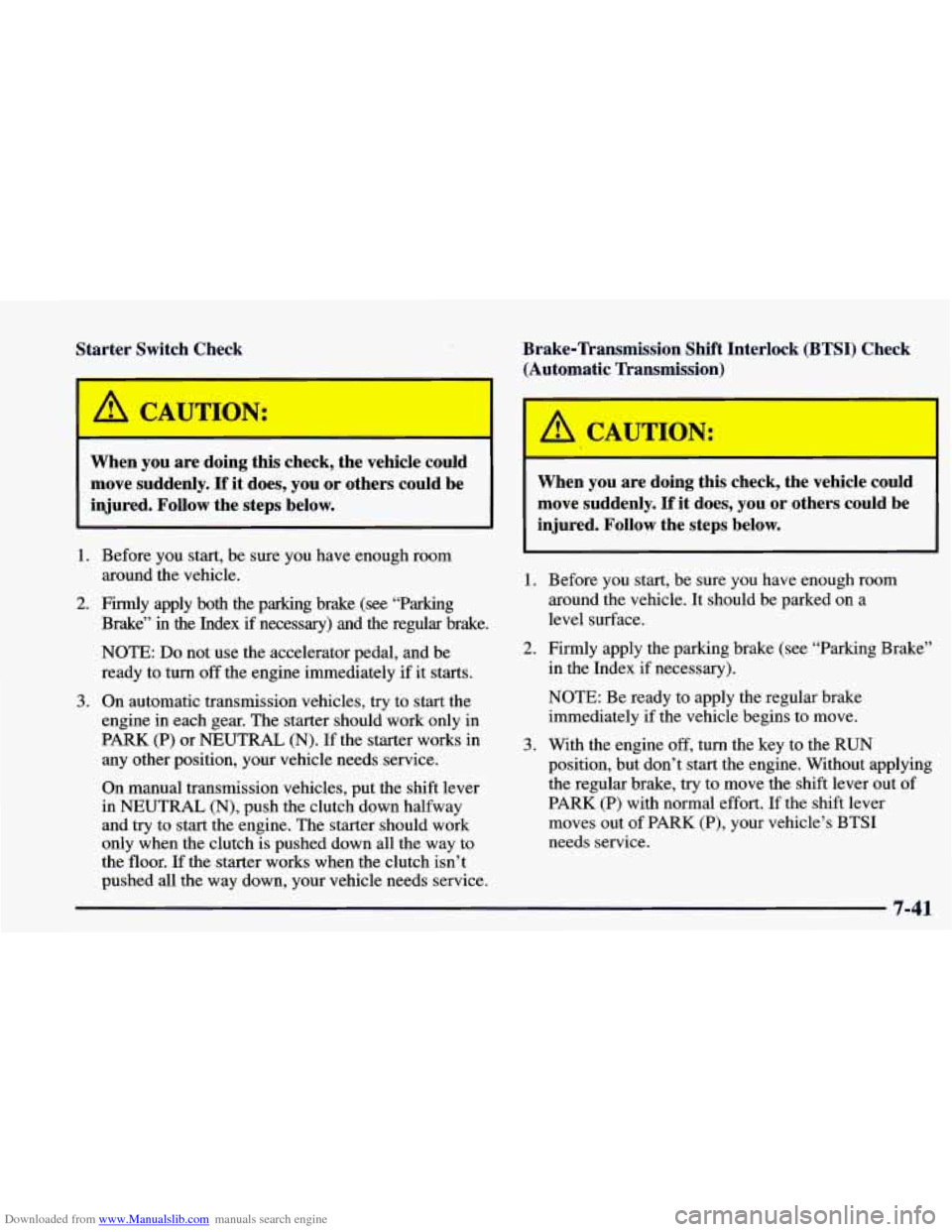

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check
A CAUTION:
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Brake-Transmission Shift Interlock (BTSI) Check (Automatic Transmission)
Before you start, be sure you have enough room
around the vehicle.
Firmly apply both the parking brake (see “Parking Brake’,
in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if it starts.
On automatic transmission vehicles,
try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in NEUTRAL (N), push the clutch down halfway
and
try to start the engine. The starter should work
only when the clutch is pushed down all the way to
the floor. If the starter works when the clutch isn’t
pushed all the way down, your vehicle needs service.
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a
level surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake,
try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of PARK
(P), your vehicle’s BTSI
needs service.
7-41

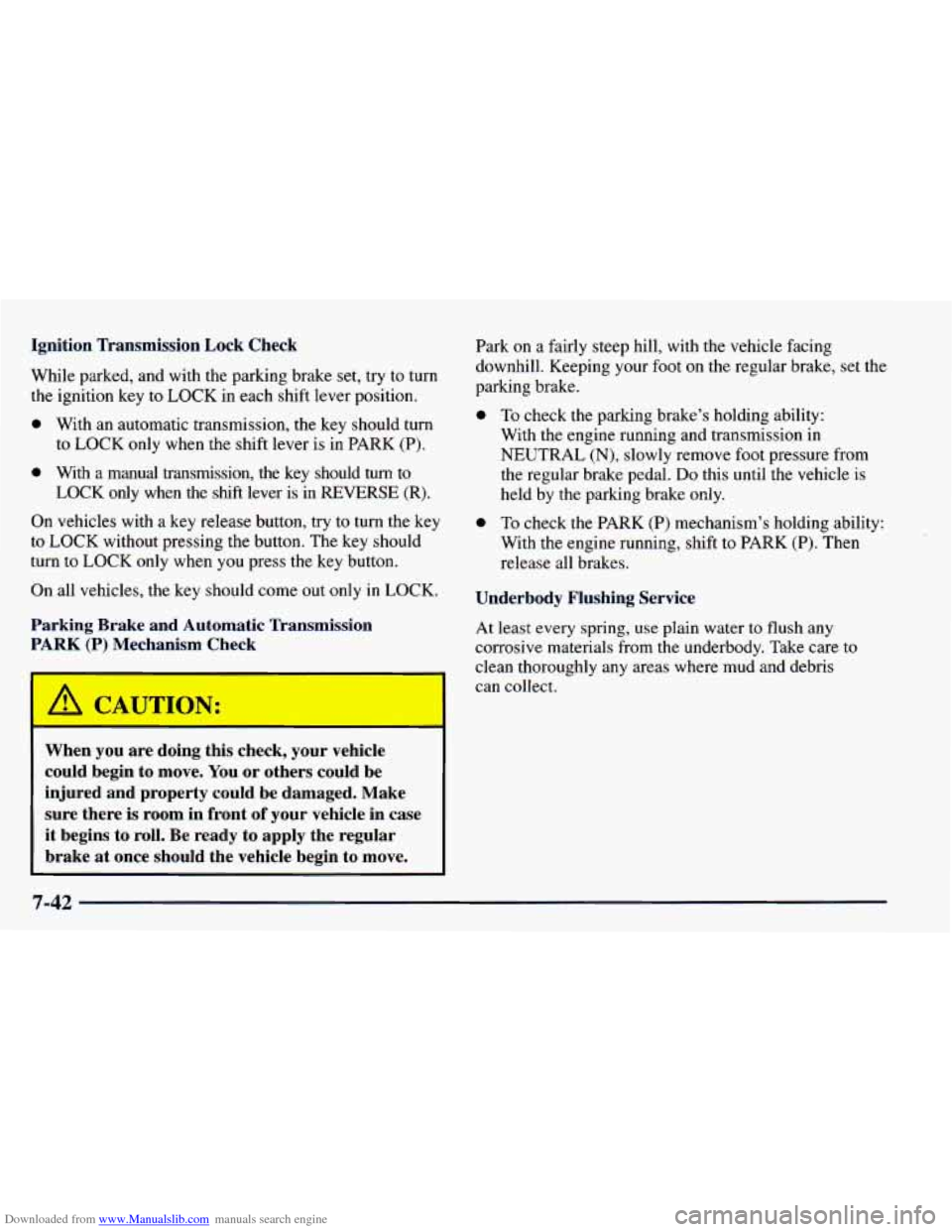

Downloaded from www.Manualslib.com manuals search engine Ignition Transmission Lock Check
While parked, and with the parking brake set, try
to turn
the ignition key to LOCK in each shift lever position.
0 With an automatic transmission, the key should turn
0 With a manual transmission, the key should turn to
On vehicles with a key release button, try to turn the key
to
LOCK without pressing the button. The key should
turn
to LOCK only when you press the key button.
On all vehicles, the key should come out
only in LOCK.
Parking Brake and Automatic Transmission
PARK (P) Mechanism Check
to
LOCK
only when the shift lever is in PARK (P).
LOCK only when the shift lever is in
REVERSE (R).
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there
is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move. Park on a fairly
steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
0
0
To check the parking brake’s holding ability: With the engine running and transmission in
NEUTRAL
(N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK
(P). Then
release all brakes.
Underbody Flushing Service
At least every spring, use plain water
to flush any
corrosive materials from the underbody. Take
care to
clean thoroughly any areas where mud and debris
can collect.
7-42

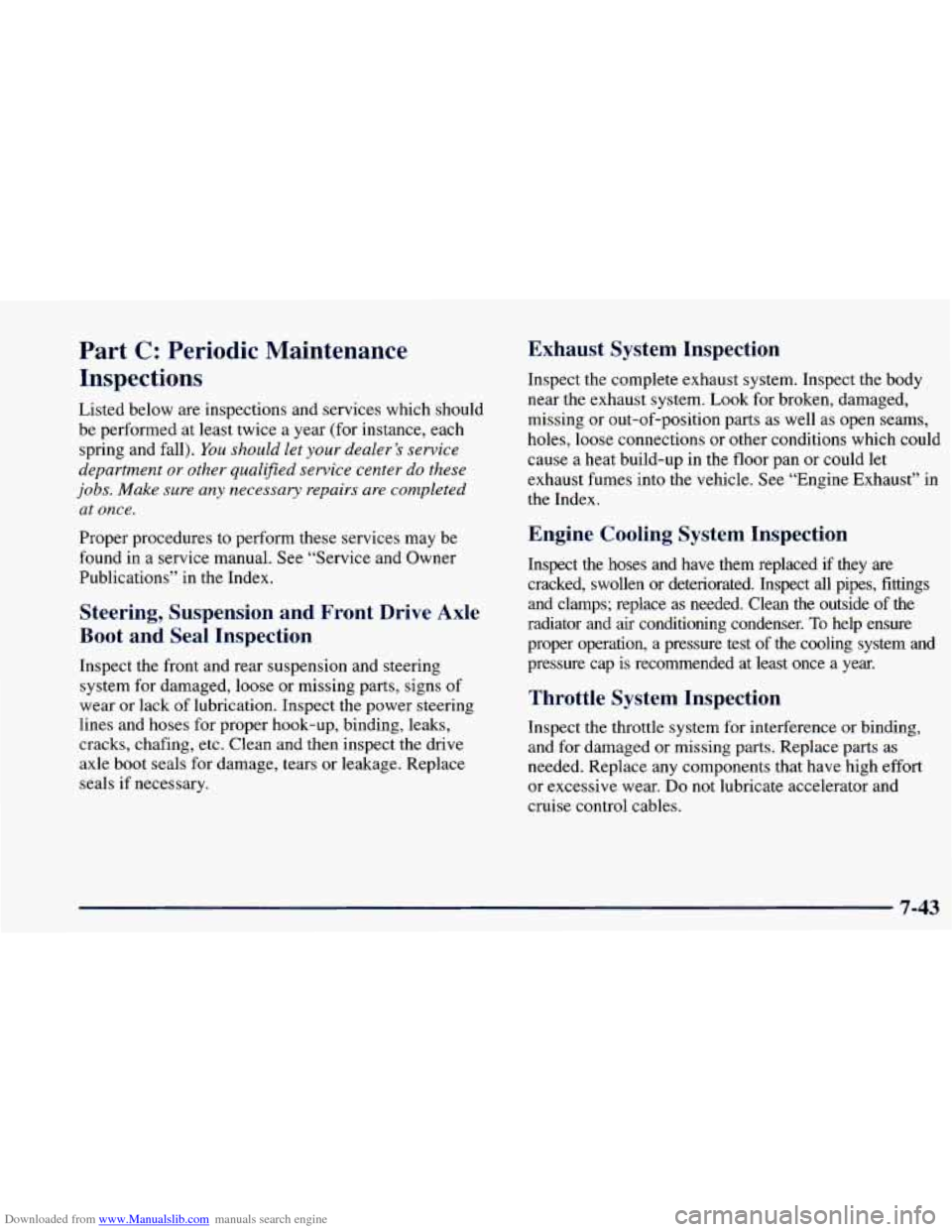

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall).
You should let your dealer’s service
department
or other qualified service center do these
jobs. Make sure any necessary repairs are completed
at once.
Proper procedures to perform these services may be
found in a service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged,
loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes,
loose connections or other conditions which could
cause a heat build-up in the
floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust” in
the Index.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes, fittings
and clamps; replace as needed. Clean the outside of the
radiator and air conditioning condenser.
To help ensure
proper operation, a pressure test of the cooling system and
pressure cap is recommended at least once a year.
Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts as
needed. Replace any components that have high effort
or excessive wear.
Do not lubricate accelerator and
cruise control cables.
7-43

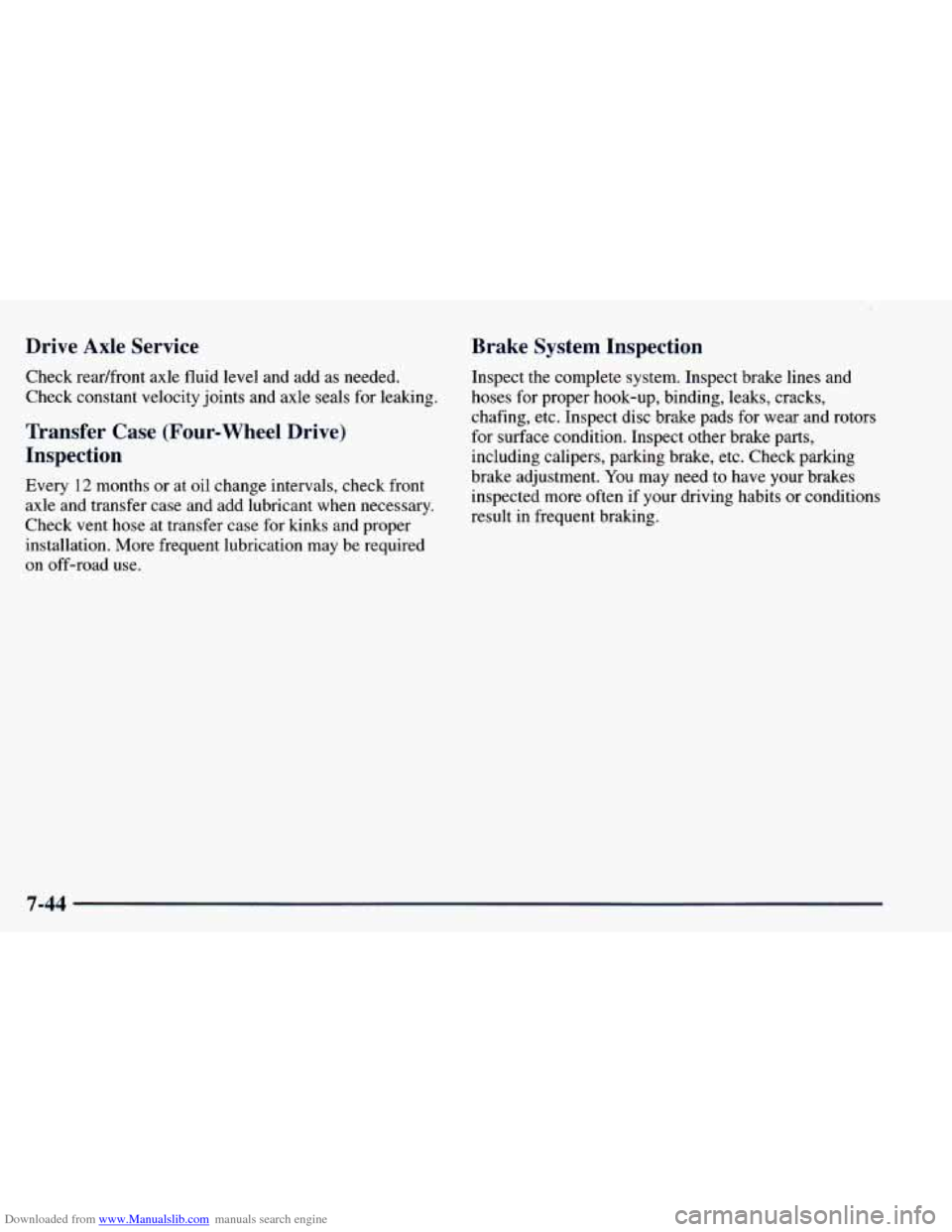

Downloaded from www.Manualslib.com manuals search engine Drive Axle Service
Check readfront axle fluid level and add as needed.
Check constant velocity joints and axle seals for leaking.
Transfer Case (Four-wheel Drive)
Inspection
Every 12 months or at oil change intervals, check front
axle and transfer case and add lubricant when necessary.
Check vent hose at transfer case for kinks and proper
installation. More frequent lubrication may be required
on off-road use.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Inspect other brake parts,
including calipers, parking brake, etc. Check parking
brake adjustment.
You may need to have your brakes
inspected more often if your driving habits or conditions
result in frequent braking.
7-44
