COMPONENT LOCATION - 1991-1992

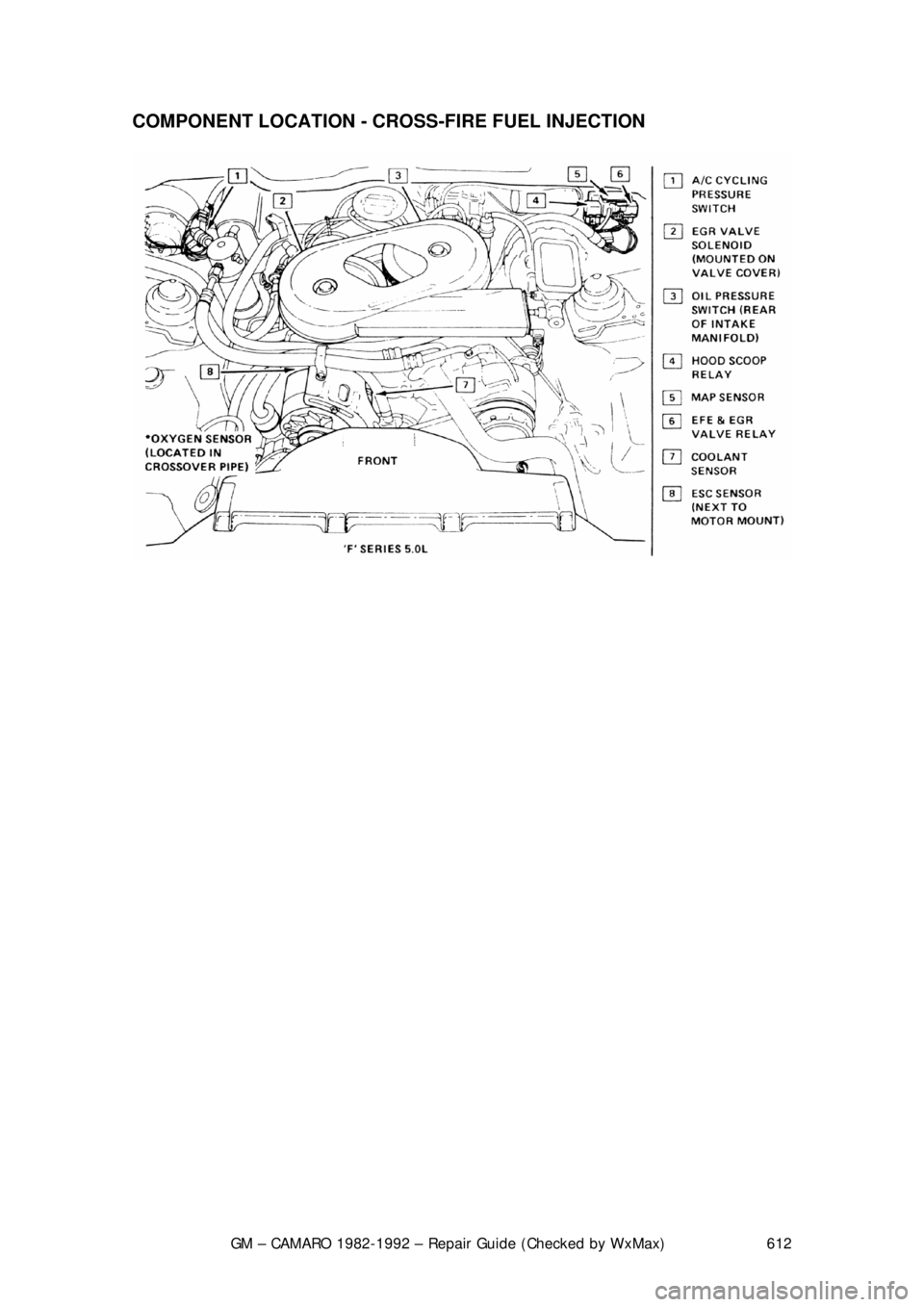

5.0L AND 5.7L TUNED PORT
INJECTION

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 612

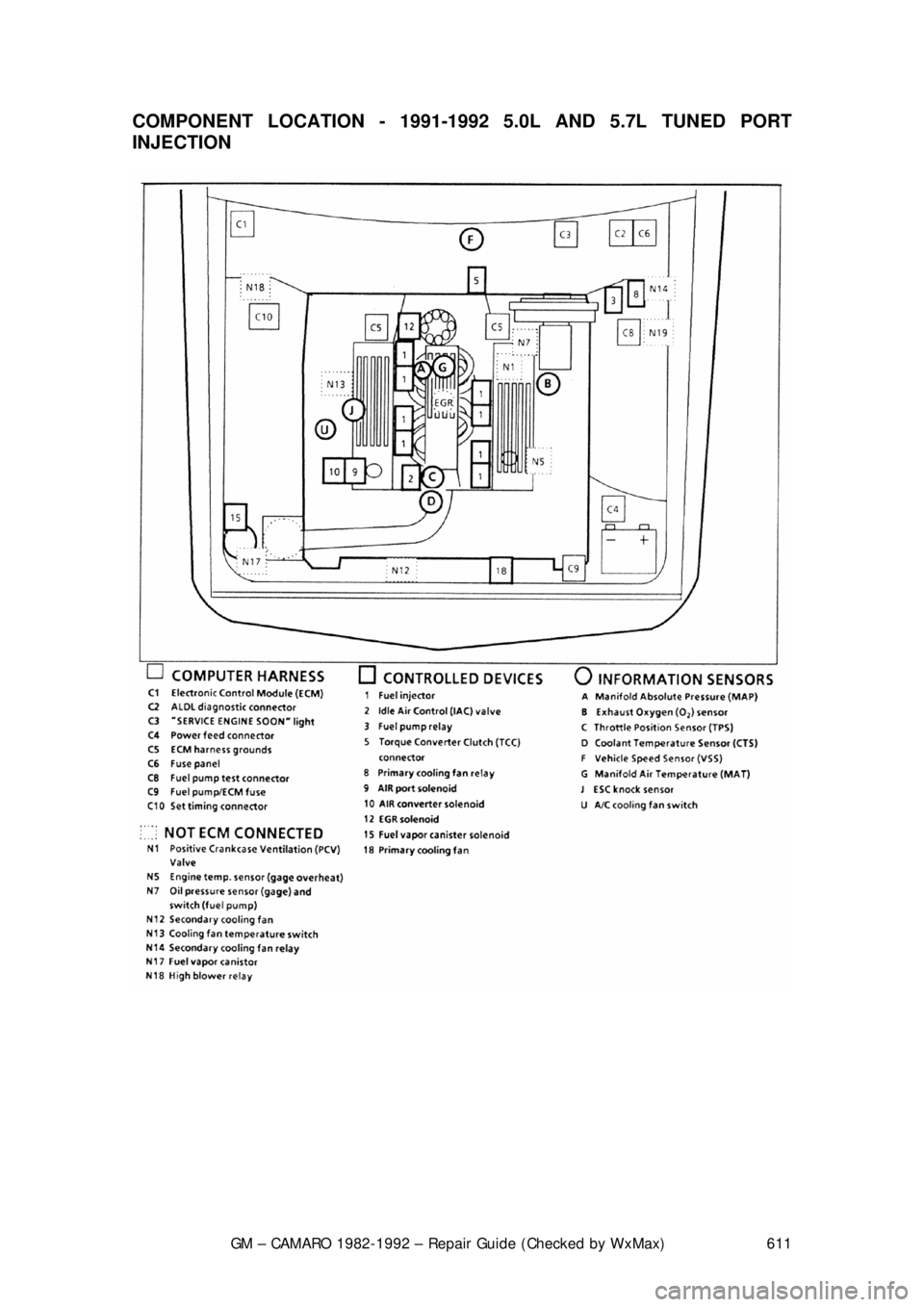

COMPONENT LOCATION - CROSS-FIRE FUEL INJECTION

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 613
VACUUM DIAGRAMS

Following are vacuum diagrams for mo
st of the engine and emissions package
combinations covered by this informati on. Because vacuum circuits will vary
based on various engine and v ehicle options, always refer first to the vehicle
emission control information label, if present. Should the label be missing, or
should vehicle be equipped with a different engine from the vehicle's original
equipment, refer to the diagrams below for the same or similar configuration.
If you wish to obtain a replacement emi ssions label, most manufacturers make
the labels available for purc hase. The labels can usually be ordered from a local
dealer.

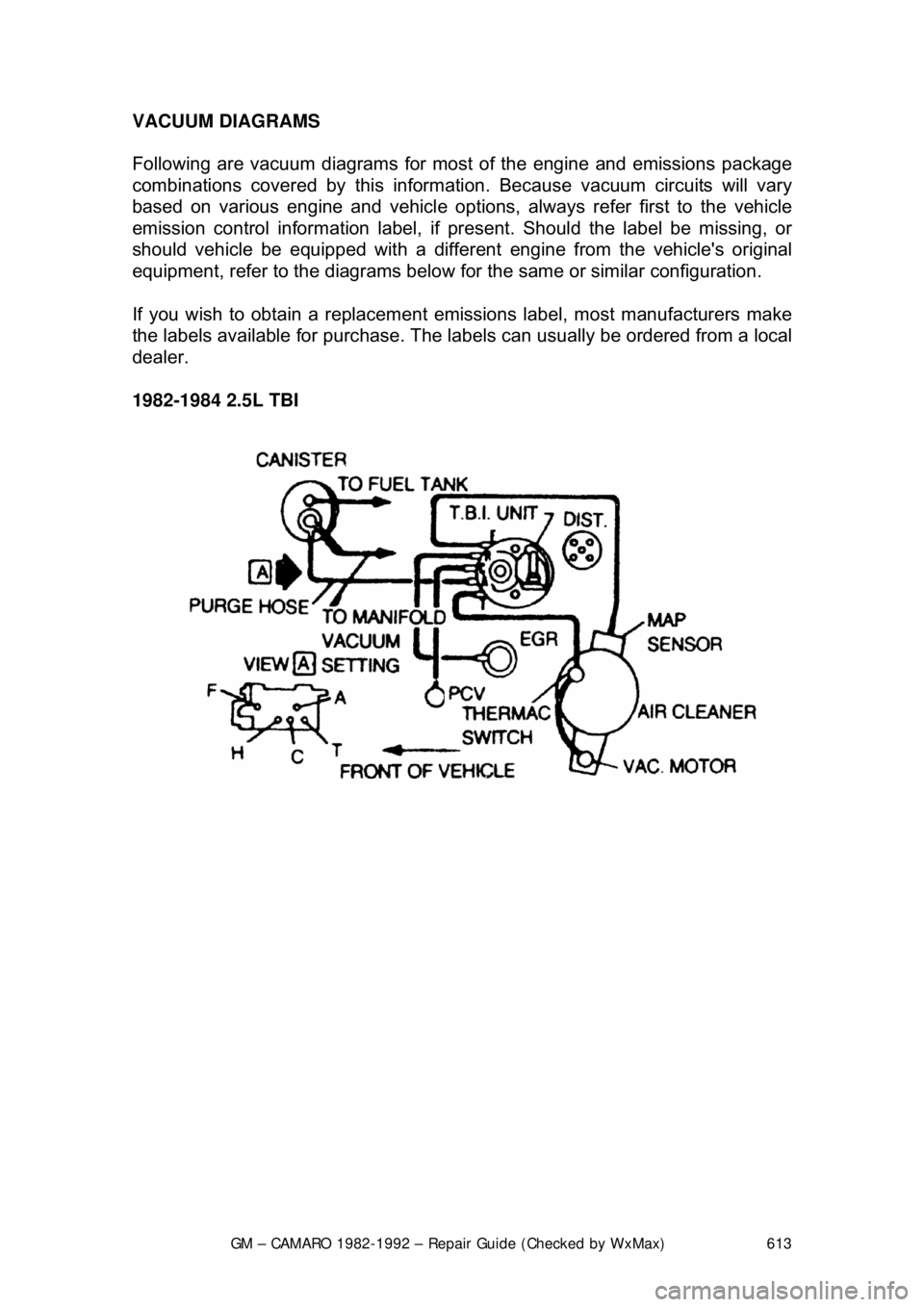

1982-1984 2.5L TBI

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 614

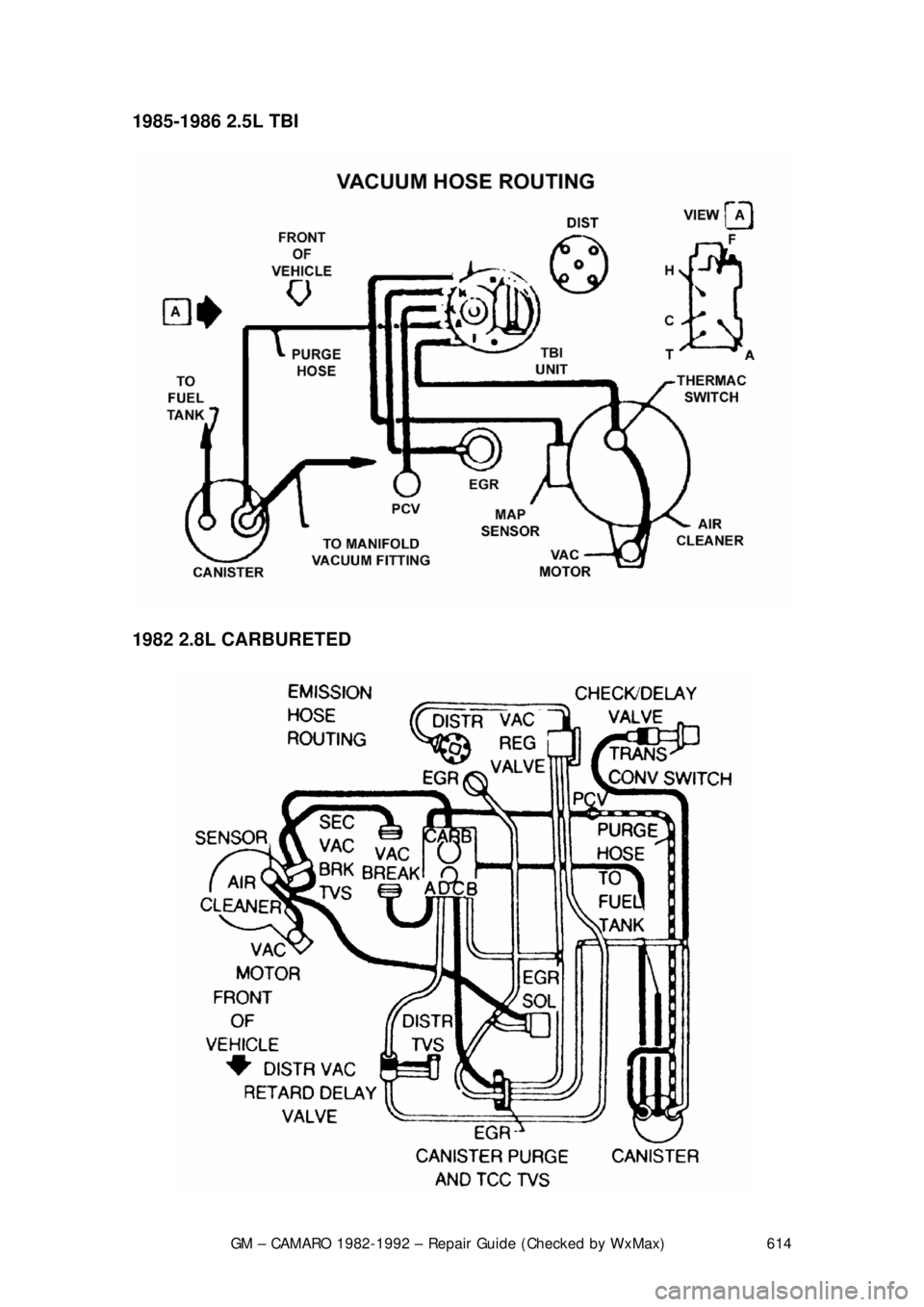

1985-1986 2.5L TBI

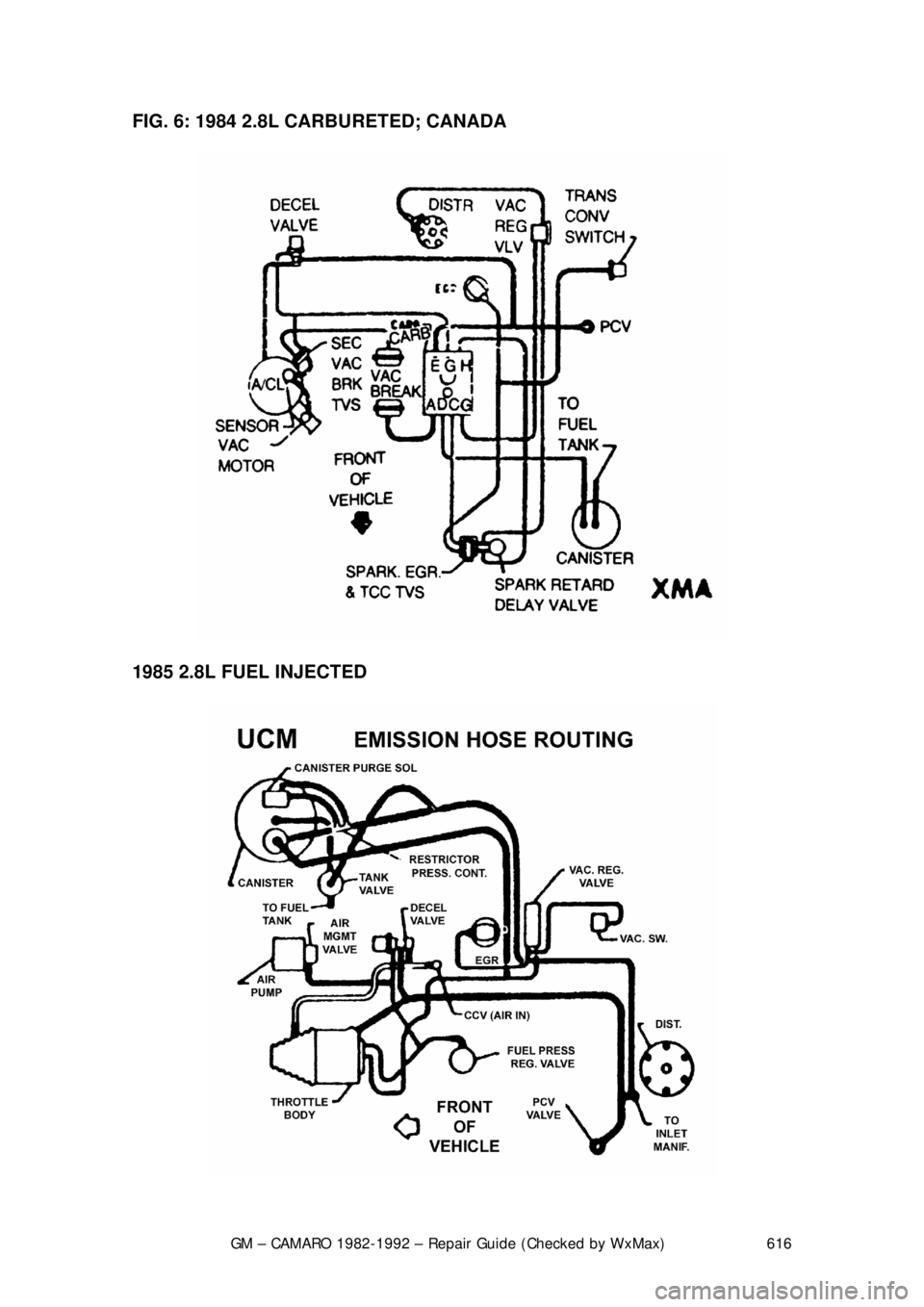

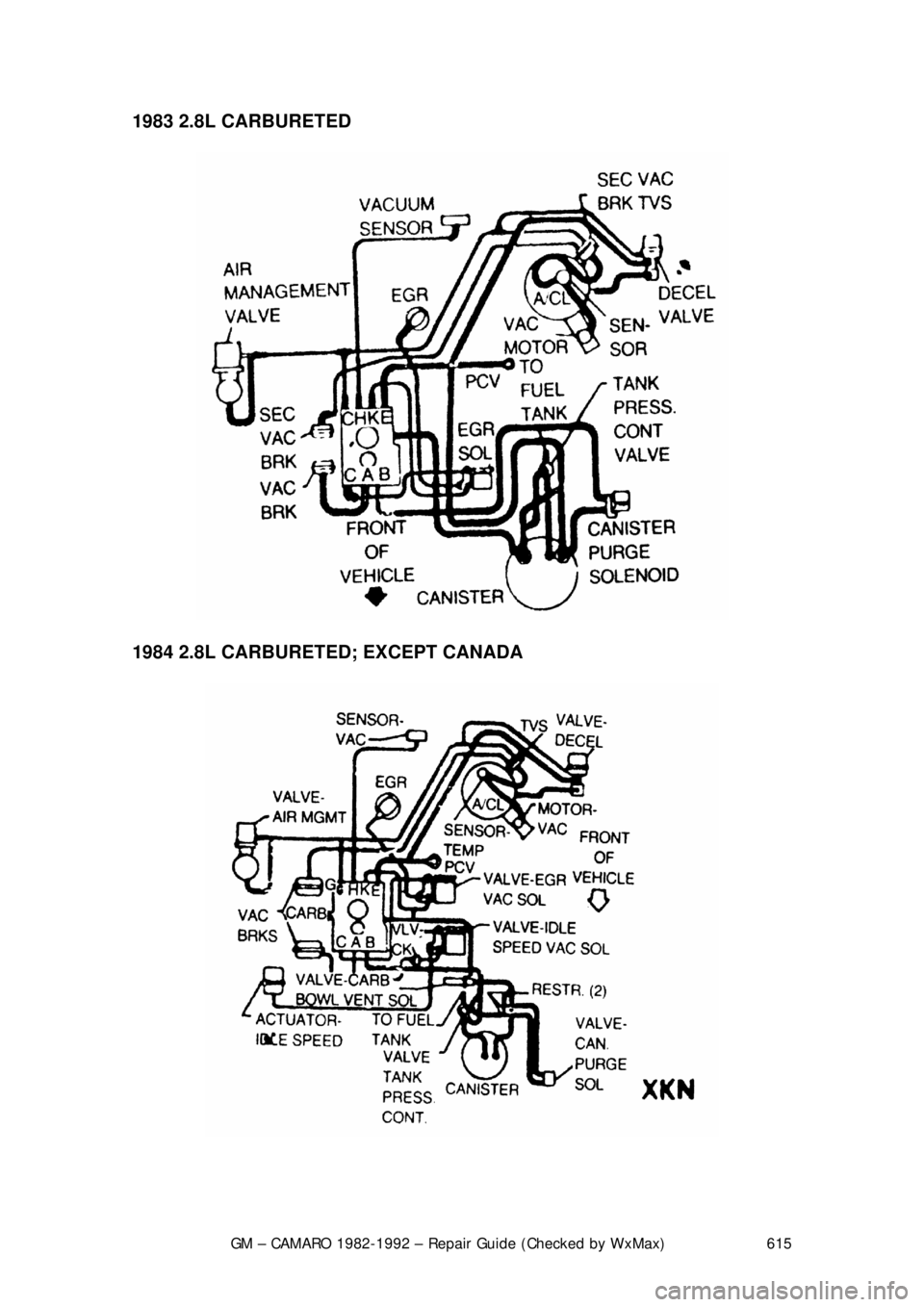

1982 2.8L CARBURETED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 615

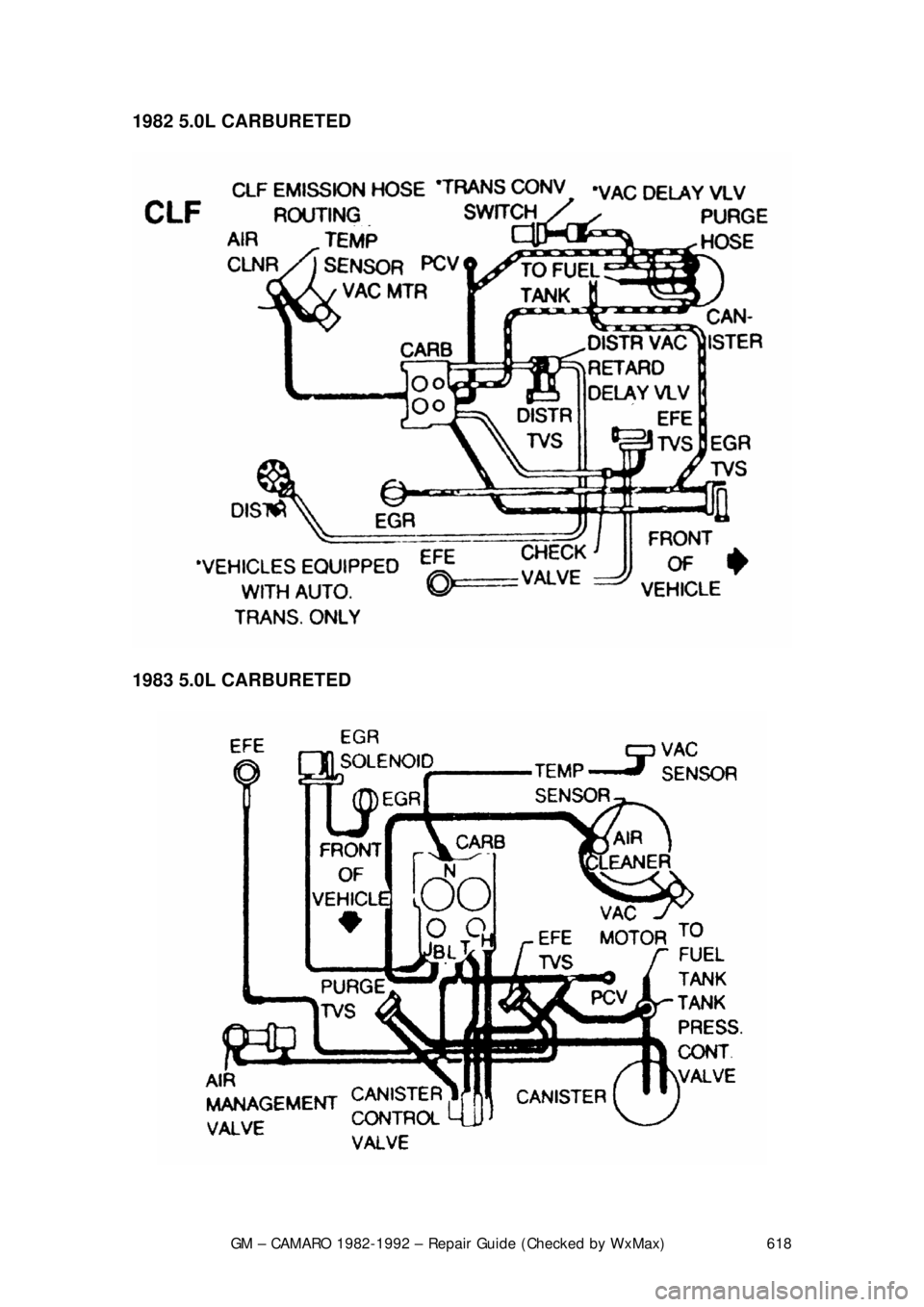

1983 2.8L CARBURETED

1984 2.8L CARBURETED; EXCEPT CANADA

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 616
FIG. 6: 1984 2.8L CARBURETED; CANADA

1985 2.8L FUEL INJECTED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 617
1986-1989 2.8L FUEL INJECTED

1990-1992 3.1L FUEL INJECTED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 618

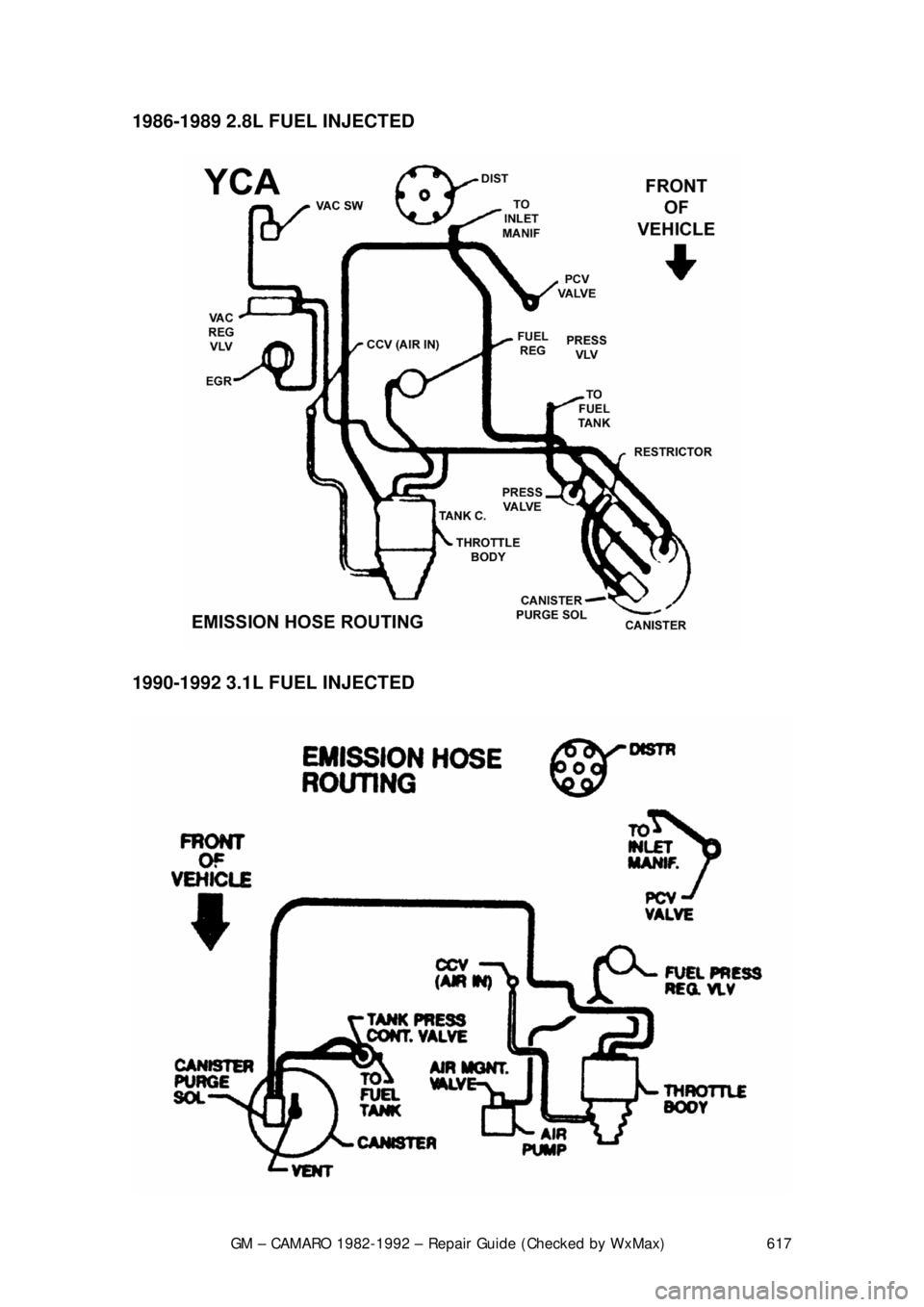

1982 5.0L CARBURETED

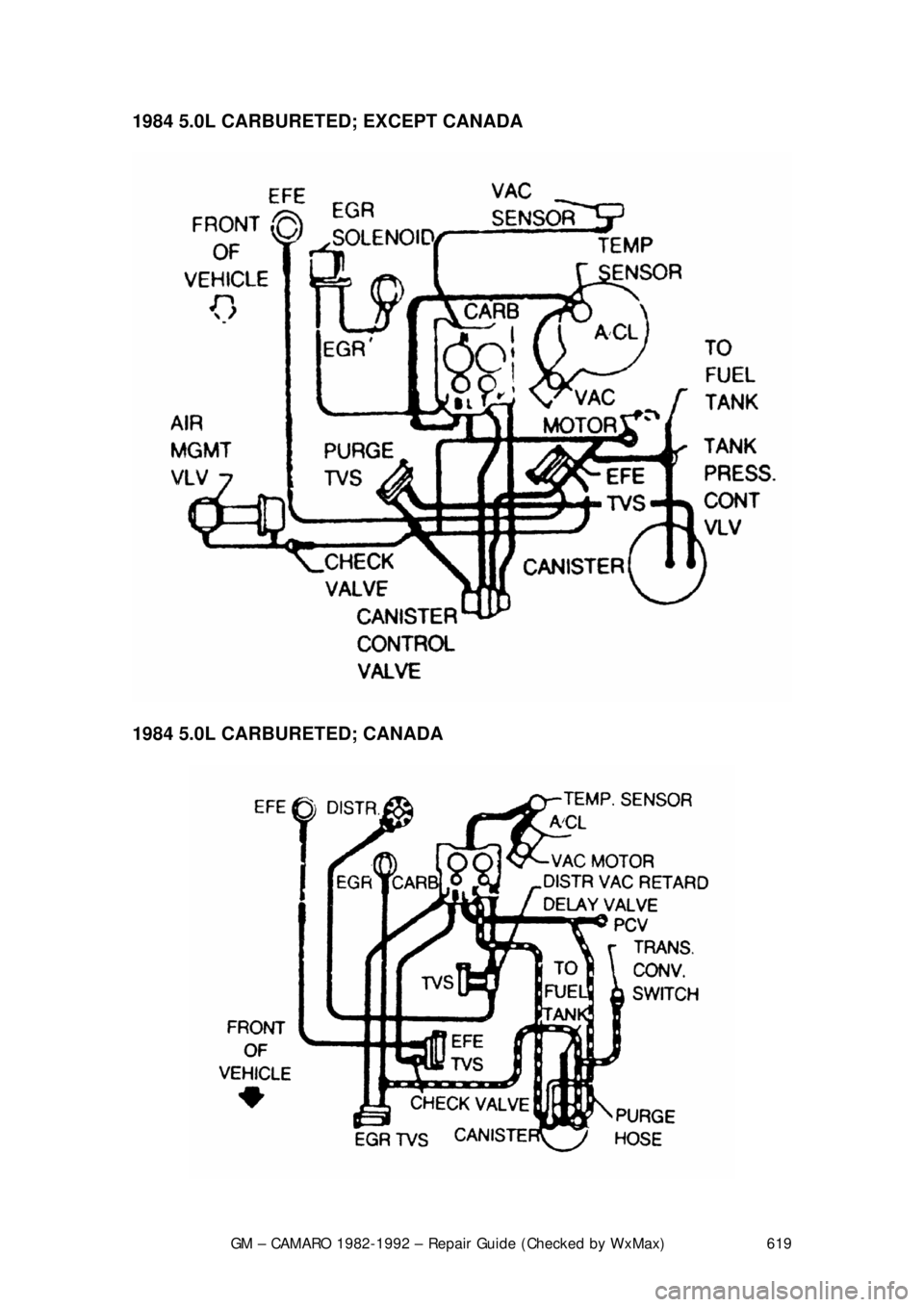

1983 5.0L CARBURETED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 619
1984 5.0L CARBURETED;
EXCEPT CANADA

1984 5.0L CARBURETED; CANADA

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 620

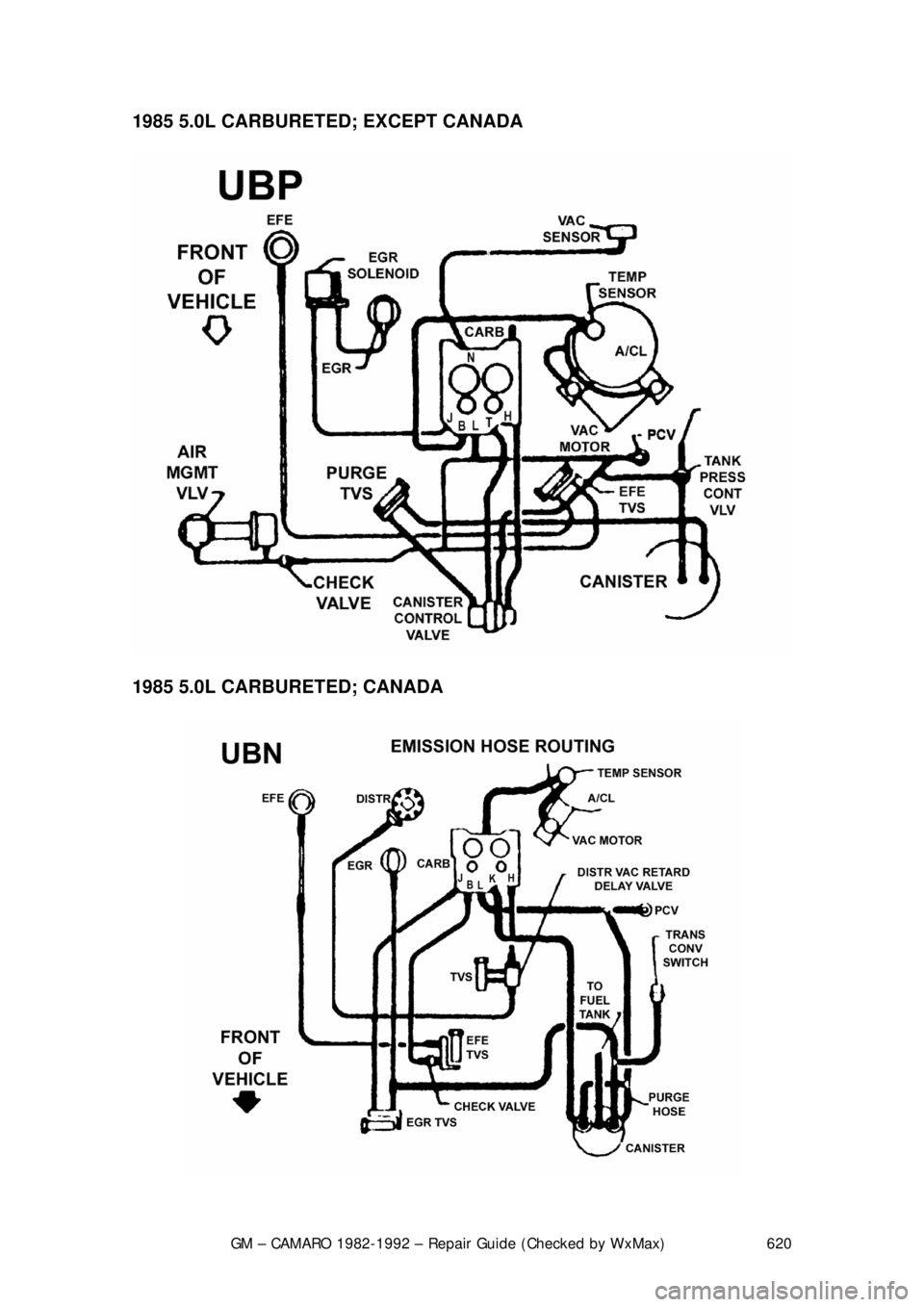

1985 5.0L CARBURETED;
EXCEPT CANADA

1985 5.0L CARBURETED; CANADA
