Downloaded from www.Manualslib.com manuals search engine Shifting out of P (Park)

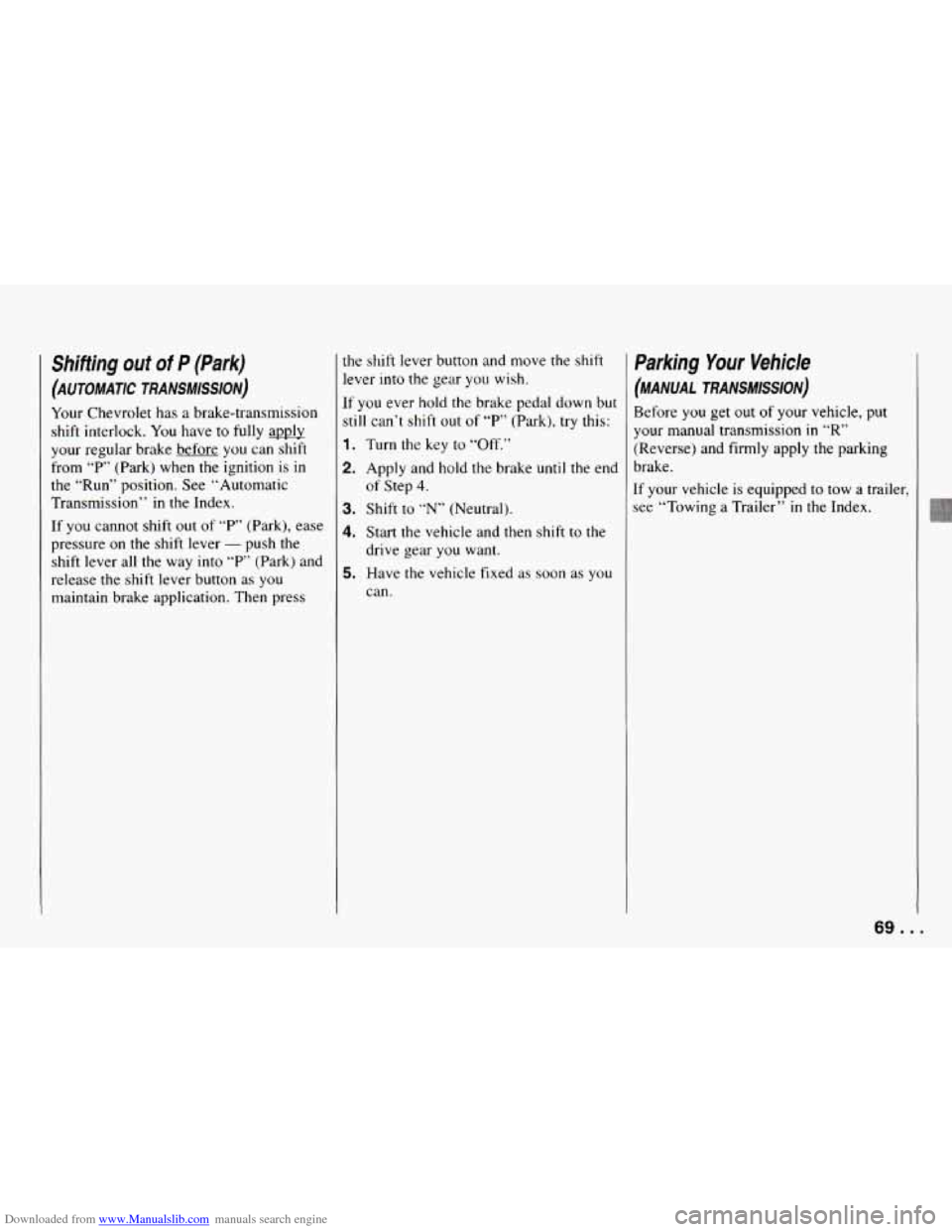

[AUTOMATIC TRANSMISSION)
Your Chevrolet has a brake-transmission
shift interlock.
You have to fully apply
your regular brake before
you can shift
from
“P’ (Park) when the ignition is in
the
“Run” position. See “Automatic
Transmission” in the Index.
If you cannot shift out of “P’ (Park), ease
pressure on the shift lever
- push the
shift lever all the way into
“P’ (Park) and
release the shift lever button
as you
maintain brake application. Then press the
shift lever button and move the shift
lever into the gear you wish.
If you ever hold the brake pedal down but
still can’t shift out of “P” (Park), try this:
1. Turn the key to ‘bOff.”
2. Apply and hold the brake until the end
3. Shift to “N” (Neutral).
4. Start the vehicle and then shift to the
drive gear
you want.
of Step 4.
5. Have the vehicle fixed as soon as you
can.
Parking Your Vehicle
(MANUAL TRANSMISSION)
Before you get out of your vehicle, put
your
manual transmission in “R”
(Reverse) and firmly apply the parking
brake.
If your vehicle is equipped to tow a trailer,
see “Towing a Trailer”
in the Index.
69 ...

Downloaded from www.Manualslib.com manuals search engine Features and Controls

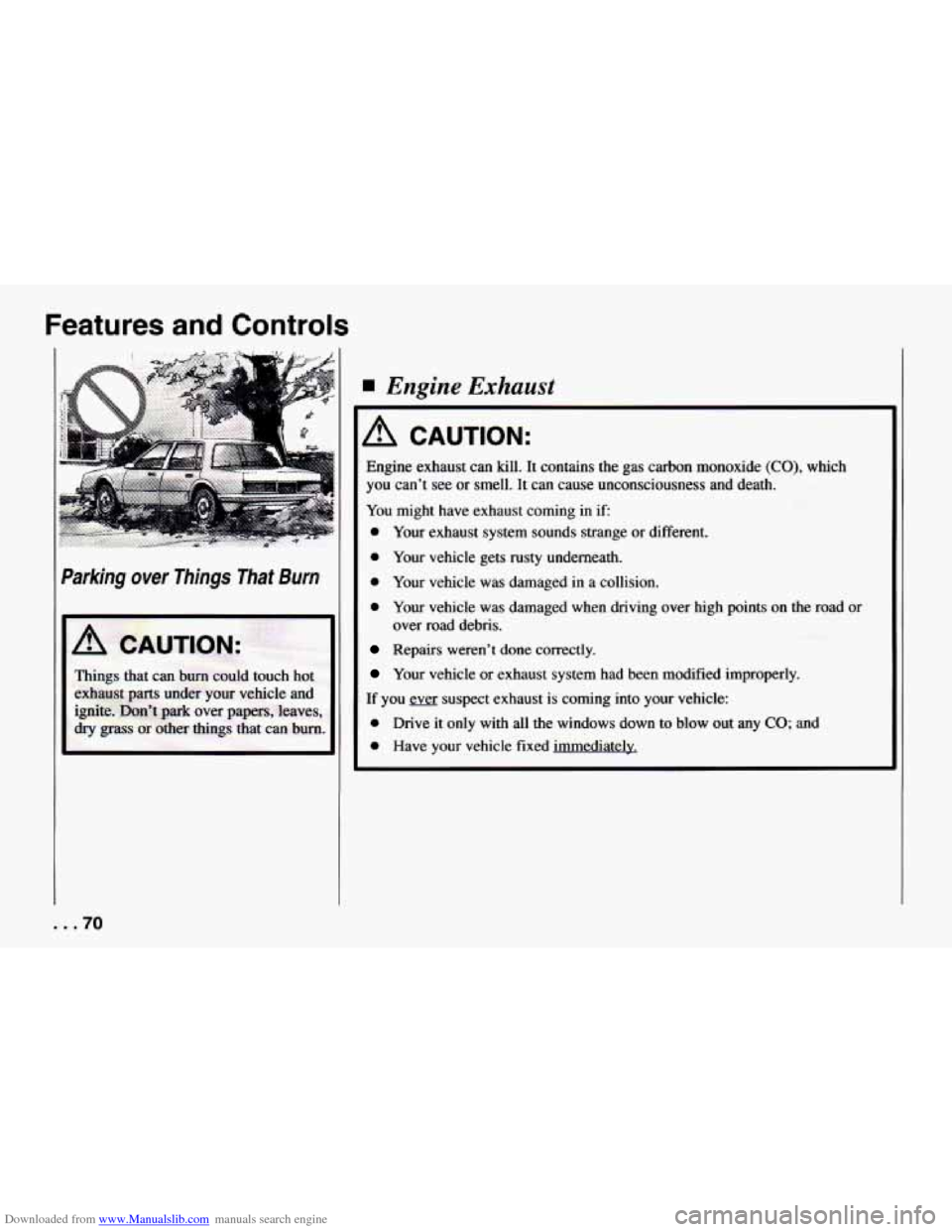

4 Engine Exhaust
Things that can burn could touch hot
exhaust
parts under yaw vehicle and
ignite, Don’t park over papers, leaves,
dry grass of other things th& can burn.
/? CAUTION:
Engine exhaust can kill. It contains the gas carbon monoxide (CO), which
you can’t see or smell. It can cause unconsciousness and death.
You might have exhaust coming in if:
0 Your exhaust system sounds strange or different.
0 Your vehicle gets rusty underneath.
0 Your vehicle was damaged in a collision.
0 Your vehicle was damaged when driving over high points on the road or
Repairs weren’t done correctly.
Your vehicle or exhaust system had been modified improperly.
If you ever suspect exhaust is coming into your vehicle:
0 Drive it only with all the windows down to blow out any CO; and
0 Have your vehicle fixed immediately. over road debris.
... 70

Downloaded from www.Manualslib.com manuals search engine Running Your Engine While You’re Parked

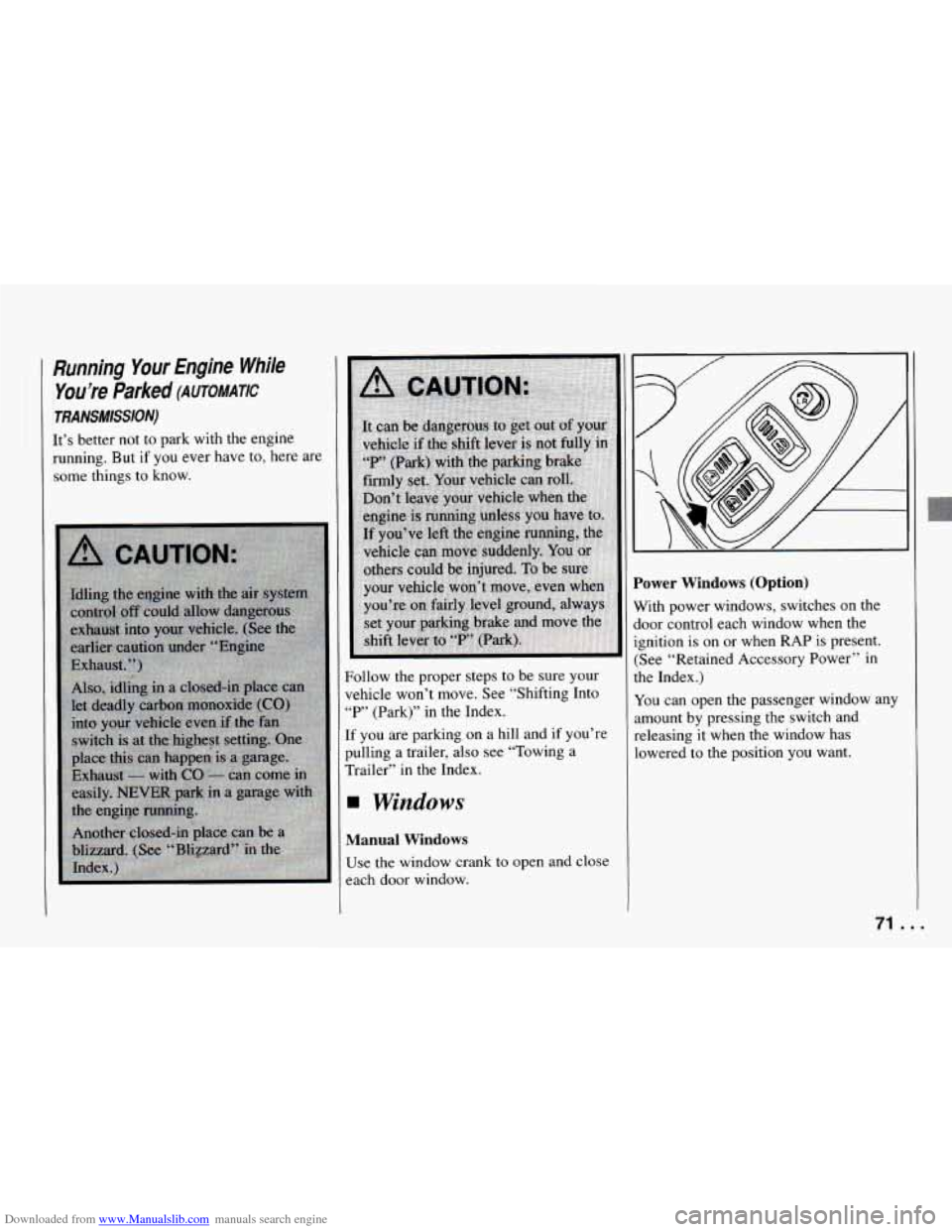

(AUTOMATIC
TRANSMISSION)
It’s better not to park with the engine
running. But if you ever have to, here are
some things to know.
Follow the proper steps to be sure your
vehicle won’t move. See “Shifting Into
“P’ (Park)” in the Index.
If
you are parking on a hill and if you’re
pulling a trailer, also see “Towing a
Trailer” in the Index.
Windows
Manual Windows
Use the window crank to open and close
each door window.
?ower Windows (Option)
Nith power windows, switches on the
loor control each window when the
gnition is
on or when RAP is present.
:See “Retained Accessory Power” in
he Index.)
Y‘ou can open the passenger window any
imount by pressing the switch and
-eleasing it when the window has
owered to the position you want.
74

Downloaded from www.Manualslib.com manuals search engine Features and Controls

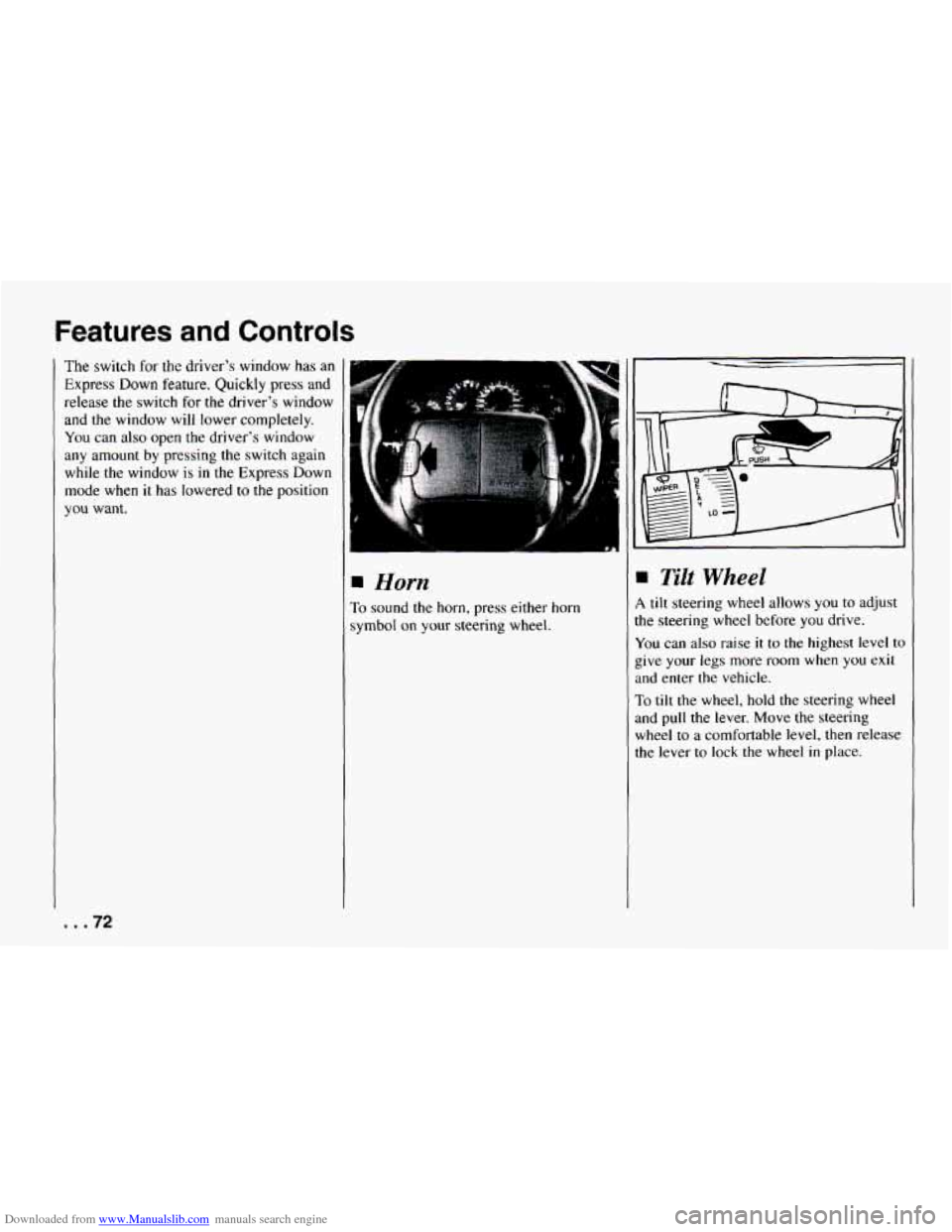

The switch for the driver's window has an
Express
Down feature. Quickly press and
release the switch for the driver's window
and the window will lower completely.
You can also open the driver's window
any amount by pressing the switch again
while the window is in the Express Down
mode when
it has lowered to the position
you want.
Horn
To sound the horn, press either horn
symbol
on your steering wheel.
Tilt Wheel
1 tilt steering wheel allows you to adjust
he steering wheel before you drive.
u'ou can also raise it to the highest level to
:ive
your legs more room when you exit
tnd enter the vehicle.
To tilt the wheel, hold the steering wheel
md
pull the lever. Move the steering
wheel to
a comfortable level, then release
he lever to lock the wheel
in place.
I .72

Downloaded from www.Manualslib.com manuals search engine The Turn
Signal’Headlight Beam
Lever
The lever on the left side of the steering
column includes your:
Turn Signal and Lane Change
0 Headlight HighLow Beam and
Passing Signal
0 Windshield Wipers
0 Windshield Washer
0 Cruise Control (Option)
Indicator
rurn Signal and Lane Change
hdicator
:he turn signal has two upward (for
tight) and two downward (for Left)
Iositions. These positions allow you to
ignal
a turn or a lane change.
To signal a turn, move the lever all the
vay
up or down. When the turn is
inished, the lever will return
utomatically.
L green arrow on the instrument panel
dl flash in the direction of the turn or
me change.
’0 signal a lane change, just raise or
3wer the lever
until the green arrow starts
3 flash. Hold it there until you complete
our lane change. The lever will return by
self when you release it.
LS you signal a turn or a lane change, if
le arrows don’t flash but just stay on, a
ignal bulb may be burned out and other
.rivers won’t see your turn signal.
fa bulb is burned out, replace
it to help
void an accident.
If the green arrows
lon’t go
on at all when you signal a turn,
heck
the fuse (see “Fuses” in the Index)
nd for burned-out bulbs.
/3...

Downloaded from www.Manualslib.com manuals search engine Features and Controls
-- a
feadlight HighLow Beam
’0 change the headlights from low beam
3 high or high to low, pull the turn signal
:ver all the way toward you.
Then
:lease it. When the high beams are on,
lis blue light on the instrument panel
Is0 will be on.
. .74
Windshield Wipers
You control the windshield wipers by
turning the band with the wiper symbol
on it.
For a single wiping cycle,
turn the band tc
“MIST.” Hold it there until the wipers
start, then let go. The wipers will stop
after one cycle. If you want more cycles,
hold the band on “MIST” longer.
You can set the wiper speed for a long or
short delay between wipes. This can be
very useful
in light rain or snow. Turn the
band to choose the delay time. The closer
to
“LO,” the shorter the delay. For
steady wiping at low speed, turn the
band away from you
to the “LO’ position.
For high speed wiping, turn the band
further, to
“HI.” To stop the wipers, move
the band to “OFF.”
Heavy snow or ice can overload your
wipers.
A circuit breaker will stop them
until the motor cools. Clear away snow
or
ice to prevent an overload.

Downloaded from www.Manualslib.com manuals search engine Windshield Washer
At the top of the turn signal lever there’s
a paddle with the word
“PUSH” on it. To
spray washer fluid on the windshield, just
push the paddle. The washer will continue
to spray until you release the paddle. The
wipers will clear the window and wipe a
few more times before stopping
or
returning to the previous setting.
In freezing weather, don’t use your
washer until the windshield is
warmed. Otherwise the washer fluid
can form ice on the windshield,
blocking your vision.
NOTICE:
e
e
0
e
When using concentrated washer
fluid, follow the manufacturer’s
instructions for adding water.
Don’t mix water with
ready-to-use washer fluid. Water
can cause the solution to freeze
and damage your washer fluid
tank and other parts of the washer
system. Also, water doesn’t clean
as well as washer fluid.
Fill your washer fluid tank only
314 full when it’s very cold. This
allows for expansion, which could
damage the tank
if it is completely
full.
Don’t use radiator antifreeze in
your windshield washer. It can
damage your washer system and
paint.
75. .

Downloaded from www.Manualslib.com manuals search engine Features and Controls

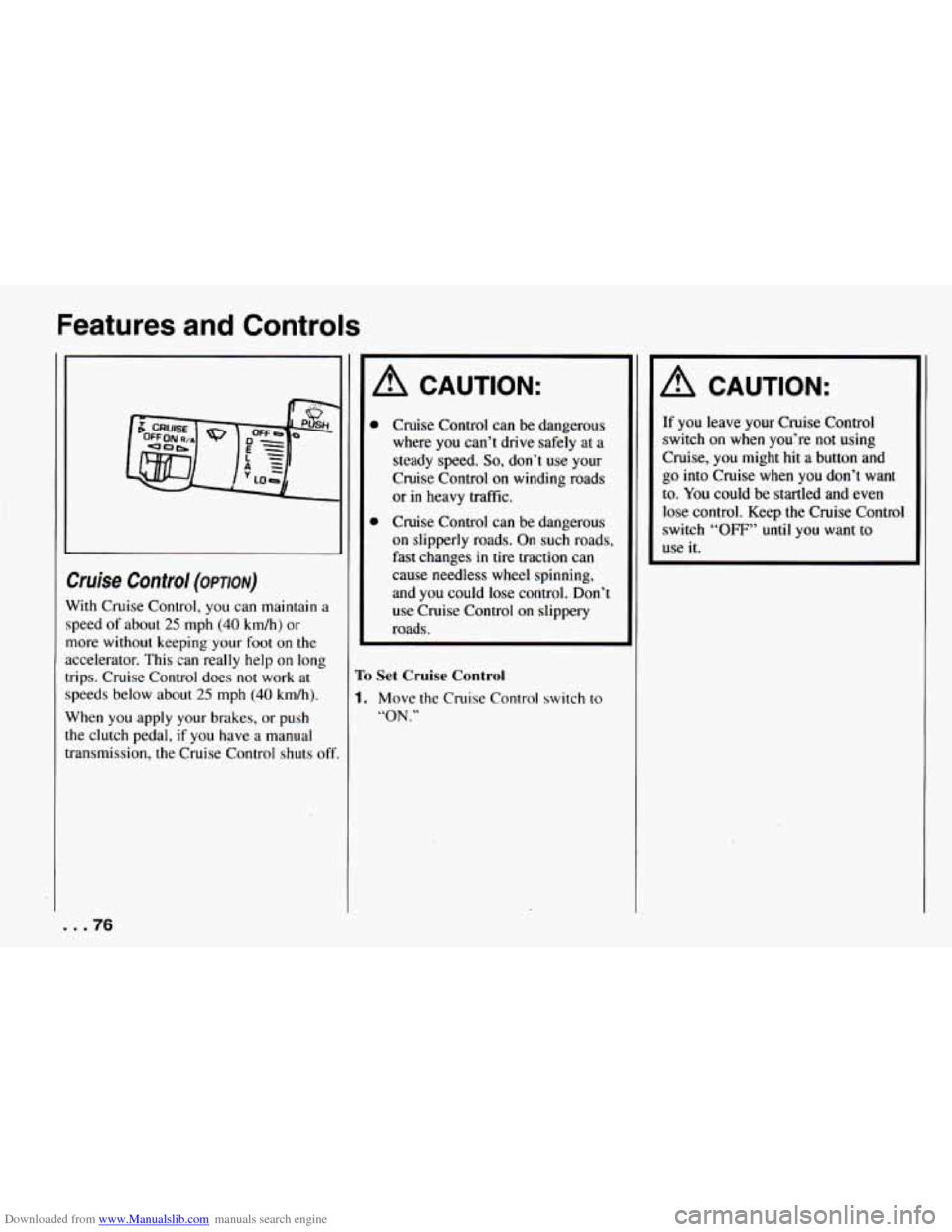

bise Control (OPTION)
Vith Cruise Control, you can maintain a
peed of about
25 mph (40 km/h) or
lore without keeping your foot on the
ccelerator. This can really help
on long
ips. Cruise Control does not work
at
peeds below about 25 mph (40 km/h).
Vhen you apply your brakes, or push
he clutch pedal,
if you have a manual
ransmission, the Cruise Control shuts
of
A CAUTION:
Cruise Control can be dangerous
where you can’t drive safely at a
steady speed.
So, don’t use your
Cruise Control on winding roads
or in heavy traffic.
Cruise Control can be dangerous
on slipperly roads. On such roads,
fast changes in tire traction can
cause needless wheel spinning,
and you could lose control. Don’t
use Cruise Control on slippery
roads.
To Set Cruise Control
1. Move the Cruise Control switch to
“ON.”
A CAUTION:
If you leave your Cruise Control
switch
on when you’re not using
Cruise,
you might hit a button and
go into Cruise when you don’t want
to. You could be startled and even
lose control. Keep the Cruise Control
switch
“OFF” until you want to
use it.
... 76

Downloaded from www.Manualslib.com manuals search engine I

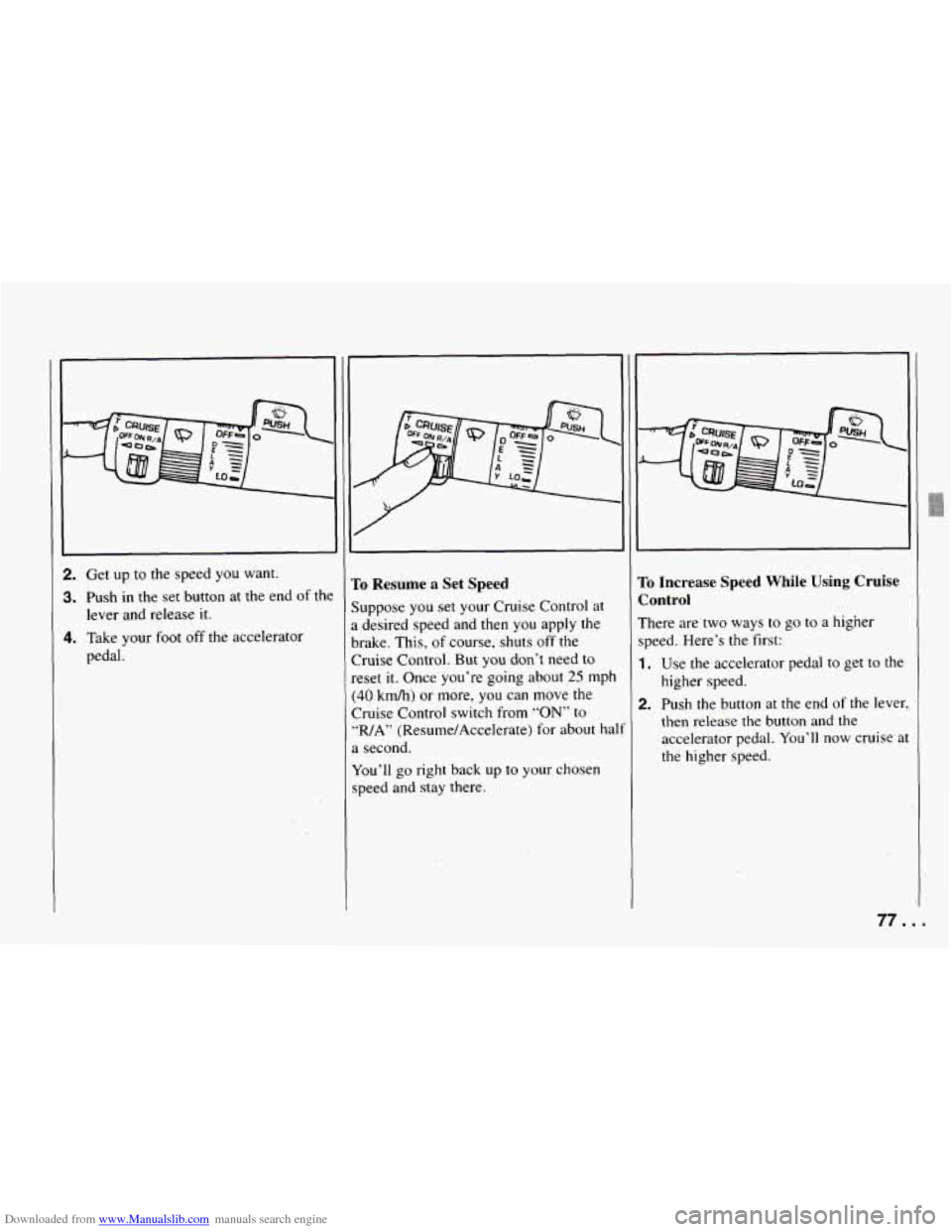

2. Get up to the speed you want.
3. Push in the set button at the end of the
4. Take your foot off the accelerator
lever and release
it.
pedal.
Po Resume
a Set Speed
suppose you set your Cruise Control at
I desired speed and then you apply the
)rake.
This, of course, shuts off the
Iruise Control. But you don’t need to
‘eset it. Once you’re
going about 25 mph
40 km/h) or more, you can move the
3uise Control switch from
“ON” to
‘WA” (Resume/Accelerate) for about half
1 second.
fou’II go right back
up to your chosen
speed and stay there.
ro Increase Speed While Using Cruise
Zontrol
rhere are two ways to go to a higner
;peed. Here’s the first:
1.
2.
Use the accelerator pedal to get to the
higher speed.
Push the button at the end of
the lever,
then release the button and the
accelerator pedal.
You’ll now cruise at
the higher speed.
77.. .

Downloaded from www.Manualslib.com manuals search engine Features and Controls
I

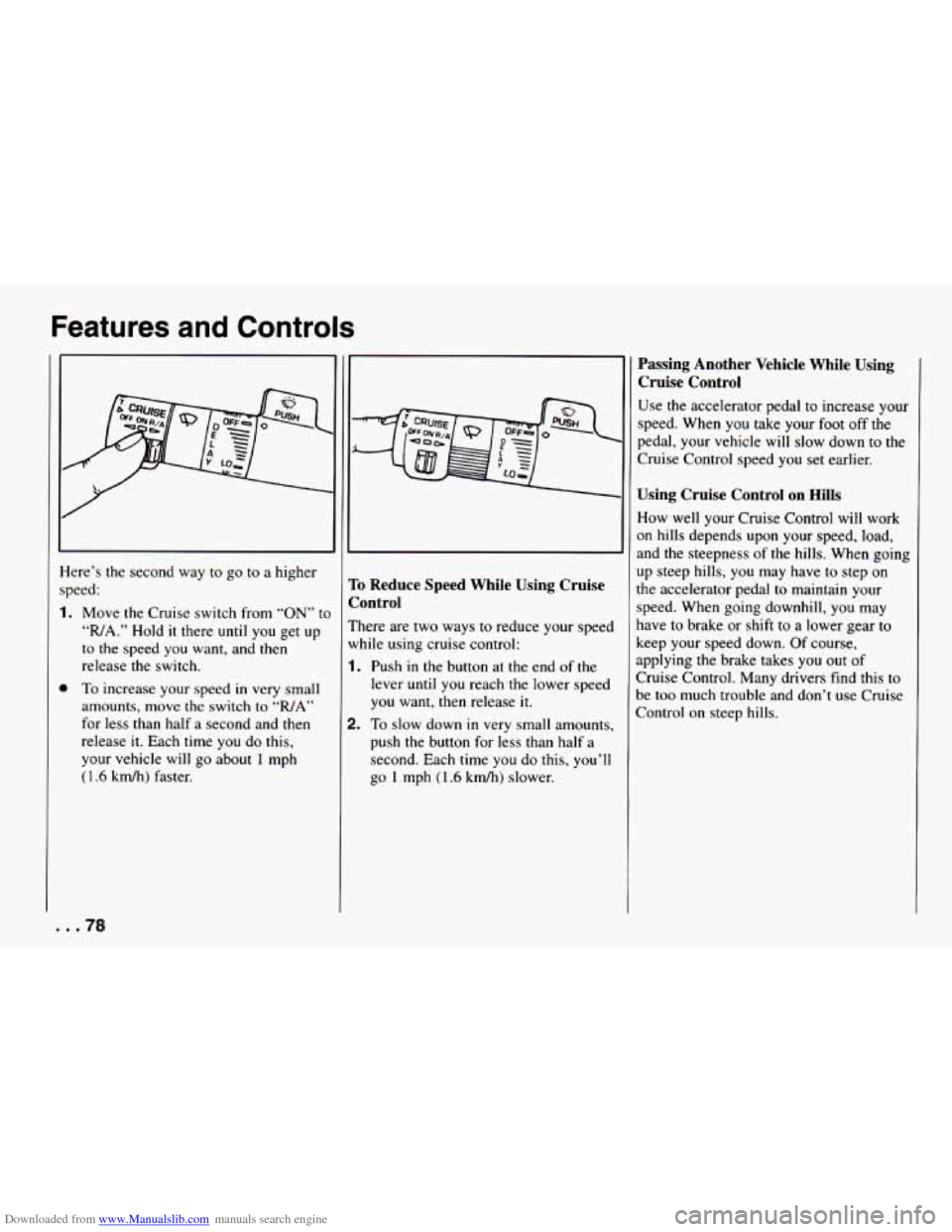

lere’s the second way to go to a higher
peed:
Move
the Cruise switch from “ON” to
“R/A.” Hold it there until you get up
to the speed you want, and then
release the switch.
To increase your speed in very small
amounts, move the switch to
“WA”
for less than half a second and then
release
it. Each time you do this,
your vehicle
will go about 1 mph
(1.6 km/h) faster.
. .78
To Reduce Speed While Using Cruise
Control
There are two ways to reduce your speed
while using cruise control:
1.
2.
Push in the button at the end of the
lever until you reach the lower speed
you want, then release it.
To slow down in very small amounts,
push the button for
less than half a
second. Each time you do this, you’ll
go
1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your
speed. When you take your foot off
the
pedal, your vehicle will slow down to the
Cruise Control speed you set earlier.
Using Cruise Control on Hills
How well your Cruise Control will work
on hills depends upon your speed, load,
and the steepness of the hills. When going
up steep hills, you may have to step on
the accelerator pedal to maintain your
speed. When going downhill, you may
have to brake or shift to a lower gear to
keep your speed down. Of course,
applying the brake takes you out
of
Cruise Control. Many drivers find this to
be too much trouble and don’t use Cruise
Control on steep hills.
