CHEVROLET CAMARO 1994 4.G Owners Manual

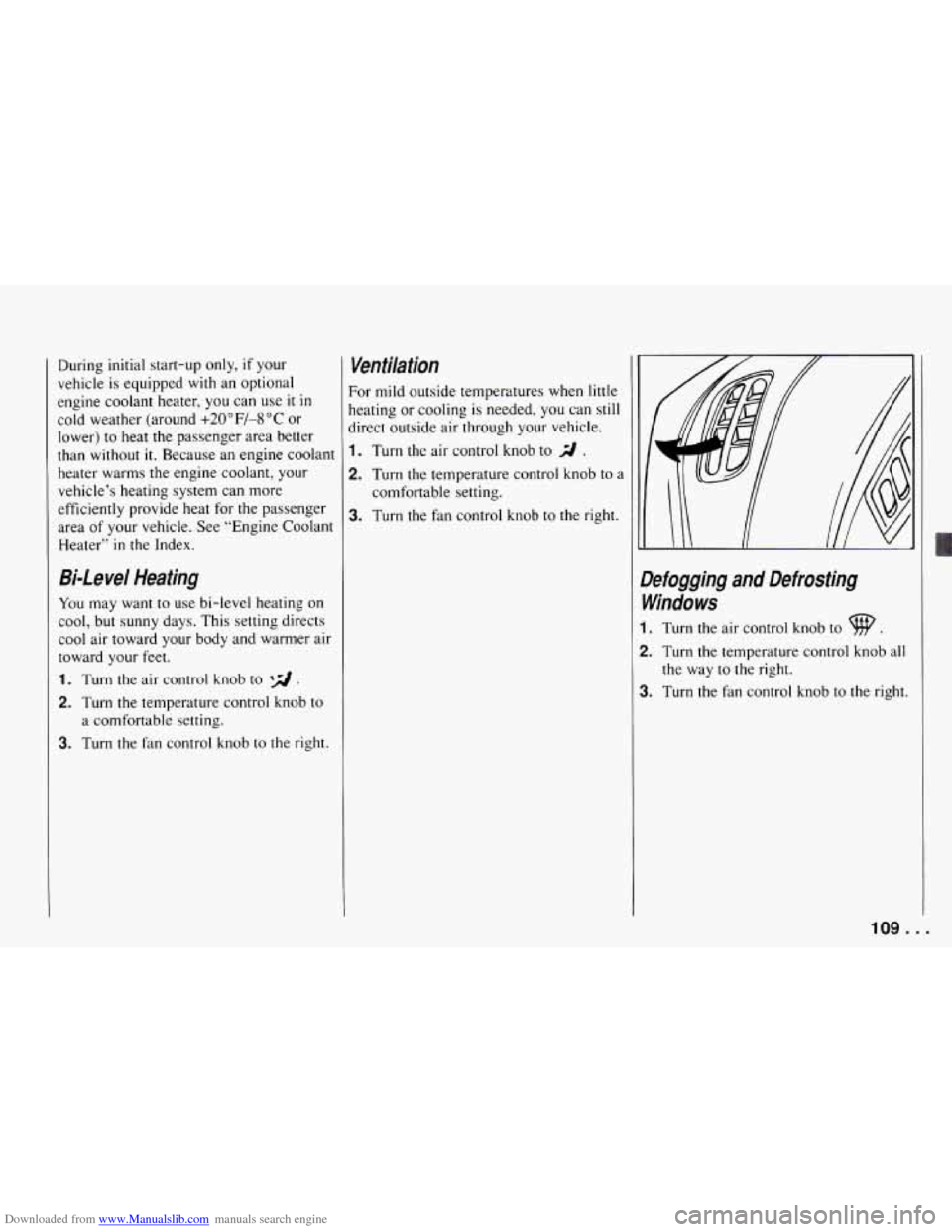

Downloaded from www.Manualslib.com manuals search engine During initial start-up only, if your
vehicle is equipped with an optional
engine coolant heater, you can
use it in
cold weather (around +2OoF/-8”C or
lower) to heat the passenger area better
than without
it. Because an engine coolant
heater warms the engine coolant, your
vehicle’s heating system can more
efficiently provide heat for the passenger
area of your vehicle. See “Engine Coolant
Heater’’
in the Index.
Bi-Level Heating
You may want to use bi-level heating on
cool, but sunny days. This setting directs
cool air toward
your body and warmer air
toward your feet.
1. Turn the air control knob to *g .
2. Turn the temperature control knob to
3. Turn the fan control knob to the right.
a comfortable setting.
Ventilation
For mild outside temperatures when little
neating or cooling is needed, you can still
iirect outside air through your vehicle.
1. Turn the air control knob to 9 .
2. Turn the temperature control knob to a
3. Turn the fan control knob to the right.
comfortable setting.
7efogging and Defrosting
Nindo
ws
. Turn the air control knob to 9.
!. Turn the temperature control knob all
1. Turn the fan control knob to the right.
the
way to
the right.
109. I

Downloaded from www.Manualslib.com manuals search engine Comfort Controls and Audio Systems

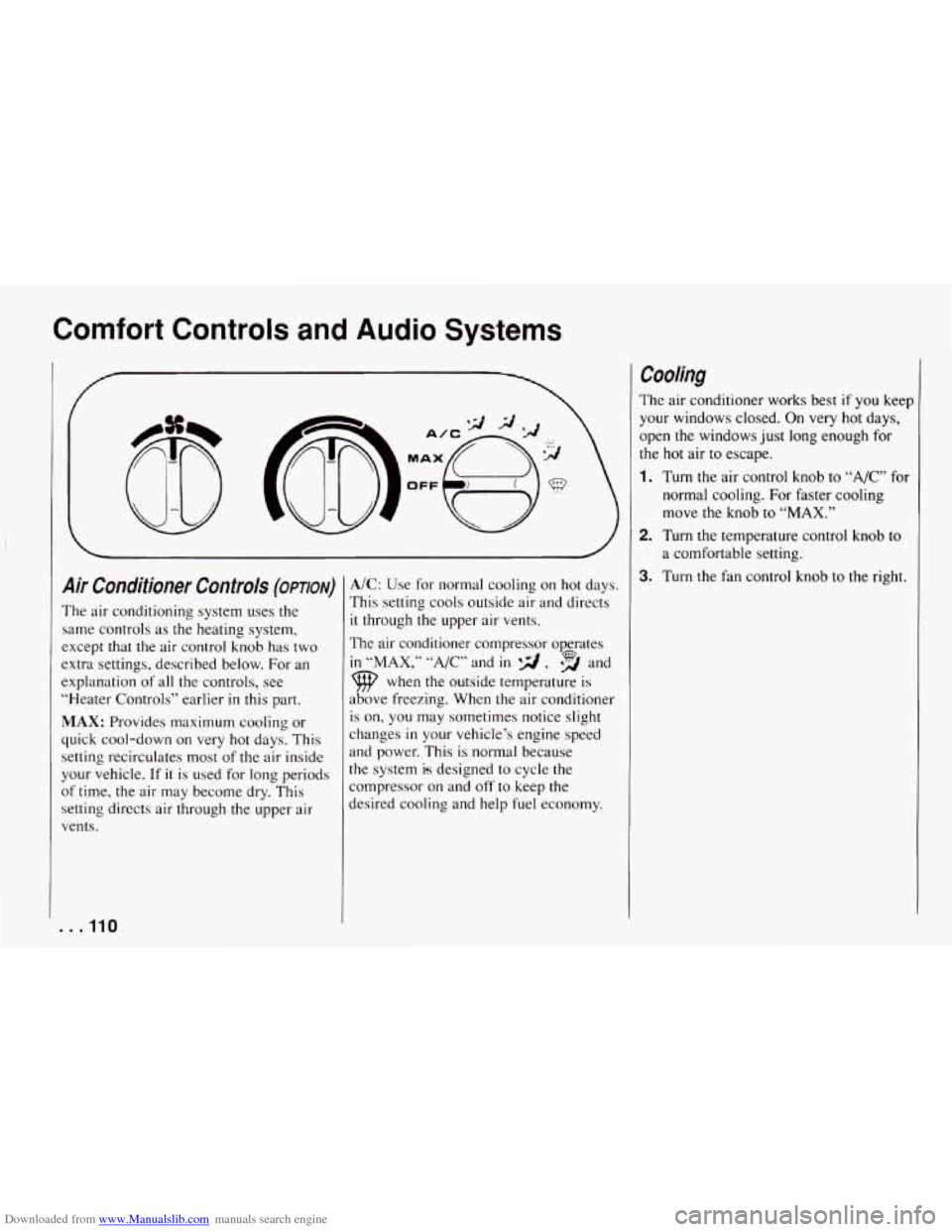

Air Conditioner Controls (OPTION)
The air conditioning system uses the
same controls as the heating system,
except that the air control knob has two
extra settings, described below. For an
explanation of all
the controls, see
“Heater Controls” earlier
in this part.
MAX: Provides maximum cooling or
quick cool-down
on very hot days. This
setting recirculates most
of the air inside
your vehicle. If
it is used for long periods
of time, the air may become dry. This
setting directs
air through the upper air
vents.
. . ,110
A/C: Use for normal cooling on hot days.
This setting cools outside air and directs
it through the upper air vents,
The air conditioner compressor operates
in “MAX,” “A/C” and in qd , *% and
9 when the outside temperature is
above freezing. When the air conditioner
is on, you
may sometimes notice slight
changes
in your vehicle’s engine speed
and power. This is normal because
the system
is designed to cycle the
compressor on and off to keep the
desired cooling
and help fuel economy.
Cooling
The air conditioner works best if you keep
your windows closed. On very hot
days,
open the windows just long enough for
the hot air to escape.
1. Turn the air control knob to “A/C” for
normal cooling. For faster cooling
move the knob to
“MAX.”
2. Turn the temperature control knob to
a comfortable setting.
3. Turn the fan control knob to the right.

Downloaded from www.Manualslib.com manuals search engine 000~010 I

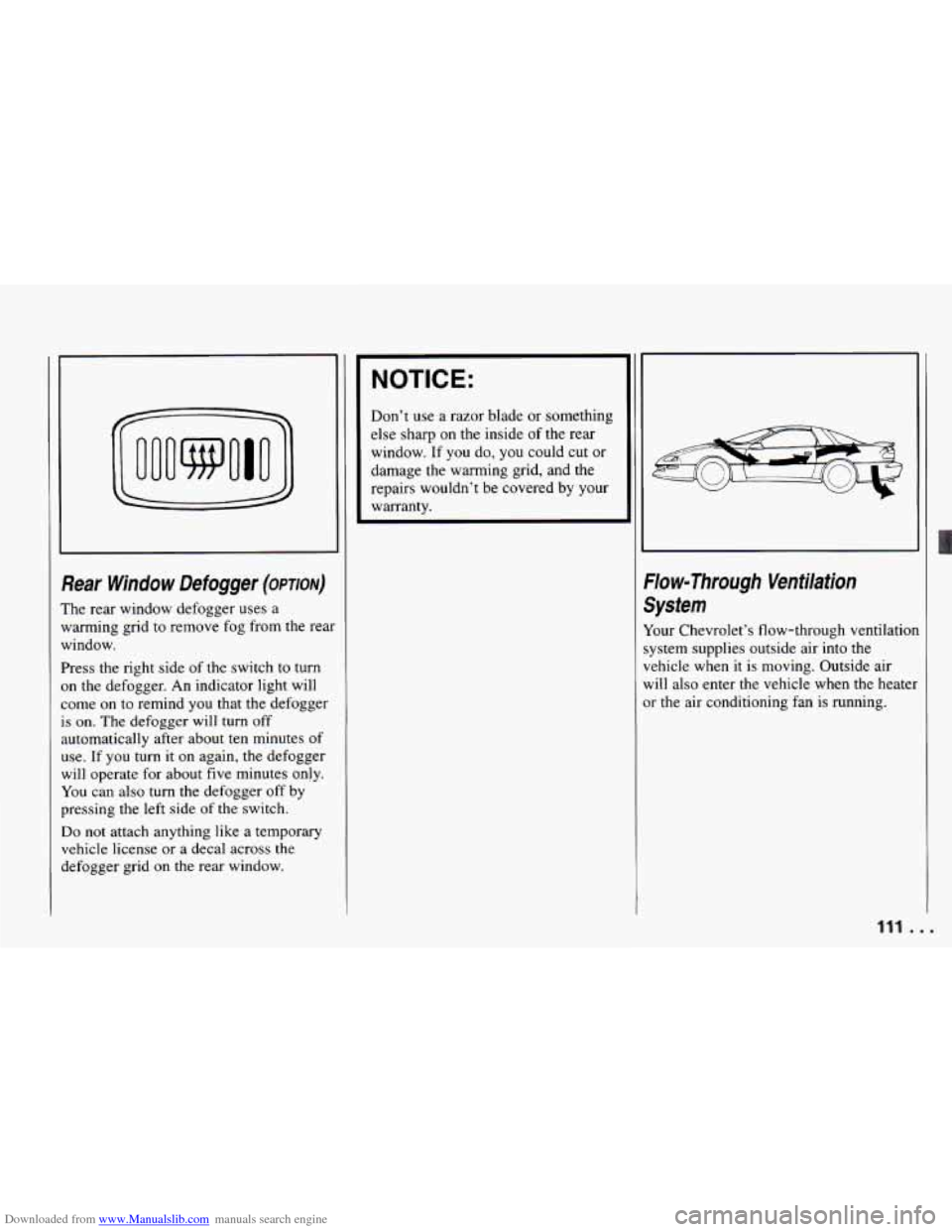

Rear Window Defogger (opnoN)
The rear window defogger uses a
warming grid to remove fog from the rear
window.
Press the right side of the switch to turn
on the defogger. An indicator light will
come on to remind you that the defogger
is on. The defogger will turn off
automatically after about ten minutes of
use. If you turn it on again, the defogger
will operate for about five minutes only.
You can also
turn the defogger off by
pressing the left side
of the switch.
Do not attach anything like a temporary
vehicle license or a decal across
the
defogger grid on the rear window.
NOTICE:
Don’t use a razor blade or something
else sharp on the inside of the rear
window. If you do, you could cut or
damage the warming grid, and the
repairs wouldn’t be covered by your
warranty.
:/ow-Through Ventilation ;ystem
lour Chevrolet’s flow-through ventilatiol
ystem supplies outside air into the
ehicle when
it is moving. Outside air
vlill also enter the vehicle when the heatel
lr the air conditioning fan is running.
1
r
111.. .

Downloaded from www.Manualslib.com manuals search engine Comfort Controls and Audio Systems

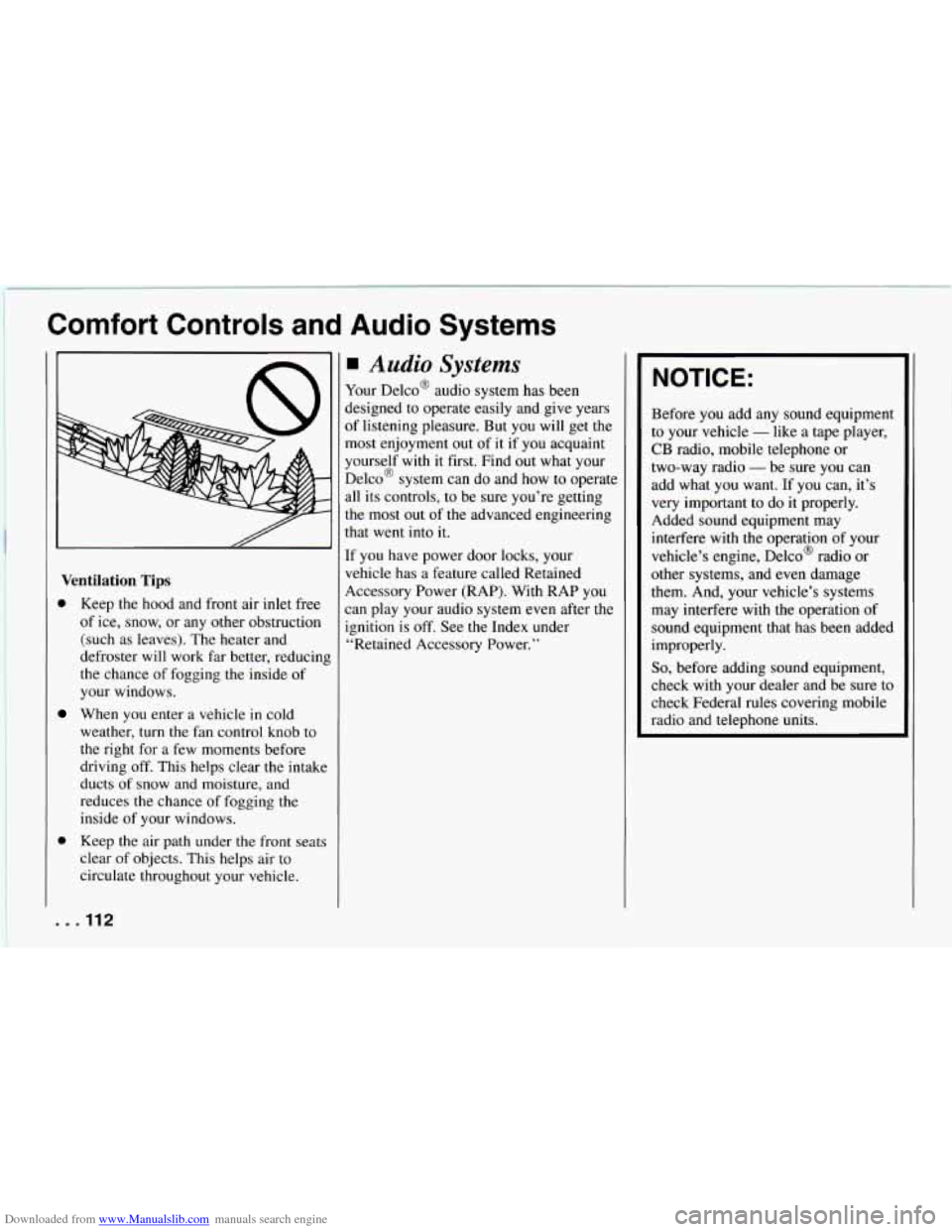

Ventilation Tips
D Keep the hood and front air inlet free
of ice, snow, or any other obstruction
(such as leaves). The heater and
defroster will work far better, reducin
the chance of fogging the inside of
your windows.
When
you enter a vehicle in cold
weather, turn the fan control knob to
the right for a few moments before
driving off. This helps clear the intakc
ducts of snow and moisture, and
reduces the chance of fogging the
inside of your windows.
Keep the air path under the front seat:
clear of objects. This helps air to
circulate throughout your vehicle.
.I12
I‘
Audio Systems
Your Delco@ audio system has been
jesigned to operate easily and give years
If listening pleasure. But you will get the
nost enjoyment out of
it if you acquaint
yourself
with it first. Find out what your
Delco@ system can do and how to operate
111 its controls, to be sure you’re getting
:he most out
of the advanced engineering
.hat went into
it.
:f you have power door locks, your
qehicle has a feature called Retained
4ccessory Power (RAP). With RAP you
:an
play your audio system even after the
ignition
is off. See the Index under
“Retained Accessory Power.”
NOTICE:
Before you add any sound equipment
to your vehicle
- like a tape player,
CB radio, mobile telephone or
two-way radio
- be sure you can
add what you want. If you can, it’s
very important
to do it properly.
Added sound equipment may
interfere with the operation of your
vehicle’s engine, Delco@ radio or
other systems, and even damage
them. And, your vehicle’s systems
may interfere with the operation
of
sound equipment that has been added
improperly.
So, before adding sound equipment,
check with your dealer and be sure to
check Federal rules covering mobile
radio and telephone units.

Downloaded from www.Manualslib.com manuals search engine I Setting the Clock

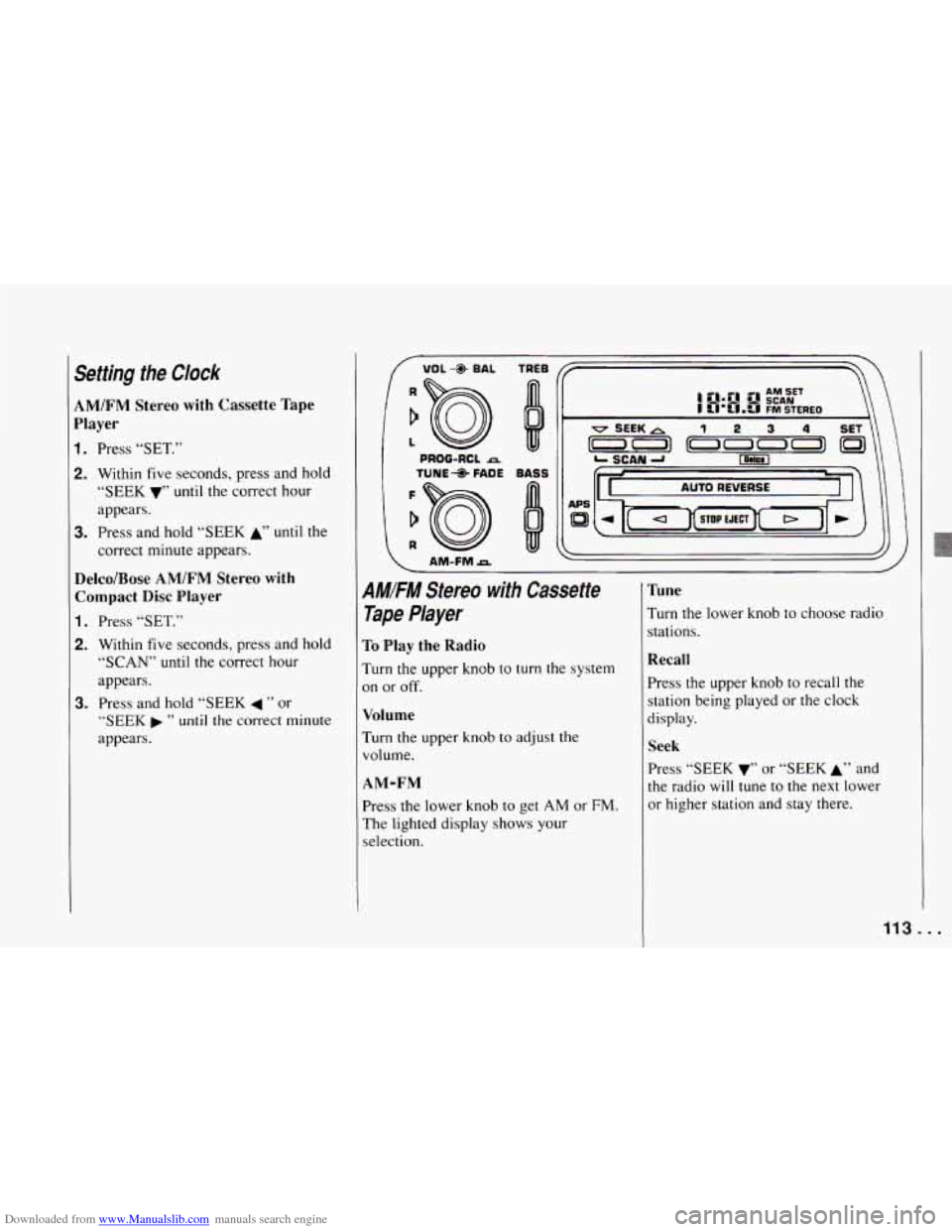

AM/FM Stereo with Cassette Tape
Player
1. Press “SET.”
2. Within five seconds, press and hold
“SEEK
V’’ until the correct hour
appears.
3. Press and hold “SEEK A’’ until the
correct minute appears.
Delco/Bose AM/FM Stereo with Compact Disc Player
1. Press “SET.”
2. Within five seconds, press and hold
“SCAN” until the correct hour
appears.
“SEEK ” until the correct minute
appears.
3. Press and hold “SEEK 4 ” or
I
/ VOL- BAL TREE
PROG-RCL A
1 TUNE- FADE BASS
AM-FMA
\
AMIFM Stereo with Cassette
Tape Player
To Play the Radio
Turn the upper knob to turn the system
on or off.
Volume
Turn the upper knob to adjust the
volume.
AM-FM
Press the lower knob to get AM or FM.
The lighted display shows your
selection.
Tune
Turn the lower knob to choose radio
stations.
Recall
Press the upper knob to recall the
station being played or the clock
display.
Seek
Press “SEEK 7’’ or “SEEK A’7 and
the radio
will tune to the next lower
or higher station and stay there.
113 ...

Downloaded from www.Manualslib.com manuals search engine Comfort Controls and Audio Systems
/- VOLUME TREB
PROG-RCL P
TUNE -3 FADE BASS
\
V SEEK P I 234 SET
[II] [OOOO]
AM-FM n

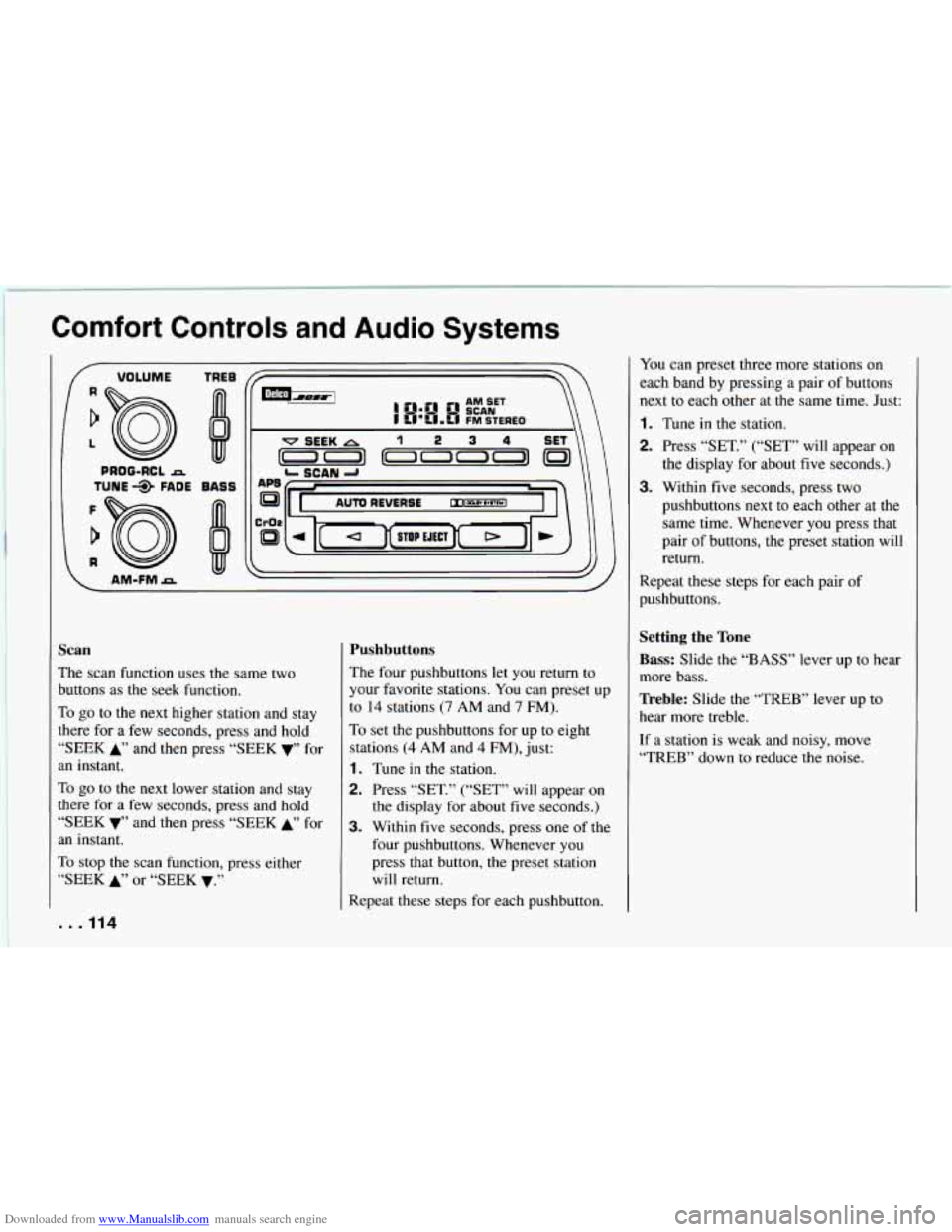

Scan
The scan function uses the same two
buttons as the seek function.
To
go to the next higher station and stay
there for a few seconds, press and hold
“SEEK
A’’ and then press “SEEK 7” for
an instant.
To go to the next lower station and stay
there for a few seconds, press and hold
“SEEK
7’’ and then press “SEEK A’’ for
an instant.
To stop the scan function, press either
“SEEK
A’’ or “SEEK v.”
Pushbuttons
The four pushbuttons let you return to
your favorite stations.
You can preset up
to 14 stations (7 AM and 7 FM).
To set the pushbuttons for up to eight
stations
(4 AM and 4 FM), just:
1. Tune in the station.
2. Press “SET.” (“SET” will appear on
the display for about five seconds.)
3. Within five seconds, press one of the
four pushbuttons. Whenever
you
press that button, the preset station
will return.
Repeat these steps for each pushbutton.
You can preset three mor e stations on
each band
by pressing a pair of buttons
next to each other at the same time. Just:
1. Tune in the station.
2. Press “SET.” (“SET” will appear on
3. Within five seconds, press two
the
display for about five seconds.)
pushbuttons next to each other at the
I1
same time. Whenever you press that
pair of buttons, the preset station wil
return.
Repeat these steps for each pair of
pushbuttons.
Setting the Tone
Bass: Slide the “BASS” levkfup to hear
more bass.
Treble: Slide the “TREB” lever up to
hear more treble.
If a station
is weak and noisy, move
“TREB” down to reduce the noise.
. . .114

Downloaded from www.Manualslib.com manuals search engine I

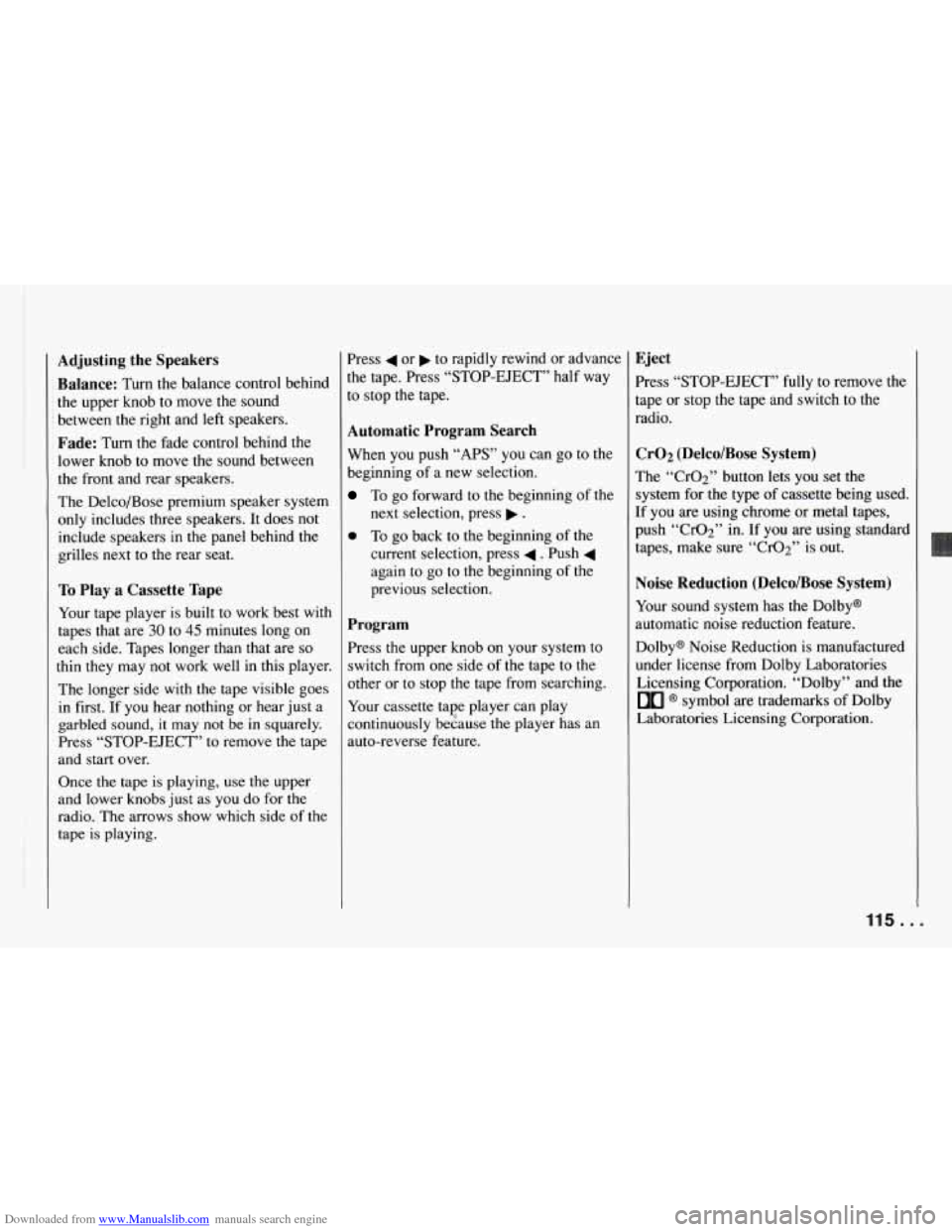

Adjusting the Speakers
Balance:
Turn the balance control behind
the upper knob to move the sound
between the right and left speakers.
Fade: Turn the fade control behind the
lower knob to move the sound between
the front and rear speakers.
The Delco/Bose premium speaker system
only includes three speakers. It does not
include speakers in the panel behind the
grilles
next to the rear seat.
To Play a Cassette Tape
Your tape player is built to work best with
tapes that are 30 to 45 minutes long on
each side. Tapes longer than that are
so
thin they may not work well in this player.
The longer side with the tape visible goes
in first. If you hear nothing or hear just a
garbled
sound, it may not be in squarely.
Press “STOP-EJECT” to remove the tape
and start over.
Once the tape is playing, use the upper
and lower knobs just as you do for the
radio. The arrows show which side of the
tape
is playing. Press
4 or b to
rapidly rewind or advance
the tape. Press “STOP-EJECT” half way
to stop the tape.
Automatic Program Search
When you push “APS” you can go to the
beginning of a new selection.
To go forward to the beginning of the
next selection, press
b .
0 To go back to the beginning of the
current selection, press
4 . Push 4
again to go to the beginning of the
previous selection.
Program
Press the upper knob on your system to
switch from one side of the tape to the
other or to stop the tape from searching.
Your cassette tape player can play
continuously be&use the player has an
auto-reverse feature.
Eject
Press “STOP-EJECT” fully to remove the
tape or stop the tape and switch to the
radio.
CrO2 (Delco/Bose System)
The “CrO2” button lets you set the
system for the type of cassette being used.
If you are using chrome or metal tapes,
push “CrO2” in. If you are using standard
tapes, make sure “CrO2” is out.
Noise Reduction (Delco/Bose System)
Your sound system has the Dolby@
automatic noise reduction feature.
Dolby@ Noise Reduction is manufactured
under license from Dolby Laboratories
Licensing Corporation. “Dolby” and the
00 @ symbol are trademarks of Dolby
Laboratories Licensing Corporation.
115.. .

Downloaded from www.Manualslib.com manuals search engine Comfort Controls and Audio Systems

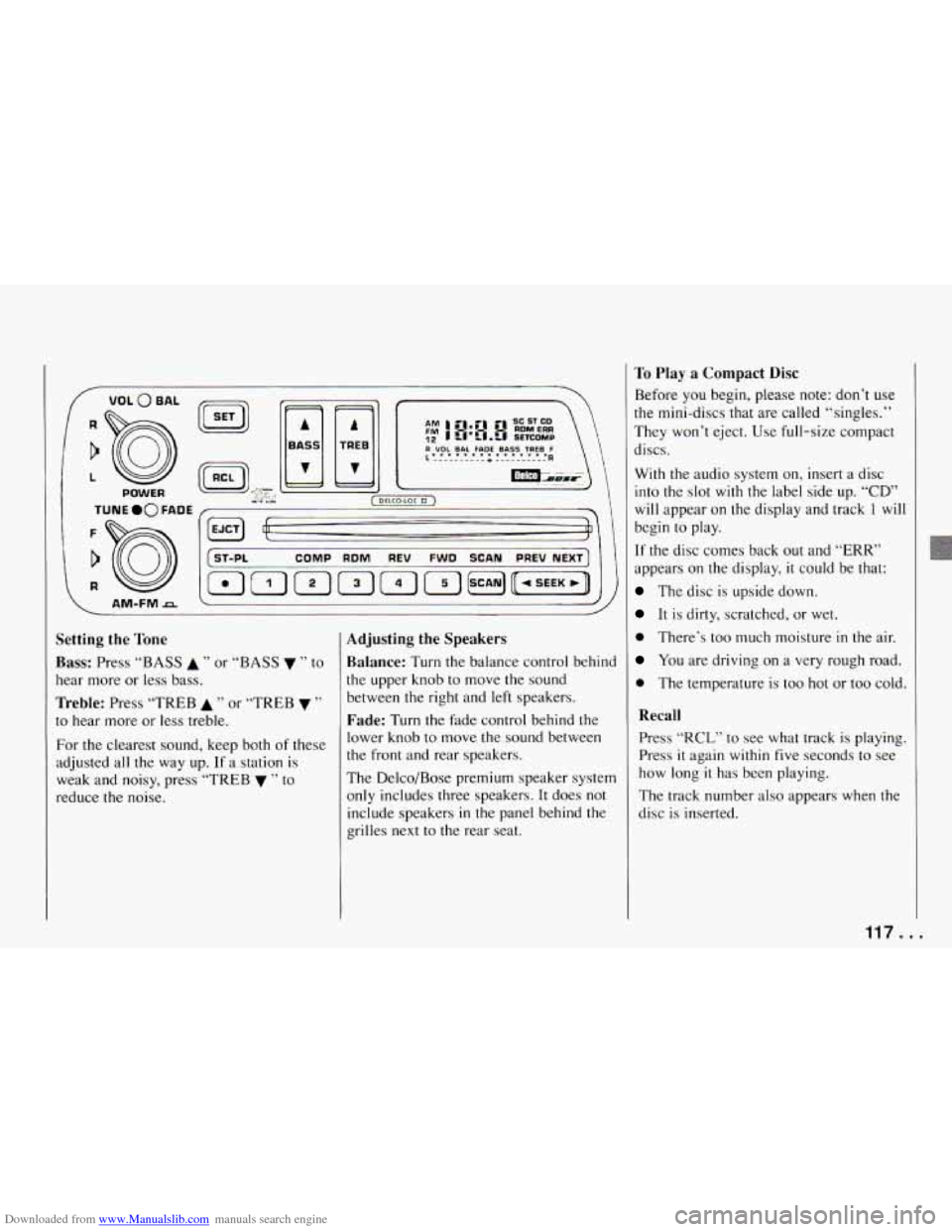

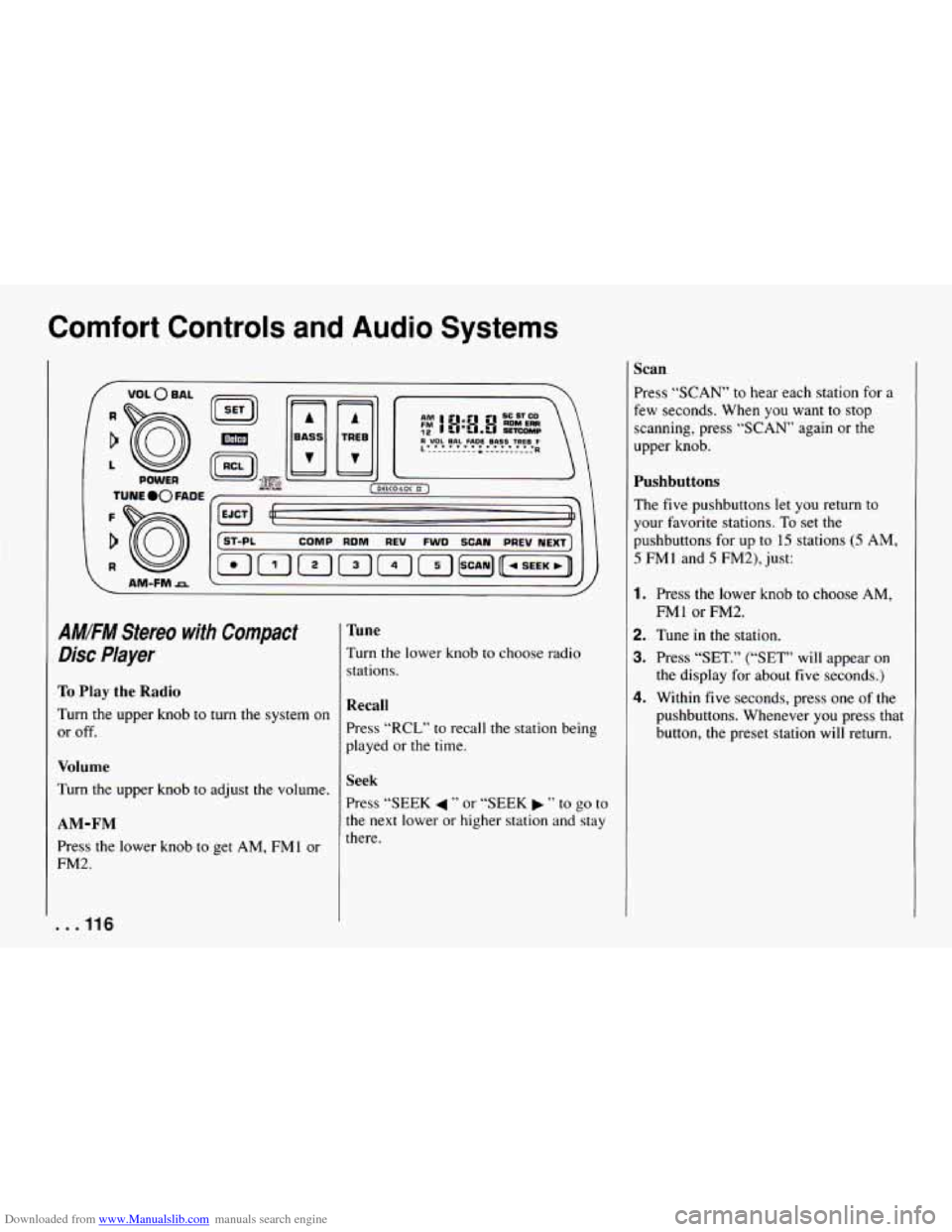

[ VOLOBAL
POWER
1 TUNE 00 FADE
F
D
R
‘c AM-FM a
COMP RDM REV FWD SCAN PREV NEXT
AM!FM Stereo with Compact
Disc Player
To Play the Radio
Turn the upper knob to turn the system on
or off.
Volume
Turn the upper knob to adjust the volume.
AM-FM
Press the lower knob to get AM, FMl or
FM2.
. . . 116
Tune
Turn the lower knob to choose radio
stations.
Recall
Press “RCL” to reca .I1 the station being
played or the time.
Seek
Press “SEEK 4 ” or “SEEK ” to go to
the next lower
or higher station and stay
there.
Scan
Press “SCAN’ to hear each station for a
few seconds. When you want to stop
scanning, press “SCAN’ again or the
upper knob.
Pushbuttons
The five pushbuttons let you return to
your favorite stations.
To set the
pushbuttons for up to
15 stations (5 AM,
5 FMl and 5 FM2), just:
1. Press the lower knob to choose AM,
2. Tune in the station.
3. Press “SET.” (“SET” will appear on
the display for about five seconds.)
4. Within five seconds, press one of the
pushbuttons. Whenever you press that
button, the preset station
will return.
FMl or FM2.

Downloaded from www.Manualslib.com manuals search engine POWER
AM-FMrz
f ST-PL COMP RDM REV FWD SCAN PREV NEXT^
Setting the Tone
Bass: Press “BASS A ” or “BASS v ’’ to
hear more or less bass.
Treble: Press “TREB A ” or “TREB v ”
to hear more or less treble.
For the clearest sound, keep both of these
adjusted all the way up. If
a station is
weak and noisy, press “TREB
v ” to
reduce the noise.
Adjusting the Speakers
Balance:
Turn the balance control behind
the upper knob to move the sound
between the right and left speakers.
Fade: Turn the Fade control behind the
lower knob to move the sound between
the front and rear speakers.
The Delco/Bose premium speaker system
only includes three speakers. It does not
include speakers
in the panel behind the
grilles next to the rear seat.
To Play a Compact Disc
Before you begin, please note: don’t use
the mini-discs that are called “singles.”
They won’t eject.
Use full-size compact
discs.
With the audio system on, insert a disc
into the slot
with the label side up. “CD”
will appear on the display and track 1 wil
begin to play.
If the disc comes back out and “ERR”
appears on the display, it could be that:
The disc is upside down.
It is dirty, scratched, or wet.
0 There’s too much moisture in the air.
You are driving on a very rough road.
0 The temperature is too hot or too cold.
Recall
Press “RCL” to see what track is playing.
Press
it again within five seconds to see
how long
it has been playing.
The track number also appears when the
disc is inserted.

Downloaded from www.Manualslib.com manuals search engine Comfort Controls and Audio Systems

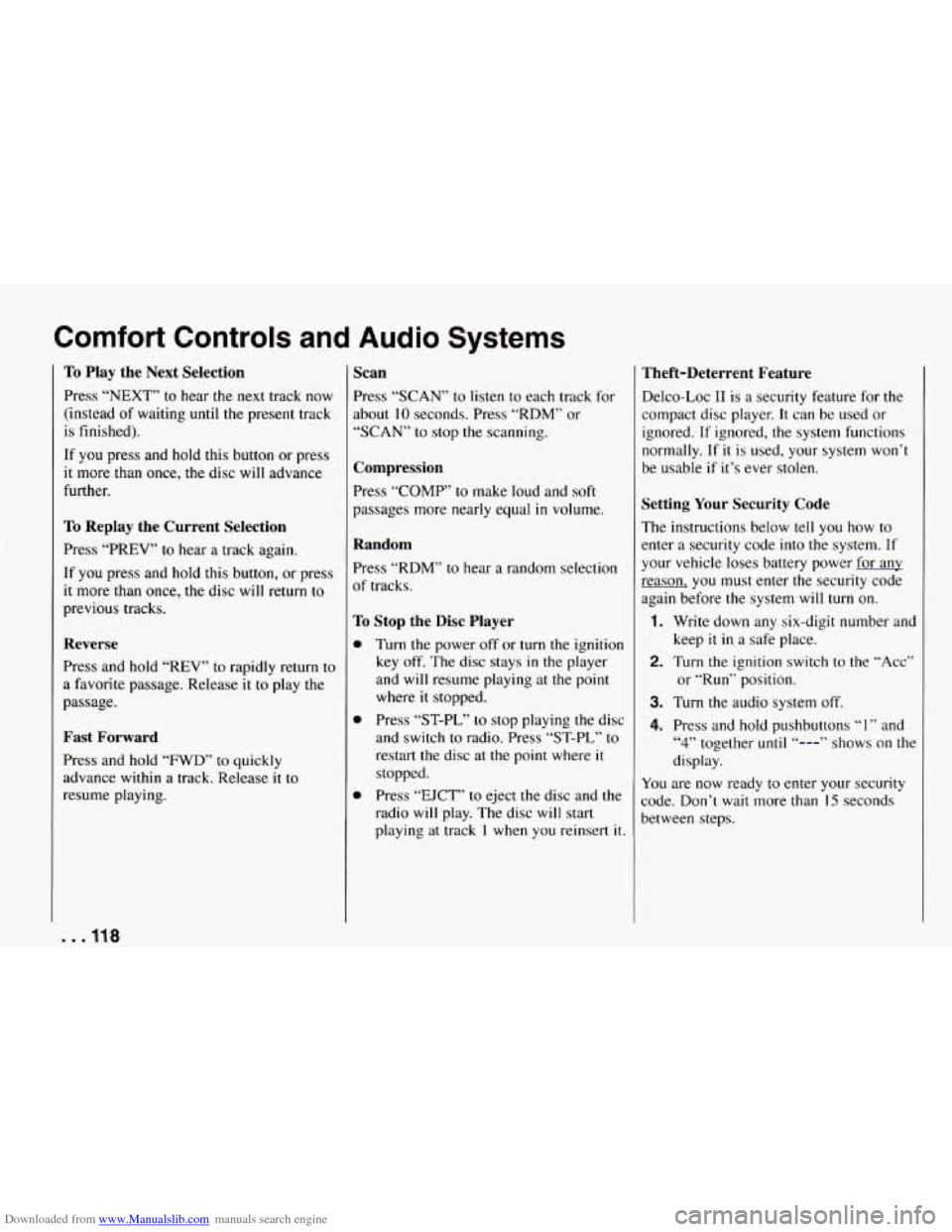

To Play the Next Selection
Press “NEXT” to hear the next track now
(instead of waiting until
the present track
is finished).
If you press and hold this button or press
it more than once, the disc will advance
further.
To Replay the Current Selection
Press “PREV” to hear a track again.
If you press and hold this button, or press
it more than once, the disc will return to
previous tracks.
Reverse
Press and hold “REV” to rapidly return to
a favorite passage. Release
it to play the
passage.
Fast Forward
Press and hold “FWD’ to quickly
advance within
a track. Release it to
resume playing.
Scan
Press “SCAN” to listen to each track for
about
10 seconds. Press “RDM” or
“SCAN” to stop the scanning.
Compression
Press “COMP’ to make loud and soft
passages more nearly equal
in volume.
Random
Press “RDM” to hear a random selection
of tracks.
To Stop the Disc Player
0
0
0
Turn the power off or turn the ignition
key off. The disc stays
in the player
and will resume playing at the point
where
it stopped.
Press “ST-PL” to stop playing the disc
and switch to radio. Press “ST-PL,” to
restart
the disc at the point where it
stopped.
Press “EJCT” to eject the disc and the
radio
will play. The disc will start
playing
at track 1 when you reinsert it.
Theft-Deterrent Feature
Delco-Loc I1 is a security feature for the
compact disc player.
It can be used or
ignored. If ignored, the system functions
normally. If
it is used, your system won’t
be usable
if it’s ever stolen.
Setting Your Security Code
The instructions below tell you how to
enter a security code into the system. If
your vehicle loses battery power for
any
reason, you must enter the security code
again before the system
will turn on.
1. Write down any six-digit number and
2. Turn the ignition switch to the “Acc”
3. Turn the audio system off.
4. Press and hold pushbuttons “1” and
keep
it in a
safe place.
or
“Run” position.
“4” together until “---” shows on the
display.
You are now ready to enter your security
code. Don’t wait more than
15 seconds
between steps.
. . .118
